Expo 8.8 swap!

Needing a new rear end, I went and got myself an Expo 8.8 with disc brakes. Got meself an L/S diff! Brad, you said good luck finding a 4.10 Expo at Harry's? I saw over a dozen of them lol. So here begins my swap!

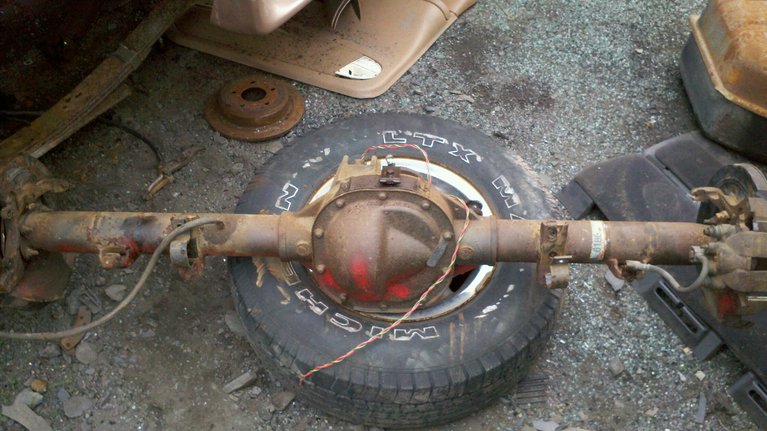

Looked around, found this axle.




The red is there for the cashier to see that it's a 4x4 rear.

And thanks to my buddy for letting me borrow his sawzall, I got it out pretty damn easy! Got the calipers too. I have some new pads and rotors on order for next weekend, and gonna order up some leaf perches and shock mounts.

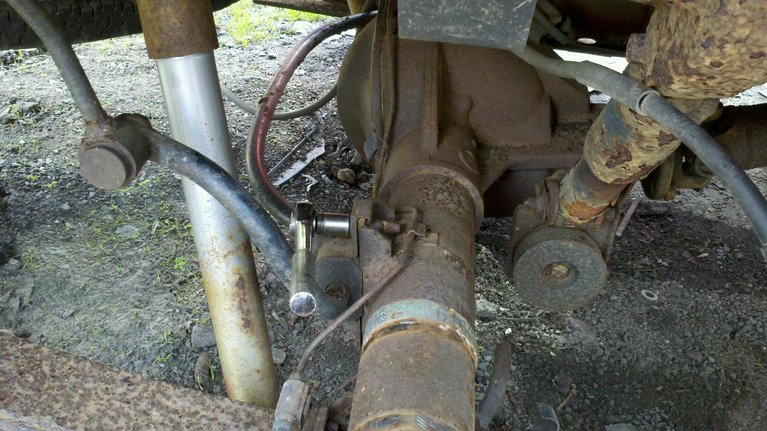

Now for a quick question... What should I do to connect my soft brake lines to my hard lines? Cut it back a little and new fittings? Or just make it fit? Also, there was a 3rd shock absorber and a counterweight on the passenger side of the differential. What's that for??? Can I get rid of it? Or will it mess with something to take it off?

Attached Thumbnails
Expo 8.8 swap!-photobucket-12835-1339276133042.jpg   Expo 8.8 swap!-photobucket-12227-1339276292448.jpg   Expo 8.8 swap!-photobucket-2736-1339276243890.jpg
  #2
Old 06-09-2012
GreaseMonkey01's Avatar
Member
iTrader: (2)

Join Date: Jan 2012
Location: Woodbridge, VA
Posts: 304
Where did you get this axle at? I need one too... I'm in Northern VA and willing to drive for the right price...how much did you pay for this one? If you don't mind me asking.
  #3
Old 06-09-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
It's no problem, I got it at Harry's U Pull It in Hazleton, PA. The axle and calipers came to $118 total.
  #4
Old 06-09-2012
GreaseMonkey01's Avatar
Member
iTrader: (2)

Join Date: Jan 2012
Location: Woodbridge, VA
Posts: 304
Sounds like a road trip to me! Thanks a bunch!!!!
  #5
Old 06-09-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
No problem, let me know when you're coming up. I'll meet you down there and we can pull it out.
  #6
Old 06-09-2012
GreaseMonkey01's Avatar
Member
iTrader: (2)

Join Date: Jan 2012
Location: Woodbridge, VA
Posts: 304
Nice! Depending on when I get my paycheck (Just started a few weeks ago...) and when I have a day off, I'll let you know. Also, what tools should I bring up?
  #7
Old 06-09-2012
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
if it wasnt 6 hours id be there right now!
  #8
Old 06-09-2012
GreaseMonkey01's Avatar
Member
iTrader: (2)

Join Date: Jan 2012
Location: Woodbridge, VA
Posts: 304
Quote:
Originally Posted by 06RangerXLT View Post
if it wasnt 6 hours id be there right now!
Don't be taking my axle now!
  #9
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Ladies, ladies! There's plenty to go around! Haha. I brought a metric socket set, a BFH, battery operated sawzall, a pipe (for leverage), WD-40 and a breaker bar. You'll need splined sockets to get the driveshaft off, they're a specialty bolt so an ordinary socket won't work.

06Ranger, how fast are you driving? Lmao. I can make it to the Lake Ontario border in NY in about 3.5 hours lol But hey, if you're up to it come down anyways! I had a buddy come up from West Virginia (a 7 hour one way trip) for a good friend of mine to do body work on his truck.
  #10
Old 06-10-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
They arent a "specialty" socket. They're just a 12 point socket.
  #11
Old 06-10-2012
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Redneck Ranger View Post
Now for a quick question... What should I do to connect my soft brake lines to my hard lines? Cut it back a little and new fittings? Or just make it fit?
Ditch all explorer brake lines. Grab two passenger side explorer soft lines(don't forget new banjo bolts and copper washers), couple lengths of 3/16 brake line, couple all-thread unions, and bolts. Weld unions to perches, bolt on soft lines to calipers and perch mounts. Bend the lines, cut, flare, tighten. Optional: paint hardlines.

You could use the factory line from your Ranger, cut it short near the perches, flare 'em, and use the new softlines, but I found the earlier mentioned way of doing it to be more cleanly done.

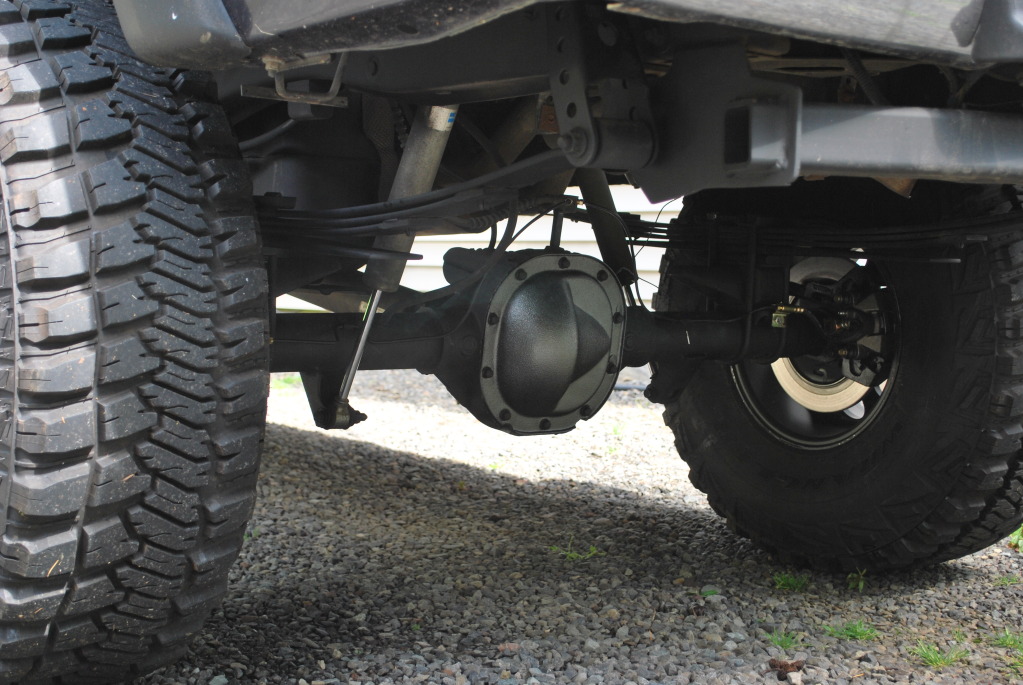

My pic above shows my setup. I've added a spacer to at the "Y" compensate for my additional lift. Without that spacer, the new lines would be far more clean. Also note: pic shows locker wires hangin' loose after just being installed.

The reason you'll want to ditch the Explorer lines from the axle is because the Explorer "Y" is off the driver side of the axle. The Ranger is on top of the differential. Explorer line from frame to axle is shorter than Ranger as well. Expo's are spring under and the expo lines work fine on a spring under application (IE 5" drop). Not so much on a spring over application, especially when you add 2.5" stock blocks to the mix (IE your Ranger, my Ranger, any 4x4 Ranger).



Quote:
Also, there was a 3rd shock absorber and a counterweight on the passenger side of the differential. What's that for??? Can I get rid of it? Or will it mess with something to take it off?
Ditch it all. Not needed/used.



Quote:
Originally Posted by Redneck Ranger View Post
You'll need splined sockets to get the driveshaft off, they're a specialty bolt so an ordinary socket won't work.
Or 12pt combination wrenches. Believe it's 12mm. Grab a 12mm and a 13mm and double wrench them for extra leverage. No need for specialty sockets. (EDIT: Brinker beat me to it. lol.)
Attached Thumbnails
Expo 8.8 swap!-dsc_0865.jpg
  #12
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
I tried using 12 points on it. Didn't work, just started slipping off. Thanks for the info Shane. One other thing, what's the sensor for in the differential?
  #13
Old 06-10-2012
GreaseMonkey01's Avatar
Member
iTrader: (2)

Join Date: Jan 2012
Location: Woodbridge, VA
Posts: 304
Speed sensor, I believe. My truck has one in the same spot.
  #14
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Ah, okay. I'm guessing the "banjo bolts" are the ones that hold the line to the caliper? If you know what I mean...?
  #15
Old 06-10-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by Redneck Ranger View Post
I tried using 12 points on it. Didn't work, just started slipping off. Thanks for the info Shane. One other thing, what's the sensor for in the differential?
Were you using a standard or metric 12 point? Pretty sure they're a 12mm so if you were using a 1/2" that's probably why!
  #16
Old 06-10-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by Redneck Ranger View Post
Ah, okay. I'm guessing the "banjo bolts" are the ones that hold the line to the caliper? If you know what I mean...?
That's what they are.
  #17
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Okay, awesome. I'll probably have about 500 more questions throughout the swap lol And yeah, I used a 12 mm
  #18
Old 06-10-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

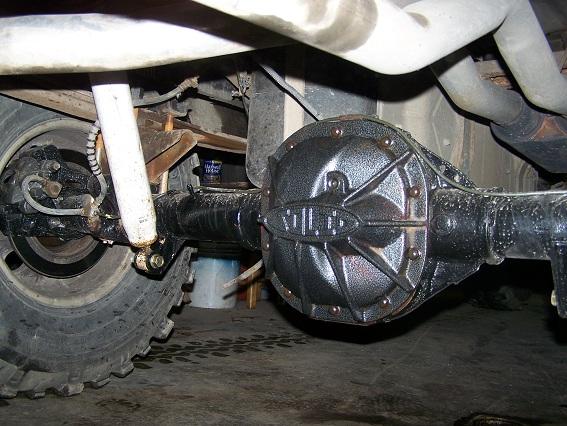

The axle I bought had brand new hoses on it so I just used them. Worked well for me.

Attached Thumbnails
Expo 8.8 swap!-1529.jpg
  #19
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Brad, did you use the Expo setup for the brakes? I see you have the soft line going up towards the bed. And I'm just gonna reuse my spring perches and shock mounts because I don't have $140 to fork out for the perches and mounts from ruff stuff.
  #20
Old 06-10-2012
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Yup. used the stock explorer set-up. Dont forget to buy new u-bolts.
  #21
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
Yeah, I used a sawzall to cut through the old ones lol So I'll need em. Probably if I'm off work tomorrow I'll take it up my buddy's and cut the old **** off. Can I just run without the rear swaybar? Or do I need to remount my current one?
  #22
Old 06-10-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
i dont think rangers have a rear sway bar
  #23
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
There's one on the front of my axle....I think. I'll get a pic tomorrow unless someone else has some insight? I'm almost positive it does. If not, then disregard that last question.
  #24
Old 06-10-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
i know the expos have a rear sway bar but i dont recall ever seeing a sway bar on the rear end of my ranger
  #25
Old 06-10-2012
Redneck Ranger's Avatar
Member
Thread Starter

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
I'll take a picture tomorrow and post it up... I swear it does lol
