Manual Transfercase Question.... 93 the same as 03?

So I have a line on a 13-45M transfercase complete, shifter linkage everything. But it is off of a mid 90's Manual. Being the same 13-54 is it fair to assume its the same as the 13-54 I have in my truck now? (as far as input shaft, output shaft, bolt pattern, ect)

Is this the same T-Case that came on the '02 and '03 trucks?

Thanks!
Reply With Quote
  #2
Old 07-19-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
everything BUT the output shaft is the same.........it is a u-joint adaptor on the the output shaft on '97 and older BW1354 t-cases..........BUT if i were you, i would swap to that shaft and have the diff side of the shaft put on the '97 and older style driveshaft (the '97 driveshaft diff side may match up since the diffs are the same)....much stronger than the joint that is in the '98+ Rangers......
Reply With Quote
  #3
Old 07-19-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Ok wait... you lost me...

So is the Yolk different or the actual output shaft? Because if the output shaft splines are the same then really I could put whichever yolk I wanted to on it...

I guess in reality that doesn't matter much anyway... You wouldn't happen to know if it uses a 1330 or what size U-Joint is on the t-case side of the '90's 13-54M would ya?
Reply With Quote
  #4
Old 07-19-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
the output flange/yoke is different on the '98+ BW1354......it is a CV style joint verses the '97 and older BW1354 is a u-joint style.......

if you plan on using the '98+ style yoke/flange on an older t-case, you will have to tear the case down to replace it in the older BW1354....

the u-joint style/size i have no clue of.....

i would use the mid '90s driveshaft if it were me and adapt it to fit your diff flange/yoke....

sorry if that is confusing...
Reply With Quote
  #5
Old 07-19-2007
TireIron's Avatar
Member

Join Date: Feb 2006
Location: Methuen, MA
Posts: 790
the rear output on all of them should be the same and the input and boltup will be the same, the only thing different with the older ones is the front output. they use a superior style front driveshaft, so I would say use the t-case you have and pick up a front shaft from a 97 or older truck or explorer and just check the length and use that shaft. the double cardan joint in the older shaft is much better than the rezeppa joint at the t-case side of the newer shafts.
Reply With Quote
  #6
Old 07-19-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by TireIron
the rear output on all of them should be the same and the input and boltup will be the same, the only thing different with the older ones is the front output. they use a superior style front driveshaft, so I would say use the t-case you have and pick up a front shaft from a 97 or older truck or explorer and just check the length and use that shaft. the double cardan joint in the older shaft is much better than the rezeppa joint at the t-case side of the newer shafts.
the '95+ Explorers have the funky style shaft like the '98+ Rangers do.....
Reply With Quote
  #7
Old 07-19-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
jason look at my dads(04 EDGE) 4x4 swap thread, i think your talking about the same case he used.
Reply With Quote
  #8
Old 07-19-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by 5speedin2.3
jason look at my dads(04 EDGE) 4x4 swap thread, i think your talking about the same case he used.
Awesome!

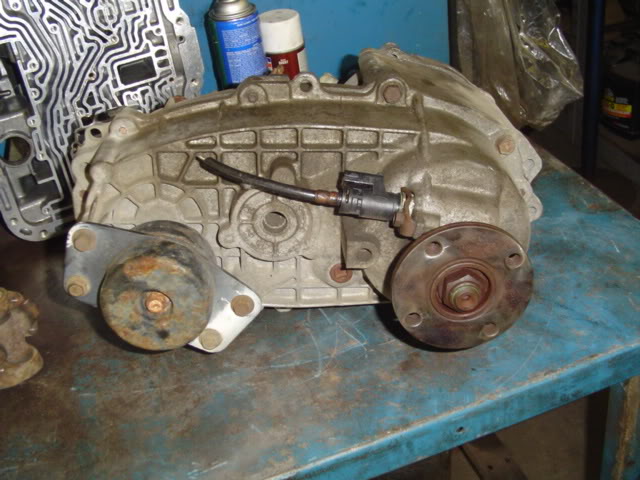

This is the side I was more concerned about, the rear output... the front output i can change (I need a new driveshaft anyway mine is close to done)..

Name:  DSC01760.jpg
Views: 21
Size:  64.2 KB

As long as the one I can get has the same flange on the rear output I'll be fine (since that is where my VSS is located to now).

So then we are agreed that the input shaft is exactly the same on them all right? (23 spline is it?) and the rear output is flanged and the front output is a U-Joint style not the crappy rubber-impregnated bullcrap the new trucks have.

Sweet!
Reply With Quote
  #9
Old 07-19-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
he used a front driveshaft from a 96 explorer.
they have more for $100 if you are interested, he has pics on page two.

Edit: idk if the 13-45M is the same as the BW1354M, bob would be the person to ask.
Reply With Quote
  #10
Old 07-19-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
I thought I read that he used parts from three different front driveshafts?
Reply With Quote
  #11
Old 07-19-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by rngprerunner
I thought I read that he used parts from three different front driveshafts?
nah goto the second page.
Reply With Quote
  #12
Old 07-19-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by 5speedin2.3
nah goto the second page.
Of which part? 1 2 or 3?
Reply With Quote
  #13
Old 07-19-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Page 2 of Part 2

Quote:
Originally Posted by 04 EDGE
the front driveshaft is in , its a work of art!

used all 3 shafts to make one!

shifter is on order.
Reply With Quote
  #14
Old 07-19-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
oh sorry, i was referring to the project log.
https://www.ranger-forums.com/forum2...t=44350&page=2
Reply With Quote
  #15
Old 07-19-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by 5speedin2.3

Edit: idk if the 13-45M is the same as the BW1354M, bob would be the person to ask.
Tomato Tamatoe... same diff... I've seen it listed out with and with out the hyphen.. I just happened to add a hyphen.

Cool thanks! 96 Explorer huh? I won't be putting this thing in for a while probably if I do get it so I won't need a shaft yet. But when the time comes I know what to get now.
Reply With Quote
  #16
Old 07-19-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by rngprerunner
Tomato Tamatoe... same diff... I've seen it listed out with and with out the hyphen.. I just happened to add a hyphen.

Cool thanks! 96 Explorer huh? I won't be putting this thing in for a while probably if I do get it so I won't need a shaft yet. But when the time comes I know what to get now.
oh, you said 45M, the one my dad bought is a 54m.

when the time comes, and if the junkyard has the last new one for $100, i can grab it and mail it to you, shouldn't be to much to ship.
Reply With Quote
  #17
Old 07-19-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by 5speedin2.3
oh, you said 45M, the one my dad bought is a 54m.
Ah crap I did didn't I.. lol... well I meant 1354M... but you knew that
Reply With Quote
  #18
Old 07-19-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by rngprerunner
Ah crap I did didn't I.. lol... well I meant 1354M... but you knew that
it will work then, same thing he put into his truck.
i don't remember if the newer ranger xfer case has a slipyoke rear driveshaft or not.

either way, it should work out nice.
Reply With Quote
  #19
Old 07-19-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
might have to get a custom drive shaft made, or use one from an older ranger, i think all of the 4x4 rear drive shafts bolt to the xfer case tho.

anyways, off to the batting cages, goodluck.
Reply With Quote
  #20
Old 07-19-2007
04 EDGE
Unregistered User

Posts: n/a

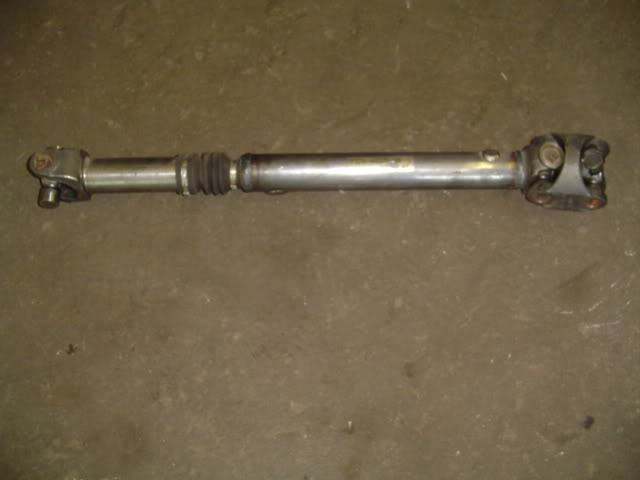

your stock rear shaft will be a direct bolt on to the older T case, the front shaft you have 2 options, first for a non suspension lifted truck you can use a front shaft out of a 95 or 96 explorer ONLY! this will bolt right to the T case and is far better then the newer style shafts
Name:  DSC01861.jpg
Views: 6
Size:  24.1 KB

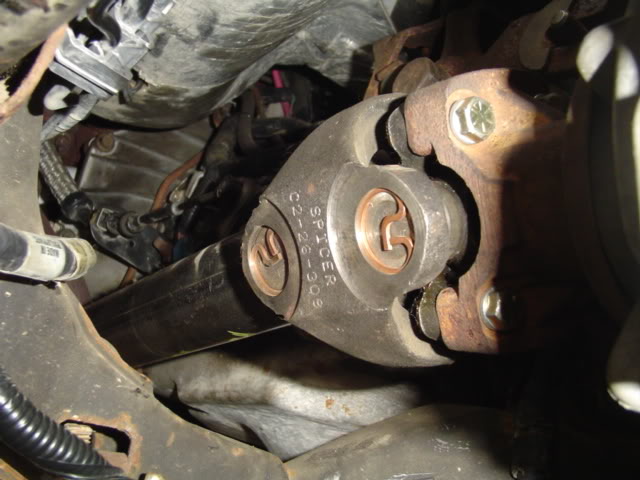

installed
Name:  DSC01863.jpg
Views: 6
Size:  53.3 KB

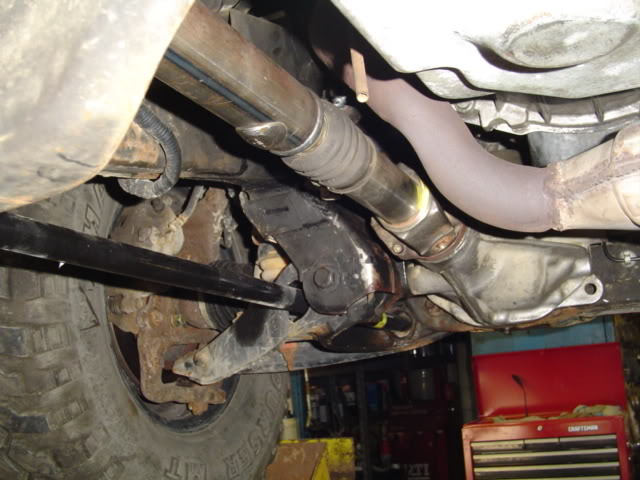

the slip joint is located away from the exhaust pipe
Name:  DSC01864.jpg
Views: 8
Size:  57.4 KB

option 2
if you have a suspension lift you can use a front shaft from a older explorer say 92-94
its about two inches longer then the 95-96 shaft and the slip joint is in a different spot, close to the exhaust pipe, i tryed this but it was just to long.

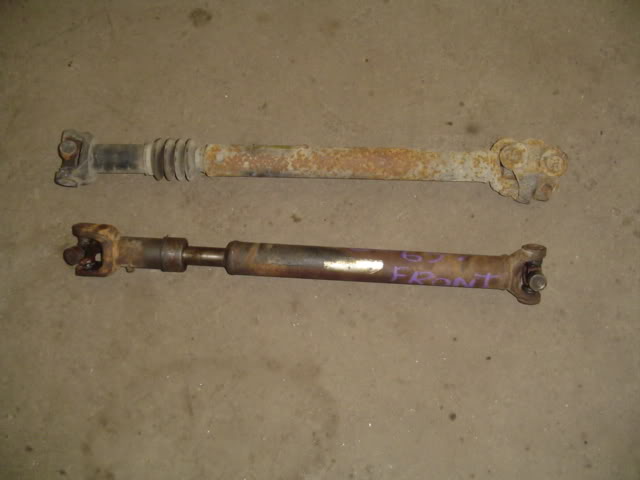

the 92-94 shaft is on the top, the other is missing some parts and was off a 90'ish mazda navaho
Name:  DSC01761.jpg
Views: 5
Size:  27.3 KB

all the 1352 and 1354 BW cases use the same 23 spline input shaft
Reply With Quote
  #21
Old 07-19-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 04 EDGE
all the 1352 and 1354 BW cases use the same 23 spline input shaft
I think you mean 1350
Reply With Quote
  #22
Old 07-19-2007
04 EDGE
Unregistered User

Posts: n/a
yeah sorry
Reply With Quote
  #23
Old 07-31-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I know this is an older thread but i found the picture that shows the piece I bought for my truck.

I found a 96XJ Driveshaft shortened it 2 inches and bought an adapter. here is the result.
