SAS tranny xmember pics

lets see some pics of the tranny xmembers ya'll are running on your sa trucks. About to build mine and lookin for a few ideas.
Reply With Quote
  #2
Old 08-27-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
mine is stock. do you need to modify it?
Reply With Quote
  #3
Old 08-27-2009
MXranger489's Avatar
Member
Thread Starter

Join Date: Jan 2007
Location: Newington CT
Posts: 142
93-97's mount on the outside of the frame rails, and if your using stock length radius arms, which I am, they go right where the xmember mounts. So I gotta make one that mounts inside the rails or incorporates the rad arm brackets
Reply With Quote
  #4
Old 08-27-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
got ya, after you mentioned that i have seen that before.
Reply With Quote
  #5
Old 08-27-2009
dakota772's Avatar
Member

Join Date: May 2008
Location: Tucson
Posts: 230
then my x-member would be perfect for you....I know I know, mine is low yours is high and we never agree on anything for the suspension or frame......I have a x-member from DHP (i know no one likes Mike, but I haven't had any problems) for $100. It bolts inside the frame and tucks away nicely for clearance.

Name:  S4010993.jpg
Views: 1
Size:  72.5 KB

Name:  S4010994.jpg
Views: 1
Size:  77.7 KB

Name:  S4010996.jpg
Views: 1
Size:  66.2 KB

Name:  S4011034.jpg
Views: 1
Size:  42.8 KB

BAM
Reply With Quote
  #6
Old 08-27-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
This is what I just built for mine. The passenger side is angled like that to clear my upper link. its 2x2" 3/16th wall tube with 3/16th plate for the gussets.

Reply With Quote
  #7
Old 08-27-2009
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
double post
Reply With Quote
  #8
Old 08-28-2009
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376

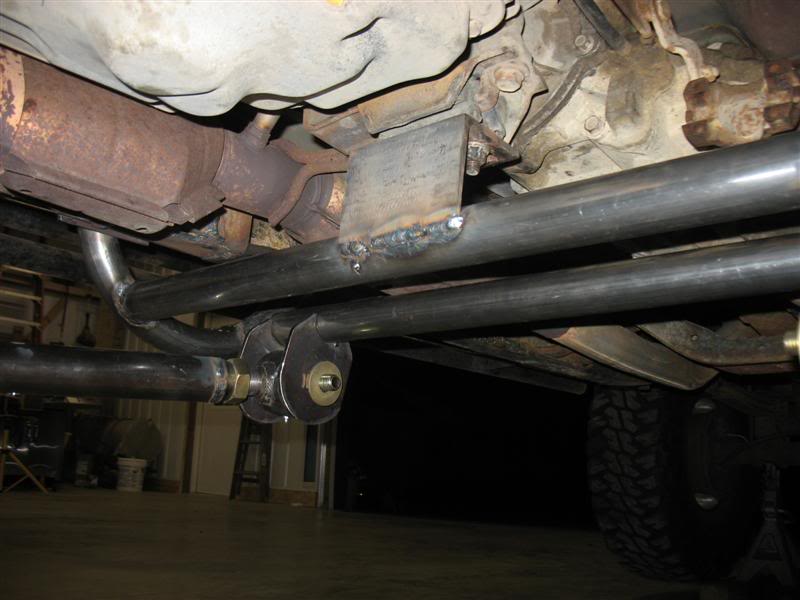

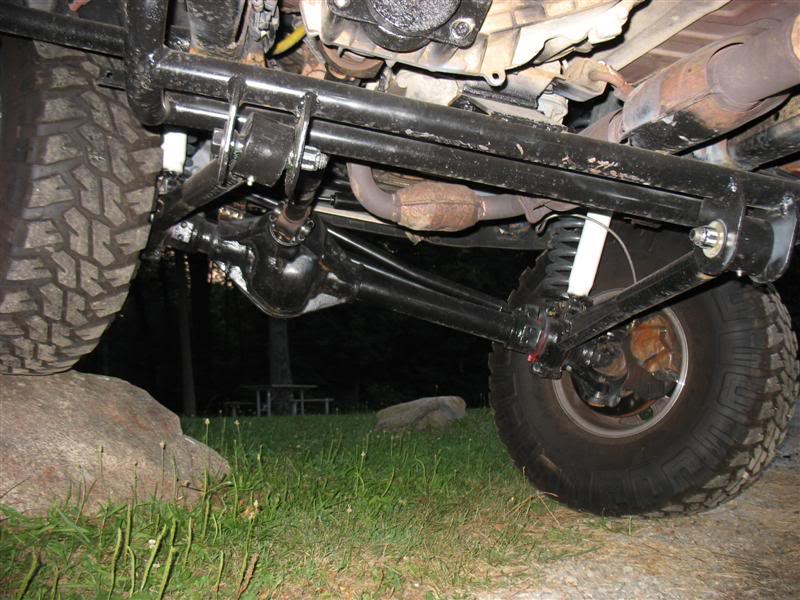

here is mine. kinda hard to see but
Name:  Picture081Medium.jpg
Views: 1
Size:  91.1 KB
Name:  Picture126Medium.jpg
Views: 1
Size:  53.4 KB
Name:  Picture120Medium-1.jpg
Views: 1
Size:  52.8 KB
Reply With Quote
