Transmission Breather idea

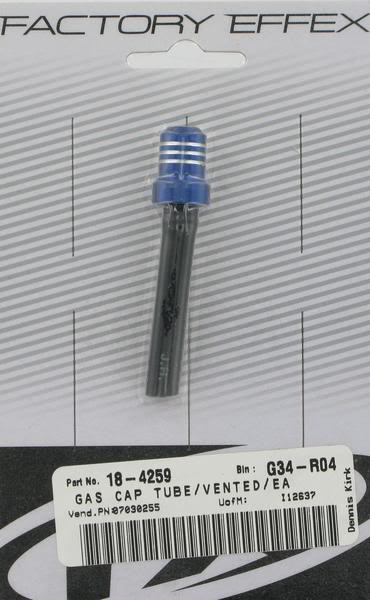

I was thinking of adding a breather to my M5OD tranny after fixing the Hurst shifter leak and putting freeze plugs in the shift rail holes. I just don't want another seal to blow and leak tranny fluid again. I thought about drilling a hole in the top cover plate and adding a breather barb, putting a hose from it up to the engine compartment, then adding a breather cap from a dirtbike like this:
Name:  breather.jpg
Views: 33
Size:  35.1 KB

What do you think?
Reply With Quote
  #2
Old 12-15-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
another HURST vent fix - Ranger Power Sports Forum

In the beginning, I was going to do a normal vent like on an axle or a tcase. BUT....I drilled the hole, tapped the hole, and capped it off for a later date. But when I put it all back together, I ground a notch on that hurst base plate that mounts to the trans. Not one bit of seepage AT ALL. All my info is in that thread I linked. I guess I never brought my findings over here to RF.
Reply With Quote
  #3
Old 12-15-2009
bjohnson238's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732
So, I guess I should just take my shifter off and grind like a 1/8" notch in the base plate and re-seal it. I already used a homemade gasket and gasket maker to fix the leak. Should I just make another one with a gap in it too?
Reply With Quote
  #4
Old 12-16-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Only actual gasket i'm using is between the case and that lowest hurst bracket. I royally distroyed my rubber one so now I use silocone and it's held up quite well. Better seen in the pics which I'm 102% positive you looked at. lol.

Yeah...pop that thing off, run a cutoff wheel a few passes thick about half the depth of the material...clean it up...reseal...bolt back together. I'm VERY pleased with the results.

I did the "original" hurst fix using that red rubber and it only put a bandaid on the problem...it eventually spewed ATF again.
Reply With Quote
  #5
Old 12-16-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Try looking at this.

http://www.ranger- resistance/forum/showthread.php?t=52
And Shane yours leaked? I just checked mine yesterday and after a year of that fix, I have nothing.


**** this, why the hell is RR censored? Just take out the space between the dash
Reply With Quote
  #6
Old 12-16-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Uh jeff look at that link again... lol. I assume the url starts with an Ranger and ends with Resistance with a dash between? lol.

Same thread I linked him too on RPS. That url you linked is blocked here. Yeah...mine leaked. Not much, but some. After this grind, i've got NOTHING. Even after a 4hr 75mph straight run on the freeway, not even a pink fog anywhere.
Reply With Quote
  #7
Old 12-16-2009
bjohnson238's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732
I believe you about this fix, and I'm gonna try it. But I'm just wondering, how does it keep it from throwing fluid up to the shifter and out that relief cut?
Reply With Quote
  #8
Old 12-16-2009
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
So its seriously as easy as notching the base plate? I did the red rubber gasket fix and i have ATF everywhere just after a couple months.
Reply With Quote
  #9
Old 12-16-2009
bjohnson238's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732
Quote:
Originally Posted by vista4.0 View Post
So its seriously as easy as notching the base plate? I did the red rubber gasket fix and i have ATF everywhere just after a couple months.
Mine did the same thing. Check your shift rail plugs.
Reply With Quote
  #10
Old 12-16-2009
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Quote:
Originally Posted by bjohnson238 View Post
Mine did the same thing. Check your shift rail plugs.
ill have to do that tonight.
Reply With Quote
  #11
Old 12-17-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by bjohnson238 View Post
But I'm just wondering, how does it keep it from throwing fluid up to the shifter and out that relief cut?
My theory is the location being way high up, and having a relief doesn't let the pressures of inside the case force fluid out the weakest spot. ie: hurst flange or the rubber rail seals.

I'll throw a post together something with all my pics and findings one of these days. Everything it'll say is in that thread I linked.
Reply With Quote
  #12
Old 12-17-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by Fx4wannabe01 View Post
That url you linked is blocked here.
ummm... dare I asky why?
Reply With Quote
  #13
Old 12-17-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 08XLT4x4 View Post
ummm... dare I asky why?
pm sent...
Reply With Quote
