Transmission replacement compatibility???

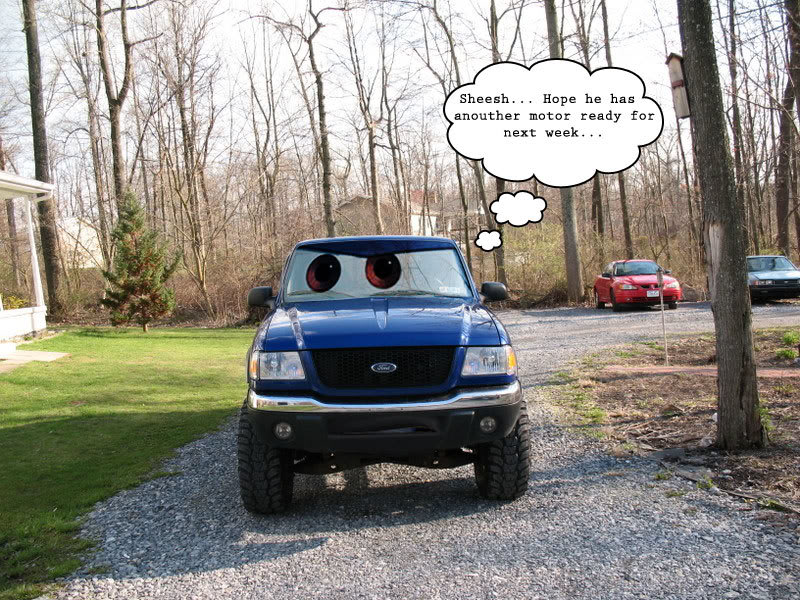

Name:  12en3.jpg
Views: 46
Size:  168.8 KB


I think the truck meant transmission.......


I snapped the main shaft from the tranny to the transfer case last week...oops. I have an 03 manual tranny. Can anyone tell me what years would be compatible?

There's a couple 04-06's with less than 20k miles on them at a local scrap yard for killer prices. I'm not even looking into rebuilding this tranny. It's time the tranny was laid to rest, lord knows all the abuse it's already taken


On a lighter note, all that's left to replace is the frame, transfer case, driveshafts, and body.....then I'll have rebuilt the entire truck. lol
Reply With Quote
  #2
Old 03-12-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
haha im sorry but that picture is funny..

any 4x4 4.0 trans should work, as to how you snapped the output shaft, thats just nuts.

glad to see your alive!
Reply With Quote
  #3
Old 03-12-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Any 01+ manual trans from a 4.0L SOHC truck will work. I found that my new 06 tranny w/ 10k on the clock, has different gear ratios in the trans than my old, stock 01. I hate it.

I don't remember the specific trans name, m5rodHD....something like that. HDs on behind the 4.0L SOHC....but you can use any one of the m5rod's.
Reply With Quote
  #4
Old 03-12-2008
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I pulled out from a stop sign and turn right....got on it a little harder than I should have(not even close to the worst launch I've done in the truck)and all of a sudden it felt like the truck was in neutral. I messed with the transfer case making sure that it wasn't in neutral then came to the realization that my truck was dead right in the lane of traffic. haha
Yeah, I'm still alive. I've just been hella busy with work and working on my house.





So.......HD or not? What's the difference, I didn't completely understand that post.

Anyone know about the difference in gearing with the years?
Reply With Quote
  #5
Old 03-12-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
are you sure the "chain" in the transfer case didn't break?
Reply With Quote
  #6
Old 03-12-2008
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by 5speedin2.3 View Post
are you sure the "chain" in the transfer case didn't break?
The rear wheels were locked up completely. I had to, literally, drag it a mile down the road to my dad's house. I had my friend pick it up on a roll back and he's the one that told me the main shaft from the tranny to the transfer case snapped. I'm just going by what he said. I'm gonna go over to his shop this weekend and see for myself.
Reply With Quote
  #7
Old 03-12-2008
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
ttt
Reply With Quote
  #8
Old 03-12-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
There was a thread showing the differences between the HD SOHC engined unit, and the regular unit.....something like synchros and little stuff....lemme see if i can find it.
Reply With Quote
  #9
Old 03-12-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
https://www.ranger-forums.com/forum2...ad.php?t=56550

Quote:
Originally Posted by rwenzing View Post
There is very little info out there but here's what I have been able to find out from the shop manual and other sources:
  • Throughout the 90's and up through 2000, all Ranger manuals were M5OD-R1 made by Mazda, regardless of engine displacement. Besides internal ratios, the only other difference was in the outer cases which were different to match the individual engine bolt patterns (these transmissions have a bell housing that is integral to the transmission case casting).

  • In 2001, an upgraded Mazda trans called the M5OD-R1HD was introduced for use only with the 4.0L SOHC. The shop manual shows that the synchronizer blocking rings for first and second are different. The first gear ring is larger in OD and ID and the second gear ring is of a different construction. It stands to reason that the shift fork, synchronizer sleeves and the cones on the matching gears would be different to match the uprated rings.

    Going only by the shop manual, it appears that the rest of the M5OD-R1HD transmission uses the same construction as the M5OD-R1. It would take a trip to a dealer parts counter to verify that all other internal part numbers are actually the same.

  • 2001+ 2.3/2.5/3.0 continue to use the original style M5OD-R1 as in earlier years.

  • All 4.0L use a closer ratio gearset as compared to the 2.3/2.5/3.0 engines. It doesn't matter whether you're talking about 4.0L OHV or 4.0L SOHC, R1 or R1HD.

    3.40 / 2.05 / 1.31 / 1.00 / 0.79 (4.0L Engines)
    3.72 / 2.20 / 1.50 / 1.00 / 0.79 (All Other Engines)

Reply With Quote
  #10
Old 03-12-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
If its from an 01-current 4.0 SOHC it will be the HD version and be a direct bolt in. You will have to swap the extension housing from your current tranny to the new one though.
Reply With Quote
  #11
Old 03-12-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
...or send me that extension housing......cuz thats the last part i need!


I had the blown tranny blues as well.....but i didn't have 2nd gear. So i drove it around for 8months, then dropped the dough on a 10k mile 06 trans.
Reply With Quote
  #12
Old 03-12-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
You and lefty make me feel special for being able to find one! At no cost hahahahaha!
Reply With Quote
  #13
Old 03-12-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by RazorsEDGE View Post
You and lefty make me feel special for being able to find one! At no cost hahahahaha!
I feel like typing something that of which is prohibited language here on this family site.
Reply With Quote
  #14
Old 03-12-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I'd probably feel the same way lol.

Imaging how I felt when that new tranny showed up with the wrong extension housing. I was like ahhhhhhh **** what the hell am I gonna do now.
Reply With Quote
  #15
Old 03-12-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Any 4.0 transmission will work.....the transmission you and all '01+ Rangers have the M50D-R1HD.....

I agree with above, you need to pull the transfer case apart and make sure it wasn't the chain inside it didnt break and lodge up inside causing the main shaft to bind.....
Reply With Quote
  #16
Old 03-12-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by Fx4wannabe01 View Post
...or send me that extension housing......cuz thats the last part i need!


I had the blown tranny blues as well.....but i didn't have 2nd gear. So i drove it around for 8months, then dropped the dough on a 10k mile 06 trans.
send me your old output shaft so i can convert mine to 4wd.
Reply With Quote
  #17
Old 03-12-2008
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Awesome thanks guys.

I'm on my way out the door to grind some gears but when I come back friday evening I'm gonna stop up at my friends shop. I'll get to the bottom of it. He's an honest dude that runs an honest business and has a race team on the side so I trust him fully. I wanna see the carnage as well

We'll get her figured out soon enough.....Now I just gotta order new rear shocks(both blown/leaking oil), new coilovers(one side coil is almost completely bottomed out), and she'll be good as new.....til next time I drive it
Reply With Quote
  #18
Old 03-12-2008
meemooer's Avatar
Member

Join Date: Mar 2005
Location: Brunswick, Ohio
Posts: 336
the way i see it is if the front driveshaft will turn then the transfer case if good
Reply With Quote
  #19
Old 03-12-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
not necessarily....on an '03, the front driveshaft wont free turn since the front end is the live axle version....
Reply With Quote
  #20
Old 03-12-2008
meemooer's Avatar
Member

Join Date: Mar 2005
Location: Brunswick, Ohio
Posts: 336
i meant by jacking the front end up, and then spinning the driveshaft, if it turns then you know you won't have to pop the t-case open
Reply With Quote
  #21
Old 03-23-2008
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by 5speedin2.3 View Post
are you sure the "chain" in the transfer case didn't break?
wow, i gotta bring my camera to the shop next time.

I seen the output shaft and it's completed twisted/snapped in half!! ROFL!!!


The mechanic asked me "What were you doing in this thing??!! Wholeshots?!? I've been working on cars for 23 years and have NEVER seen anything like this!"

I almost fell on the floor laughing when he said that and seeing that shaft in two on his bench.


Anywho.........it's definitely the transmission =]
Reply With Quote
  #22
Old 03-23-2008
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by lifted97ranger View Post
not necessarily....on an '03, the front driveshaft wont free turn since the front end is the live axle version....
She's rockin the manual hubs
Reply With Quote
  #23
Old 03-23-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
^^ Hows that working out for you with the RCD kit on there?
