'98 to '04 front clip swap

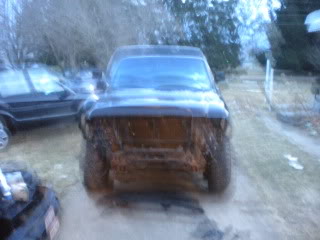

i drove down south this weekend and picked up a grill header panel and hood from 04lvlII and ordered clear blacked head lights and corners off fleabay to go with it.

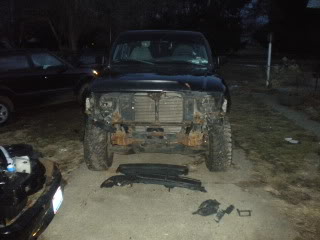

i got the busted header panel off and the one good head light and turn signal

the driverside fender bottom needs pulled out bout a 1/4 inch

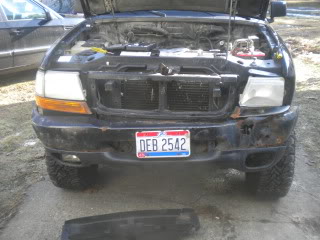

i had to remove the bumper cause it interferred with the header panel and grill


ill post pics when they up load


i sheard off 3 bolts that bolt the header panel to the fender. im gonna stop the local jy if i get the chance and grab those bolts and head light plugs and emblem for the grill. i also need a tap out or easy out to get them busted bolts. i already drilled thru them







Name:  DSCN1178.jpg
Views: 6
Size:  22.3 KB
Name:  DSCN1179.jpg
Views: 6
Size:  22.6 KB
Name:  DSCN1180.jpg
Views: 6
Size:  20.1 KB
Name:  DSCN1181.jpg
Views: 8
Size:  22.1 KB
Name:  DSCN1182.jpg
Views: 5
Size:  21.7 KB
Name:  DSCN1183.jpg
Views: 7
Size:  20.8 KB
Name:  DSCN1184.jpg
Views: 6
Size:  16.3 KB
Name:  DSCN1185.jpg
Views: 7
Size:  13.1 KB
Name:  DSCN1186.jpg
Views: 5
Size:  21.0 KB
Name:  DSCN1187.jpg
Views: 6
Size:  20.8 KB
Name:  DSCN1188.jpg
Views: 5
Size:  24.5 KB
Name:  DSCN1189.jpg
Views: 5
Size:  21.0 KB
Name:  DSCN1190.jpg
Views: 6
Size:  15.5 KB
Name:  DSCN1191.jpg
Views: 5
Size:  15.8 KB
Name:  DSCN1192.jpg
Views: 5
Size:  21.5 KB
Name:  DSCN1193.jpg
Views: 6
Size:  15.2 KB

Last edited by dirtybird819; 02-28-2011 at 03:57 PM.
Reply With Quote
  #2
Old 02-27-2011
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Good deal

Last edited by robert99ranger; 02-27-2011 at 07:28 PM.
Reply With Quote
  #3
Old 02-27-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Pics are in reverse. Looks like a good start.
Reply With Quote
  #4
Old 02-27-2011
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Yeah sorry the pics r reversed. I'll fix it when I get back on my pc to hard over Droid
Reply With Quote
  #5
Old 02-27-2011
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Should look good when your done. For some reason I have always liked those style of rims you have on there.
Reply With Quote
  #6
Old 02-27-2011
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448

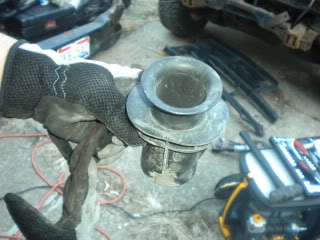

I also did the air box mod 5th pic down is the noise silencer or Wtf ever it is.
Reply With Quote
  #7
Old 02-27-2011
04lvlII's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: vinton ohio
Posts: 85
hope it works out for you. glad to use the stuff bein used lol
Reply With Quote
  #8
Old 03-01-2011
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
i stopped at the jy today and gor those header panel bolts and a cpl other things. im gonna stop tomorow and get an easy out for the pieces still in the fender holes. my stuff should start arriving tomorow, my head lights, bearing/hub assym, lower bal joints, ford service manual on dvd and some other stuff.


whats the easiest way to get them broken bolts out?
Reply With Quote
  #9
Old 03-01-2011
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
also can any one tell me if the 98 and the 01+ headlight sockets are the same? and the turn signal sockets too? i grabed a few at the jy cause one was missing.

i also got a tourus dome light and a ranger radio bezel/trim to try and paint.
Reply With Quote
  #10
Old 03-02-2011
Auto's Avatar
Member

Join Date: Jan 2008
Location: Jeannette, PA (Pittsburgh
Posts: 511
they should be the same but 98 has 2 turn signal bulbs so what i have seen done is just wrap one with electrical tape and let it sit in there because if you take the bulb out your signals will blink fast.
Reply With Quote
  #11
Old 03-02-2011
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
I got led on brake lights any way so they blink fast anyways
Reply With Quote
  #12
Old 03-20-2011
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
update 3/20/11

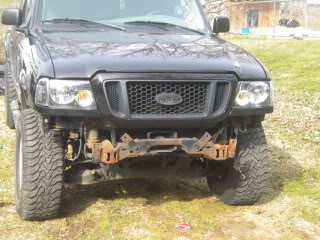

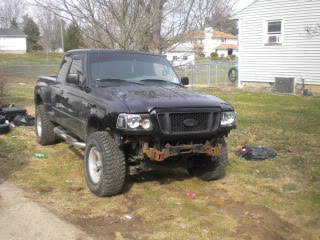

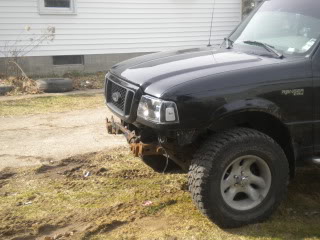

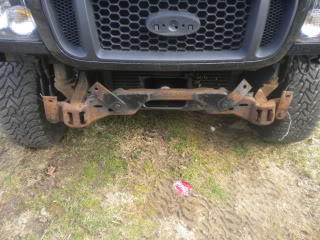

here is how she sits now. not quite finished got a few things to get from jy and then build me a bumper. i drive her daily like this

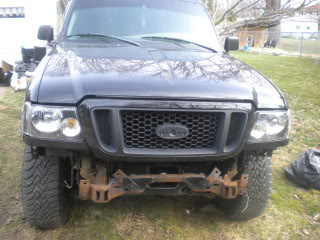

Name:  DSCN1211.jpg
Views: 6
Size:  23.4 KB
Name:  DSCN1204.jpg
Views: 6
Size:  24.7 KB

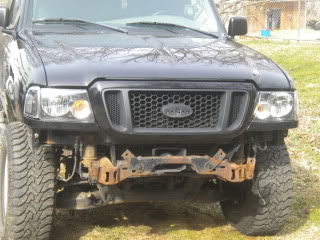

Name:  DSCN1203.jpg
Views: 5
Size:  25.4 KB
Name:  DSCN1202.jpg
Views: 6
Size:  26.5 KB

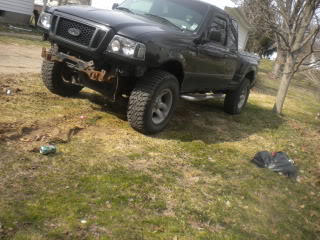

Name:  DSCN1201.jpg
Views: 5
Size:  27.1 KB
Name:  DSCN1200.jpg
Views: 6
Size:  21.1 KB
Name:  DSCN1199.jpg
Views: 6
Size:  21.4 KB
Name:  DSCN1198.jpg
Views: 6
Size:  24.3 KB
Name:  DSCN1197.jpg
Views: 5
Size:  22.7 KB
Name:  DSCN1196.jpg
Views: 5
Size:  22.6 KB
Name:  DSCN1212.jpg
Views: 6
Size:  26.3 KB

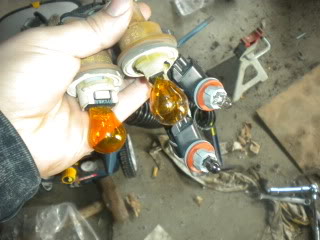

the plugs from 98 to 04 are difrent slightly but the hold for now till i can rewire the new ones from the jy


Name:  DSCN1214.jpg
Views: 5
Size:  20.0 KB


and my new corner is ****ing cracked already


Name:  DSCN1213.jpg
Views: 9
Size:  21.8 KB
Reply With Quote
  #13
Old 03-20-2011
04lvlII's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: vinton ohio
Posts: 85
looks good
Reply With Quote
  #14
Old 04-01-2011
not2hye's Avatar
Member

Join Date: Jan 2011
Location: Clovis, CA
Posts: 46
I want to do the same swap on my truck.

Would you mind making a detailed parts list?
Im a lil scared of diving into this sort of project without knowing all the ins and outs of it.
Reply With Quote
  #15
Old 04-01-2011
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Nice work man. Sucks about the corner.
Reply With Quote
  #16
Old 04-01-2011
dirtybird819's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by not2hye View Post
I want to do the same swap on my truck.

Would you mind making a detailed parts list?
Im a lil scared of diving into this sort of project without knowing all the ins and outs of it.
There isn't much to it other than the obvious parts like header panel, grill, hood, headlights. I'm not for sure but u prolly need a hood hinge on the passenger side cause they flipped them but Idk what year they started. U will need bout a dozen body panel bolts and 4 screws for the new corners. The light sockets are close but the 04 are straight and my 98 are 90 degree. The bumper needs swapped also, so I'm just gonna build me an ARP style bumper. That should be bout it.
