Front reciever pics? - Ranger-Forums - The Ultimate Ford Ranger Resource


Fabrication & Tool Tech Need assistance with or ideas for custom metal fabrication? Want to show off your fabrication abilities or custom modifications? This is the sub-forum for you.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 03-24-2008
black-n-blue's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Garner, NC
Posts: 810
Front reciever pics?

Does anyone have any pics of how they mounted their front reciever.. preferrably valence-less? if so would you please post them

p.s. i tried searching but it said i had to wait 30 seconds.. for a good 5 minutes so i gave up on it
Reply With Quote
  #2
Old 03-24-2008
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
Name:  6096e966-1.jpg
Views: 7
Size:  52.6 KB
Name:  99a21201.jpg
Views: 9
Size:  43.6 KB

mounted with a welder
Reply With Quote
  #3
Old 03-24-2008
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367

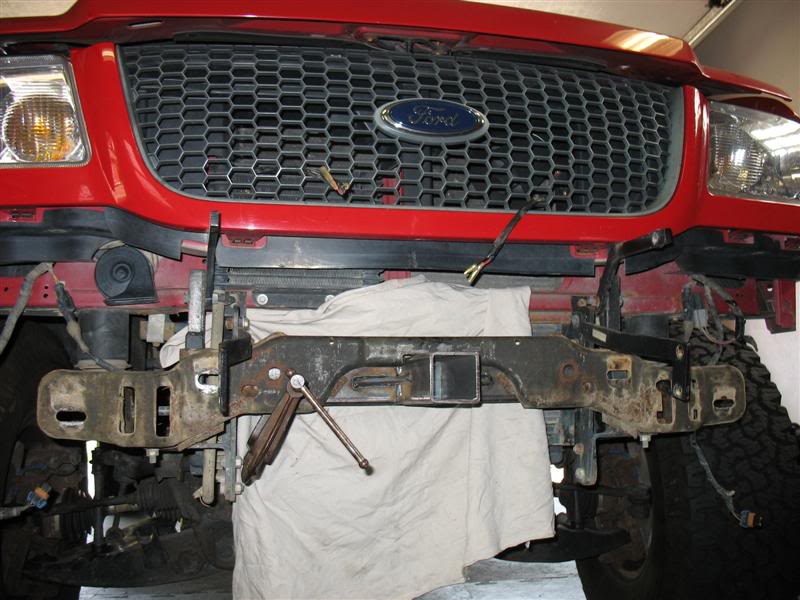

Name:  324e2143.jpg
Views: 6
Size:  78.9 KB
Reply With Quote
  #4
Old 03-24-2008
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
https://www.ranger-forums.com/forum2...ad.php?t=23993

thats my old 01 ranger with a bolt in reciever: hidden hitch part #5014

but I also had a 3inch bodylift


Reply With Quote
  #5
Old 03-24-2008
black-n-blue's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Garner, NC
Posts: 810
ahh cool cool.., i didn't know they actually sold them like that..the reason i'm wanting to do this is that my front crossmember is all bent up.. too bent up to even attach some factory tow hooks..

would anyone see a problem with just buying the receiver itself.. and then weld it in with some beef angle iron and some other supports?
Reply With Quote
  #6
Old 03-24-2008
slammer67's Avatar
Member

Join Date: Sep 2006
Location: Lamar, CO
Posts: 100
mine's built into the bumper

Name:  myrangerfront01a.jpg
Views: 7
Size:  19.9 KB
Reply With Quote
  #7
Old 03-24-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Just make your own man outta sq tube and drill a hole for a pin for say a winch or d-ring... mount it to the frame with some bolts then weld it up if you really want some strength...
Reply With Quote
  #8
Old 03-24-2008
Member

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
heres mine i scrached built.

https://www.ranger-forums.com/forum2...ad.php?t=50755

all pics there^^^^^
Reply With Quote
  #9
Old 03-26-2008
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Bought a generic full size ford hitch and had it cut down, brackets welded back on and drilled to bolt to the tow hook holes.
Works great. Now my license plate is mounted to a receiver cover, and locked in there so you can't even tell there is a receiver until the license plate is taken out. Used a winch on it a couple times so far.


Reply With Quote
  #10
Old 01-04-2009
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
Quote:
Originally Posted by jtslmn720 View Post

is it safe to cut that to fit the hitch in there? if so thatsd definately what ill be doing haha
Reply With Quote
  #11
Old 01-04-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Sure it's perfectly safe.....it's likely you are using the front hitch for recovery instead of the factory tow hooks. SO...it's completely safe to cut that crossmember. REALLY......2wd's dont even have that crossmember...it's there for merely mounting ofthe factory tow hooks.



Here's my hitch that's mounted above the frame instead of below....so the hole for the hitch will stick through the whole in the bumper on a bodylifted truck...

note...i welded the crossmember to the hitch for extra strength should somebody hook onto the tow hooks for some reason....(work in progress pic)
Reply With Quote
  #12
Old 01-04-2009
Member
iTrader: (1)

Join Date: Jun 2008
Location: Livonia, MI
Posts: 489
Shane, If I drive to Oregon your gonna help me install a hitch like this right?
Reply With Quote
  #13
Old 01-05-2009
Crunchy's Avatar
Member

Join Date: Oct 2007
Location: Hull, Quebec
Posts: 486
Reply With Quote
  #14
Old 01-05-2009
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
i have a 2wd and i have that crossmember...is that just another lovely luxury of the edge/sport?

and thats good to know i can cut that, now im not limited to how i mount my hitch on the front :)
Reply With Quote
  #15
Old 01-05-2009
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
I had no front xmember for over 5 yrs and 80k......all started with a bumper, ended with a receiver welded between frame rails.


Name:  Hitch.jpg
Views: 10
Size:  44.9 KB

Name:  Hitchfront.jpg
Views: 9
Size:  38.9 KB
Reply With Quote
  #16
Old 01-05-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Here she is done....it might look like i need to trim my valence up top, but it's just an optical illusion...

Name:  P1050062.jpg
Views: 7
Size:  104.8 KB

Name:  P1050069.jpg
Views: 7
Size:  90.8 KB
Reply With Quote
  #17
Old 01-05-2009
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
very nice Fx4wannabe01, looks like you did a lot of painting while you were at it, the truck looks new...just with a dirty body. I gotta find someone with a welder, theres so much i want to do haha
Reply With Quote
  #18
Old 01-05-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
yea...i went to town with 1 can of John Deere Blitz Black. the illest color and paint ever.
Reply With Quote
  #19
Old 01-06-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
that look real good shane. good work!
Reply With Quote
  #20
Old 01-07-2009
outdoorsman's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
All put together.
Name:  004cb9b1.jpg
Views: 6
Size:  91.1 KB

Name:  7db5a9c1.jpg
Views: 12
Size:  130.9 KB

Nice and Painted
Name:  100_4541.jpg
Views: 7
Size:  69.6 KB

In use.

Name:  Newyearsday09165.jpg
Views: 7
Size:  56.0 KB


Here you can see my buddy (Dusty08) and his DSG 08'. He has the Curt hitch mounted on the front.
Name:  Newyearsday09090.jpg
Views: 8
Size:  53.6 KB
Reply With Quote
