New rear bumper and lifted hitch

Well I finally got around to cutting up my hitch I got a while back at the junk yard. I ended up just cutting 3" out of it, I wanted to maybe do more but I figured this would be fine. I had to remove the rear bumper since I had the mounts in the same area as the hitch mounts. It needed alot of work and some new mounts so I just decided to make a whole new bumper. I had a bunch of 2x5 and 2x2 tube steel laying around so I figured I'd see what I could do with it. And since I am layed off this keeps me busy, not working sucks.

Here are a few pics of the process of both, Not finished on the bumper yet cause I ran out of wire today, but should have it all finished and painted tomorrow. So I will throw up some new pics when It is.

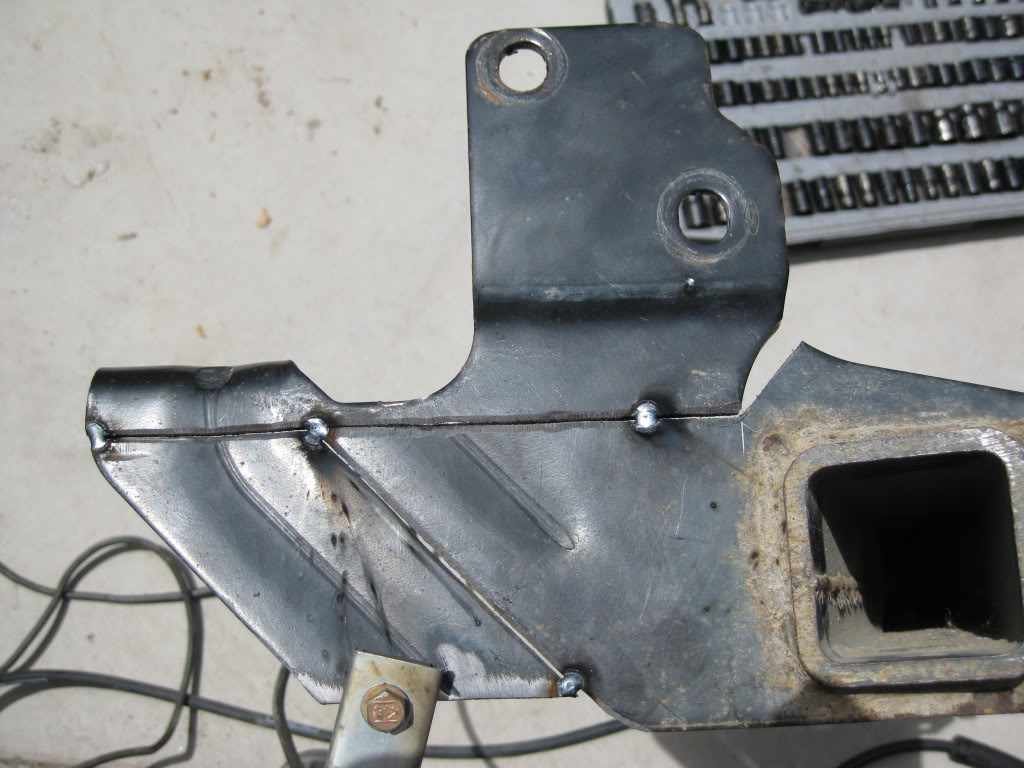

here is the hitch all chopped up and tacked
Name:  070109009.jpg
Views: 18
Size:  124.5 KB

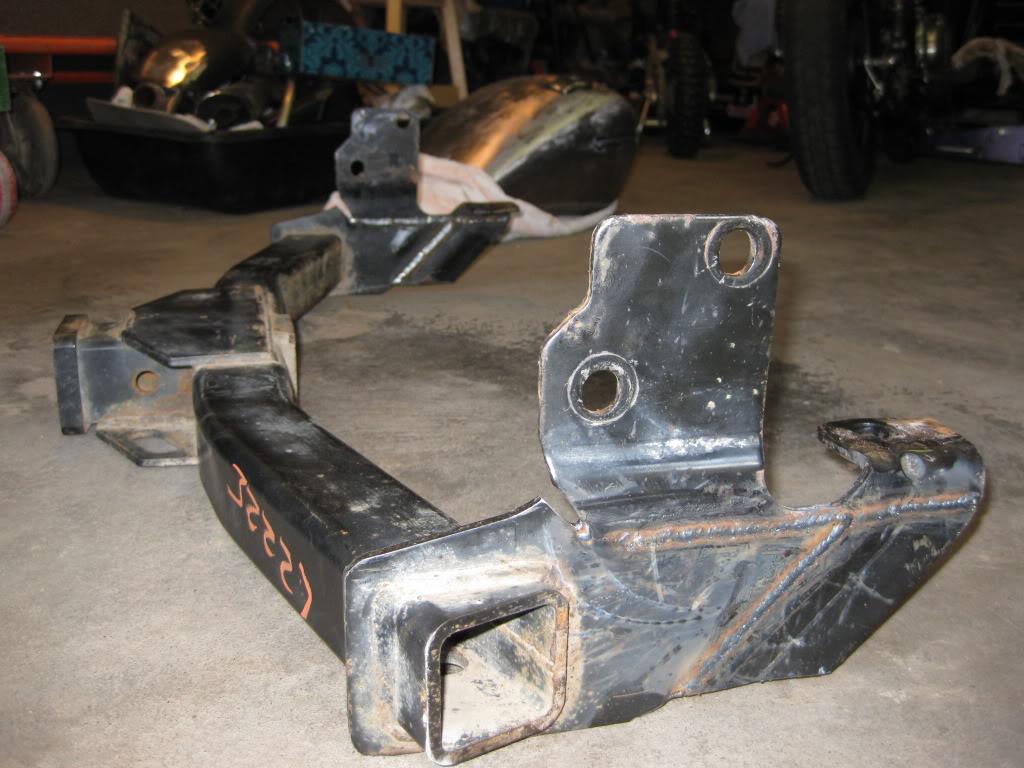

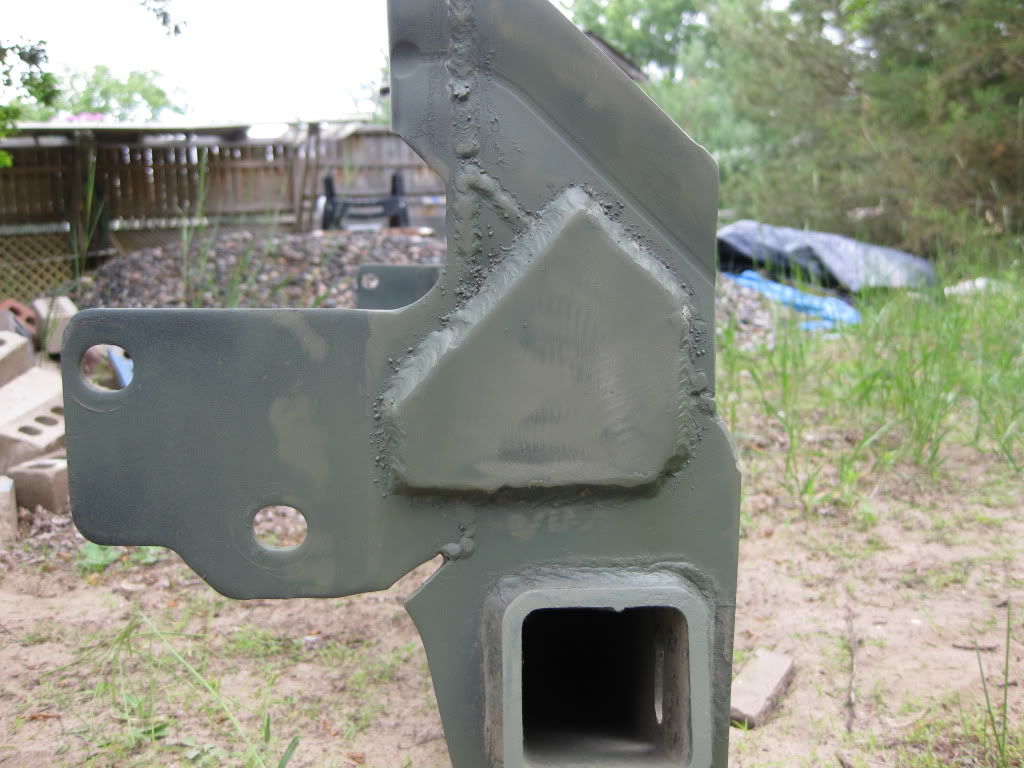

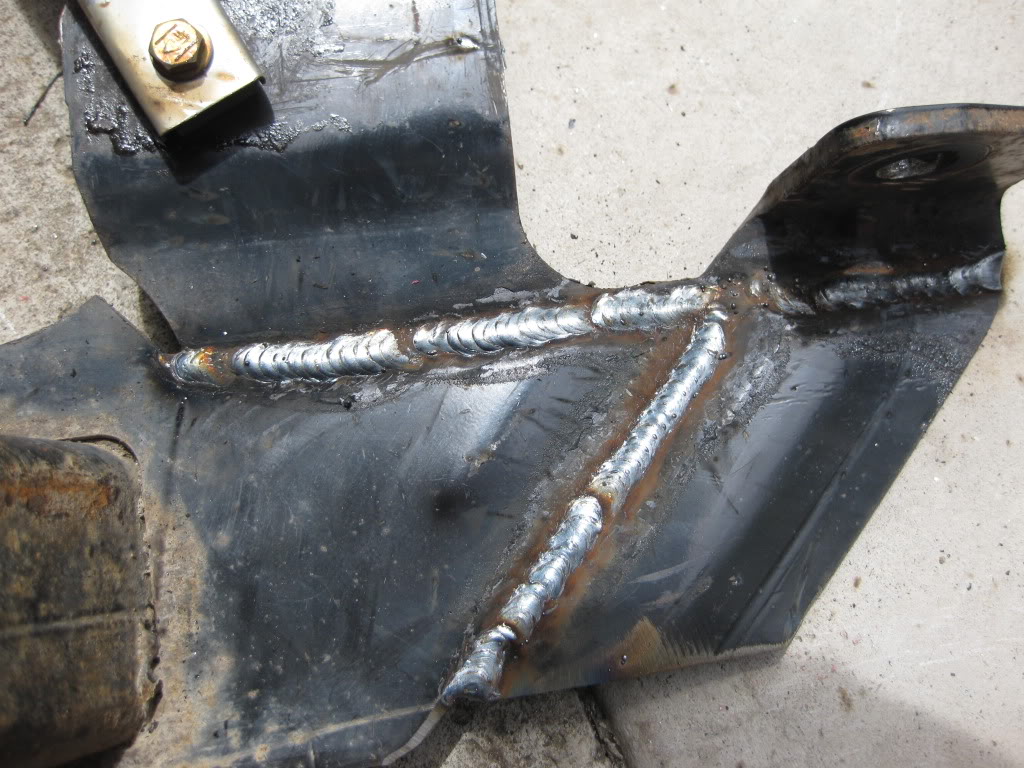

here it is all welded up, with an added fish plate to the sides.
Name:  070109014.jpg
Views: 19
Size:  167.8 KB
Name:  070109015.jpg
Views: 17
Size:  131.8 KB
Name:  070109017.jpg
Views: 20
Size:  125.7 KB

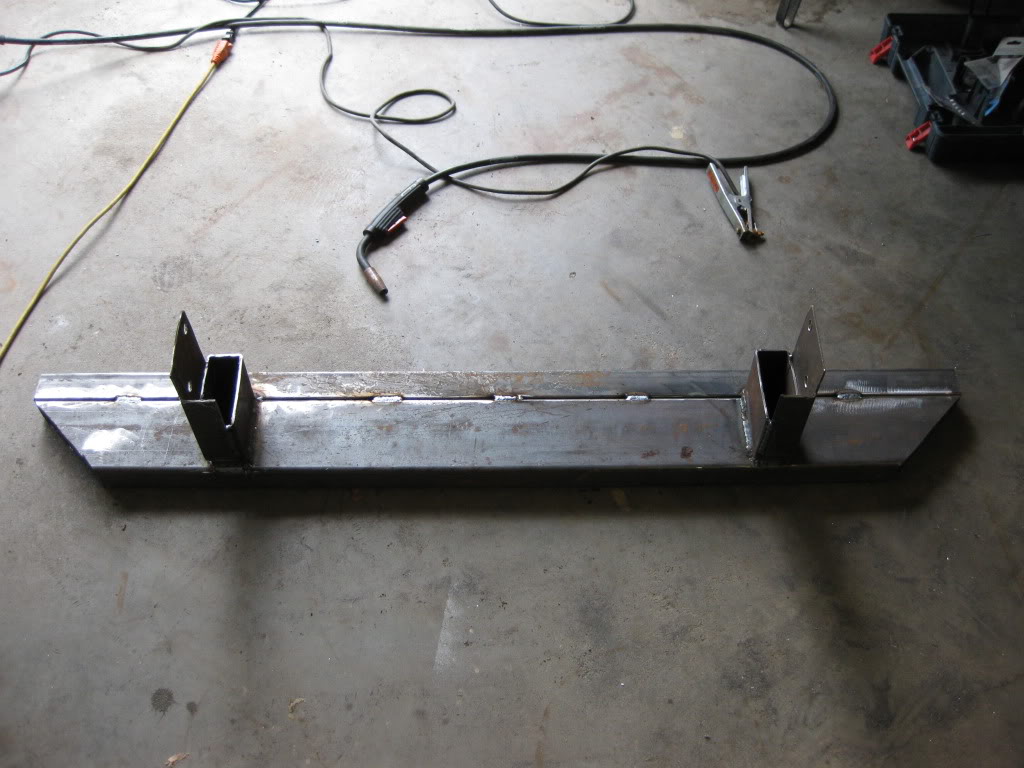

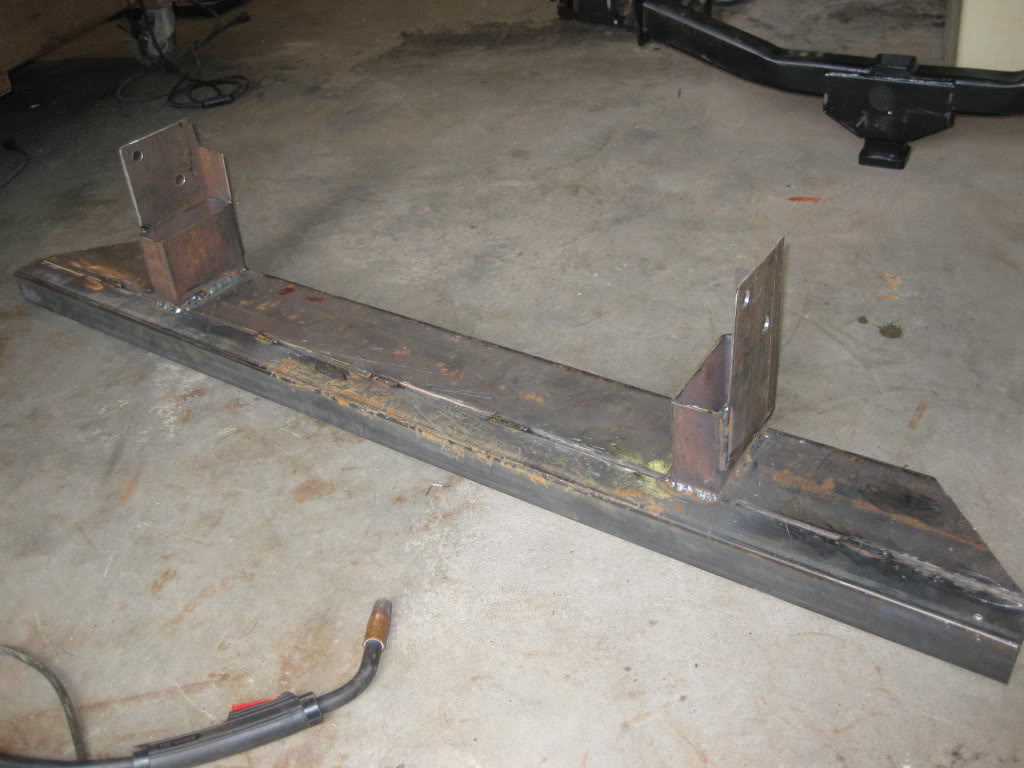

The bumper I used some 2x5 and 2x2 combined to make a 7" bumper with tapered ends. I thought about tipping the ends in to wrap around the edge of the bed more but I got lazy and left it strait.


The mounts to the frame are temps will be 1/4" plate and sandwiched between the frame and the hitch
Name:  070609004.jpg
Views: 16
Size:  104.7 KB

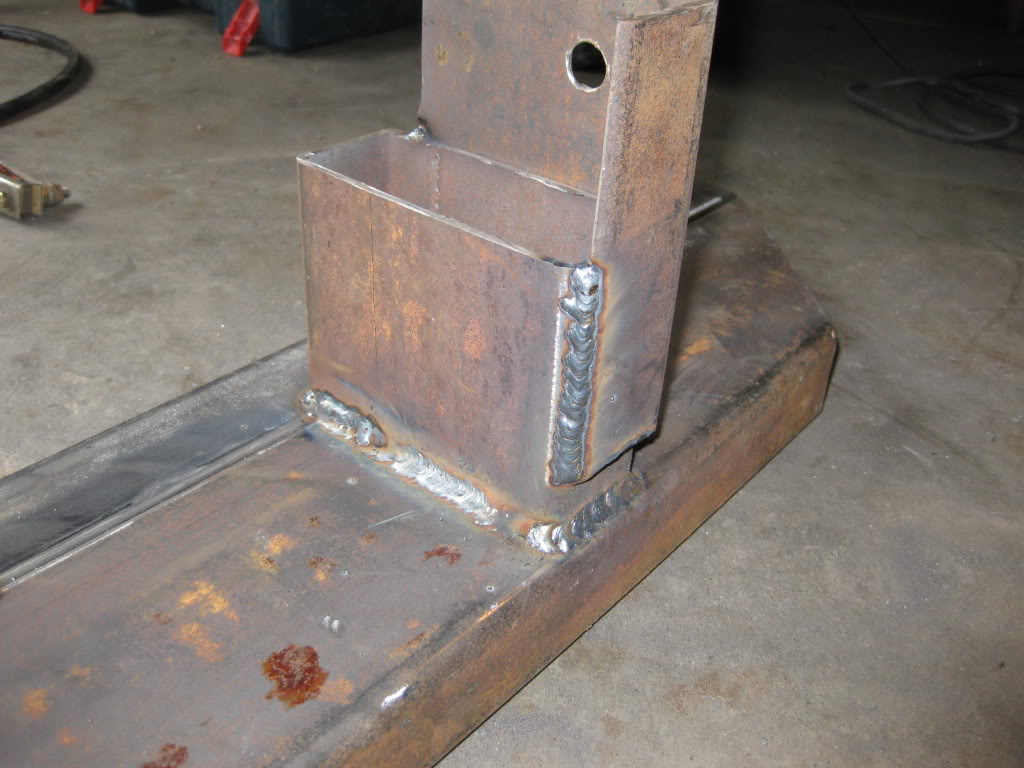

Name:  070609005.jpg
Views: 20
Size:  117.1 KB
Name:  070609006.jpg
Views: 17
Size:  114.7 KB

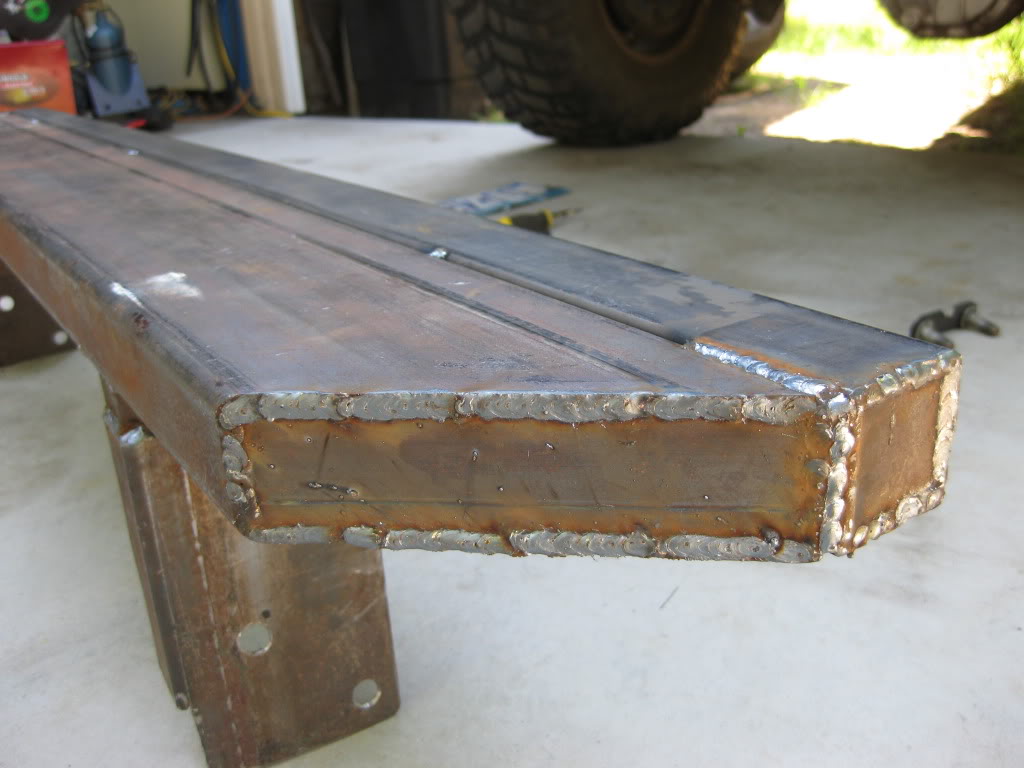

capped the ends
Name:  070609009.jpg
Views: 19
Size:  91.6 KB

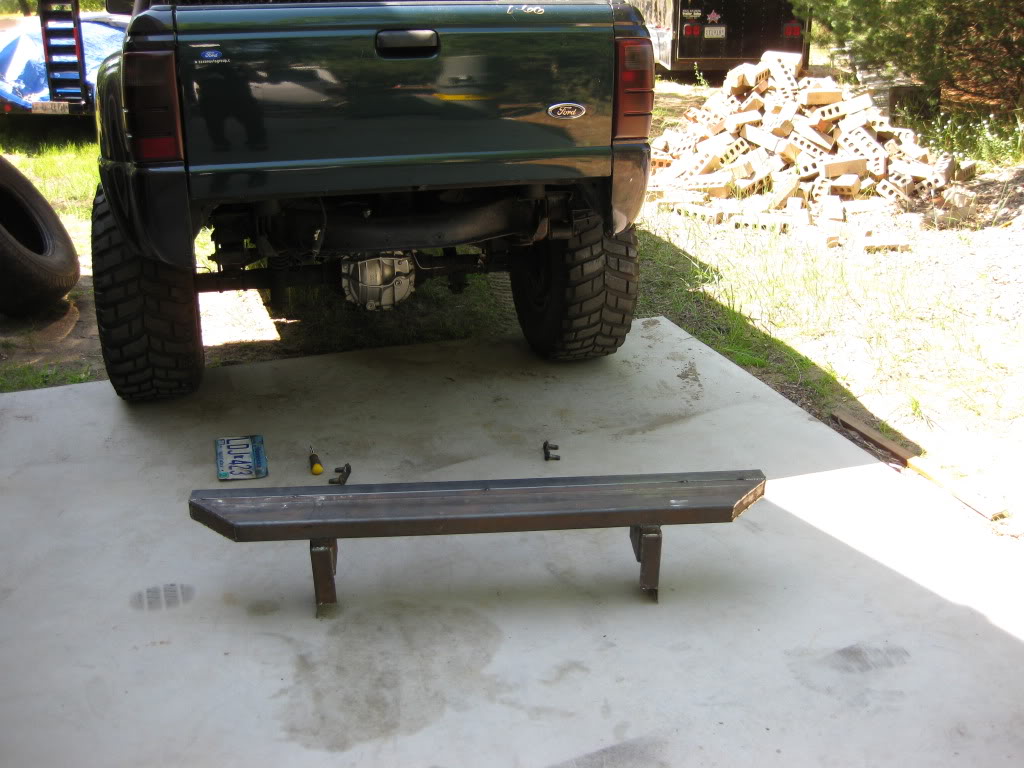

Name:  070609010.jpg
Views: 17
Size:  134.5 KB

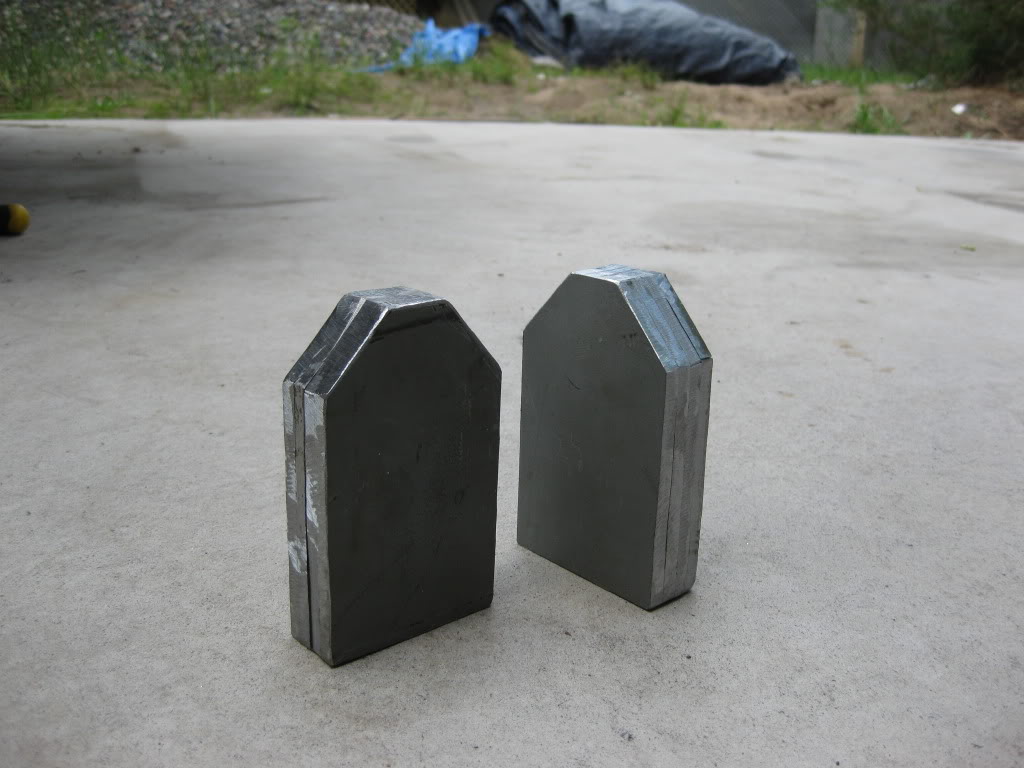

Next I went to work on my d-ring tabs. I decided to build some instead of buy some to save some money. I used 3 pieces of 1/4" plate welded together.

Name:  070609013.jpg
Views: 17
Size:  102.6 KB
grinded edges ready for welding

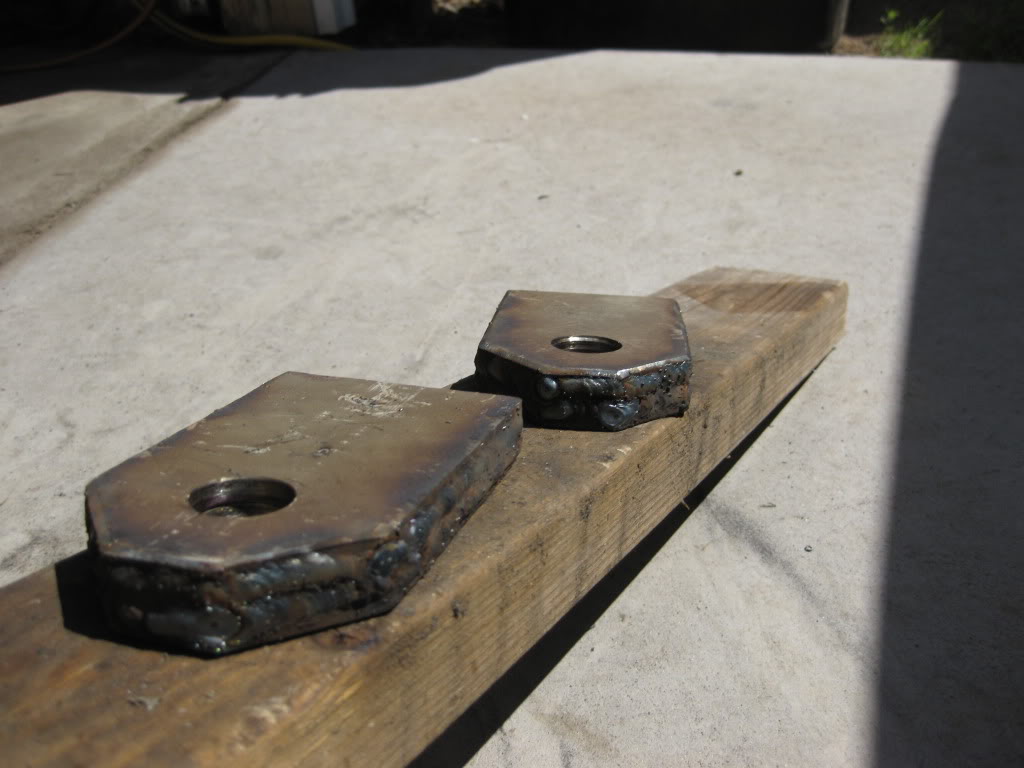

welded up but not ground down yet
Name:  070609017.jpg
Views: 19
Size:  87.7 KB

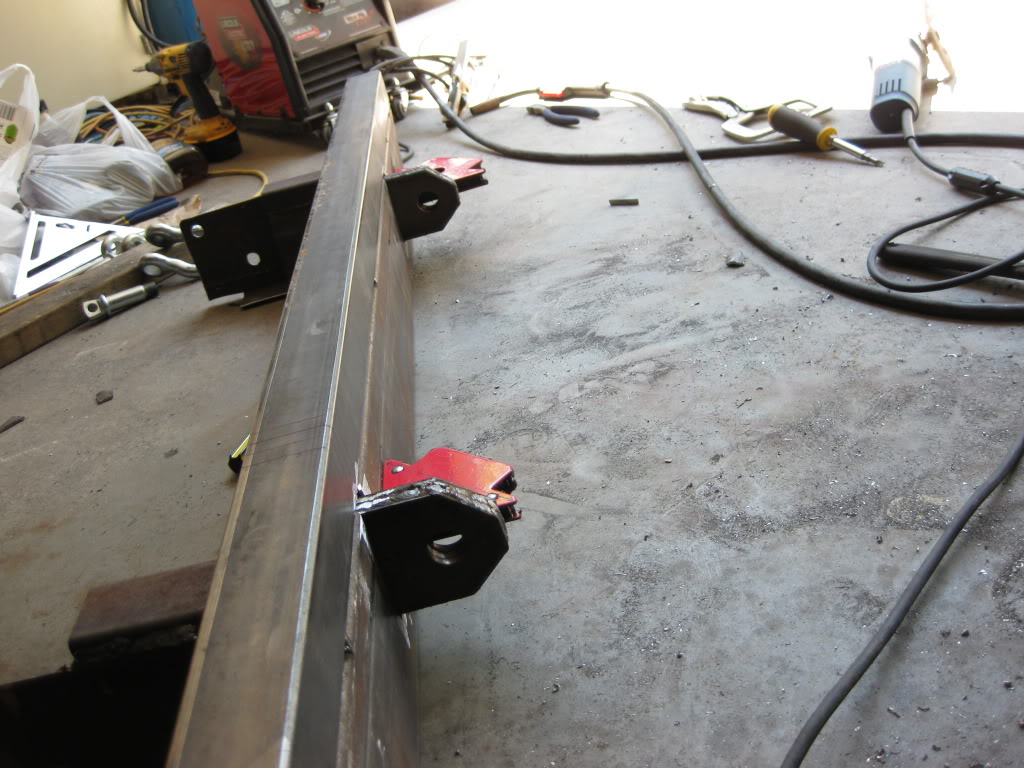

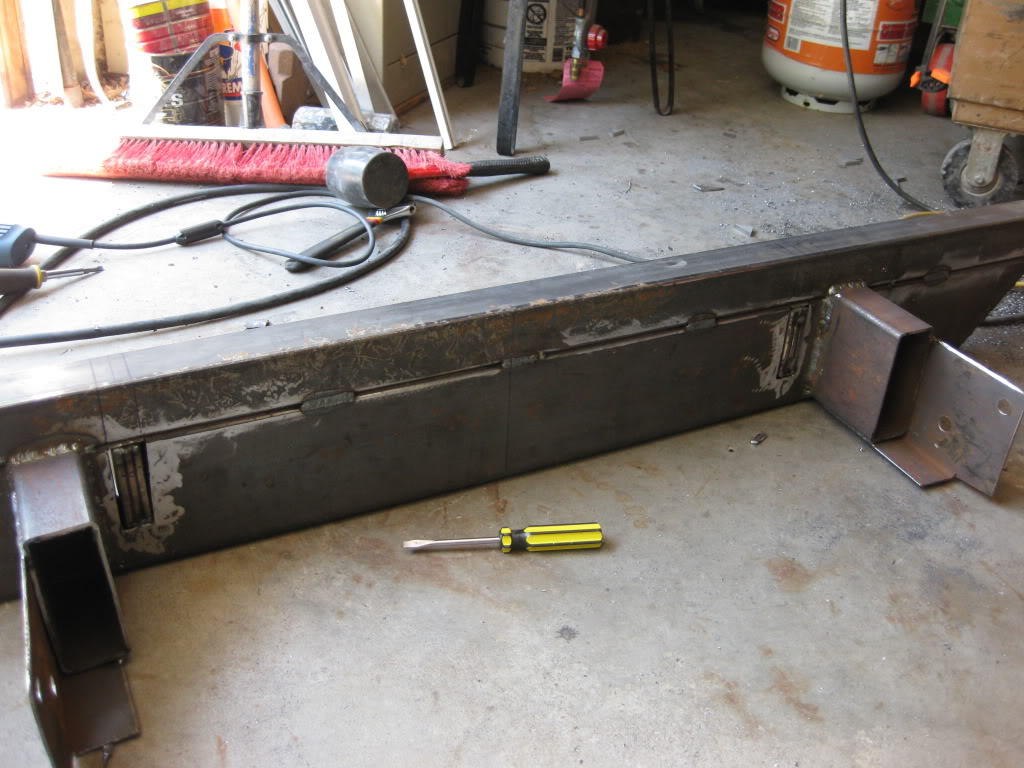

Cut holes in the bumper to let the tabs pass through to be welded on the backside and front
Name:  070609020.jpg
Views: 17
Size:  147.2 KB

Name:  070609019.jpg
Views: 17
Size:  138.2 KB

Fully welded on the front, have to finish the rear when I get wire.Also have to weld the seam of the two pieces together and grind it down before I paint.

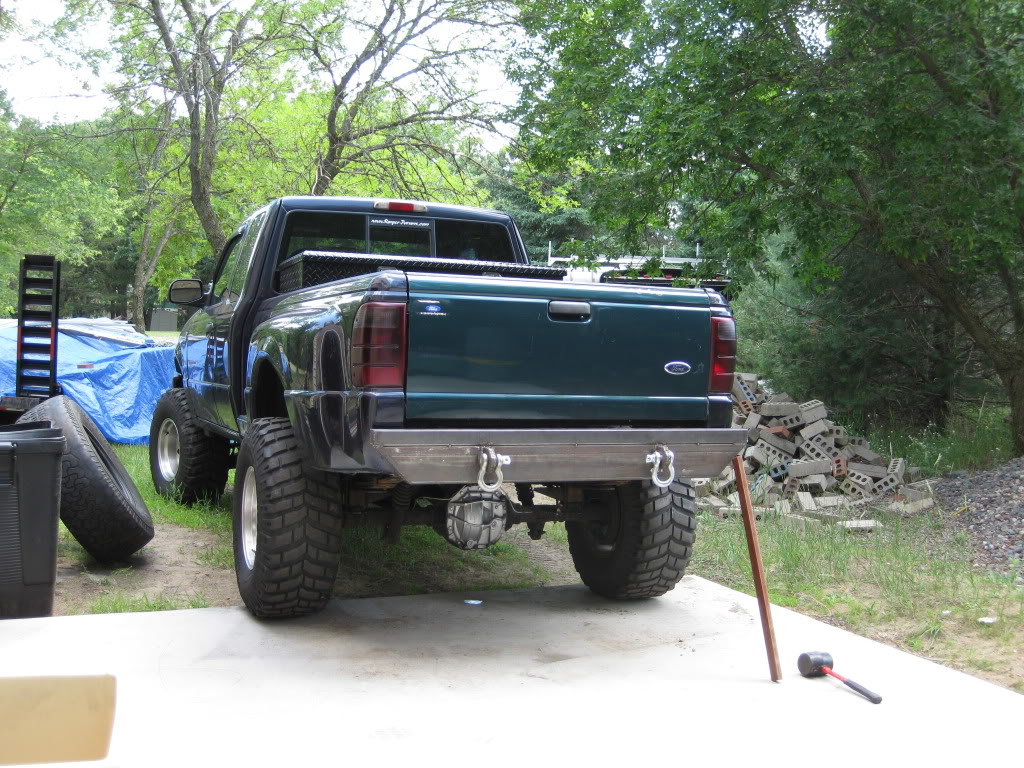

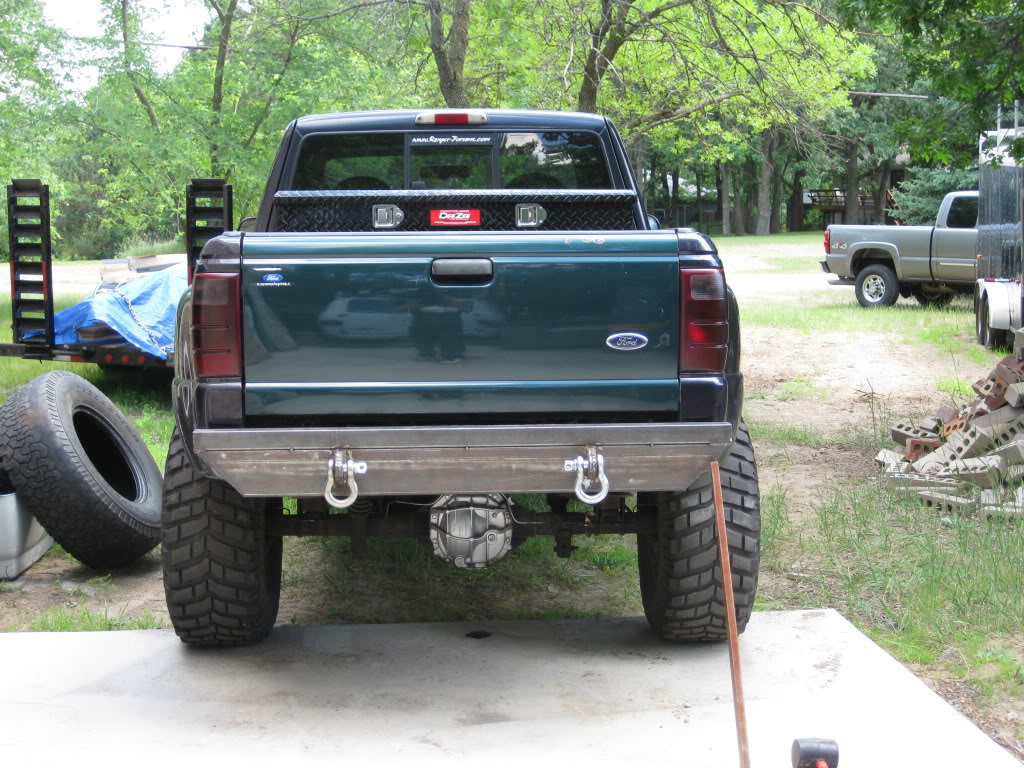

what it looks like on the truck..pretend the stick isn't there The hitch sits right up tight to the bottom of the bumper.
Name:  070609024.jpg
Views: 16
Size:  218.5 KB
Name:  070609025.jpg
Views: 172
Size:  231.6 KB

Pretty simple design but it works, should fit better when I make my front bumper and when I get my sas done.
Reply With Quote
  #2
Old 07-07-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Nice bumper! looks good.

I am not sure about the shackle mounts, that is made from hot rolled steel, most are cold rolled which is much stronger. It should be fine but it may bend or open up the hold some depending on use.
Reply With Quote
  #3
Old 07-07-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looks good man. I like it.
Reply With Quote
  #4
Old 07-07-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Very nice!!

I always thought your truck was black. lol
Reply With Quote
  #5
Old 07-07-2009
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Nice bumper. What's up with the green tailgate?
Reply With Quote
  #6
Old 07-07-2009
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
nice work. i give 2 thumbs up!
Reply With Quote
  #7
Old 07-07-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Why don't you get some 2.5x2.5 .25 wall square tubing and add a receiver to the bumper itself, so you don't have anything else hanging below the bumper? You can leave the square tubing a little long on the front side and add some ribbing from it over to the frame mounts.
Reply With Quote
  #8
Old 07-07-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Nice bumper! Green tailgate? lol
Reply With Quote
  #9
Old 07-07-2009
Member

Join Date: Feb 2009
Location: Joliet, Illinois
Posts: 150
r u gonna drill holes for your license plate?
Reply With Quote
  #10
Old 07-07-2009
FordX4Ranger's Avatar
Member
iTrader: (1)

Join Date: Aug 2007
Location: Golden, CO
Posts: 487
NICE bumper
Reply With Quote
  #11
Old 07-07-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
heavy duty bumper
Reply With Quote
  #12
Old 07-07-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Looks good!
But I don't like the d-ring mounts because, to me, it looks like they will collect water between the plates and rust from the inside.
I say you should fully weld the face of the bumper where the small and big piece come together and grind it down smooth, incorporate the 2" receiver into the bumper, and sell your receiver to someone else with a body lift. It would look better and get rid of a lot of weight.
Reply With Quote
  #13
Old 07-07-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
^

Well said, +1
Reply With Quote
  #14
Old 07-07-2009
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Quote:
Originally Posted by seed60 View Post
I always thought your truck was black. lol
Me too and I've seen his truck in person.

What are you doing with your old bumper. I liked the old one but the new one is pretty too.
Reply With Quote
  #15
Old 07-07-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks good man
Reply With Quote
  #16
Old 07-07-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
the seam will be welded and ground down yes. I'm not too worried about the tabs, I've seen them done that way on a few other builds. Plus if you ever saw the way I did my old ones and they some how held up to a f-350 tugging on me, these will work great. As far as the rust between them, that will be pretty hard since they are very tight together and I will be sealing and painting the hole which is the only spot where it may rust. Yeah I've been pondering just putting a tube through the bumper for a reciever, you guys may have talked me into it. I will just have to make some think *** mounts and a couple more ribs to tie into the frame like Jey said. So I suppose I have a lifted bodylift class 3 hitch to sell heh

thanks for the compliments! hah yeah Ive had black, blue,green on many tickets. nobody seems to figure it out. And yeah the sweet green tailgate is just my replacement. I'll paint it someday

Last edited by INT3RC3PTOR; 07-07-2009 at 11:22 AM.
Reply With Quote
  #17
Old 07-07-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
looks good
Reply With Quote
  #18
Old 07-07-2009
kyle12201's Avatar
Member

Join Date: Apr 2008
Location: East Waterboro, ME
Posts: 1,543
I love it, nice work simple design looks good.

Last edited by kyle12201; 07-07-2009 at 03:22 PM.
Reply With Quote
  #19
Old 07-07-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
very nice! Its exactly the design i had in mind for my rear bumper lol
Reply With Quote
  #20
Old 07-07-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Now u need to paint it and ur tailgate haha.. looks great!
Reply With Quote
  #21
Old 07-07-2009
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
Quote:
Originally Posted by pgiordano View Post
r u gonna drill holes for your license plate?
thinking the same thing
Reply With Quote
  #22
Old 07-07-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by The S-10 Killer View Post
thinking the same thing
yeah I think I'm going to tap and thread two holes for it, and use some rubber o-rings around the bolts so it will seal water from getting in and rusting.
Reply With Quote
  #23
Old 07-07-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Luks gewd,

I agree on the receiver in the bumper idea. Might as well maximize your departure angle as much as you can.
Reply With Quote
  #24
Old 07-07-2009
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Looks frickin beef Andy! I like it man.

On a completely unrelated note, all my Hydraulic parts for my bender should be ready this week. It might actually bend something before the end of the summer! Haha..
Reply With Quote
  #25
Old 07-07-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
thanks guys

Quote:
Originally Posted by SniperX103 View Post
Looks frickin beef Andy! I like it man.

On a completely unrelated note, all my Hydraulic parts for my bender should be ready this week. It might actually bend something before the end of the summer! Haha..
hah sure maybe I wanted to build a tube bumper! that will be nice though let me know when you might start using it I'll swing by and watch.

edit: picked up a reciever tube and my wire so I'm ready to rock. But Its going to have to wait till tomorrow morning to get worked on. got too busy today. But I did paint my wheels last night just for ****s

Last edited by INT3RC3PTOR; 07-07-2009 at 03:23 PM.
