1990 Ford Ranger Will Not Start
New ignition switch, new starter relay (solenoid), new starter, and new battery. Turning the ignition you can hear the starter relay "click" so I thought perhaps the contacts inside may not be touching, so I replaced with OEM solenoid and exact same thing happens - no start. Only way to start the truck is to "jump" the starter relay on the right front fender panel (same with new and old starter relay) and then it drives like a dream. Does not start when in neutral and backup lights do work.
I am missing something here - any ideas or suggestions would be greatly appreciated.
I am missing something here - any ideas or suggestions would be greatly appreciated.
#2
RF Veteran
iTrader: (1)
Welcome to the forum
What engine in the 1990 Ranger?
Ford use 2 different starting systems with different wiring
One for the 2.3l and 2.9l
One for the new 4.0l
Starter motor can ID which system you are wired for

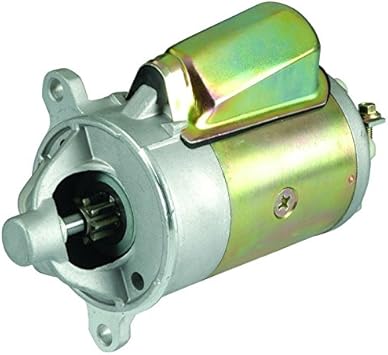

Old system starter looks like this, just has a solenoid on top: https://images-na.ssl-images-amazon...._AC_SY355_.jpg

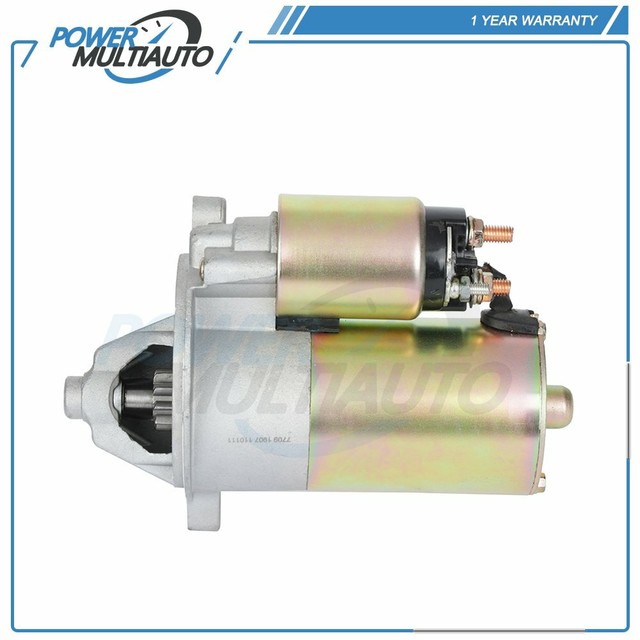

Newer starter motors look like this, has a relay/solenoid on top: https://i.ebayimg.com/images/g/qVoAA...KVc/s-l640.jpg
Which one do you have?
Older system just needed 1 cable to the starter motor
Newer system needed 1 cable and 1 smaller wire to starter motor, so TWO "wires"
What engine in the 1990 Ranger?
Ford use 2 different starting systems with different wiring
One for the 2.3l and 2.9l
One for the new 4.0l
Starter motor can ID which system you are wired for
Old system starter looks like this, just has a solenoid on top: https://images-na.ssl-images-amazon...._AC_SY355_.jpg
Newer starter motors look like this, has a relay/solenoid on top: https://i.ebayimg.com/images/g/qVoAA...KVc/s-l640.jpg
Which one do you have?
Older system just needed 1 cable to the starter motor
Newer system needed 1 cable and 1 smaller wire to starter motor, so TWO "wires"
