Icon8 No rpm limiter, no governer, now no speedo?

Last night coming home from work i went to pass somebody on the highway, after i got back into my lane i noticed my speedo and rpms bouncing but i was holding a steady speed and rpm. i got to a set of lights and gave it hell (s10 beside me ) and noticed that my rpms were hitting the red (rpm limiter is at 5500 redline 6) and got up to 160 andd no governer? now today i got into my truck to come to work and my speedo is bouncing around and saying zero when im doing 110. anybody had this prob? dont know where to begin.
Reply With Quote
  #2
Old 04-05-2007
Needforspeed3685's Avatar
Member

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
You either have a short, or your VSS sensor is dislodged slightly, causing erratic readings.

See the sensor on the top of the differential housing, with one 10mm bolt holding it on? Check that sensor out. It controls your speedometer, torque converter lock-up, governor speed restriction, tripmeter and odometer readings, and RWABS.

Make sure you get it fixed ASAP. This could be dangerous if your RWABS system doesn't work properly.

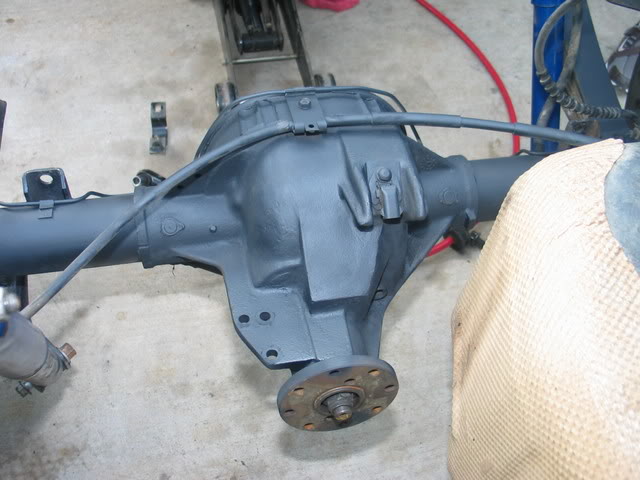

The sensor is on the right side of the pumpkin, with two metal ears sticking up to protect it. The wire connector is facing downwards.
Name:  IMG_4876.jpg
Views: 6
Size:  51.7 KB
Reply With Quote
  #3
Old 04-05-2007
Ushkie's Avatar
Member
Thread Starter

Join Date: Jan 2007
Location: Fort Sask, AB, Canada
Posts: 645
i just switched from a 7.5 diff to a 8.8 out of a 2004 level 2. any differances, ill see if amybe its loose.
Reply With Quote
  #4
Old 04-05-2007
Needforspeed3685's Avatar
Member

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
That's exactly what I'm doing, although I'm not aware of any differences. More than likely the connector is loose or corroded, or the sensor is loose.
Reply With Quote
  #5
Old 04-05-2007
Ushkie's Avatar
Member
Thread Starter

Join Date: Jan 2007
Location: Fort Sask, AB, Canada
Posts: 645
perfect, ill go have a look, thanks for the info!
Reply With Quote
  #6
Old 04-05-2007
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
i dont *think* '04 has a VSS on the differential.. as they dont have RWABS, but 4WABS. So that could be a problem
Reply With Quote
  #7
Old 04-05-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by bwester04
i dont *think* '04 has a VSS on the differential.. as they dont have RWABS, but 4WABS. So that could be a problem
Both the 97 and 2004 Rangers have the ABS sensor on the rear axle. That shouldn't matter anyway because the VSS generator is on the transmission on his 97. Only 98~2000 have the VSS off the rear axle ABS sensor.
Reply With Quote
  #8
Old 04-05-2007
Needforspeed3685's Avatar
Member

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by rwenzing
Both the 97 and 2004 Rangers have the ABS sensor on the rear axle. That shouldn't matter anyway because the VSS generator is on the transmission on his 97. Only 98~2000 have the VSS off the rear axle ABS sensor.
So the Vehicular speed is determined by the transmission....interesting..

I doubt the ABS sensor would cause the symptoms listed.
Reply With Quote
  #9
Old 04-05-2007
Ushkie's Avatar
Member
Thread Starter

Join Date: Jan 2007
Location: Fort Sask, AB, Canada
Posts: 645
damn, anobdy else have any ideas?
Reply With Quote
  #10
Old 04-05-2007
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
you dont think a bad/wrong ABS sensor could cause an ABS light to pop up? it happened when he put in a newer axle into an older truck..
Reply With Quote
  #11
Old 04-05-2007
Member

Join Date: Sep 2005
Location: Charlotte, NC
Posts: 561
I still think you should check out the VSS. Apparently on the transmission in your case.
Reply With Quote
  #12
Old 04-05-2007
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Quote:
Originally Posted by Ushkie
Last night coming home from work i went to pass somebody on the highway, after i got back into my lane i noticed my speedo and rpms bouncing but i was holding a steady speed and rpm. i got to a set of lights and gave it hell (s10 beside me ) and noticed that my rpms were hitting the red (rpm limiter is at 5500 redline 6) and got up to 160 andd no governer? now today i got into my truck to come to work and my speedo is bouncing around and saying zero when im doing 110. anybody had this prob? dont know where to begin.
Did i read that right.....160 MPH?
Reply With Quote
  #13
Old 04-05-2007
SteveOh's Avatar
Member

Join Date: Mar 2005
Location: Ft. Campbell Kentucky
Posts: 4,585
Quote:
Originally Posted by 01xltranger4x4
Did i read that right.....160 MPH?
being that he is from canada iam going to assume 160kms
Reply With Quote
  #14
Old 04-05-2007
Nate97Ranger's Avatar
Member

Join Date: Aug 2005
Location: Fort Bragg, NC 82nd AB
Posts: 420
buddy of mine disabled his abs or somthing and it took away his govenor said with it pegged at 120 his driveshaft came off...dont know how true it is, but yeah becarful haulin *** =D
Reply With Quote
  #15
Old 04-06-2007
Ushkie's Avatar
Member
Thread Starter

Join Date: Jan 2007
Location: Fort Sask, AB, Canada
Posts: 645
its in kms, but i did wrap the speedo when i lost governer, prob never wanna do that in this truck again it goes to 200kms and it was pinned
