Strange rear brake hardware

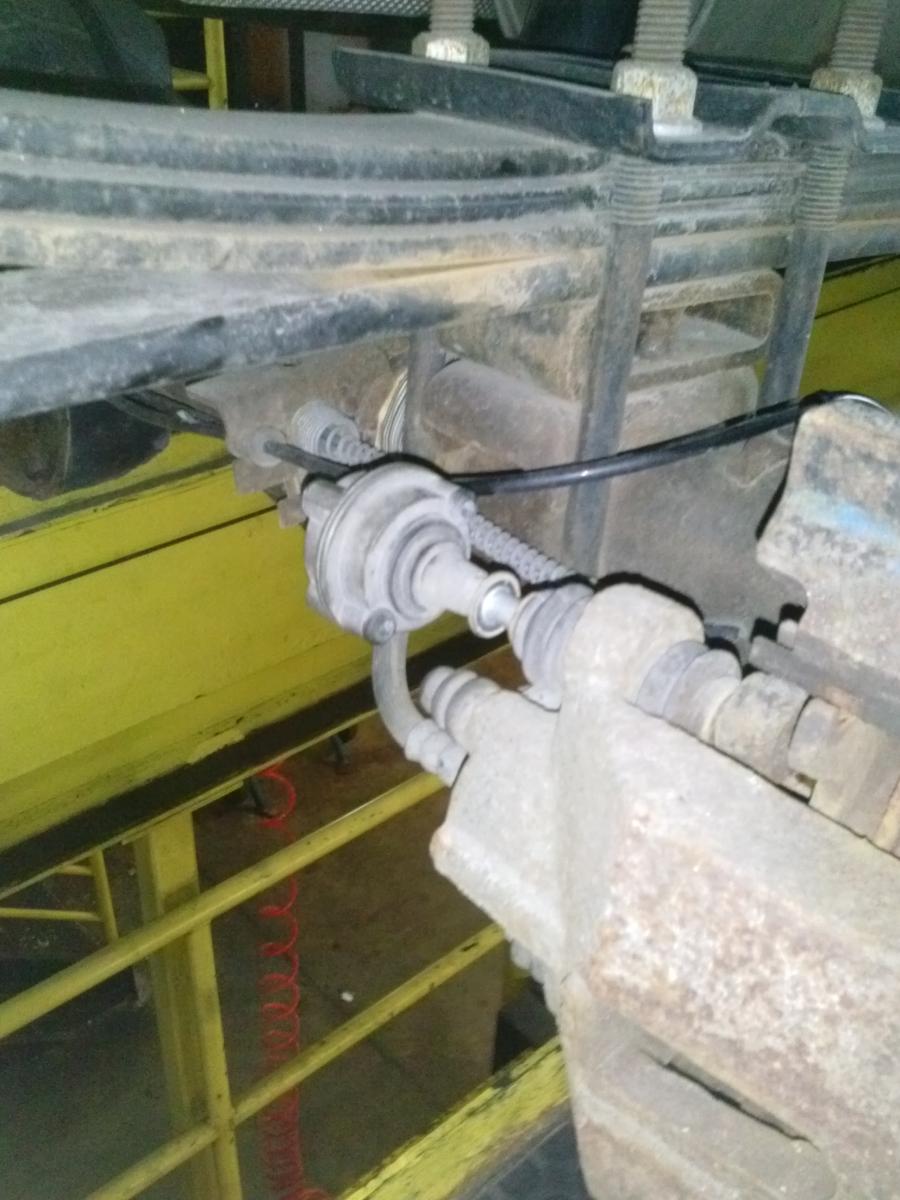

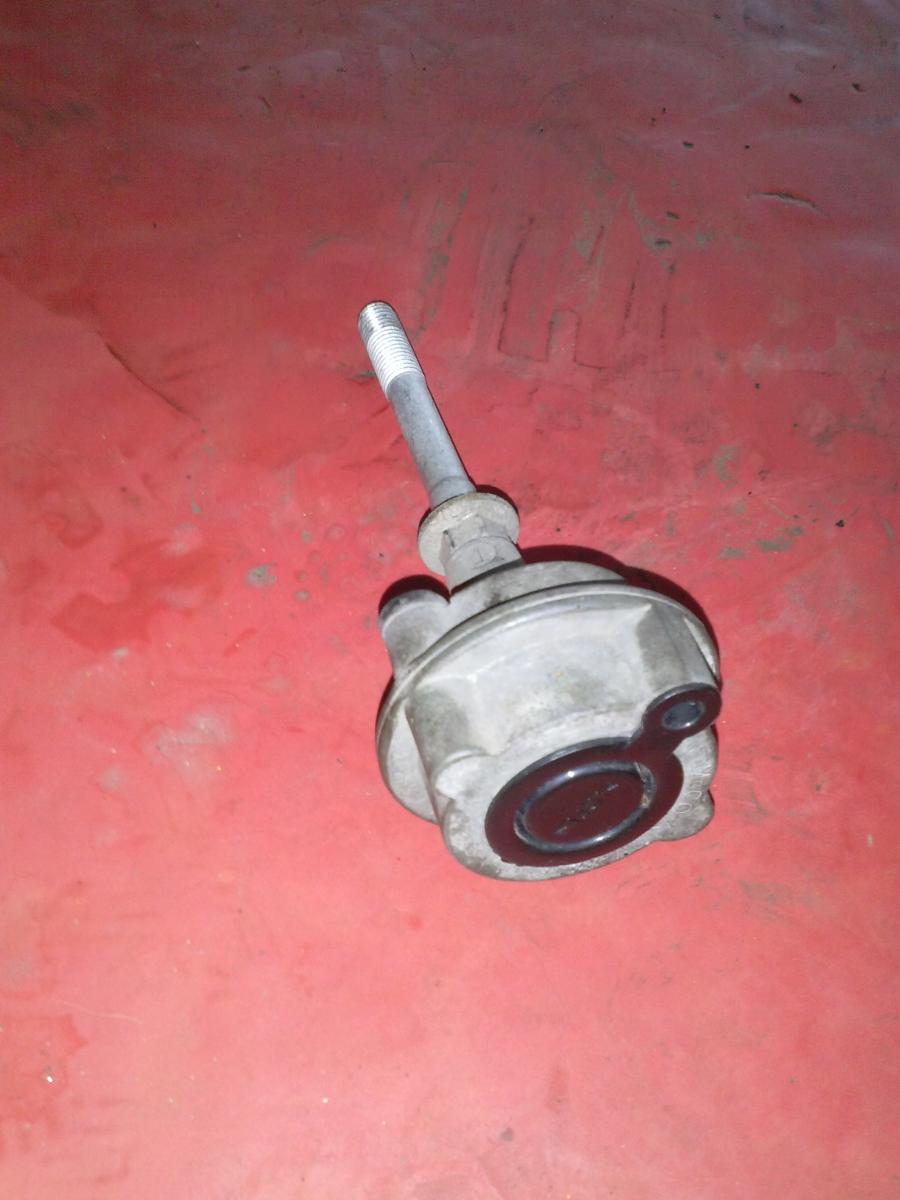

2010 XLT 4.0 stickshift. Took apart the back brakes at work the other day and found these odd-looking pieces attached to the upper caliper bolts on both sides. No idea what they could be. Sensors? Balances? Explosives? Alldata diagrams of the back brake system do not show the part. It has no power source and no obvious connection or function. Any clues?
Attached Thumbnails
Strange rear brake hardware-cam00446.jpg   Strange rear brake hardware-cam00445.jpg
Reply With Quote
Old 05-01-2014
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 7,602
I believe it would be an anti-moan type device, prevents rear brake noise, like a pulse damper.
It would have no outside connection as it is just a fluid filled diaphragm.

Picture of it here:
Reply With Quote
Old 05-01-2014
Thread Starter
Join Date: Mar 2014
Location: Pittsburgh, PA
Posts: 3
Thanks! Relief to know I'm not driving around with a time-bomb strapped to the truck. It was a shady kind of a dealership...
Reply With Quote
Old 05-02-2014
ianyboy's Avatar
Join Date: Mar 2013
Location: Quebec City, QC, Canada
Posts: 302
I just checked Alldata, they speak about it on my 2011, and not for 2010. :O
