Installed carpet and sound deadener

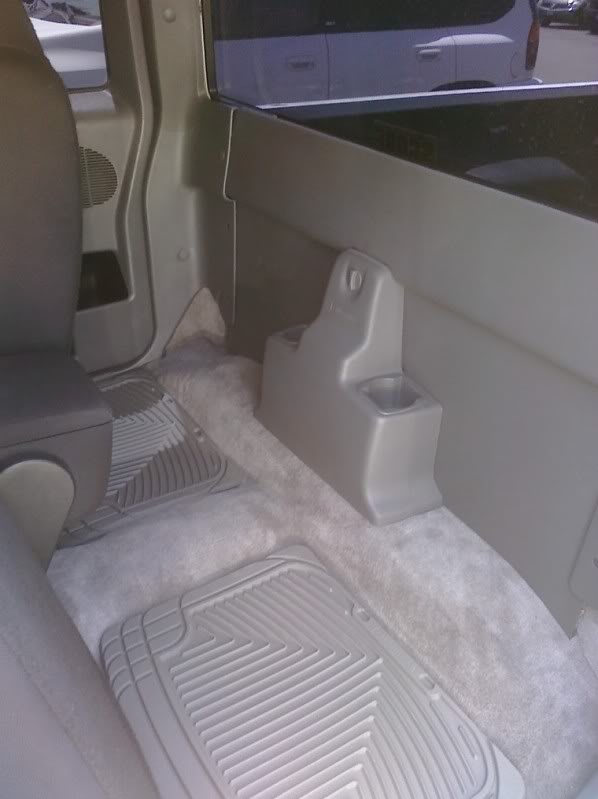

Those of you wanting to do this, I highly recommend Raammat.com and stockinteriors.com. I S/D' the floor, doors, roof and back wall. The carpet kit was easy to install, its still got some wrinkles but I think those will come out with time. Word of advice though, the how to here says that the kit comes with enough carpet in the back in case you want to do a rear seat delete. My kit did not have enough. Luckily I had enough leftover carpet from the front and I just slid a peice of carpet to cover the gap. Besides that, Im really happy with both companies

Name:  CIMG0256.jpg
Views: 3
Size:  40.2 KB
Reply With Quote
  #2
Old 08-18-2009
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
looks really good! nice and clean.
Reply With Quote
  #3
Old 08-18-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Looks good man.
Reply With Quote
  #4
Old 08-18-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Looks clean
Reply With Quote
  #5
Old 08-18-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632

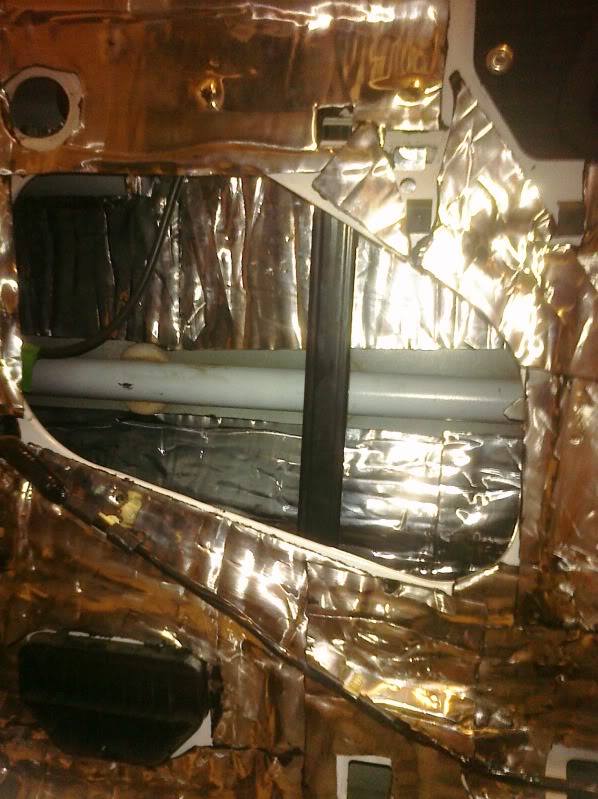

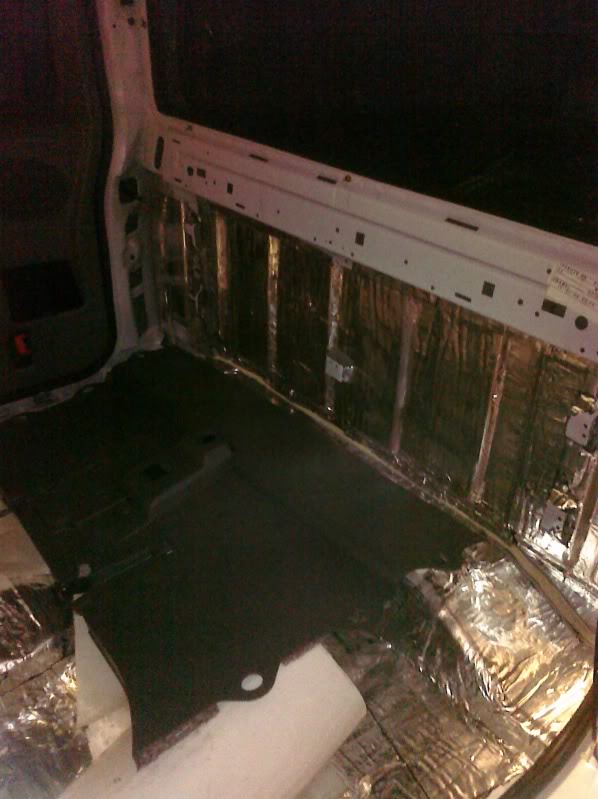

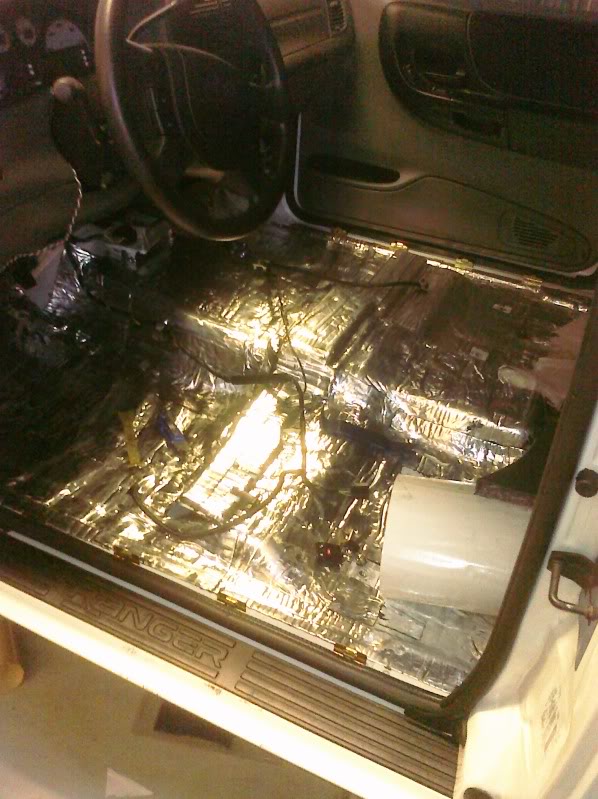

thanks guys! couple more
Name:  CIMG0236.jpg
Views: 1
Size:  130.1 KB
Name:  CIMG0237.jpg
Views: 1
Size:  89.5 KB
Name:  CIMG0244.jpg
Views: 1
Size:  130.8 KB
Reply With Quote
  #6
Old 08-18-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
bet that sounds soo much better, i only put about half on the floor compared to yours and it made a huge difference.

I need to get my carpet back in, might buy some of that stuff you got.
Reply With Quote
  #7
Old 08-18-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Quote:
Originally Posted by zabeard View Post
bet that sounds soo much better, i only put about half on the floor compared to yours and it made a huge difference.

I need to get my carpet back in, might buy some of that stuff you got.
sounds WAY better...I did the entire floor, most peices overlaped 1-2" and some places got 2 layers. Those pics arent the finished product though. After everything was covered, I put down a peice of ensolite, closed cell foam. Doors got inner/out skin plus ensolite foam. The rear panel and pillars got sd material too. Roof got 1 layer of sd, no foam. I then laid the carpet and its jute padding down. Truck sounds SOLID now, alot less noise for sure, I can barely hear my taurus e-fan now.
Reply With Quote
  #8
Old 08-18-2009
seth556's Avatar
Member

Join Date: Aug 2007
Location: Orlando FL
Posts: 381
I put new carpet in a few months ago, I got it from the same place you did and its nice stuff.

Also to zabeard, when you put the carpet back it there will be another big difference in sound. Without the carpet in my truck its so loud and you can hear everything.
Reply With Quote
  #9
Old 08-18-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Quote:
Originally Posted by seth556 View Post
I put new carpet in a few months ago, I got it from the same place you did and its nice stuff.

Also to zabeard, when you put the carpet back it there will be another big difference in sound. Without the carpet in my truck its so loud and you can hear everything.
did you go with the plush or ultra plush one? I did ultra plush, standard padding
Reply With Quote
  #10
Old 08-18-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
My truck has edead everywhere except the roof and in the around the xtra cab windows. even with my vinyl floor it makes a huge difference. i want carpet but dirt roads keep tellin me no... clean install dude
Reply With Quote
  #11
Old 08-18-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
thanks...I took my time, measured 3 times, cut once...no rushing. I did manage to decapitate a couple trim retainers...have to hit up my ford dealer for them. Ive heard good things about edead, I went with raammat because everyone Ive talked to loved it. I rode in an altima with it and noticed a big difference.
Reply With Quote
  #12
Old 08-18-2009
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Looks good, I started doing the same to mine a few weeks ago, but a couple strips have started to droop from the roof, guess I should make the pieces smaller. I'm using Fatmat Rattletrap though.

Know what the thickness of the stuff you installed is?
Reply With Quote
  #13
Old 08-18-2009
gt.teamnog's Avatar
Member

Join Date: Feb 2009
Location: Sanford, Fl
Posts: 154
How long did it take? and How much did it cost in materials?
Reply With Quote
  #14
Old 08-19-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Quote:
Originally Posted by sniper_101 View Post
Looks good, I started doing the same to mine a few weeks ago, but a couple strips have started to droop from the roof, guess I should make the pieces smaller. I'm using Fatmat Rattletrap though.

Know what the thickness of the stuff you installed is?
I think its 60 mil...Here's a link to the specs.

Specifications:

Adhesive/Damping Layer
Butyl
Total Thickness
60 mil
Temperature Rating
Guaranteed to 300F
Constraining Layer
2 mil aluminum coated both sides with polyethelene
lbs /ft
.35
Packaged
rolls - 15" x 50'
Square Feet per Roll
62.5


Quote:
Originally Posted by gt.teamnog View Post
How long did it take? and How much did it cost in materials?
It took me 2.5 days to do deadener and carpet install. I did this by myself, taking my time and making sure everythng was cleand and pressed down good.

edit: about $300 in materials
Reply With Quote
  #15
Old 08-19-2009
BSGRanger's Avatar
Member
iTrader: (2)

Join Date: Feb 2008
Location: Louisville, KY
Posts: 126
Looks so clean, very nice job
Reply With Quote
  #16
Old 08-19-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Quote:
Originally Posted by BSGRanger View Post
Looks so clean, very nice job
thanks bud! I had a lot of fun doing this...so much that Im gonna S/D our camry
Reply With Quote
  #17
Old 08-20-2009
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by eddiefromcali View Post
thanks bud! I had a lot of fun doing this...so much that Im gonna S/D our camry
+2 on that.. When you have fun doing a mod its a good thing.. especially when theres an immediate difference - most of us dont realize just how damn noisy our trucks are.. hell, jsut putting in my two back seats and filling in those holes with bolts it made a -huge- difference in road and exhaust noise..!
Reply With Quote
  #18
Old 08-20-2009
seth556's Avatar
Member

Join Date: Aug 2007
Location: Orlando FL
Posts: 381
Quote:
Originally Posted by eddiefromcali View Post
did you go with the plush or ultra plush one? I did ultra plush, standard padding
Just the plush because it was cheap. If it wasn't a 13 year old truck I would have probably spent extra and gotten the ultra plush, but whatever I'm happy with the purchase and look.
Reply With Quote
  #19
Old 08-20-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
heck yeah it makes a huge difference...now if I could get rid of the wind noise from the ext cab doors thatd be great. Im gonna put the intake silencer back on too, didnt notice any hp gains, just got louder.
Reply With Quote
  #20
Old 08-20-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Quote:
Originally Posted by seth556 View Post
Just the plush because it was cheap. If it wasn't a 13 year old truck I would have probably spent extra and gotten the ultra plush, but whatever I'm happy with the purchase and look.
true...my wife did say the carpet looked "too nice" for a truck
Reply With Quote
  #21
Old 08-20-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632

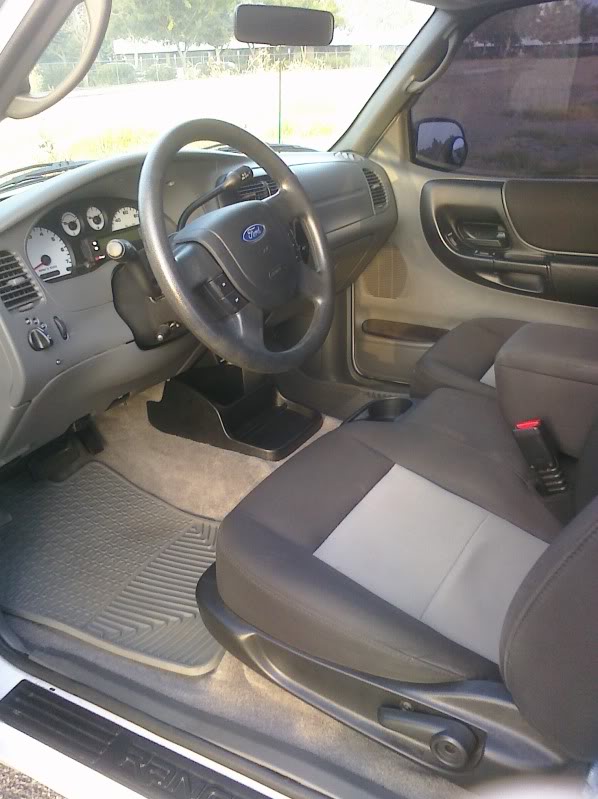

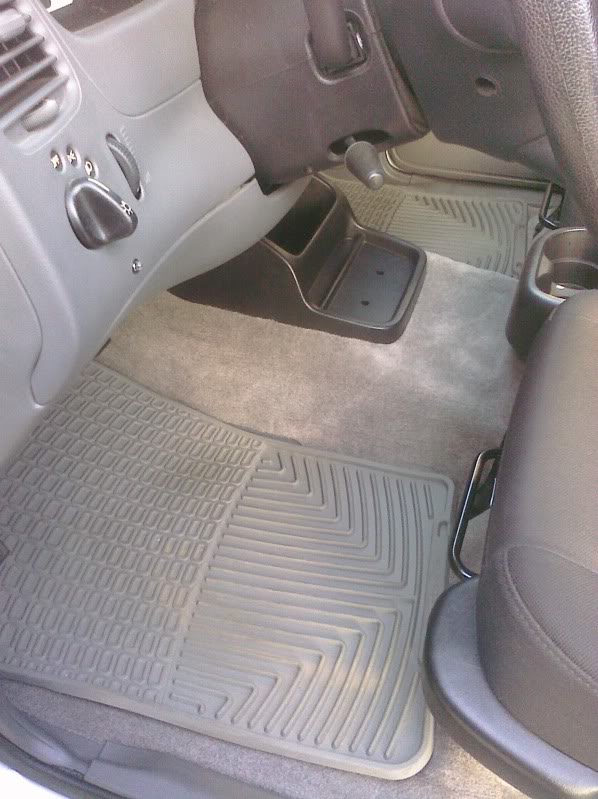

Heres some front shots

Name:  CIMG0253.jpg
Views: 1
Size:  106.1 KB
Name:  CIMG0252.jpg
Views: 1
Size:  101.0 KB
Reply With Quote
  #22
Old 08-21-2009
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Forgot to give korey89 big thanks for doing the write up and answering my questions before I bought the kit! Heres the Link to his how to.

FYI, my 05 has 15 or 17mm bolts holding down the front seats but torx for the center seat belt

For those not wanting the heel pad, just make sure you let them know when you place your order. I didnt know I could do this until a day or two ago. I wouldve opted for a pad delete since I have weathertech mats.
Reply With Quote
