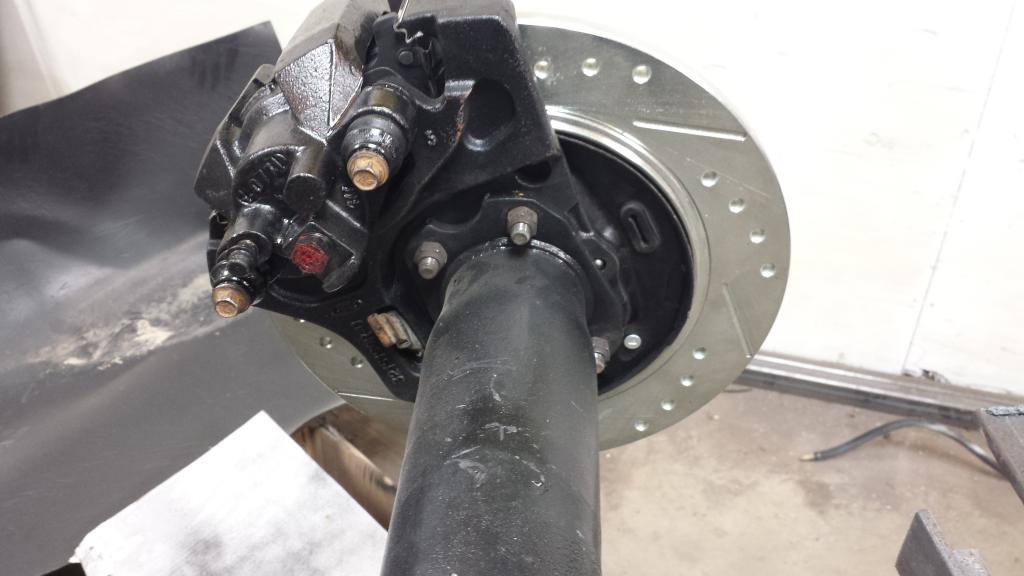

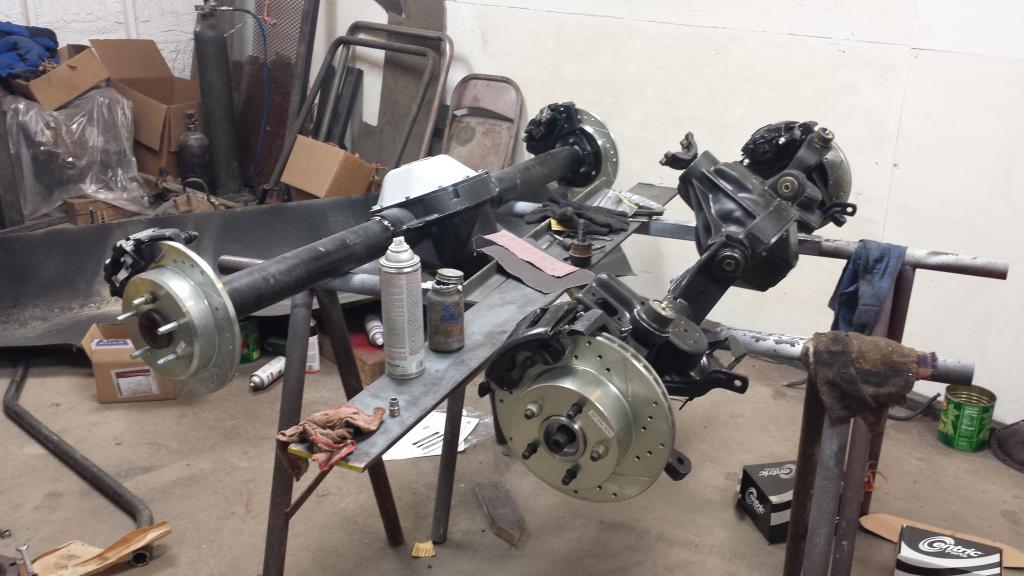

Dropped the truck off tonight and snapped a couple quick pics.

Assembled axles (the cover is white because we were knocking weld spatter off the cover and needed to prime it again)



8.8 tubes are welded



I found out you can't ditch the backing plates and expect to use the ebrake, so I cut the bent ugly stuff off and kept what I needed

Attached Thumbnails
01RangerEdge build thread-20150212_190235_zps9xxu4omp.jpg   01RangerEdge build thread-20150212_190247_zpsuqxqyodl.jpg   01RangerEdge build thread-20150212_192043_zpsx3jxjgxd.jpg
Reply With Quote
  #386
Old 02-12-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594

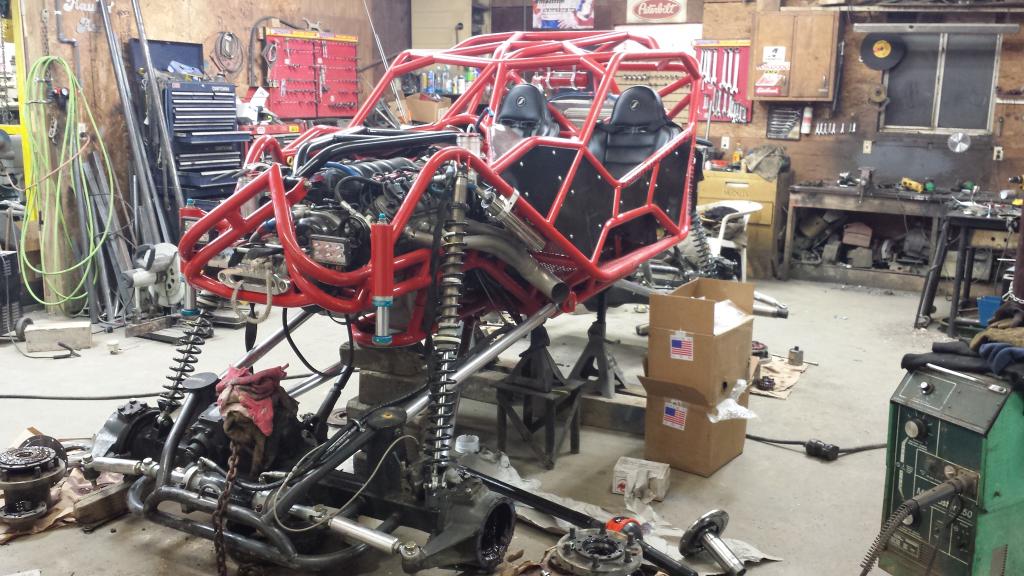

My truck is in good hands. Here's another crawler he built get axle shafts replaced

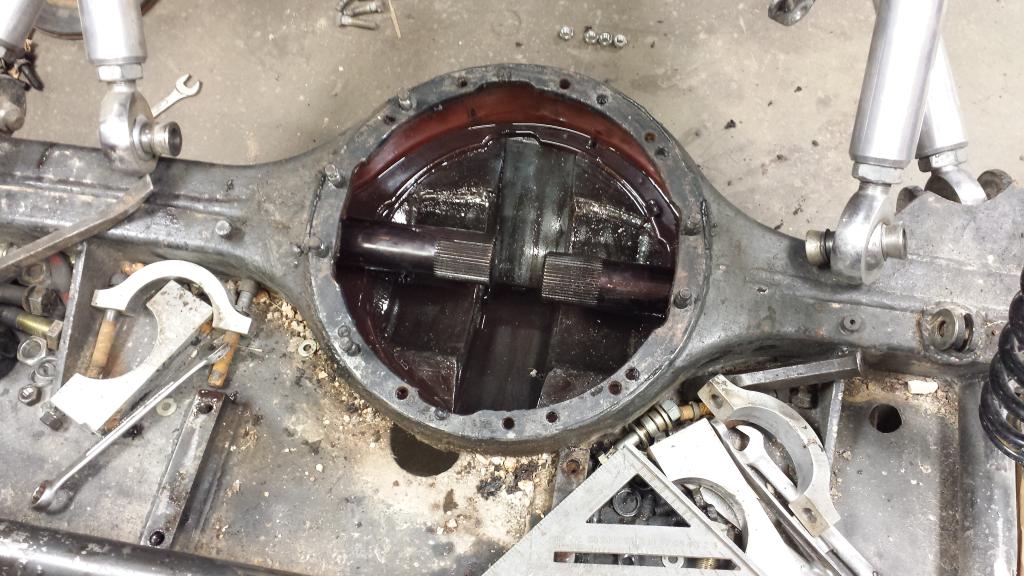

And here's what happens when the engineer building the axle doesn't communicate with the engineer building the axle shafts. (all their shafts are 1" too short) RCV started offering CV axle for Rockwells this year and all their shafts are too short, why they didn't test this beforehand is beyond me



Attached Thumbnails
01RangerEdge build thread-20150212_192154_zpsas0iykfu.jpg   01RangerEdge build thread-20150212_192508_zpsvmrbaoyi.jpg   01RangerEdge build thread-20150212_191312_zpsysvcaar8.jpg
Reply With Quote
  #387
Old 02-12-2015
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,332
Sweet! I bet you're pumped! You would think a company like RCV would think everything through..
Reply With Quote
  #388
Old 02-15-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594

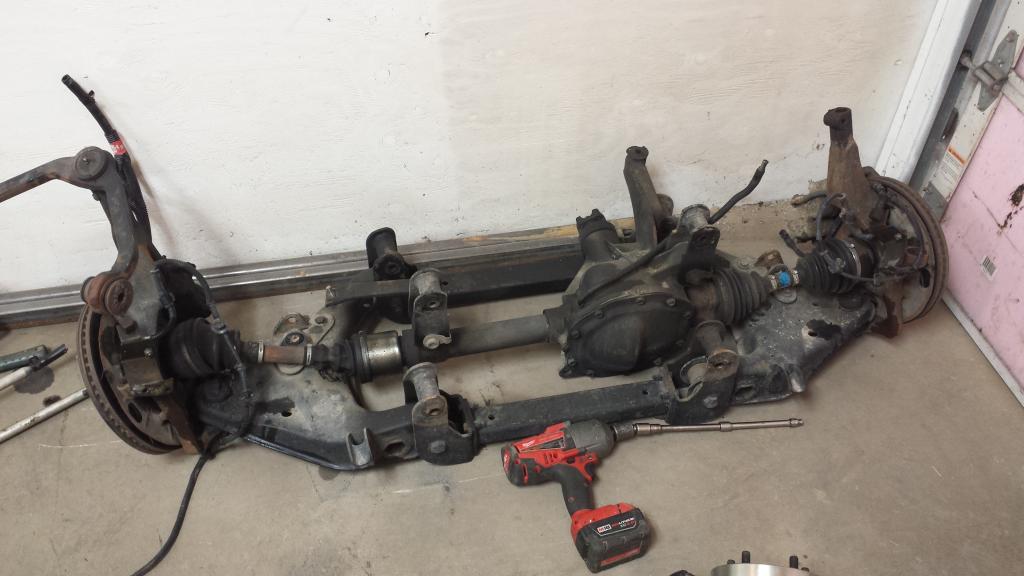

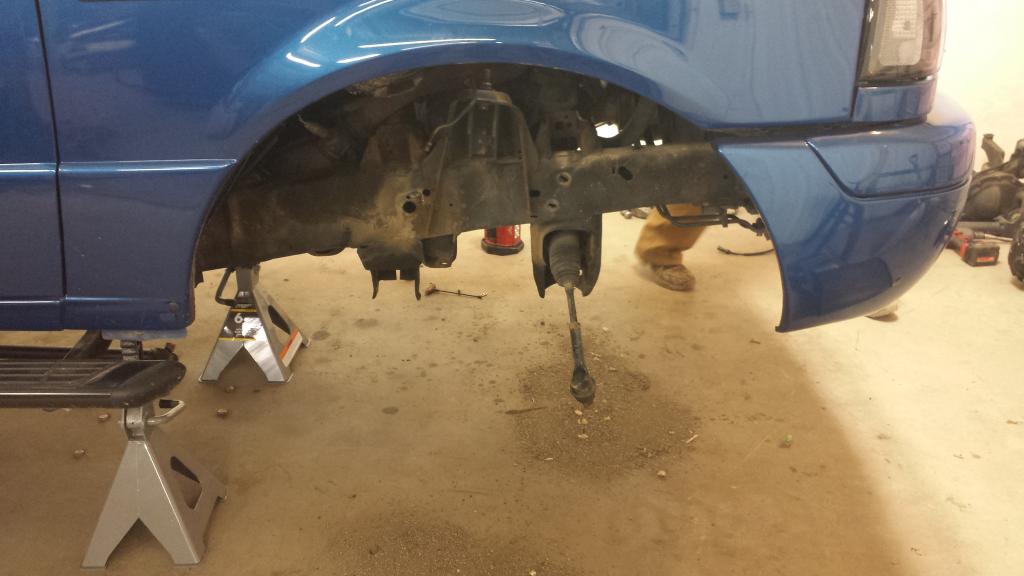

IFS is gone


Attached Thumbnails
01RangerEdge build thread-20150215_170506_zpsdkija0wg.jpg   01RangerEdge build thread-20150215_173051_zpsoeogduz8.jpg
Reply With Quote
  #389
Old 02-15-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,113
Sweet! How long are you expecting to have the truck "under construction?"
Reply With Quote
  #390
Old 02-15-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
We aren't working on it all day everyday, so at least the rest of the week. I should be ab;e to drive it by next weekend
Reply With Quote
  #391
Old 02-16-2015
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,822
OMF'nG. That's quite the update..
Reply With Quote
  #392
Old 02-16-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,579
Boom!

What's the plan for steering?
Reply With Quote
  #393
Old 02-16-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Toyota 4runner steering box. We're making a steering shaft.
Reply With Quote
  #394
Old 02-17-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
More progress.

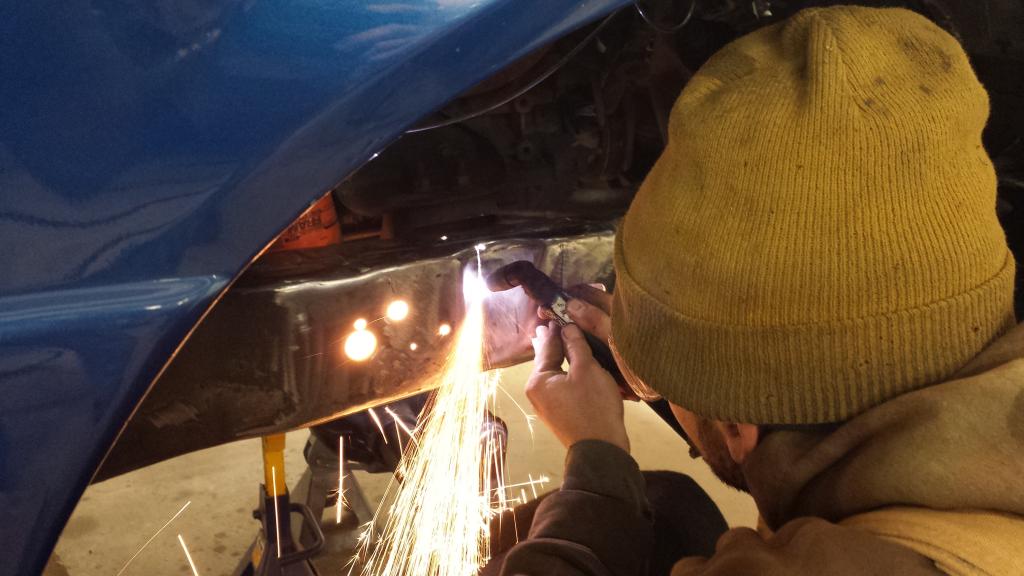

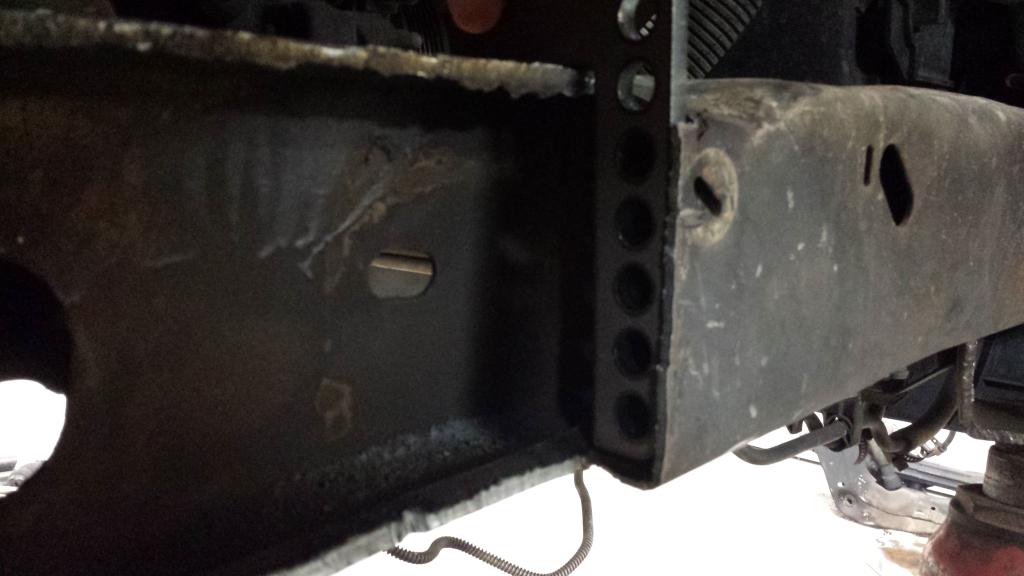

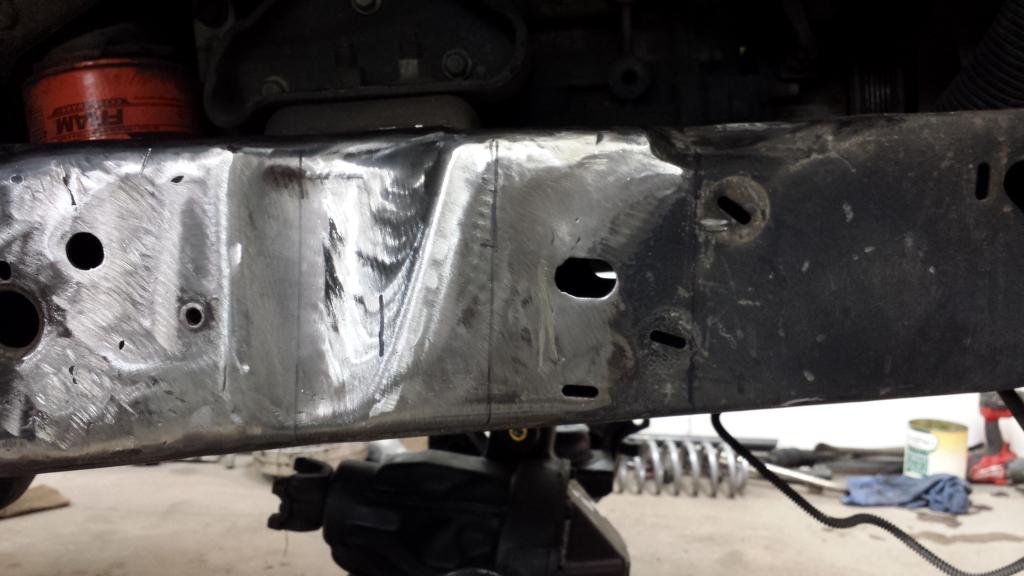

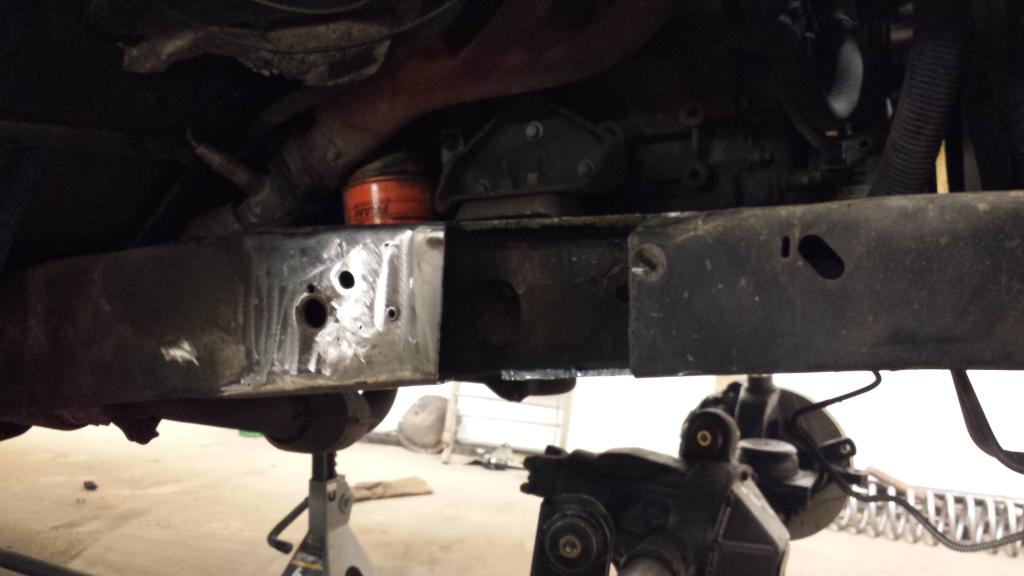

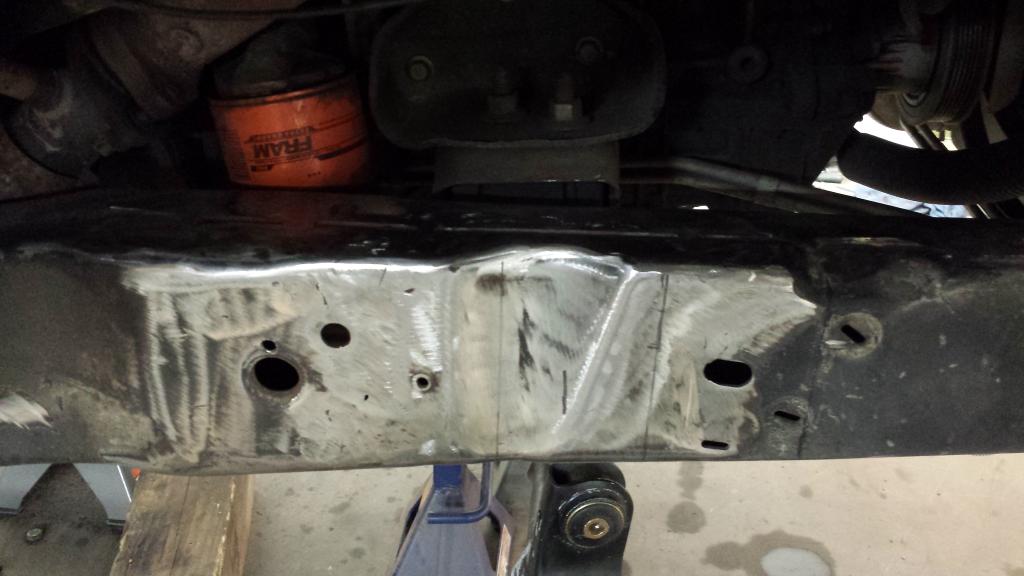

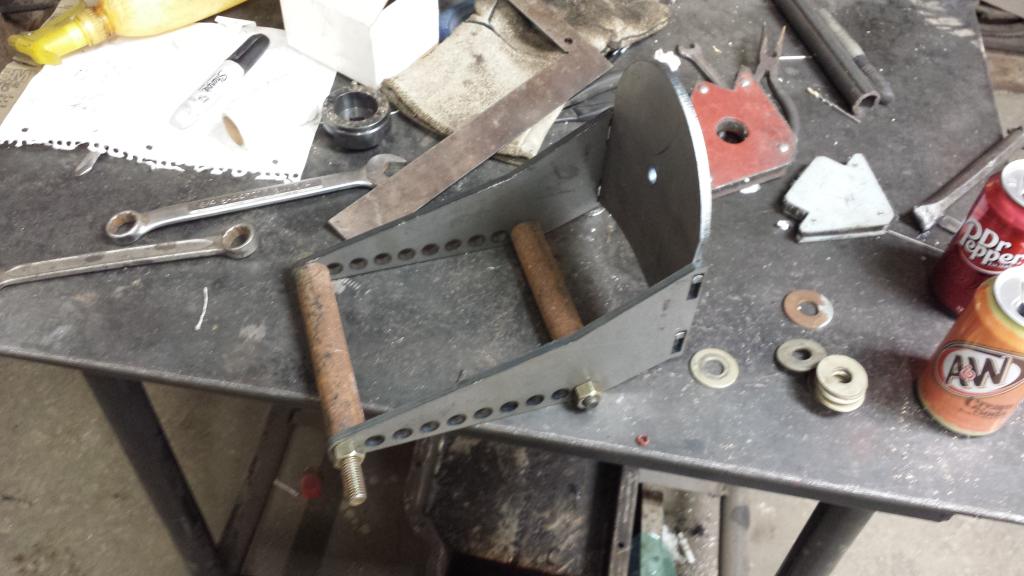

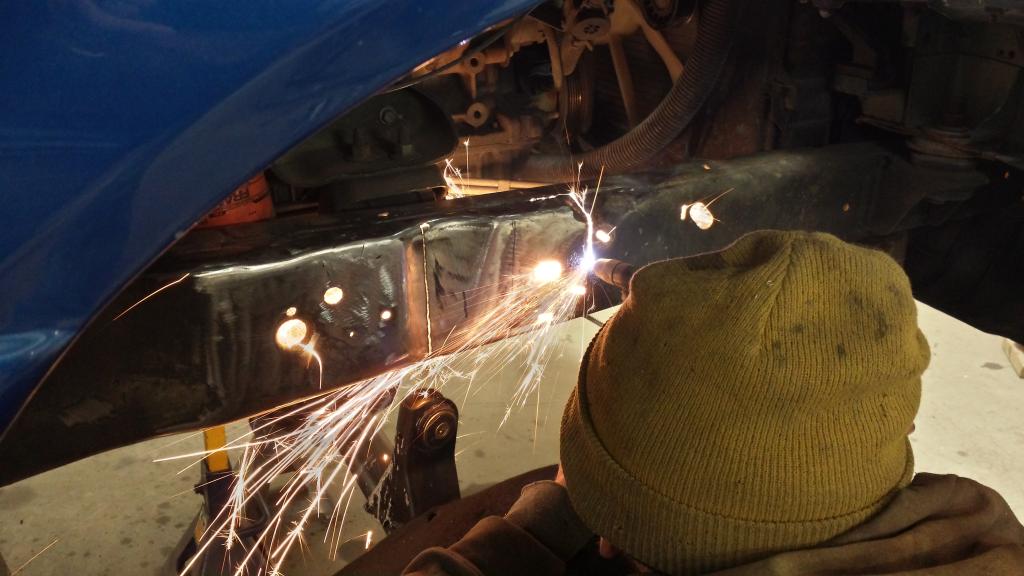

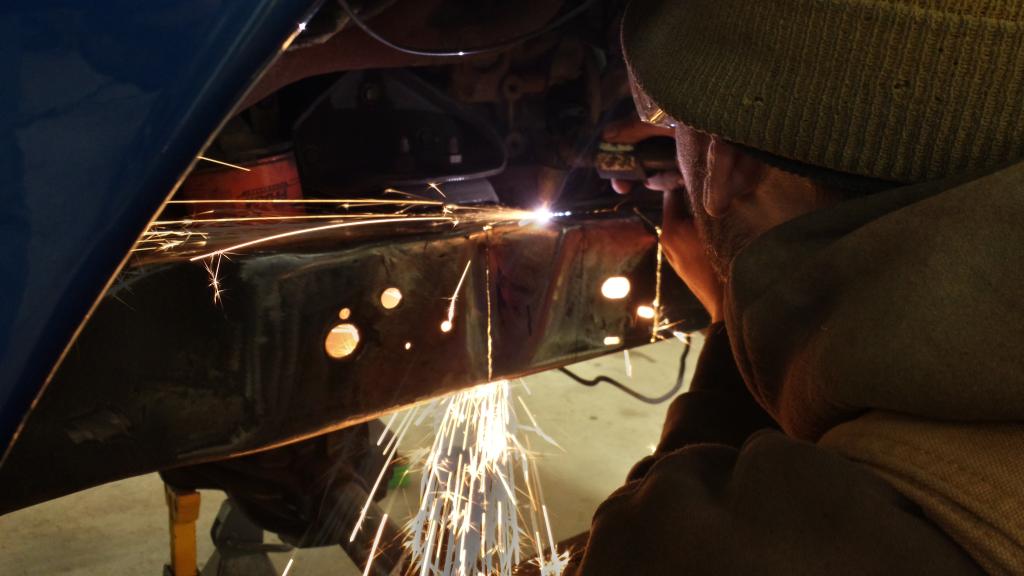

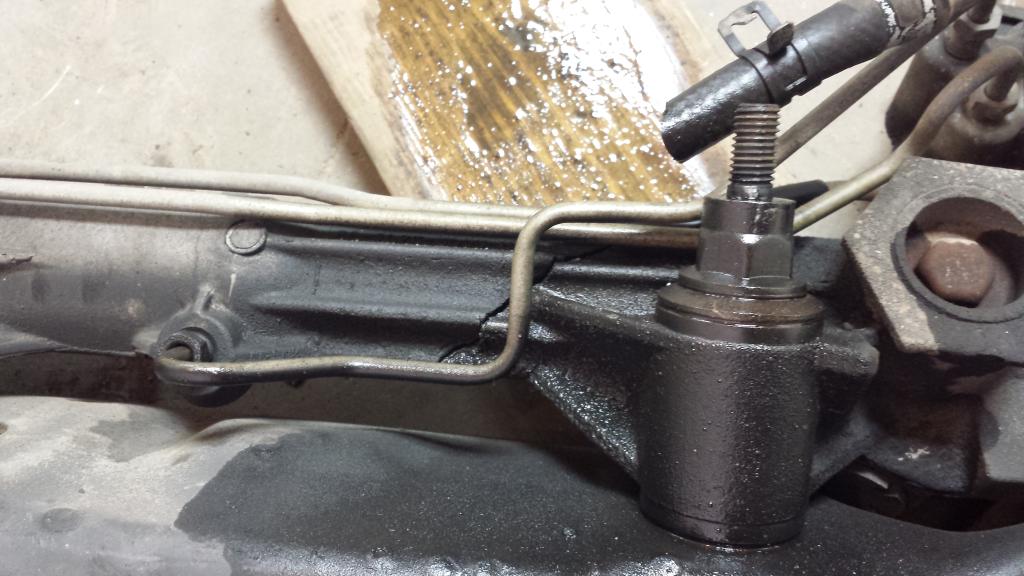

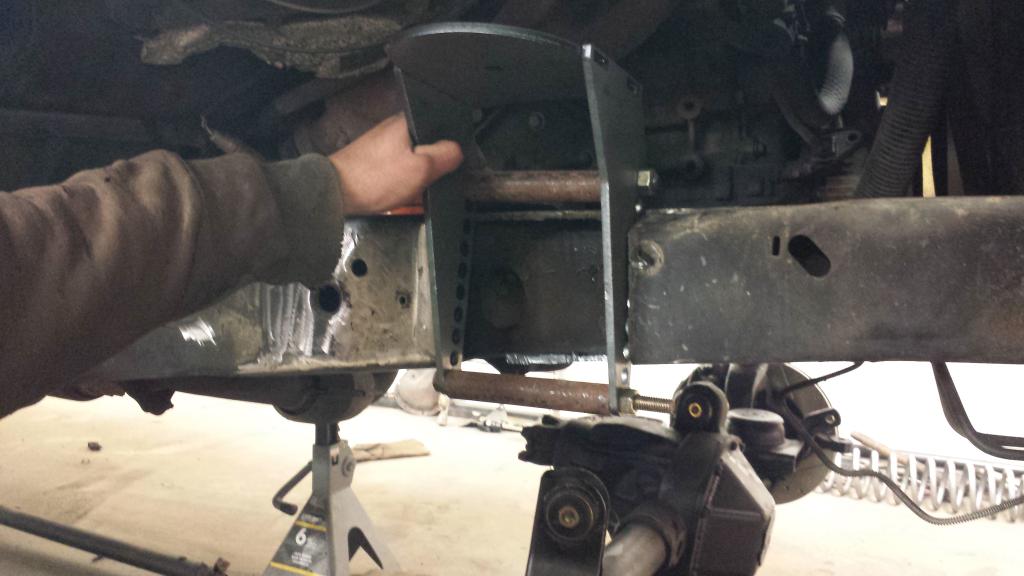

Cut the frame, mocked up the buckets and adjustment brackets. I took bonus pics of the cracked rack and pinion.

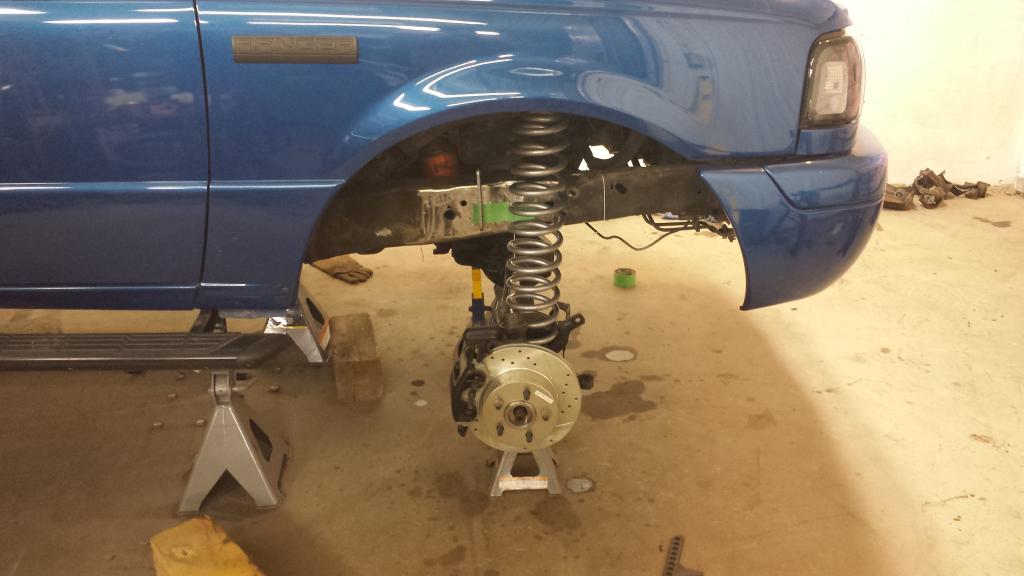

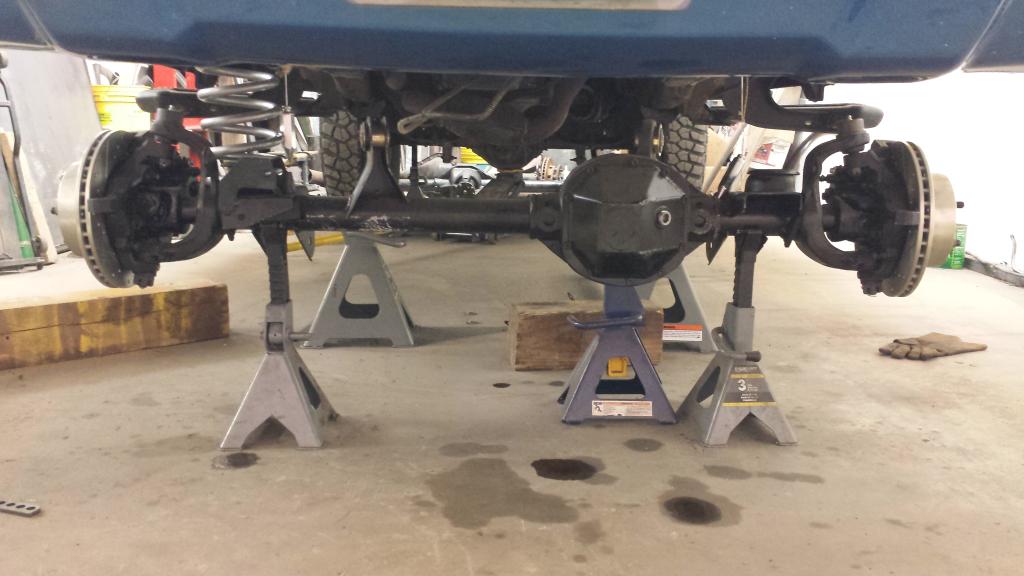

The axle position in the first pic is where we anticipate it will sit when under it's own weight

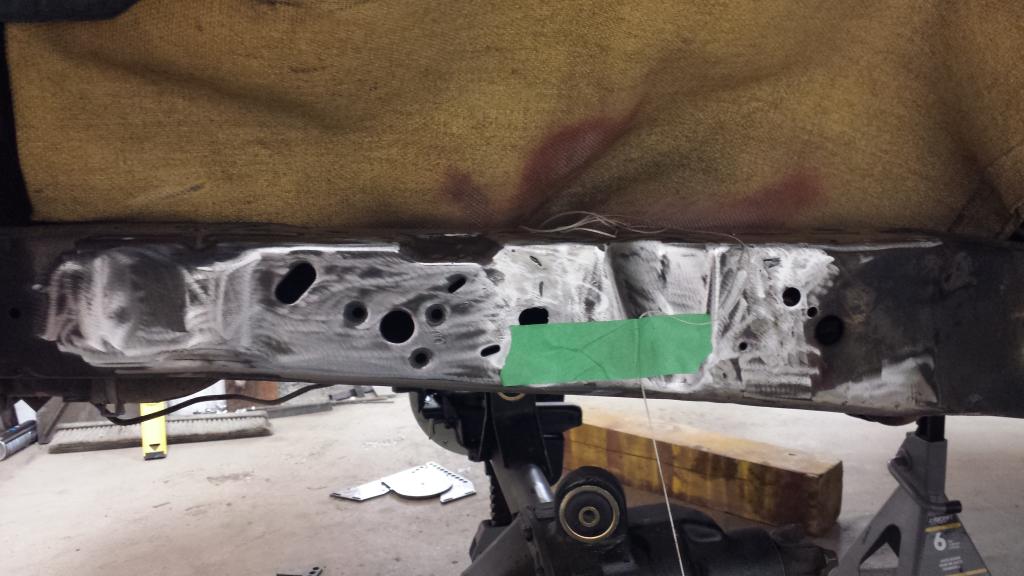

Crossmember gone, cleaning the frame was surprisingly difficult, those were welded on there good

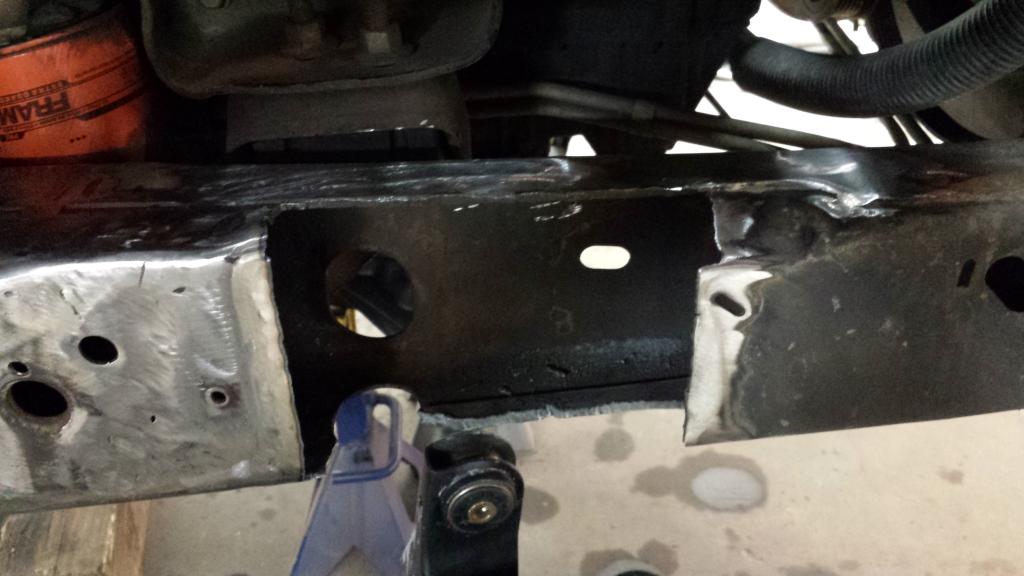

Buckets mocked up




Frame marked for cutting

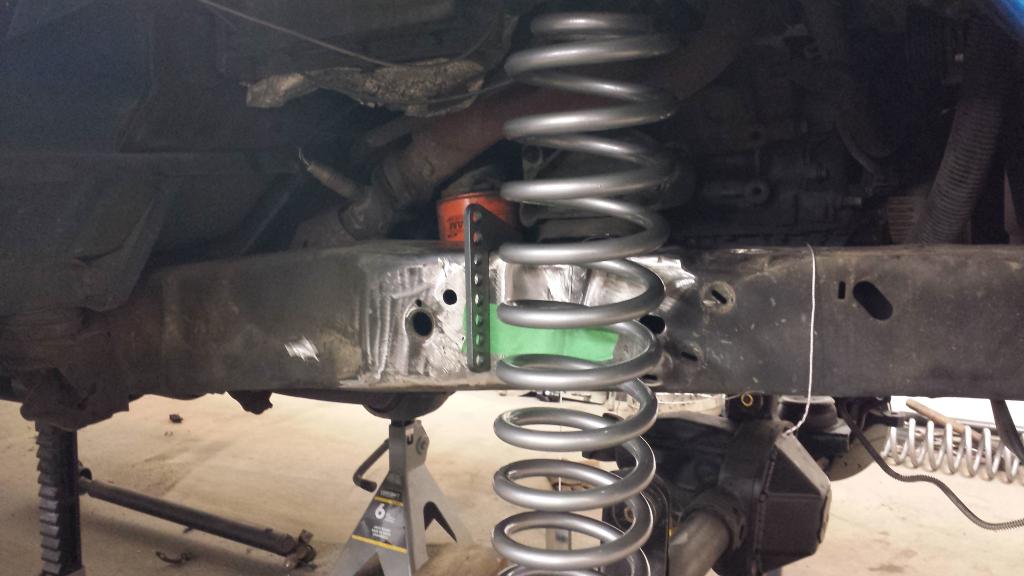

This is where my setup will be unique, I'm going to hide the adjustment brackets inside the framerail with nuts welded on the back
