Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

01RangerEdge build thread

  #226
Old 02-20-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I've been trying to find it, it appeared to use the stock fog mount

  #227
Old 02-23-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
TMH 18W Cree LED Work Light TMH 18W Cree LED Work Light

These are the lights I ordered, no reviews on Amazon, so I may be taking a risk. At $35 a light it's a low cost risk and will give me an idea on how this project will go.

Even if they don't work as well as they should they will make good auxiliary reverse lights

  #228
Old 02-26-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

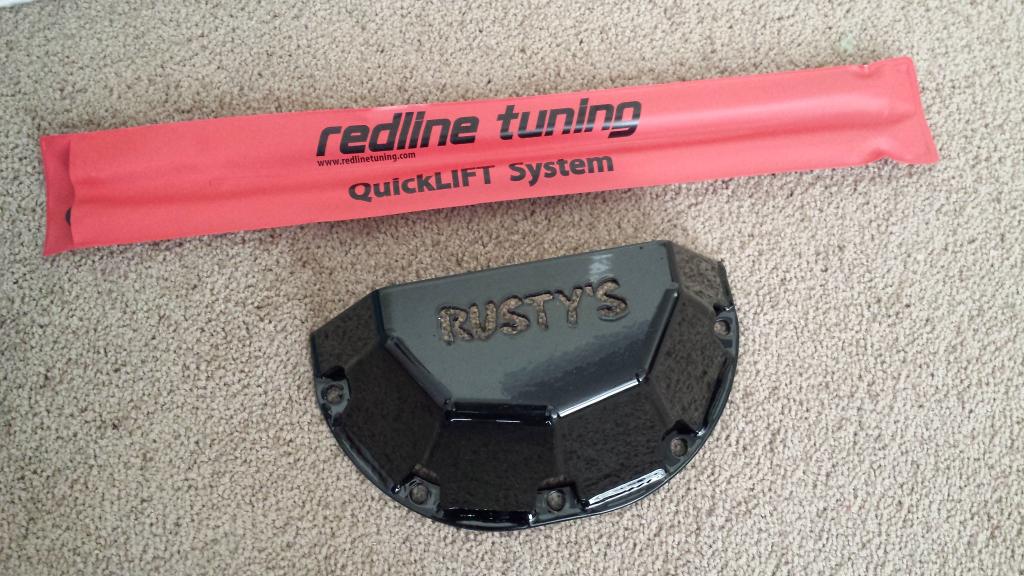

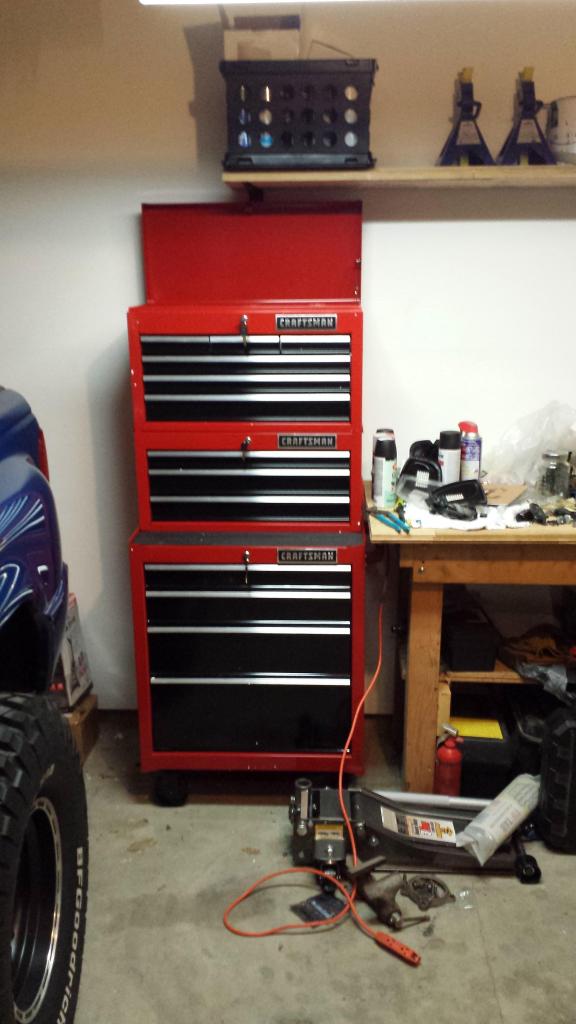

Mods are starting to roll in. Oh, and I finally got a big boy toolbox. (Garage needs cleaning)



Attached Thumbnails 01RangerEdge build thread-20140226_165357_zpsc3a11da3.jpg   01RangerEdge build thread-20140226_165013_zps32274184.jpg
  #229
Old 02-27-2014
0RangerEdge2's Avatar
Member
iTrader: (2)
Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Why not try a set of these? They would probably work better with the 01-03 valence.

KC LZR LED Driving Light 4" Round #1300

  #230
Old 02-27-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Originally Posted by 0RangerEdge2 View Post
Why not try a set of these? They would probably work better with the 01-03 valence.

KC LZR LED Driving Light 4" Round #1300
Nice, I never saw those.

We'll see how these work since I already ordered them. Those look like they will work nicely.

I don't like the price tag, but they may be a much better quality than the ones i ordered.

  #231
Old 02-27-2014
0RangerEdge2's Avatar
Member
iTrader: (2)
Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Originally Posted by 01RangerEdge View Post
Nice, I never saw those.

We'll see how these work since I already ordered them. Those look like they will work nicely.

I don't like the price tag, but they may be a much better quality than the ones i ordered.
I decided to go searching... I may try the ones I linked. I have half a valence to experiment on for mounting.

The Rigid's will look great too.

  #232
Old 03-05-2014
mikerider's Avatar
Member
iTrader: (8)
Join Date: Oct 2006
Location: Renton WA
Posts: 2,507
Originally Posted by 01RangerEdge View Post
Video Link: http://www.amazon.com/TMH-Light-Square-Shape-Degree/dp/B00E1HIVYA/ref=sr_1_49?s=automotive&ie=UTF8&qid=1392861704&sr =1-49&keywords=square+led+off+road+lights These are the lights I ordered, no reviews on Amazon, so I may be taking a risk. At $35 a light it's a low cost risk and will give me an idea on how this project will go. Even if they don't work as well as they should they will make good auxiliary reverse lights

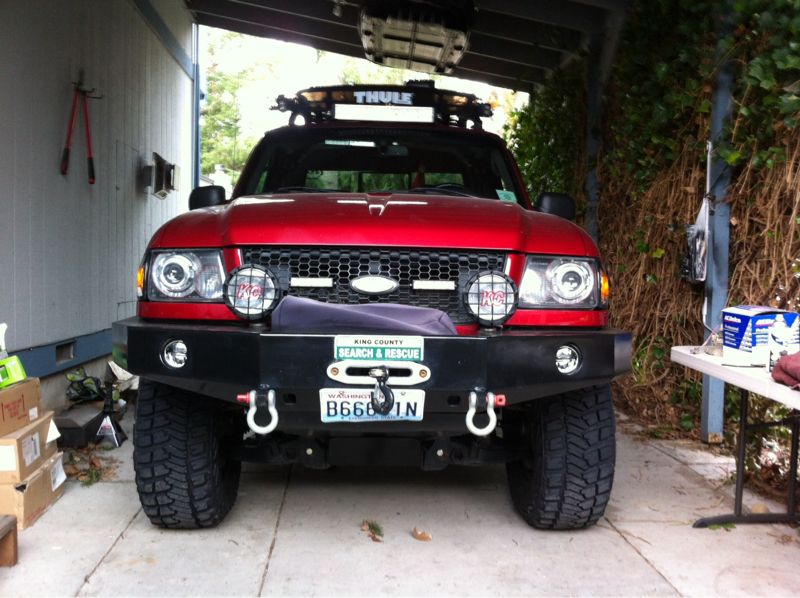

How did these turn out? I swapped in a set of BMW x5 led fogs to try they are a perfect fit. Same size as the stock fogs.

Attached Thumbnails 01RangerEdge build thread-image-3245597666.jpg   01RangerEdge build thread-image-3623107804.jpg
  #233
Old 03-05-2014
boyd_835's Avatar
Member
Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Originally Posted by mikerider View Post
How did these turn out? I swapped in a set of BMW x5 led fogs to try they are a perfect fit. Same size as the stock fogs.
Why go to LEDs over hid's ? It's gunna be hard to get brighter than a 55watt hid ..

  #234
Old 03-05-2014
mikerider's Avatar
Member
iTrader: (8)
Join Date: Oct 2006
Location: Renton WA
Posts: 2,507
Originally Posted by boyd_835 View Post
Why go to LEDs over hid's ? It's gunna be hard to get brighter than a 55watt hid ..
Main reason is not to blind oncoming traffic. The correct led projects the light onto the road way not at other drivers. I was running 55w 3000k hid bulbs in modified stock fogs with a cut off shield that worked well but still blinding. The LEDs are just as bright and use less than half the wattage. They also are stand alone and Don't require a wiring harness or ballasts.


Last edited by mikerider; 03-05-2014 at 09:12 AM.
  #235
Old 03-05-2014
boyd_835's Avatar
Member
Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Originally Posted by mikerider View Post
Main reason is not to blind oncoming traffic. The correct led projects the light onto the road way not at other drivers. I was running 55w 3000k hid bulbs in modified stock fogs with a cut off shield that worked well but still blinding. The LEDs are just as bright and use less than half the wattage. They also are stand alone and Don't require a wiring harness or ballasts.
Where do you get the BMW fogs ? Will they fit in the stock valance ? And do you like them better than your hid's ? I've never had a problem with my fogs blinding people but my headlights do . I've thought about projectors but I don't know how to do that projector mod that you did on the headlights

  #236
Old 03-05-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Originally Posted by mikerider View Post
How did these turn out? I swapped in a set of BMW x5 led fogs to try they are a perfect fit. Same size as the stock fogs.
They still haven't arrived yet.

I tried finding those fogs, do you have a link?

  #237
Old 03-05-2014
boyd_835's Avatar
Member
Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Originally Posted by 01RangerEdge View Post
They still haven't arrived yet.

I tried finding those fogs, do you have a link?
I'm not a 100% sure but this looks like them

http://www.theretrofitsource.com/closeouts/bmw-x5-led-fog-lights.html#.UxeITim9LCQ

I like the price that's cheap for everything


Last edited by boyd_835; 03-05-2014 at 04:35 PM.
  #238
Old 03-05-2014
mikerider's Avatar
Member
iTrader: (8)
Join Date: Oct 2006
Location: Renton WA
Posts: 2,507
Originally Posted by boyd_835 View Post
I'm not a 100% sure but this looks like them http://www.theretrofitsource.com/clo...l#.UxeITim9LCQ I like the price that's cheap for everything
Yep those are them!

  #239
Old 03-05-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
When you guys open the link is there an option to add it to your cart?

I don't see it on my browser.

  #240
Old 03-05-2014
boyd_835's Avatar
Member
Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Originally Posted by mikerider View Post
Yep those are them!
What did you do for a install and did you have to modify anything for the plug in part? How do you order from there I don't see how to add something to cart ill order a set for that price

  #241
Old 03-05-2014
mikerider's Avatar
Member
iTrader: (8)
Join Date: Oct 2006
Location: Renton WA
Posts: 2,507
Originally Posted by 01RangerEdge View Post
When you guys open the link is there an option to add it to your cart? I don't see it on my browser.
Hmm not there for me either, they may be out. You could shoot them an email or call.


Originally Posted by boyd_835 View Post
What did you do for a install and did you have to modify anything for the plug in part? How do you order from there I don't see how to add something to cart ill order a set for that price
They fit in my stock bumper with no mods to the fog, but for my winch bumper I had to trim of one of the alignment adjusters. Right now I have them mounted with some long bolts

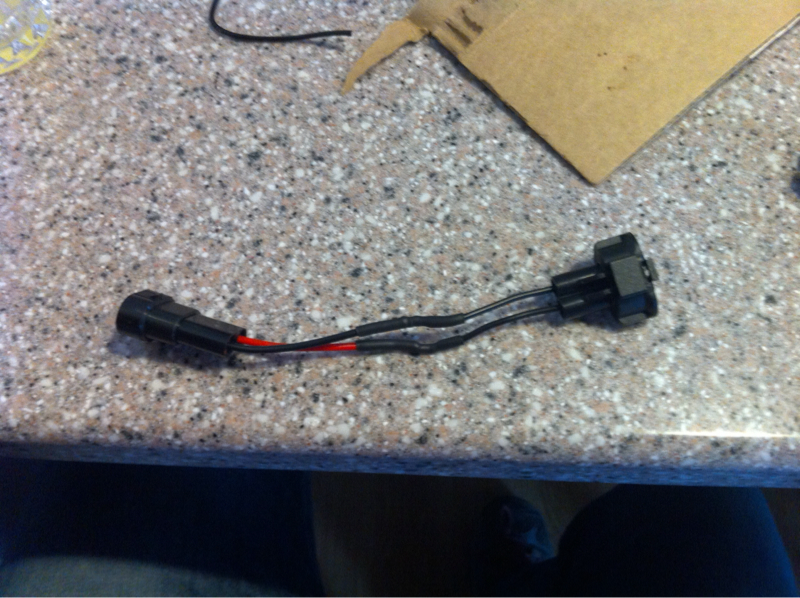

For the wiring I just built an h11 jumper so it's plug n play

Attached Thumbnails 01RangerEdge build thread-image-1750106182.jpg
  #242
Old 03-07-2014
boyd_835's Avatar
Member
Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Hey I emailed them and ordered mine they updated the quantity if you want some I would order them now just the led bulbs cost more than the set at the price of 60 a pair this is a really good deal !! Thanks mike

http://www.theretrofitsource.com/clo...l#.UxntZym9LCT


Last edited by boyd_835; 03-07-2014 at 09:28 AM.
  #243
Old 03-07-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I got them on order

  #244
Old 03-07-2014
mikerider's Avatar
Member
iTrader: (8)
Join Date: Oct 2006
Location: Renton WA
Posts: 2,507
I feel I have started a revolution, if you don't have a set TRS has female plugs that can be spliced into h11 connectors that are available at most auto part stores.

  #245
Old 03-07-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)
Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Originally Posted by mikerider View Post
I feel I have started a revolution
Yes. I'm tempted to swap for an older valence haha

  #246
Old 03-07-2014
boyd_835's Avatar
Member
Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Originally Posted by mikerider View Post
I feel I have started a revolution, if you don't have a set TRS has female plugs that can be spliced into h11 connectors that are available at most auto part stores.
So I need to order female plugs from them ? Or I can get everything from an autoparts store

  #247
Old 03-07-2014
mikerider's Avatar
Member
iTrader: (8)
Join Date: Oct 2006
Location: Renton WA
Posts: 2,507
Originally Posted by 99offroadrngr View Post
Yes. I'm tempted to swap for an older valence haha
Insert evil laugh here....

Originally Posted by boyd_835 View Post
So I need to order female plugs from them ? Or I can get everything from an autoparts store
I would, I have not found a local source for the female end.

  #248
Old 03-07-2014
boyd_835's Avatar
Member
Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Can you send me a link for those female h11's??

  #249
Old 03-07-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)
Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
  #250
Old 03-07-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
....and now I have pigtails on order
