Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

01RangerEdge build thread

  #101
Old 05-09-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)
Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Originally Posted by 99offroadrngr View Post
You're better off letting a limbless human help you than letting him install your seats. You'll end up with something worse than this



30 minutes to cleanly install and wire power/heated seats....LOL
even with non sport seats, you'll have to enlarge a few of the holes.
You can swap tracks over pretty quick. I did it on the purple truck.

If you've got the right junkyard seats to begin with, they're not bad to swap in.

And quit showing us pictures of your truck man. Its embarrassing.

  #102
Old 05-10-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)
Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
yup. i haven't had around 6 sets of seats or anything so i dont know, i forgot.

If you were like Pinocchio, your nose would wrap around the earth quite a few times. have fun swapping explorer power seat tracks, idiot lol.

  #103
Old 05-11-2013
drppdyllwrngr's Avatar
Member
iTrader: (4)
Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
all explorer seats 95-01, sport or four door, use the same tracks. they should be a direct swap other than trimming a hole a little. wiring is a two wire setup. power and ground. pretty basic.

  #104
Old 05-11-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)
Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Originally Posted by drppdyllwrngr View Post
all explorer seats 95-01, sport or four door, use the same tracks. they should be a direct swap other than trimming a hole a little. wiring is a two wire setup. power and ground. pretty basic.
This, you f*kin kewn.
If you get the right seats to begin with, you don't have problems.

  #105
Old 05-11-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
The seats I have in the truck must be outside that range, they weren't even close. I'll have to take a pic sometime.

I'm not worried about these seats though. Just need some time

  #106
Old 05-11-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

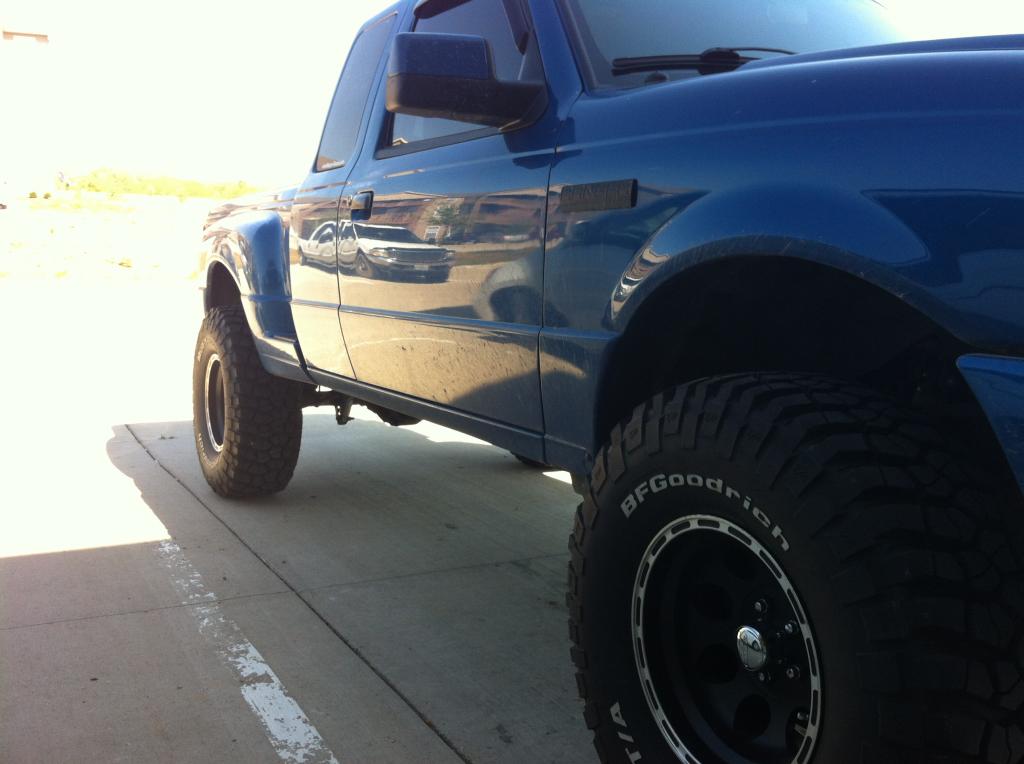

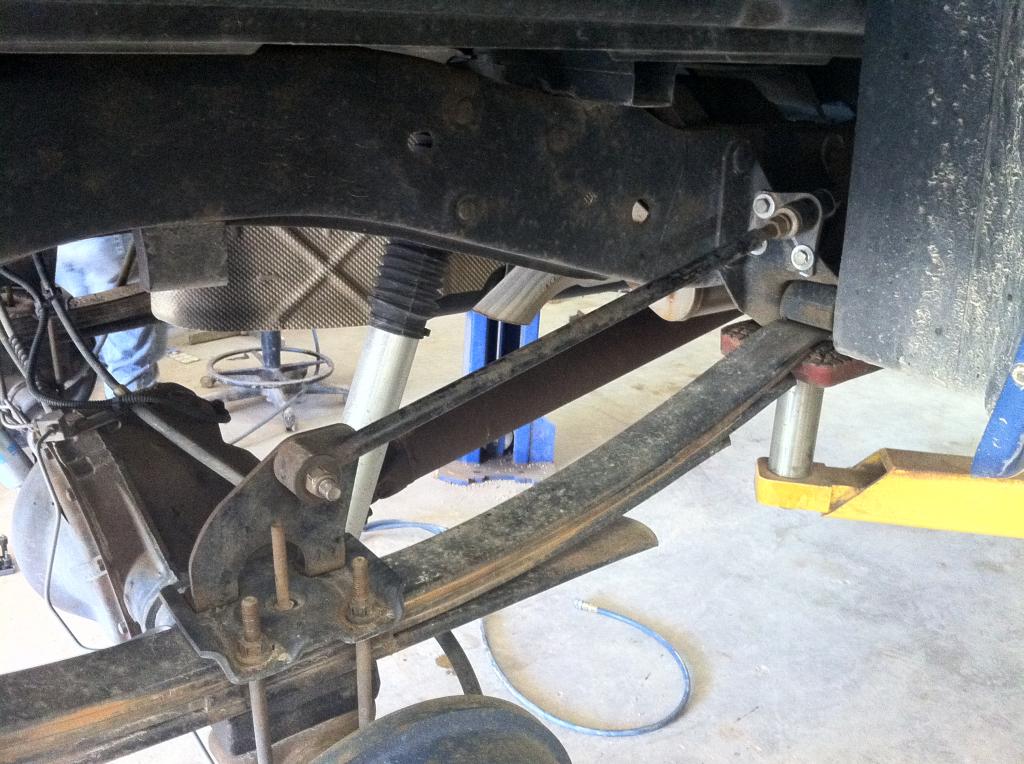

Finally got my 1.5" blocks installed (ditched the stock ones) and my JD traction bars. The bars were used but are in good shape, just need some paint.

The truck is within .5" of being level, which is perfect.

But I have to say the JD traction bars made a HUGE difference, just leaving from a stop sign is noticeable. I haven't had a chance to go offroad, but I'm sure I'll love it.

I highly recommend getting them, even if you don't offroad. Well worth it.




I'll get better pics when it's clean

Attached Thumbnails 01RangerEdge build thread-img_0473_zpsbfdc818e.jpg   01RangerEdge build thread-img_0474_zpsf1767c19.jpg
  #107
Old 05-11-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)
Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
How hard were the traction bars to install? Did you have to lift the truck up any or was it just a bolt on?

  #108
Old 05-11-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Originally Posted by StxDangerRanger View Post
How hard were the traction bars to install? Did you have to lift the truck up any or was it just a bolt on?
The rear brackets bolts to the top of your spring perch, the front bracket needs three holes drilled into the spring hanger.

I had the truck on the lift since I installed the blocks, the bars need to be tightened when the truck is on its own weight.

  #109
Old 05-11-2013
Clinton's Avatar
Member
iTrader: (19)
Join Date: Dec 2010
Location: PA.
Posts: 1,417
Great build thread! Truck looks awesome

  #110
Old 05-12-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

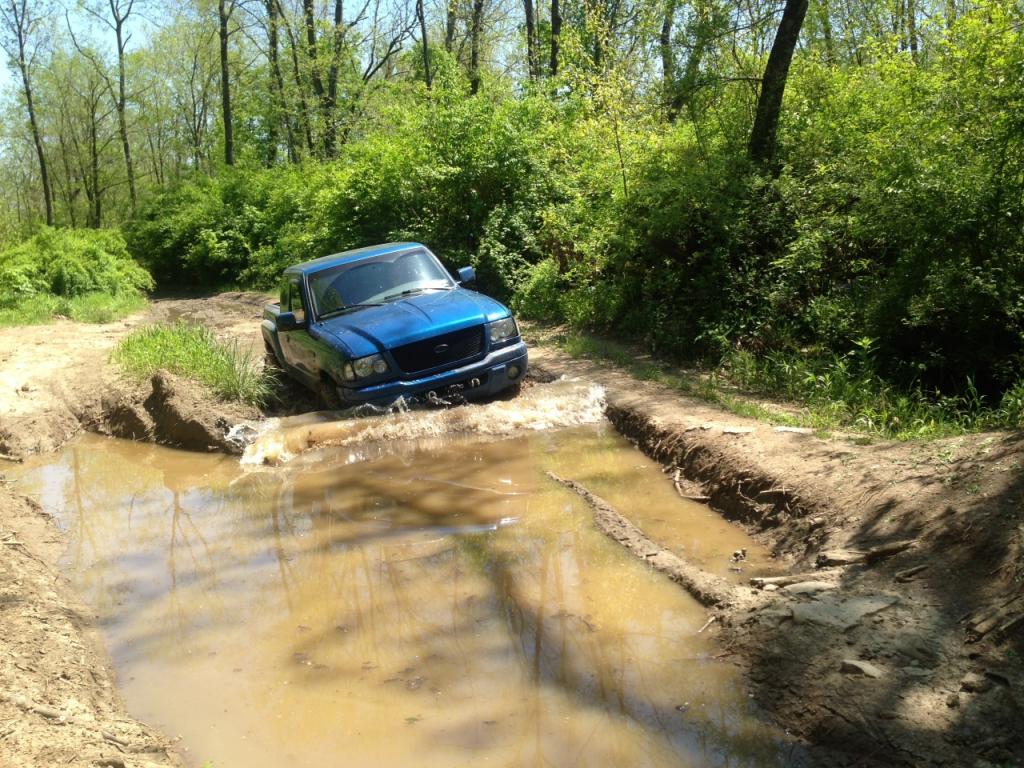

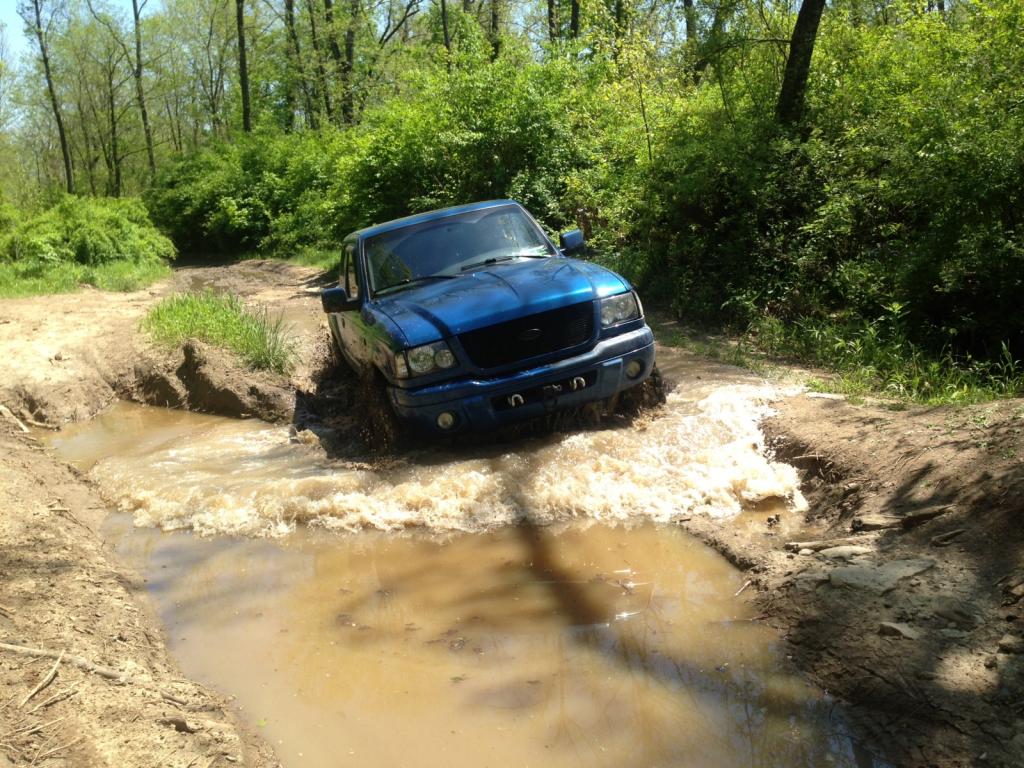

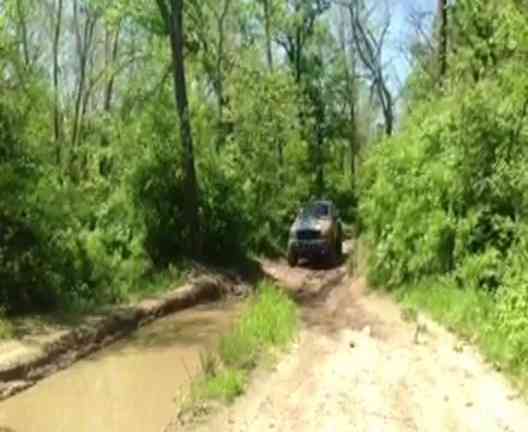

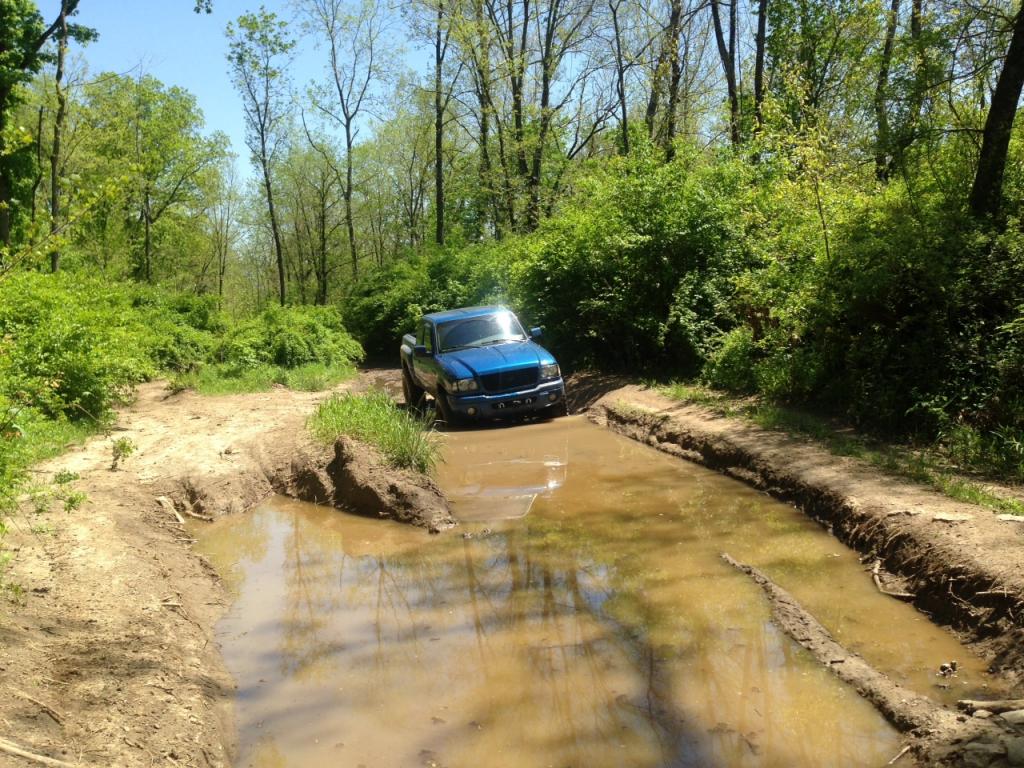

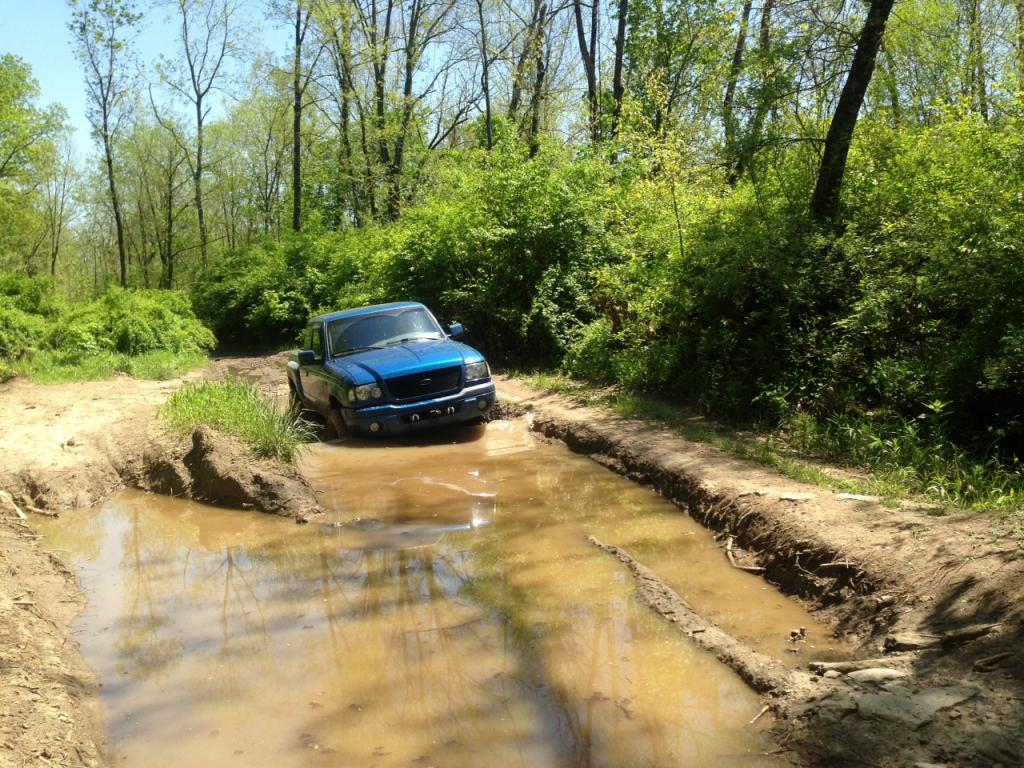

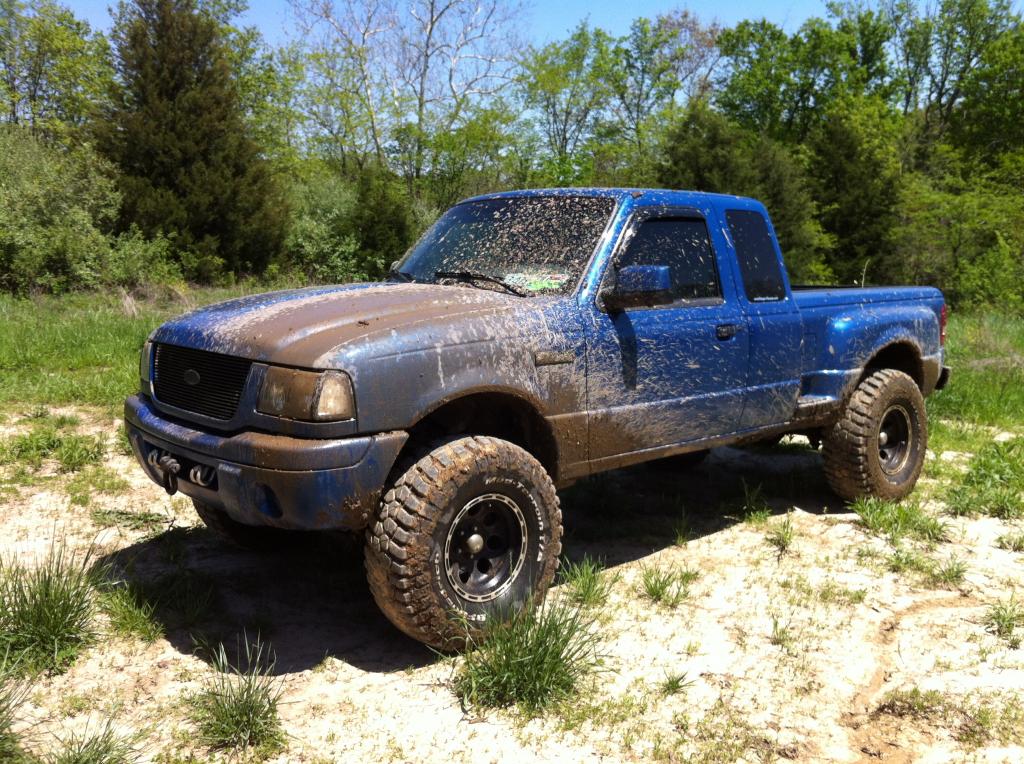

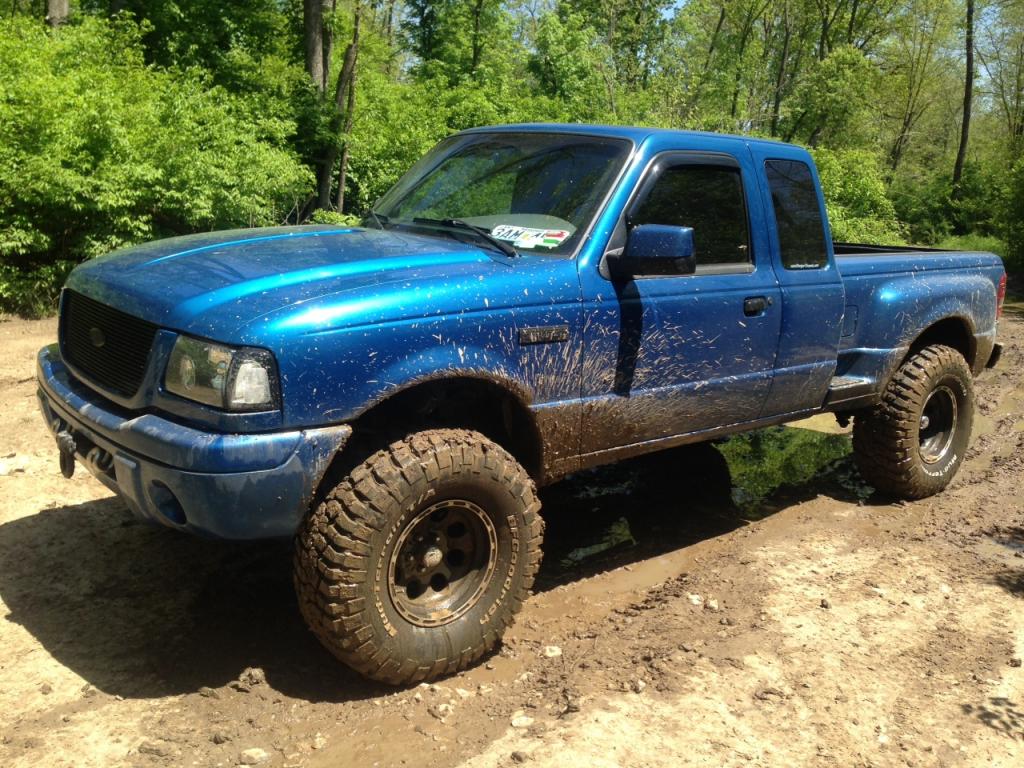

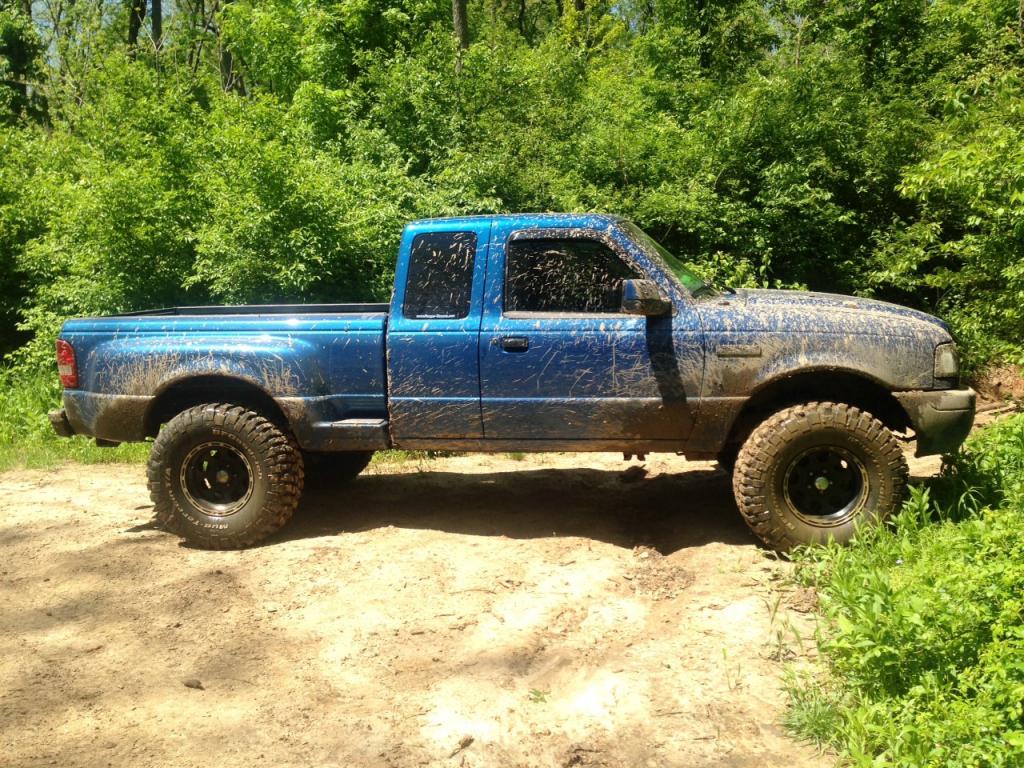

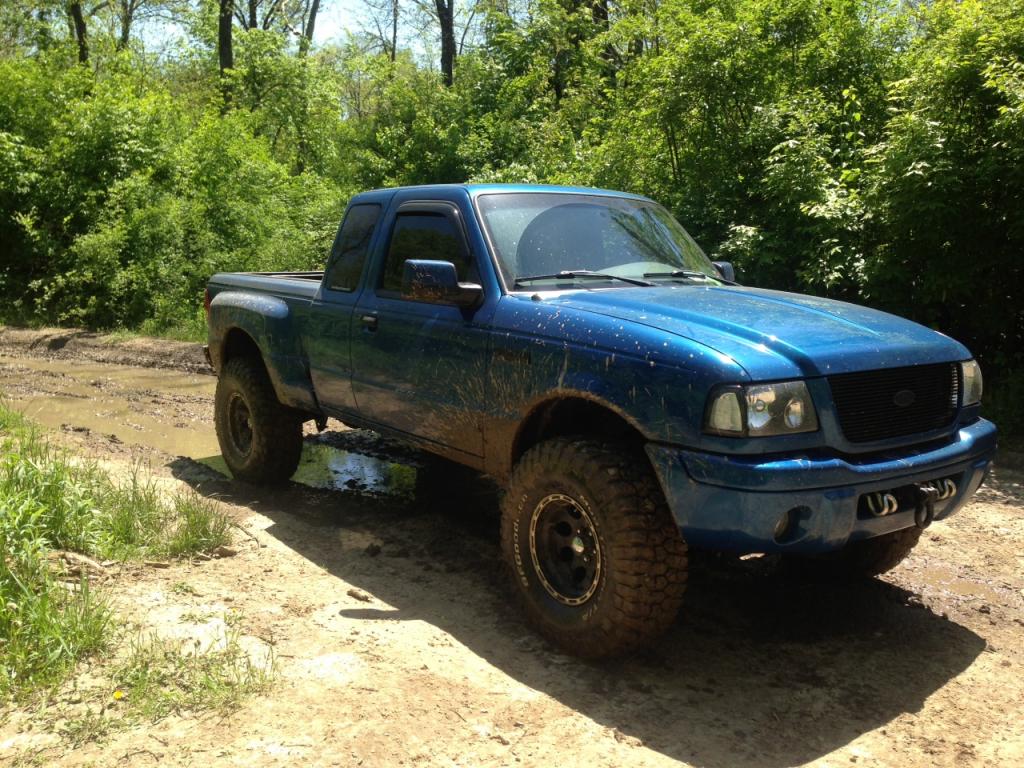

Decided to go wheeling now that the suspension is done. It was my first time at this particular offroad park, I didn't know what to expect. All in all, disappointing, too much mud, not enough trails I fit on.

Anywho, my fiance took pics for me.













Attached Thumbnails 01RangerEdge build thread-img_0490_zps58ea2dd2.jpg   01RangerEdge build thread-img_0491_zps537d8c22.jpg   01RangerEdge build thread-img_0492_zps7257dad7.jpg   01RangerEdge build thread-img_0493_zps2d45ef26.jpg   01RangerEdge build thread-img_0494_zps82efe87c.jpg

01RangerEdge build thread-img_0500_zps16c68511.jpg   01RangerEdge build thread-img_0479_zps41074a33.jpg   01RangerEdge build thread-img_0496_zps9f4df321.jpg   01RangerEdge build thread-img_0499_zps07b1c167.jpg   01RangerEdge build thread-img_0486_zpsa99336a0.jpg

01RangerEdge build thread-img_0488_zps18083c3c.jpg   01RangerEdge build thread-th_img_0505_zps9c52669c.jpg
  #111
Old 05-13-2013
Member
Join Date: Jan 2012
Location: monroe nc
Posts: 38
Originally Posted by 01RangerEdge View Post
....I had the truck on the lift since I installed the blocks, the bars need to be tightened when the truck is on its own weight.
Just wondering what do you mean they have to be tightened?

  #112
Old 05-13-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Originally Posted by jatha05 View Post
Just wondering what do you mean they have to be tightened?
The front mount has adjustable nuts with bushings so they can be adjusted to compensate for saggy springs

  #113
Old 06-03-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

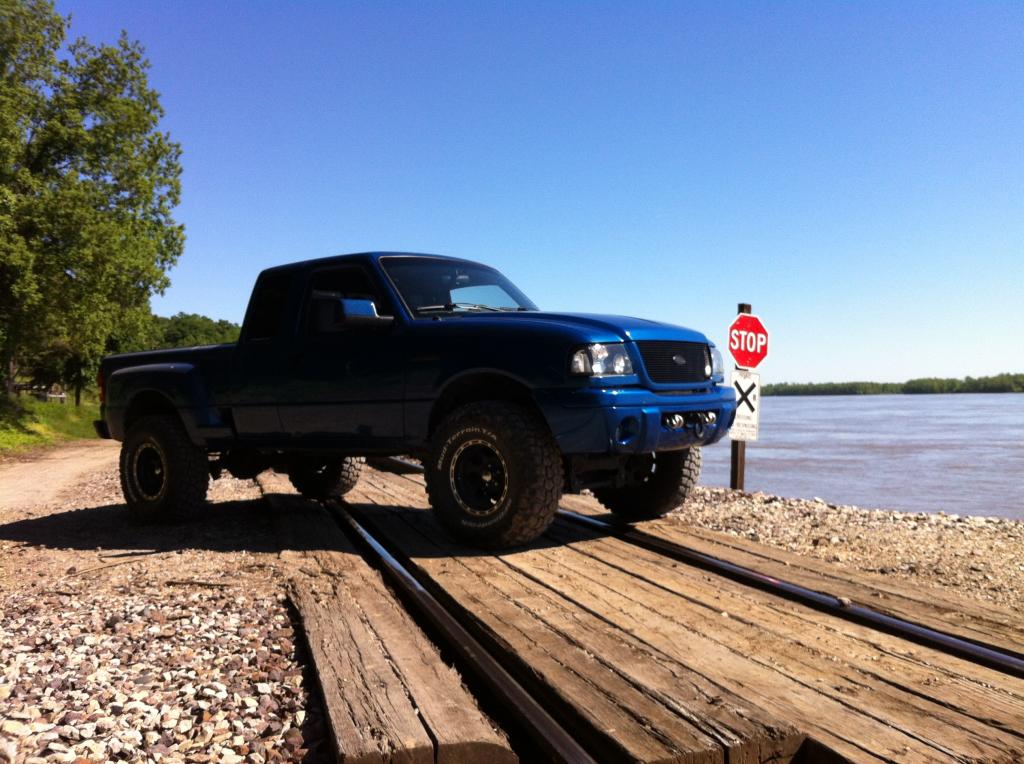

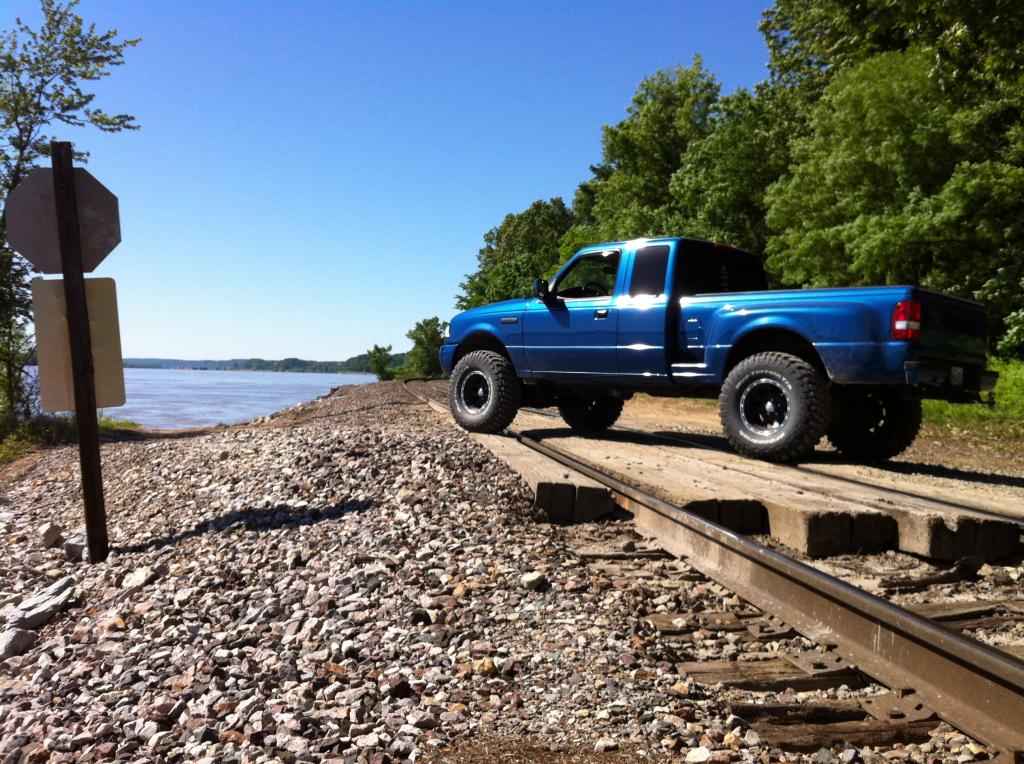

Got married on the 25th, during the weekend me and a buddy decided to go cruising around my parents' and brothers' farms. Took a couple pics at the railroad crossing.







Attached Thumbnails 01RangerEdge build thread-img_0525_zps5151cffc.jpg   01RangerEdge build thread-img_0527_zps89de7d50.jpg   01RangerEdge build thread-img_0530_zps9b064502.jpg   01RangerEdge build thread-img_0531_zps3a864db7.jpg   01RangerEdge build thread-img_0532_zps6d84a35e.jpg

01RangerEdge build thread-img_0533_zpsdba6c38e.jpg
  #114
Old 06-03-2013
06RangerXLT's Avatar
Member
iTrader: (2)
Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
congrats man!

  #115
Old 06-04-2013
logan03CO's Avatar
Member

iTrader: (3)
Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Originally Posted by 06RangerXLT View Post
congrats man!
x2


The truck is looking great!

  #116
Old 06-04-2013
morris's Avatar
RF Veteran
iTrader: (5)
Join Date: Feb 2008
Location: South Detroit.
Posts: 7,837
Yep, def looks good.

  #117
Old 06-07-2013
Member
Join Date: May 2013
Location: Massachusetts
Posts: 29
Love the blue color and everything done. Nice truck.

  #118
Old 06-09-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

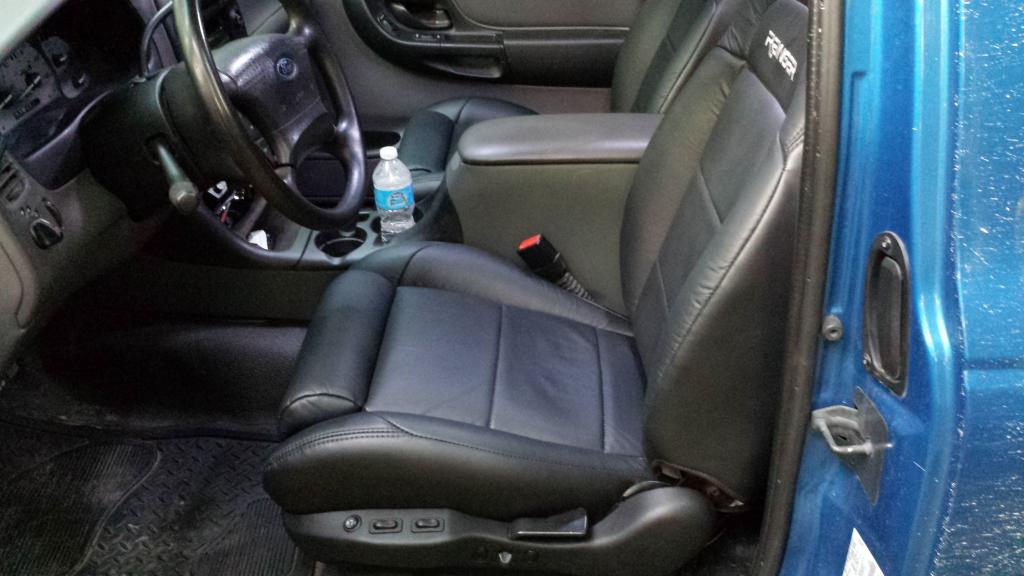

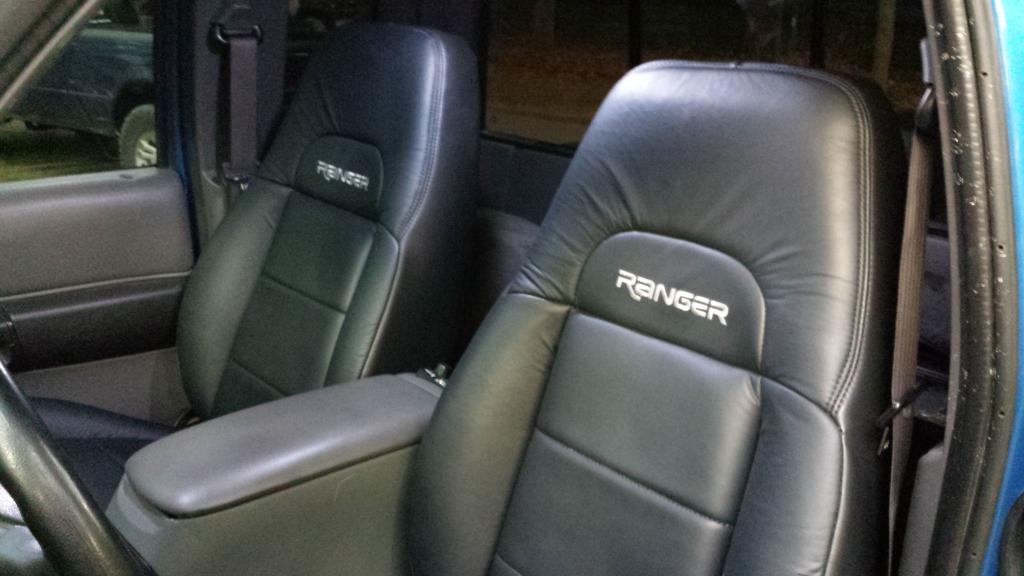

Seats are installed, thanks to Morris and StxDangerRanger




Just need to clean up the wiring

Attached Thumbnails 01RangerEdge build thread-1659_zps39f60efe.jpg   01RangerEdge build thread-1660_zpsa8a0dd8b.jpg
  #119
Old 06-09-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Originally Posted by bilzy7 View Post
Love the blue color and everything done. Nice truck.
Thanks man

  #120
Old 06-10-2013
Member
Join Date: May 2013
Location: Massachusetts
Posts: 29
Nice. 10x better then plain old leather explorer seats.

  #121
Old 06-10-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Originally Posted by bilzy7 View Post
Nice. 10x better then plain old leather explorer seats.
For sure

  #122
Old 06-12-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,205
yeah they look real nice. glad the campsite swap went smooth for ya.

  #123
Old 06-12-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)
Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Originally Posted by INT3RC3PTOR View Post
yeah they look real nice. glad the campsite swap went smooth for ya.
Thanks. These seats went in a lot easier than the last set.

  #124
Old 06-12-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)
Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Originally Posted by 01RangerEdge View Post
Thanks. These seats went in a lot easier than the last set.
all in all it took about an hour total.
We only had to modify the 4 holes on each seat to fit the bigger bolts Justin used originally and then we had to drill and tap the seat belt bolt.
Otherwise, wiring was great. Troy was a big help in doing the major leg work of the wiring. all we had to do was run power and ground.

  #125
Old 06-13-2013
drppdyllwrngr's Avatar
Member
iTrader: (4)
Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
that's one thing i make sure i do when i recover/sell expo power seats, make sure to get both sides of the connector. you had a couple extra wires for the heaters as well, but still all very basic wiring.
