  #276
Old 03-12-2014
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

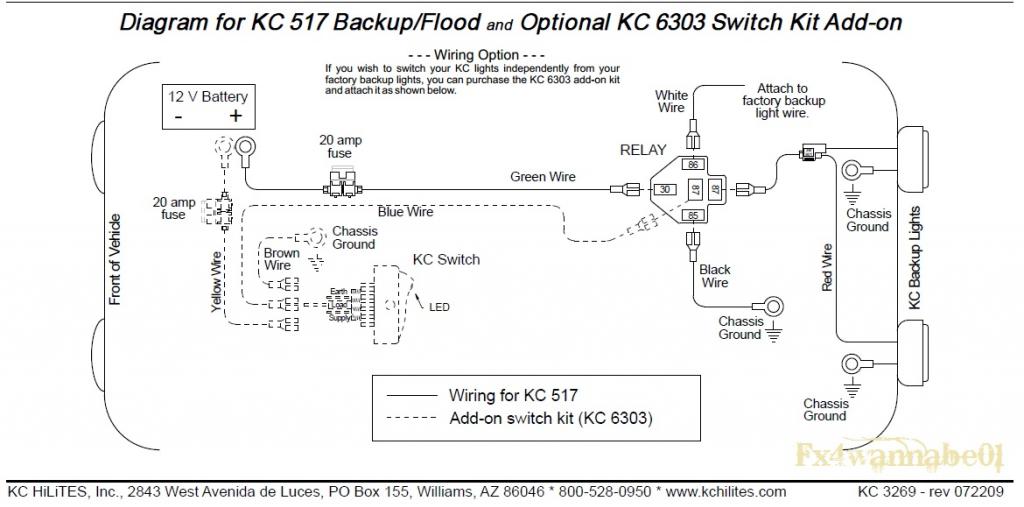

PS: here's your diagram for automatic on AND switched on...

Attached Thumbnails
01RangerEdge build thread-kc517backupwiringandkc6303.jpg
Reply With Quote
  #277
Old 03-12-2014
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,503
Quote:
Originally Posted by Scrambler82 View Post
I looked in the whole thread and did not see these pictures, funny. Thanks for posting.
I hid them as best I could! So far I am very happy with the output, I need to aim mine down another 6inches. The output is on par with my 55watt HIDs and the beam is much better.
Reply With Quote
  #278
Old 03-22-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

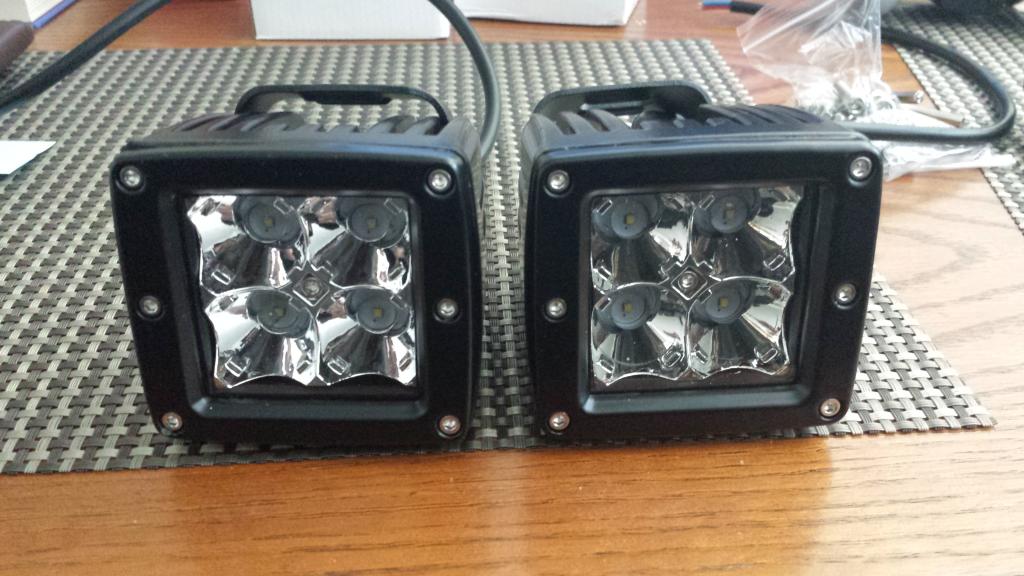

So I emailed the company who sent me the Rigid knockoffs that I was missing one of the mounting brackets, all I wanted was a bracket.

A few days later I received a whole set of flood pattern lights, but no extra bracket. I'll just make a bracket.

Attached Thumbnails
01RangerEdge build thread-20140322_131438_zpsc6122d76.jpg
Reply With Quote
  #279
Old 03-22-2014
boyd_835's Avatar
Member

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
haha so now you have extra set? how is the output on those?
Reply With Quote
  #280
Old 03-22-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by boyd_835 View Post
haha so now you have extra set? how is the output on those?
I haven't bench tested them yet. I'll try tomorrow. The first set I ordered had pretty nice output
Reply With Quote
  #281
Old 04-09-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
So, I got my X5's and I thought "How the hell am I going to mount these monstrosities?"

Then I saw a member on FB taking the housings apart, he was going to retrofit them into his OEM Focus fogs.

So, I messaged him and he said they were permasealed and heat helped loosen the glue. I thought "I got this, no big deal..."

Then this happened




Luckily, the modules are unharmed and now I can start the retrofit process


Attached Thumbnails
01RangerEdge build thread-20140409_184750_zps02dc4aba.jpg   01RangerEdge build thread-20140409_184813_zps997549e5.jpg   01RangerEdge build thread-20140409_184843_zps7f0d5640.jpg
Reply With Quote
  #282
Old 04-09-2014
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,503
nice! mine are currently installed with a ton of zip ties lol i have some ideas on how to mount them using the stock mounts
Reply With Quote
  #283
Old 05-01-2014
Member

Join Date: Jan 2014
Location: Plainfield, CT
Posts: 144
Posted initial reply in wrong window.

But your builds look awesome!!

Last edited by SteveDie; 05-01-2014 at 04:24 PM.
Reply With Quote
  #284
Old 05-13-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

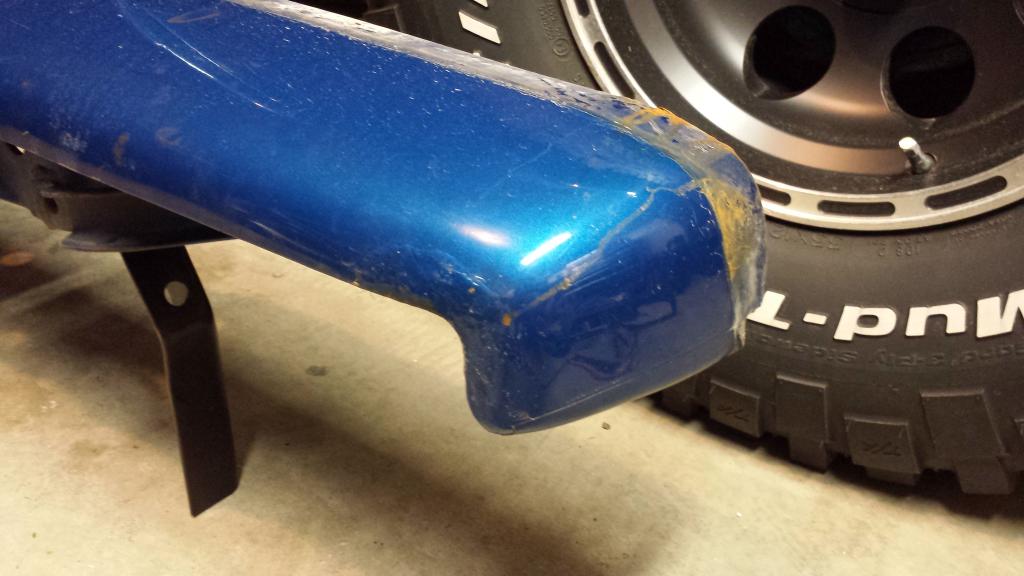

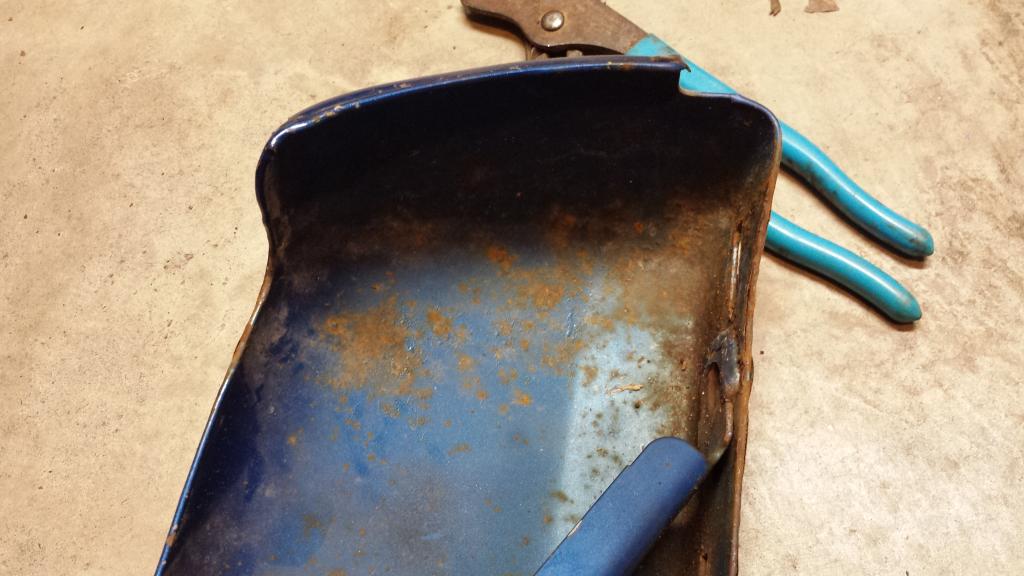

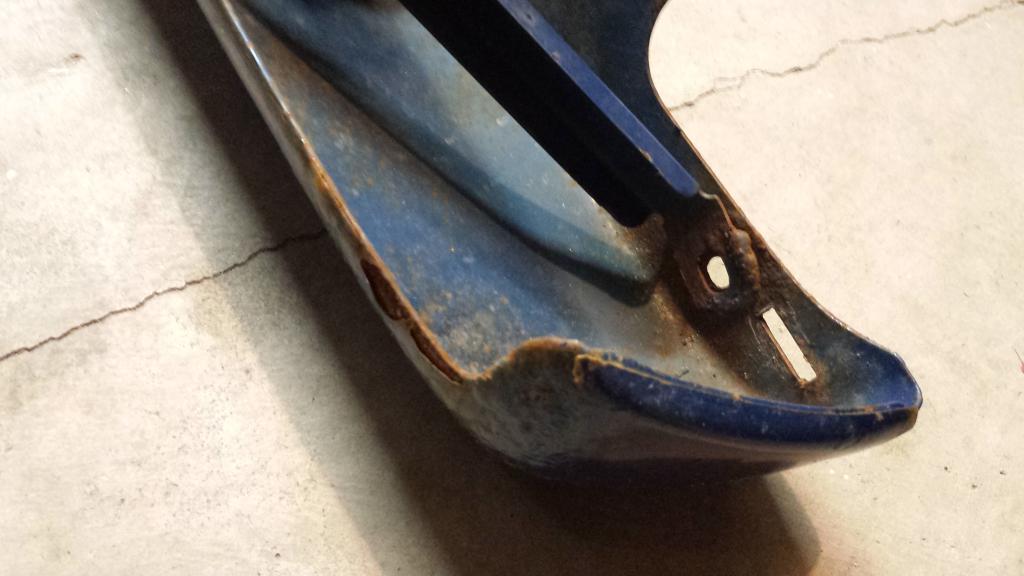

Rust has been creeping in on my rear bumper, I've ignored it long enough and decided to do something about it.

Some of you might be wondering why since I'm anxiously waiting for an opportunity to swap to a styleside. If I sell this bumper I want to protect the next guy, also I don't want this rust getting any worse.

I'm going to get it media blasted, then I will prime it. I don't plan on repainting it blue unless my styleside plans fall by the wayside.






Attached Thumbnails
01RangerEdge build thread-20140513_200812_zps0ca2dbd7.jpg   01RangerEdge build thread-20140513_200829_zpsa3d850c4.jpg   01RangerEdge build thread-20140513_200859_zps236ea427.jpg   01RangerEdge build thread-20140513_200915_zps9a4a17be.jpg   01RangerEdge build thread-20140513_202319_zps294e48eb.jpg

01RangerEdge build thread-20140513_202328_zps6243f1de.jpg
Reply With Quote
  #285
Old 05-13-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

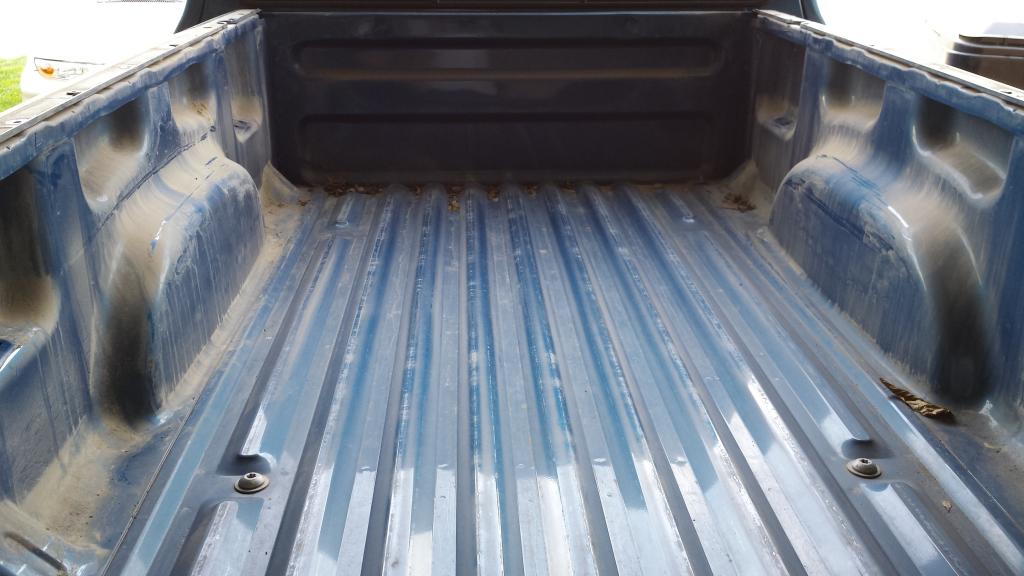

Also, I removed my bedliner for the first time in 10 years (I don't think it ever had been removed prior either)

Looks good after I cleaned it up, only a few scratches.

Attached Thumbnails
01RangerEdge build thread-20140506_172315_zps20a0bc6c.jpg
Reply With Quote
  #286
Old 05-13-2014
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
You can media blast that bumper, but in that last pic that corner is pretty far gone.

The inside has some surface rust which can be scuffed away no problem. but hey, you can always patch panel it.
Reply With Quote
  #287
Old 05-13-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by StxDangerRanger View Post
You can media blast that bumper, but in that last pic that corner is pretty far gone.

The inside has some surface rust which can be scuffed away no problem. but hey, you can always patch panel it.
Yea, I let it go too long. Once I had the cover off I saw how bad it was.

I'll media blast then post more pics
Reply With Quote
  #288
Old 05-14-2014
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,694
Wish you lived closer, I have a great EDGE front bumper, apron and lights.
I would have to double check but I remember they are in good condition.

How many miles are on your truck ?
Reply With Quote
  #289
Old 05-14-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by Scrambler82 View Post
Wish you lived closer, I have a great EDGE front bumper, apron and lights.
I would have to double check but I remember they are in good condition.

How many miles are on your truck ?
I could use another bumper, St. Louis would have been a logical pit stop for ya on your move.

I have around 149K
Reply With Quote
  #290
Old 05-15-2014
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,694
As I fly over I can let them go, just keep your head up.

P.C. Has mentioned his interest, not sure if he has enough money but waiting on him now !

The bulk of the bumper/valance would cost more for shipping.

Luck with your bumper... what about buying one of the Custom 4x4 Fab Rear Bumpers for Stepside Rangers ?
Ike made me one and it looks really good in my opinion.
Price is reasonable for the great work, less than other companies. IF YOU CAN FOND ONE.
I don't think any one else makes a rear bumper for a Steppie Ranger.

Ltr
Reply With Quote
  #291
Old 05-15-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
My goal is to swap to styleside at this point
Reply With Quote
  #292
Old 05-15-2014
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,694
That is too bad but you can mod the bumper and it will fit the Styleside.

Luck with the project.
Reply With Quote
  #293
Old 05-15-2014
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,694
P.C. took care of it all, it got the bumper/valance and the 8.8 so I can't send them to you, lol.

The Rigid LED knock offs... what is the Lumen Output .
Are they dual beam ?

[IMG][/IMG]

P.C. Did you check them out ?
Attached Thumbnails
01RangerEdge build thread-20140322_131438_zpsc6122d76.jpg

Last edited by Scrambler82; 05-15-2014 at 06:01 PM.
Reply With Quote
  #294
Old 05-15-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,726
Quote:
Originally Posted by Scrambler82 View Post
P.C. took care of it all, it got the bumper/valance and the 8.8 so I can't send them to you, lol.

The Rigid LED knock offs... what is the Lumen Output .
Are they dual beam ?

[IMG][/IMG]

P.C. Did you check them out ?
i've checked them out in this thread but Justin here isn't delivering any more updates

Reply With Quote
  #295
Old 05-22-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

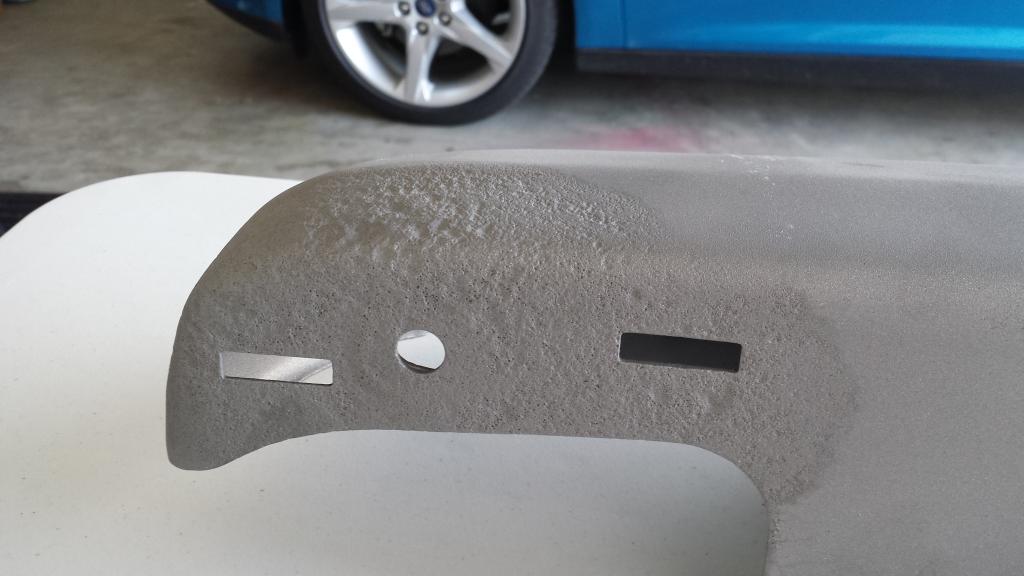

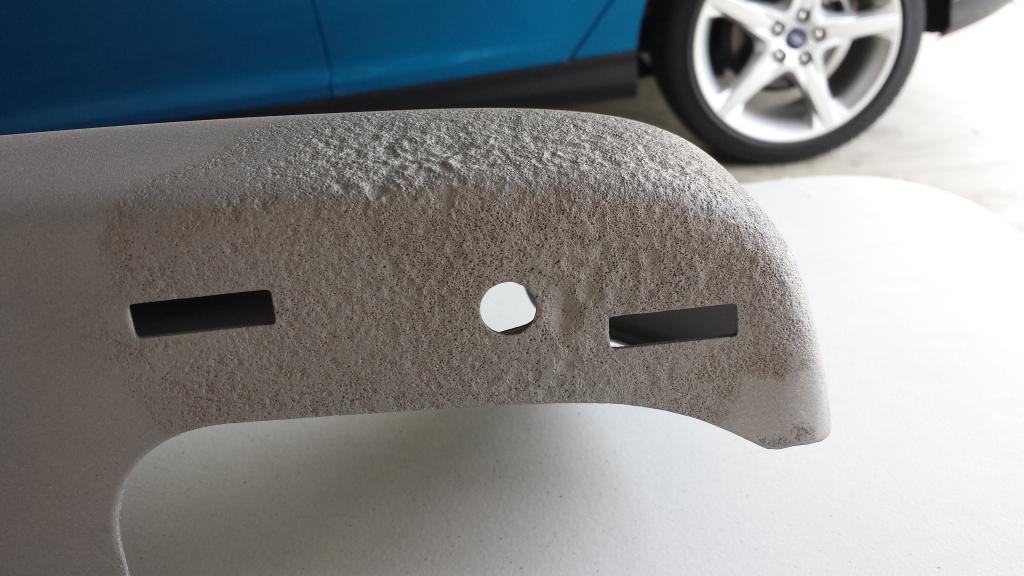

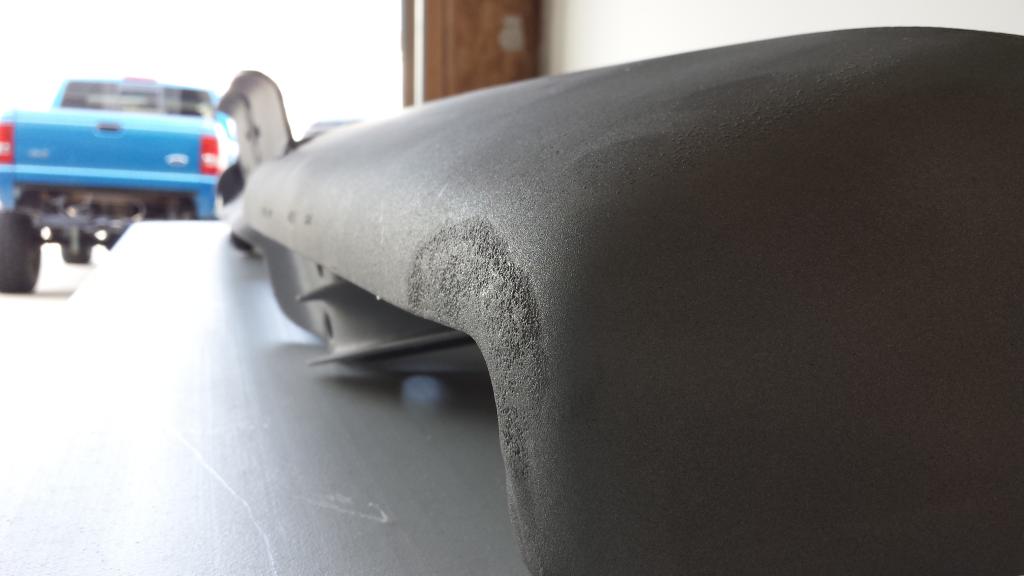

Picked up my bumper from the shop, it looks bad but the metal is still strong. Looks like I've got some body work to do.

Currently though, I'm going to seal it to keep it from rusting, I don't have time right now to tackle body work.





Attached Thumbnails
01RangerEdge build thread-20140522_170507_zps7fae1be1.jpg   01RangerEdge build thread-20140522_170521_zps0d6b3e3f.jpg   01RangerEdge build thread-20140522_170531_zps0e29a495.jpg   01RangerEdge build thread-20140522_170544_zps41c0c35b.jpg   01RangerEdge build thread-20140522_170555_zps0832d1f0.jpg

Reply With Quote
  #296
Old 05-25-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

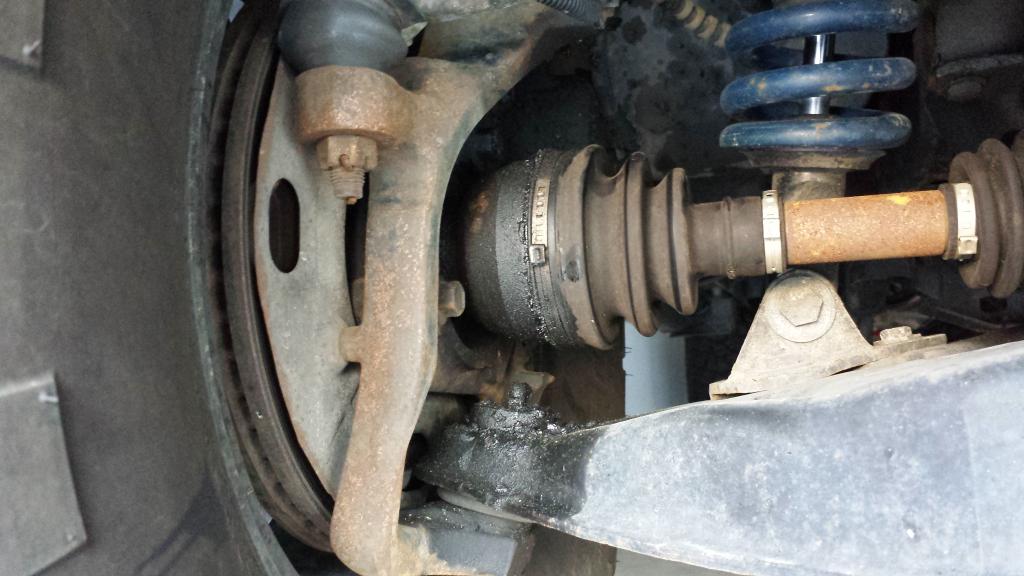

I'm done with this IFS junk. I just found these while nosing around. I've noticed the grease but didn't think much of it until today when it was really bad. SAS coming soon.


Attached Thumbnails
01RangerEdge build thread-20140525_190946_zpsa22ad63a.jpg   01RangerEdge build thread-20140525_191205_zpsa7b9a798.jpg
Reply With Quote
  #297
Old 05-26-2014
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Solid Axle or Bust.
Reply With Quote
  #298
Old 05-26-2014
wingman358's Avatar
Member

Join Date: Sep 2013
Location: Virginia/DC area
Posts: 42
What are people typically using for a SAS?
Reply With Quote
  #299
Old 05-31-2014
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,340
Quote:
Originally Posted by wingman358 View Post
What are people typically using for a SAS?
It really depends on what your overall goal is for your truck. A good amount of guys use a d30 or a d44 or a d60. You just need to read about different axles and see which one fits your wants/needs the best. As for suspension, you could run leafs, coils, or coilovers.

The point is, there is a lot of different ways to do a SAS, you just gotta figure out what you want and go from there. There is a good amount of build threads out there to show you the many different ways of going about tackling the job.

01RangerEdge, your rig is clean and is gonna look sweet with a solid axle under the front! I'm looking forward to seeing the build.
Reply With Quote
  #300
Old 05-31-2014
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by wingman358 View Post
What are people typically using for a SAS?
I'm going with a D30 so I can keep my current track width and lug pattern. I don't wheel this truck hard enough to break a D30.

Quote:
Originally Posted by 00GreenRanger View Post
It really depends on what your overall goal is for your truck. A good amount of guys use a d30 or a d44 or a d60. You just need to read about different axles and see which one fits your wants/needs the best. As for suspension, you could run leafs, coils, or coilovers.

The point is, there is a lot of different ways to do a SAS, you just gotta figure out what you want and go from there. There is a good amount of build threads out there to show you the many different ways of going about tackling the job.

01RangerEdge, your rig is clean and is gonna look sweet with a solid axle under the front! I'm looking forward to seeing the build.
Thanks, I think I can finally get the perfect ride height with an SAS. I only want to gain 3-4 inches over my current setup and run 35's.

The part searching may take a while, but I have a couple promising leads already.

My biggest hurdle is going to be finding a welder/fabricator to help me, I don't trust myself to weld a suspension.
Reply With Quote
