  #476
Old 03-21-2015
Fordzilla80's Avatar
YZ
iTrader: (1)

Join Date: Dec 2010
Location: Florida
Posts: 966
I officially hate you.

Truck looks amazing Justin!
Reply With Quote
  #477
Old 03-23-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,579
Schweet!

How is the drag link connected to the tie rod?
Reply With Quote
  #478
Old 03-23-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Quote:
Originally Posted by seed60 View Post
Schweet!

How is the drag link connected to the tie rod?
It's just a TRE. It's set up like a normal Y link
Reply With Quote
  #479
Old 03-27-2015
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 01RangerEdge View Post
It's very squirrely on the road with out.

I don't plan on a sway bar until I see how the stabilizer helps.

I'm planning on getting there to fix my dead spot The Cure
You really should not need a stabilizer. I havent ran one for years.

is it aligned? What did you set the caster to? Also how well are you tires balanced?

I cant tell in the pictures but if you put a string from bolt hole to bole hole on the drag link and panhard are they parallel with each other?

Otherwise the truck looks awesome! nice work. I am not trying to down play the build with my questions, just curious!
Reply With Quote
  #480
Old 03-27-2015
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,721
Looks awesome. I think it looks fine with 33s!
Reply With Quote
  #481
Old 03-27-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Quote:
Originally Posted by zabeard View Post
You really should not need a stabilizer. I havent ran one for years.

is it aligned? What did you set the caster to? Also how well are you tires balanced?

I cant tell in the pictures but if you put a string from bolt hole to bole hole on the drag link and panhard are they parallel with each other?

Otherwise the truck looks awesome! nice work. I am not trying to down play the build with my questions, just curious!
I planned on having it anyway, with the amount that I'm still driving it on the highway I'd prefer to have it.

It's not aligned yet, I was waiting until I got the stabilizer in.

The drag link and panhard are pretty close to parallel.

One thing that is probably making it seem worse is the dead spot in my steering. I read about Jeeps that have this, it seems there are ways to lessen the effects. After I get the steering finishing I'll drive it again to see if the stabilizer helped.

Also, I grabbed Expo leaf springs and quickly found out that you can't just go to an autoparts and get some. Ford even obsoleted the frame mount bushing.

So I fired up Google and apparently one company still makes these things (Energy Suspensions). So I ordered them and of course the frame mount bushing doesn't fit.

The instructions say that the sleeve from the original bushing has to be reused (wut?). It even says to use a torch to debond the original bushing from the sleeve.

That seems ridiculous, so we're just going to make a new sleeve and press them in.
Reply With Quote
  #482
Old 03-27-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,579
You could use heims to eliminate the dead spot caused by the tre's.
Reply With Quote
  #483
Old 03-27-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Quote:
Originally Posted by seed60 View Post
You could use heims to eliminate the dead spot caused by the tre's.
I thought about that too.

I wasn't sure how having heims would behave on the highway though
Reply With Quote
  #484
Old 03-27-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
I wouldn't count on the stabilizer fixing the issue, on mine it did nothing. Of course our steering angles are a whole different ballgame. I've heard it said many times that a using a stabilizer to fix squirly steering is like putting a bandaid on a wound that needs stitches. I don't have anything against stabilizers, but I think if you're installing it to fix a steering issue you'll be disappointed.
Reply With Quote
  #485
Old 03-27-2015
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,650
Looks good.
Some nice work.
A front stablizer should help, a rear one I would wait on.
The front stablizer should make the truck a nicer ride when on the road.
Get one that has a disconnect system, something easy to acuate.

Keep the pictures coming.
Reply With Quote
  #486
Old 03-27-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Quote:
Originally Posted by RazorsEDGE View Post
I wouldn't count on the stabilizer fixing the issue, on mine it did nothing. Of course our steering angles are a whole different ballgame. I've heard it said many times that a using a stabilizer to fix squirly steering is like putting a bandaid on a wound that needs stitches. I don't have anything against stabilizers, but I think if you're installing it to fix a steering issue you'll be disappointed.
I already know it's out of alignment, we just used a tape measure to get it to where I could at least drive it home. I'm sure getting it properly aligned will help a lot.

I had planned on getting a stabilizer before I drove it.

The dead spot in the steering is more concerning to me that the squirliness.
Reply With Quote
  #487
Old 03-28-2015
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 01RangerEdge View Post
I planned on having it anyway, with the amount that I'm still driving it on the highway I'd prefer to have it.

It's not aligned yet, I was waiting until I got the stabilizer in.

The drag link and panhard are pretty close to parallel.

One thing that is probably making it seem worse is the dead spot in my steering. I read about Jeeps that have this, it seems there are ways to lessen the effects. After I get the steering finishing I'll drive it again to see if the stabilizer helped.

Also, I grabbed Expo leaf springs and quickly found out that you can't just go to an autoparts and get some. Ford even obsoleted the frame mount bushing.

So I fired up Google and apparently one company still makes these things (Energy Suspensions). So I ordered them and of course the frame mount bushing doesn't fit.

The instructions say that the sleeve from the original bushing has to be reused (wut?). It even says to use a torch to debond the original bushing from the sleeve.

That seems ridiculous, so we're just going to make a new sleeve and press them in.
I'm confused on what you can't get at an autoparts store? I re-did the shackles and hangers on mine. I ordered the springs themselves from Rock Auto (which came with bushings in them and it appears you can buy them from their site) I got my shackles and hangers from O-Reiley's.

I don't know if they changed how they mounted from 99-00 to 01+
Reply With Quote
  #488
Old 03-28-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
All I wanted was the bushings for the leaf springs themselves. Those are not available.

I could order the leaf springs which come with them, or I can order the shackle kit and not get the front bushing.

The Energy Suspension bushings worked after we made a sleeve for the front.
Reply With Quote
  #489
Old 03-31-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Finally got around to getting an alignment. It made a huge difference, truck doesn't wander at all.

It does let me feel the dead spot a little clearer, it's not terrible, but it may end pushing me to a high steer or crossover conversion.
Reply With Quote
  #490
Old 04-02-2015
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
looks like it could have came stock, nice work!
Reply With Quote
  #491
Old 04-07-2015
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
if you want to fix that dead spot without the need of heims....

The Cure! - RuffStuff Specialties

you're welcome
Reply With Quote
  #492
Old 04-07-2015
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,822
He beat you to the posting of "the cure" on the last page
Reply With Quote
  #493
Old 04-07-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Noobs lol.
Reply With Quote
  #494
Old 04-07-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
The cure won't work since I'm not using 1 ton TRE's.

Seeing that makes me wish I would have just converted to that
Reply With Quote
  #495
Old 04-07-2015
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by morris View Post
He beat you to the posting of "the cure" on the last page
Quote:
Originally Posted by RazorsEDGE View Post
Noobs lol.
hey im only running on like 3 hrs of sleep a day. give a guy a break!
Reply With Quote
  #496
Old 04-08-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594

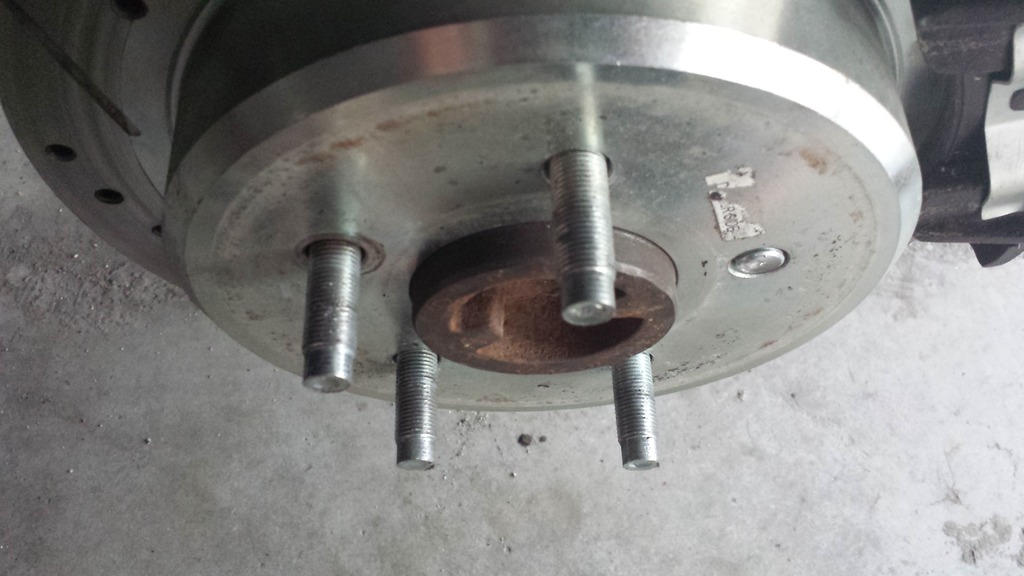

Broke a wheel stud taking a lug nut off, thread must have laid over or something.

Anyway you can see another one has a couple flat spots, so I'll replace them both.

I really don't see how it happen, didn't have any issues putting them on the last time.

Glad I found this before taking it to the tire shop

Attached Thumbnails
01RangerEdge build thread-20150408_172322_zpsbctmf52o.jpg
Reply With Quote
  #497
Old 04-08-2015
redranger04g's Avatar
Member

iTrader: (2)

Join Date: Apr 2007
Location: Placentia, CA
Posts: 928
Quote:
Originally Posted by 01RangerEdge View Post
Broke a wheel stud taking a lug nut off, thread must have laid over or something.

Anyway you can see another one has a couple flat spots, so I'll replace them both.

I really don't see how it happen, didn't have any issues putting them on the last time.

Glad I found this before taking it to the tire shop

Wow that is crazy that happened, did you ever run spacers? I've seen that happen on quads but never on a stock(ish) truck.

Just super glue it back on and take it to the tire shop. Tell them they broke it...
Reply With Quote
  #498
Old 04-09-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
No spacers, and lug was fully seated on the rim too.

Truck will have to sit since the other lug has the flat threads.
Reply With Quote
  #499
Old 04-09-2015
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
THat is really strange. Are those ford studs or replacements?
Reply With Quote
  #500
Old 04-09-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Quote:
Originally Posted by zabeard View Post
THat is really strange. Are those ford studs or replacements?
Replacement studs
Reply With Quote
