  #401
Old 10-22-2011
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
I'm not worried about it, It will fit. Ideal set up for me is a carbourated setup 302 but I'm thinking the 200 + pound tranny might be overkill. The truck would no longer be a ranger at that point. It will undergo major frame modifications, cab alterations, and leaning towards a flat bed to make it more useful for me
Reply With Quote
  #402
Old 01-06-2012
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
Ok I gotta get this out, so I don't forget what I want. its not spring yet but I've got some plans for the truck. I want some input and opinions of stuff I'm missing. Starting from the rear,, im in the process of design to make a one off specialty rear hitch/bumper. It will fit underneath my stock bumper as a hitch would, but it will be slightly longer, heavy gauge tube and have a bunch of usefull recovery attachments... and a nice swing out spare tire carrier. It will be pretty

bed will come off for a while to remove the spare tire carrier under the bed, and reinforce the rear frame for the new heavy recovery hitch. I may likely do an easy short arm cantilever type setup on my rear springs to give an easier rear flex out,, like '034x4' had done on his ranger long ago (i notice a lot of scary body roll flexing on trails) if the rear flexed easier it would keep the body less tipsy. The rear axle needs to be addressed, my shock setup has some bad angles. I will relocate the shock tabs so I quit smashing shocks, and create a new frame mount for the shocks also which will help give me more droop. I also have major intensions to install an onboard air system on the truck capable of running tools and inflating tires

A skid plate is really wanted for the t case, I gotta find one or make something before I ruin it. I also will reinforce and plate the rails under the cab for making some one off sliders that will double as a running board. I may build a skid plate off of these to tie in the under carriage. The front axle and springs will come off and be serviced. I need a stronger tie rod as I dropped my front on a rock during a trip a few weeks ago. I also have plans for a front hitch with recovery gear. I'll still retain the stock valance but I will do as I need to attach some kind of winch hitch, tow hooks, and tie in a frontal bush guard set up that can take some good hits.

Last edited by 08rangerdan; 01-06-2012 at 07:41 AM.
Reply With Quote
  #403
Old 07-21-2012
yeatzee's Avatar
Member

Join Date: Jul 2011
Location: Temecula, CA
Posts: 429
any updates? This is essentially my dream truck, and truly an inspiration!
Reply With Quote
  #404
Old 09-04-2012
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
Had alot on the go this season, I was going to set it up for the next stages but lost the motivation. New job, new projects etc.. Truck will take over again next year if my new c3 project doesn't take over
Reply With Quote
  #405
Old 09-04-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Saw the pics on FB... what's the plans for the car?
Reply With Quote
  #406
Old 09-11-2012
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
I'm going for a full restore and basically get the engine up to speed. Its in pretty good shape but last owner over did it with a new cam shaft, so I gotta go over it and fix it up
Reply With Quote
  #407
Old 09-11-2012
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922

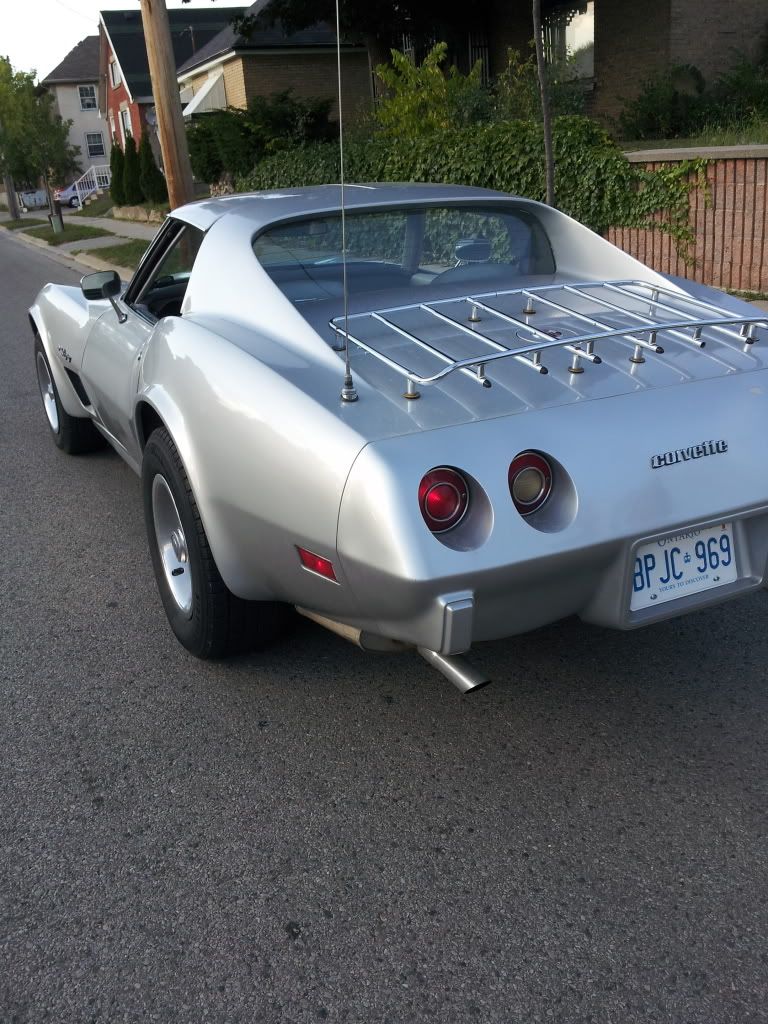

throw up some pics of the car dan
Reply With Quote
  #408
Old 09-12-2012
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323

Attached Thumbnails
08' ranger SAS build up-20120828_190722.jpg

Last edited by 08rangerdan; 09-12-2012 at 12:20 PM.
Reply With Quote
  #409
Old 09-12-2012
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
Here's a pic of the truck replay weekend... Yea I actually drive out of that hole somehow after and hour ..

Attached Thumbnails
08' ranger SAS build up-20120909_174822.jpg   08' ranger SAS build up-20120909_181418.jpg

Last edited by 08rangerdan; 09-12-2012 at 12:01 PM.
Reply With Quote
  #410
Old 09-12-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
lol Nice work! How did you manage to get in there?
Reply With Quote
  #411
Old 09-12-2012
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
Well what you can't really see is the main trail.. I was crawling down into some ruts and snagged up on the right side. I cranked it hard left and popped up then ended up dropping a front tire off the left side of the bank. I tried to get the tire back up but swung the whole front down the muddy bank into a pile of really soft ground. After cutting the hill up for a solid hour I managed to pop it back up and carry on
Reply With Quote
  #412
Old 09-12-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Sounds like a good time. lol
Reply With Quote
  #413
Old 01-01-2014
blue_oval's Avatar
Member

Join Date: Feb 2008
Location: Worcester MA
Posts: 366
Any new updates on this bad Larry?
Reply With Quote
  #414
Old 01-01-2014
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Look at those RCI skids. They are hella strong. I didn't read and see if you got them and I know it was an old post.
Reply With Quote
  #415
Old 05-12-2014
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
I never did do skid plates on the truck.. I never really had an issue where I felt they were necessary. Started getting some sprng maintenance done last weekend.. Full brakes and new u joint in the drive shaft.. next to do is a new steering shaft joint.. One near the box is wayyy due for replacement.

Maybe someone running the 84 yota box will chime in and let me know a part number for a joint to fit the yota rag joint end, because I'm not replacing the shaft.. I know there is a fitting u joint out there but a part number makes life much easier!

I'll probably beef up the steering too. Heims are getting pretty loose and my tie rod is in a few funny shapes from some rock interference..

After that I gotta pull the trans this summer to fix a leaky torque converter seal.. Among some other tlc to be done. The truck has been pretty good for the last few years! But time for maintenance

Looking like a trip to ardbeg this august.. So I want it good and healthy for the trip.

Last edited by 08rangerdan; 05-12-2014 at 07:31 AM.
Reply With Quote
  #416
Old 05-13-2014
08rangerdan's Avatar
Member
Thread Starter

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
Some updates on my steering shaft situation. After an extensive search I found a vendor who supplies the u joint required for the Toyota rag joint intermediate shaft. I was getting measurements of 5/8" across the caps and a number nearing 1-5/8" across the body cap to cap. This was a difficult part to find on its own surprisingly. The 'u joint store' had a supply of 16mm by 40mm u joints for import steering shafts.. But they were the only source I could pull up for these! Part number st1640. After doing dome digging on his part numbers, They look like they come right out of China and my only other option is to go right to the supplier and order their minimum unit quantity of likely 100 or more parts.. Just not overly practical.

I ended up ordering his part for his listed $20... Then another $25 for the shipping.. I'm a little annoyed with that purchase. He refused to send any other way but UPS.
Reply With Quote
