93 ford ranger complete rebuild from bare frame with SAS - Page 4 - Ranger-Forums - The Ultimate Ford Ranger Resource


Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

Reply

LinkBack Thread Tools Search this Thread
  #76
Old 08-22-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
yep it is a new process 435

manufactured on may 22nd 1974
Reply With Quote
  #77
Old 08-22-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
well good! So have we figured out what the transfer case is yet? Cause we both think it is different things..
Reply With Quote
  #78
Old 08-22-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8

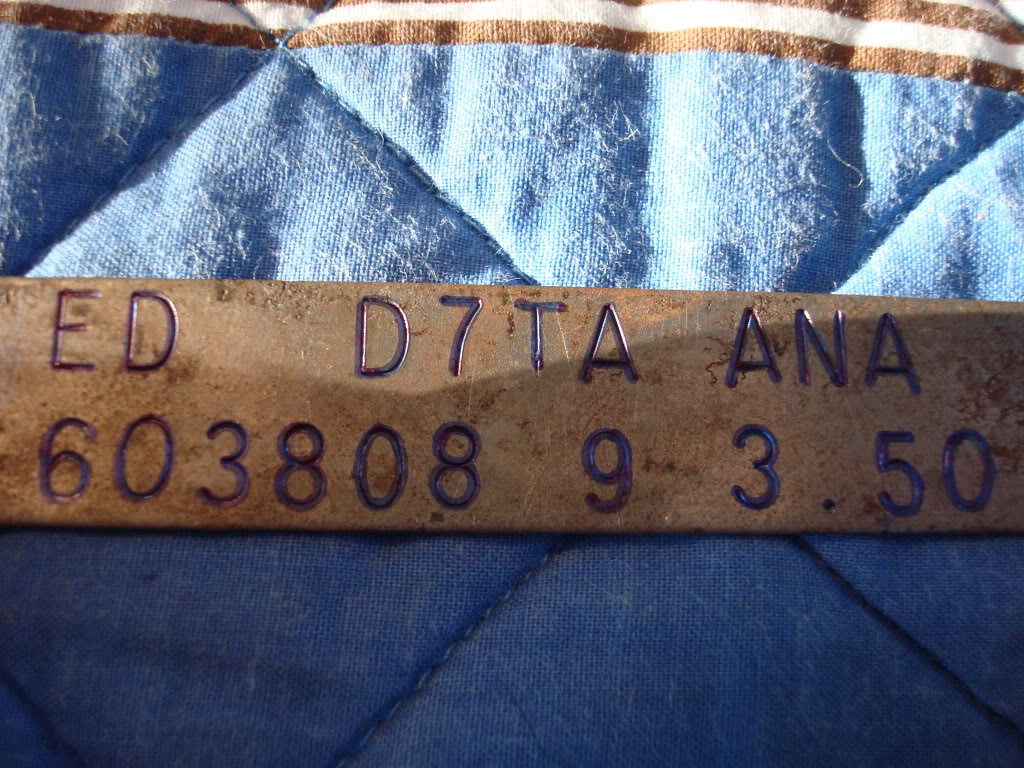

I have two axle tags. Can anyone tell me what everything means and what the ratios are.

this is from my dana 44.

Name:  DSC02646.jpg
Views: 13
Size:  219.8 KB

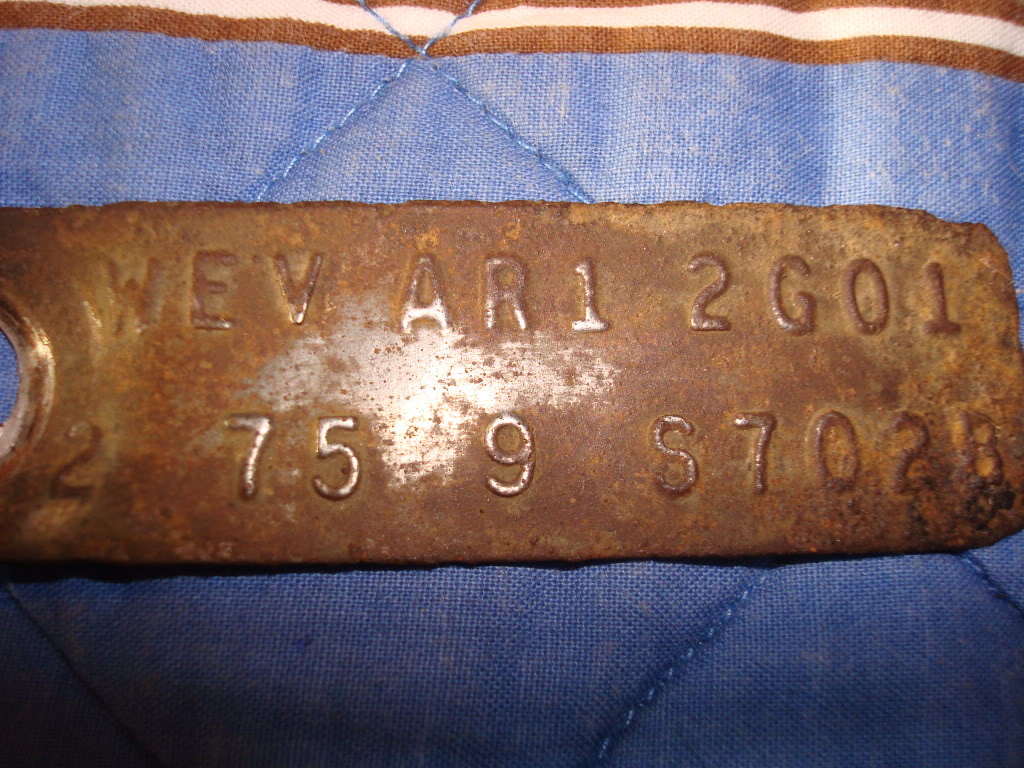

This is from my 9 in. rear end.

Name:  DSC02647.jpg
Views: 14
Size:  206.5 KB
Reply With Quote
  #79
Old 08-23-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
top tag is

top line ,, plant where it was built , the carrier number and city where it was built

bottom line serial number ,, the gear ratio

the bottom tag i am having trouble with
Reply With Quote
  #80
Old 08-23-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
bottom tag
WEV-AR1
Ford E100, E150 Van '81-'83
2.75 Gear Ratio
9.0 Ring Gear Dia.
31 Axle Splines

Ford Rear Axle Assembly Identification - Page 06 - FORDification.com
Reply With Quote
  #81
Old 08-23-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
thank-you for that info

dana tags are so easy to identify than the ford tags
Reply With Quote
  #82
Old 08-23-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
Thanks for the info guys. How close do the ratios have to be in order to use them together? I am assuming i should change the rear gear ratio. What would you suggest i put in it?
Reply With Quote
  #83
Old 08-23-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
it depends what you intend to do with the truck

street or bogging
Reply With Quote
  #84
Old 08-23-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
I will be driving it to where i off road for now but then i will be in both mud and rocks
Reply With Quote
  #85
Old 08-23-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
4.10 rear gear ratio is okay

the granny low 1st gear of the np435 will compensate for the high ratio diff gear

there were 3 different 1st gear ratio`s of the 435

mark the input and output shaft with a marker line , turn the input shaft by hand ,
and count how many times the input shaft turns versus how many times the output shaft turns

you are looking for 1st gear ratio ( 5:13 / 5:89 / etc )
Reply With Quote
  #86
Old 08-23-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
Alright i will see if i can figure that out once i put it back together. i still need to replace the synchro rings. So of i put that ratio in the rear wouldnt i have to replace the front too? i really dont know a whole lot about them but i thought they need to be close other wise the tires will turn at different speeds and then break things or put allot of stress on things.
Reply With Quote
  #87
Old 08-23-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
your front and rear differential gear ratio`s must match

otherwise you will damage your transfer case
Reply With Quote
  #88
Old 08-23-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
Alright thats what i thought. Thanks for the info
Reply With Quote
  #89
Old 08-29-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
Good news everyone!!! Well at least for me it is. This weekend i picked up some 35 in. tires with rims for a great price and next weekend i am going to pick up 2 more dana 44's and 2 more ford 9 in. axles all for free! So these axles will have the same ratios so i wont have to buy new gears which will save me money. I will post pictures of everything next weekend hopefully.
Reply With Quote
  #90
Old 08-29-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Good deal!
Reply With Quote
  #91
Old 09-05-2010
Paul Spickard's Avatar
Member

Join Date: Jun 2010
Location: Alexander City, Alabama
Posts: 250
pics?
Reply With Quote
  #92
Old 09-05-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
I will get some tomorrow. sorry
Reply With Quote
  #93
Old 09-13-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
Its been awhile since i have been able to post anything on here so here is everything i have so far..

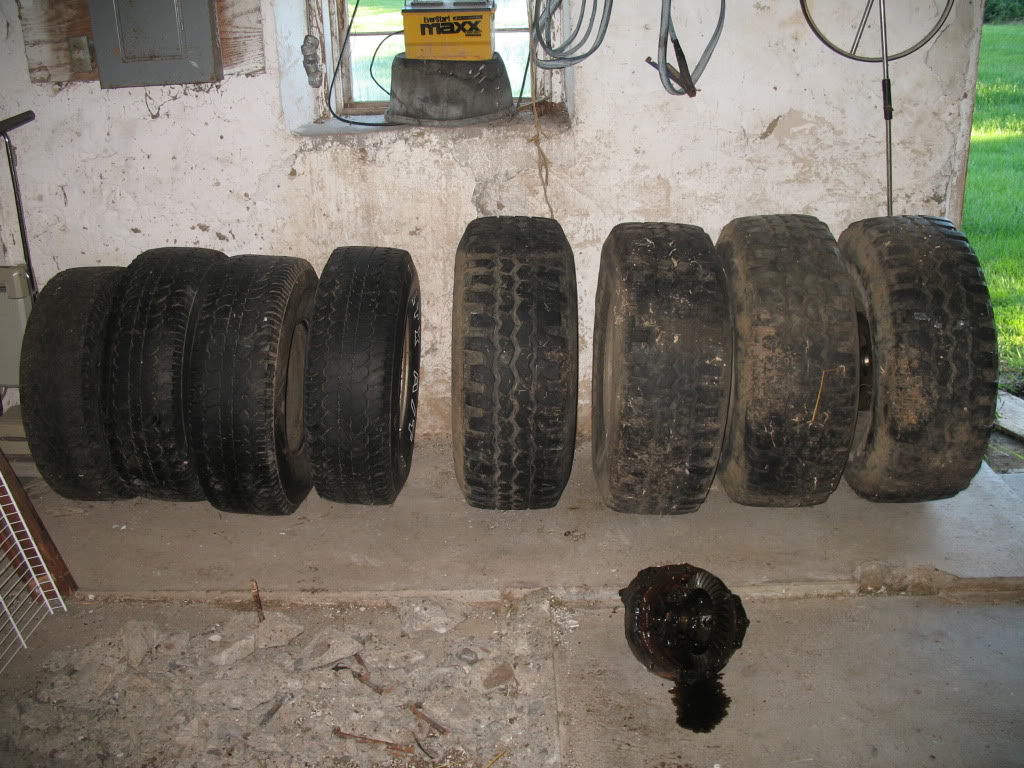

These are my 35's next to my 31's. one of the 35's is ripped so i need to find one more tire of the same size.
Name:  IMG_1801.jpg
Views: 13
Size:  168.1 KB

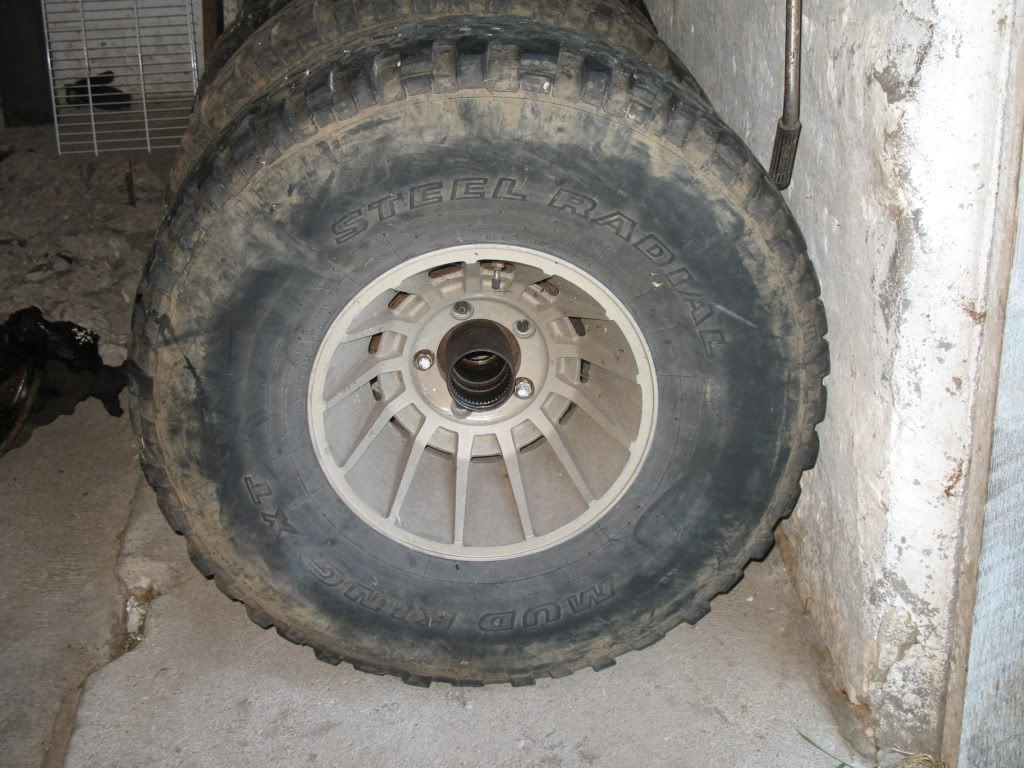

Tell me what you think? Should i keep these the same color or paint them black?
Name:  IMG_1800.jpg
Views: 13
Size:  158.1 KB

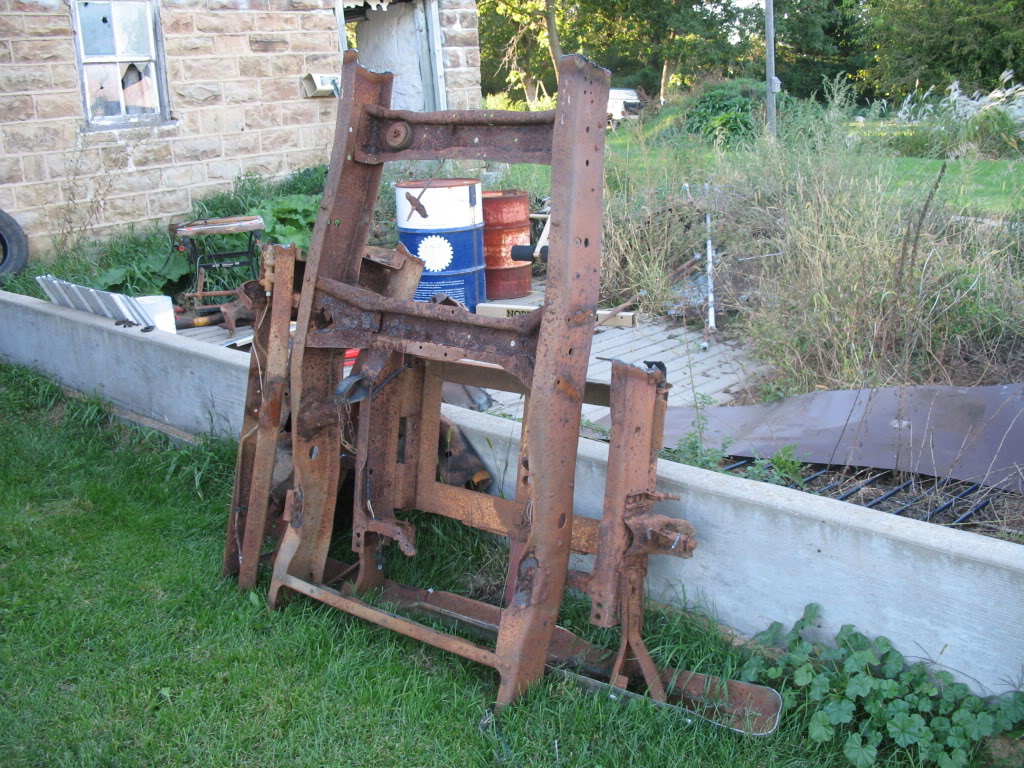

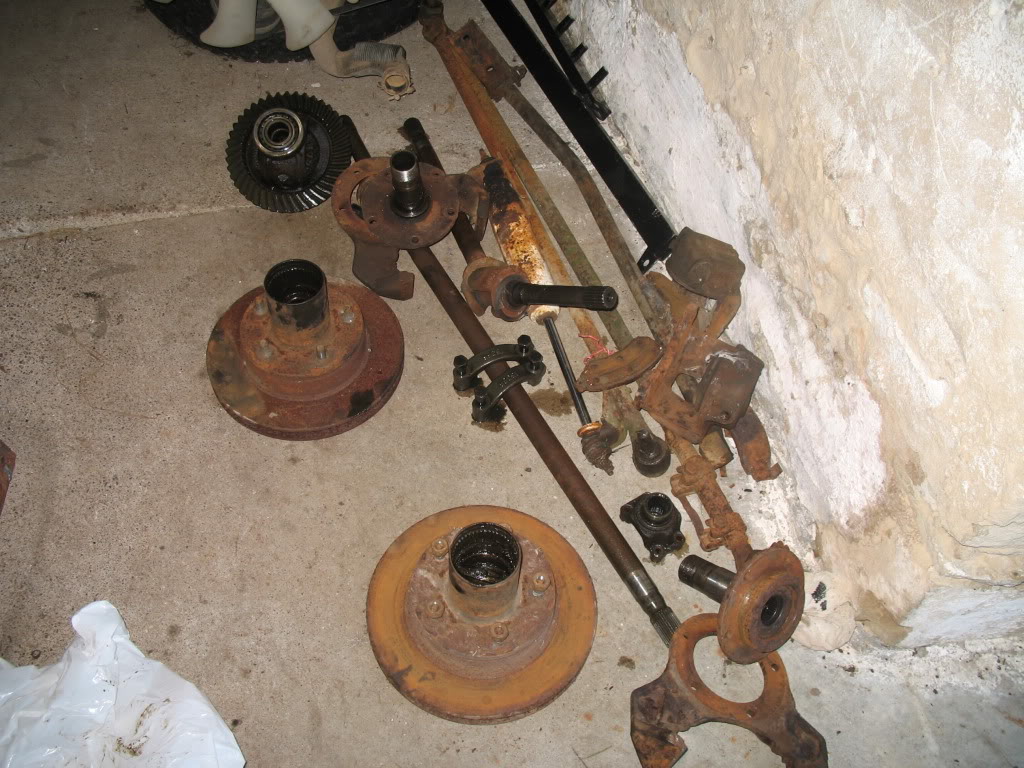

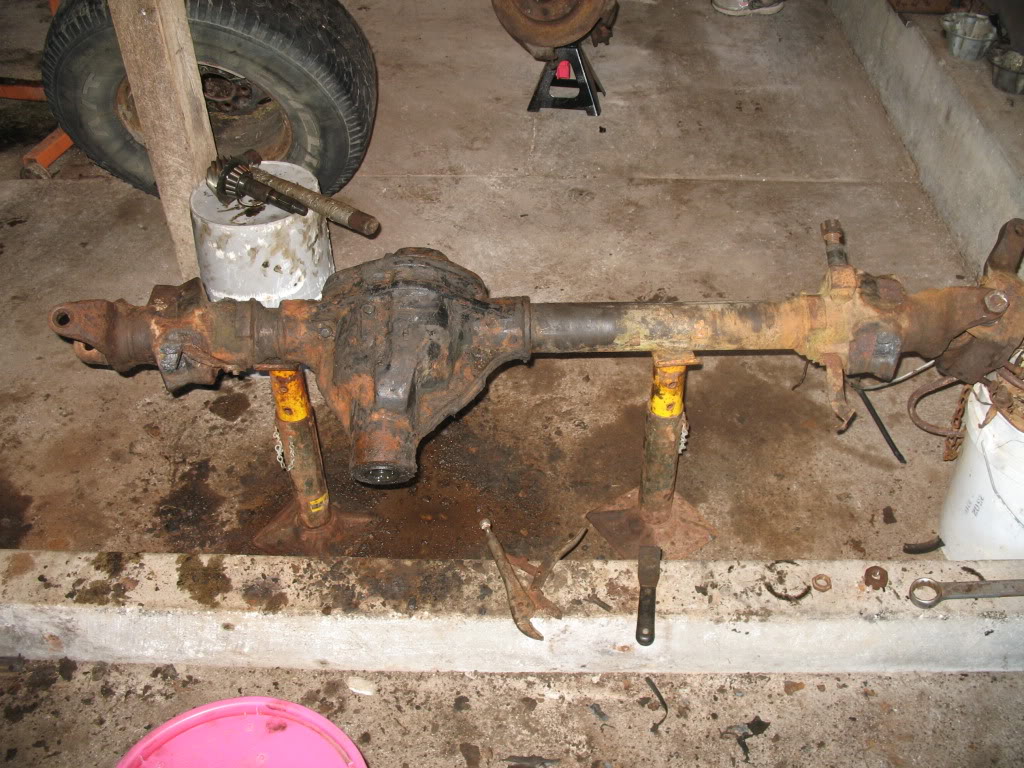

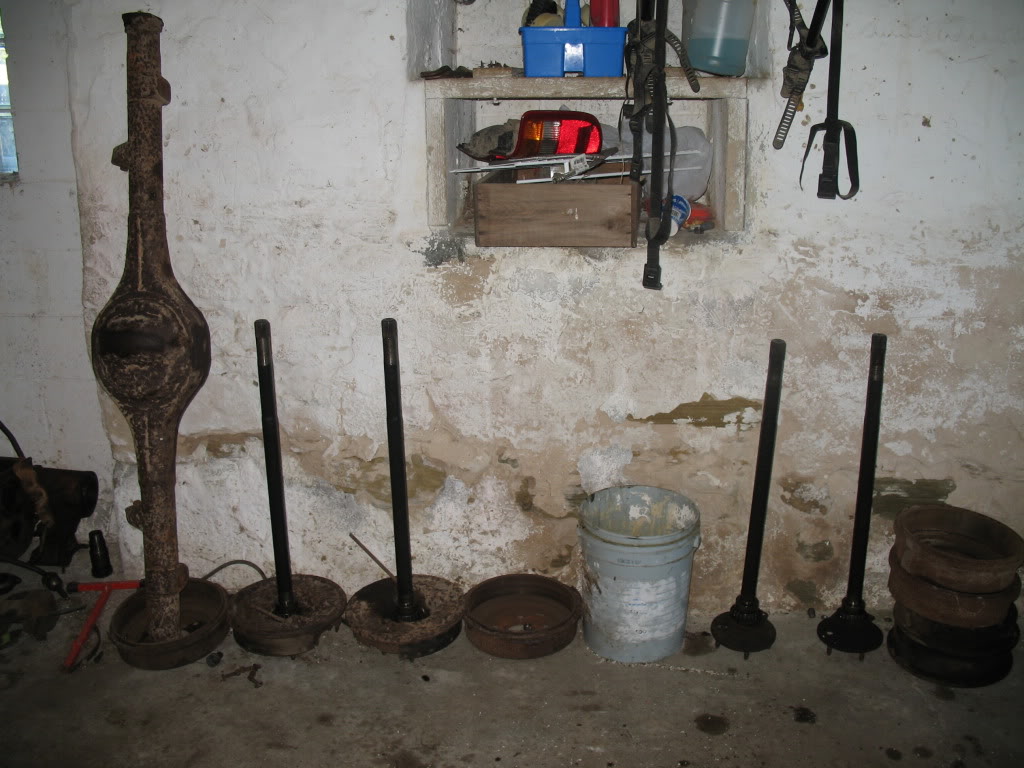

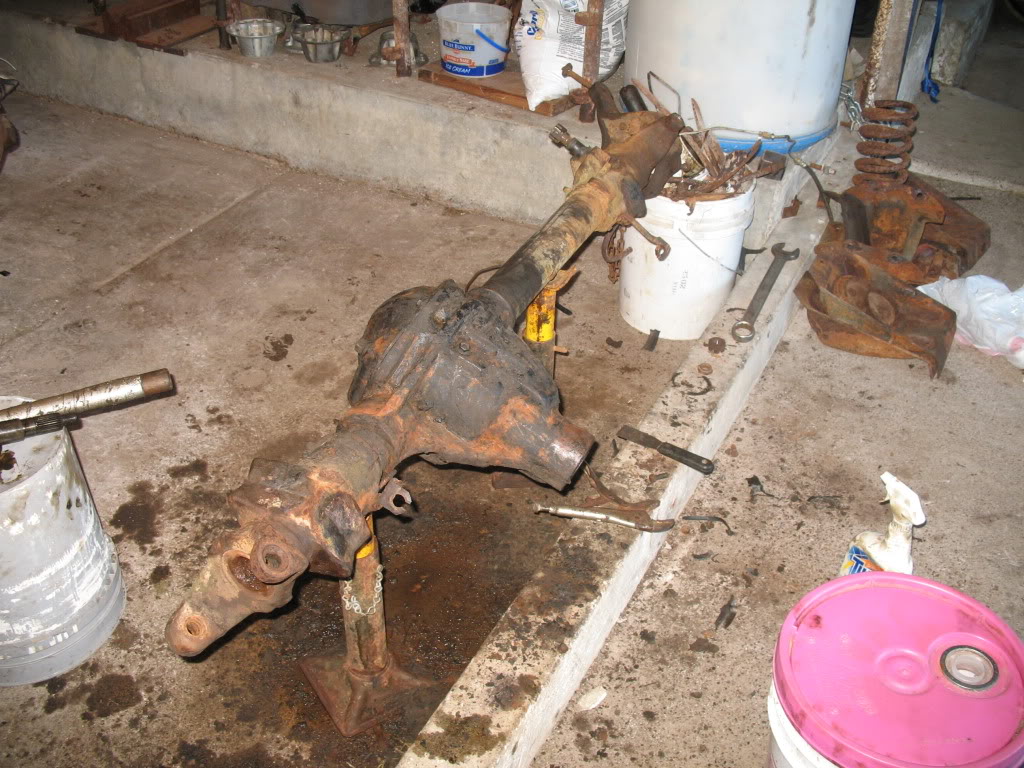

Along with the tires i got a frame with a dana 44 and for 9 in rear. Unfortunately the 44 has the cast wedges so i think i am going to stick with the first axle i got. I got them both apart and are nearly ready to be blasted and painted.
Name:  IMG_1796.jpg
Views: 15
Size:  249.6 KB
Name:  IMG_1802.jpg
Views: 14
Size:  194.3 KB
Name:  IMG_1803.jpg
Views: 13
Size:  198.0 KB
Name:  IMG_1804.jpg
Views: 13
Size:  188.4 KB
Name:  IMG_1797.jpg
Views: 13
Size:  143.9 KB

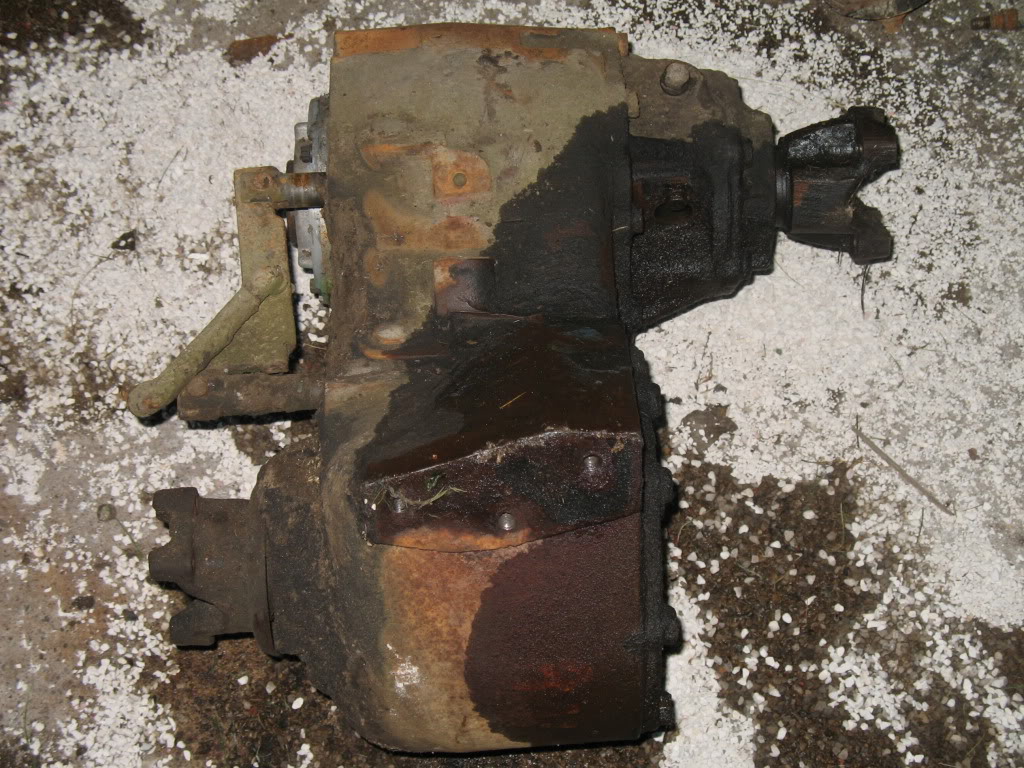

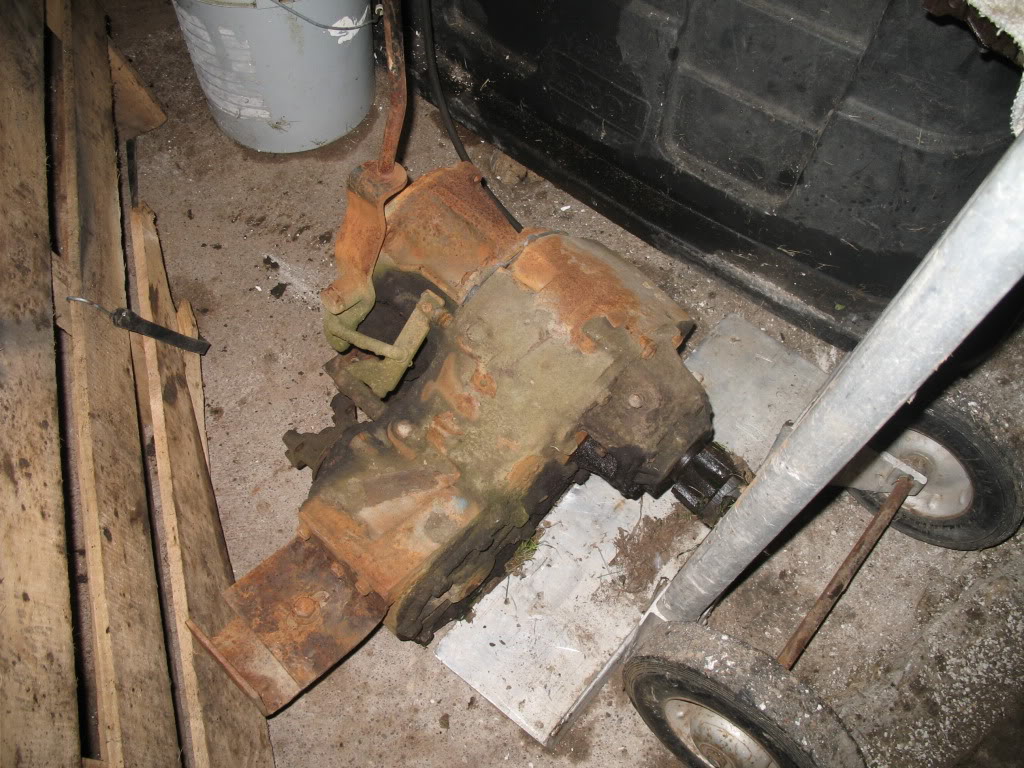

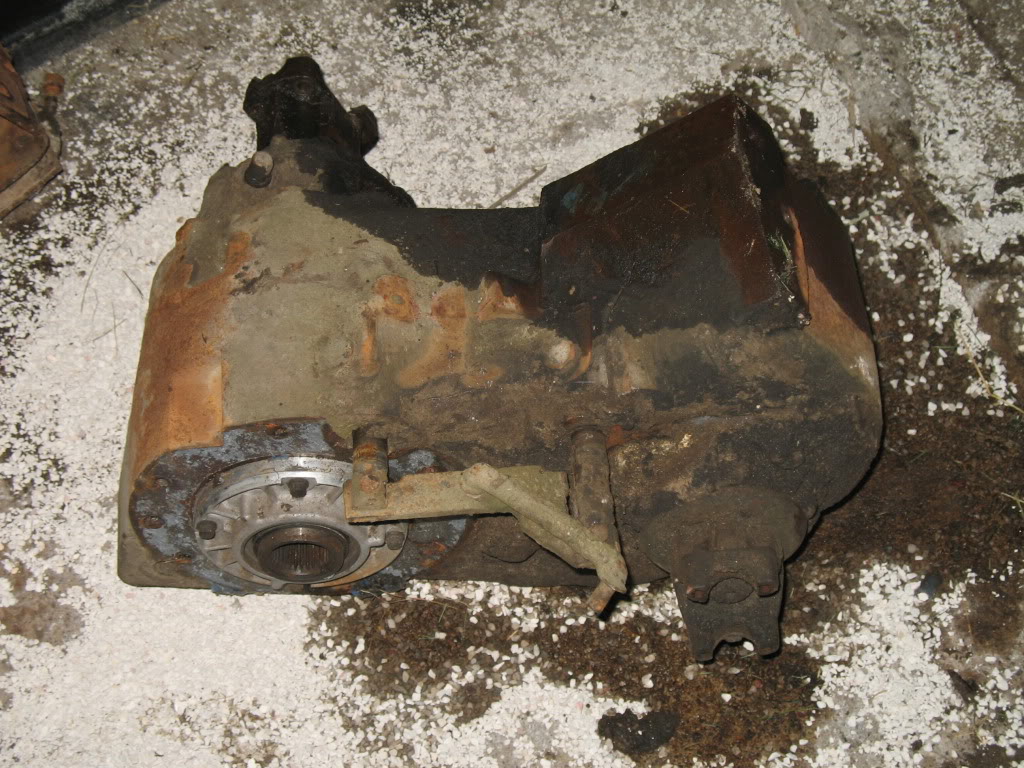

Along with the axles i got another transfer case. Not sure what it is. I havent cleaned it up yet to find a i.d. Maybe you know what it is. it has a Hi and Low 4X4 and come out of a 73 ford truck .
Name:  IMG_1794.jpg
Views: 13
Size:  198.2 KB
Name:  IMG_1799.jpg
Views: 14
Size:  219.5 KB
Name:  IMG_1798.jpg
Views: 13
Size:  210.6 KB

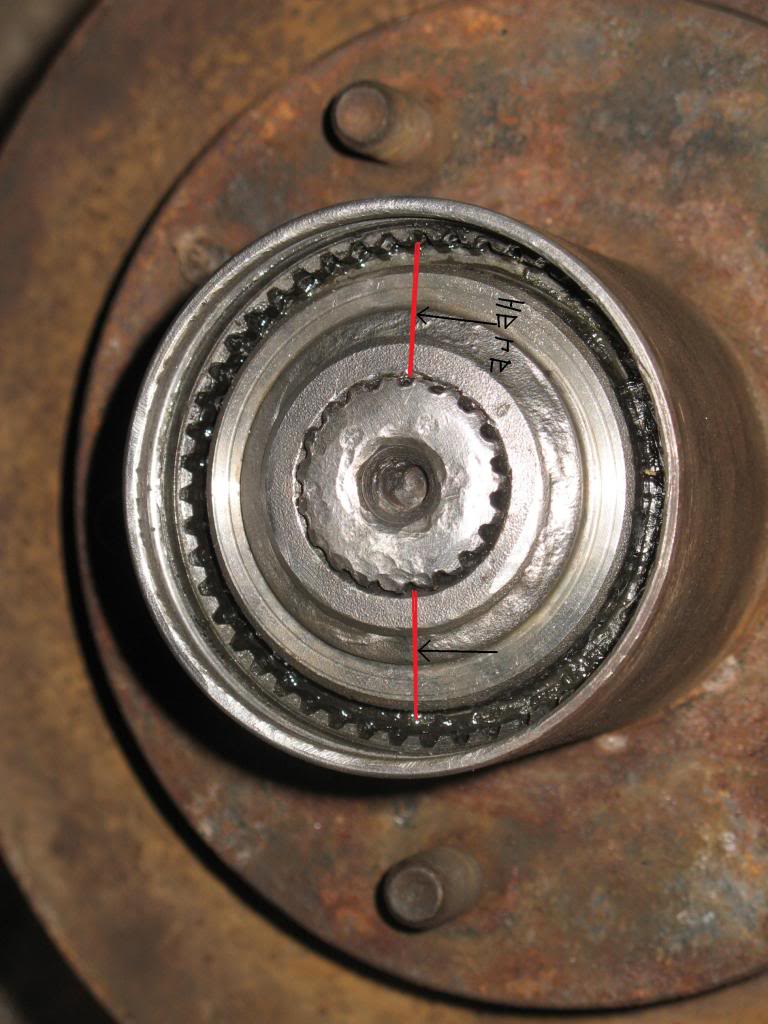

The problem i had while ago with my hub has come to a final solution. I have to torch it out. i will buy a new part or just use the locking hubs from my other axle.
Name:  IMG_1807.jpg
Views: 14
Size:  103.7 KB

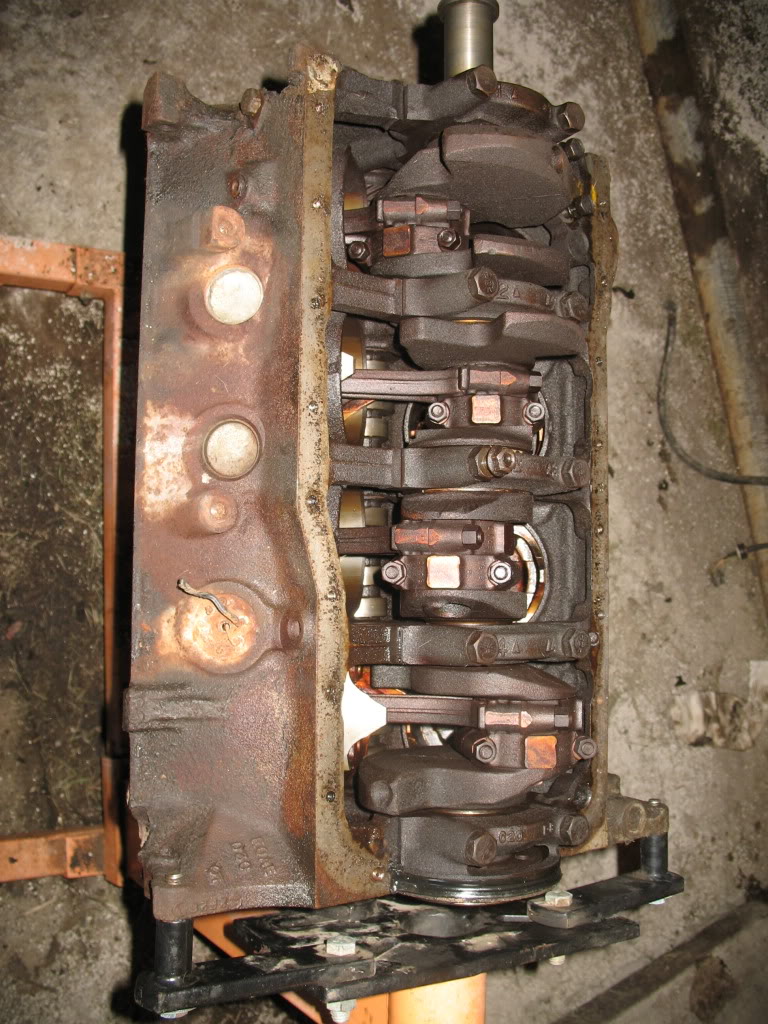

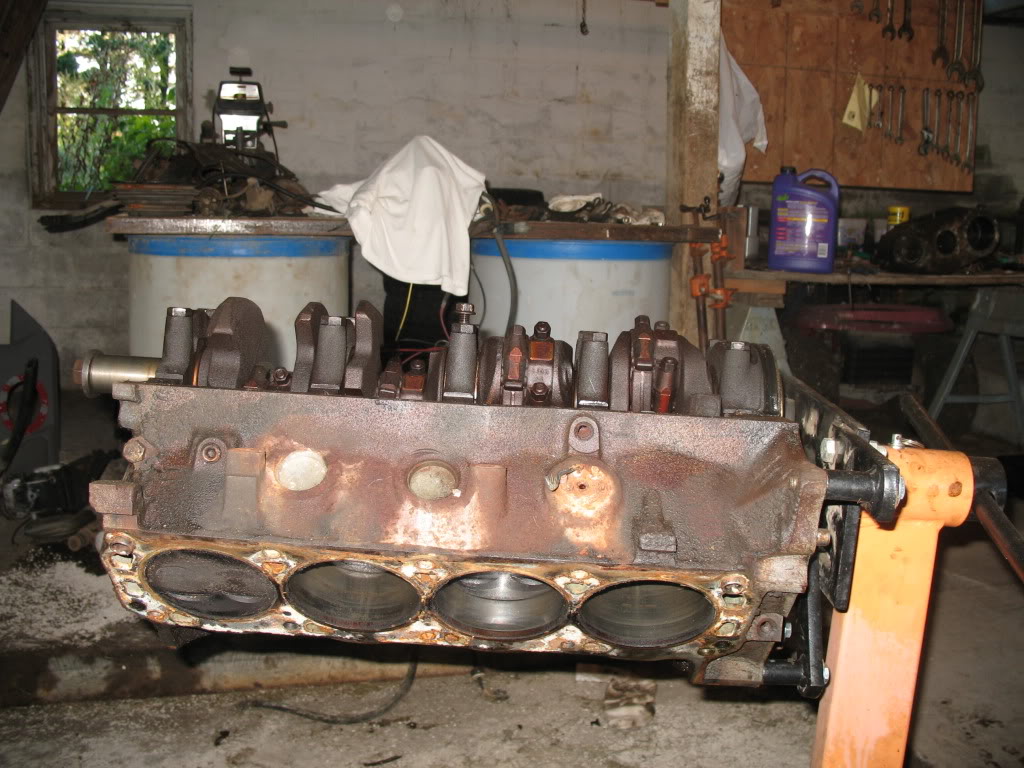

I have my 302 almost all the way apart and am about ready to send it in the get cleaned and rebuilt.
Name:  IMG_1806.jpg
Views: 13
Size:  161.6 KB
Name:  IMG_1805.jpg
Views: 12
Size:  193.1 KB

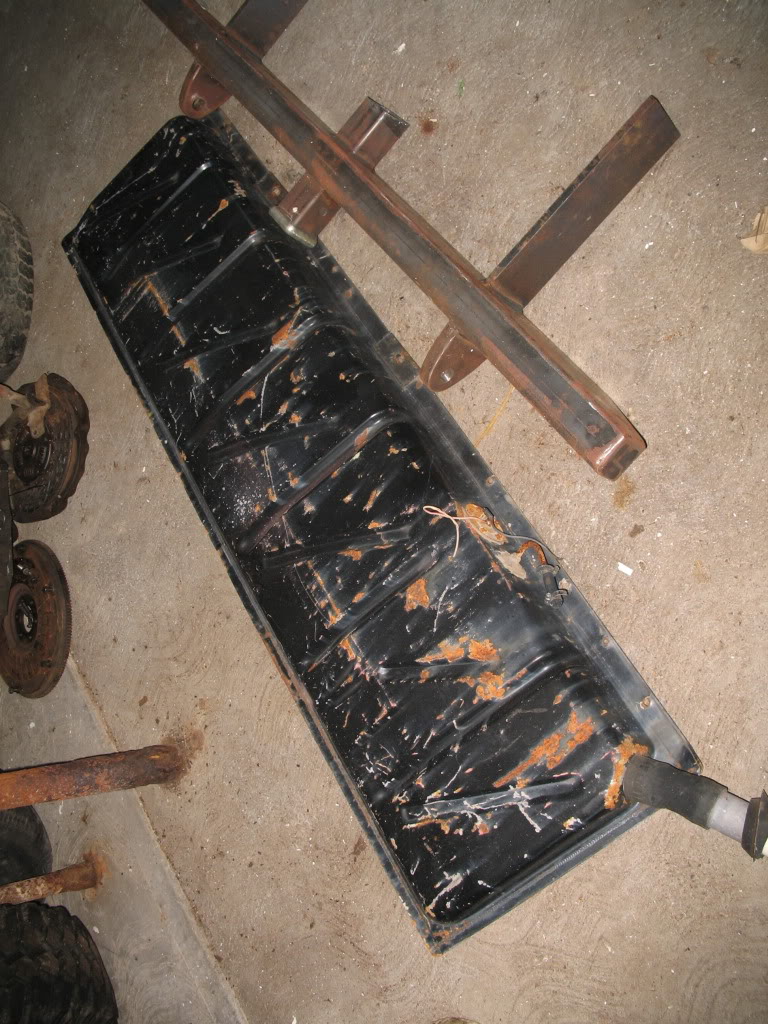

I also picked up a gas tank that i may use. I havent decided yet.
Name:  IMG_1812.jpg
Views: 14
Size:  198.1 KB

I have plenty of leaf springs but still not sure what i am going to use to get the best flex and correct ride height. Also i have heard of people using chevy 63 in leaf springs. We have a Chevy truck sitting in my yard but not sure if it has those springs. How do i know?
Reply With Quote
  #94
Old 09-13-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
i think you would just measure the springs...
Reply With Quote
  #95
Old 09-13-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
Quote:
Originally Posted by ranger4.0 View Post
i think you would just measure the springs...
Do you measure from eye to eye? or the entire spring?
Reply With Quote
  #96
Old 09-20-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8

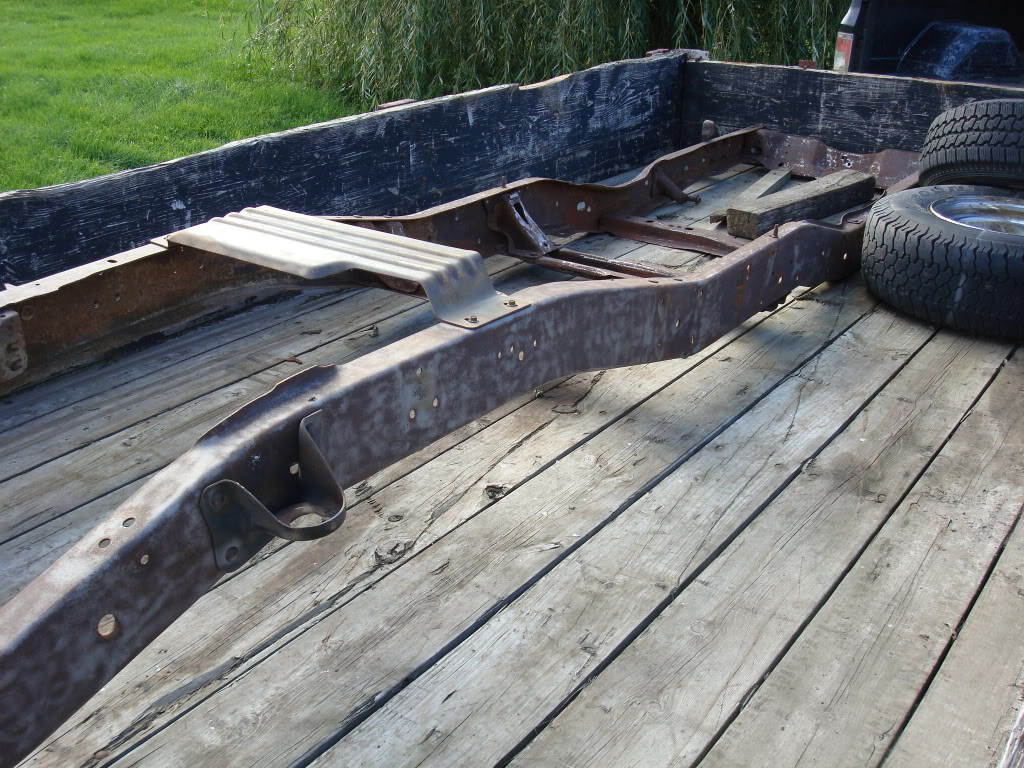

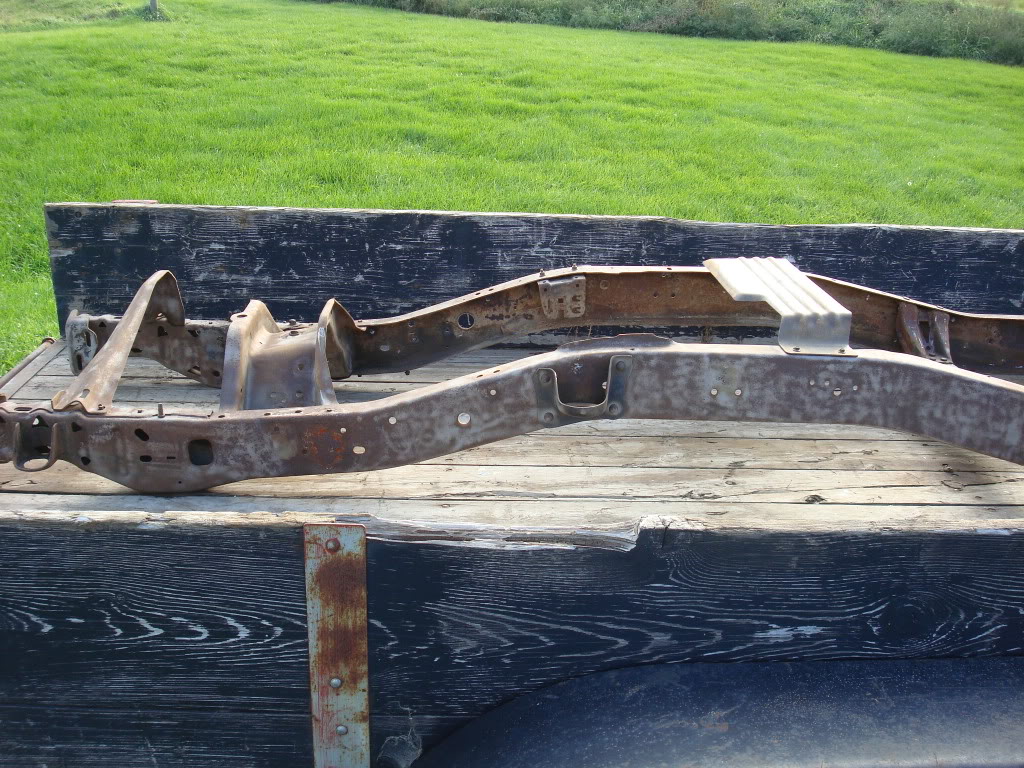

Attempted to sand blast the frame but it ended up not being strong enough. I will be taking it to a industrial blaster this weekend then painting it.

Name:  DSC02681.jpg
Views: 13
Size:  250.4 KB
Name:  DSC02680.jpg
Views: 13
Size:  242.4 KB

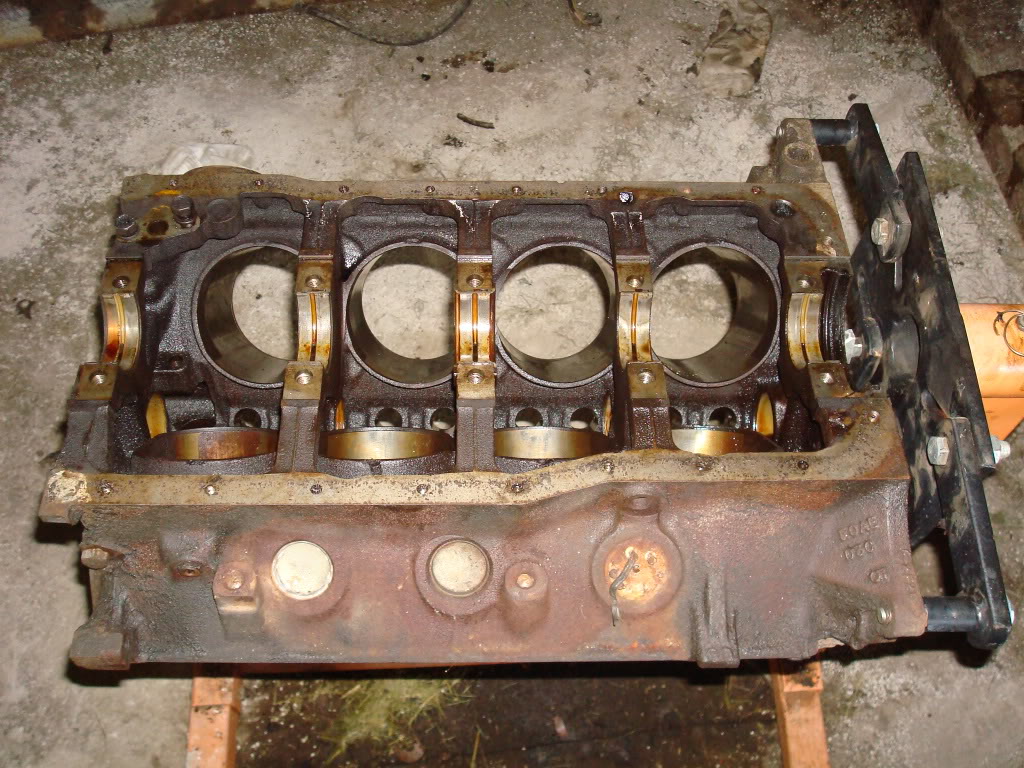

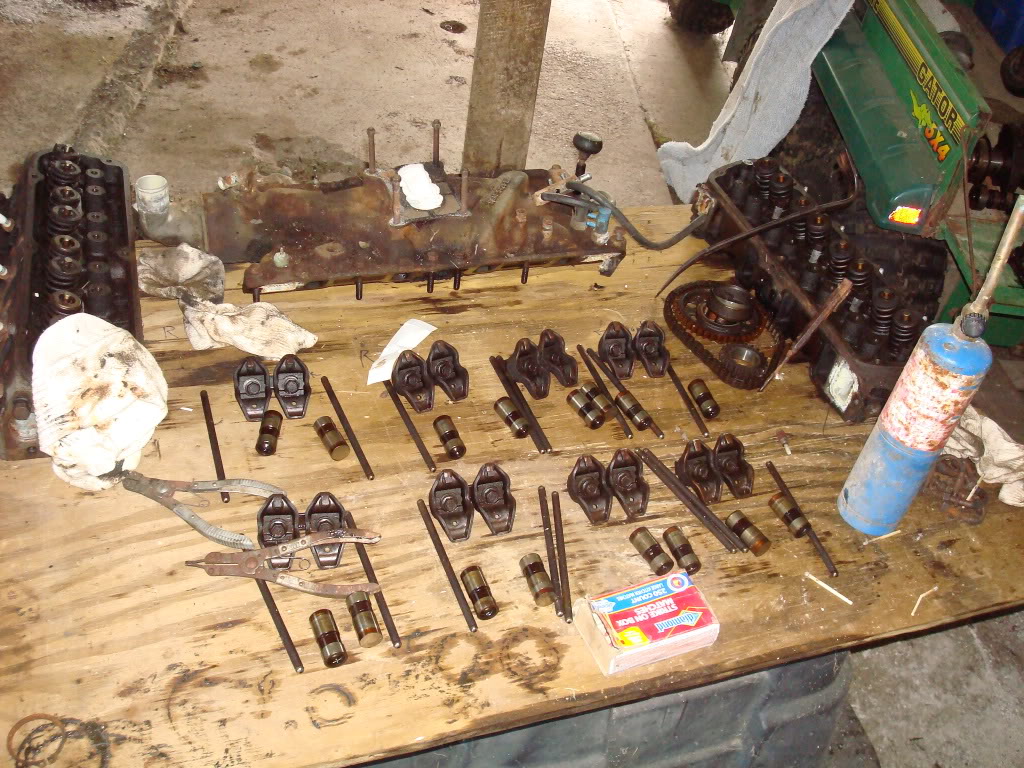

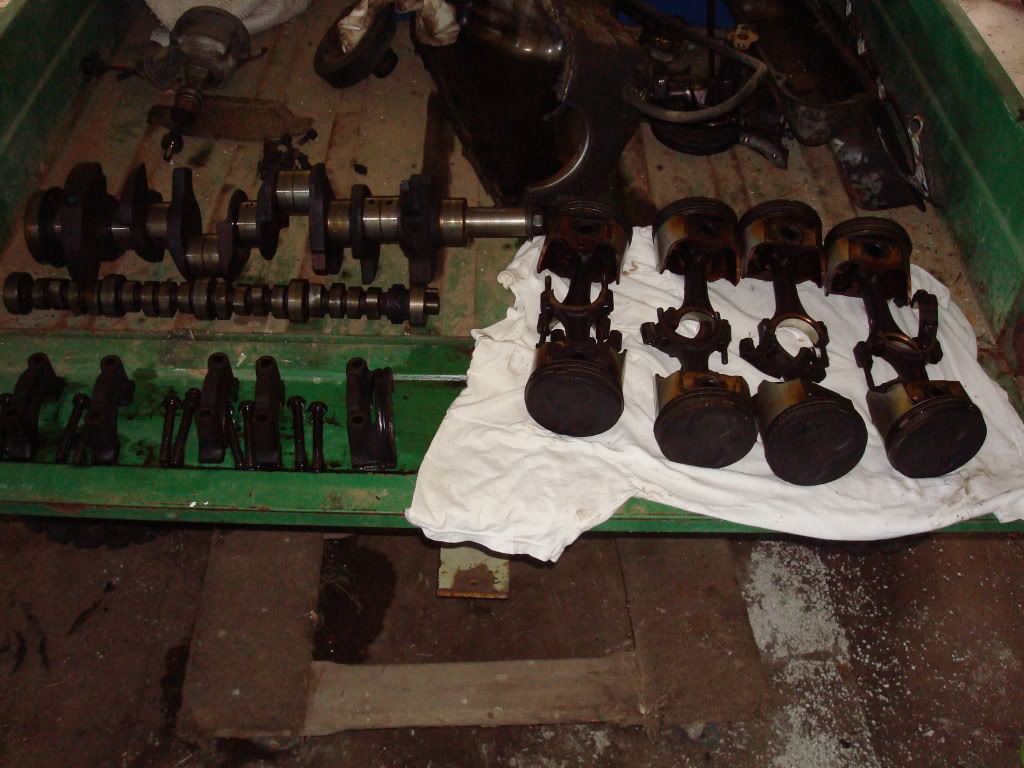

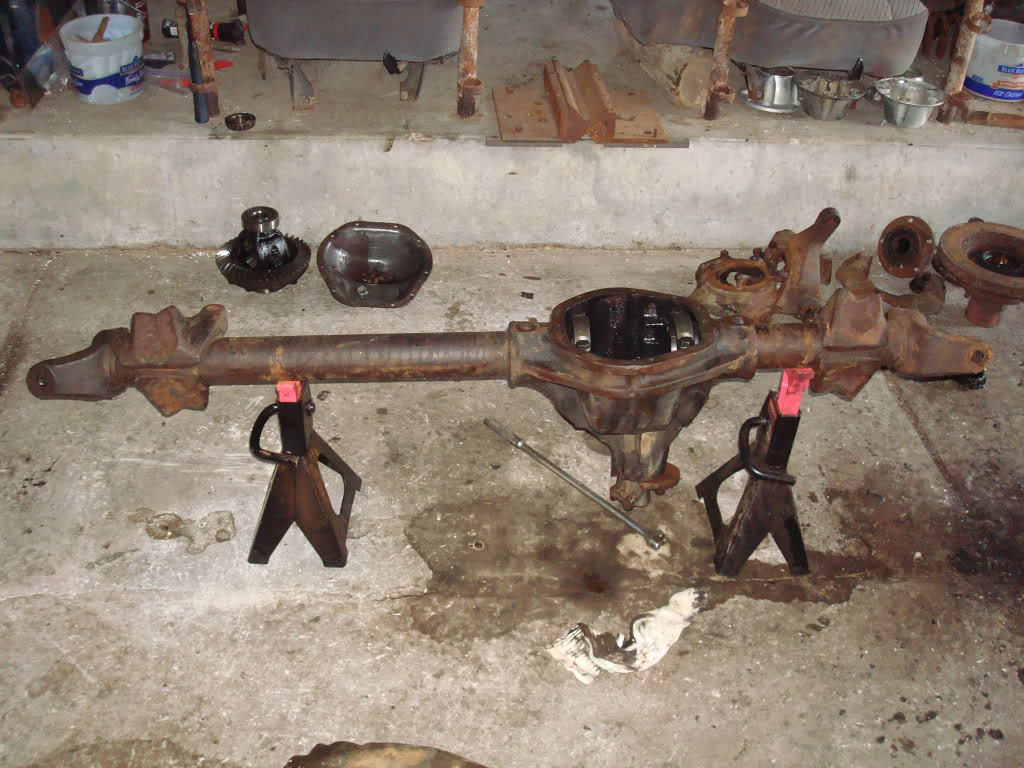

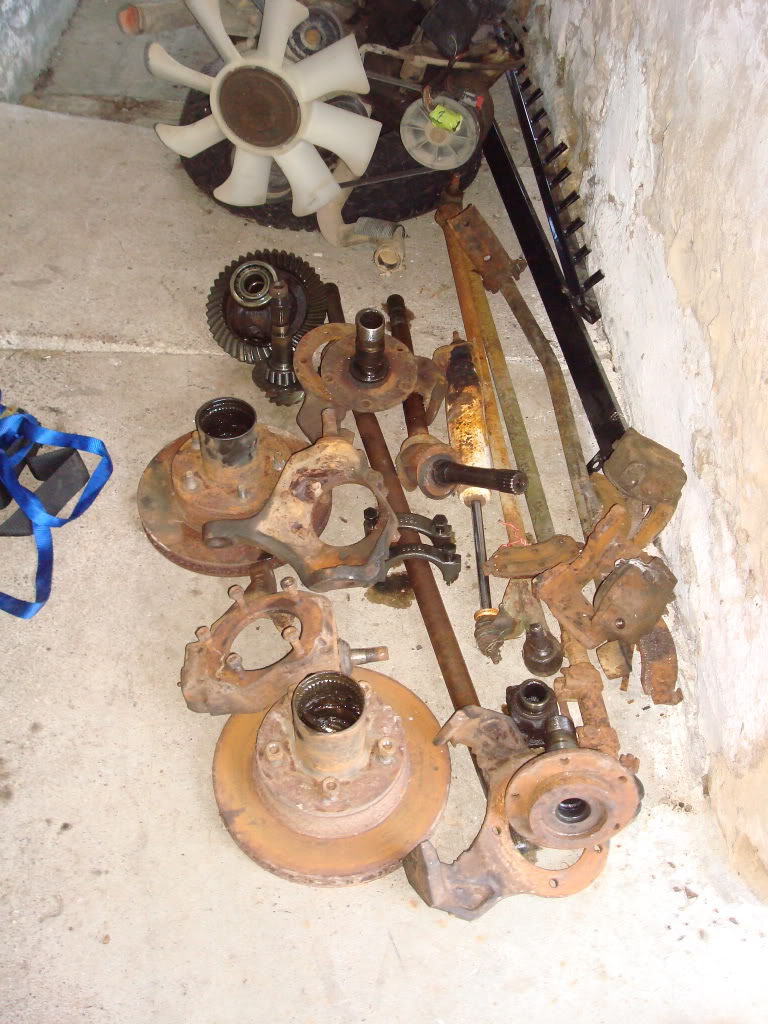

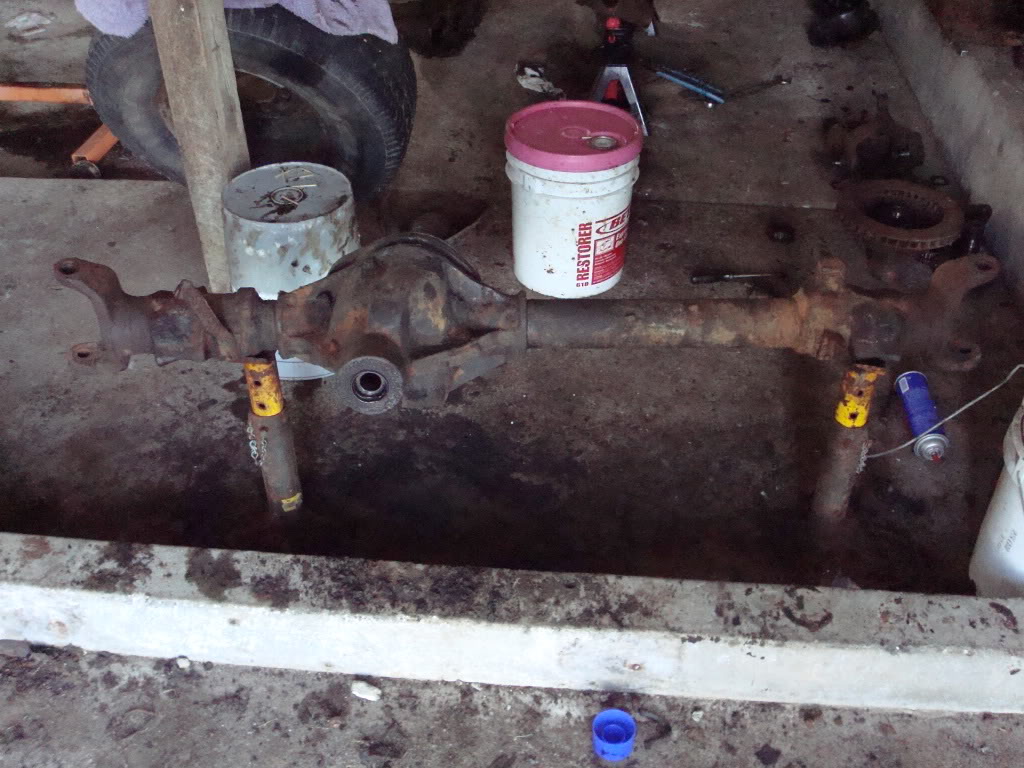

Also i got my axles and engine completely apart and ready to be cleaned up blasted then painted and rebuilt.

Name:  DSC02687.jpg
Views: 13
Size:  223.5 KB
Name:  DSC02688.jpg
Views: 13
Size:  137.2 KB
Name:  DSC02686.jpg
Views: 13
Size:  241.6 KB
Name:  DSC02685.jpg
Views: 13
Size:  164.6 KB
Name:  DSC02690.jpg
Views: 14
Size:  202.0 KB
Name:  DSC02693.jpg
Views: 13
Size:  186.2 KB

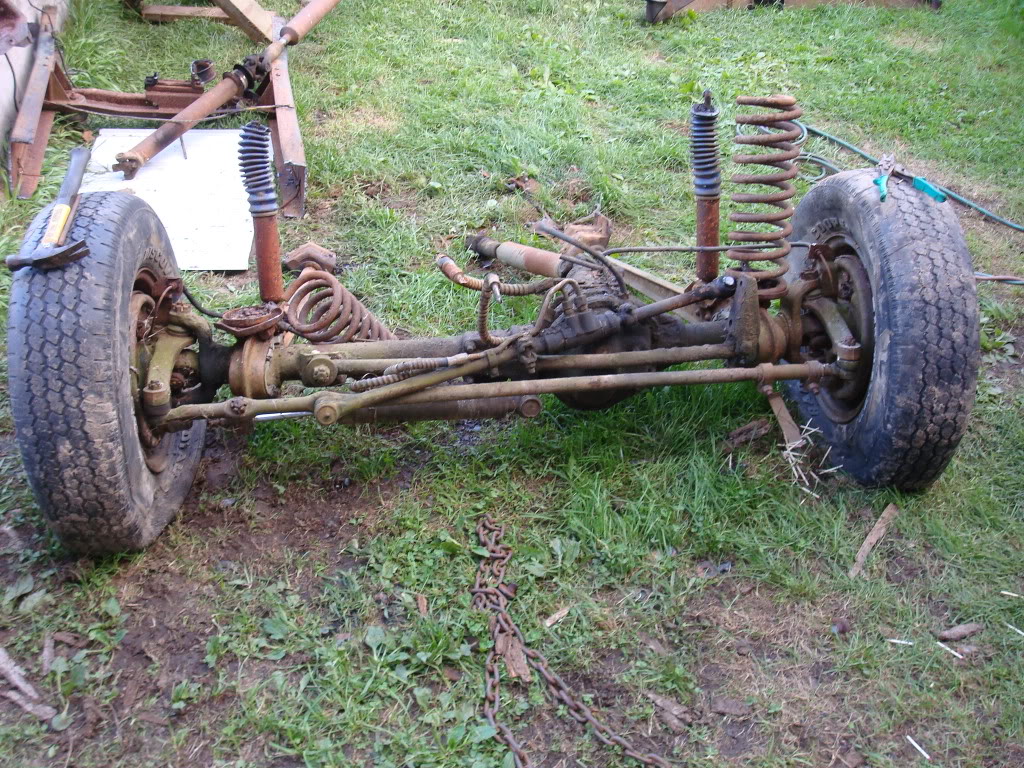

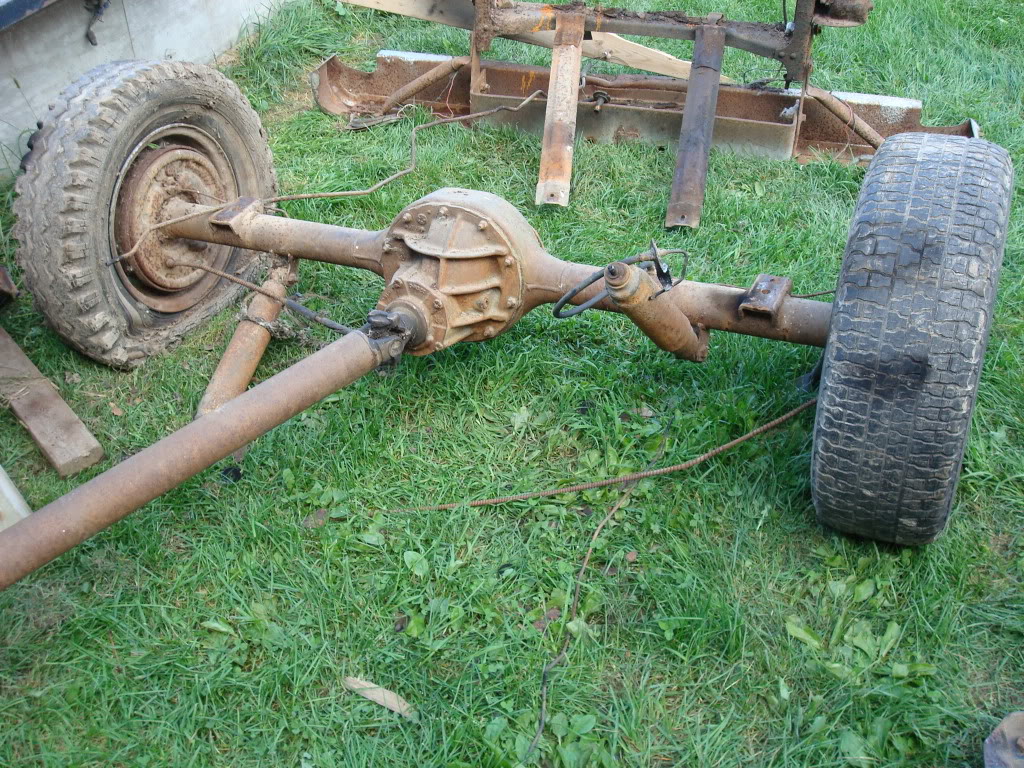

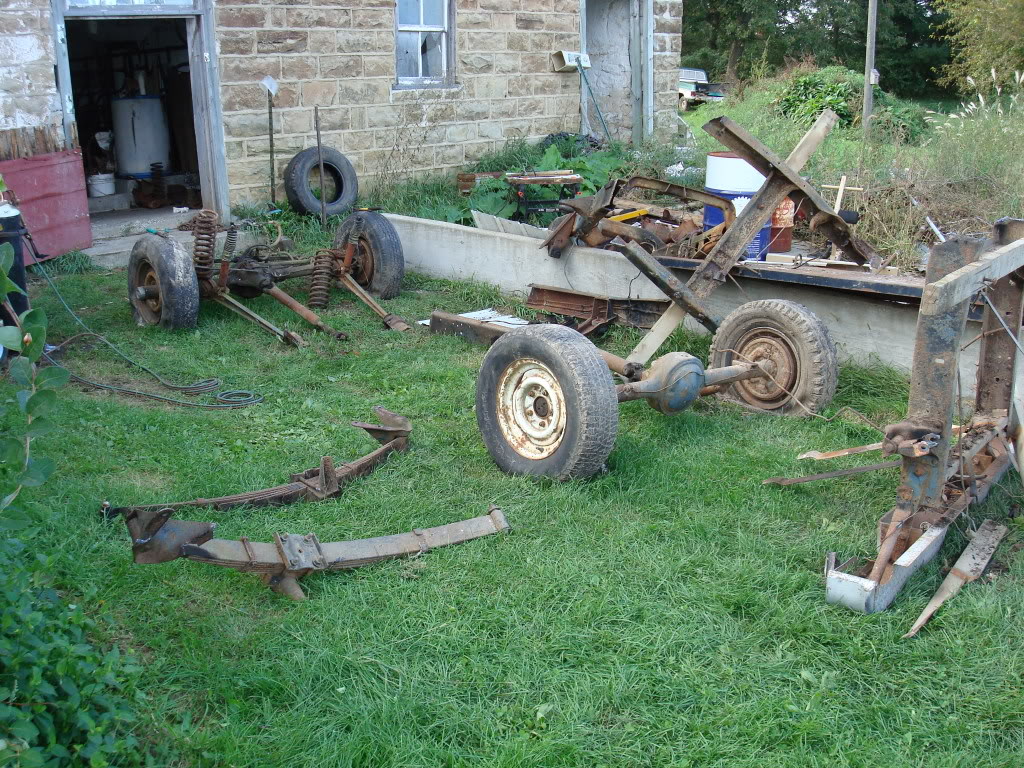

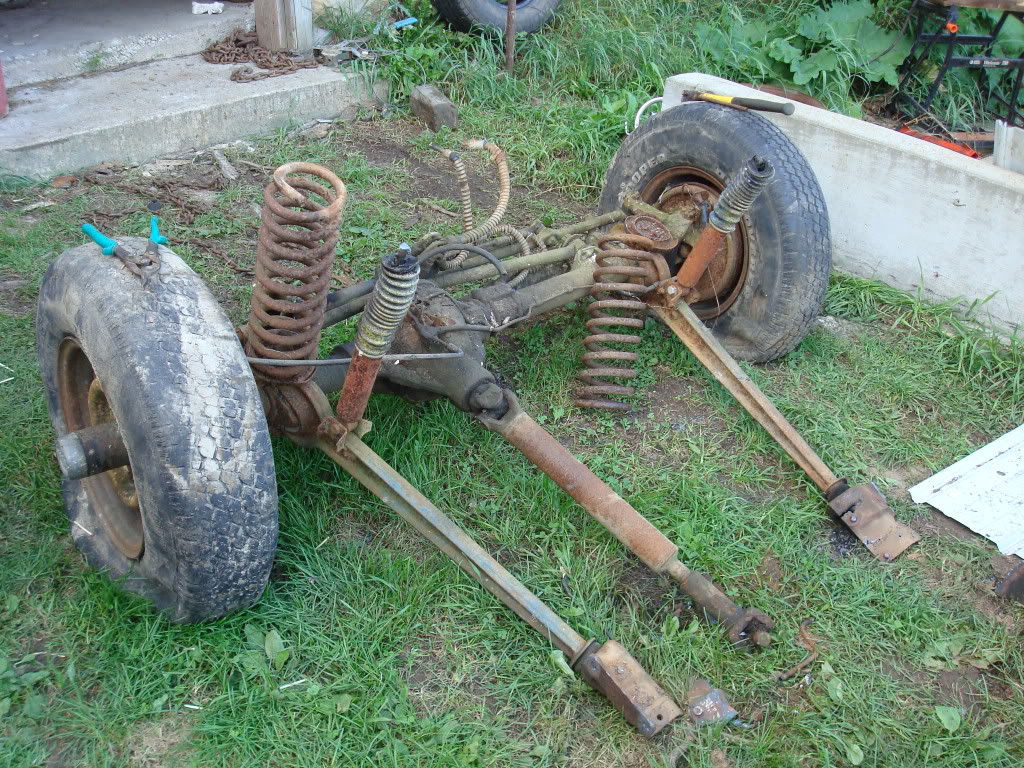

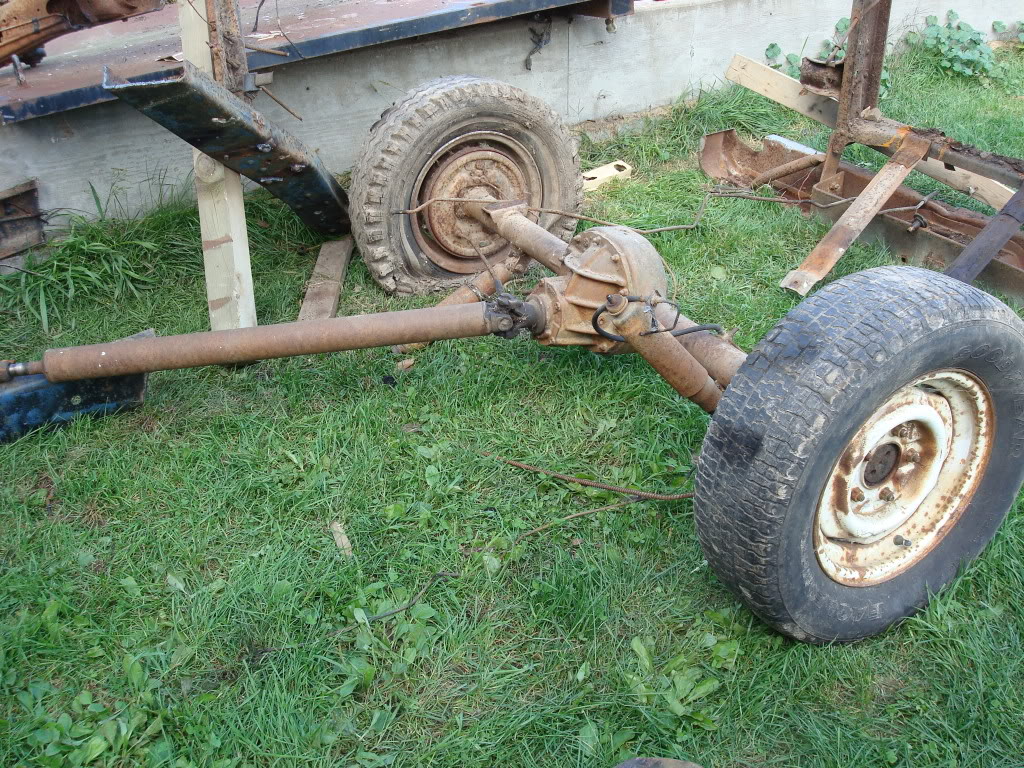

Along with getting the axles apart and trying to blast my frame i got another frame and torched that up.

Name:  DSC02682.jpg
Views: 15
Size:  314.1 KB
Name:  DSC02684.jpg
Views: 14
Size:  324.5 KB
Name:  DSC02694.jpg
Views: 13
Size:  310.8 KB
Name:  DSC02683.jpg
Views: 14
Size:  325.9 KB
Name:  DSC02696.jpg
Views: 15
Size:  318.0 KB
Reply With Quote
  #97
Old 09-21-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
sorry to say that the engine block is toast

that is a-lot of rust internally , a-lot of rust on the crankshaft too
Reply With Quote
  #98
Old 09-21-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
it must be the picture or something cause there is no rust on the engine.
Reply With Quote
  #99
Old 09-21-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
looks dirty thats all
Reply With Quote
  #100
Old 09-21-2010
mcramer15's Avatar
Member
Thread Starter

Join Date: Jun 2010
Location: Alma Center, WI
Posts: 8
Ya its just oil and oil deposits
Reply With Quote
