Back-half chassis maintenance

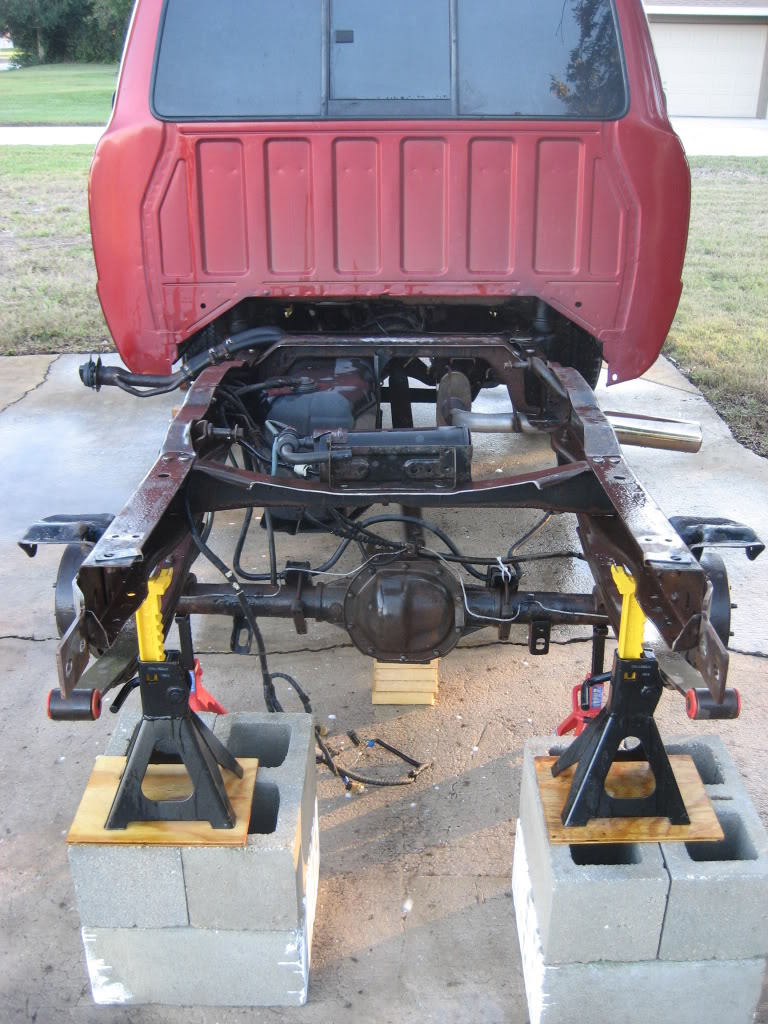

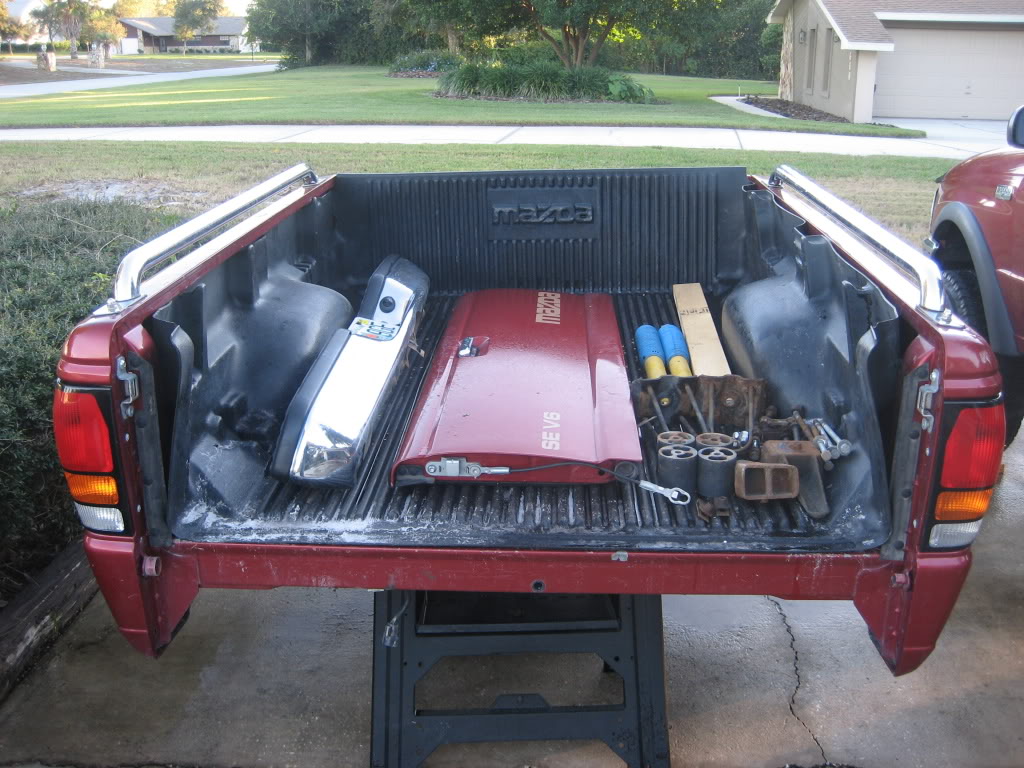

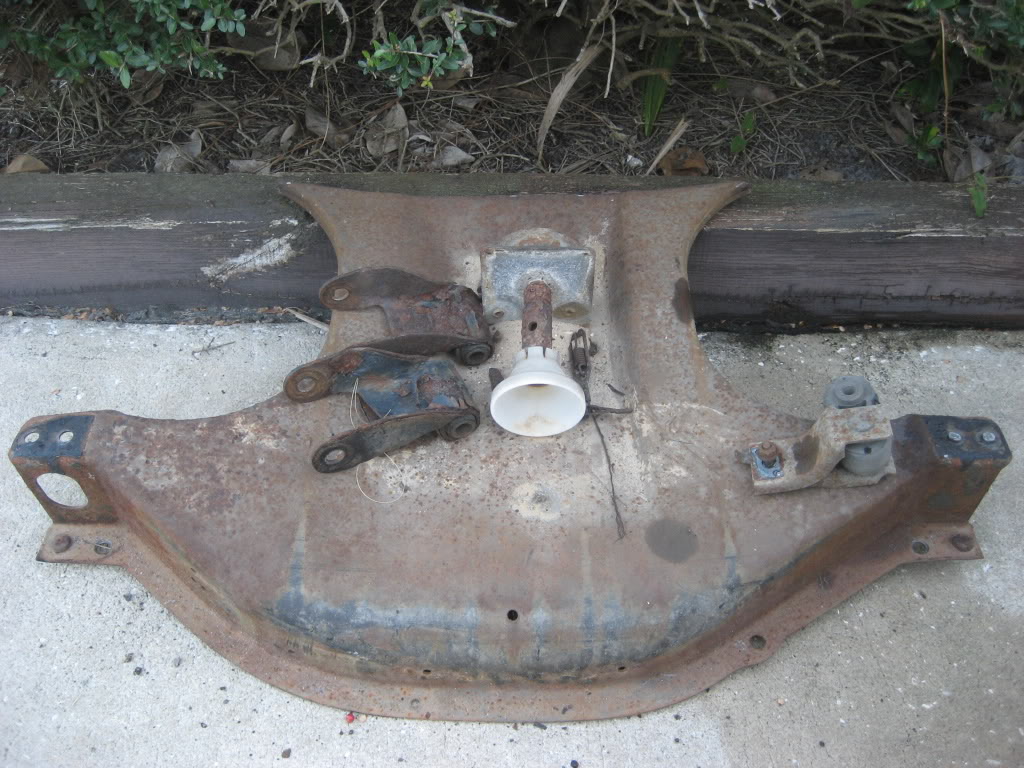

I am removing the rust from the back half of my frame and painting it with POR15. I'm also removing the stock blocks and replacing the stock shackles with BEL-6400. I also cut out the spare tire winch/rear crossmember and am reinstalling my hitch to the top of the frame rail. The gas filler hose might need to be replaced as well. I think I might attempt to rebuild my rear drums as well. Here is my progress so far. I forgot to take before pictures. This is after dissassembly, wire wheel, and marine clean. I need to go back and wire wheel a few more places that I missed.

Name:  IMG_6351.jpg
Views: 132
Size:  162.3 KB

Name:  IMG_6352.jpg
Views: 395
Size:  170.1 KB

Name:  IMG_6354.jpg
Views: 94
Size:  183.3 KB

Name:  IMG_6349.jpg
Views: 113
Size:  186.7 KB

Name:  IMG_6350.jpg
Views: 91
Size:  163.8 KB

Name:  IMG_6355.jpg
Views: 97
Size:  149.9 KB
Reply With Quote
  #2
Old 11-19-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I did that with some Rustoleum during my body lift, still looks good.
Reply With Quote
  #3
Old 11-19-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
why in heck would you cut out something that is a rear crossmember.. the bumper does not serve that purpose ... dumbest thing i have seen on here in years.. good luck with that..
Reply With Quote
  #4
Old 11-19-2008
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Quote:
Originally Posted by Redneckstone View Post
why in heck would you cut out something that is a rear crossmember.. the bumper does not serve that purpose ... dumbest thing i have seen on here in years.. good luck with that..
Quote:
Originally Posted by Marcaronio
I also cut out the spare tire winch/rear crossmember and am reinstalling my hitch to the top of the frame rail.
Is this dumb also?



Lighten up or at least read before you post.
Reply With Quote
  #5
Old 11-19-2008
john93rangerstx's Avatar
Member

Join Date: Mar 2008
Location: WARWICK RI
Posts: 895
it looking good
Reply With Quote
  #6
Old 11-19-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by Marcaronio View Post
Is this dumb also?



Lighten up or at least read before you post.
no that is extremely good...

i read your post it just said installing a hitch.. really didnt make sense, being if it was just installed on the top or bottom of the frame the other side of it can still flex... but in that pic being boxed wont allow that.. now if that was posted would have made perfect sense..

Quote:
Originally Posted by Marcaronio View Post
I also cut out the spare tire winch/rear crossmember and am reinstalling my hitch to the top of the frame rail.

Last edited by Redneckstone; 11-19-2008 at 02:34 PM.
Reply With Quote
  #7
Old 11-19-2008
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Mine won't be welded. It will be bolted to the top and bottom of the frame.
Reply With Quote
  #8
Old 11-19-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by Marcaronio View Post
Mine won't be welded. It will be bolted to the top and bottom of the frame.
ok now its top and bottom.. first post said top... go with your second one here. will alot less frame flexing.. also should have put a temp support beam on before removal so the fame rails dont get spread apart...
Reply With Quote
  #9
Old 11-19-2008
D.
Unregistered User

Posts: n/a
The problem with welding something in.. it will not ' flex '. I've welded all the cross members on my frame and its VERY stiff. The suspension takes the brunt of all the holes/curbs I hit.
Reply With Quote
  #10
Old 11-19-2008
Igobytwitch's Avatar
Member

Join Date: Oct 2008
Location: Cocoa Beach, Florida
Posts: 504
Not to sound stupid or anything, but how do you get those bedliners out?
Reply With Quote
  #11
Old 11-22-2008
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Quote:
Originally Posted by Igobytwitch View Post
Not to sound stupid or anything, but how do you get those bedliners out?
Lift up the bedliner in the middle at the rear of the bed.
Reply With Quote
  #12
Old 11-22-2008
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
I got all the painting done and installed the new shackles. What am I supposed to torque the shackle bolts to?

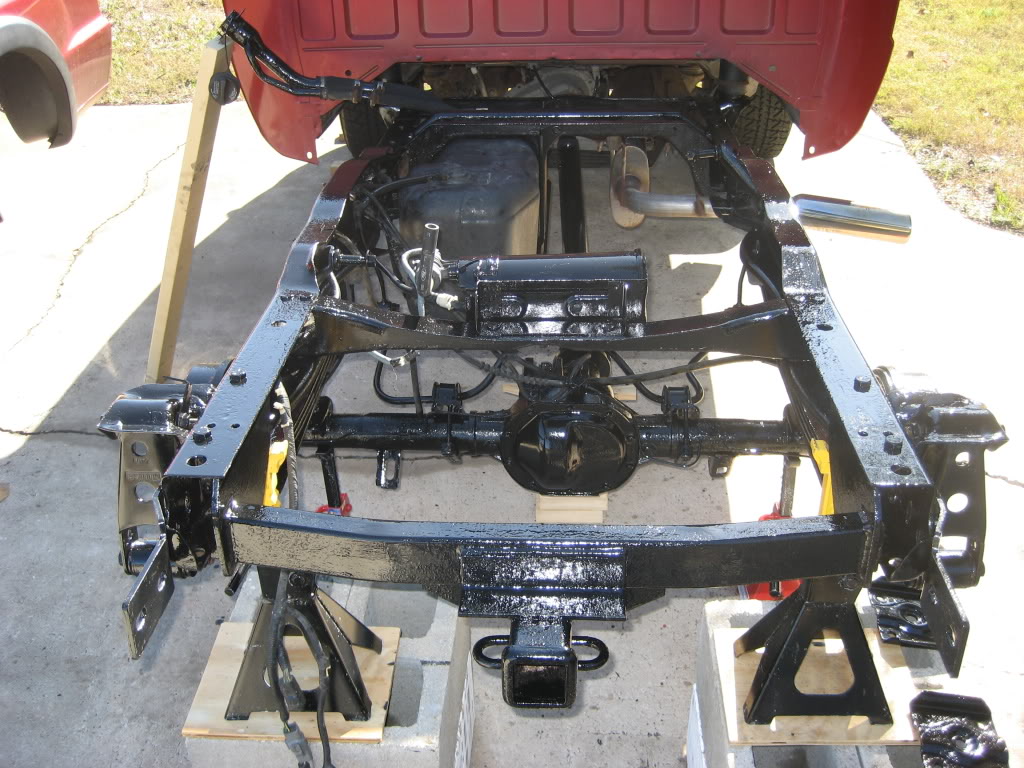

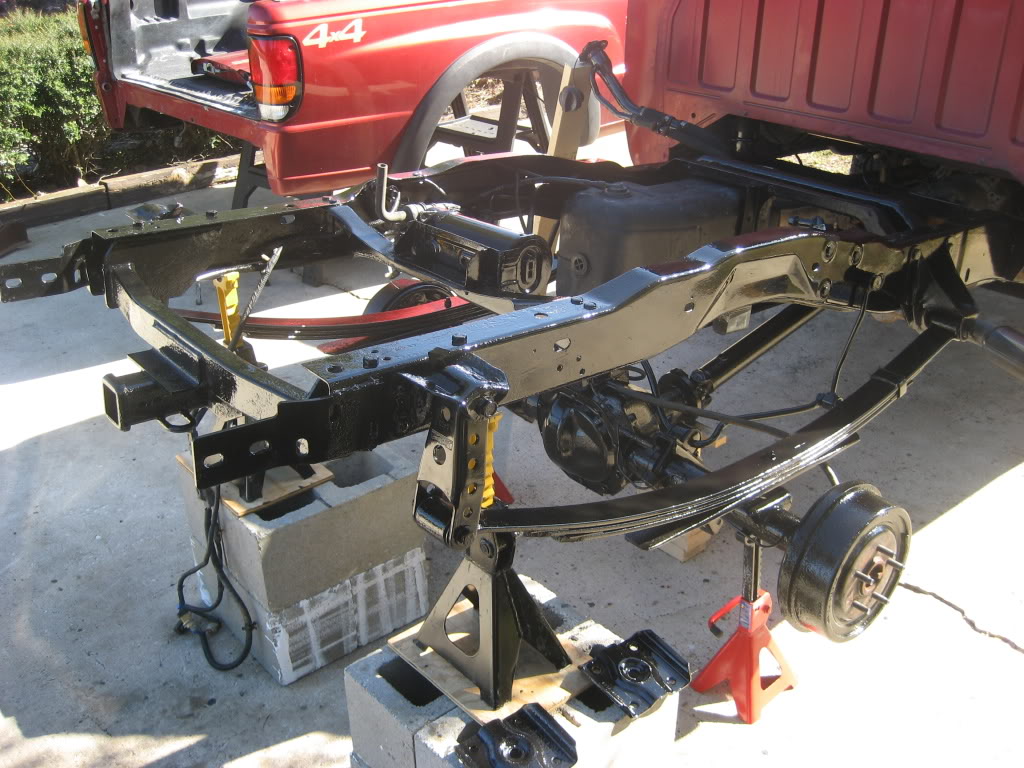

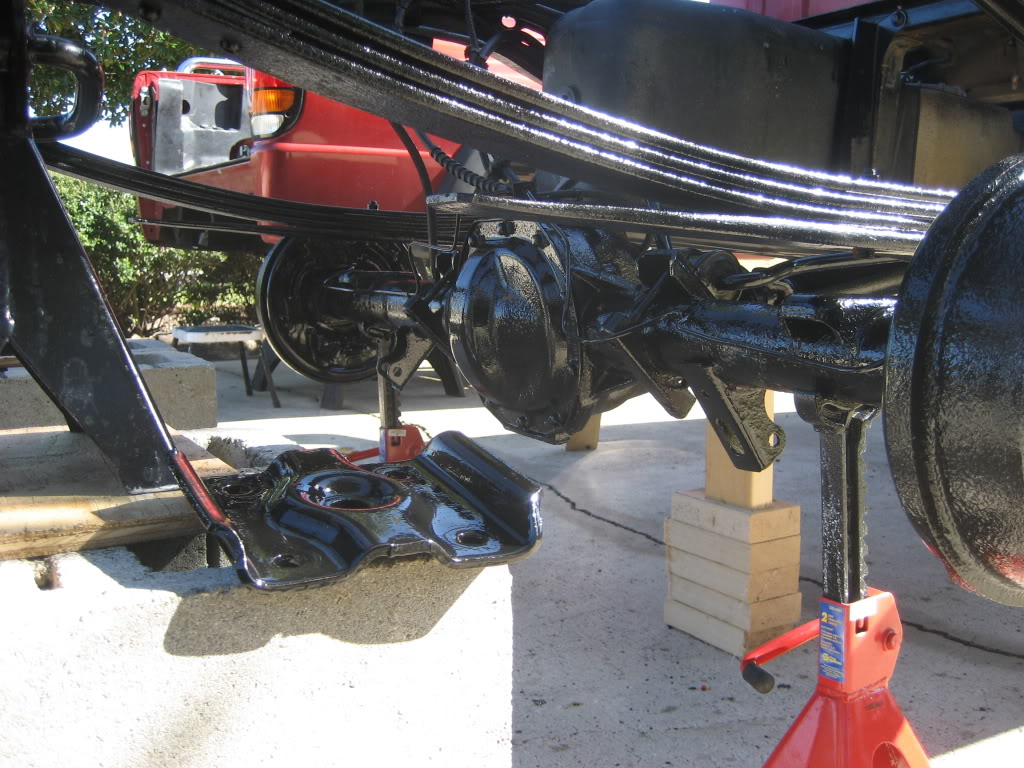

Name:  IMG_6360.jpg
Views: 137
Size:  175.1 KB

Name:  IMG_6361.jpg
Views: 103
Size:  162.8 KB

Name:  IMG_6364.jpg
Views: 90
Size:  165.4 KB

Name:  IMG_6366.jpg
Views: 110
Size:  137.4 KB

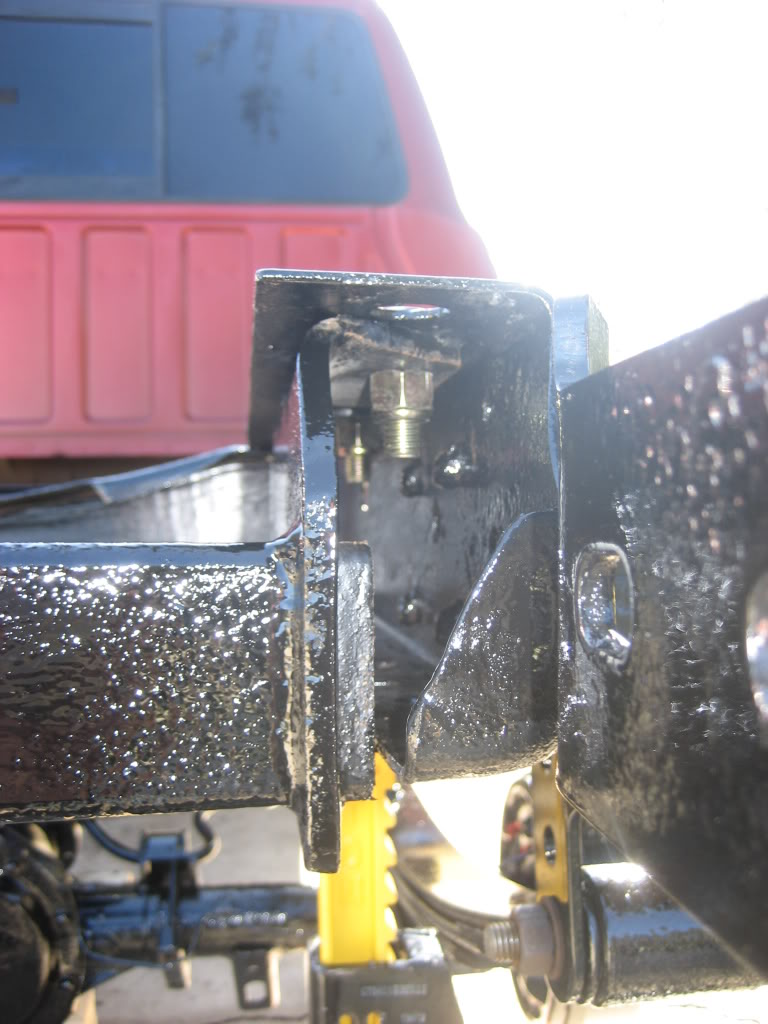

I bolted the hitch to the top of the frame.

Name:  IMG_6362.jpg
Views: 91
Size:  112.9 KB

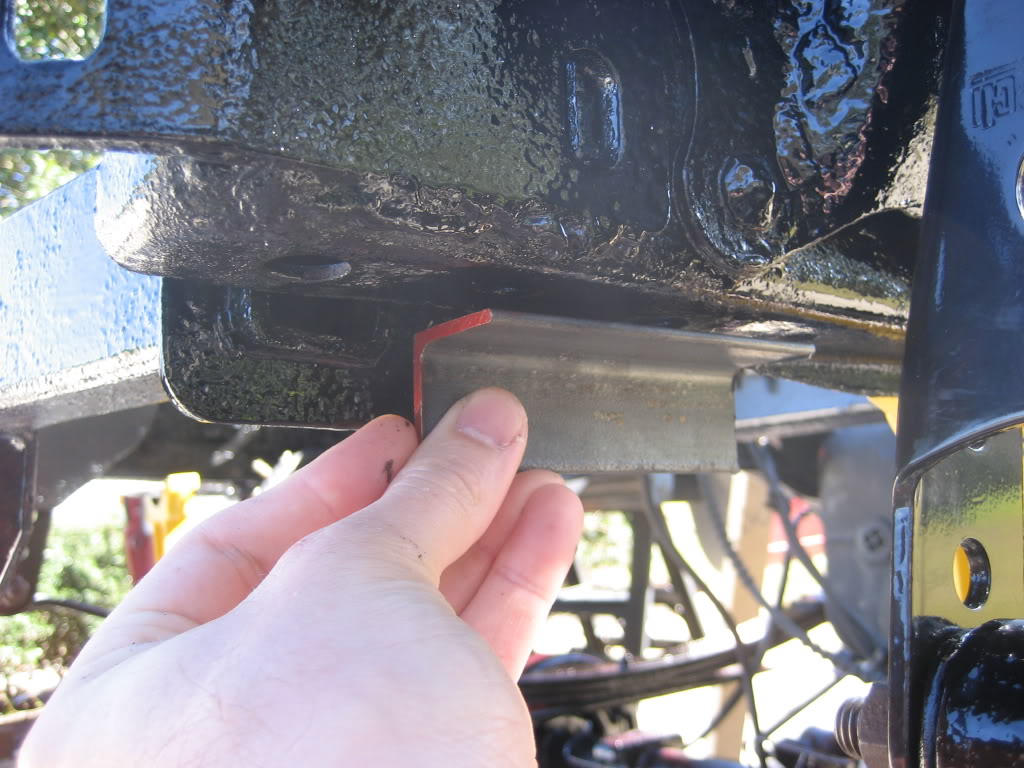

I was thinking about having this 1/8" angle steel gusseted and welded to the bottom of my frame and then drilling two holes through it into the hitch. Do you think that would support the bottom of my frame enough?

Name:  IMG_6363.jpg
Views: 89
Size:  133.6 KB
Reply With Quote
  #13
Old 11-22-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by Marcaronio View Post
I was thinking about having this 1/8" angle steel gusseted and welded to the bottom of my frame and then drilling two holes through it into the hitch. Do you think that would support the bottom of my frame enough?
It cant hurt it and if anything it will help.
Reply With Quote
  #14
Old 11-22-2008
Step Over the Edge's Avatar
Member

Join Date: Dec 2007
Location: Albuquerque, NM
Posts: 324
I like what you've done.

The angle iron would probably be ok. Or you could weld a wider piece of angle onto the hitch that bolts on to the bottom of the frame where the hitch originally bolted. Much like you are already thinking just switch which side is welded and which is bolted.
Reply With Quote
  #15
Old 11-22-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Lookin good so far. Yuo know I never really paid attention to your sig and never realized your truck is a Mazda. I always thought it was a Ford, still looks good though.
Reply With Quote
  #16
Old 11-22-2008
XeRo's Avatar
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
meh...possibly but I dunno. It's kinda iffy about the gusset. Yes it will help but will it be a "be all end all fix" no.
Reply With Quote
  #17
Old 11-22-2008
Marcaronio's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Spring Hill, FL
Posts: 560
Anyone know what I should torque the shackle bolts to?
Reply With Quote
  #18
Old 11-22-2008
XeRo's Avatar
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
stock torque duh.



seriously I have no idea. Just torque it till it's tight.
Reply With Quote
  #19
Old 11-22-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Marcaronio View Post
Anyone know what I should torque the shackle bolts to?
Rear shackle to spring nut 72-97 lb-ft
Rear spring shackle to rear bracket bolt 85 lb-ft
Reply With Quote
  #20
Old 05-16-2010

Join Date: Mar 2009
Location: Nanaimo, BC
Posts: 0
Sweet I just finished replacing my hangers and shackles on my 94 Ranger and was looking for this info. Thanks.
