Putting a 1999 quad cab and bed on my 2004 rolling chassis.

Hey guys,

I'm putting a 1999 Harvest Gold 4-door extended cab and bed on my 2004 rolling chassis. The 1999 came from Northern Ohio where they salt the hell outa the roads, so I need to replace the core sopport. I'm going to be painting the body black and putting a 2004 front end back on it with a 2006 + grille and clear corners. I'm also replacing all the tan interior with dark grey and grey interior.
I've only worked with 2004 and up Rangers before, so all this is new to me. I didn't think there would be so many differences between a 1999 and a 2004, but there is.
I'm gutting the 1999 cab and installing all the 2004 parts that I got from my doner truck.
The biggest difference I see is that the 99 fuse box harness doesn't go through the passenger side firewall, so I'll have to cut a hole for it.
If anyone here knows why Ford started putting a fuse panel on the passenger side in 2004 please let me know.

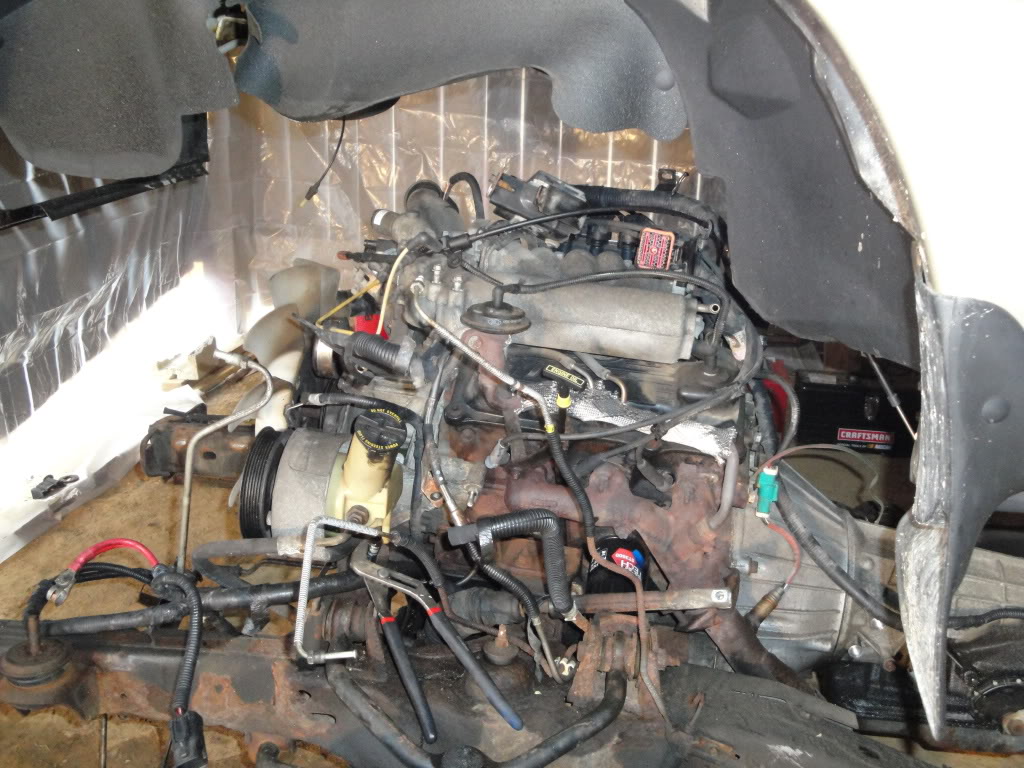

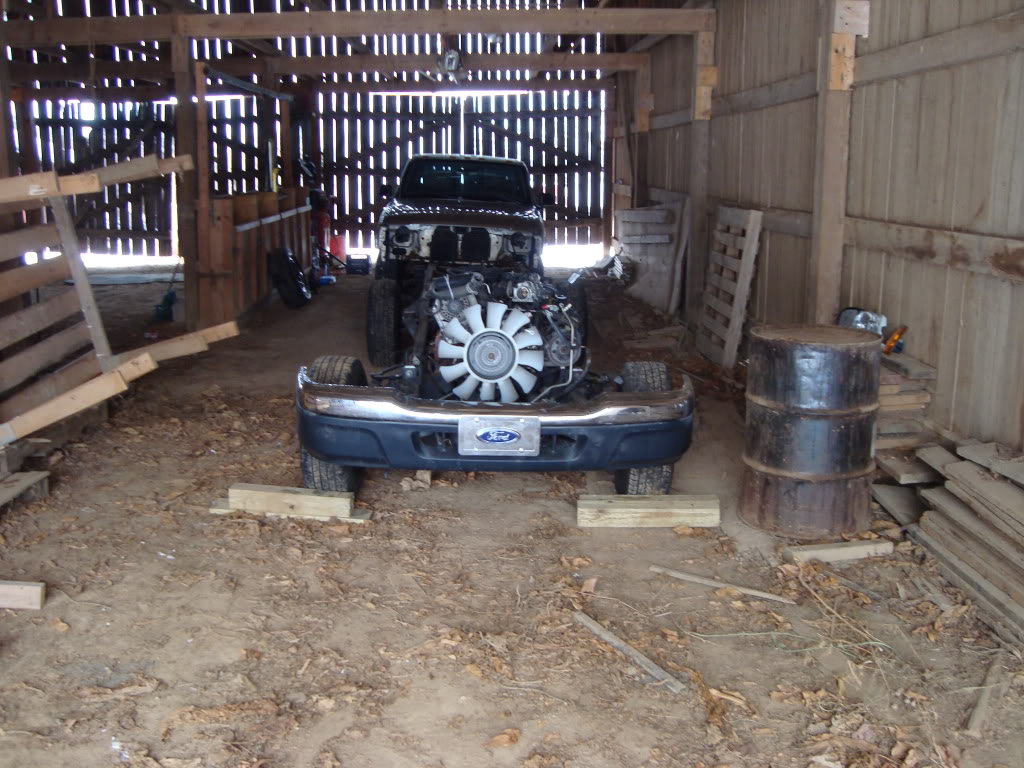

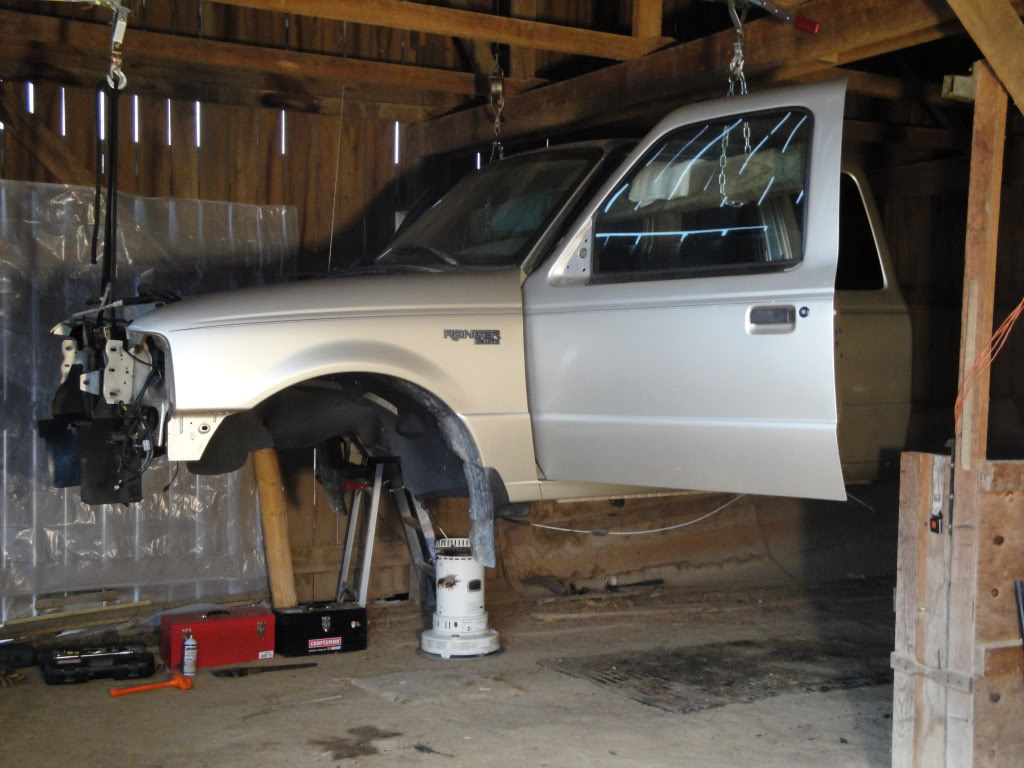

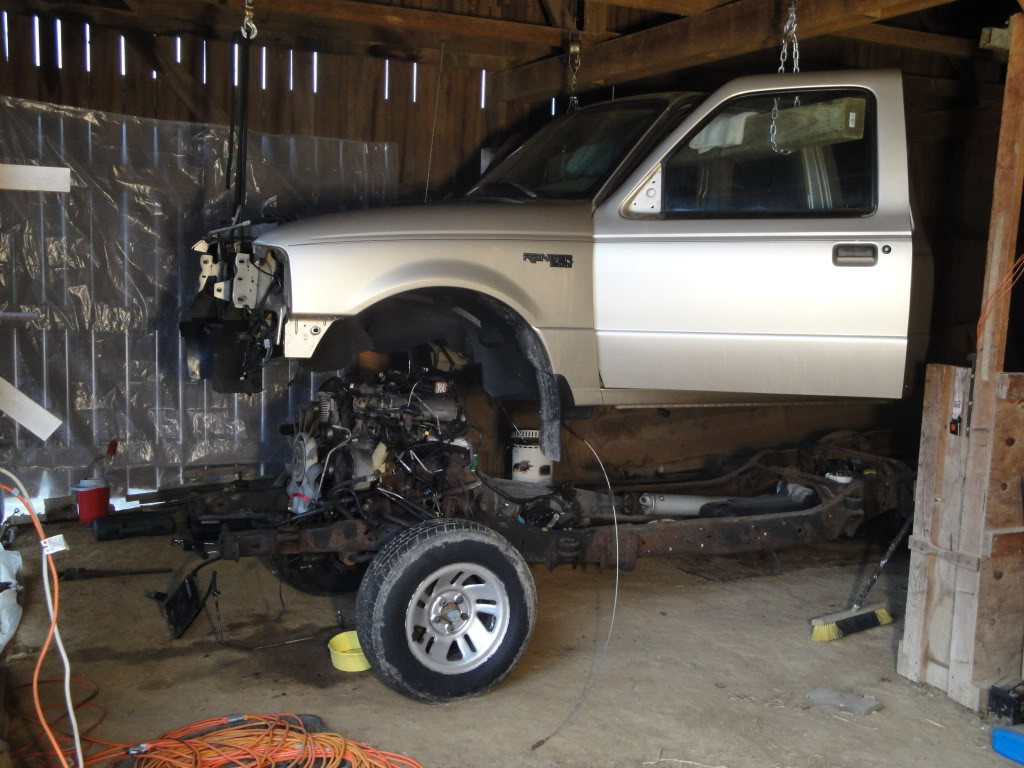

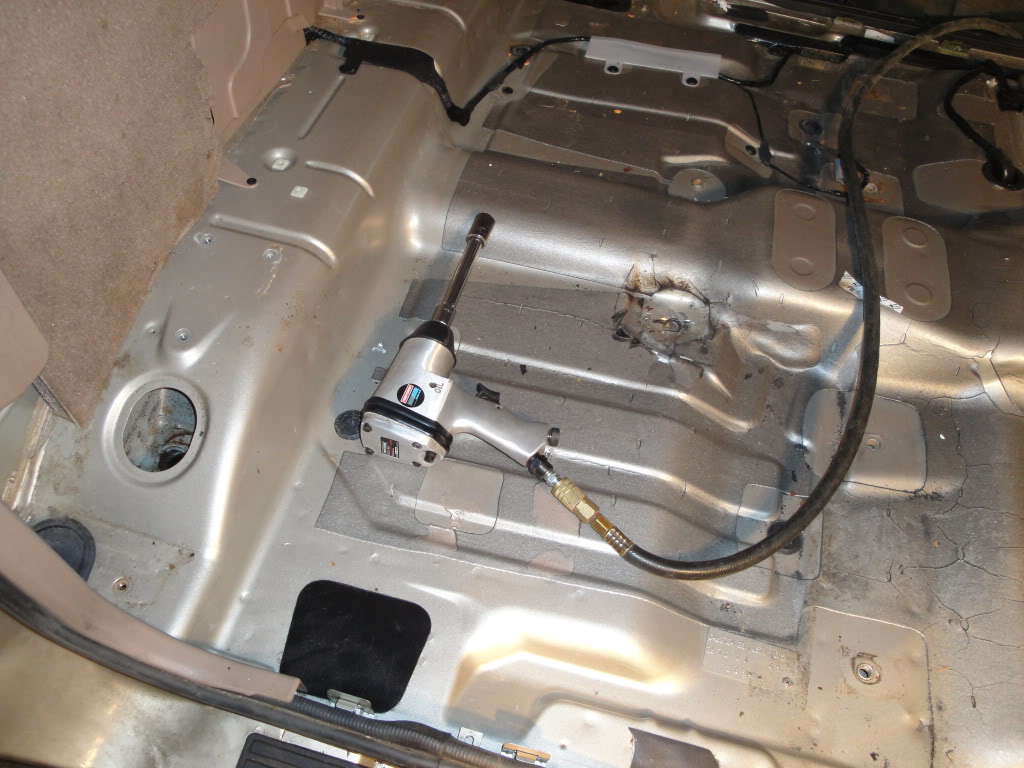

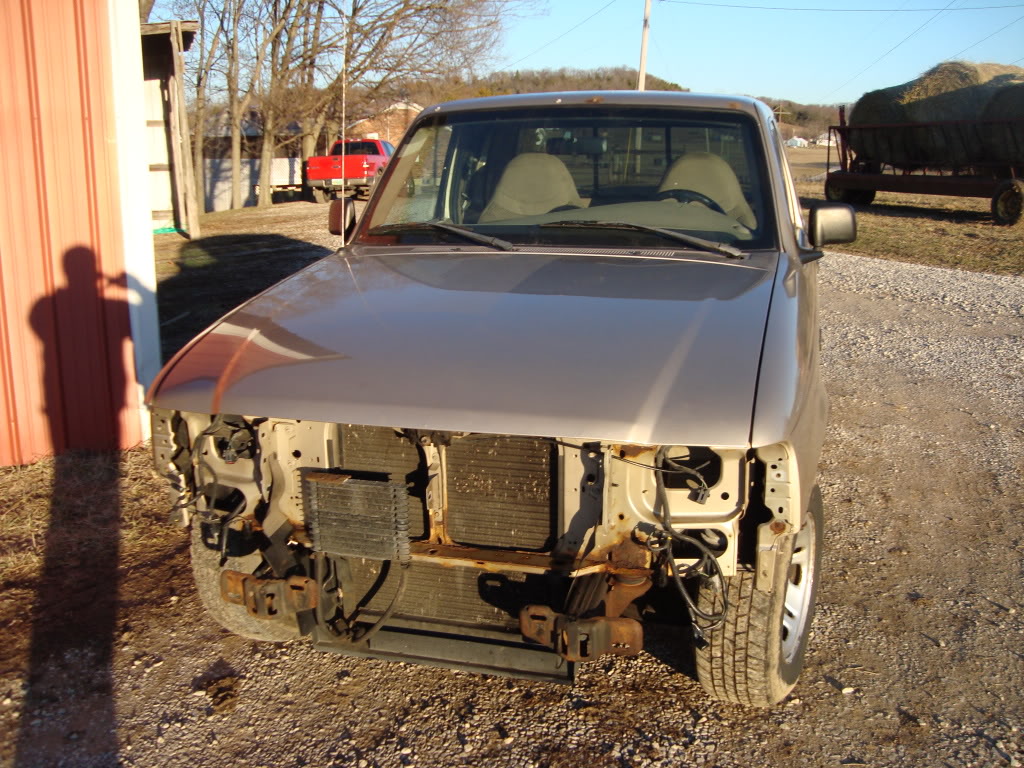

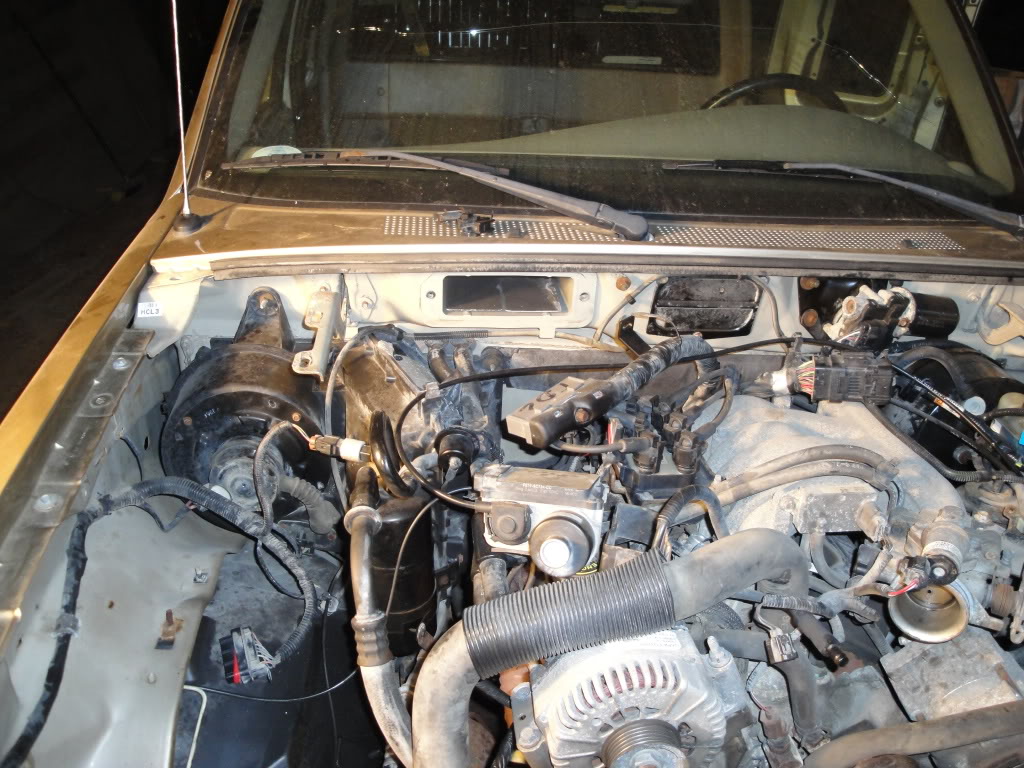

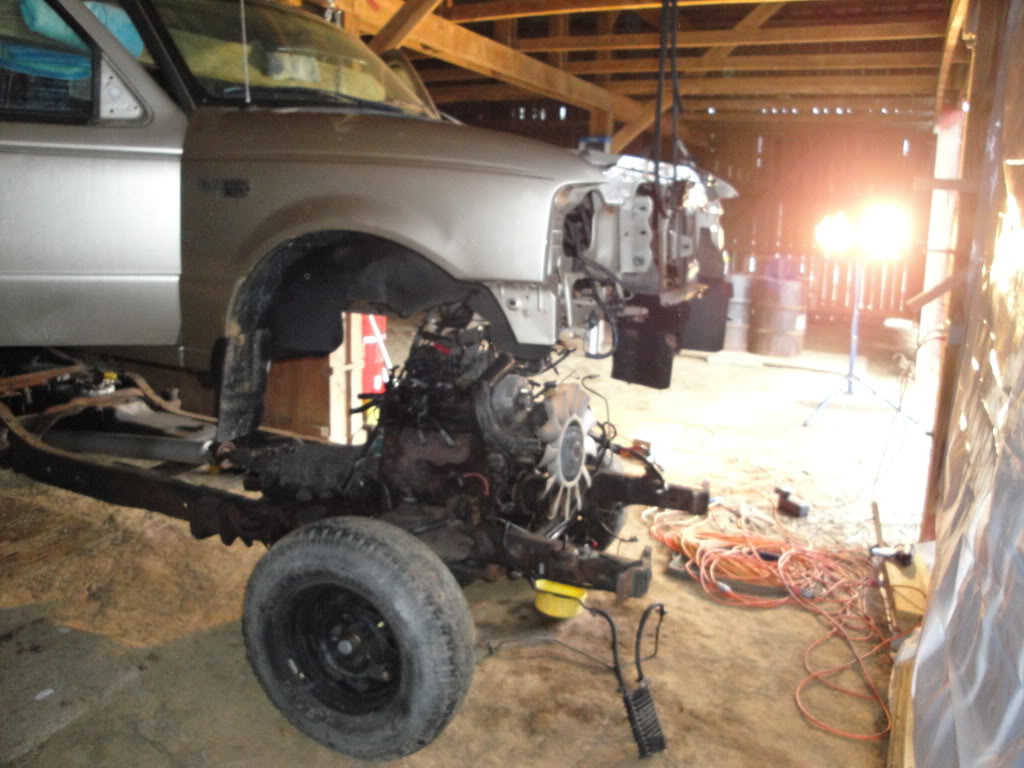

Here's a few pictures of the progress

Name:  DSC02383.jpg
Views: 24
Size:  160.0 KB
Name:  DSC02398.jpg
Views: 20
Size:  217.2 KB
Name:  258.jpg
Views: 18
Size:  121.3 KB
Name:  262.jpg
Views: 18
Size:  173.6 KB
Name:  010-4.jpg
Views: 87
Size:  117.6 KB
Name:  011.jpg
Views: 22
Size:  157.2 KB
Name:  012.jpg
Views: 19
Size:  109.3 KB
Name:  014-2.jpg
Views: 20
Size:  102.4 KB

Last edited by BlackRanger04; 01-20-2011 at 03:10 PM.
Reply With Quote
  #2
Old 01-20-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
thats not a quad cab. that is just an extended cab. mexico got the quads.

good luck with the swap.
Reply With Quote
  #3
Old 01-20-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by morris View Post
thats not a quad cab. that is just an extended cab. mexico got the quads.

good luck with the swap.
Hey Morris,

When I say it's a quad cab I don't mean it's a crew cab. A quad cab is a 4-door extended cab. I always said 4-door extended cab Ranger before, but I noticed most people on here refer to their 4-door extended cab as a quad cab.
Reply With Quote
  #4
Old 01-20-2011
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Looks like fun Brian!
Reply With Quote
  #5
Old 01-20-2011
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
I want to pull the cab off my truck to swap the engines, your homebrew solution is one of the better ones I have seen on the net.
Reply With Quote
  #6
Old 01-20-2011
03edge's Avatar
Member
iTrader: (1)

Join Date: Feb 2009
Location: Akron, OH
Posts: 1,031
dang man, looks like you got a perfect setup to do this. wish my barn had enough room to fit a few trucks in. good luck on the project!
Reply With Quote
  #7
Old 01-20-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by wvcat View Post
Looks like fun Brian!
Yeah, It's a blast ... you should try it sometime ... lol
Reply With Quote
  #8
Old 01-20-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by Blhde View Post
I want to pull the cab off my truck to swap the engines, your homebrew solution is one of the better ones I have seen on the net.
Thanks
Reply With Quote
  #9
Old 01-20-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by 03edge View Post
dang man, looks like you got a perfect setup to do this. wish my barn had enough room to fit a few trucks in. good luck on the project!
Yeah, it's a pretty good setup, now I just need to find someone to help me put the cab back on the 2004 chassis. Would anyone be interested in helpin me out here?
Reply With Quote
  #10
Old 01-25-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
I need help deciding on the paint color.
I'm going to be repainting the truck, becuase there's a few scraches and dings that need to be fixed, but I don't know if I should stick with the Harvest Gold or paint the truck black.
I'm going to be putting all dark grey 2004 interior parts back in the truck and I don't know how that would look with the HG exterior color. Is there even a Harvest Gold Ranger out there with the dark grey interior?
The HG paint is more expensive because it's a metallic paint but I wouldn't need very much of it. If I paint the whole truck black then I'll need to strip all the paint off, prime it ect ... which would be a lot of work.
If anyone has any suggestions, please let me know.

Thanks,

Brian
Reply With Quote
  #11
Old 01-25-2011
Member

Join Date: Jan 2011
Location: somerset
Posts: 15
That's awesome wish I could help, nice pics post more when u get it done, good luck
Reply With Quote
  #12
Old 01-25-2011
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
You don't have to strip the paint off to change colors. A high solids color like black will cover it right up. If your concerned you can just use sealer before you paint. I would vote for black , blue or dsg
Reply With Quote
  #13
Old 01-26-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by mikeyz300 View Post
That's awesome wish I could help, nice pics post more when u get it done, good luck
Thanks .... Have you ever done any body work or painting before?
Reply With Quote
  #14
Old 01-26-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Icon7

Quote:
Originally Posted by wvcat View Post
You don't have to strip the paint off to change colors. A high solids color like black will cover it right up. If your concerned you can just use sealer before you paint. I would vote for black , blue or dsg
Yeah, I'm leaning more towards black, because I think it would go a lot better with the dark grey interior and I'm glad I don't need to strip off all the old paint.

Last edited by BlackRanger04; 01-26-2011 at 04:15 PM.
Reply With Quote
  #15
Old 01-26-2011
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
Wirelessly posted (Blackberry 8530)

You could always do something different, like the newer metallic green used on some of the Mustangs. That would go good with the gray interior.
Reply With Quote
  #16
Old 01-26-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
I'd vote black. but i like stuff you don't see everyday. (why i stuck with the purple) so i'd say go for like a Grabber Blue truck or something like that.
Reply With Quote
  #17
Old 01-26-2011
Member

Join Date: Jan 2011
Location: somerset
Posts: 15
Quote:
Originally Posted by BlackRanger04 View Post
Thanks .... Have you ever done any body work or painting before?
Ive only done small paint jobs but have done a lot of bodywork like rebuilding wrecks. I think i'd go with the harvest gold or a silver and then dark gray interior.
Reply With Quote
  #18
Old 01-27-2011
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Quote:
Originally Posted by wvcat View Post
Looks like fun Brian!
yeah those pics look like straight up copies of some of your pics haha
Reply With Quote
  #19
Old 01-27-2011
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Yeah that Brian is as crazy as me...lol
Reply With Quote
  #20
Old 01-27-2011
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Where's the updates Brian?
Reply With Quote
  #21
Old 01-28-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by wvcat View Post
Where's the updates Brian?
^!
Reply With Quote
  #22
Old 01-28-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by wvcat View Post
Yeah that Brian is as crazy as me...lol
Yeah, I guess anyone that lifts a cab off of a frame has to be a little crazy ...lol
but somebody's gotta do it.
Reply With Quote
  #23
Old 01-28-2011
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by wvcat View Post
Where's the updates Brian?
I'll get some pics posted soon ... I pulled all the power stuff from one of the doors I got from you yesterday. That bottom of that door was rusted worse than I thought. That thing must have taken on a lot of salt.
Btw ... how do you get the metal track out of the way to pull the power motor out?
Reply With Quote
  #24
Old 01-29-2011
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Its got a bolt in it you have to remove. Pull the window seal out of the channel and it should pull up and out of the door....its been a while since I did one.
