converting 99 front end to 2003 - Ranger-Forums - The Ultimate Ford Ranger Resource


Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 09-26-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
Icon10 converting 99 front end to 2003

i just ordered 2003 header panel and a 2003 oem front end-grill and 2003 blacked out head lights all for 150.00.Once I get every thing im gonna paint it white to match my truck next is gonna buy 2003 edge front bumper and valance. ill post pictures once i get it all hopefully it wont take to long...
Is there anything else i should know about
thx R-F
Reply With Quote
  #2
Old 09-26-2009
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
which grille did you get, the bars, or the mest one? next should be a powerdome hood
Reply With Quote
  #3
Old 09-26-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
U will need to find the deals to secure the headlight to the header panel

look like this
Name:  P4060090b.jpg
Views: 2
Size:  7.0 KB

Reply With Quote
  #4
Old 09-26-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197

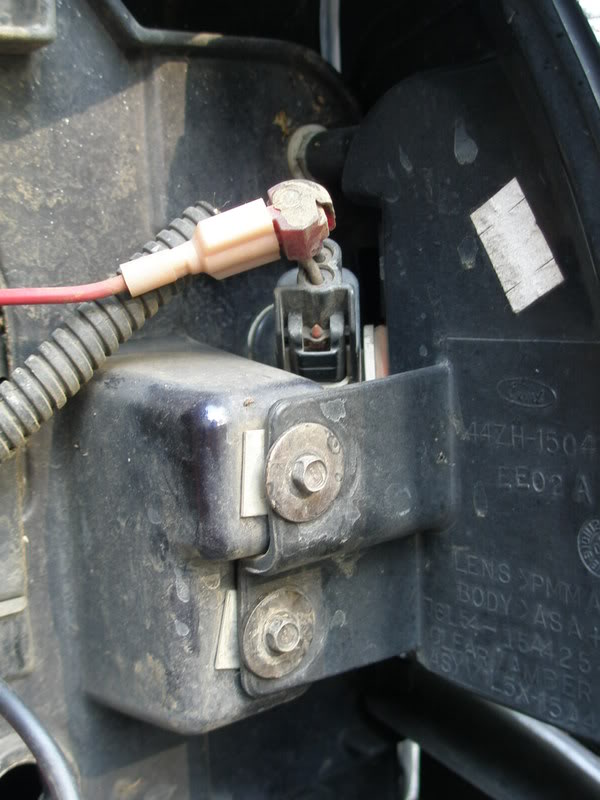

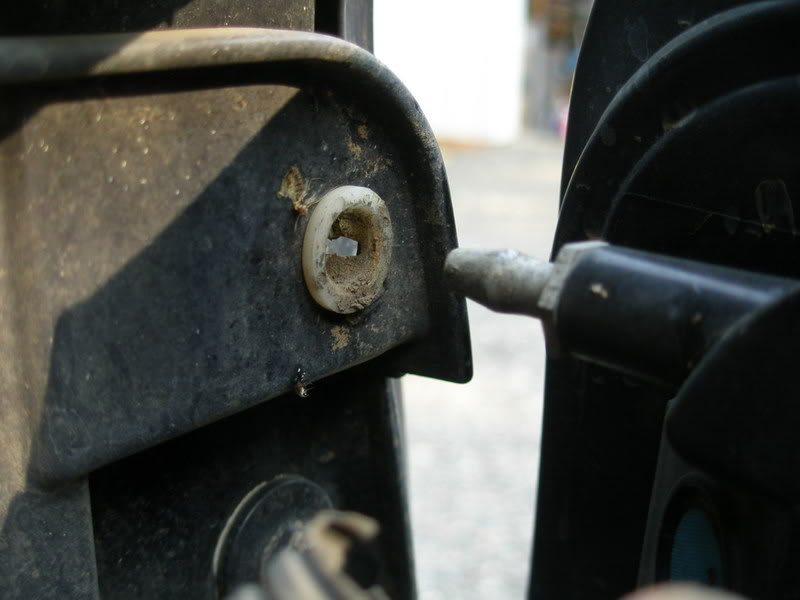

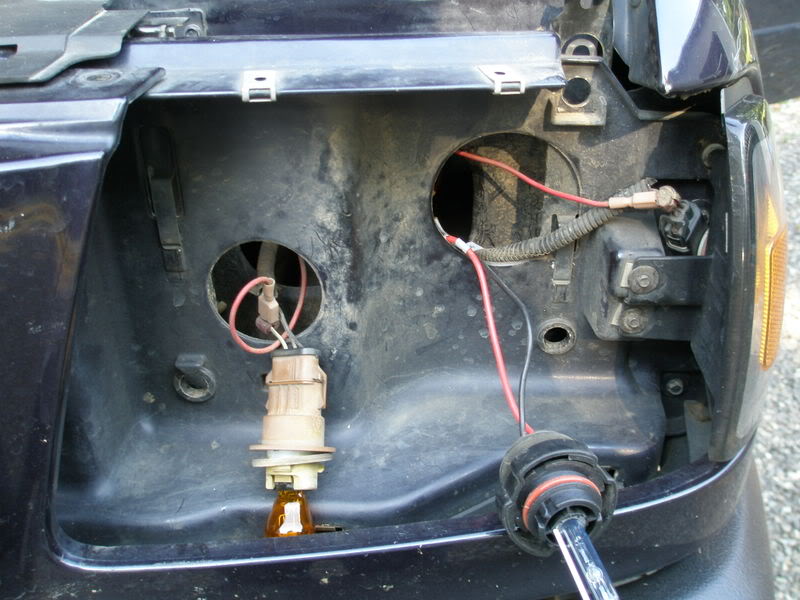

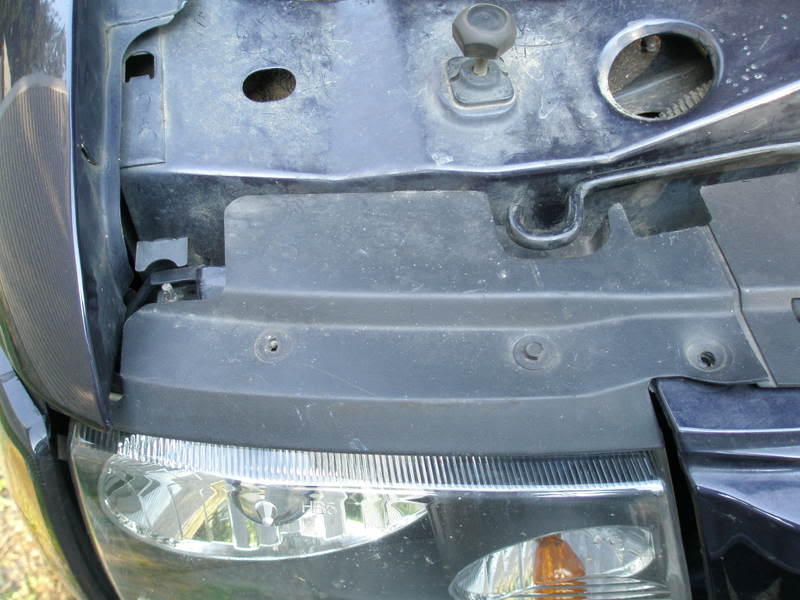

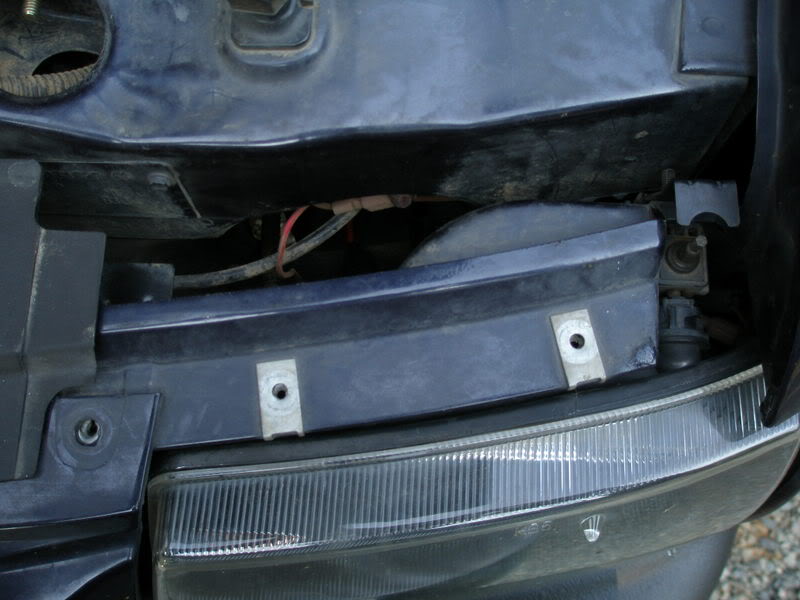

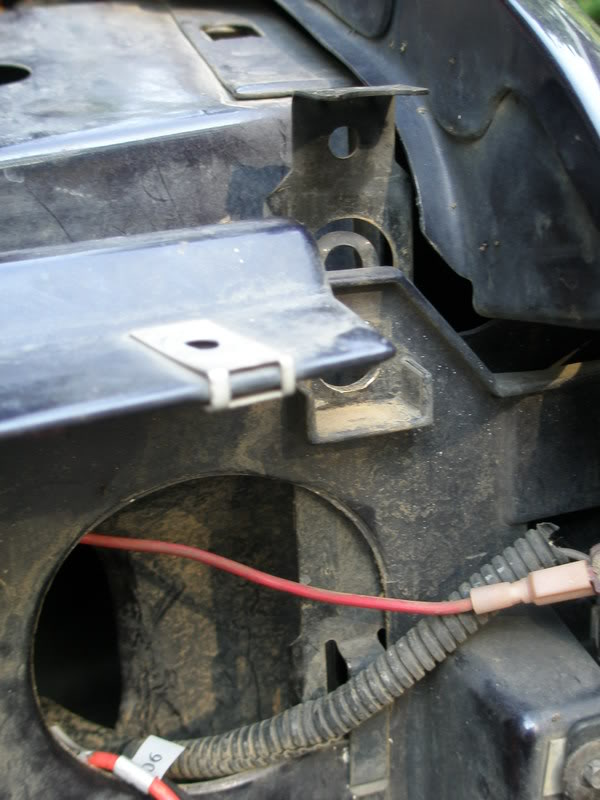

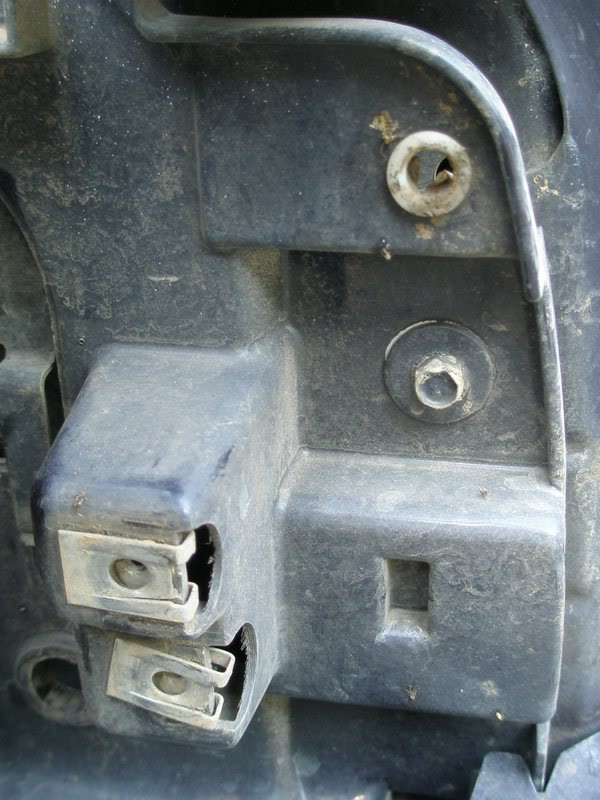

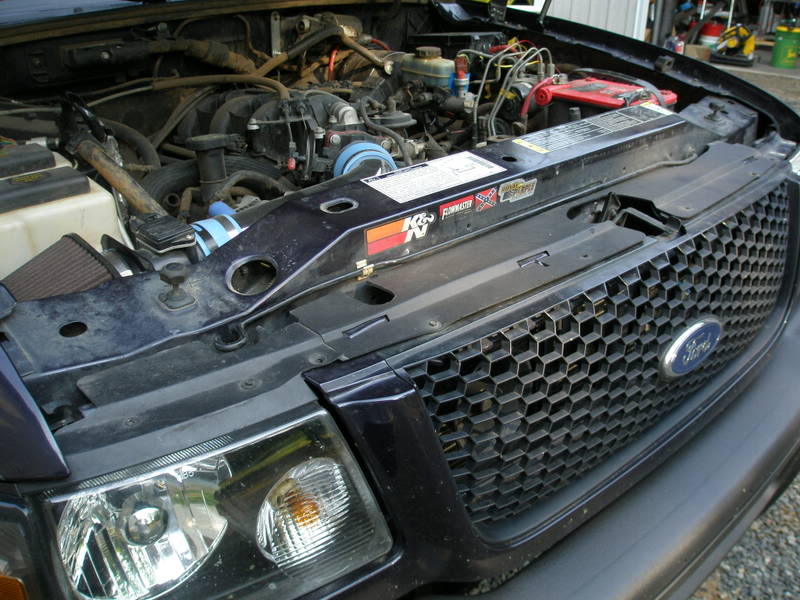

other things you will need to find


Name:  P7020090.jpg
Views: 2
Size:  67.3 KB

Name:  P7020091.jpg
Views: 2
Size:  70.3 KB

Name:  P7020092.jpg
Views: 1
Size:  95.0 KB

Name:  P7020094.jpg
Views: 1
Size:  85.8 KB

Name:  P7020096.jpg
Views: 2
Size:  72.2 KB

Name:  P7020097.jpg
Views: 1
Size:  71.6 KB

Name:  P7020098.jpg
Views: 1
Size:  85.7 KB

Name:  P7020100.jpg
Views: 2
Size:  49.3 KB
Reply With Quote
  #5
Old 09-27-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
I'm gonna use the stuff already there to mount this stuff in and I kinda don't need the protector over the head lights but does any body know where u can get that stuff to install the new head lights
Reply With Quote
  #6
Old 09-27-2009
Newks's Avatar
Member
iTrader: (1)

Join Date: Dec 2006
Location: Waukesha WI
Posts: 241
ford dealer so the clips will prolly cost about 150 bucks lol
Reply With Quote
  #7
Old 09-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I recognize those pics. hehehehe.





If you want a fully secured grille, you'll need to go and get all the extras posted in those pics, namely all the Jnuts. You'll also want at least those 'eye brows' above the headlights. Covers the ugly gap you'll see.

You can get those sliders/retainers straight from ford. Might be spendy. Or just PM me....I've got like 4 total sets.
Reply With Quote
  #8
Old 09-27-2009
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
Quote:
Originally Posted by Newks View Post
ford dealer so the clips will prolly cost about 150 bucks lol
you never know, they tried to charge me about $30 for the stupid splash guard cap on the lower fender
Reply With Quote
  #9
Old 09-27-2009
Member
iTrader: (3)

Join Date: Aug 2009
Location: dearborn, Michigan
Posts: 63
advance auto parts has those headlight clips. i know my store does. there like $10
Reply With Quote
  #10
Old 10-03-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
what are the names to those parts i need because i cant tell which parts i actually need
Reply With Quote
  #11
Old 10-03-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
may i ask where you got all that stuff for 150? lol
Reply With Quote
  #12
Old 10-03-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
crap mitchell....I totally forgot to get back to ya on the clips/retainers! lol....I'll pm you about it when i get pics of the bezel.
Reply With Quote
  #13
Old 10-07-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
i got header panel from ebay for 30$ then front panel from a oem ford site 70$ then bumper and valence from ebay 50$ all together 150 the i think it cost me an extra 30 bucks for shipping
Reply With Quote
  #14
Old 10-13-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
half way done but now i gotta wait on the painting and i have the wrong bumper pics comming soon
Reply With Quote
  #15
Old 10-25-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
its done
before
Reply With Quote
  #16
Old 10-25-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
nicely done. looks good.
Reply With Quote
  #17
Old 10-25-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Get your front emblem switched over. Looks good!
Reply With Quote
  #18
Old 10-25-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
LOL....yeah......01-03 emblems are ALOT bigger than 98-00. and 04-05 are bigger than 03, and 06 are even bigger. hah.
Reply With Quote
  #19
Old 10-25-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Are they? Haha oh well. Get em switched anyways.
Reply With Quote
  #20
Old 10-25-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
how hard was it to do all this? all i need is the grill and head lights. i have the hood and bumper on now
Reply With Quote
  #21
Old 10-25-2009
billet03's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: centralcity, KY
Posts: 771
nice looks good.
Reply With Quote
  #22
Old 10-25-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
its actually really easy just a pain finding the parts for cheap
thx guys
Reply With Quote
  #23
Old 10-26-2009
1997ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2009
Location: clinton,mississippi
Posts: 136
what did you do with your light bar?
Reply With Quote
  #24
Old 10-26-2009
mitchell561's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
i selling it for 120 shipped 15 dollars extra for the fogs on it
Reply With Quote
