Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

Dewey's 05 Edge Build & SAS

Thread Tools

Search this Thread

  #51
Old 11-03-2014
bravetitan24's Avatar
Member
iTrader: (3)
Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,139
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by Dewey
I'm going with up front rather than up top. I dont want to go poking holes in the roof. If I did, I'd do a roof rack.
I got ya. A lot of the mounts don't require holes in the roof, just a couple behind the rubber door seal. Having the headliner and pillar trim out would just help with running wires.

  #52
Old 11-04-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by bravetitan24
I got ya. A lot of the mounts don't require holes in the roof, just a couple behind the rubber door seal. Having the headliner and pillar trim out would just help with running wires.
Set it up like Will Smith did in "I Am Legend"

  #53
Old 11-07-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Found a You-Pull Yard about an hour away from me with like 16 explorers from 96-01. Hopefully gonna have some new seats and center console by tomorrow night!

  #54
Old 11-13-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Got another small thing done yesterday after work,

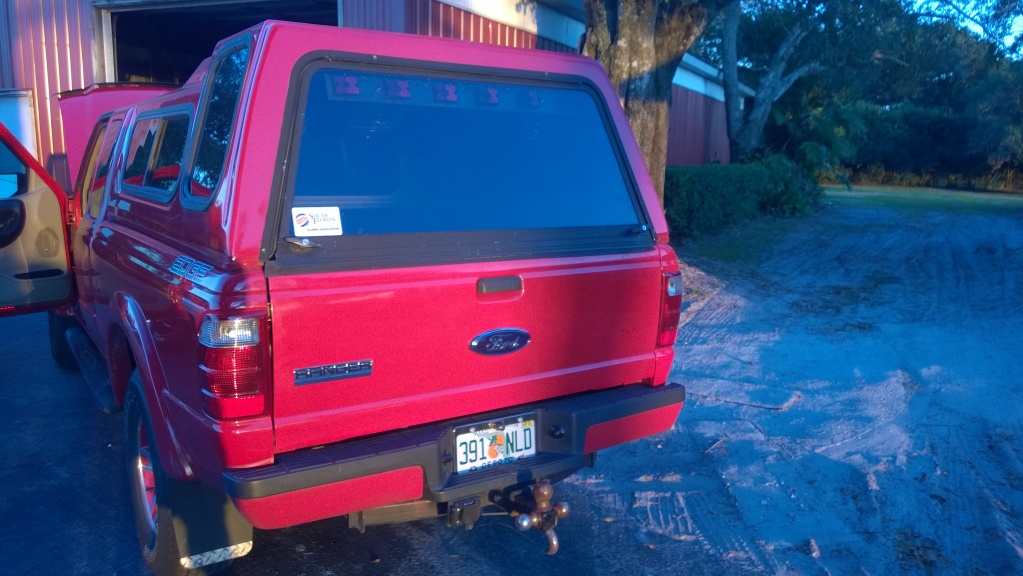

06+ Tail Gate mod. Still got to cover up the holes, but its no big deal. Ordered some 06+ Tails too.

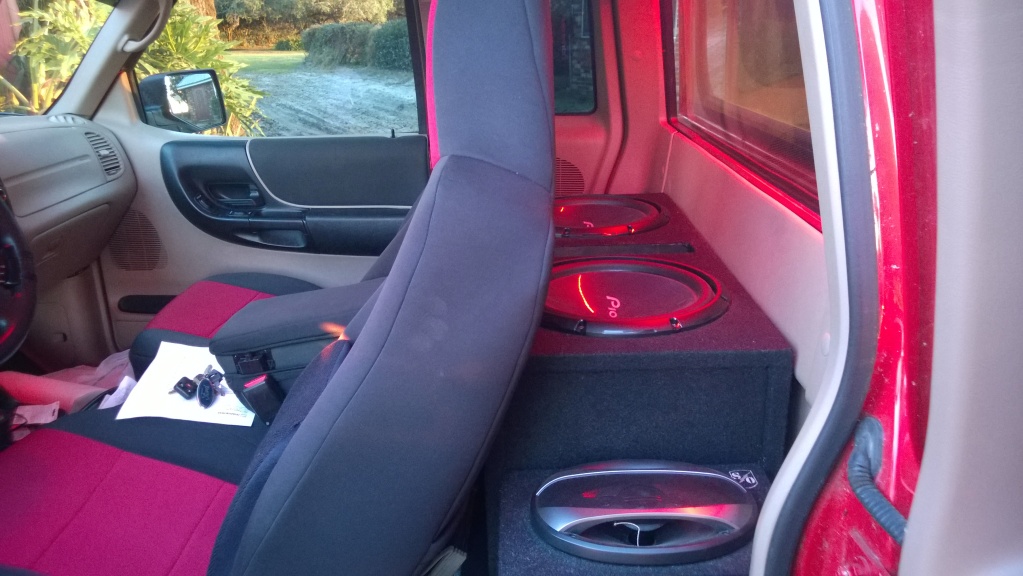

Also, just because,

SUBS

Attached Thumbnails Dewey's 05 Edge Build & SAS-temporary_zps53059d2b.jpg   Dewey's 05 Edge Build & SAS-temporary_zps529e9abf.jpg
  #55
Old 11-13-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
I like where this is going. Nice truck!

  #56
Old 11-13-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by Fordzilla80
I like where this is going. Nice truck!
Thank you, hoping to be rocking at least 35s by January too!

  #57
Old 11-13-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
Thank you, hoping to be rocking at least 35s by January too!
I've considered doing the double lift and going 35's, but I really don't feel like bothering with gear ratios. And now that I'm going 4x4, it's definitely not going to happen.

  #58
Old 11-13-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by Fordzilla80
I've considered doing the double lift and going 35's, but I really don't feel like bothering with gear ratios. And now that I'm going 4x4, it's definitely not going to happen.
I gotcha. I'm 2wd and have an open diff, so I wanted a different carrier anyways

  #59
Old 11-17-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Set up to get the diff regeared the week after ThanksGiving, which means the lifting process will begin shortly there afterwards. Also thinking of doing a Mustang Cobra brake swap. Its only like $500, not too bad. would bring my total investment in the 8.8 to like $1200 the time I figure the gears, carrier, and brake conversion, but IMO, money fairly well spent. Its not a Dana 60 by any means, but sufficient for now. Probably do the brakes before the tires get mounted up too. (just another project to add to the list!)

  #60
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts

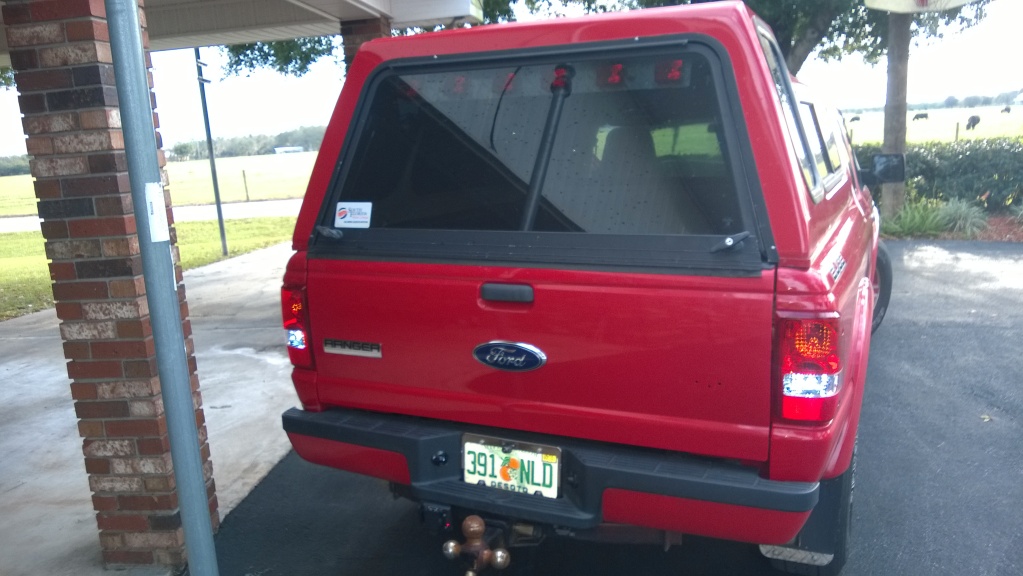

Got my 06+ Tails in the mail today.

06+ transformation process is nearly complete. just need to pop my corners apart to install some leds and get some more EDGE stickers made. (and cover my holes)

Attached Thumbnails Dewey's 05 Edge Build & SAS-temporary_zps22574cf7.jpg
  #61
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Looks good! Any plans to do the 06+ bumper too? I've got one tucked away for my truck, but it needs to be repainted to match my truck.

  #62
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by Fordzilla80
Looks good! Any plans to do the 06+ bumper too? I've got one tucked away for my truck, but it needs to be repainted to match my truck.
Like the front bumper with the round headlights? I thought about finding one, but I personally like the style of the square ones I have. Only people versed in the Ranger world will be able to tell that its not 06+ Unless I stumble across one for next to nothing, I'll keep what I have.

  #63
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
Like the front bumper with the round headlights? I thought about finding one, but I personally like the style of the square ones I have. Only people versed in the Ranger world will be able to tell that its not 06+ Unless I stumble across one for next to nothing, I'll keep what I have.
Well 06-07 bumpers had square fogs too. The 08-11 bumpers had round fogs. I hear you on the price though. Mine was $100, so I couldn't pass it up, even if it is gloss black. lol.

  #64
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
see, I knew somewhere along there they switched to rounds. but hey, who's to know if mine wasn't already an 07? Don't ask any questions and I'll tell you no lies.

  #65
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
see, I knew somewhere along there they switched to rounds. but hey, who's to know if mine wasn't already an 07? Don't ask any questions and I'll tell you no lies.
No judging here, I robbed my truck of it's identity years ago.

  #66
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
I feel like by the time I'm "done" I'll have an 05,06,07,08,09,10,11 "Rangesplorer"

  #67
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
I feel like by the time I'm "done" I'll have an 05,06,07,08,09,10,11 "Rangesplorer"
As of a few weeks ago I had an OHC, Seats, and a Full Length Console from an Explorer. But I wasn't feeling the "ExpoRanger" thing, so I swapped the Full Length out for a Shorty. Never getting rid of my OHC and seats though, the seats are amazing compared to the stock seats my truck came with.

  #68
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by Fordzilla80
As of a few weeks ago I had an OHC, Seats, and a Full Length Console from an Explorer. But I wasn't feeling the "ExpoRanger" thing, so I swapped the Full Length out for a Shorty. Never getting rid of my OHC and seats though, the seats are amazing compared to the stock seats my truck came with.
I'm doing the full length console so I can have some switches tied in. The way my back is, I have a lumbar pillow that I have to use to even drive across town. Hopefully I'll get a set of heated, power seats when I go to the yard again this Saturday. Maybe I won't get rained out this time.

  #69
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
I'm doing the full length console so I can have some switches tied in. The way my back is, I have a lumbar pillow that I have to use to even drive across town. Hopefully I'll get a set of heated, power seats when I go to the yard again this Saturday. Maybe I won't get rained out this time.

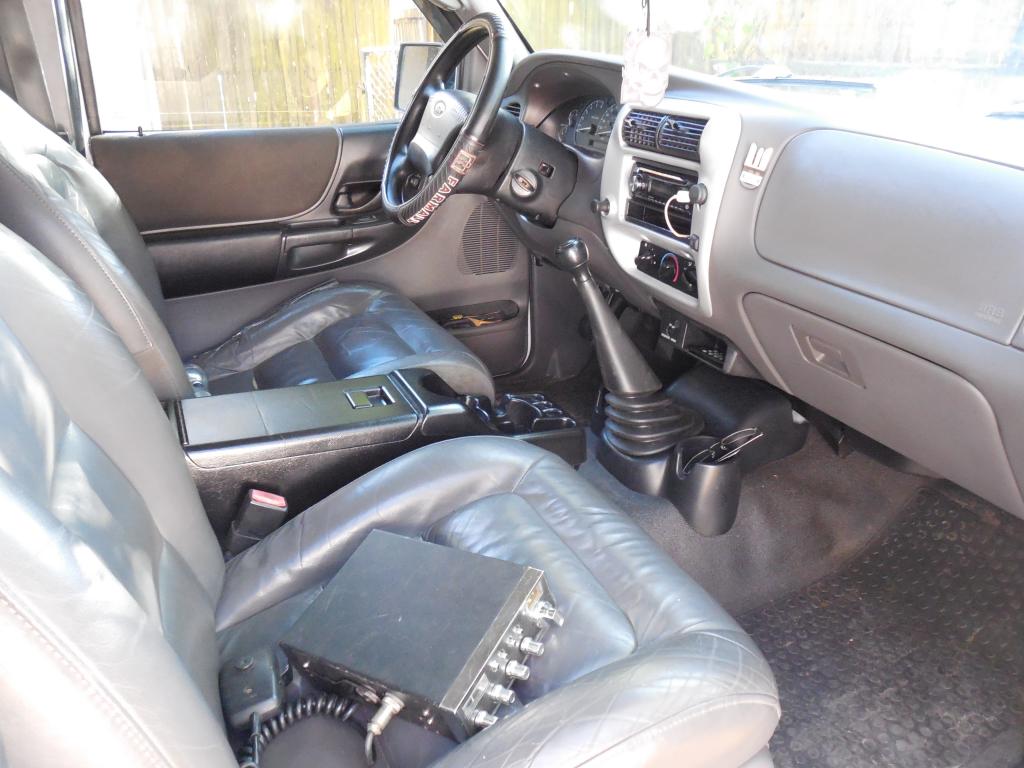

Mine came from an 01 Expo Sport. They aren't heated, but they do have power tracks that I've never hooked up and manual lumbar. Best part is that they are the dark gray so they match my interior. Only paid $40 for the pair.


Attached Thumbnails Dewey's 05 Edge Build & SAS-dscn0683_zps570c0efa.jpg
  #70
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by Fordzilla80
Mine came from an 01 Expo Sport. They aren't heated, but they do have power tracks that I've never hooked up and manual lumbar. Best part is that they are the dark gray so they match my interior. Only paid $40 for the pair.

True, you're stick so you would need the shorty console. I'm looking $65 a piece from a u pull. I want black, but I will cover them until I get them reupholstered since I know they didn't have anything but gray/tan

  #71
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
True, you're stick so you would need the shorty console. I'm looking $65 a piece from a u pull. I want black, but I will cover them until I get them reupholstered since I know they didn't have anything but gray/tan
I ran the Explorer Full Length with the manual. Didn't like the way it looked though so I went back to a shorty console. But I'm glad I did because now I don't have to modify the full length console for the T-Case shifter.

  #72
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by Fordzilla80
I ran the Explorer Full Length with the manual. Didn't like the way it looked though so I went back to a shorty console. But I'm glad I did because now I don't have to modify the full length console for the T-Case shifter.
Full length with the shifter would look kinda funky

  #73
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
Full length with the shifter would look kinda funky
I didn't like the thought of having a boot covering the entire shift lever, so I ran without a boot the whole time. That made it look even worse.

  #74
Old 11-19-2014
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,334
Received 34 Likes on 32 Posts
Originally Posted by Fordzilla80
I didn't like the thought of having a boot covering the entire shift lever, so I ran without a boot the whole time. That made it look even worse.
That's probably why I've always seen a manual with a shorty console

  #75
Old 11-19-2014
Fordzilla80's Avatar
Moderator
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 2,800
Received 449 Likes on 381 Posts
Originally Posted by Dewey
That's probably why I've always seen a manual with a shorty console
Twin sticks look better with a shorty console. :)
