Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

Dewey's 05 Edge Build & SAS

  #176
Old 04-09-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
Wow guys, I didn't get load range E tires for nothin'

  #177
Old 04-16-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147

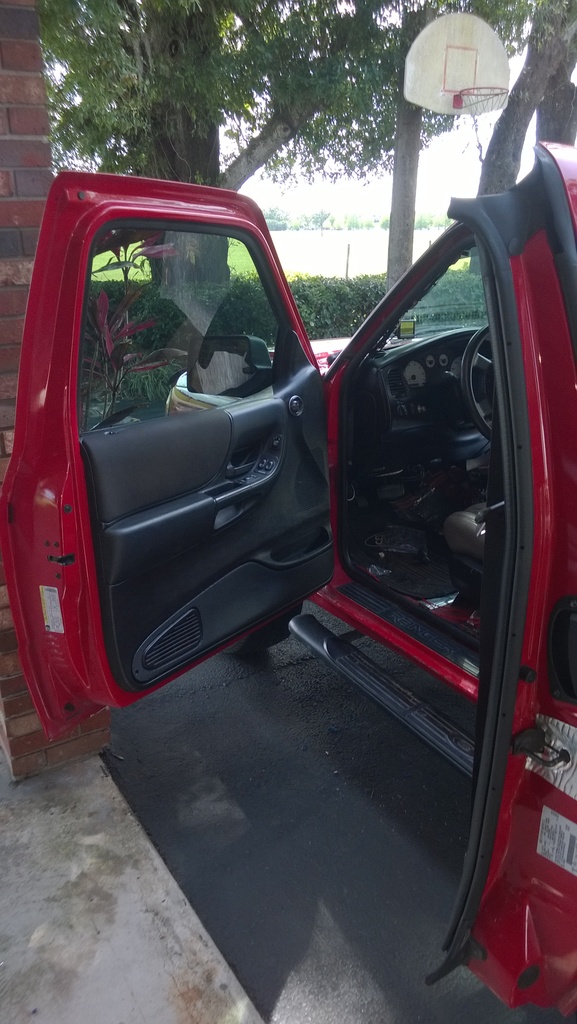

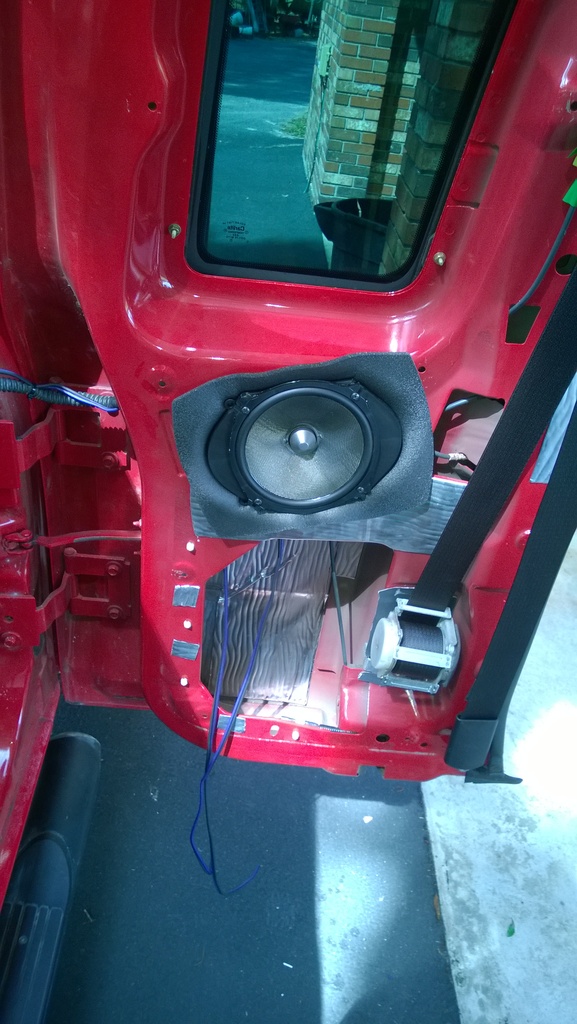

I guess its time for an update. I've been pretty busy lately.






Attached Thumbnails Dewey's 05 Edge Build & SAS-wp_20150412_001_zps9ybcq8ji.jpg   Dewey's 05 Edge Build & SAS-wp_20150412_002_zpsdxoz8ydd.jpg   Dewey's 05 Edge Build & SAS-wp_20150412_003_zps1txtg1wf.jpg   Dewey's 05 Edge Build & SAS-wp_20150412_006_zpszgcxgzgf.jpg   Dewey's 05 Edge Build & SAS-wp_20150412_007_zpsvuvi2nvi.jpg

Dewey's 05 Edge Build & SAS-wp_20150412_008_zpsg6armrpb.jpg
  #178
Old 04-16-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)
Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,177
Truk lewks gud yo

  #179
Old 04-16-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
Thanks. Hopefully the body lift will happen this weekend

  #180
Old 04-16-2015
Fordzilla80's Avatar
@flrangeredge IG
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 1,331
I'm totally jelly of your interior. Need to do mine soon.

  #181
Old 04-16-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
The SEM paint is the trick. Its so easy to touch up. Its self leveling and doesn't run

  #182
Old 04-16-2015
Fordzilla80's Avatar
@flrangeredge IG
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 1,331
Originally Posted by Dewey View Post
The SEM paint is the trick. Its so easy to touch up. Its self leveling and doesn't run
Yea, I've heard nothing but good about SEM. Who did you get your paint from?

  #183
Old 04-16-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
A SEM distributor a half hour from me. You can get them online too, but if you buy 7 cans like I did they give you a better deal

  #184
Old 04-16-2015
Fordzilla80's Avatar
@flrangeredge IG
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 1,331
I know we have a local automotive paint and supply store here. I bet they can get it.

  #185
Old 04-18-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
PROOF!
Took about 14 hrs total thanks to the stupid back bumper. Everything else went fairly smoothly.





Biggest trouble other than the bumper was the passenger core support bolt. But with a 1/2 impact it took care of it (snapped off after hammering on it for 5 mins)
Hopefully I will have the spindles and shackles done by tomorrow evening

Attached Thumbnails Dewey's 05 Edge Build & SAS-wp_20150417_003_zpsmai7b2qu.jpg   Dewey's 05 Edge Build & SAS-wp_20150417_005_zpsnjb25mly.jpg   Dewey's 05 Edge Build & SAS-wp_20150417_006_zpswgmbr2hw.jpg   Dewey's 05 Edge Build & SAS-wp_20150417_007_zpskq8s9mg1.jpg   Dewey's 05 Edge Build & SAS-wp_20150418_002_zpszed8omre.jpg

  #186
Old 04-18-2015
Fordzilla80's Avatar
@flrangeredge IG
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 1,331
You gonna put the shell back on or leave it off?

  #187
Old 04-18-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
I'm definitely putting it back on...... after 500 miles. I actually miss it a lot.

  #188
Old 04-18-2015
00GreenRanger's Avatar
Level III Supporter
Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,416
Why does the back look so much higher than the front?

  #189
Old 04-18-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
Originally Posted by 00GreenRanger View Post
Why does the back look so much higher than the front?
2"AAL. You don't really notice it with the topper on. Its a couple hundred lbs, so it makes up for all the lift they typically give, plus I ditched my spare

  #190
Old 04-18-2015
Fordzilla80's Avatar
@flrangeredge IG
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 1,331
Originally Posted by 00GreenRanger View Post
Why does the back look so much higher than the front?
My truck is like that. I have a 1.5" difference in height from front to back. I would love to ditch my blocks, but then I'll be .5" lower in the back.

  #191
Old 04-18-2015
00GreenRanger's Avatar
Level III Supporter
Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,416
Originally Posted by Dewey View Post
2"AAL. You don't really notice it with the topper on. Its a couple hundred lbs, so it makes up for all the lift they typically give, plus I ditched my spare
Oh okay. Throw the 35s on!!

  #192
Old 04-18-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
Originally Posted by Fordzilla80 View Post
My truck is like that. I have a 1.5" difference in height from front to back. I would love to ditch my blocks, but then I'll be .5" lower in the back.
How many springs were in your expo pack? I think mine only has 4 total (top with bushings, 2 middles, and flat overload) I'm beginning to wonder if they'll make enough of a difference to ditch the block

  #193
Old 04-18-2015
Fordzilla80's Avatar
@flrangeredge IG
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 1,331
Originally Posted by Dewey View Post
How many springs were in your expo pack? I think mine only has 4 total (top with bushings, 2 middles, and flat overload) I'm beginning to wonder if they'll make enough of a difference to ditch the block
Mine were the same. But I didn't just bolt the Expo leafs in. I cut the bushings off of the Expo spring, and kept my original Ranger top leaf. So now my springs are Ranger top leaf, cut expo top, 2 expo middles, and expo overload. I was running an AAL too, but I took that out because it was way too much.

My truck still looks way off.

http://i1308.photobucket.com/albums/...pspfnp9jcd.jpg


Last edited by Fordzilla80; 04-18-2015 at 08:24 PM.
  #194
Old 04-18-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
I'm thinking I'll just keep the middle 2 and the overload with the AAL and what I've got factory and see what happens

  #195
Old 04-18-2015
RLong31's Avatar
The Ban Hammer
iTrader: (5)
Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
I was about an inch and half or so higher in the rear.. took out the 2.5" blocks and added the expo leafs (4 pack with about 120k on them).. Now I'm about 1/2" taller in the back.

If you end up being a little lower.. add the belltech shakles? Getting rid of those blocks makes it sooooo much better.

  #196
Old 04-18-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)
Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,177
Success!

..... At least somewhat. Get the rest of it done!

  #197
Old 04-18-2015
Fordzilla80's Avatar
@flrangeredge IG
iTrader: (1)
Join Date: Dec 2010
Location: Florida
Posts: 1,331
I'm definitely gonna ditch my blocks soon.

I ran shackles for about 20 days. Didn't like the way they pushed down on the springs so I took them back off.

I think I might put my AAL back in when I ditch the blocks. I doubt my AAL is still holding 2" of arch, so it should make my truck level. Hopefully.

  #198
Old 04-18-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
I've got the shackles going on along with the AAL and expo leafs. I will be deleting the block. I need to get this all together so I can know how much longer I am going to want my SS lines to be. I'll just do the shackles tomorrow and do the leafs and block delete when I do my disc swap.

  #199
Old 04-18-2015
RLong31's Avatar
The Ban Hammer
iTrader: (5)
Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
You're gonna love having the discs after you get those 35's on. Did you end up getting what I got or something different?

  #200
Old 04-18-2015
Dewey's Avatar
@THE_ALMIGHTY_E4_RANGER
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 2,147
I'm going the pacific customs route. Its a hair over $200 for everything, but I'm not sure about front lengths until I have the spindles on
