just a little project for the ranger

So I started my sas.

It all started with a Dana 60 i picked up a while back for $80. Yes $80.

Im running leaves, dont like it, i dont care..

to start...

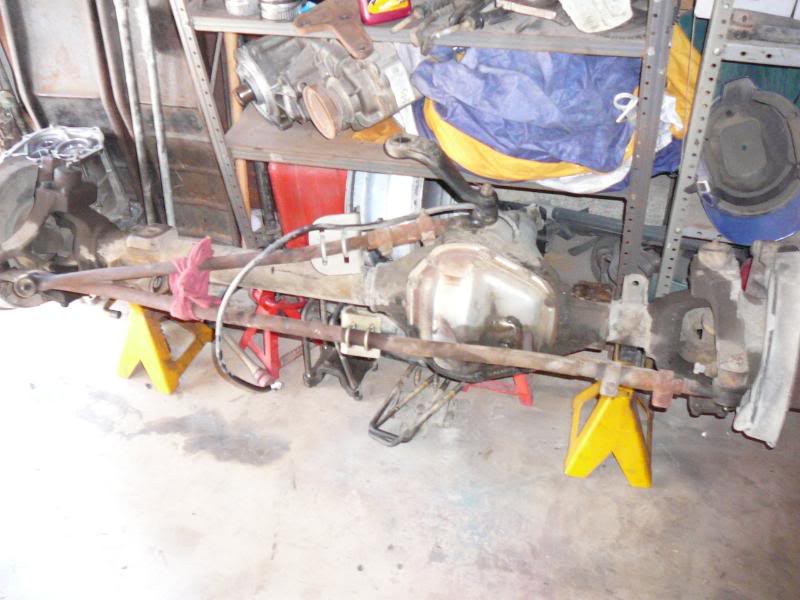

The dana 60
Name:  Picture090.jpg
Views: 47
Size:  74.5 KB

Parked the truck, everything on the front was falling apart, tie rods, ball joints, hub bearings, thing vibrated like no other and i couldnt justify putting my life or others in danger driving it anylonger.

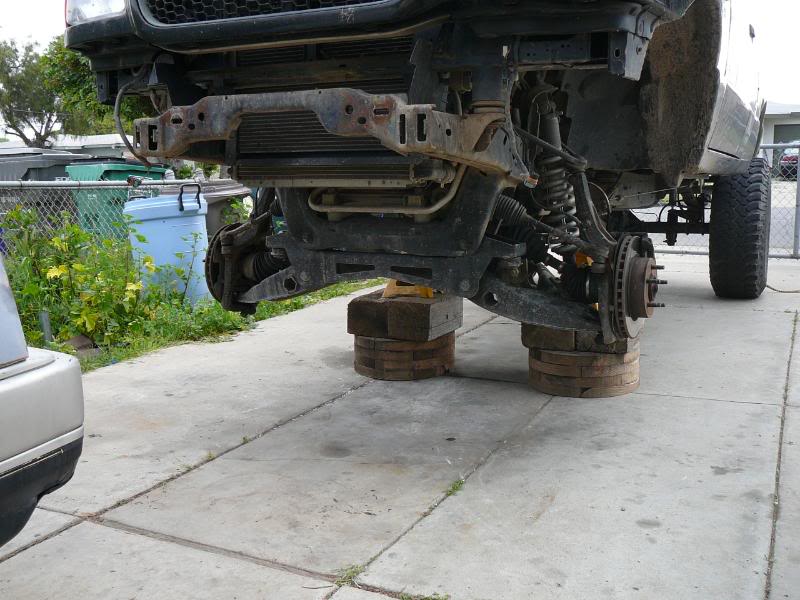

The teardown
Name:  P1010420.jpg
Views: 45
Size:  87.1 KB

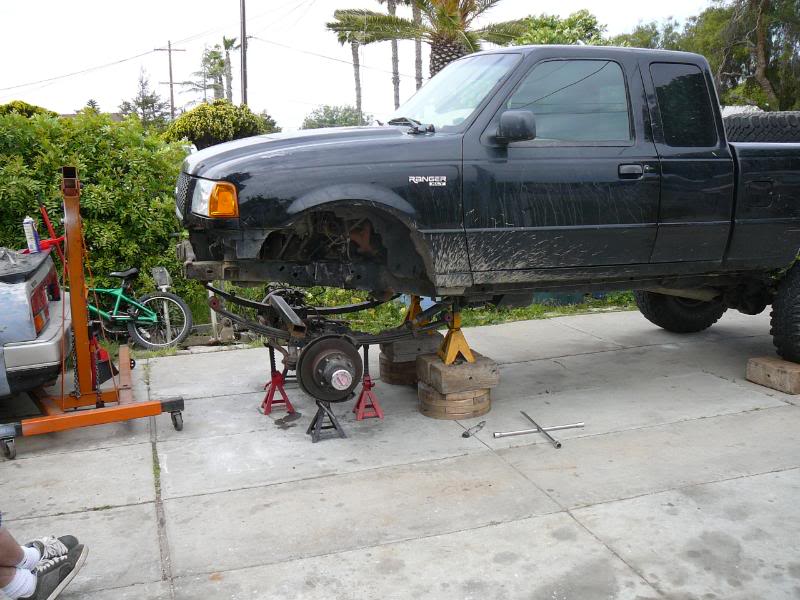

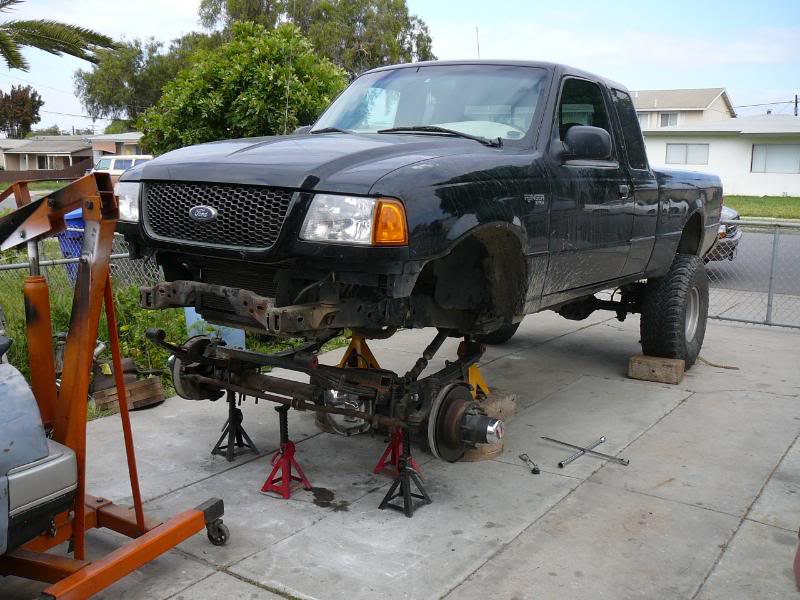

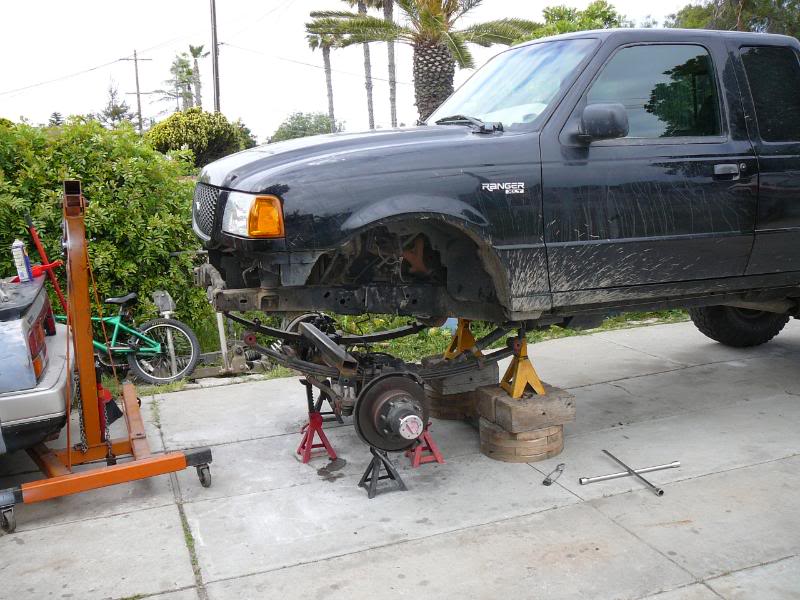

move the axle under the truck, yes i still need to grind the frame smooth, but i couldnt leave the axle in the middle of the drive way..

front cross member is stitting on leaves, you can see it in the pic.

Name:  P1010421.jpg
Views: 47
Size:  99.1 KB
Name:  P1010422.jpg
Views: 135
Size:  94.8 KB
Name:  P1010423.jpg
Views: 42
Size:  93.8 KB

So far the steering is gonna be fun, i want to move the axle forward 2". So i have to put the tierod behind the axle with the "helicopter high steer arms, other wise the draglink is gonna be at a goofy angle.

today = rain, we shall see what tomorrow has in store, hope fully grind the rest of whats left of the stock brackets off, as they have already been torched out.
Reply With Quote
  #2
Old 04-12-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
NICE! what gearing u gunna run? along with tires?

black ranger sas'age ftw! lol

ur lucky about the torch though...using a sawzaw was tiring.
Reply With Quote
  #3
Old 04-12-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
looks good man keep it going
Reply With Quote
  #4
Old 04-12-2010
outdoorsman's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Quote:
Originally Posted by rstangboi View Post
NICE! what gearing u gunna run? along with tires?

black ranger sas'age ftw! lol

ur lucky about the torch though...using a sawzaw was tiring.

that ^^^^^ and what springs are you using?
Reply With Quote
  #5
Old 04-12-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by outdoorsman View Post
that ^^^^^ and what springs are you using?
and what axle are you gunna stick to in the rear? an 8.8?

and is the BL gunna stay?


lol so many questions!!
Reply With Quote
  #6
Old 04-12-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Looks like you're well underway, can't wait to see this thing done

The more SAS I see, the more I want!
Reply With Quote
  #7
Old 04-12-2010
yellow rhino's Avatar
Member

Join Date: Sep 2006
Location: CA Westlake Village
Posts: 1,771
Good times on that driveway. Sooooooo you know you wanna sell me that RCD lift...
Reply With Quote
  #8
Old 04-13-2010
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
Looking good!

x2 on what leaves you runnin?
Reply With Quote
  #9
Old 04-13-2010
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
They are stock ford leaves with leaves removed. they are too long, dont think ima run them.

going with 5.13's, not sure on tires yet if i want bias or radials, but for sure 17" rim. looking at 39" rockers, and i dont have a problem cutting fenders

torch was easy no way i would of done it with out one !

The truck most likely will not keep the body lift. its already to tall.

Yea, good times huh jared haha its in the forsale section along with everything else !

Rear axle will most likely be a 14bolt or a d70, me a kevin (2002fx4) spotted a dana 70 hd the other day.. but im not sure yet. rear will get 63" cheby leaves
Reply With Quote
  #10
Old 04-13-2010
outdoorsman's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
With 39's I'd run deeper than 5.13s. I have 5.13s with my 35s and they're a great matchup for me. Should be a monster once you're done!
Reply With Quote
  #11
Old 04-13-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
damn...goin big.

but hey, didnt ur frame used to be like boxed up in the front? i think u had a stinger with that?
Reply With Quote
  #12
Old 04-13-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
gonna be an awsome build!
Reply With Quote
  #13
Old 04-13-2010
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
blac kranger.. preview of what i want in some future....
Reply With Quote
  #14
Old 04-13-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
screw the 14 bolt... i think they are overrated IMO!!!! run a Sterling 10.25, the only disadvantage to the 14b is that it has one less pinion support bearing which only really matters if your running upwards of 400 hp... the Sterling has 2-2.5 inches more of ground clearance... plus, the 14b weighs 558 lbs and the Sterling is only 310, you dont want that boat anchor under your ranger! what year is the D60 out of?
Reply With Quote
  #15
Old 04-13-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by wellcom2knoxvile View Post
screw the 14 bolt... i think they are overrated IMO!!!! run a Sterling 10.25, the only disadvantage to the 14b is that it has one less pinion support bearing which only really matters if your running upwards of 400 hp... the Sterling has 2-2.5 inches more of ground clearance... plus, the 14b weighs 558 lbs and the Sterling is only 310, you dont want that boat anchor under your ranger! what year is the D60 out of?
maybe he does...more ground stability lol
Reply With Quote
  #16
Old 04-13-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice start!
Reply With Quote
  #17
Old 04-13-2010
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
Congrats on getting started. Good luck with the build.
Reply With Quote
  #18
Old 04-13-2010
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by wellcom2knoxvile View Post
screw the 14 bolt... i think they are overrated IMO!!!! run a Sterling 10.25, the only disadvantage to the 14b is that it has one less pinion support bearing which only really matters if your running upwards of 400 hp... the Sterling has 2-2.5 inches more of ground clearance... plus, the 14b weighs 558 lbs and the Sterling is only 310, you dont want that boat anchor under your ranger! what year is the D60 out of?
89 f350

Ill look into the sterling.. thanks for the tip..do they make disc brake brackets for it?

ill have to look.
Reply With Quote
  #19
Old 04-13-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
Quote:
Originally Posted by ranger View Post
89 f350

Ill look into the sterling.. thanks for the tip..do they make disc brake brackets for it?

ill have to look.
ok, so you need the sterling 10.25 not the 10.5... yes they make disc brake brackets for it.
Reply With Quote
  #20
Old 04-13-2010
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
stuff for the 14 bolt is cheap though too haha, is the 10.25 full float? thats what i want.
Reply With Quote
  #21
Old 04-13-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
here is from the vendor on pirate...

Ford Sterling Disc Brake Bracket from Ruffstuff! - Pirate4x4.Com Bulletin Board

here is for the sterling axle, 84-94'

Ford Sterling Disc Brake Bracket, '84-'94 [Sterling] - $50.00

and then there are generic brackets from ruffstuff that are weld on...

Disc Brake Adapters
Reply With Quote
  #22
Old 04-13-2010
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
thanks man, ill look into the axle shortly, if i dont like it, 14 bolt, never though about getting a sterling though :/
Reply With Quote
  #23
Old 04-13-2010
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
What's the fate of the RCD?

And awesome project!!
Reply With Quote
  #24
Old 04-13-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by 0RangerEdge2 View Post
What's the fate of the RCD?

And awesome project!!
hes got if in the classifieds already
Reply With Quote
  #25
Old 04-13-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
buy my leafs! haha they are jeys custom alcans based off a waggy pack but shortened and have a 4" lift or so.


just sayn.. but yeah lookn good!
Reply With Quote
