Project Search and Rescue - Page 22 - Ranger-Forums - The Ultimate Ford Ranger Resource


Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

Reply

LinkBack Thread Tools Search this Thread
  #526
Old 03-18-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by 01RangerEdge View Post
Stripping the frame for my SAS was huge pain, a plasma torch helped a ton though
I was searching Craig's list for a deal on a plasma cuter after cutting the first one off!
Reply With Quote
  #527
Old 03-18-2015
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
looking good! I got surgical with a sawzall when I did mine like Adrian said. good blades are where its at, and its nice sometimes not having a **** load of sparks flying all over your engine bay.
Reply With Quote
  #528
Old 03-20-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Got the fab work done on the shock hoops yesterday, and have them tacked in place. Had to sleeve plate and gusset all the parts that were cut off the frame. Now I came reinforce my a arm pockets and get the a arms mocked up so I can check clearances.

If that's all good I will disassemble and finish weld everything. Then paint and final assembly.

Fun stuff
Reply With Quote
  #529
Old 03-20-2015
boyd_835's Avatar
Member

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
you should put those headers on while you got that all opened up
Reply With Quote
  #530
Old 03-20-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by boyd_835 View Post
you should put those headers on while you got that all opened up
Sadly I cant until go to p[hase 2 of the supercharger. any more power increase and I risk leaning our the motor.

I did take the opportunity to change to my colder spark plugs to work better with the charger.

was a breeze going through the fender well.


got some more work done today, cycled both sides of the suspension and every thing fits and mounts up. now I just need to pull it all apart and finish weld the hoops, a arm mount holes and A arm brackets.

lots of welding to do.





Attached Thumbnails
Project Search and Rescue-4e829207-e943-4b70-8c99-be1c0b8cfcd0_zpsapbecwob.jpg   Project Search and Rescue-d9dffbc8-0751-474e-b4dd-e60d119394a1_zpsnlthuyq0.jpg   Project Search and Rescue-2b8a16c2-05b8-43f2-8ea9-bf74b73d5961_zpsxy7ndrqm.jpg
Reply With Quote
  #531
Old 03-20-2015
boyd_835's Avatar
Member

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Looks Good !
Reply With Quote
  #532
Old 03-21-2015
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,343
Looks good, Mike!
Reply With Quote
  #533
Old 03-21-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Getting closer! Everything is welded, got the cvs rebuilt (minus a few boot clamps) a arm knuckles and hubs installed. Bolted in a coil-over to make sure it fit.
Attached Thumbnails
Project Search and Rescue-image-1265445367.jpg
Reply With Quote
  #534
Old 03-21-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Also these comfy things arrived!
Attached Thumbnails
Project Search and Rescue-image-3417875443.jpg
Reply With Quote
  #535
Old 03-22-2015
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Woo, whats happening with fenders? Sorry if i missed it
Reply With Quote
  #536
Old 03-22-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by BLK02 View Post
Woo, whats happening with fenders? Sorry if i missed it
Thats a very good question! I like the Mcqueen glass a lot but I am concerned the first I do take the truck out I am going to crack the fenders on a tree lol.

so I am thinking of other options. I am leaning toward building a set of tube fenders jeep style. not sure what it will look like but with some major fender trimming and some fabrication work It could be something very unique.

would look somthing like this but with a larger cut out in the fender.





thoughts?
Attached Thumbnails
Project Search and Rescue-tubefenders_zpsg83v0o0m.jpg   Project Search and Rescue-tubefendersfront1_zpstymvivwb.jpg
Reply With Quote
  #537
Old 03-22-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,156
I think it's a really cool idea that would look nice if you plan it out well and do it right. It may take a few revisions to get it "dialed in" but I say go for it.

Edit: spelling

Last edited by bravetitan24; 03-22-2015 at 05:20 PM.
Reply With Quote
  #538
Old 03-22-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by bravetitan24 View Post
I think it's a really cool idea that would like nice if you plan it out well and do it right. It may take a few revisions to get it "dialed in" but I say go for it.
That's my thought, worst that happens is I scrap the idea and buy glass
Reply With Quote
  #539
Old 03-22-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,156
Quote:
Originally Posted by mikerider View Post
That's my thought, worst that happens is I scrap the idea and buy glass
And if you scrap it to buy glass, I don't imagine you'd have a whole lot invested into them outside of the fabrication time. Your costs should be relatively low.
Reply With Quote
  #540
Old 03-22-2015
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Would be cool! Youll lose bump travel but its not toooo important up here. I would skip the mpd glass idea as they WILL certainly crack and they are too nice/pricey to be throw aways.
Reply With Quote
  #541
Old 03-22-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by BLK02 View Post
Would be cool! Youll lose bump travel but its not toooo important up here. I would skip the mpd glass idea as they WILL certainly crack and they are too nice/pricey to be throw aways.
Ya the glass would be too nice to scrap. I think I can still get most if not all of my bump travel will just take some work with the cutoff whee to make the tires fit.
Reply With Quote
  #542
Old 03-23-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Got the missing link for my steering today. Had a buddy turn the spacer I was missing. This little guy makes 4 to adapt the 3/4in heim to the new steering clevis to eliminate the factory inner ball joint.
Attached Thumbnails
Project Search and Rescue-image-865385457.jpg
Reply With Quote
  #543
Old 03-25-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
steering is in, system is bleed. cycled the suspension a bunch today setting up bump stops and limit straps, paint is drying on the mounts I welded in, next will be install everything

then its just brake lines, a full nut and bolt torque down and some fender work to go!

hoping to have the truck on its own weight this weekend.
Reply With Quote
  #544
Old 03-26-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Seats are in! Ran out of metal so only the driver side has a seat belt but will fix that tomorrow
Attached Thumbnails
Project Search and Rescue-image-486094386.jpg
Reply With Quote
  #545
Old 03-28-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
It lives!!!!!!
Attached Thumbnails
Project Search and Rescue-image-692143803.jpg
Reply With Quote
  #546
Old 03-28-2015
BACKCOUNTRYEDGE02's Avatar
Member
iTrader: (1)

Join Date: Feb 2012
Location: Laramie, WY
Posts: 386
Nice job mike looks great
Reply With Quote
  #547
Old 03-28-2015
green99's Avatar
Member

Join Date: Apr 2010
Location: OR
Posts: 199
Nice! Need more pics.
Reply With Quote
  #548
Old 03-29-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,156
Sweet!
Reply With Quote
  #549
Old 04-01-2015
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504

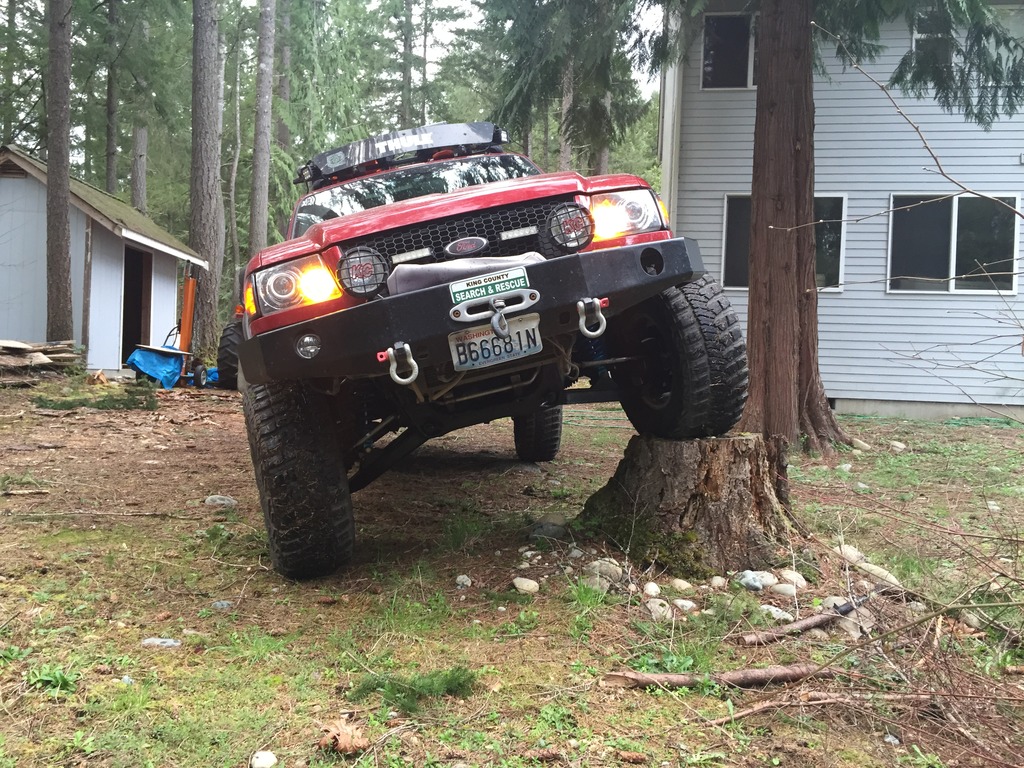

got the alignment taken care of, and got a chance to put it in 4wd to make sure everything was happy. so far very pleased with the results.

drove up this stump like it wasn't there and still had lots to give. (need to find a bigger stump lol





Attached Thumbnails
Project Search and Rescue-0ca09175-918e-4dcd-9a8f-a0a1105b6494_zpsp7wmqtmg.jpg   Project Search and Rescue-700bd3b2-5abd-4264-9aa6-45f05eb939f0_zpswglaxxmt.jpg   Project Search and Rescue-4d33dab2-8dec-4215-bccd-0e843779bf3a_zpsizuxap9o.jpg
Reply With Quote
  #550
Old 04-01-2015
redranger04g's Avatar
Member

iTrader: (2)

Join Date: Apr 2007
Location: Placentia, CA
Posts: 928
Looks great!

On a side note, what happened to your other fog light?
Reply With Quote
