  #301
Old 06-12-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504

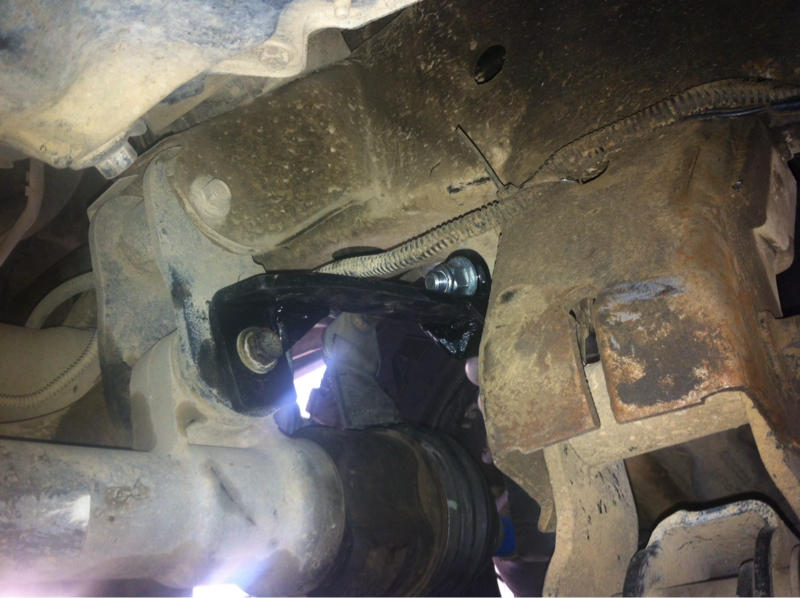

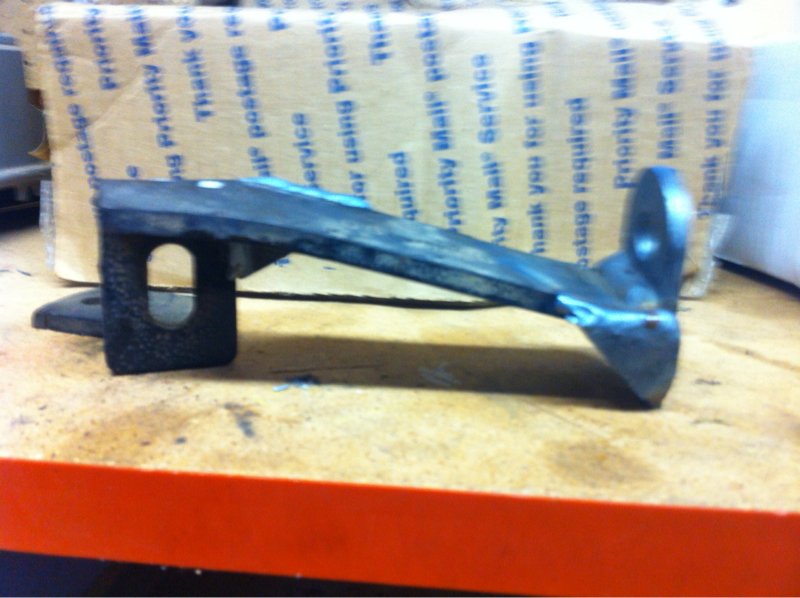

Beefed up the diff support bracket from superlift from my cv failures it looks to be the diff shifting toward the passenger side the over extends the driver side cv fusing it to separate and break
Attached Thumbnails
Project Search and Rescue-image-2476808367.jpg   Project Search and Rescue-image-3613175201.jpg   Project Search and Rescue-image-2705032153.jpg   Project Search and Rescue-image-1245351550.jpg   Project Search and Rescue-image-1821659418.jpg

Reply With Quote
  #302
Old 06-12-2014
moddbox's Avatar
Member

Join Date: Jan 2014
Location: BC
Posts: 48
Nice work on the bracket. Hope it helps extend the life of your replacement CVs.

Unfortunately CV joints often don't stand up well in lifted applications. The increased angle is really hard on them. Too bad the Thompson Coupler is still under patent... otherwise we'd start making really sick offroad CV joints :)
Reply With Quote
  #303
Old 06-12-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by moddbox View Post
Nice work on the bracket. Hope it helps extend the life of your replacement CVs. Unfortunately CV joints often don't stand up well in lifted applications. The increased angle is really hard on them. Too bad the Thompson Coupler is still under patent... otherwise we'd start making really sick offroad CV joints :)
It's actually not an angle issue that I am fighting it's was a translational issue, and a slotted hole from wear issue. The superlift does a good job maintaining the factory cv geometry but does not hold the diff nearly as secure as the rcd.

I broke both cvs in reverse which when torque is applied shifted the diff to the passenger side over extending the joint and causing the failure. The stock superlift bracket was not stiff enough for my application and would slide in its mounting hole on the bump stop bracket under heavy load.

This should fix the issue but time will tell for sure. Thompson joints would be nice though :)
Reply With Quote
  #304
Old 06-12-2014
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
thompson joints wouldnt work, need plunging CV joints

anyway beefed up xmember looks good man

Last edited by BLK02; 06-12-2014 at 09:03 PM.
Reply With Quote
  #305
Old 06-12-2014
joshyddog's Avatar
Member

Join Date: Jan 2012
Location: puyallup, wa
Posts: 156
Im going to check mine out!
Reply With Quote
  #306
Old 06-12-2014
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,343
I've always wondered about those diff drop brackets from superlift.. Glad to see you came up with an idea to keep the diff from moving side to side.
Reply With Quote
  #307
Old 07-12-2014
moddbox's Avatar
Member

Join Date: Jan 2014
Location: BC
Posts: 48
Quote:
Originally Posted by 00GreenRanger View Post
I've always wondered about those diff drop brackets from superlift.. Glad to see you came up with an idea to keep the diff from moving side to side.
x2
Reply With Quote
  #308
Old 07-12-2014
moddbox's Avatar
Member

Join Date: Jan 2014
Location: BC
Posts: 48
@mikerider (and anyone else interested)

If you plan to go to a higher boost... check out our new "step-by-step" tuning blog. This is actually applicable for all custom supercharger/turbo installs and even naturally aspirated mods that could use some extra power/tweaking.
Check it out here: Moddbox Tuning Blog
Reply With Quote
  #309
Old 07-13-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by moddbox View Post
@mikerider (and anyone else interested)

If you plan to go to a higher boost... check out our new "step-by-step" tuning blog. This is actually applicable for all custom supercharger/turbo installs and even naturally aspirated mods that could use some extra power/tweaking.
Check it out here: Moddbox Tuning Blog
I have been studying it intently since I saw you guys post that on face book.

I am putting my plans together. Thanks for the tip!
Reply With Quote
  #310
Old 07-14-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504

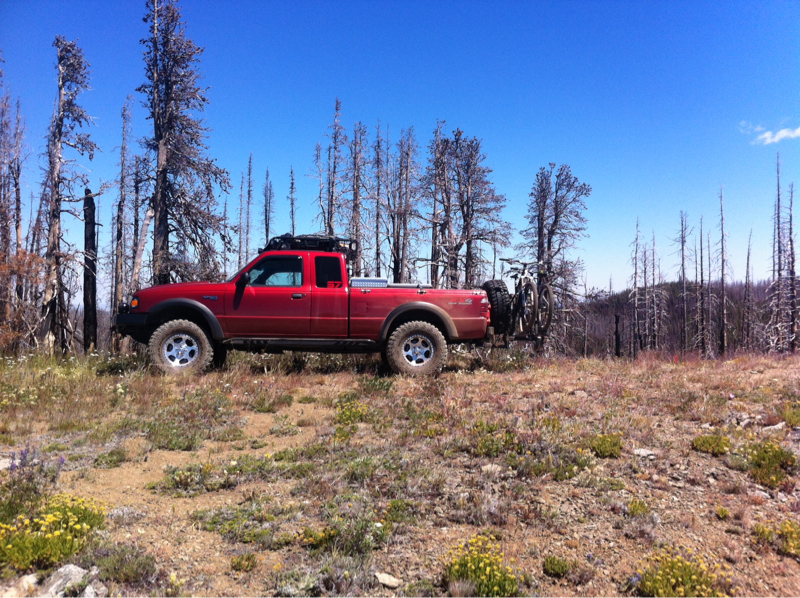

Spent a week camping boating and wheeling in Wenatchee, got to explore some great areas and avoided a ton of traffic taking FS roads instead of the mountain passes.
Attached Thumbnails
Project Search and Rescue-image-1054937148.jpg   Project Search and Rescue-image-4003238320.jpg   Project Search and Rescue-image-2528022790.jpg   Project Search and Rescue-image-4033477557.jpg   Project Search and Rescue-image-2853241266.jpg

Project Search and Rescue-image-1436147235.jpg   Project Search and Rescue-image-2584765709.jpg   Project Search and Rescue-image-451661383.jpg
Reply With Quote
  #311
Old 07-14-2014
Member

Join Date: Apr 2014
Location: Chelsea
Posts: 8
Bumper

Hey man I'm from canada and i would have to re mortgage the house to get those bumpers up here and was wondering If you could take some pictures of how the bumpers mount and some measurements that would be greatly appreciated have a good one man love the truck
Reply With Quote
  #312
Old 07-15-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by Qwas540 View Post
Hey man I'm from canada and i would have to re mortgage the house to get those bumpers up here and was wondering If you could take some pictures of how the bumpers mount and some measurements that would be greatly appreciated have a good one man love the truck
Give Mike at C4x4 a call and talk to him about shipping options mine only ran around $100 to get across the country not sure what duty would be but the can be bought unpainted which I would think would mean it is in a lower bracket.

I don't want to rip off mikes hard work but I can get you some mounting pics. maybe find a shop close to the border you can ship to then drive down and install them then drive home.
Reply With Quote
  #313
Old 07-15-2014
Member

Join Date: Apr 2014
Location: Chelsea
Posts: 8
Beleive me I know how good he does his work and would love to work with him I sent him an email and in shipping alone for the front bumper it would be $325 before taxes and duty as I said I would love to order from him but holy crap haha
Reply With Quote
  #314
Old 07-15-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by Qwas540 View Post
Beleive me I know how good he does his work and would love to work with him I sent him an email and in shipping alone for the front bumper it would be $325 before taxes and duty as I said I would love to order from him but holy crap haha
ya shipping can be a pain, just look at the bright side even after 325 in shipping the bumper is still cheaper then your standard run of the mill ARB
Reply With Quote
  #315
Old 07-15-2014
Member

Join Date: Apr 2014
Location: Chelsea
Posts: 8
I talked to a ugh who lives in Alberta with the front bumper he said a lot of hidden fees and by the time it was all said and done it was over $1700 I just can't justify that gota do coil overs first haha
Reply With Quote
  #316
Old 07-15-2014
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Check out this thread...

https://www.ranger-forums.com/fabric...inally-140408/

Might help on the pictures.

C4x4 makes great bumpers, quality is top notch, steel thickness is heavy duty not some of the thin stamped stuff.

He made me a rear bumper for my stepside also, can only say great work by Mike.

Shipping, anyway to pick it up at the border somehow, a friend, maybe a site member ?

Here is the rear bumper thread, a lot of picture carried over but you will get the jest.

https://www.ranger-forums.com/fabric...x4-fab-136698/

Luck

Added:
The SuperLift Lift Kits do a good job on the CV alignment the only thing I noticed missing were the two rear support to stop the front and rearward motion of the dropped carriage assembly.
Shadow 90? Made the Coil Over Brackets and also made some of the rear bars and brackets, he did great work.

Last edited by Scrambler82; 07-15-2014 at 09:13 PM. Reason: Added info on rear support bars.
Reply With Quote
  #317
Old 07-15-2014
Member

Join Date: Apr 2014
Location: Chelsea
Posts: 8
Great thanks for the info and pictures god it looks good UHg hate living In canada for things like this. On the lift side of things I don't want a huge ammount of lift but don't want to crank the bars much because the ride is stiff as it is at stock height couldn't imagine cranked.
Appreciate the help guys
Reply With Quote
  #318
Old 08-22-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Yesterday was a good day! Got out in the woods with some buddies to go ride some classic backcountry trails. Perfect weather and a amazing views.
Attached Thumbnails
Project Search and Rescue-image-1582035106.jpg   Project Search and Rescue-image-3274524904.jpg   Project Search and Rescue-image-2827212657.jpg   Project Search and Rescue-image-4228358358.jpg   Project Search and Rescue-image-4126477757.jpg

Project Search and Rescue-image-4252792723.jpg
Reply With Quote
  #319
Old 08-22-2014
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Awesome Views! Trucks looking good as well!
Reply With Quote
  #320
Old 08-31-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
finally wired a 220 out let this weekend so I can burn 1/4in thick metal with a single pass. I celebrated by fixing my coilover brackets, I have never been happy with the bolt location/ 1.25 width and shock angle, so I fixed all that.

old bushing was shot from not having enough shoulder on the bushing





proper 1.5in spacing and in line with the upper mount.



one side is painted and installed ned to do the other side tomorrow.
Attached Thumbnails
Project Search and Rescue-f74f59b5-c806-4760-aed3-0eae34122a0a_zps1nqoxge6.jpg   Project Search and Rescue-dbcef618-5a61-4c7c-b58e-fdad19d11e4e_zps4dnvfs9g.jpg   Project Search and Rescue-6db7c8d7-8e02-4c63-8d60-91f713415d80_zpstsgqyb5a.jpg
Reply With Quote
  #321
Old 08-31-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Nice. That sucks the bracket isn't in line from the get go
Reply With Quote
  #322
Old 08-31-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by 99offroadrngr View Post
Nice. That sucks the bracket isn't in line from the get go
It's not bad and work fine but it wears bushings and misalignment spacers quick
Reply With Quote
  #323
Old 09-01-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
did the other side yesterday, it was not in any better shape



what the old and new bushings look like.



tacked the tabs in place, installed the bushing in the shock then alinged it all in place and tack welded so everything is lined up perfect.



welding (pic makes this look off but tabs are perfectly inline)



Starting to look much better











also got a free hose reel from a friend and modified my welding cart. not pretty but pretty functional

Attached Thumbnails
Project Search and Rescue-e1dc8072-06f7-4c92-bf3f-5618ebf0280e_zpsvizjnpfv.jpg   Project Search and Rescue-49f3e8ee-2507-4f6a-a30c-cf06251cbbd0_zpsla6kp1zc.jpg   Project Search and Rescue-6f08f2d9-14f5-4411-bb82-6d1cb6f5640f_zpsvhyxvvck.jpg   Project Search and Rescue-0ddac528-b2c8-4f93-a6cb-0933d97be870_zpsfdngy60m.jpg   Project Search and Rescue-f89d8422-a211-49ea-aa93-0fa6607e130a_zps6o2mon6x.jpg

Project Search and Rescue-8e8e6a42-a880-4905-81b1-25271c2077d1_zpsushsglu1.jpg   Project Search and Rescue-8690bc2a-bb35-4a0b-83e2-c530f0541670_zpskcxev0cs.jpg   Project Search and Rescue-60473556-0c01-4604-a2ec-9eccb90843c0_zpsfccnwr1q.jpg   Project Search and Rescue-3ed6a54e-7805-451f-8660-d15eefea6c20_zpsl9zsxwig.jpg   Project Search and Rescue-fa69f9f5-0560-48ae-b0ca-52f81df8f7ec_zpsrzzpoujj.jpg

Reply With Quote
  #324
Old 09-01-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
damn man that bushing was toast lol. Nice work on fixing up the tabs!
Reply With Quote
  #325
Old 09-15-2014
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
In cab winch control added!
Attached Thumbnails
Project Search and Rescue-image-3908366865.jpg
Reply With Quote
