Project : Un-Ghetto a truck.

This truck has potential.. if only the owner would stop letting ricers destroy it.

I have this truck for about a week while its owner has gone on vacation. They are a member here and won't have a clue as to how it is going to look when they get back. I'm hoping it will be a total surprise and she doesn't have net access where shes going.

To Do list and timeframe.
To Do :
-OHC
-Fix the door where it was broken into
-Un-Ghetto the whole dash.
-Un-Ghetto the dashes wiring harness ( I about cried when I took a GOOD look at it ).
-Lower Billit grill insert. Its for an ' edge ' or 4x4 torsion front. It presently has NO way to mount to anything.
-Fix lower vailience
-Put on a powerdome hood
-Straighten the bumper AND its brackets
-Paint all the exterior parts and make the interior presentable.

I have ( roughly ) 1 weeks time to get it all done. I have some local help ( some are members here ). The paint was going to be about 100$ for the Oxford White and I was going to use the Urethans Clear coat I have here. She posted something about pinstriping.. Pinstriping is best on Acrylics or a harder based paint so.. 120$ later, I have a quart of Acrylic. I'm hoping that will be enough to do a Hood, Bumper/Vailence and a door ( Chris/Gumby.. will that be enough and should I change filters in my respirator from when I used it last a month ago?? ).

Anyway.. What I'm starting with..

Name:  ranger053.jpg
Views: 9
Size:  106.3 KB

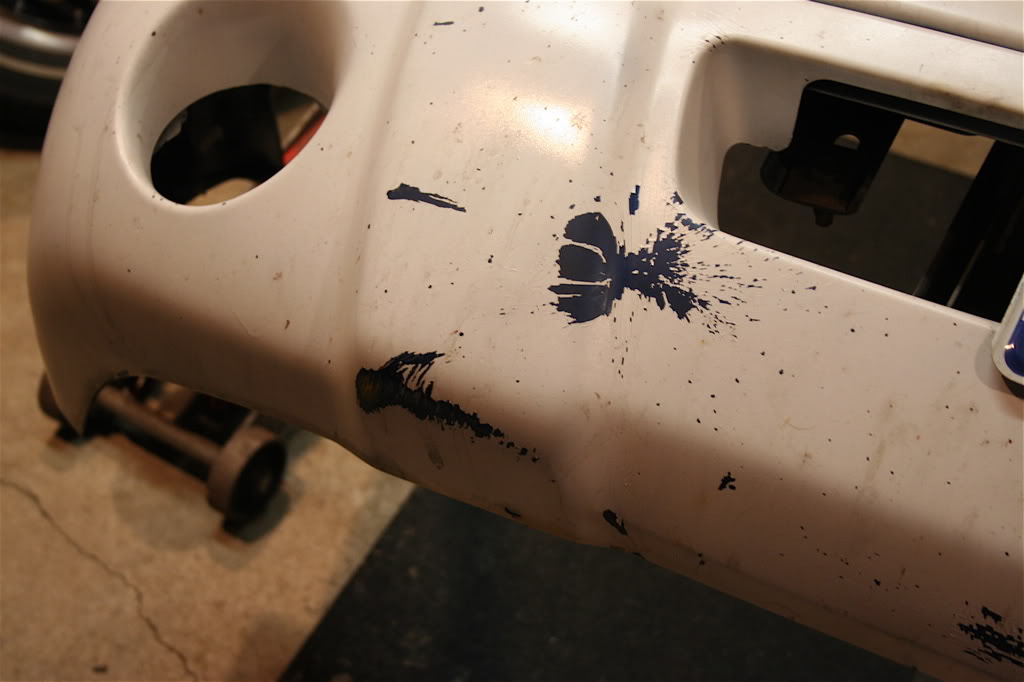

Name:  1.jpg
Views: 5
Size:  86.1 KB
Name:  2.jpg
Views: 8
Size:  62.2 KB

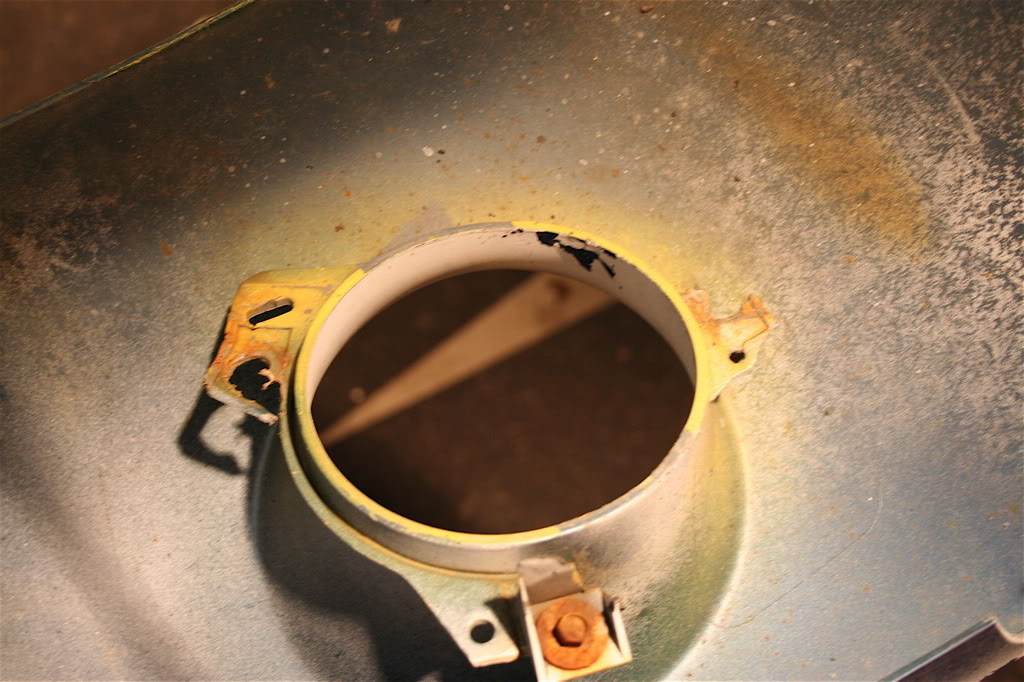

Fog light mount..
Name:  3.jpg
Views: 7
Size:  119.2 KB
This isn't cheap..
Name:  4.jpg
Views: 5
Size:  112.5 KB
Dupont Imron Paints and activators.
Reply With Quote
  #2
Old 07-31-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks like you have lot of work to do D.!
Reply With Quote
  #3
Old 07-31-2008
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
WOW D. you have your work cut out. I really don't know but aren't you suppose to use a special filter in your respirator when spraying Imron.
Reply With Quote
  #4
Old 07-31-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Nice...it's gonna look ILL! Is it gonna hve NOX!???

Just kidding there....shawna's gonna love it.
Reply With Quote
  #5
Old 07-31-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by casfz1 View Post
WOW D. you have your work cut out. I really don't know but aren't you suppose to use a special filter in your respirator when spraying Imron.
I THINK so, thus why I was asking the sites WYO Grad . Chris knows his stuff when it comes to painting and such :).
Reply With Quote
  #6
Old 07-31-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Awesome little project D, glad to see members helpin each other out!
Reply With Quote
  #7
Old 07-31-2008
evnmn3's Avatar
Member

Join Date: Jan 2006
Location: Buffalo, NY
Posts: 871
Whats ghetto about the dash. Or is it just that its not there?
Reply With Quote
  #8
Old 07-31-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
What happened to the gauge cluster?!? You've got alot of work and long nights ahead of you! Good luck, and I'll be rooting for you!
Reply With Quote
  #9
Old 07-31-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by evnmn3 View Post
Whats ghetto about the dash. Or is it just that its not there?
You should see INSIDE it. I thought Griggs had some taps in his wires... these arent even tapped.. stripped and twisted and wrapped in electric tape.

I THINK the dash is coming out now.
Reply With Quote
  #10
Old 07-31-2008
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Nice...I love a project...lol
Reply With Quote
  #11
Old 07-31-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by Johnbaum13 View Post
What happened to the gauge cluster?!?
She knows ' ricers '. Rochester has a LOT of them.. Its just a typical example of the import crowd in this area.

Quote:
You've got alot of work and long nights ahead of you! Good luck, and I'll be rooting for you!
Thanks.. going to need a cheering section for this one.
Reply With Quote
  #12
Old 07-31-2008
sambob117's Avatar
Member

Join Date: Nov 2006
Location: Rochester, NY
Posts: 1,124
can't wait to see your handiwork on her truck
Reply With Quote
  #13
Old 07-31-2008
D.
Unregistered User

Posts: n/a
What kind of pin-striping were you 2 planning to do? I need to know so I use the right paint. Ive seen some clear-finishes come OFF when people remove the pin-stripes when they grow bored of them.

Another problem I have seen is over time, the UV rays change the paints tone.. people remove the pin-stripes and viola! different colored stripe in the paint as it wasnt exposed.

Are you just going to use that auto-zone tape-type or paint them on?
Reply With Quote
  #14
Old 08-01-2008
TrailRateThisFx4's Avatar
Member

Join Date: Nov 2005
Location: Royal Oak, Michigan
Posts: 1,022
lol...roddy1...i was waiting for some one to say that...but anyways looks like you have alot of work cut out for you...good thing its in good hands and will get the proper work done on it thats much needed
Reply With Quote
  #15
Old 08-01-2008
Tearloch's Avatar
Member

Join Date: Apr 2007
Location: Niagara Falls soon....
Posts: 467
D. i should be at your place around 11-12 on saturday.
Reply With Quote
  #16
Old 08-01-2008
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Good luck with it D. I wish I had friends like you who would fix up my truck while I was away.
Reply With Quote
  #17
Old 08-01-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by D. View Post
You should see INSIDE it. I thought Griggs had some taps in his wires... these arent even tapped.. stripped and twisted and wrapped in electric tape.

I THINK the dash is coming out now.
What's wrong with the twisted method?
Reply With Quote
  #18
Old 08-01-2008
sambob117's Avatar
Member

Join Date: Nov 2006
Location: Rochester, NY
Posts: 1,124
Quote:
Originally Posted by D. View Post
What kind of pin-striping were you 2 planning to do? I need to know so I use the right paint. Ive seen some clear-finishes come OFF when people remove the pin-stripes when they grow bored of them.

Another problem I have seen is over time, the UV rays change the paints tone.. people remove the pin-stripes and viola! different colored stripe in the paint as it wasnt exposed.

Are you just going to use that auto-zone tape-type or paint them on?
If she still wants to do it it will be the tape type stripe
Reply With Quote
  #19
Old 08-01-2008
pacodiablo's Avatar
Member

Join Date: Jun 2004
Location: Charlotte, NC
Posts: 1,126
Quote:
Originally Posted by seed60 View Post
What's wrong with the twisted method?
Connections can easily come apart if they are just twisted and taped up. Soldered connections are the way to go in a car IMO...solder can stand up to vibration much better.
Reply With Quote
  #20
Old 08-01-2008
S1att3r's Avatar
Member

Join Date: Nov 2007
Location: Emory, TX
Posts: 226
good luck D
Reply With Quote
  #21
Old 08-01-2008
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
My control arms and flipkit would go nicely along with the new updates
Reply With Quote
  #22
Old 08-01-2008
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
is that quart of clear "ready to spray" or will you be reducing it?

we talked about sprayin clear and isocyanates, and how you should be using a fresh air hood for all clear work.....get the best damn filters you can buy if youre only wearing a respirator, 3M makes some specifically for isocyanates i think. problem is, since isocyanates are attracted to moisture, they will enter thru your eyeballs and skin as well as mouth/nose breathing.
Reply With Quote
  #23
Old 08-01-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by pacodiablo View Post
Connections can easily come apart if they are just twisted and taped up. Soldered connections are the way to go in a car IMO...solder can stand up to vibration much better.
Also, less resistance and less of a current draw on the whole system. It all adds up.
Reply With Quote
  #24
Old 08-01-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by gumby View Post
is that quart of clear "ready to spray" or will you be reducing it?
Its a 4:1, needs activator. Its Imron.

Quote:
we talked about sprayin clear and isocyanates, and how you should be using a fresh air hood for all clear work.....get the best damn filters you can buy if youre only wearing a respirator, 3M makes some specifically for isocyanates i think. problem is, since isocyanates are attracted to moisture, they will enter thru your eyeballs and skin as well as mouth/nose breathing.
I have a whole suit I borrowed from the collision shop at work. I also picked up fresh filters for my mask.

Welp.. Out to the shop. I'm supposed to take the bumper to Daves and have it blasted with pool sand. I'm wondering if its a light enough sand to trust on a vailience..
Reply With Quote
  #25
Old 08-01-2008
D.
Unregistered User

Posts: n/a
Day 2 start :
Didn't get to blast that bumper, going to do it sunday.. theres PLENTY of things to do right now.

I did the passengers side door. Some ****** decided to break in and steal her stereo. Sorry, If your white and living in a ' bad ' neighborhood, its sometimes best to NOT show off anything. The way they did it was kinda brutal IMO. They took a dead-blow type of device right under the lock and tore the doorskin apart to get the lock out of the door itself. She said she found the lock laying on the ground near her truck.

Lock and hole in door.
Name:  21.jpg
Views: 8
Size:  62.4 KB

First round with filling some of it in. I'm just doing small tacs and letting them cool as I don't want to chance warping anything. Slow feed, low voltage, .023 wire using co2.
Name:  22.jpg
Views: 7
Size:  143.0 KB

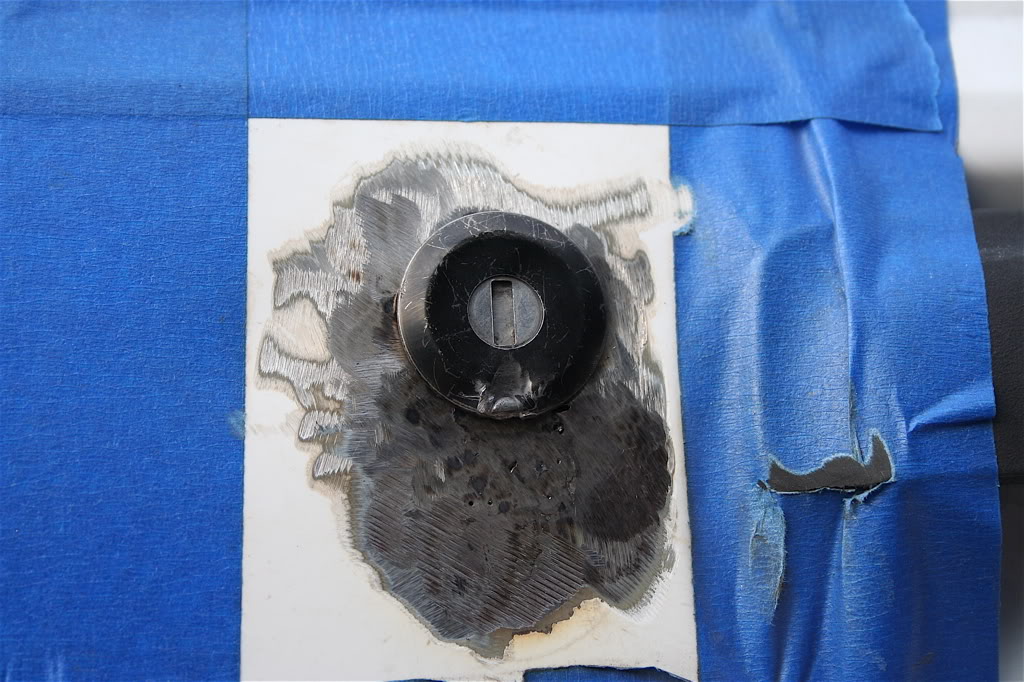

Done and ground down some.
Name:  23.jpg
Views: 6
Size:  144.3 KB

Name:  24.jpg
Views: 6
Size:  47.7 KB

Miller is my friend :)
Name:  25.jpg
Views: 8
Size:  78.5 KB

I need to get some glaze to smooth out the area before priming it and getting it ready to be painted. I also need to go pick up some fiberglass hardener for filling in the dash panels from all the holes that have been drilled and all the parts that were broken off.. all those little tabs that hold everything together..

Off to the store mates..
Reply With Quote
