  #26
Old 03-20-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Subscribed!!
Reply With Quote
  #27
Old 03-20-2009
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
cant wait to see the finished product. ill be watching this. good luck
Reply With Quote
  #28
Old 03-20-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Just something to look out for......

I've read some things that said the older linkages 1350 and 1354 up to 97 will not work with the new manual case (02-03) without some modifications. I'm not sure on this because I used the 02-03 linkage but just throwing that out there.

Also you mentioned using the boot/bezel setup similar to what I have. Theres 2 different boots/bezels....the offsets between the 2 shifters are different. Since you're using a different linkage than what I used you might need the boot/bezel with more offset. The boots are the same, but the bezels and floor plates are different. If you could find one of each type I'd grab them both and just use the best fitting one.

Heres some pics of what I'm talkin about if you haven't already seen these.

Mine: found in older rangers and BII's, not sure of the years but up to '92 I believe. Mine is from a 91.


The more offset one, found in the 93-97 rangers.
Reply With Quote
  #29
Old 03-20-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
So what is the main advantage for the manuel t-case over the electric?
Reply With Quote
  #30
Old 03-20-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
^^ALWAYS having 4x4....none of this "why wont it go into 4lo" or "i can't get it into 4wd" bs with bad electronics(switches and shift motors). Plus, it's bad ***. lol.




subscribed as well....
Reply With Quote
  #31
Old 03-20-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Stoked to watch this man! I hope one day my truck will be like yours haha. "I wanna be like Donnie!"

D, sell me that shifter now!
Reply With Quote
  #32
Old 03-20-2009
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
Quote:
Originally Posted by seed60 View Post
Subscribed!!
x2,good luck with the swap
Reply With Quote
  #33
Old 03-20-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
More pics.

Here is my new to me shifter boots from a xterra? i think, honestly dont remember.

And the 2 different linkages made for the case.

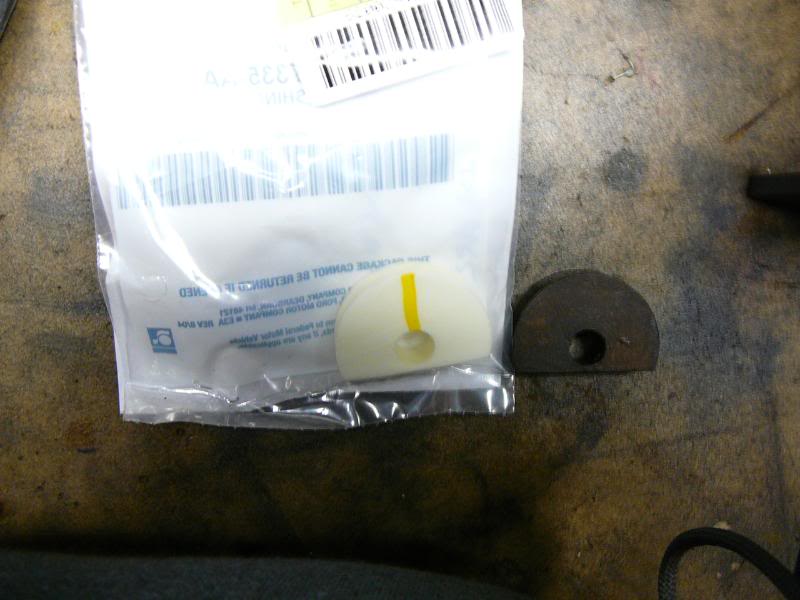

I posted this up already, the bushing.
Name:  DonnysTruck032.jpg
Views: 11
Size:  57.2 KB

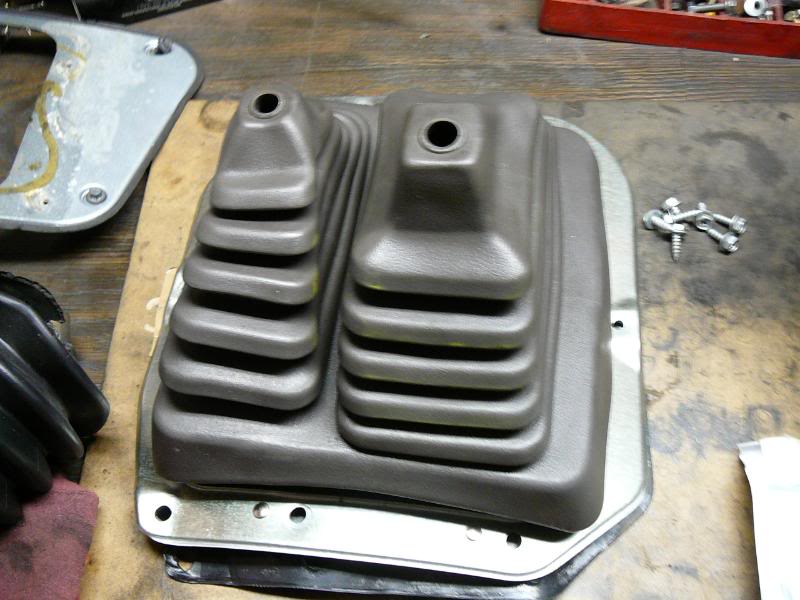

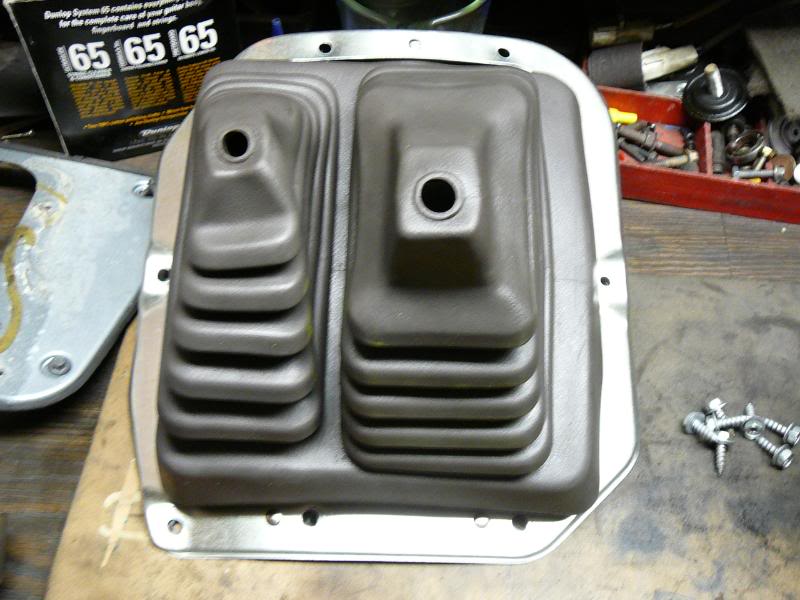

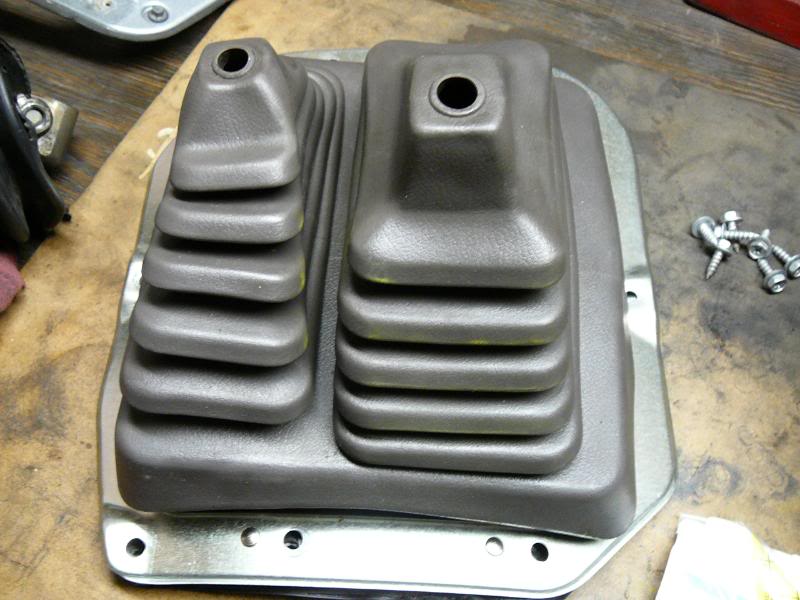

Here is the boots and bezel from the nissan.
Name:  DonnysTruck031.jpg
Views: 12
Size:  71.6 KB

Name:  DonnysTruck038.jpg
Views: 11
Size:  70.4 KB

Name:  DonnysTruck034.jpg
Views: 15
Size:  70.7 KB

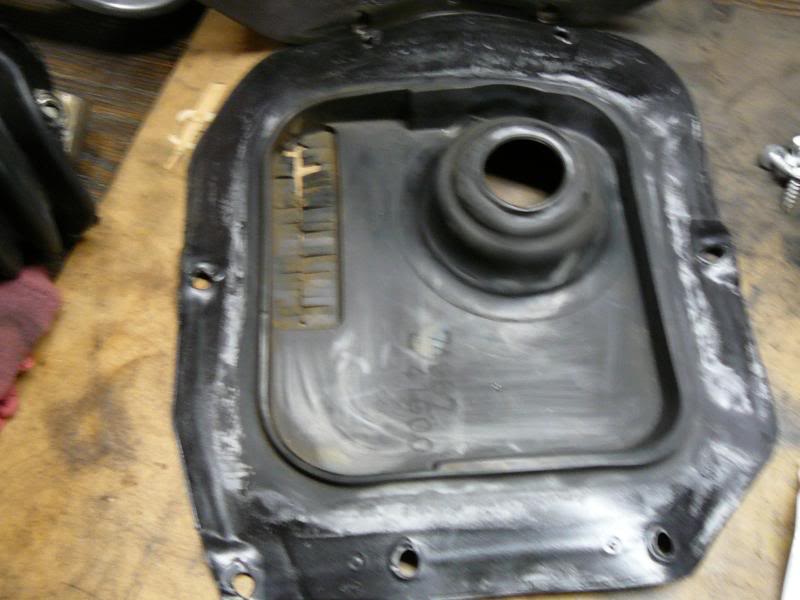

Name:  DonnysTruck036.jpg
Views: 14
Size:  58.7 KB

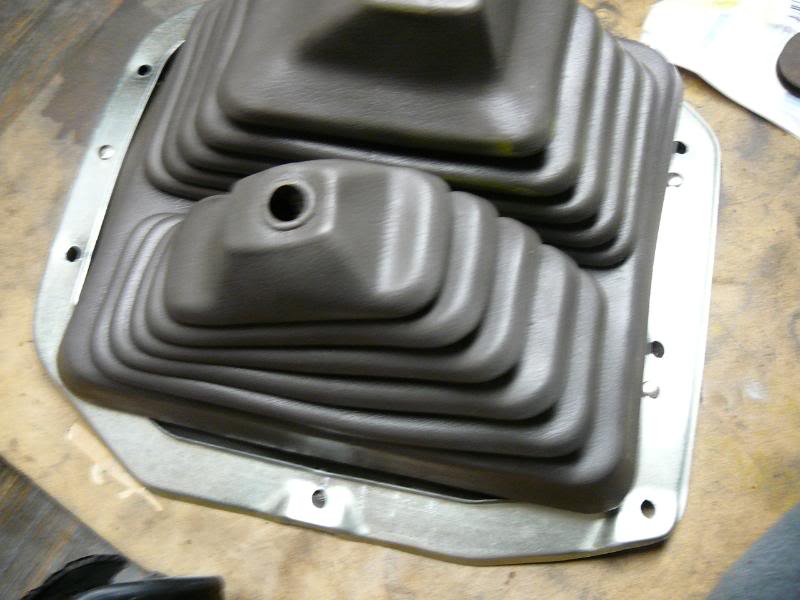

Name:  DonnysTruck035.jpg
Views: 12
Size:  58.3 KB

Name:  DonnysTruck036.jpg
Views: 14
Size:  58.7 KB

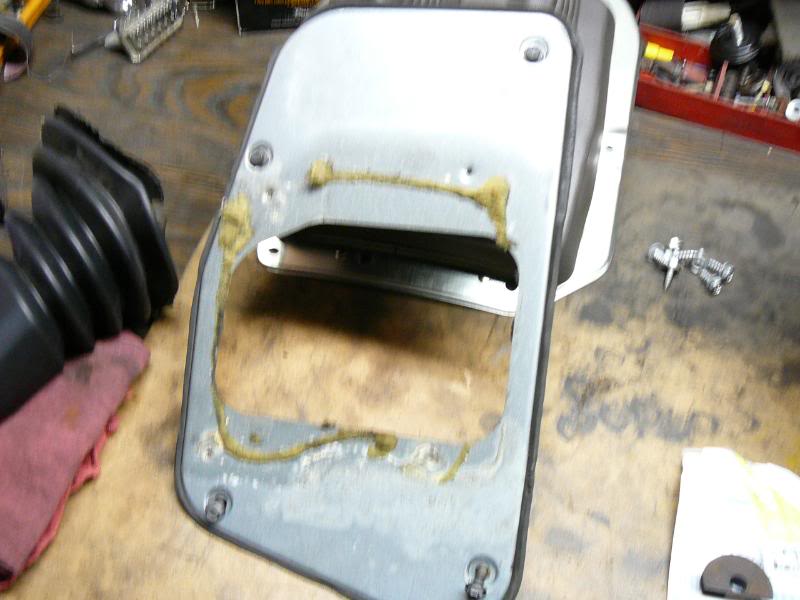

Got this out of a 94? ranger with twin sticks. Dont know if it will work or not. But honestly dont care.
Name:  DonnysTruck039.jpg
Views: 12
Size:  58.8 KB


Now the differences between the linkages.

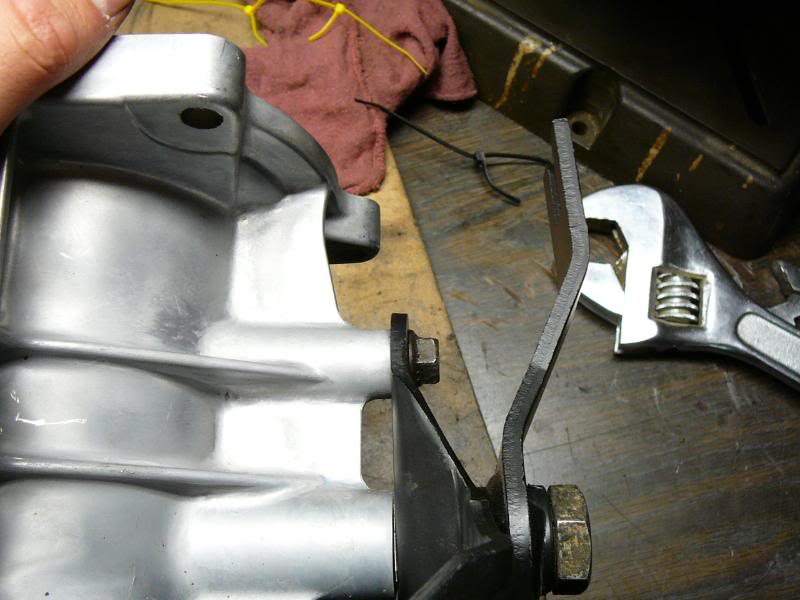

Here you can see the linkage bends to the right. This one would need to be modified to work. or move the "leg" from the t-case and flip it around.
Name:  DonnysTruck043.jpg
Views: 11
Size:  61.2 KB

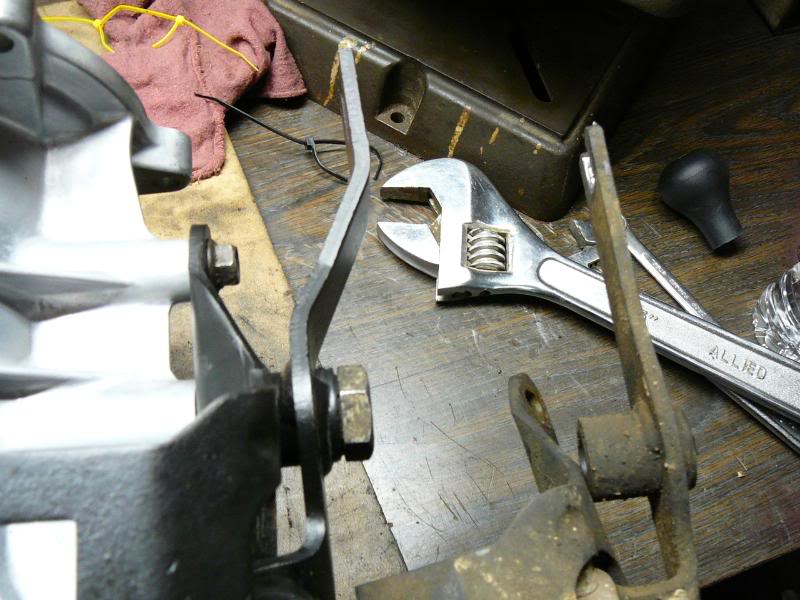

Here you can see the linkage on the right is straight with no bends, this is the one i am going to use.
Name:  DonnysTruck044.jpg
Views: 11
Size:  78.2 KB

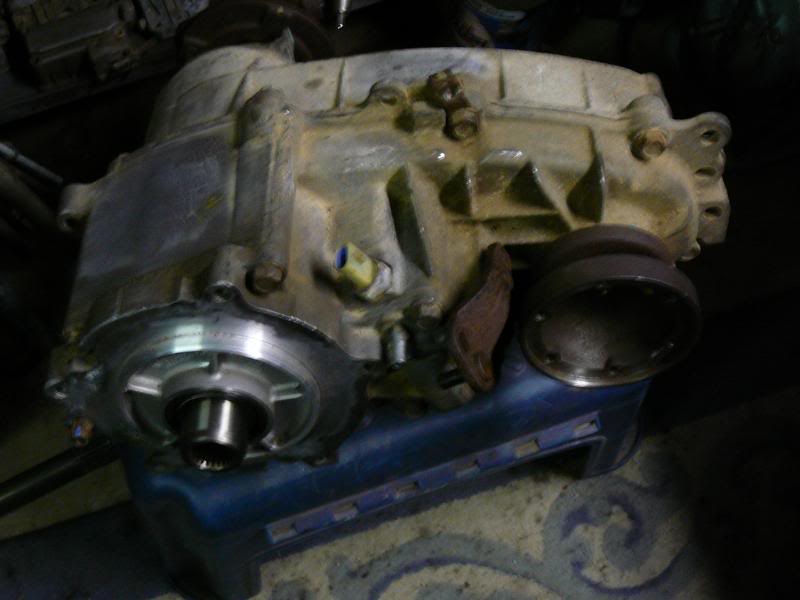

Naked T-case
Name:  DonnysTruck041.jpg
Views: 11
Size:  47.6 KB

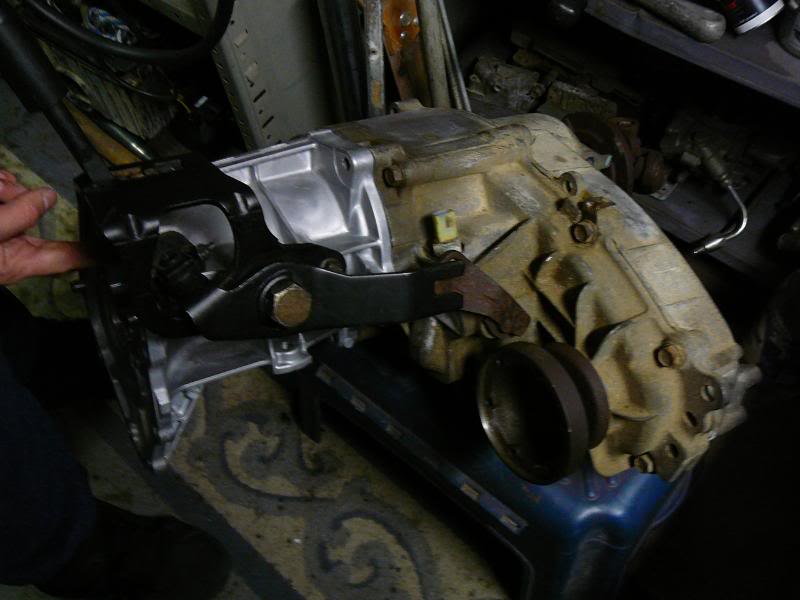

T-case with tailhousing, and linkage (the linkage in this pic will not be used.)
FWIW, its not bolted to the case. I am holding it up to the case.
Name:  DonnysTruck042.jpg
Views: 16
Size:  53.8 KB

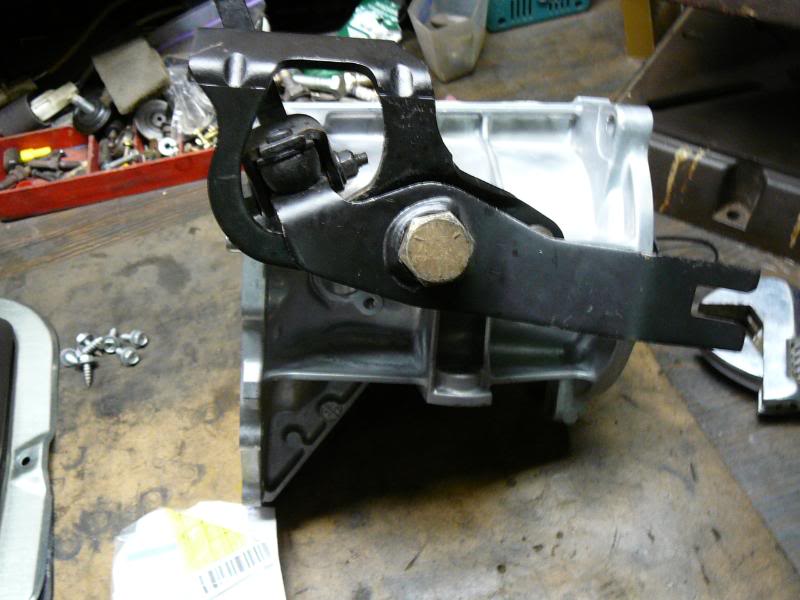

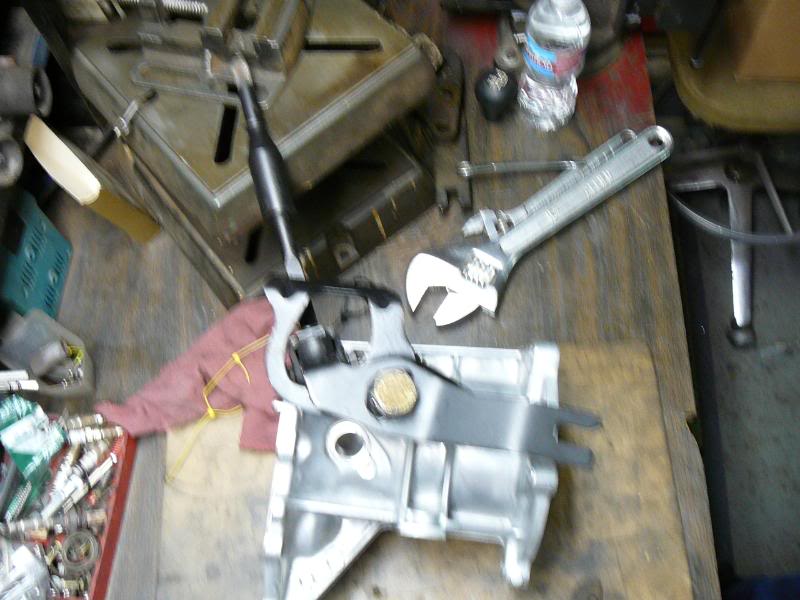

Here are some pics of the linkage bolted up to the extension housing. Again, with the wrong linkage.

Name:  DonnysTruck028.jpg
Views: 12
Size:  68.1 KB

Name:  DonnysTruck029.jpg
Views: 11
Size:  63.7 KB

Name:  DonnysTruck029.jpg
Views: 11
Size:  63.7 KB

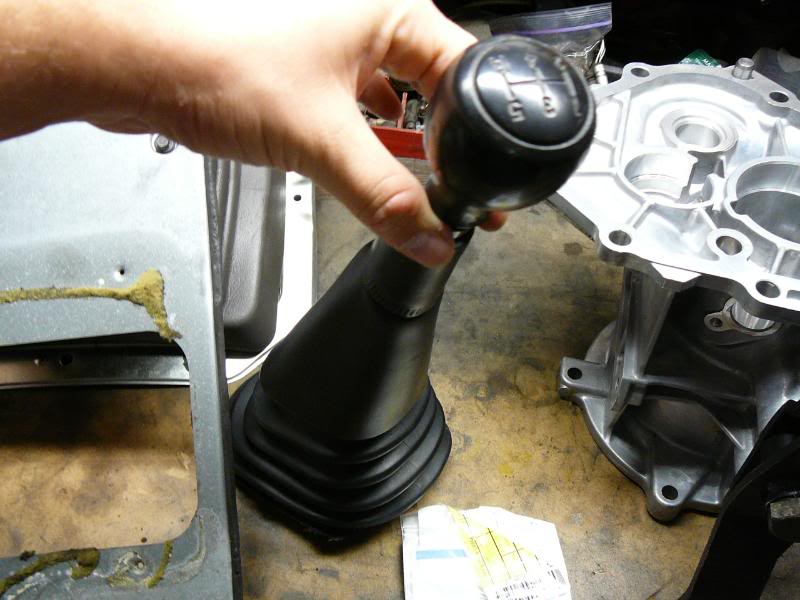

Stock shifter removed in favor of FX4 shifter.

Name:  DonnysTruck040.jpg
Views: 12
Size:  68.0 KB
Attached Images
File Type: jpg DonnysTruck036.jpg (58.7 KB, 5 views)
File Type: jpg DonnysTruck029.jpg (63.7 KB, 4 views)
Reply With Quote
  #34
Old 03-20-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Going to hit up a few JY tomorrow to find a make shift shifter, until i can afford the fx4 one(if i decide to get it.

Also looking for the radio bezel with out the 4x4 control, with fog lights.
Reply With Quote
  #35
Old 03-22-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Uhhh Donnie.... WTF DUDE!
Reply With Quote
  #36
Old 03-22-2009
Member

Join Date: Feb 2009
Location: White Plains, NY
Posts: 7
I don't get it, what are the two different linkages? They are both 1-piece lever linkages, so neither of them were for a FX4 chrome shifter. What's the bent one suppose to be for? The bent one looks brand new, what is the part #?

I was thinking about what to do with the bezel with the 4x4 switch. Make things easier for yourself and just turn the 4x4 switch into something else.
Reply With Quote
  #37
Old 03-22-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
There really isn't anything to put in that large area. New bezel is 23236980956 times easier
Reply With Quote
  #38
Old 03-22-2009
Member

Join Date: Feb 2009
Location: White Plains, NY
Posts: 7
Where did you get the two bolts that bolt the linkage to the ext housing? I need the smaller rearward bolt. Do you have the part numbers or did they come with the linkage? Grab one of those bolts for me if you run across it at the JY!
Reply With Quote
  #39
Old 03-22-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I hope you're asking those questions to Donnie. I don't have a manual transfer case James... Sorry! lol

Although I am learning a lot about them and what's involved in these threads!
Reply With Quote
  #40
Old 03-22-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by BonesDT View Post
I don't get it, what are the two different linkages? They are both 1-piece lever linkages, so neither of them were for a FX4 chrome shifter. What's the bent one suppose to be for? The bent one looks brand new, what is the part #?

I was thinking about what to do with the bezel with the 4x4 switch. Make things easier for yourself and just turn the 4x4 switch into something else.

One is probably from a 1350 transfer case and one is from a 1354
Reply With Quote
  #41
Old 03-22-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by BonesDT View Post
Where did you get the two bolts that bolt the linkage to the ext housing? I need the smaller rearward bolt. Do you have the part numbers or did they come with the linkage? Grab one of those bolts for me if you run across it at the JY!
Both of the bolts came from the salvage yard. I see them all the time. ill grab some for you next time i go. probably next weekend.
Reply With Quote
  #42
Old 03-22-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by BonesDT View Post
I don't get it, what are the two different linkages? They are both 1-piece lever linkages, so neither of them were for a FX4 chrome shifter. What's the bent one suppose to be for? The bent one looks brand new, what is the part #?

I was thinking about what to do with the bezel with the 4x4 switch. Make things easier for yourself and just turn the 4x4 switch into something else.
They are both from the junkyard. I have no part numbers for any of that stuff. I find the linkages all the time at the junk yard in old rangers and BII's.
Reply With Quote
  #43
Old 03-22-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
I didnt take any during pics. I ran into a few issues with the case i bought from lefty. Nothing that couldnt be fixed with my old case. Uploading pics now.
Reply With Quote
  #44
Old 03-22-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Here is the only pic i currently have. Will take more tommorrow. Here are the wheeling pics from today. And the t-case shifter *** is ghey. Im getting a matching one to the one for the trans.

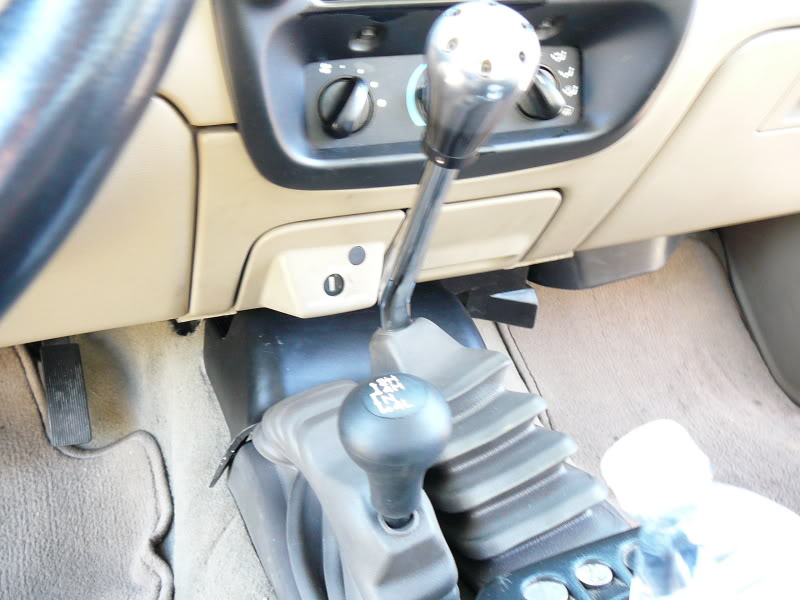

Here the t-case is in 4lo. I need to work the interior a bit more.
Name:  DonnysTruck055.jpg
Views: 11
Size:  71.5 KB

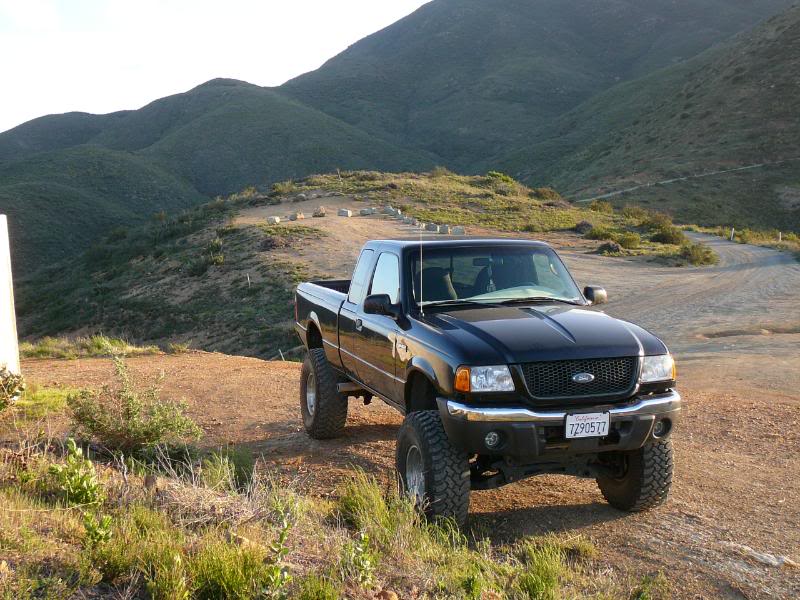

Name:  DonnysTruck066.jpg
Views: 15
Size:  107.2 KB

Name:  DonnysTruck066.jpg
Views: 15
Size:  107.2 KB

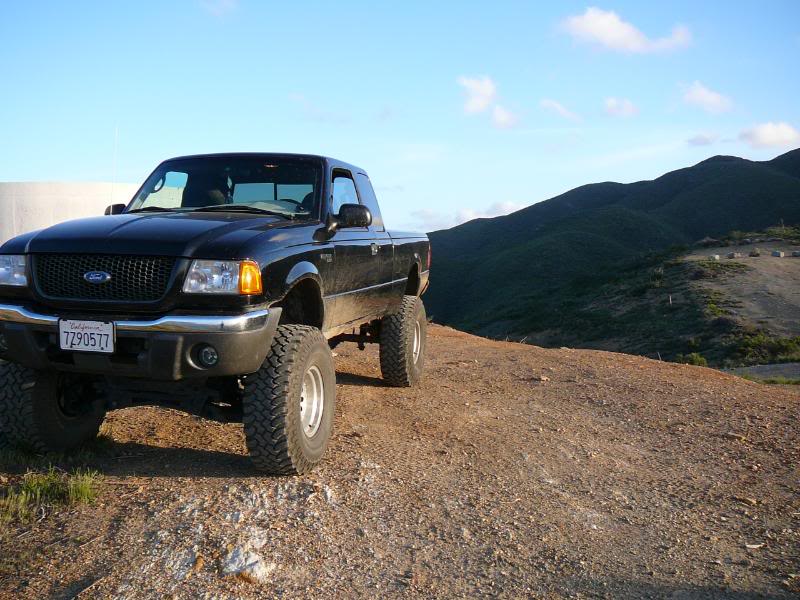

Name:  DonnysTruck064.jpg
Views: 13
Size:  96.8 KB

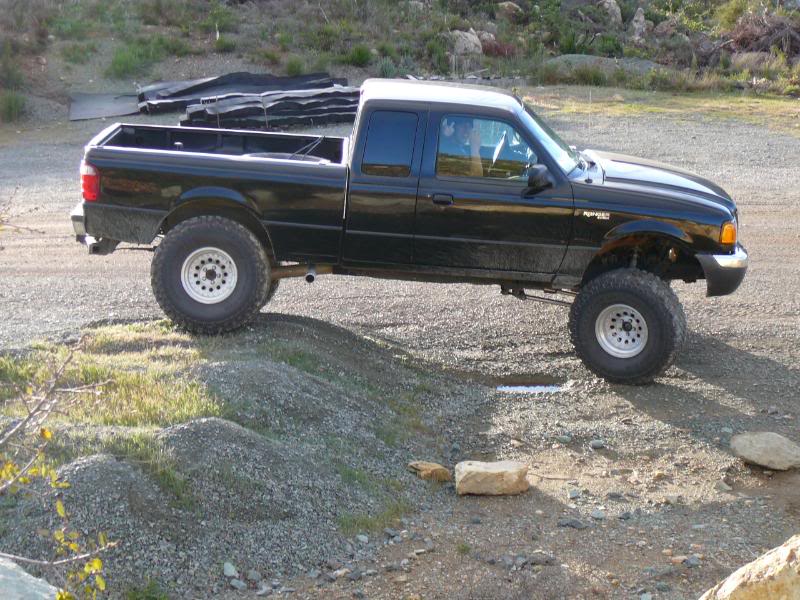

Name:  DonnysTruck063.jpg
Views: 11
Size:  110.4 KB

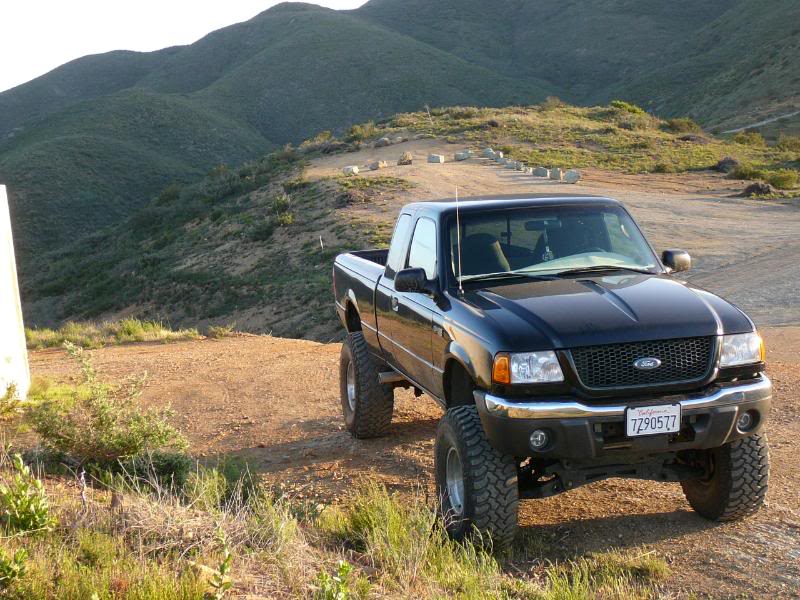

Name:  DonnysTruck067.jpg
Views: 13
Size:  112.7 KB
Attached Images
File Type: jpg DonnysTruck066.jpg (107.2 KB, 4 views)
Reply With Quote
  #45
Old 03-22-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Looks good, I love your truck!
Reply With Quote
  #46
Old 03-22-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Thanks dude! still gotta work out some kinks.
Reply With Quote
  #47
Old 03-22-2009
84socal's Avatar
Member

Join Date: Nov 2007
Location: chino hills ,ca
Posts: 370
finally looks like ur truck is back together when are u gonna come wheeling with me now
Reply With Quote
  #48
Old 03-23-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Sick dude! I'm glad to see you got it in and workin in one day! I wasn't going to say anything about the shifter til you did haha

I like what you did with the floor boots though!
Reply With Quote
  #49
Old 03-23-2009
Member

Join Date: Feb 2009
Location: White Plains, NY
Posts: 7
Quote:
Originally Posted by ranger View Post
I see them all the time. ill grab some for you next time i go.
Quote:
Originally Posted by ranger View Post
I find the linkages all the time at the junk yard
Ahhh, to live somewhere where they have substantial junkyards. If I'm lucky to find a junkyard within a few hours of NYC, I might be able to find a lug nut.

It would be much appreciated if you can grab one of those smaller bolts, thanks.

I'm guessing you don't find the bottom half of the 2-piece FX4 linkages. Needless to say, if you find 2 of those (I'm guessing you have dibs on the first one), I'll take one of those too. I already have the 1-piece rubber **** shifter (with the non-bent arm).

Quote:
Originally Posted by ranger View Post
And the t-case shifter *** is ghey. Im getting a matching one to the one for the trans.
Haha, yea the stock non-chrome-FX4 shifters and ***** are the worst. That's why I'm bending over backwards to get the chrome. You would think there would be a style shifter that met the two styles in the middle. Are you going to be able to get a matching ****? That rubber style **** is splined & push-on. When you get your chrome FX4 handle, you'll have the same screw-on as your trans shifter.
Reply With Quote
  #50
Old 03-23-2009
ranger's Avatar
Member
Thread Starter

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by BonesDT View Post


Haha, yea the stock non-chrome-FX4 shifters and ***** are the worst. That's why I'm bending over backwards to get the chrome. You would think there would be a style shifter that met the two styles in the middle. Are you going to be able to get a matching ****? That rubber style **** is splined & push-on. When you get your chrome FX4 handle, you'll have the same screw-on as your trans shifter.
The trans shifter has 3 little allen bolts holding it on. I go the shifters at napa. Just need to go down there and get another one for the tcase.
Reply With Quote
