Icon14 RLong31's 2004 4x4 Edge Build Thread

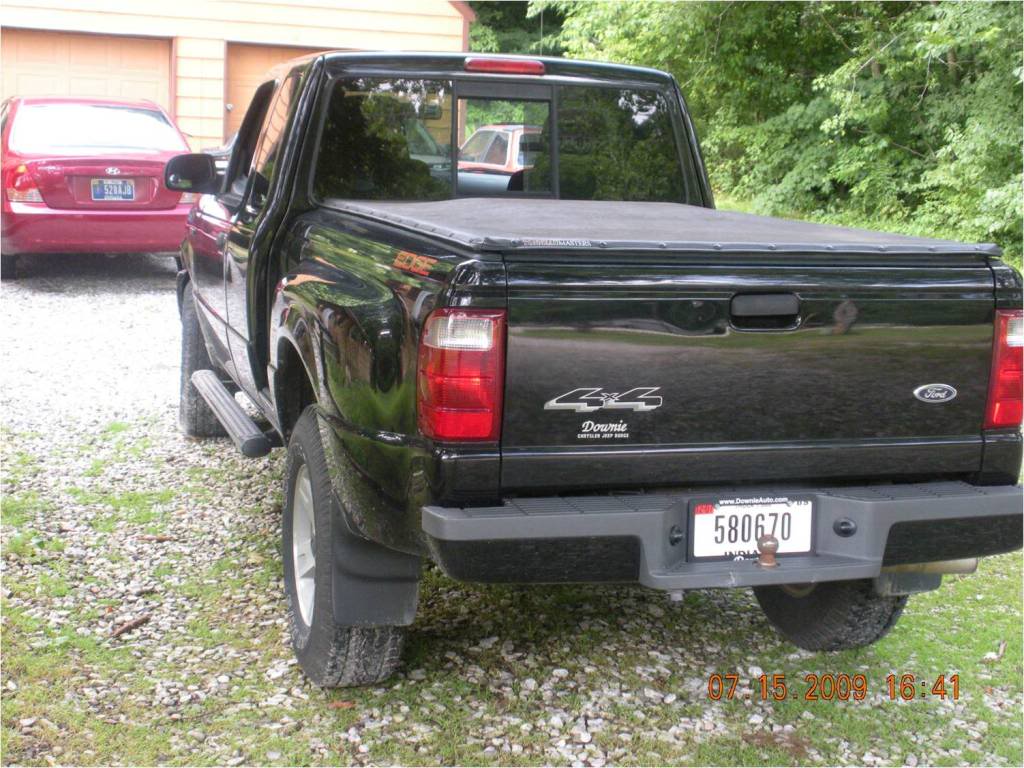

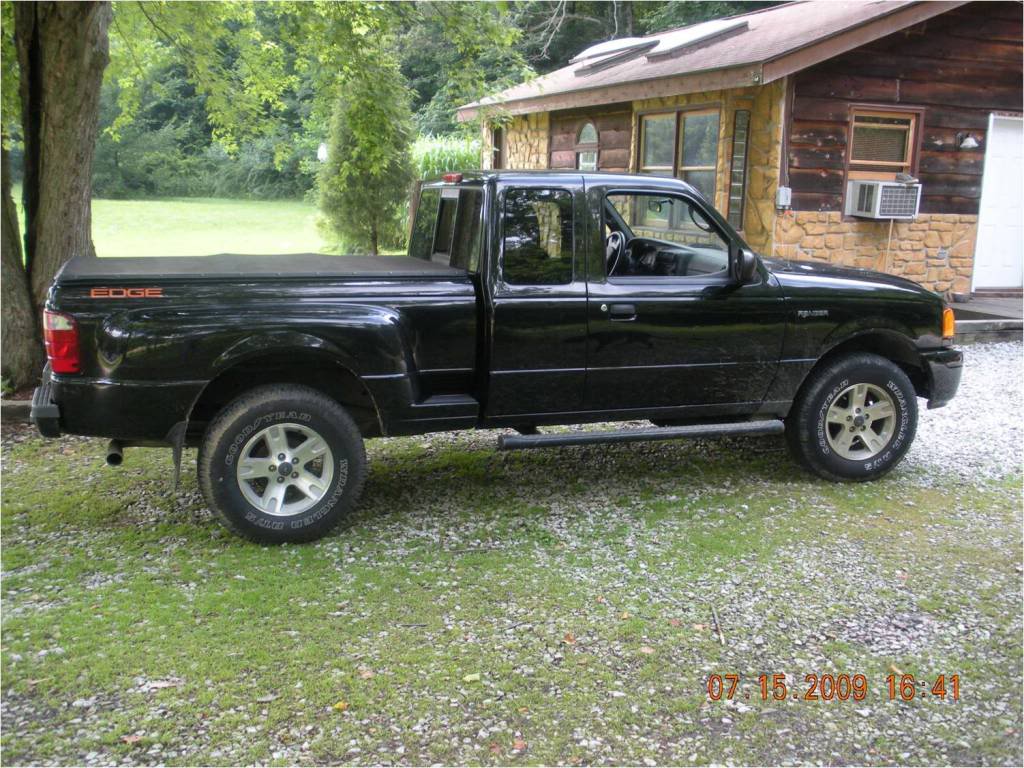

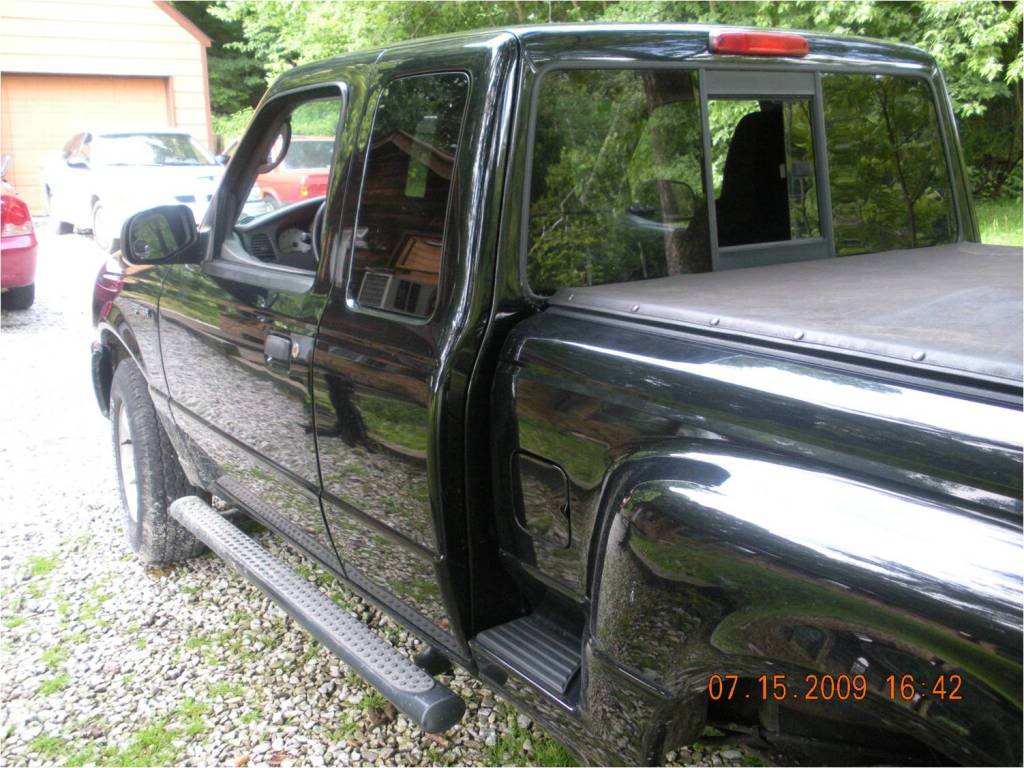

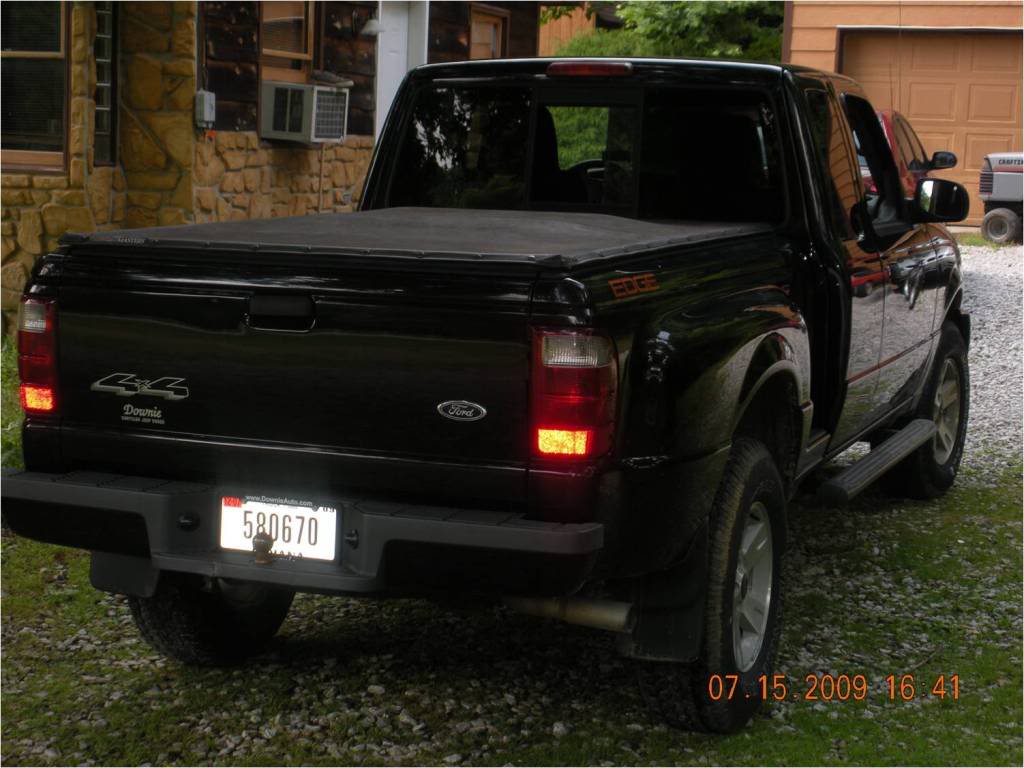

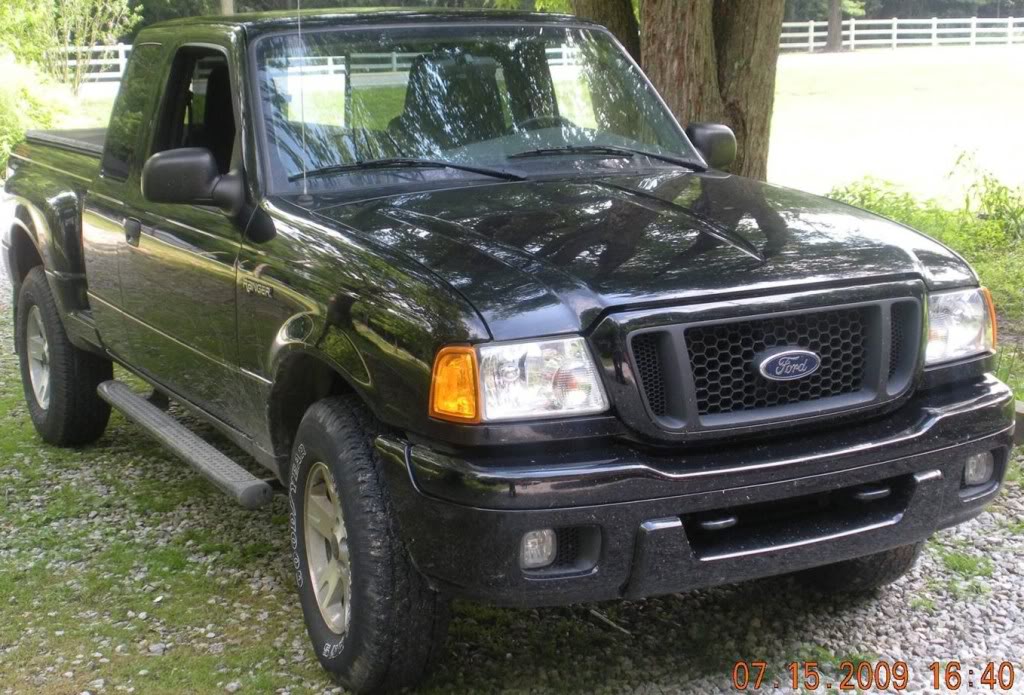

When I first bought the truck in July 2009.













Over the last few weeks, been adding stuff to the Ranger.

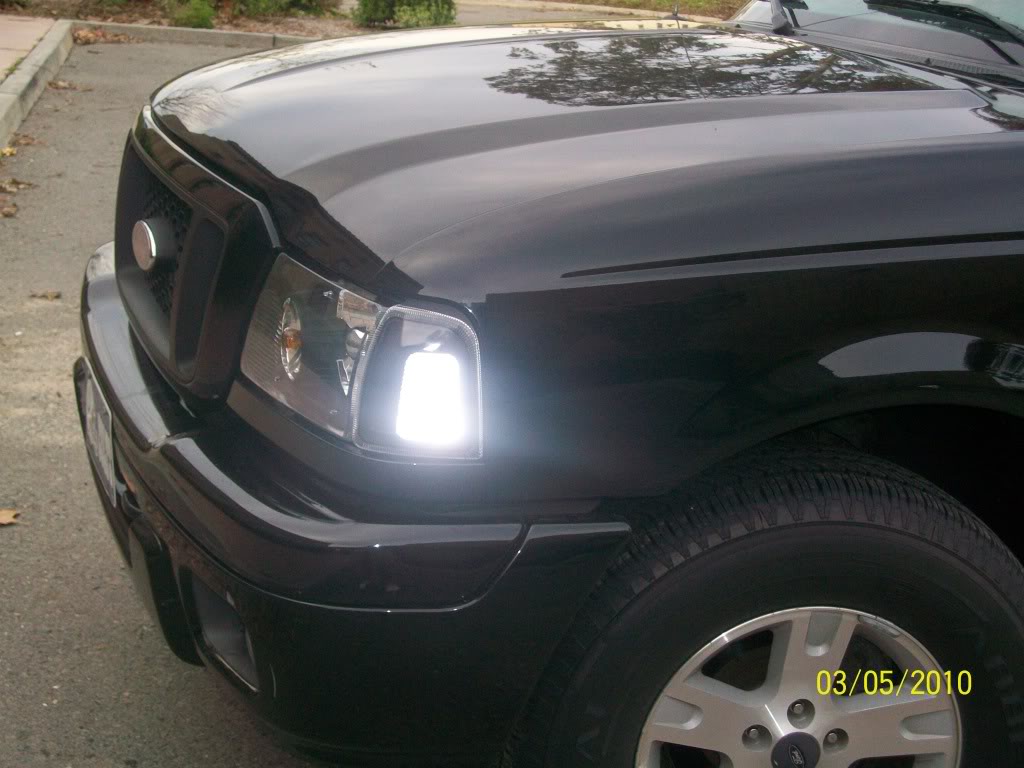

1. New blacked out headlights and corners (nightmare shipping, had to bake em to fix the reflector piece)

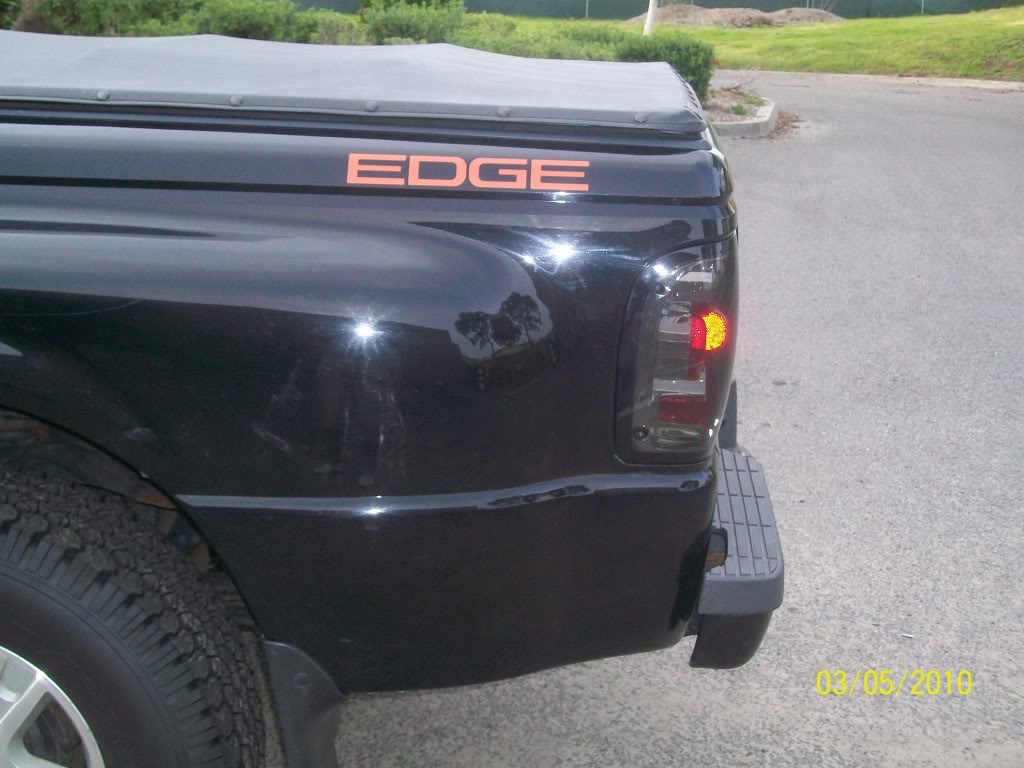

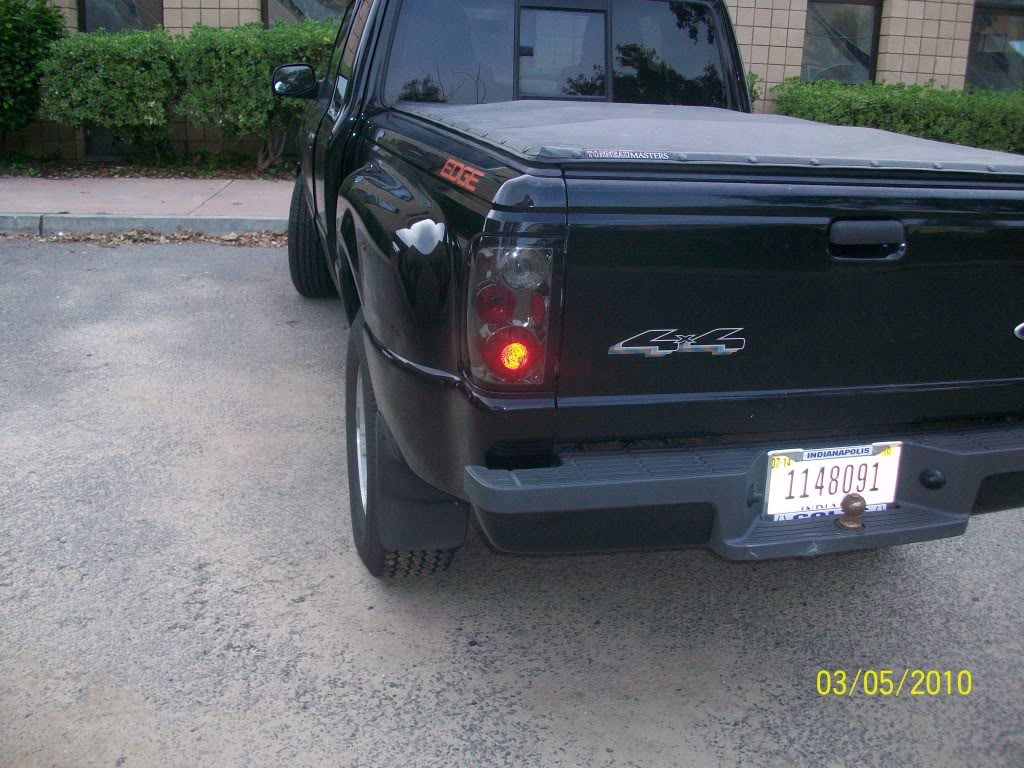

2. New tail lights (had to cut part of the truck to make em fit, and run another wire from the 3rd brake light to make em work how I wanted) Top clear is obviously reverse, middle is brake/turn... normal... now the lower light is only running (when headlights are on) and solid brake.
3. Took off the factory step bars.
4. Mustang dome light upgrade (no pics of that, sorry)
5. Blinker Mod
6. Fog light mod (stay on with brights)
7. Air box mod (silencer removal) and K&N drop-in filter
8. Fixed my broken tailgate handle.
Here are a few pics for now. Waiting on a good day to take it out and get more pics.
Let me know what ya think.







Next mods will be:
3rd brake light with cargo lights (shipping to me now... from '06 F350 superduty I think)
Explorer OHC (Just ordered, should arrive end of next week)
Billet Grille (I'm thinking polished)
15-20% tint on windows (haven't decided how dark to go)
Some LED reverse lights, 9005's to replace fogs, and thinking of doing some Blue LED accent lighting in the cab.
Thoughts? Suggestions? Comments?
Attached Thumbnails

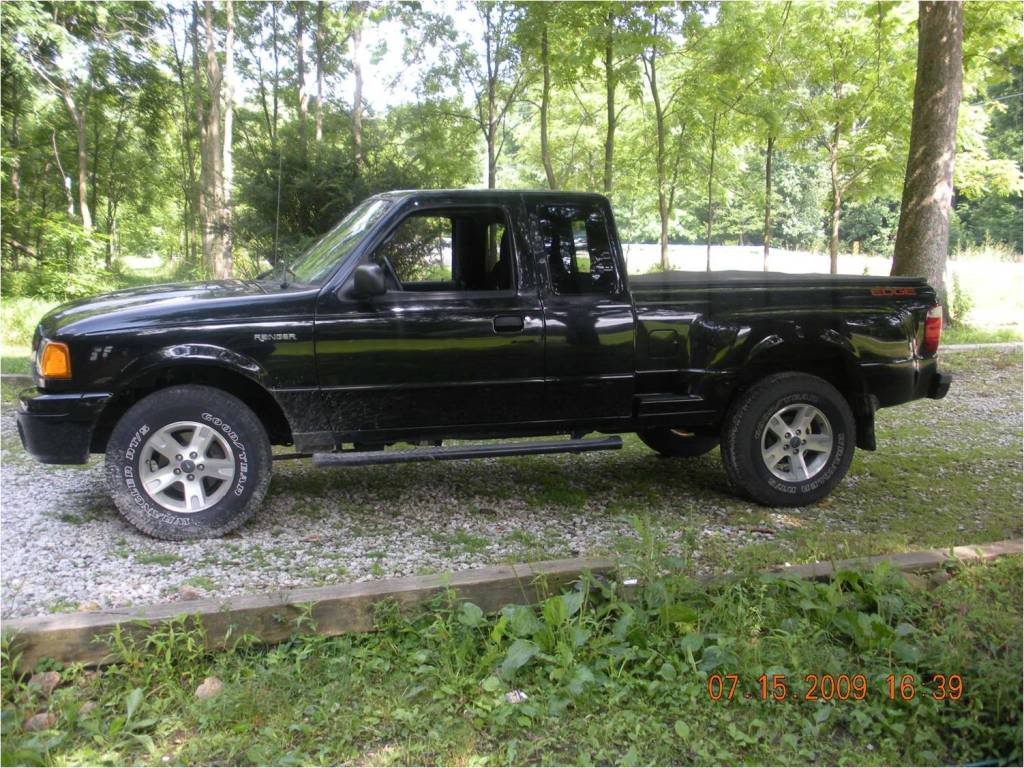

RLong31's 2004 4x4 Edge Build Thread-picture2.jpg   RLong31's 2004 4x4 Edge Build Thread-picture5.jpg   RLong31's 2004 4x4 Edge Build Thread-picture4.jpg   RLong31's 2004 4x4 Edge Build Thread-picture3.jpg   RLong31's 2004 4x4 Edge Build Thread-picture6.jpg

RLong31's 2004 4x4 Edge Build Thread-picture7.jpg   RLong31's 2004 4x4 Edge Build Thread-picture8.jpg   RLong31's 2004 4x4 Edge Build Thread-picture9.jpg   RLong31's 2004 4x4 Edge Build Thread-picture12.jpg   RLong31's 2004 4x4 Edge Build Thread-picture11.jpg

RLong31's 2004 4x4 Edge Build Thread-picture1.jpg   RLong31's 2004 4x4 Edge Build Thread-100_1325.jpg   RLong31's 2004 4x4 Edge Build Thread-100_1326.jpg   RLong31's 2004 4x4 Edge Build Thread-100_1327.jpg   RLong31's 2004 4x4 Edge Build Thread-100_1328.jpg

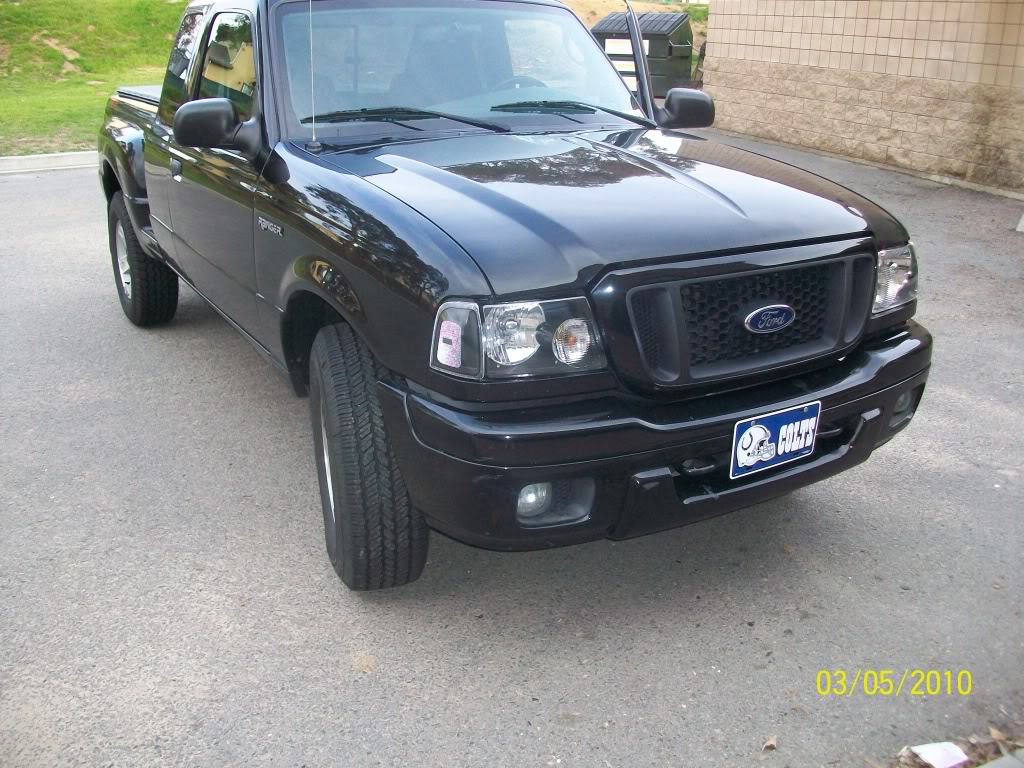

RLong31's 2004 4x4 Edge Build Thread-100_1329.jpg   RLong31's 2004 4x4 Edge Build Thread-100_1330.jpg

Last edited by RLong31; 02-21-2015 at 02:39 PM.
Reply With Quote
  #2
Old 03-06-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Icon14 RLong31's 2004 4x4 Edge Build Thread

Looks good!
Reply With Quote
  #3
Old 03-06-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Looks good
Reply With Quote
  #4
Old 03-06-2010
benjamwhit51's Avatar
Member

Join Date: Oct 2009
Location: Mebane N.C.
Posts: 170
looks good! the 3rd brake light could use some tint though.. lol. nice truck though!
Reply With Quote
  #5
Old 03-06-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Yea, replacing it next week with the F350 one with cargo lights, I'm gonna see how it looks on there. When I get more money, I'll probly replace with a Smoked 3rd with cargo lights to match the tails.
Also, been thinkin' bout Painting over the EDGE stickers very very carefully with silver, but I'm afraid it will look bad. Orange just doesn't go with ANYTHING on the truck, probly gonna remove the ugly mud flaps too.

Last edited by RLong31; 02-21-2015 at 02:41 PM.
Reply With Quote
  #6
Old 03-06-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looking good
Reply With Quote
  #7
Old 03-06-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
definitely remove those mud flaps
Reply With Quote
  #8
Old 03-06-2010
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
Quote:
Originally Posted by RLong31 View Post
Nods, replacing it next week with the F350 one with cargo lights, I'm gonna see how it looks on there. When I get more money, I'll probly replace with a Smoked 3rd with cargo lights to match the tails.
Also, been thinkin' bout Painting over the EDGE stickers very very carefully with silver, but I'm afraid it will look bad. Orange just doesn't go with ANYTHING on the truck, probly gonna remove the ugly mud flaps too.
Someone at one point sold reflective EDGE stickers in several colors, silver being one of those. I'm sure some searching will turn up some results.
Reply With Quote
  #9
Old 03-06-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Ah, right on, I'll have to look around for that. Anything's gotta be better than orange. If weather looks better I gotta get out there and take them mud flaps off.
Reply With Quote
  #10
Old 03-11-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
A few more pics!!!

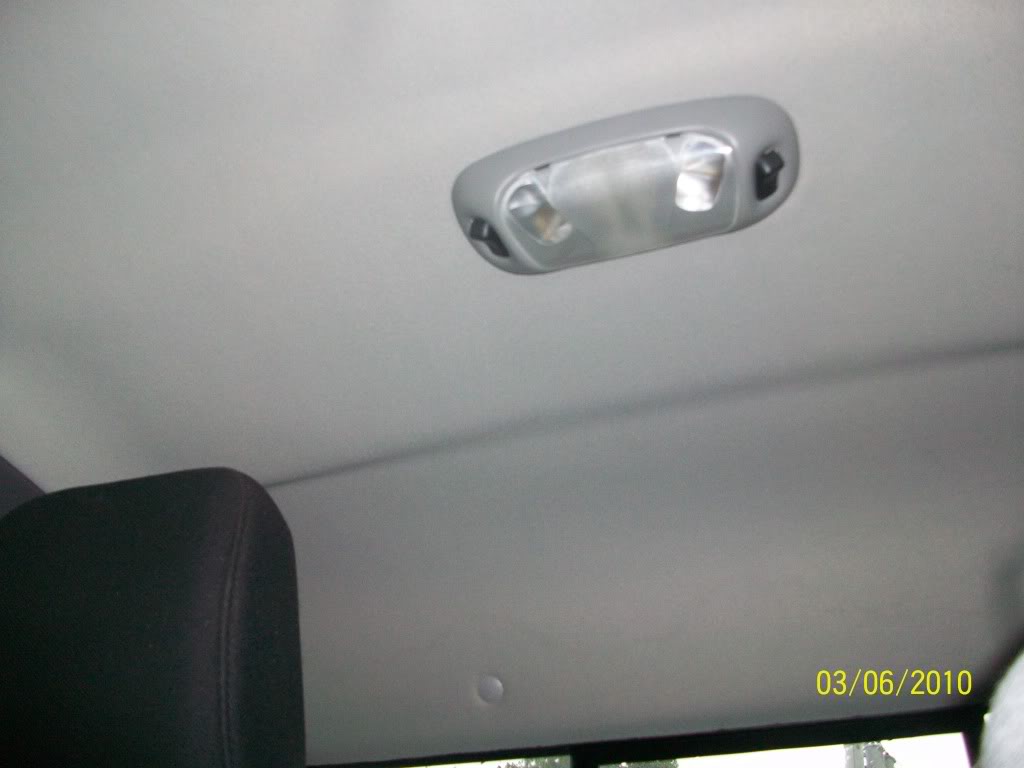

Mustang dome light installed.
Name:  100_1331.jpg
Views: 37
Size:  82.0 KB

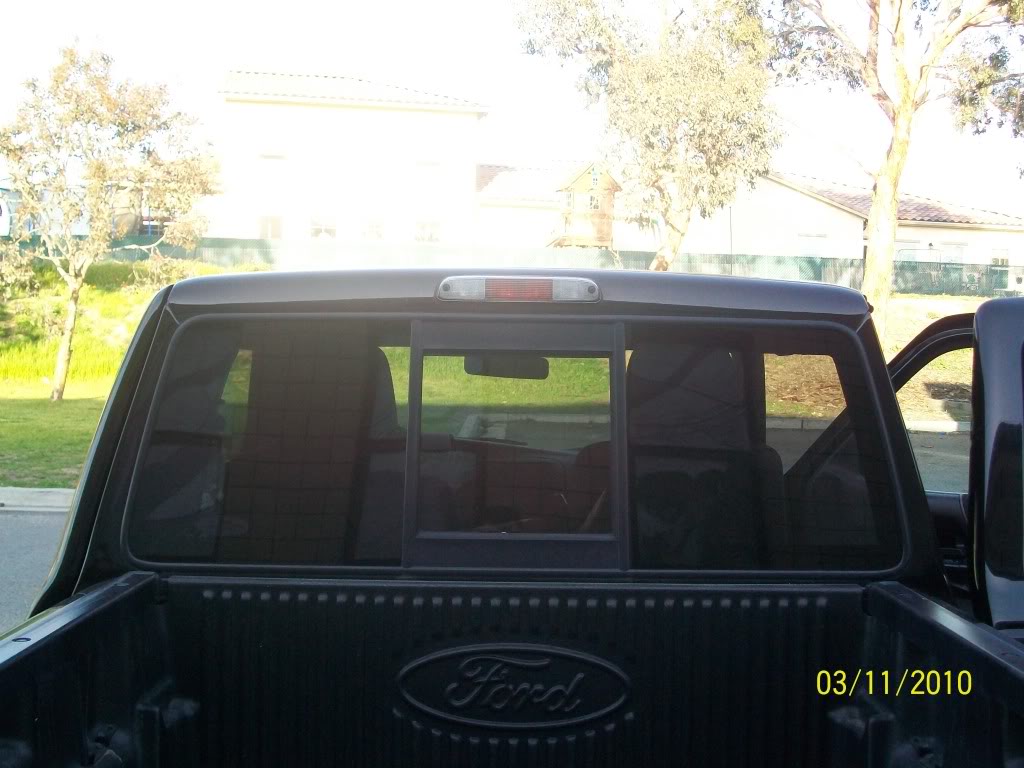

05 F250 Superduty Cargo Light Upgrade (pretty sure it's the rare one)
Name:  100_1368.jpg
Views: 34
Size:  122.7 KB
Name:  100_1369.jpg
Views: 36
Size:  143.6 KB
Name:  100_1373.jpg
Views: 33
Size:  126.0 KB

Next in line is probly going to be my Explorer OHC, arriving tomorrow.
I'm kind of scared to cut into that headliner, haha.
Reply With Quote
  #11
Old 03-11-2010
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Very nice! I would go with a black billet grille though!
Reply With Quote
  #12
Old 03-11-2010
russian's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: Windsor, ON
Posts: 574
Remove mudflap's and front plate :)

Nice truck!
Reply With Quote
  #13
Old 03-11-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Haha, yea, mud flaps are coming off tomorrow too, forgot to do that today. And Colts license plate stays, lol. I'm close enough to San Diego, I have to represent and **** their fans off. Colts fan for life :) Might pick up some LED replacement bulbs for the cargo light and reverse lights tomorrow, just to brighten up a bit.
Reply With Quote
  #14
Old 03-11-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
looks sick, really clean truck... i'm not normally a fan of the euro lights, but your tails look great! as for interior lights, check out my LED door lock indicators... might be something for ya... we are running 2 vehicles strong with this mod so far (my vehicles only constituting for one of them)

i would say you should see if your grill emblem constitutes for the ford logo painting mod also... black would look sick!
Reply With Quote
  #15
Old 03-11-2010
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
looks good. nice tails
Reply With Quote
  #16
Old 03-11-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Thanks guys. I normally hate the euro look too, but the smoked ones look sweet imo. Just fyi, I got them off e-bay. They required a little bit of hacking into the truck with a rotary tool to make em fit. I will takes pics of what I had to do to make it work sometime if anybody needs help with an install of these.
As far as my logo goes, I know mine is NOT the hard plastic one, but the soft one. I think there is still a way to mod it, and yes, I thought black would look sweet for that.
Reply With Quote
  #17
Old 03-11-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
i can't see a difference between them... on my truck, it seems like the chrome ring and the plastic is one piece... if you know how to change this... let me know...

i was also thinking i could go buy a new one and mod it, then swap it out
Reply With Quote
  #18
Old 03-11-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Ok, took me a minute to hunt these threads down, but it this thread is the how-to to change the emblem color for the gel emblems (soft).
https://www.ranger-forums.com/f59/ho...emblems-10026/

This one I found on another site for the hard plastic ones, they kind of explain how to tell the difference.
How To: Ford Oval Color Change - Ranger Power Sports Forum

I'm going to a junk yard tomorrow to see what they have in the way of Ranger parts for cheap, so maybe I'll snag a few up to try this mod too.
I really think black emblem on a brushed aluminum billet grille would look sweet. Not sure if I want a black billet grille, that might be a little too dark for me. Plan on going with some different wheels in the future, and they won't be black, so I don't want an all black theme right now.
Reply With Quote
  #19
Old 03-11-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
see if you can find some black chrome grill inserts... would look ( . ) ( . )
Reply With Quote
  #20
Old 03-11-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
sounds like to me that the 2 emblem mods start the same... i can't figure out which mine is...
Reply With Quote
  #21
Old 03-11-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Yea, I'm not sure, but from what I've been reading, it sounds like the 93-2000 are the hard plastic ones, and 01+ are the gel kind. I'm not really digging having to re-pour the gel part, so I might try to dig up some older ones at a junk yard. Sand paper and spray paint seem way easier. Plus I don't wanna mess up the stock ones, haha.
Reply With Quote
  #22
Old 03-11-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
i hear ya! i doubt that the size is going to be the same though...
Reply With Quote
  #23
Old 03-11-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Ah, good call, didn't even think about that. Haha, well, maybe I'll just grab a couple and try it, if it turns out good, I'll let ya know.
Reply With Quote
  #24
Old 03-12-2010
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Icon14

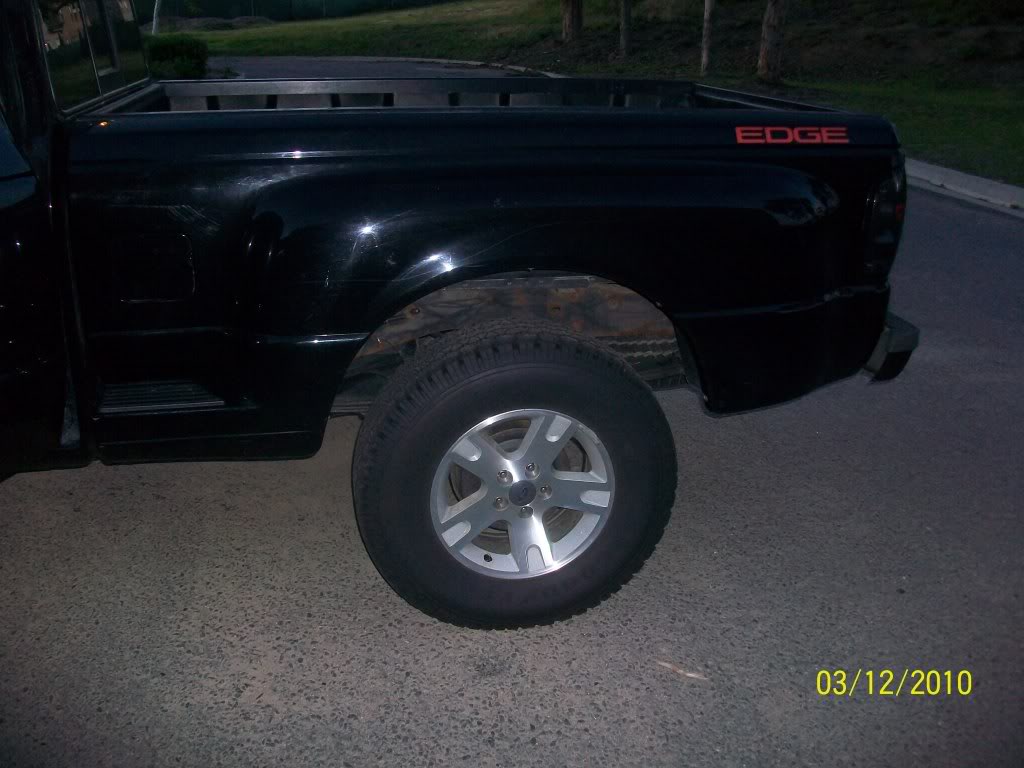

And... mud flaps are off, finally!
Name:  100_1382.jpg
Views: 26
Size:  125.4 KB
Name:  100_1383.jpg
Views: 25
Size:  117.8 KB

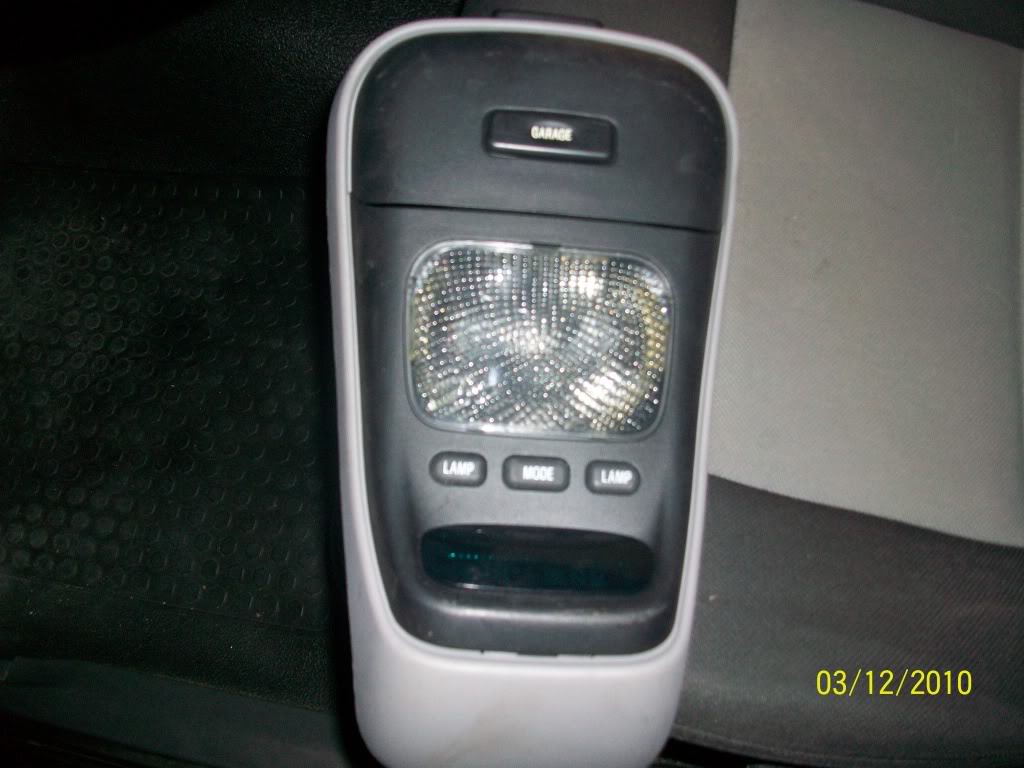

And... look what UPS brought today... woo!
Name:  100_1384.jpg
Views: 30
Size:  124.3 KB

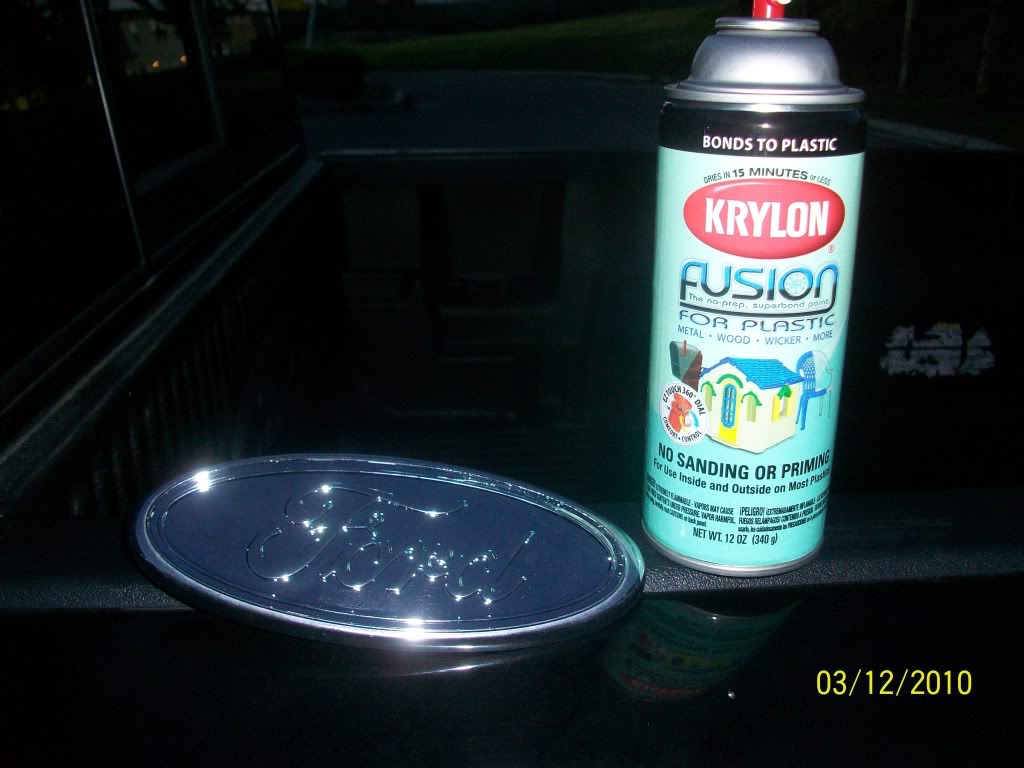

And... haha, I went to the junk yard so I could experiment with the oval color change mod.
Name:  100_1385.jpg
Views: 25
Size:  122.1 KB

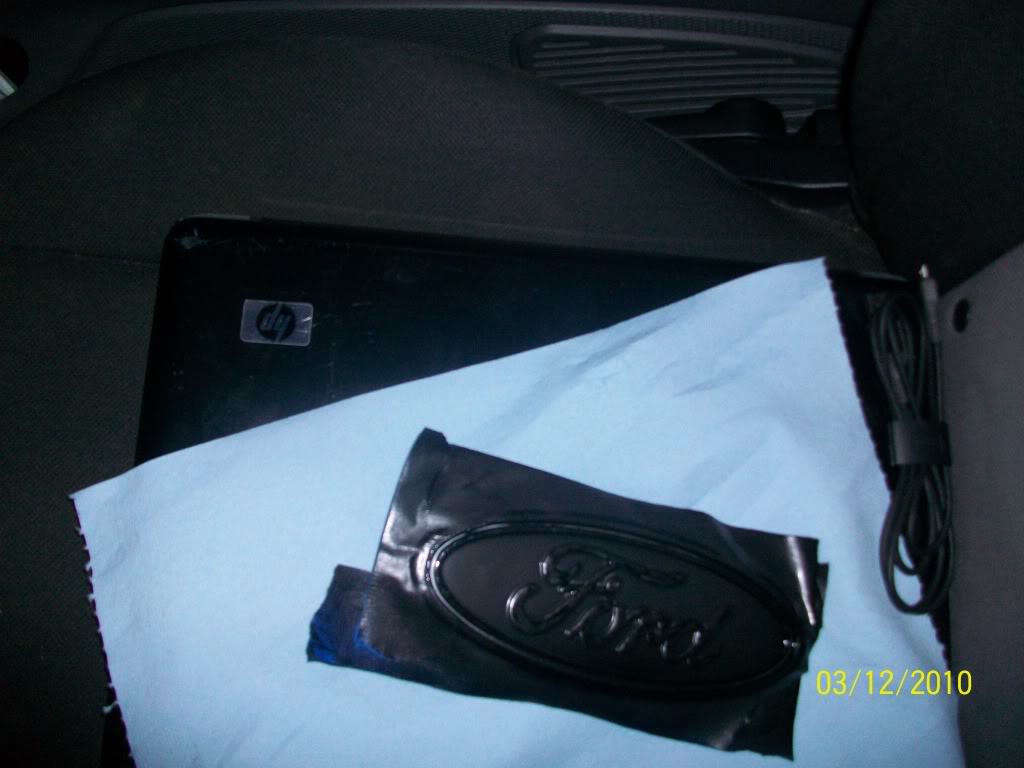

Name:  100_1392.jpg
Views: 27
Size:  102.2 KB

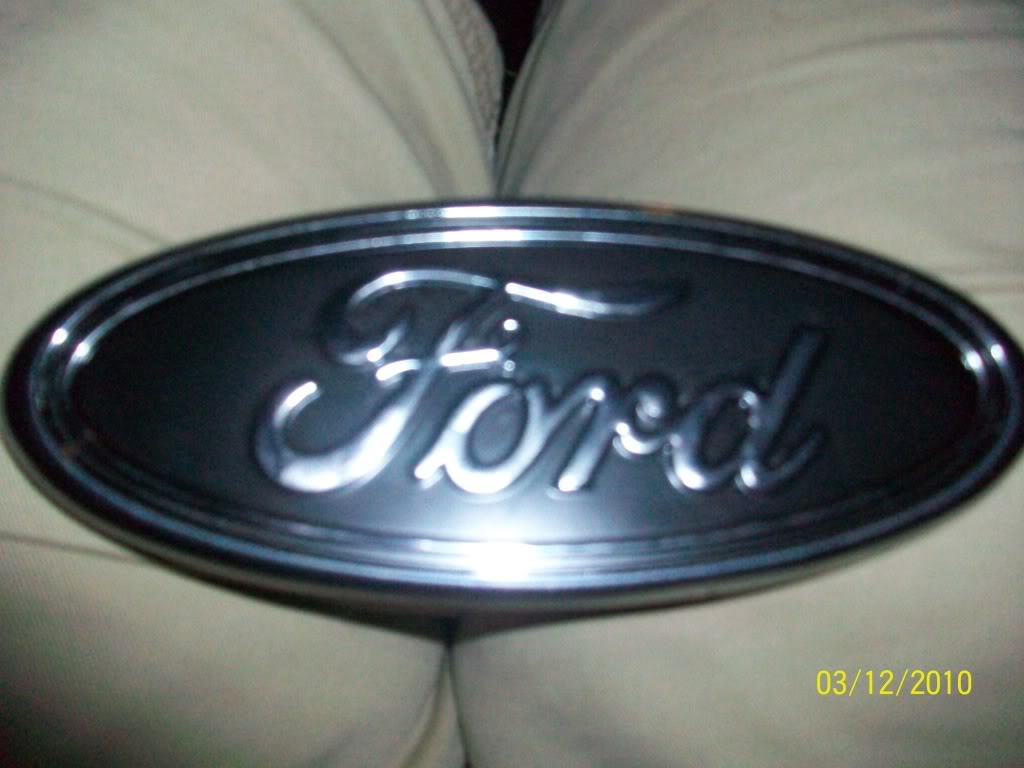

Name:  100_1407.jpg
Views: 27
Size:  104.2 KB
Not quite finished yet, I need to find some of the gel gloss stuff to pour in to finish it off. One of the tabs is broken on the back, so I got it cheap just to try it out.
Didn't have a hair dryer, so I stuck it in the oven at 200 degrees, for 5 minutes... i'd say 7-8 minutes would have done better, but it still came off easy, just messed up the gel part with the blue on it. Will try to finish tomorrow, and start on the OHC too.
Reply With Quote
  #25
Old 03-12-2010
russian's Avatar
Member
iTrader: (2)

Join Date: May 2009
Location: Windsor, ON
Posts: 574
Nice work man, rubberize your rear wheel wells!

Looks like this after, no more rust look.
