Weekend Warrior Build

Finally getting around to posting my build.

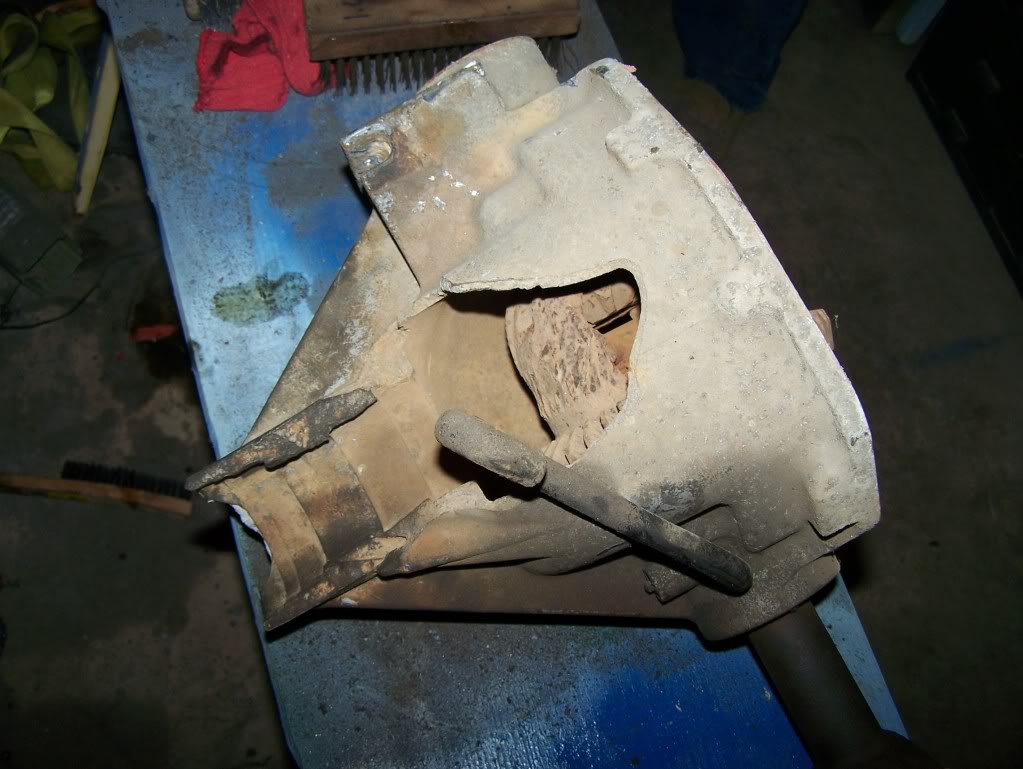

The day I brought it home. $400 truck. Nice body and came with a 3 inch body lift but both heads were cracked, no exhaust, missing front driveshaft, snapped front axle, no oil in the rear axle, bad brakes all the way around, mismatched wheels, etc...

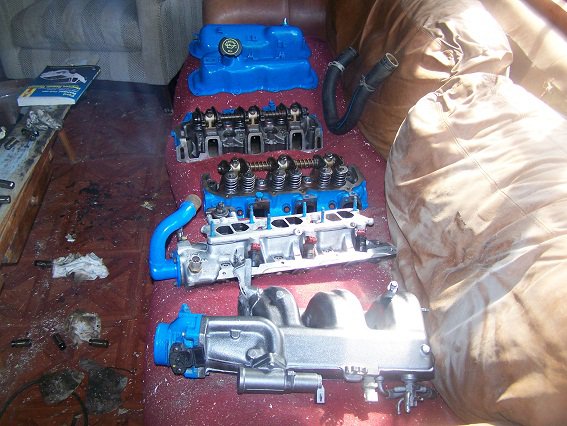

Got a set of heads (aftermarket supposedly stronger). Port/polish job and a set of Hedman headers.

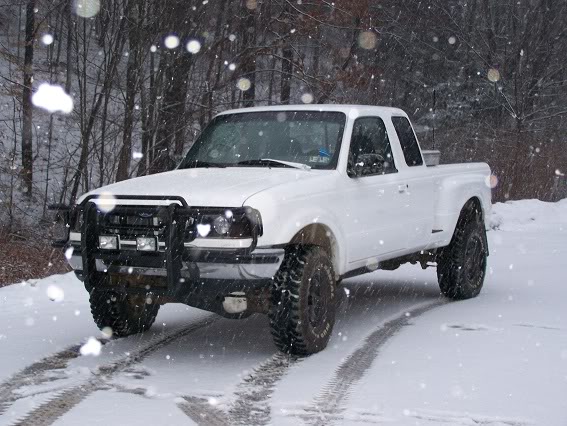

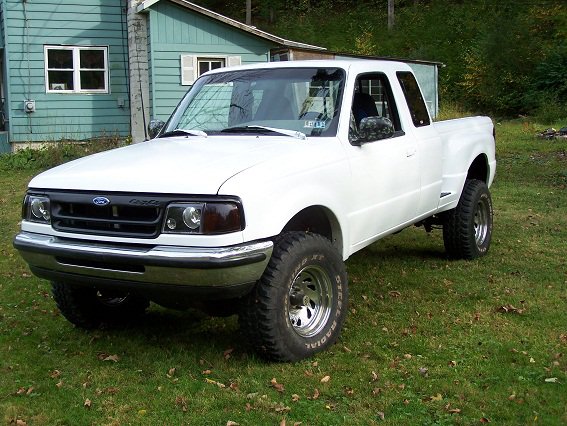

After that, I painted it and slapped a set of 32s on it with some steel chromies.



Fixed the 4x4. New transfer case motor, milemarker hubs, and replaced 3rd member (3.27s)

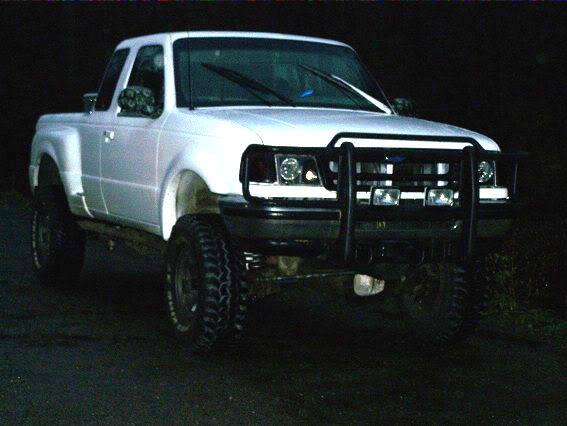

Got a brush gaurd off of a Cherokee to fit on the truck, UWS steppie toolbox, built a spare tire carrier, and added a set of American Racing AR23's



Added Rough Country leveling coils which netted 2.5" lift :icon_confused: . Used 3 degree camber bushings to correct it.

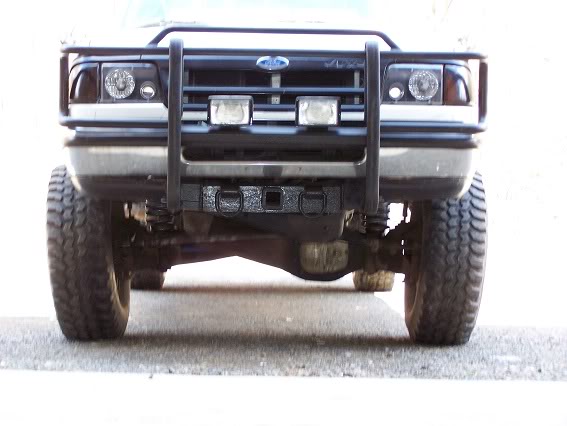

Built front hitch reciever. Here you can see how far off the camber was :D

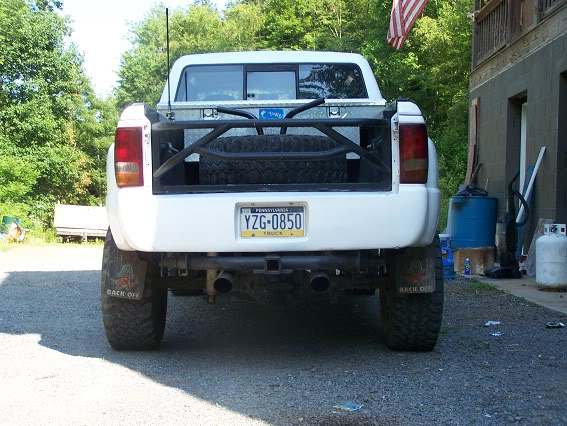

Added single 3" in, dual 2.5 out exhaust with Flowmaster Super 44 and 3.5" Silverline tips striaght out the back :icon_bounceblue:

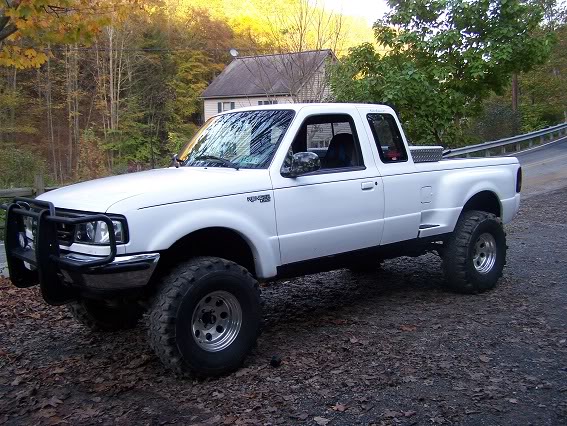

Got a set of 33" Swampers and Mickey Thompson Classic IIs

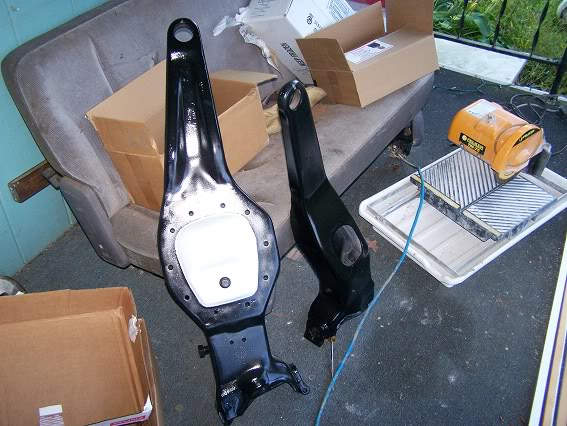

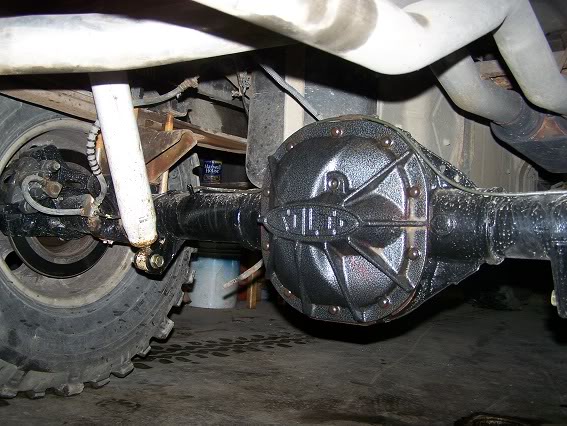

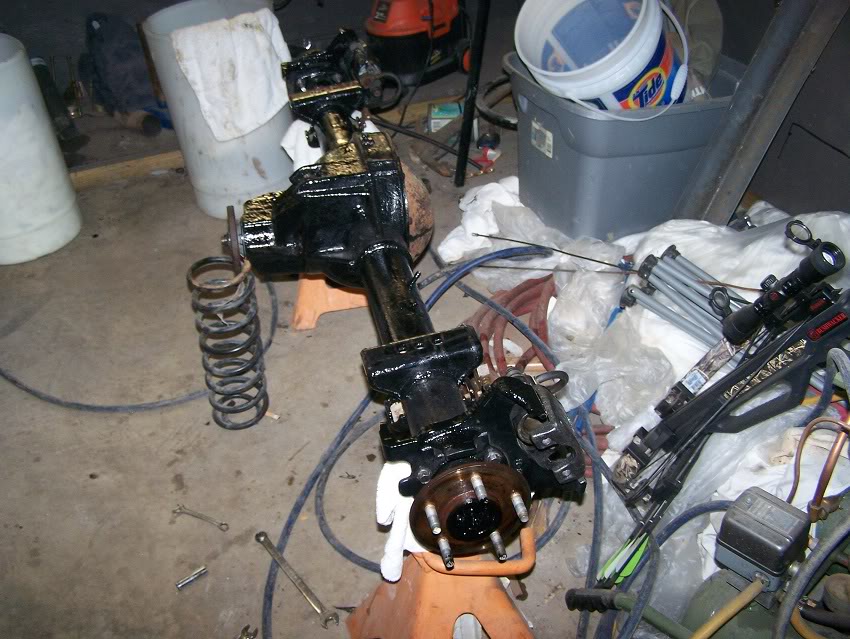

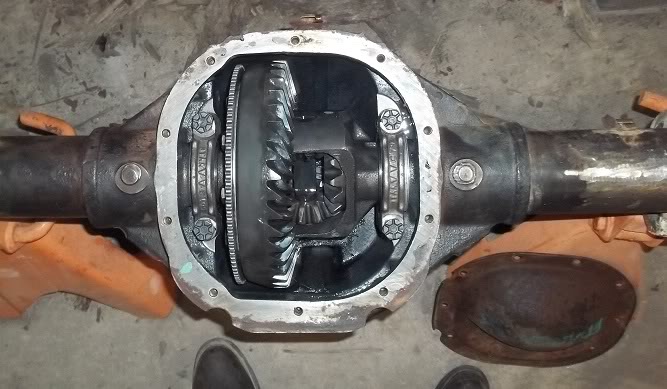

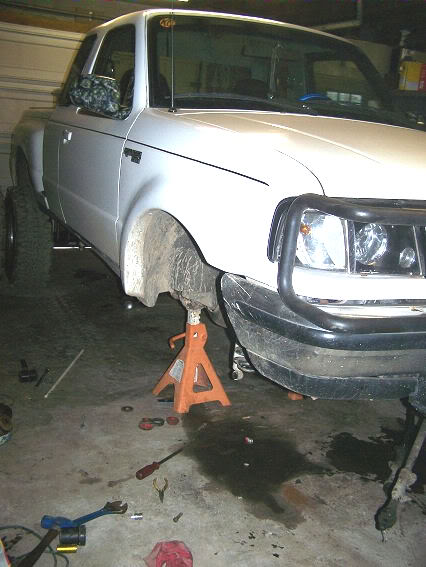

Start of the 4.56 gear/disc 8.8 swap. Bought complete 4.56 fron Dana35 axle from member TeamExplorer for $150. I opted for the open carrier as Im putting in an Aussie in the near future.

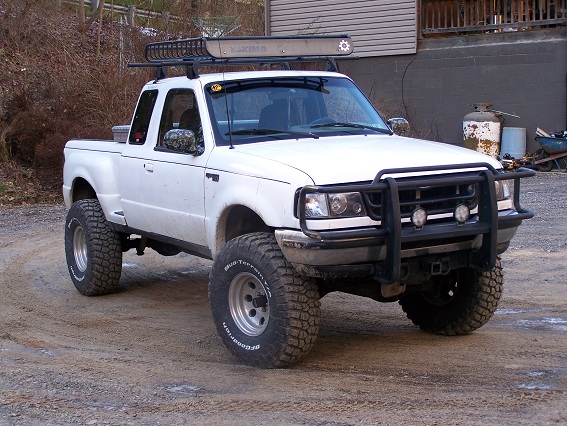

After the gear swap I dropped some coin on some brand new 35" BFG KM2s and found a Yakima roof rack on CL for $200 ( I do a lot of camping ). Snapped my newish lockouts and swapped out to the Warn 37780s...havent had a problem since.



No photos, but the exterior lights are all LED. Used flasher EL12L2 from napa. You need to revers the wiring for it to work properly.

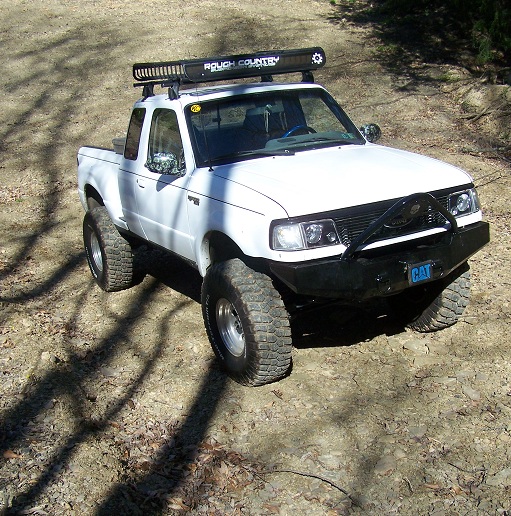

And here's how she sets now. Just recently finished my front bumper.



Still yet to come is Aussie locker for the rear, F250 shock towers/longer shocks, extended radius arms (fabricated by me of course), and some EB coils for more flex because everyone know the TTB coils dont flex for **** :)

I'll update this thread from now on when the money burns a hole through my pocket or I get creative.
Attached Thumbnails
Weekend Warrior Build-37464_1441381526564_1593844063_1025970_3777167_a.jpg   Weekend Warrior Build-31050_1382339130541_1593844063_876730_6201642_n.jpg   Weekend Warrior Build-62950_1507010087237_1593844063_1185173_5444953_n.jpg   Weekend Warrior Build-100_8017.jpg   Weekend Warrior Build-100_8106.jpg

Weekend Warrior Build-100_8309.jpg   Weekend Warrior Build-100_8304.jpg   Weekend Warrior Build-102_8411.jpg   Weekend Warrior Build-102_8497.jpg   Weekend Warrior Build-102_8498.jpg

Weekend Warrior Build-100_0572.jpg   Weekend Warrior Build-102_8541.jpg   Weekend Warrior Build-102_8542.jpg   Weekend Warrior Build-102_8547.jpg   Weekend Warrior Build-102_8590.jpg

Weekend Warrior Build-104_8891.jpg
Reply With Quote
  #2
Old 04-07-2012
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,156
That's really nice man! Definitely made a ton of good progress!
Reply With Quote
  #3
Old 04-07-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Thanks! It started out as just a beater. I had a '86 F150 I one ton SASd on 40s. Got rid of that and made this my toy. I can fit down a LOT more trails
Reply With Quote
  #4
Old 04-07-2012
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
very nice! you did a great job on it
Reply With Quote
  #5
Old 04-07-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Thanks, but it's definitely not finished yet.
Reply With Quote
  #6
Old 04-07-2012
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Nice!!
Reply With Quote
  #7
Old 04-07-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Nice work!
Reply With Quote
  #8
Old 04-07-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
looks good, a lot of changes. was gonna say that brush guard doesn't line up too great, but that new bumper looks good.
Reply With Quote
  #9
Old 04-08-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Yes! Love it.

Good job man.
Reply With Quote
  #10
Old 04-08-2012
06FordFX4's Avatar
Member
iTrader: (1)

Join Date: Feb 2012
Location: Canada
Posts: 694
Off to a very nice start! Looks great!
Reply With Quote
  #11
Old 04-08-2012
Ardy's Avatar
Member

Join Date: Aug 2010
Location: Windsor NS
Posts: 276
Off to a great start! looks awesome!
Reply With Quote
  #12
Old 04-08-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I'm not feeling the headlights but the rest looks good.
Reply With Quote
  #13
Old 04-08-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Yea headlights were free so I wasnt compalinin too much. The stockers were clouded over really bad.
Reply With Quote
  #14
Old 04-08-2012
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Awsome build
Reply With Quote
  #15
Old 04-08-2012
reader585's Avatar
Member

Join Date: Nov 2008
Location: Oromocto New brunswick
Posts: 791
Nice build. Keep it up.
Reply With Quote
  #16
Old 04-09-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Toothpaste FTW.
Reply With Quote
  #17
Old 04-13-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Update:

I've done the break in period for my new gears so it's time to change the oil so I just put an order in for my Aussie Locker.

Oh, and $19 MINIMUM per qt. for synthetic gear oil...
Reply With Quote
  #18
Old 04-14-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Nice truck, looks good!
Reply With Quote
  #19
Old 04-14-2012
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Very cool! Like the roll pan.
Reply With Quote
  #20
Old 04-14-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Quote:
Originally Posted by seed60 View Post
Very cool! Like the roll pan.

Thanks. It was on the truck when I bought it. I've repaired it twice now due to cracking. It's doing it again and im tired of fixing it so I think Ima just cut it out and make a nice steel bumper for it though.
Reply With Quote
  #21
Old 04-21-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

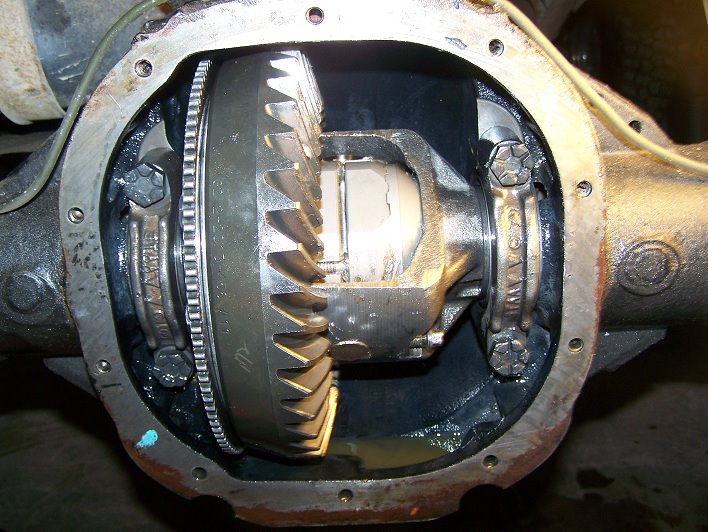

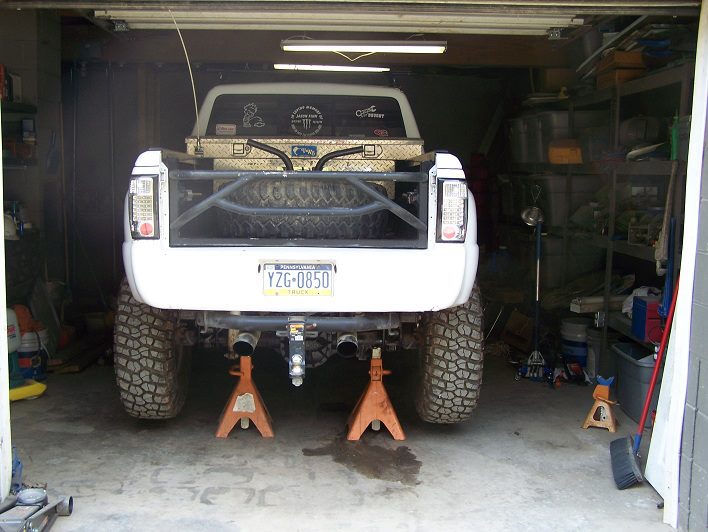

Got the locker installed today. Very easy. I think I'd rather do these than drum brakes. Im also amazed that the traction I have and how quiet the operation is.



Attached Thumbnails
Weekend Warrior Build-530081_3437135739172_1593844063_2685400_1621205624_n.jpg   Weekend Warrior Build-580589_3437137779223_1593844063_2685401_1592792145_n.jpg
Reply With Quote
  #22
Old 04-21-2012
Ranger_Guy15's Avatar
Member

Join Date: Apr 2007
Location: MN
Posts: 2,827
Wow looks freakin awesome!!!
Reply With Quote
  #23
Old 04-21-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I love the rear end. That roll pan looks killer.
Reply With Quote
  #24
Old 04-21-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Thanks guys! A lot of blood,sweat, and tears has gone into this build.
Reply With Quote
  #25
Old 04-21-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Very nice! Is the locker even noticeable while driving around normally on the road?
