  #51
Old 07-08-2012
ScottyD's Avatar
Member

Join Date: Jul 2011
Location: Caledon, Ontario
Posts: 101
Quote:
Originally Posted by brinker88 View Post
Almost a thousand views and only 35 comments? Where's the constructive critizism folks?!?! I understand it's a slow build but damn!!
i woulda if all this wasnt wayyy over my head lol love the work youre doing though man lol
Reply With Quote
  #52
Old 07-09-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
Quote:
Originally Posted by brinker88 View Post
Blue, look at the options below the picture. It gives you an option for a 2.625 with a 9/16 or 5/8" bolt OR a 2.375 mounting width with a 9/16" bolt.
you have got some good eyes sir. lol i cant even count how many times ive looked at that page and not seen that. my bad. take tons of pics when you get them!!! i may be more excited about this than you haha.
Reply With Quote
  #53
Old 07-10-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Quote:
Originally Posted by blue03ranger View Post
you have got some good eyes sir. lol i cant even count how many times ive looked at that page and not seen that. my bad. take tons of pics when you get them!!! i may be more excited about this than you haha.
Glad I could help you out bro! I was happy as hell when I found them too.

I ordered everything I needed from Ballistic today
including my 4140 Chromoly Joints, shock tabs for the arms, tube adapters, jam nuts, Poly bushing w/ DOM sleeve (3" overall length), etc, etc. Cant wait to start
Reply With Quote
  #54
Old 07-12-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Not much to update. All my steel is cut and ready to begin welding as soon as my parts from Ballistic get here. I decided I AM going to bend these arms to completely eliminate once and for all the tire rubbing problem most people have when building the straight extended rad. arms. Im being a guineau pig for y'all so keep a close eye on the build! Still need to order my F250 shock mounts, shocks, and stainless steel braided brake hoses.

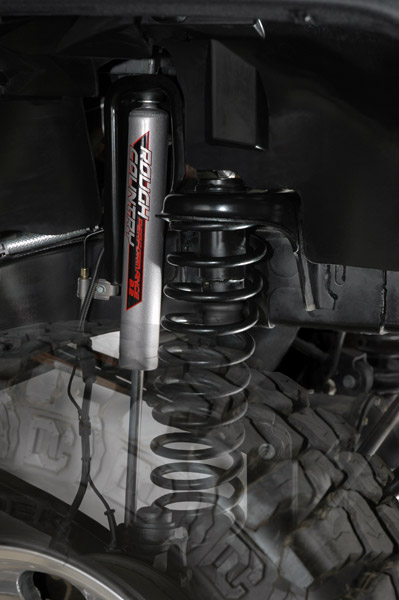

The brake hoses and shocks are actually from a Jeep. The shocks Im using are Rough Country N2.0 shocks for a 4" lifted Wranger YJ (all for will be for the rear of the Jeep as I need an eye top and bottom) and the Brake hoses are from a Jeep Cherokee XJ.

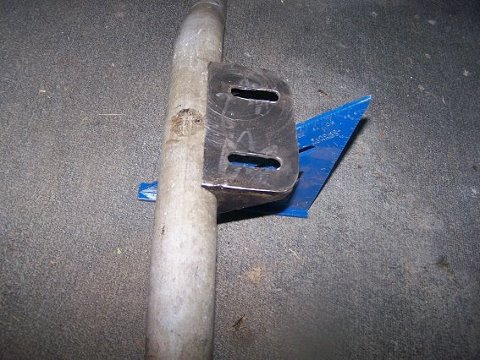

Oh, and I finished my transmission mount today.

Attached Thumbnails
Weekend Warrior Build-perfshock_6.jpg   Weekend Warrior Build-580866_3896778509954_1939059881_n.jpg
Reply With Quote
  #55
Old 07-12-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I'll take those shocks please.
Reply With Quote
  #56
Old 07-13-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Baha, they're actually fairly cheap. Like $45/pc. cheap. My cost on the shocks are $27.00 each :D

Got my arms bent today! :yahoo: They ended up needing an 18 degree bend in them.

I've called dozens of places in the surrounding areas of Lycoming County and there is only ONE place that can bend 2" square tubing. Luckily they are 10 minutes from my door. Oh, and they bent them for free! Great to have contacts. I'll get some photos up after work.

Last edited by brinker88; 07-13-2012 at 08:05 AM.
Reply With Quote
  #57
Old 07-14-2012
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
That's awesome man! Truck looks great man!
Reply With Quote
  #58
Old 07-16-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Thanks 87!

Not much of an update, but I got my u-bolts today. I bumped the size of them up to 5/8" rod. Also got my bolts for the lift as mine didnt have any with it (used). Got Grade 8 Flanged bolts and flanged steel lock nuts. I love working at a suspension shop lol.
Reply With Quote
  #59
Old 07-16-2012
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Truck looks so good. You have done an outstanding job with it thus far.
Reply With Quote
  #60
Old 07-17-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
^ Thank you very much!

And I know what y'all are thinking "why doesnt he just SAS it and be done w/ it?" Well the answer is, I've done the SAS thing before, and yes, it is fun but I want to try something different now. I want to see how far I can actually go with the TTB. A little experimenting and tweaking to get my desired outcome. I havent seen many good TTB builds so I thought, "now's the time".

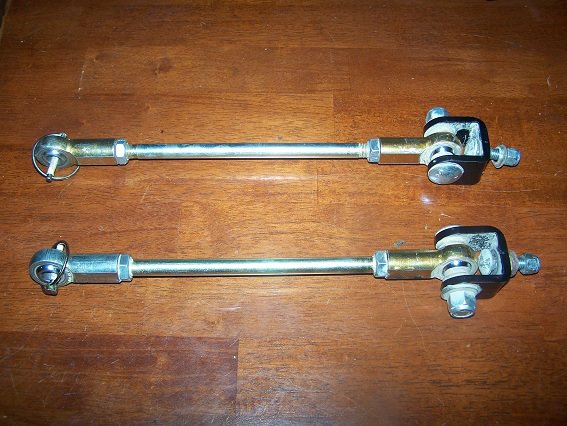

New sway bar links. Picked these up on CL for $30 delivered.:

Attached Thumbnails
Weekend Warrior Build-552485_3918423811073_1560972544_n.jpg
Reply With Quote
  #61
Old 07-18-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
More bonus money down the tube. Ordered F250 shock mounts, Skyjacker drop brackets, Stainless Steel Braided brake hoses, and shocks. for a grand total of $400

**** aint cheap if you want it built right I suppose..
Reply With Quote
  #62
Old 07-18-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

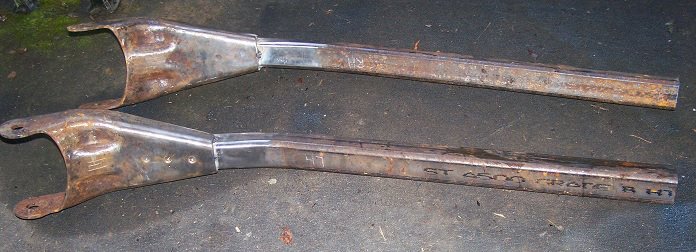

Got the caster set and tacked the arms into place tonight.

Attached Thumbnails
Weekend Warrior Build-575973_3921866177130_1070972619_n.jpg
Reply With Quote
  #63
Old 07-18-2012
mac's Avatar
mac mac is offline
Member

Join Date: Sep 2010
Location: new jersey
Posts: 319
it's cool to see a ttb build. truck looks awesome.
Reply With Quote
  #64
Old 07-18-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Quote:
Originally Posted by mac View Post
it's cool to see a ttb build. truck looks awesome.
Thank you sir! I thought I'd be a black sheep here and do one. It's been floating around in my head for awhile now.

Screw the SAS croud, right? Lol
Reply With Quote
  #65
Old 07-18-2012
Ford78's Avatar
Member

Join Date: Dec 2010
Location: Iowa
Posts: 124
Looking good! Keeping about the same height or going bigger?
Reply With Quote
  #66
Old 07-18-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
There's only a 3" BL and a leveling kit on it right now. The plan is 3" BL and a 4" Long Travel suspension lift.
Reply With Quote
  #67
Old 07-19-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
RA's look sweet. i cant wait to see the finished product. are you going to add more metal to them?
Reply With Quote
  #68
Old 07-19-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Blue, Most definitely! I got a sheet of new 3/16 steel today for free. It's around 3' wide x 6' long!

Oh, and....!!!

Attached Thumbnails
Weekend Warrior Build-181361_3925950199228_729220188_n.jpg
Reply With Quote
  #69
Old 07-19-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
BEEF!! what size threads? 1.25? looks very nice! im glad to see they went to poly inserts instead of the delrin. should last longer, give a better ride, and be quieter. now get offline and go work on it!!!
Reply With Quote
  #70
Old 07-19-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Bahaha...it's not even CLOSE to being ready!

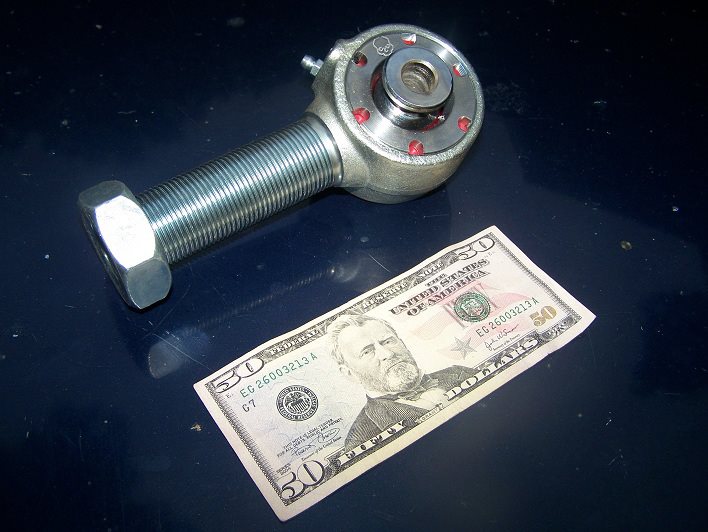

And to answer your question, yes, 1.25"-12 tpi. 4140 Chromoly forged joint. Pure BEEF!!!
Reply With Quote
  #71
Old 07-20-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

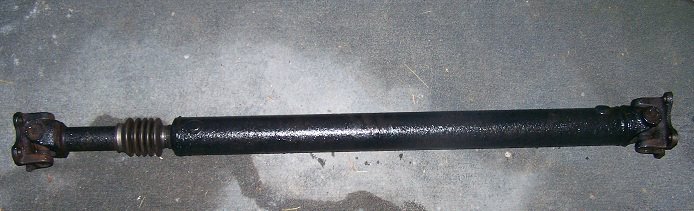

Shopped around for a single piece rear driveshaft today.

One place not 10 miles from me wanted $175 PLUS I had to go pick it up. Called another place in Liberty, Pa ( 2+ hours away ) and they delivered me the driveshaft. Total cost for it and the delivery was $35.00 lol

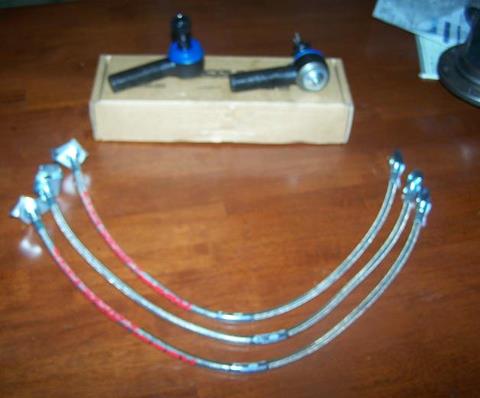

More goodies in the mail. True 1 ton T.R.E's and stainless steel braided brake hoses. The hoses come with relocation brackets that can either be bolted or welded on, which makes them extremely universal!

Attached Thumbnails
Weekend Warrior Build-427494_3929640731489_31471015_n.jpg   Weekend Warrior Build-531221_3929366204626_363043355_n.jpg

Last edited by brinker88; 07-20-2012 at 06:42 PM.
Reply With Quote
  #72
Old 07-22-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

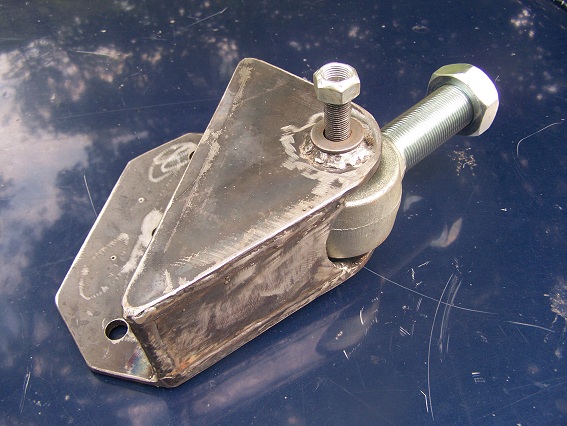

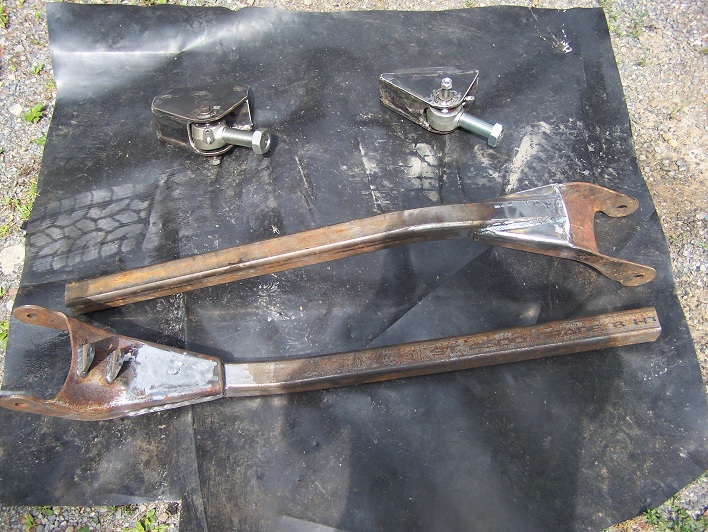

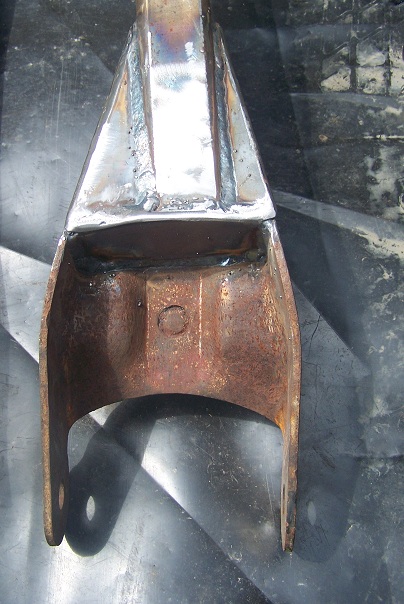

Yea buddy! Progress!!! I also changed the lower shock mount from the stud mount to a through bolt. I think it's stonger. Also welded a 1/4" thick washer for reinforcement on the ballistic joint mount. Had to modify the bracket to accept the 2-5/8" joints as the dipshits didnt send me the right ones ( I ordered the 2-3/8" wide ones. )









Attached Thumbnails
Weekend Warrior Build-100_8963.jpg   Weekend Warrior Build-100_8964.jpg   Weekend Warrior Build-100_8966.jpg
Reply With Quote
  #73
Old 07-25-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

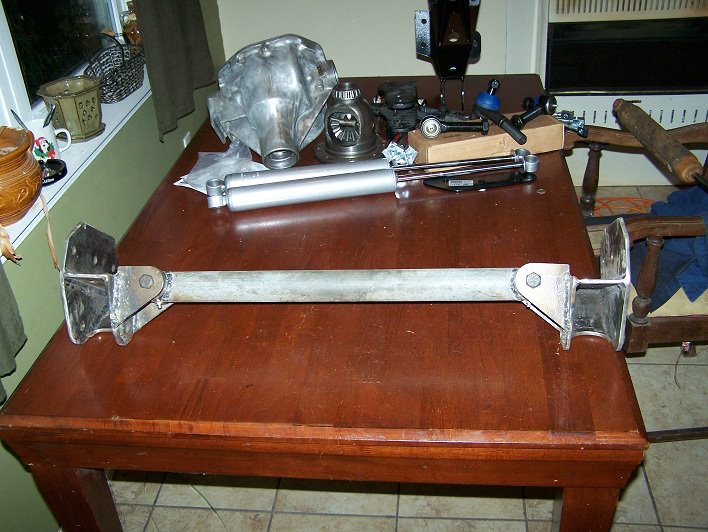

Got the crossmember finished tonight minus a 1/2" clearance window for the driveshaft when it flexes. Will also knock down the sharp edges on the frame mounts and round of the 90 degree edge on the crossmember mounts.

Attached Thumbnails
Weekend Warrior Build-564709_3950616135861_1937691545_n.jpg
Reply With Quote
  #74
Old 07-28-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

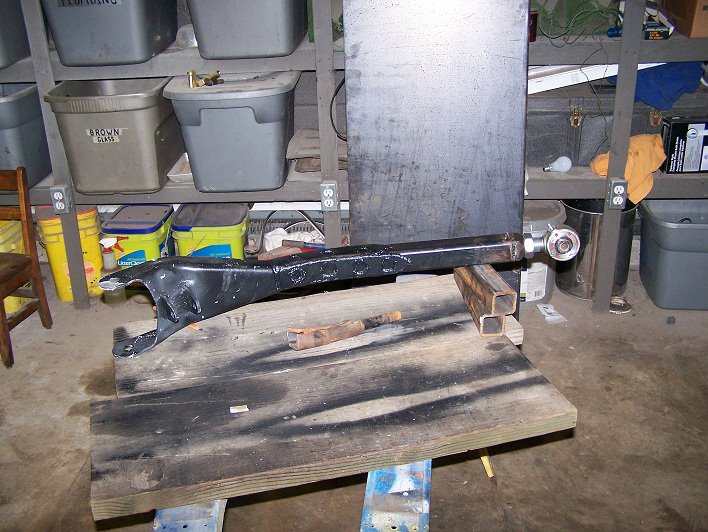

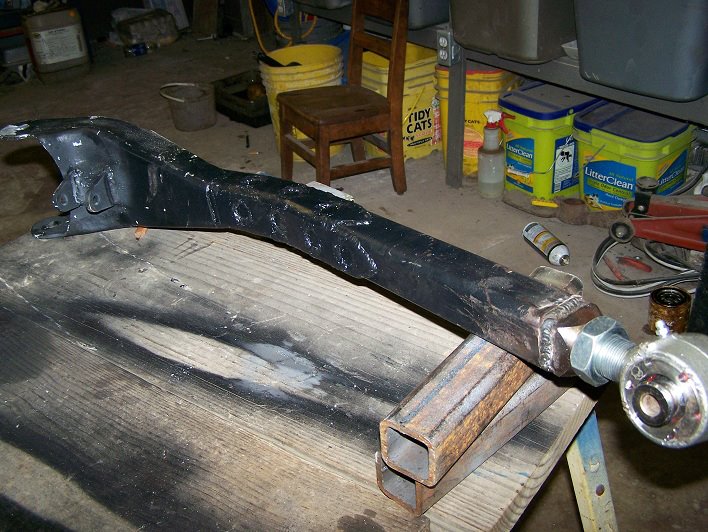

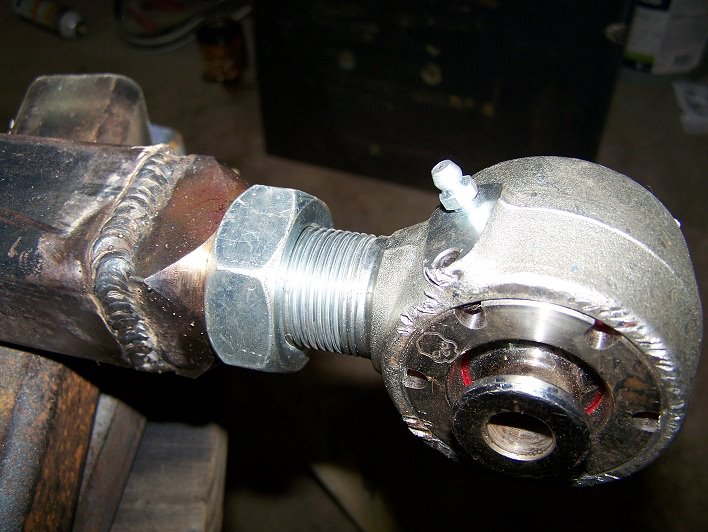

Beefcake!





Attached Thumbnails
Weekend Warrior Build-599588_3961164479563_383341407_n.jpg   Weekend Warrior Build-427404_3961165439587_1664900645_n.jpg   Weekend Warrior Build-600039_3961166279608_605541229_n.jpg
Reply With Quote
  #75
Old 09-17-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

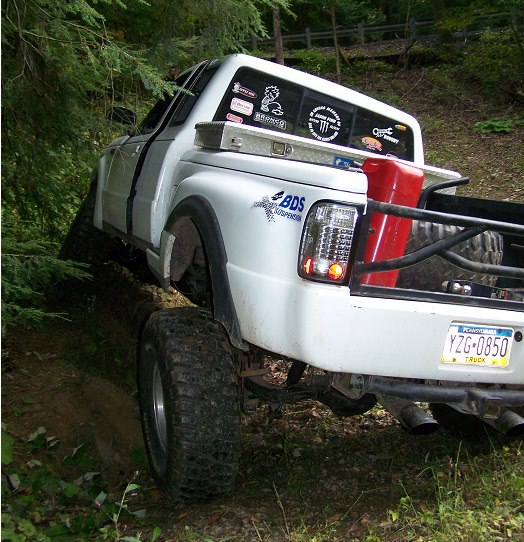

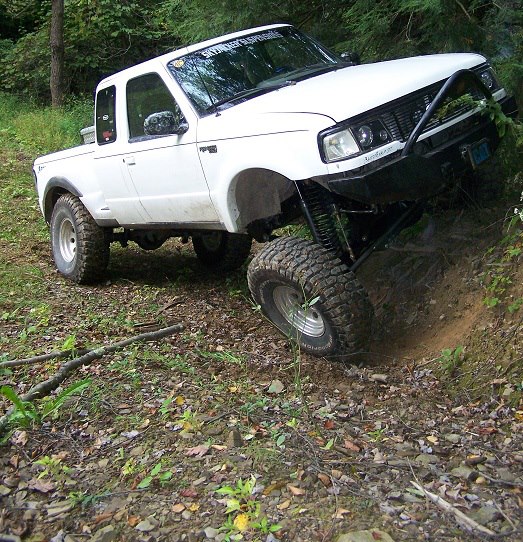

If anyone's still interested, I got her finished up tonight:



Attached Thumbnails
Weekend Warrior Build-283001_4180630086066_774568181_n.jpg   Weekend Warrior Build-390380_4180631086091_1270572049_n.jpg
Reply With Quote
