  #26
Old 04-21-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Not as far as I can tell. I cant believe how quiet it is around turns
Reply With Quote
  #27
Old 04-27-2012
Grumpy's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Edmonton, Alberta
Posts: 234
How hard is it to re-gear diffs? I am thinking of upgrading mine from 4.10's to 4.56's
Reply With Quote
  #28
Old 04-28-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Quote:
Originally Posted by Grumpy View Post
How hard is it to re-gear diffs? I am thinking of upgrading mine from 4.10's to 4.56's


You really shouldnt need to regear with the 4.10s you have in there now. It should be perfect for you. Either way, to answer your question, its difficult enough for me not to try it. You're looking at around $1400 minimum for a gear swap in your truck btw.
Reply With Quote
  #29
Old 04-28-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

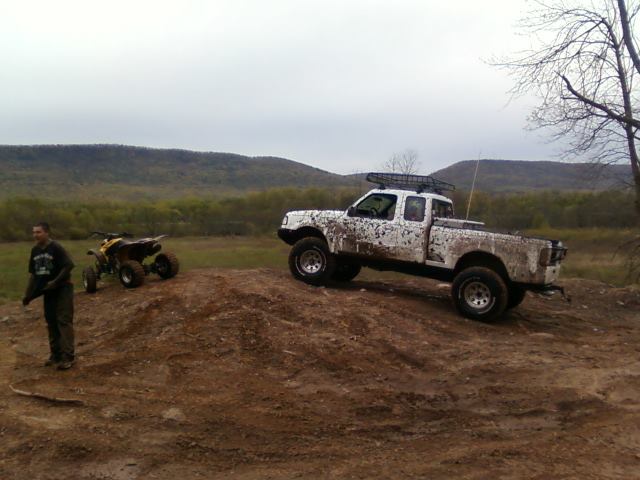

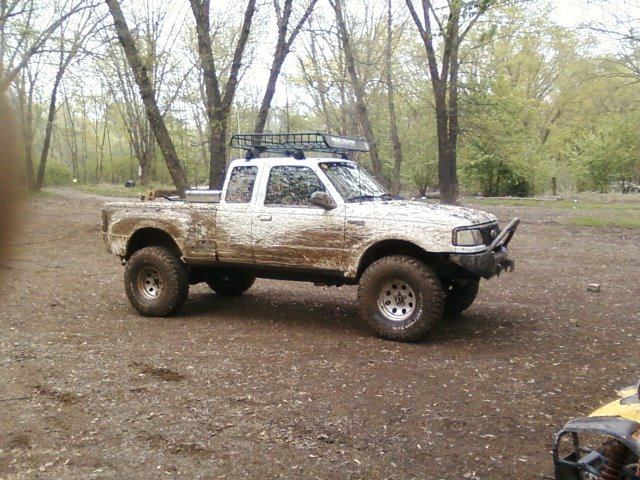

Well went on some trails today. Truck did amazing. I really need to fine tune the front suspension now tho. (i.e. extended radius arms/longer shock towers). I now completely understand why everybody raves about having a locker. It is literally night and day. I didnt spin a tire the whole trip.



Attached Thumbnails
Weekend Warrior Build-535619_3485033016574_1593844063_2701075_2130560527_n.jpg   Weekend Warrior Build-523018_3485031656540_1593844063_2701073_275886235_n.jpg
Reply With Quote
  #30
Old 04-30-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks fun!
Reply With Quote
  #31
Old 06-14-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

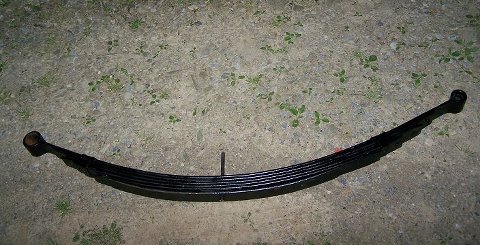

Some of you know I bought a 4" lift at Carlisle All Ford Nationals a couple weeks ago. Well I just finished up building my custom leaf springs. Ended up with half ranger/half explorer springs (expo main spring) with 6 leaves, all new isolators, plastic friction pads and OEM rubber bushings. Next is a set of custom extended radius arms.


Attached Thumbnails
Weekend Warrior Build-314147_3768839591561_1483658969_n.jpg
Reply With Quote
  #32
Old 06-14-2012
cookiemonster's Avatar
Member
iTrader: (1)

Join Date: Jan 2012
Location: budd lake, nj
Posts: 84
Hey its that guy! lol Trucks still killer man, we gotta go wheelin one of these days.
Reply With Quote
  #33
Old 06-15-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Definitely dude. Get your *** up here!
Reply With Quote
  #34
Old 06-17-2012
cookiemonster's Avatar
Member
iTrader: (1)

Join Date: Jan 2012
Location: budd lake, nj
Posts: 84
Quote:
Originally Posted by brinker88 View Post
Definitely dude. Get your *** up here!
New clutch is going in the truck this week...aswell as the BL so shortly after ill get in touch an make a trip up there.
Reply With Quote
  #35
Old 07-05-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

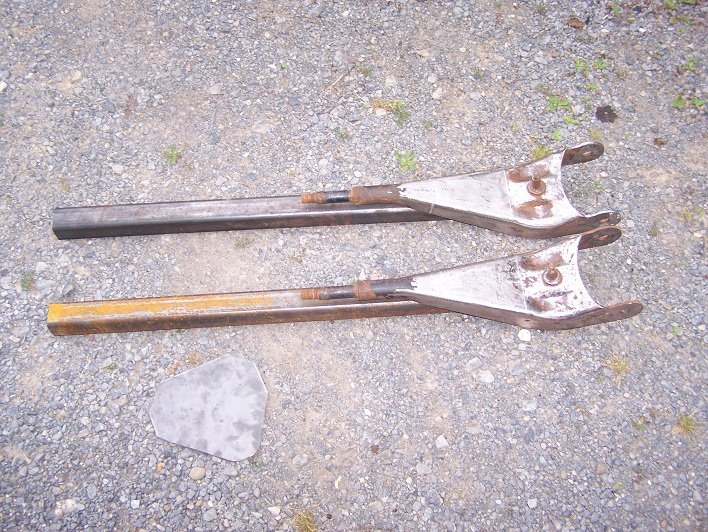

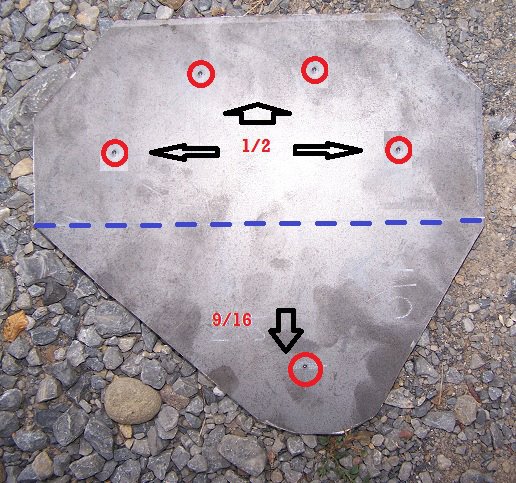

Well, truck's going under the knife again here soon. Leaf springs are done. Front pivot brackets are all cleaned up and Ordered the steel for extending my radius arms. Got 2" square tubing x 0.25" wall for the arms and 1/4" plate for making my mounts. Ordering 2.5" Ballistic joints for the radius arms with thier special 2.375 width for the ranger frame. Cant wait to get this thing back on the trail!!
Reply With Quote
  #36
Old 07-05-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175


Attached Thumbnails
Weekend Warrior Build-428822_3860968374723_434638142_n.jpg   Weekend Warrior Build-534669_3860965974663_914234421_n.jpg
Reply With Quote
  #37
Old 07-06-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Almost a thousand views and only 35 comments? Where's the constructive critizism folks?!?! I understand it's a slow build but damn!!
Reply With Quote
  #38
Old 07-07-2012
Ford78's Avatar
Member

Join Date: Dec 2010
Location: Iowa
Posts: 124
Quote:
Originally Posted by brinker88 View Post
Almost a thousand views and only 35 comments? Where's the constructive critizism folks?!?! I understand it's a slow build but damn!!
No constructive critizism here. I just keep checking in all the time on a sweet build.
Reply With Quote
  #39
Old 07-07-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Thanks Ford_78!

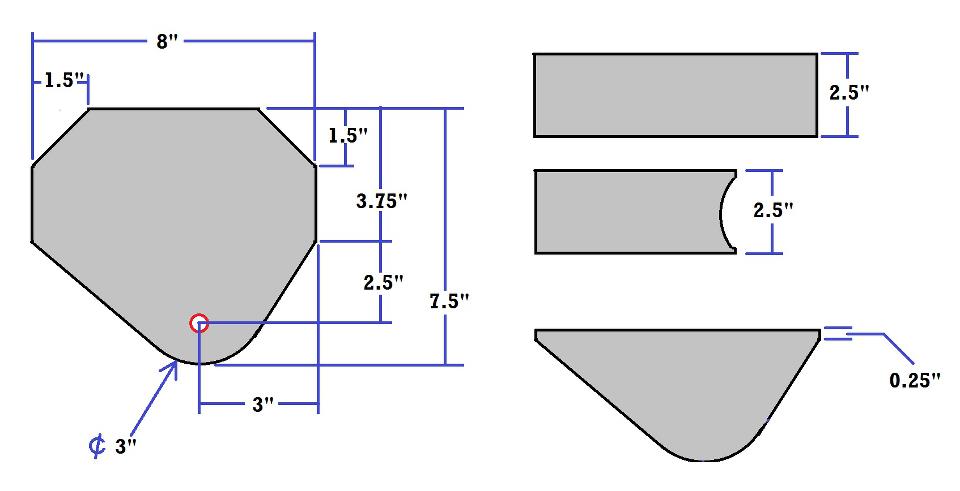

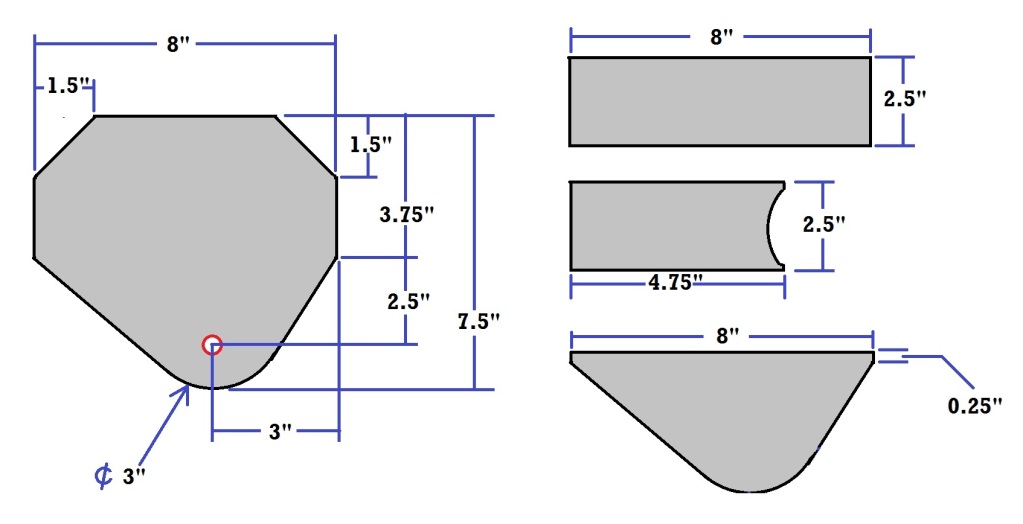

Here's my measurements for my mounts. If anybody wants to copy this, go right ahead. I am using the Ballistic Fab joints for my arms just because of the narrower mounting width (2.375) so if you're going to be usuing Currie Johnny Joints, you will need to make your mount wider.

Attached Thumbnails
Weekend Warrior Build-405994_3872179094984_767638504_n.jpg   Weekend Warrior Build-100_8932.jpg

Last edited by brinker88; 07-07-2012 at 02:52 PM.
Reply With Quote
  #40
Old 07-07-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
your dimensions are incomplete
Reply With Quote
  #41
Old 07-07-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
If someone cant figure out what goes where then they shouldnt be working on suspensions. End of story.


Reply With Quote
  #42
Old 07-07-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
I'm just saying.... can't send those somewhere and say "cut these" if they don't have all the necessary dimensions. unless those are to scale.
Reply With Quote
  #43
Old 07-07-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Steel, Im just messin w/ ya bro. I definitely have to fix that. Thank you.
Reply With Quote
  #44
Old 07-07-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
haha yeah i gotcha. if you get the dimensions i could even create cad drawings for them in case people want em.
Reply With Quote
  #45
Old 07-07-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Look any better?
Reply With Quote
  #46
Old 07-08-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175

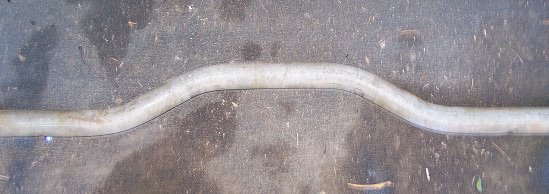

Beginning of my transmission crossmember. I'll have 2 piece bushings inside 2" OD tubing for mounting onto my radius arm frame mounts.

Attached Thumbnails
Weekend Warrior Build-481911_3877248621719_890205529_n.jpg
Reply With Quote
  #47
Old 07-08-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
truck looks great! i love how the roll pan looks on your truck.
where are you finding these 2.375 ballistic joints? all i can find are 2.0, 2.625, and 3.0's
is the width of the bracket 2.5 inside or outside? id try to make it as close to the mounting width of the joint itself. if you make it 2.5 inside then the bolt is going to have to pull the sides in. and 2.5 outside then the joint just wont fit.

cant wait to see more progress
Reply With Quote
  #48
Old 07-08-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Found them on BallisticFabrications website.

Forged Chromoly 2.63" Ballistic Joint

For the mounts, it's 2.5 INSIDE. I figure that pulling the steel tight to the joint is a lot easier fighting with fitment issiue. If you think about it, that's only a 1/16" on both sides of the joint, which wont matter at all once everything's tightended up.
Reply With Quote
  #49
Old 07-08-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
those are 2 5/8" not 2 3/8". they wont fit in the bracket. your gonna have to make them an 1/8th wider.

i dont know if you have seen these or not but i think im going to run them for my lower link mounts. Artec Industries Lower Link Frame Bracket
Reply With Quote
  #50
Old 07-08-2012
brinker88's Avatar
Member
Thread Starter

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Blue, look at the options below the picture. It gives you an option for a 2.625 with a 9/16 or 5/8" bolt OR a 2.375 mounting width with a 9/16" bolt.
Reply With Quote
