  #26
Old 11-08-2008
tjtheman007's Avatar
Member
iTrader: (1)
Join Date: Oct 2007
Location: Kankakee, IL
Posts: 270
Likes: 0
Received 0 Likes on 0 Posts
NIce! i can only dream what i want to do to my truck, while your actually doing it...
Nice job.
Sounds sweet though. I would love to get to know how to do suspesion.... its on my to do list, lol.

Kepp up the good work...and pics.

Reply Like
  #27
Old 11-08-2008
INT3RC3PTOR's Avatar
RF Veteran
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
damn, you are always doing somthing!

Reply Like
  #28
Old 11-08-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
Originally Posted by redranger4.0
Have you plugged anything into the Pirate 3link Calculator?

http://mysite.verizon.net/triaged/fi...kV1.0bBETA.zip

Just seems like from a pinion travel stand point you want them closer in length. Specially if your going to be pulling a lot of travel because the pinion will rotate a lot through out.
i dont know what to make of it but i plugged the numbers in, i still need my weight numbers though.


Reply Like
  #29
Old 11-08-2008
darkstar_420's Avatar
Member
Join Date: Feb 2008
Location: sk
Posts: 621
Likes: 0
Received 1 Like on 1 Post
how did you get outta that pickle in the avatar beard?

Reply Like
  #30
Old 11-08-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
Originally Posted by redranger4.0
Why so short on the upper link compared to the lowers?
The upper links can be slightly longer or shorter than 0.7 (70 percent) of the lower links, but try not to pass 0.6 (60 percent) or 0.8 (80 percent).

http://www.4x4.hr/2007/index.php?opt...id=69&Itemid=9

Reply Like
  #31
Old 11-08-2008
casfz1's Avatar
Member
Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Likes: 0
Received 0 Likes on 0 Posts

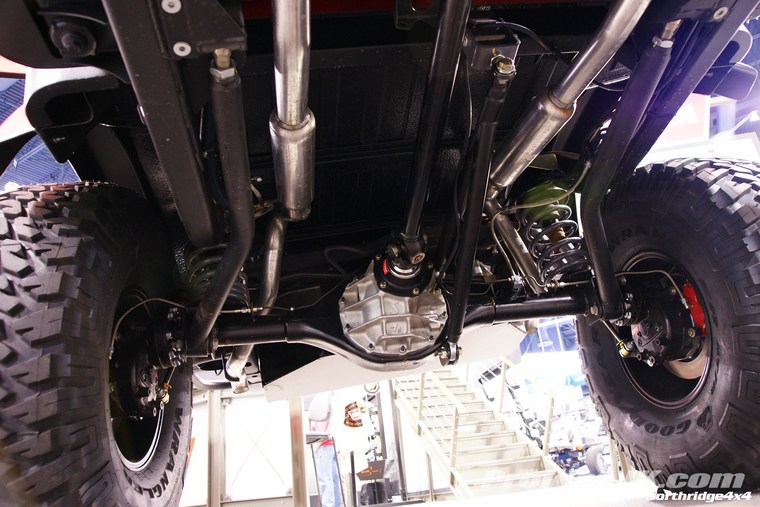

Hey Zack to bad you don't have enough room to go with high clearance arms like these.

Attached Thumbnails Zabeard's Front 3link and Coilovers (Done)-dsc09722.jpg
Reply Like
  #32
Old 11-08-2008
casfz1's Avatar
Member
Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Likes: 0
Received 0 Likes on 0 Posts
..........

Attached Thumbnails Zabeard's Front 3link and Coilovers (Done)-dsc09708.jpg
Reply Like
  #33
Old 11-08-2008
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Why wouldn't he have enough room?

Reply Like
  #34
Old 11-08-2008
casfz1's Avatar
Member
Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Likes: 0
Received 0 Likes on 0 Posts
Because I believe were his arms are going to be the tcase and the exhaust will be in the way.

Reply Like
  #35
Old 11-08-2008
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Ah, Zach...are you closer to the Ohio border or Illinois? Where in the state are you.

Reply Like
  #36
Old 11-08-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
I am 1 hour from Ohio.

Chad that would be cool but talk about complicating the project!!!

Reply Like
  #37
Old 11-08-2008
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
hmmm...I might need to stop by one weekend I'm super bored. AFTER the 5.0 of course.

Reply Like
  #38
Old 11-08-2008
casfz1's Avatar
Member
Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Likes: 0
Received 0 Likes on 0 Posts
come on I know you like a change.

Reply Like
  #39
Old 11-08-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
haha yeah screw that, this is enough of a challenge!

Reply Like
  #40
Old 11-08-2008
Gearhead61's Avatar
RF Veteran
Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Likes: 0
Received 2 Likes on 2 Posts
adding bends to the link would add some serious stress concentration factors. You would have to really overbuild them to keep them from bending!

Reply Like
  #41
Old 11-09-2008
INT3RC3PTOR's Avatar
RF Veteran
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
just use some wooden dowels, that'll work!

Reply Like
  #42
Old 11-09-2008
stRanger's Avatar
Member
Join Date: Jan 2005
Location: North GA
Posts: 590
Likes: 0
Received 0 Likes on 0 Posts
Someone want to decipher all that?

Originally Posted by zabeard
i dont know what to make of it but i plugged the numbers in, i still need my weight numbers though.


Reply Like
  #43
Old 11-09-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
well for a reari know most want the anti squat to be just above 100%. Mine is way past that but i dont know how that works on a front end. i mean its not gonna squat when you hammer on it.

Reply Like
  #44
Old 11-09-2008
INT3RC3PTOR's Avatar
RF Veteran
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
let it squat a bunch,maybe it will pull a wheelie!

Reply Like
  #45
Old 11-09-2008
redranger4.0's Avatar
Member
Join Date: Jun 2004
Location: Firey depths
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by zabeard
well for a reari know most want the anti squat to be just above 100%. Mine is way past that but i dont know how that works on a front end. i mean its not gonna squat when you hammer on it.
Im pretty sure its supposed to be around that in the front too.

Reply Like
  #46
Old 11-09-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
well if that is the case 90% of the rigs with passenger side 3 link are not achieving it. no way they are. i know what numbers effect it and just looking at the setups i cant see them getting the right numbers

Reply Like
  #47
Old 11-09-2008
Ranger00's Avatar
Member
Join Date: Oct 2005
Location: Allentown, PA
Posts: 178
Likes: 0
Received 1 Like on 1 Post
zack what kind of notcher is that and where did you get it?

Reply Like
  #48
Old 11-09-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
Protools notcher...

www.pro-tools.com i think is the website

Reply Like
  #49
Old 11-09-2008
zabeard's Avatar
who?
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
http://www.pro-tools.com/hsn500.htm

Reply Like
  #50
Old 11-09-2008
Downey's Avatar
RF Veteran
iTrader: (1)
Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Likes: 0
Received 6 Likes on 6 Posts
looks good man cant wait to get out of college and get more tools and start on my truck

Reply Like
