Requested pix for 'Ford Rules' of my SAS

Let me start by saying I bought the truck already SAS'd from a buddy of mine, and he had a shop do the swap. While it DOES work, I'm not very impressed by the work or way things are done. Had I done it things would of been done different, and when I have the money and skills I will be changing things up!

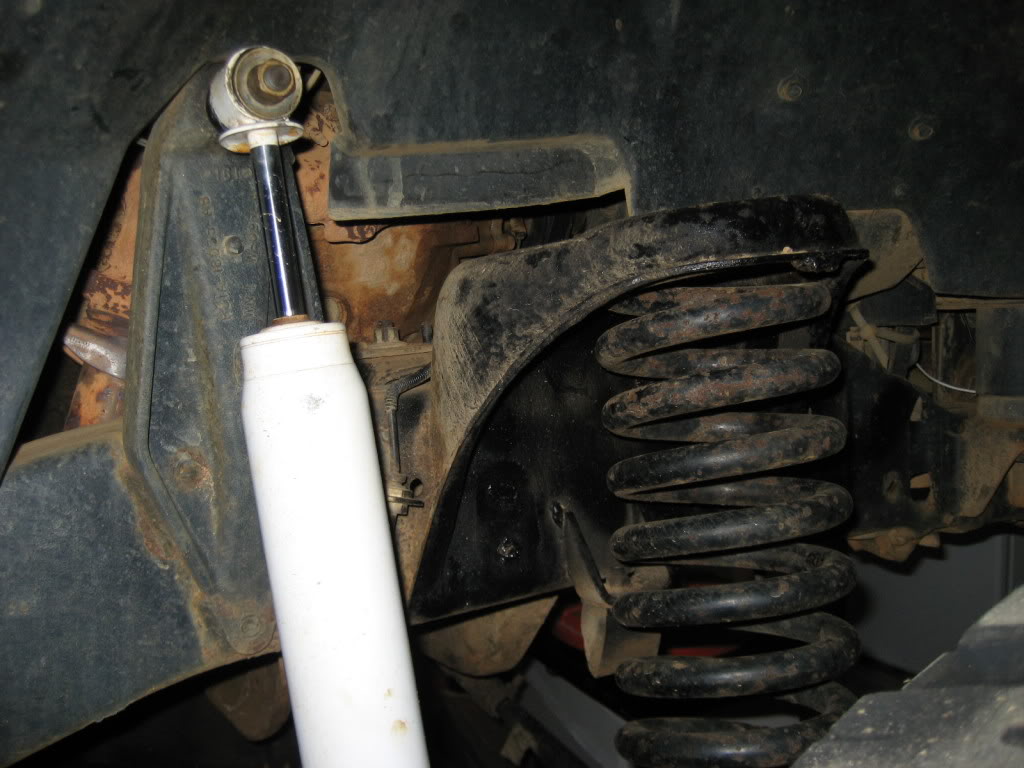

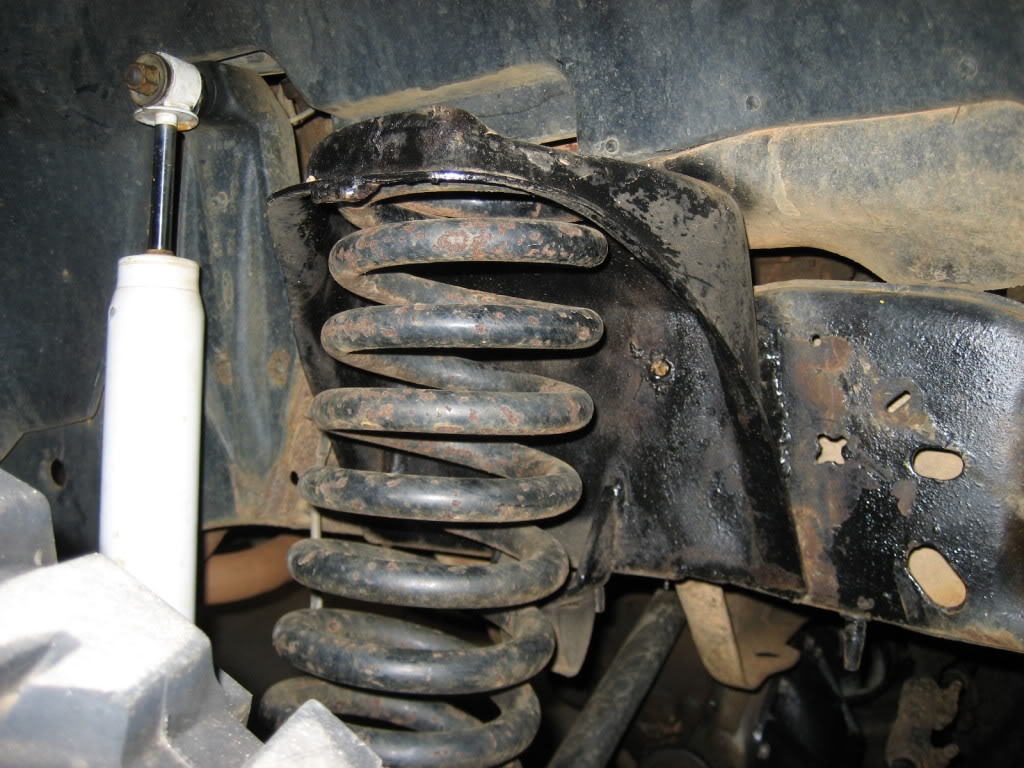

But, here are some pix of the springs buckets and radius arm mounts...

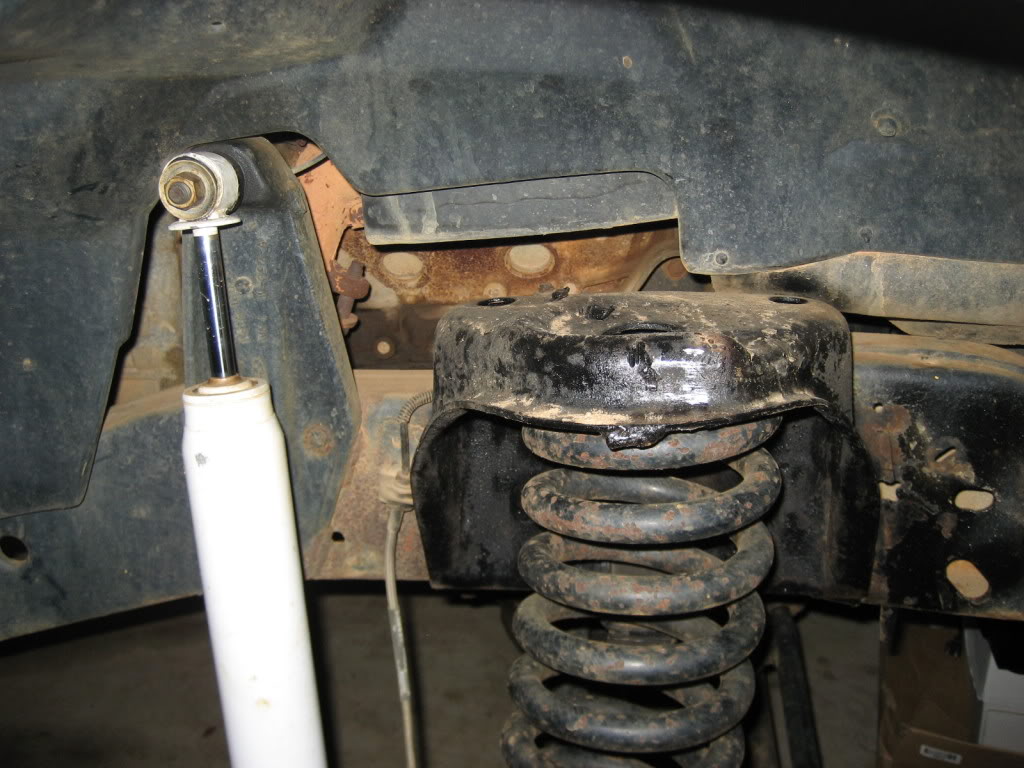

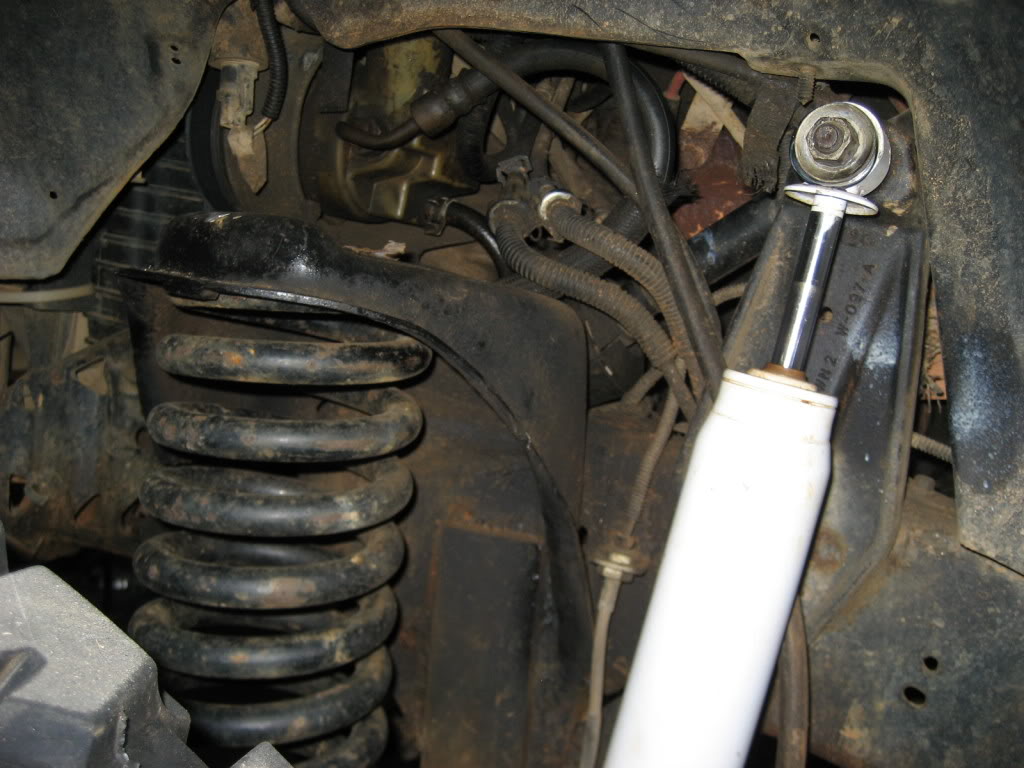

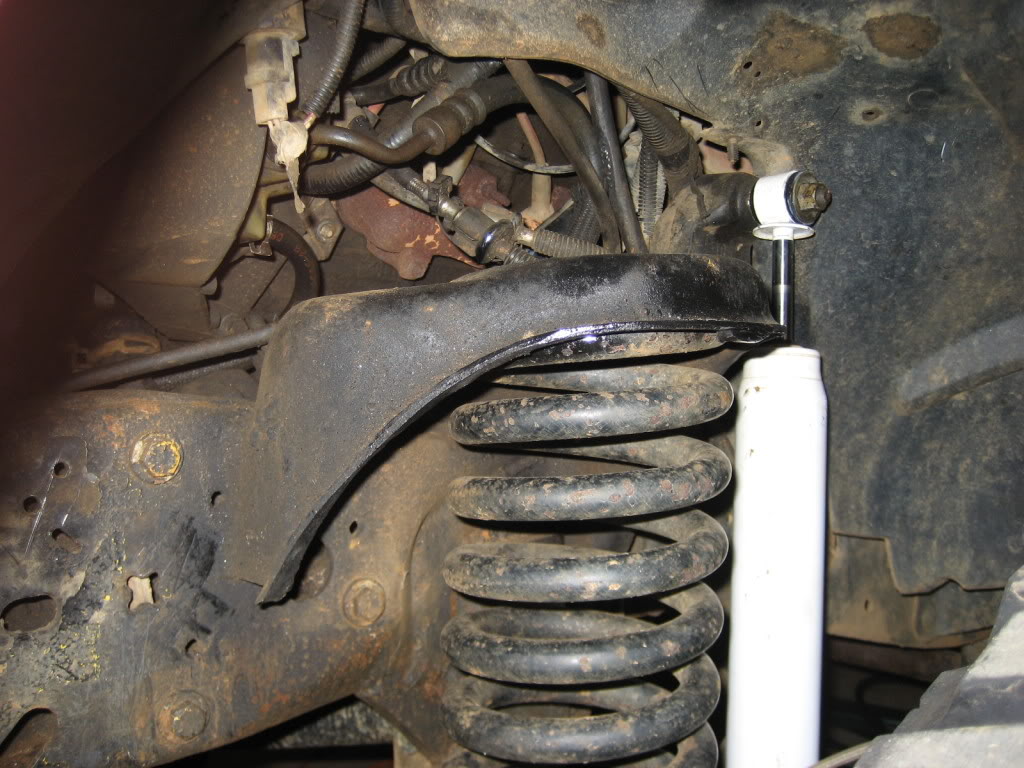

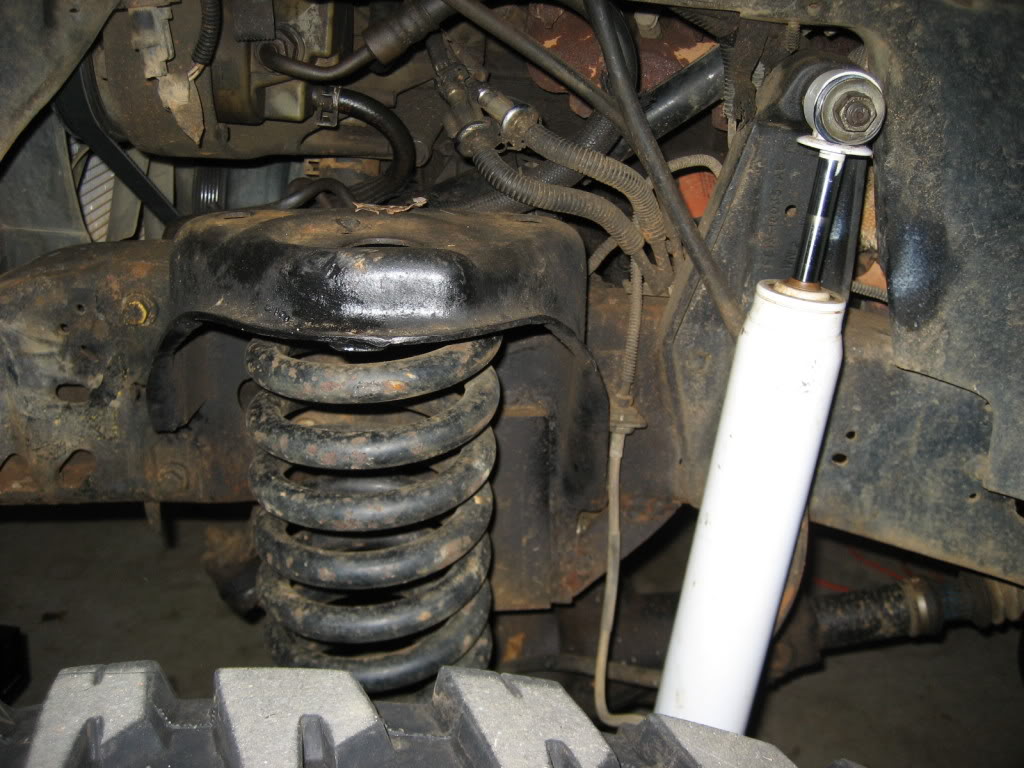

Name:  IMG_1947.jpg
Views: 3
Size:  129.1 KB

Name:  IMG_1942.jpg
Views: 3
Size:  147.2 KB

Name:  IMG_1943.jpg
Views: 3
Size:  106.1 KB

Name:  IMG_1946.jpg
Views: 3
Size:  130.7 KB

Name:  IMG_1944.jpg
Views: 3
Size:  144.9 KB

Name:  IMG_1945.jpg
Views: 3
Size:  114.1 KB

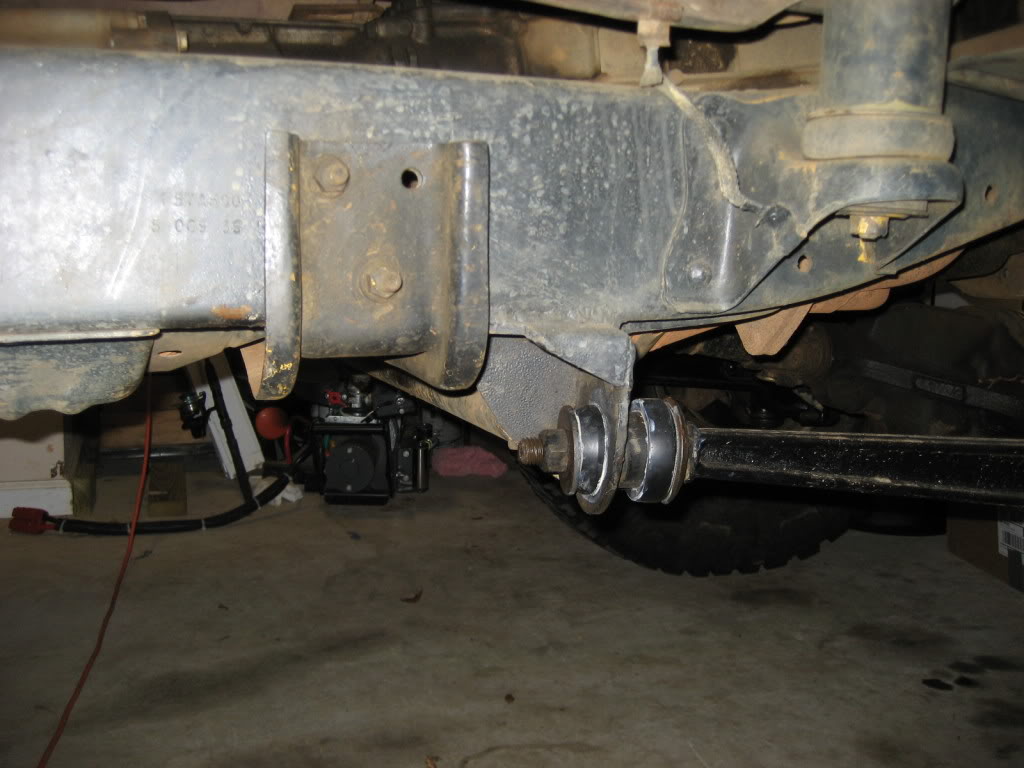

Name:  IMG_1948.jpg
Views: 3
Size:  95.8 KB

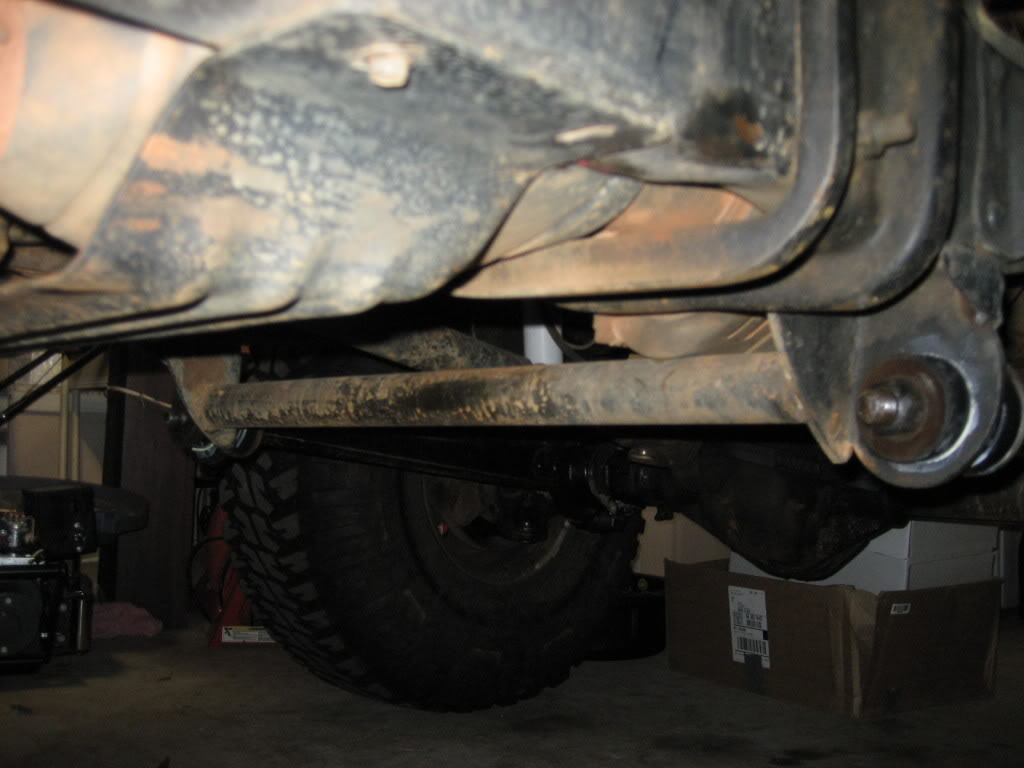

Name:  IMG_1950.jpg
Views: 3
Size:  73.1 KB


Some things I would like the change in my set up are 1) I'd like to space the coil buckets out from the frame so the springs don't have to bow. 2) I'd like to space the rad. arm mounts of the frame to what would be stock distance for the F150 that the axle came out of.. Can prolly place some 2x4 box in there and mount them to that, but all in due times, and funds!!
Reply With Quote
  #2
Old 12-14-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
wow not much uptravel.

been a while since you posted pics.
Reply With Quote
  #3
Old 12-15-2008
Member
Thread Starter

Join Date: Jan 2005
Location: North GA
Posts: 590
You wouldn't think so, but it actually does have a decent amount of flex up front... the shocks actually limit my flex (droop)... Now that you mention it, that's something else, I've gotta rework the shock mounts to get a longer shock on there, the rear is fully limited (droop and stuff) by the shocks....
Reply With Quote
  #4
Old 12-15-2008
Member
Thread Starter

Join Date: Jan 2005
Location: North GA
Posts: 590

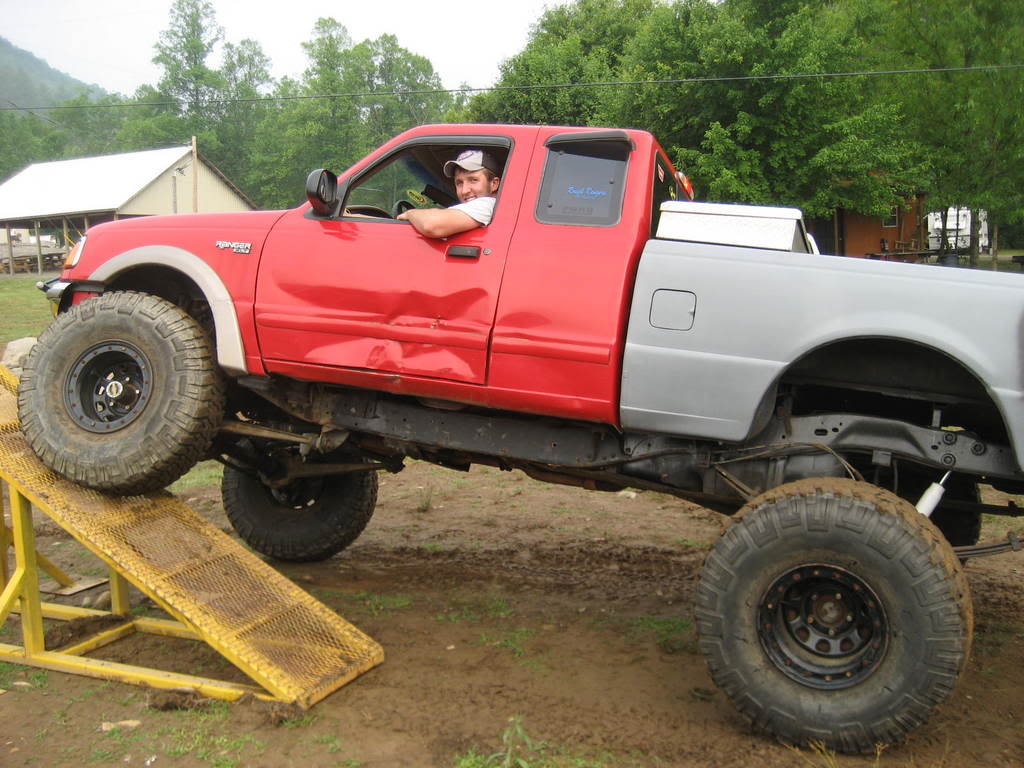

Name:  IMG_0408.jpg
Views: 3
Size:  121.5 KB

Much more and I'd be all into the fenders... But I will say this, I rebuilt the axle (all bushings etc) a couple months back... The radius arms limit the flex more than anything!!! With no coils and no shocks on the front axle the radius arms wouldn't even allow the axle to drop to the ground... had to stand on the hub to pull out the spring
Reply With Quote
  #5
Old 12-15-2008
Member
Thread Starter

Join Date: Jan 2005
Location: North GA
Posts: 590

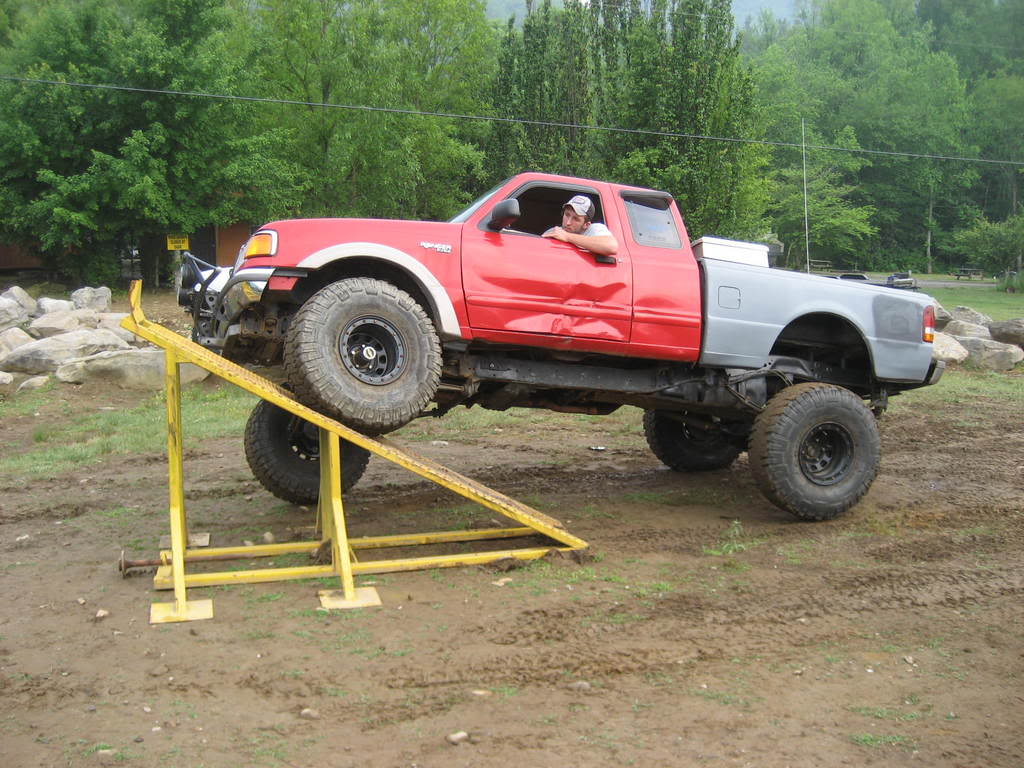

Name:  IMG_0406.jpg
Views: 3
Size:  140.3 KB

As you can see the drivers rear is startin to pull... That's due to the shocks maxing out.

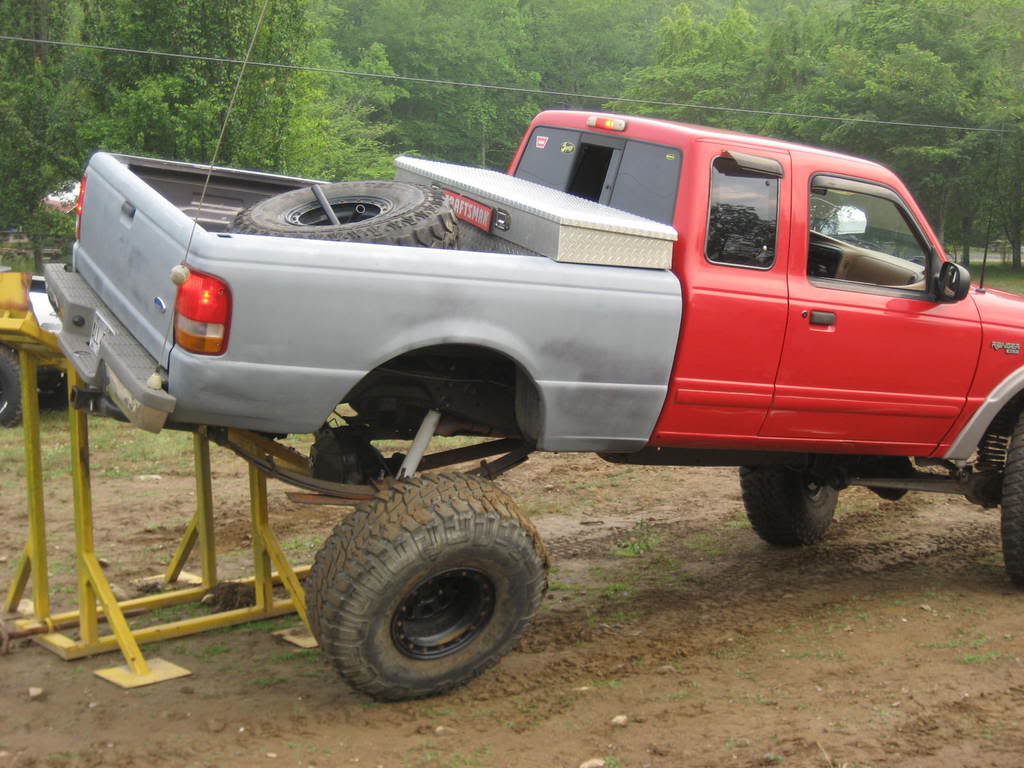

Name:  IMG_0404.jpg
Views: 4
Size:  116.3 KB

Pretty much raping the plate at the top of the ramp, kept smackin it with my bumper... coulda gone higher!
Reply With Quote
  #6
Old 12-15-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah you need to extend those radius arms.
Reply With Quote
  #7
Old 12-15-2008
Member
Thread Starter

Join Date: Jan 2005
Location: North GA
Posts: 590
No money or the needed fab/welding skills to do it right now.. Mainly need to get it streetable so I can drive it... I never had the issue of needing more flex when I was up at Tellico... On that same note, I've never seen a pair successfully extended and being able to take serious abuse! But I do need to remedy this problem (passenger rad. arm) First thing first... new trac bar set up.. I HOPE!

Reply With Quote
  #8
Old 12-15-2008
ford rules's Avatar
Member

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Flexes pretty decent but that radius are needs some love haha nice truck bud.
Reply With Quote
  #9
Old 12-15-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
zack built a sweet set of extended arms that looked like that would take a hell of alot abuse im sure he will post about them and i hope he puts up pics of them because i wouldnt mind seeing them again
Reply With Quote
  #10
Old 12-15-2008
Member
Thread Starter

Join Date: Jan 2005
Location: North GA
Posts: 590
Would def. be interested in seein the arms he modified then! Had a buddy who extended and reinforced his to heck and back and after 2 seasons of serious wheeling they were thrashed... granted he wheels much harder than I do... But open for pix and opinions on extending them!
Reply With Quote
  #11
Old 12-15-2008
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Nice truck, can't you convert the end of the radius arms to heim joints? Would sacrifice some ride comfort but that could solve your travel issue.
Reply With Quote
  #12
Old 12-15-2008
Member
Thread Starter

Join Date: Jan 2005
Location: North GA
Posts: 590
That's what I would do if i extend them. Seems most people tend to do that.... Are the arms cast metal? OR just standard? If they are cast then I'm concerned with penetration and it eventually breakin a weld.... Hmm I dunno.. I'd just like to get it streetable first, I'm more than pleased with the flex as it sits right now!
Reply With Quote
  #13
Old 12-15-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Reply With Quote
  #14
Old 12-15-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Chris ive got a set of stock radius arms im getting rid of pay shipping and they are yours if you want them
Reply With Quote
  #15
Old 12-15-2008
Member
Thread Starter

Join Date: Jan 2005
Location: North GA
Posts: 590
For just shipping?!?! NO joke... zip code 30040... lemme know man!! that'd be awesome!
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Ford rules SAS thread ford rules Project Logs 468 01-23-2013 11:42 PM
Specific help requested in wiring exploder seats Mr Lyme Interior Semi-Tech 10 09-11-2007 09:48 PM
Spindle lift vs. torsion keys (pics requested) mmulkey6 Suspension Tech 8 04-06-2007 06:50 PM
requested pics dixieranger44 Fabrication & Tool Tech 11 08-29-2006 05:45 PM
