Spare Tire Mount Pics.

I finally got my full size spare tire and made the mount for it. I got the idea from another member here(can't remember his name to give him credit for the idea though). I used (1) 8" eye bolt and (1) 12" carriage bolt and a few nuts and washers and drilled one hole through the bed rail. Cost less than $10. Let me know what yinz think .

DSC_0054-4.jpg?t=1208311424
DSC_0059.jpg?t=1208311590
DSC_0061-2.jpg?t=1208311610
DSC_0057-1.jpg?t=1208311630
DSC_0065-2.jpg?t=1208311650
DSC_0068-3.jpg?t=1208311672
Reply With Quote
  #2
Old 04-15-2008
RangerExtreme's Avatar
Member
iTrader: (4)

Join Date: Nov 2007
Location: Robinson, Pa
Posts: 2,047
Not bad man if it does the trick it does the trip thats all that matters....good job on it looks good!
Reply With Quote
  #3
Old 04-15-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Looks good. How far away from the top of the cap is it?
Reply With Quote
  #4
Old 04-15-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
kinda looks like it could break.

cool idea tho
Reply With Quote
  #5
Old 04-15-2008
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by zabeard View Post
kinda looks like it could break.

cool idea tho
It shouldn't. Both bolts are 1/2" and shouldn't go anywhere. I expect the bolts will turn and losen a little in the next couple of days, but I'll tighten them down.

Quote:
Originally Posted by Jimmeh View Post
Looks good. How far away from the top of the cap is it?
An inch or two. I didn't really look, but not much room at all. The tire sits on the wheel well and the front bed rail.
Reply With Quote
  #6
Old 04-15-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I was thinking about doing the exact same thing with my spare! Nice to know it will work great.
Reply With Quote
  #7
Old 04-15-2008
racsan's Avatar
Member

Join Date: Sep 2006
Location: central ohio
Posts: 647

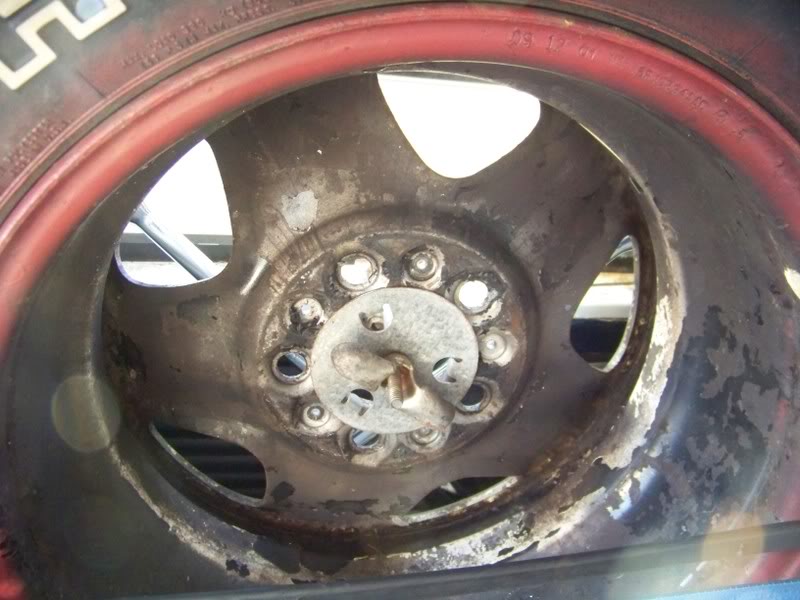

Name:  Picture408002.jpg
Views: 44

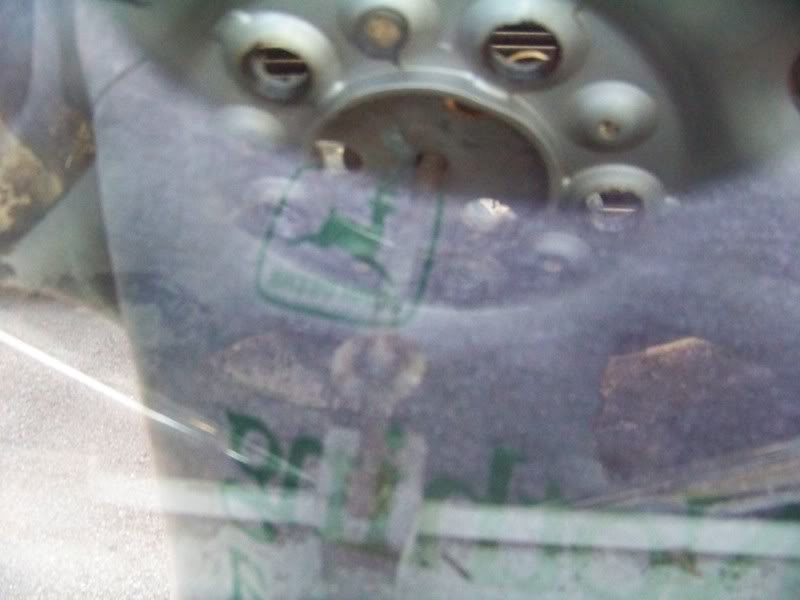

Size:  77.7 KB Name:  Picture408001.jpg
Views: 45

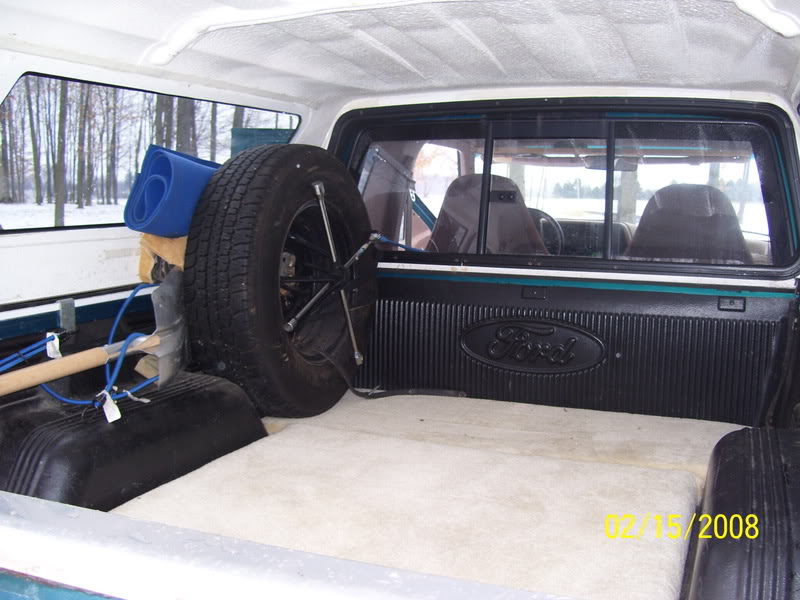

Size:  51.5 KB Name:  trucksnowpics013.jpg
Views: 506
Size:  89.3 KB i know that one picture is a little hard to see, i tried taking it through the window of the cap. ive had my spare mounted in the bed for about as long as ive had the truck. i havent had any problems with mine staying put. the last pic is with the original spare, ive put that tire in my trailer now and use one of my winter wheels for a truck spare now, also put the 4-bar between the tire and box.
Reply With Quote
  #8
Old 04-16-2008
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
looks good, trig!
Reply With Quote
  #9
Old 04-16-2008
racsan's Avatar
Member

Join Date: Sep 2006
Location: central ohio
Posts: 647

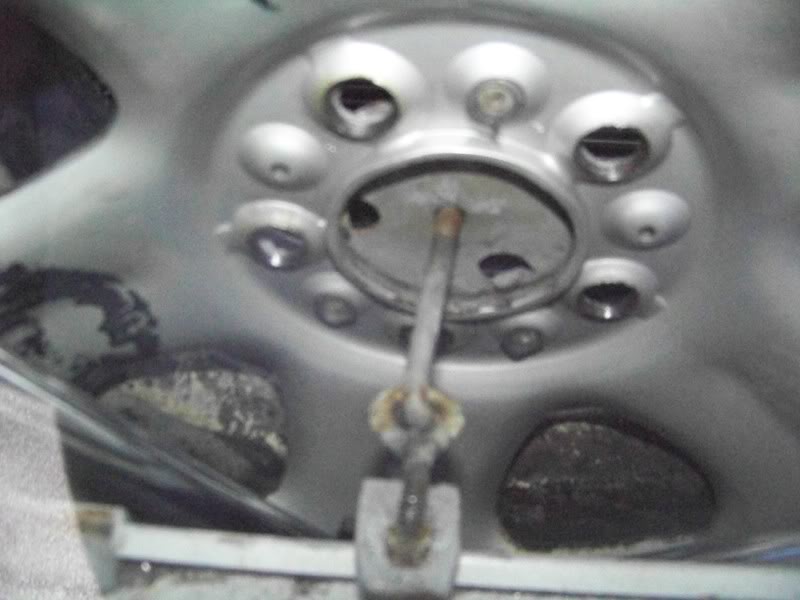

tried to get some better ones of mine, had better luck tonight taking a pic thru the glass window at the j-bolt/eyebolt. ive got a good bit of space between tire and cap, 235/15 tire. in the winter i'll just put one of the "summer" tires in. Name:  Picture409005.jpg
Views: 39

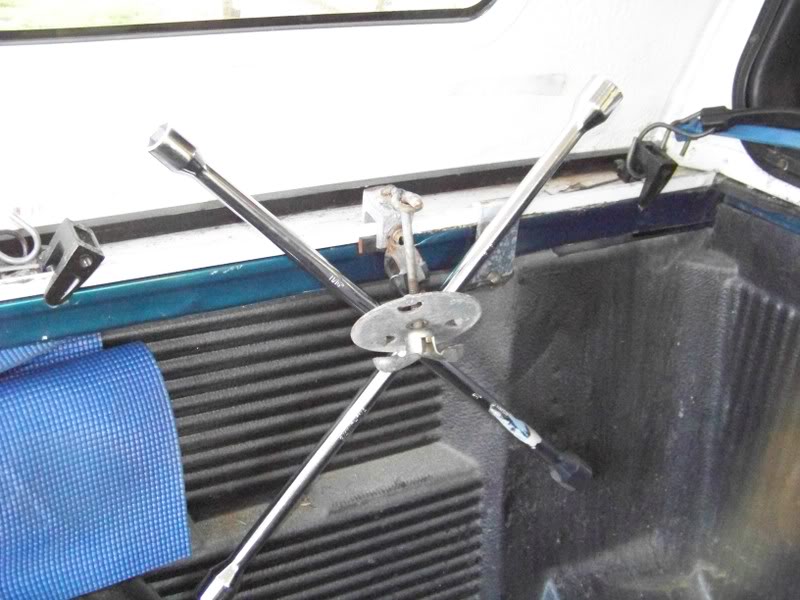

Size:  60.6 KB Name:  Picture409003.jpg
Views: 42

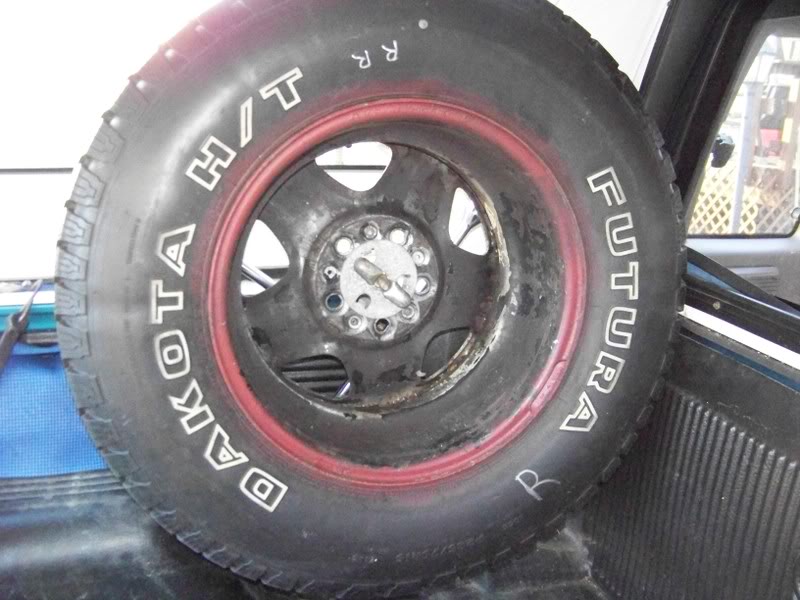

Size:  88.1 KB Name:  Picture409004.jpg
Views: 37

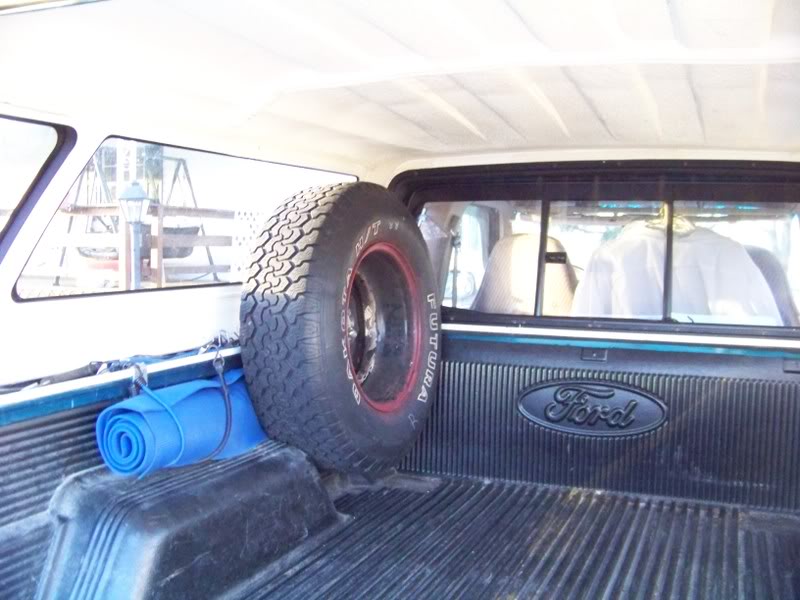

Size:  88.5 KB Name:  Picture409001.jpg
Views: 38
Size:  81.3 KB
Reply With Quote
  #10
Old 04-16-2008
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
i like it
Reply With Quote
  #11
Old 04-17-2008
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
i see where Zack is coming from. It just looks like the fiberglass that the bolt is through could break if the bolt was to be push back and forth
Reply With Quote
  #12
Old 04-17-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
looks good
Reply With Quote
  #13
Old 04-17-2008
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by INT3RC3PTOR View Post
i see where Zack is coming from. It just looks like the fiberglass that the bolt is through could break if the bolt was to be push back and forth
It also goes through the bedrail it is secure. The fiberglass was actually a pain to drill though.

Thanks for the compliments.
Reply With Quote
  #14
Old 04-17-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
looks familiar Justin did that to his 1993
Reply With Quote
  #15
Old 04-17-2008
outdoorsman's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
I really like that idea! Mine just sits in the front of the bed taking up space. I have a matching stock rim though and that idea won't work well since the lug nuts are recessed into the rim. Heck why not mount it to the roof of the shell, the inside of the shell.

Here is a similiar product.

http://www.homeproductsnmore.com/v/v...re-tire-mount/

Last edited by outdoorsman; 04-18-2008 at 12:06 AM.
Reply With Quote
  #16
Old 04-18-2008
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
sounds like it should hold then, and looks like Bryan showed you atleast saved about 50$
Reply With Quote
  #17
Old 04-22-2008
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by Redneckstone View Post
looks familiar Justin did that to his 1993
That where I got the idea from, I just couldn't remember his name.

Quote:
Originally Posted by outdoorsman View Post
I really like that idea! Mine just sits in the front of the bed taking up space. I have a matching stock rim though and that idea won't work well since the lug nuts are recessed into the rim. Heck why not mount it to the roof of the shell, the inside of the shell.

Here is a similiar product.

http://www.homeproductsnmore.com/v/v...re-tire-mount/
That product will not work on a Ranger. Well at least not with a 32" tire. The eye hook site above the frame rail because the tires sits on the wheel well and the front of the bed rail. I thought about building something similar, but it would just cost more to accomplish the same thing.
