No heat what a shocker

So my 1997 ranger 4cyl. had no heat. replaced heater control valve(it was loosing fluid). still no heat. Pulled the blend motor(frozen solid), checked blend door(no coupling showing at all). So its broke no nail fix. Call me lazy or call me tired of being cold. I cut a hole in the bottom of the Heater box, flipped the blend door by hand. I know no cold air in the summer but the A/C doesnt work and i needed heat. Maby ill fix it the right way this spring before it gets to hot, or ill flip the blend door back to cold if im still feeling lazy.
Reply With Quote
  #2
Old 12-01-2010
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Over all it is not that hard just time consuming. The hardest part was wrestling the steering column.
My heater core was partially plugged which is why I also replaced the blend door.
Old temporary fix
Name:  IMG_0400.jpg
Views: 142
Size:  58.5 KB
Name:  IMG_0399.jpg
Views: 75
Size:  52.7 KB

Permanent fix

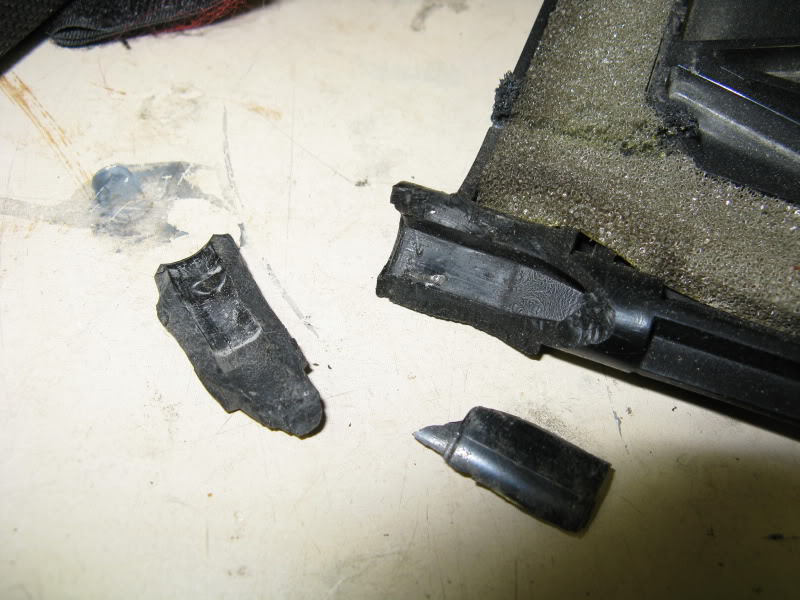

Name:  IMG_0398.jpg
Views: 71
Size:  85.7 KB

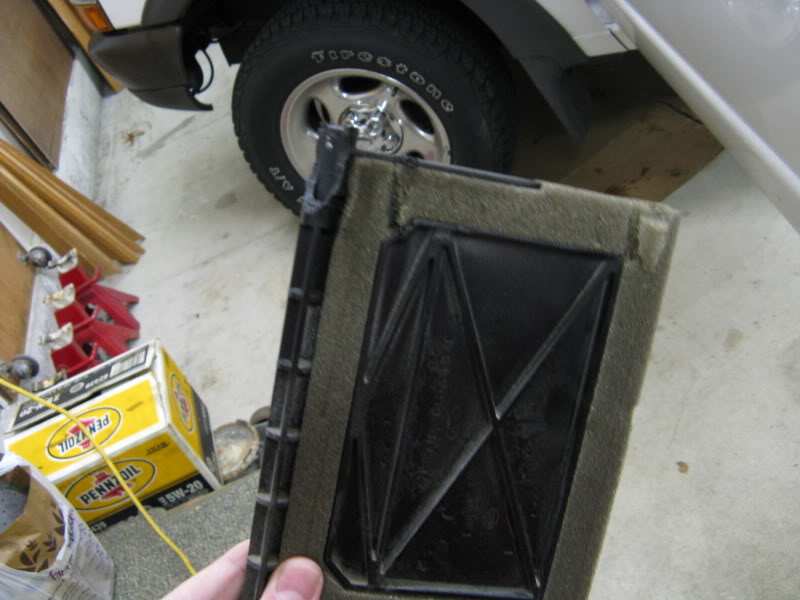

Name:  IMG_0396.jpg
Views: 70
Size:  62.9 KB
Name:  IMG_0394.jpg
Views: 70
Size:  49.4 KB

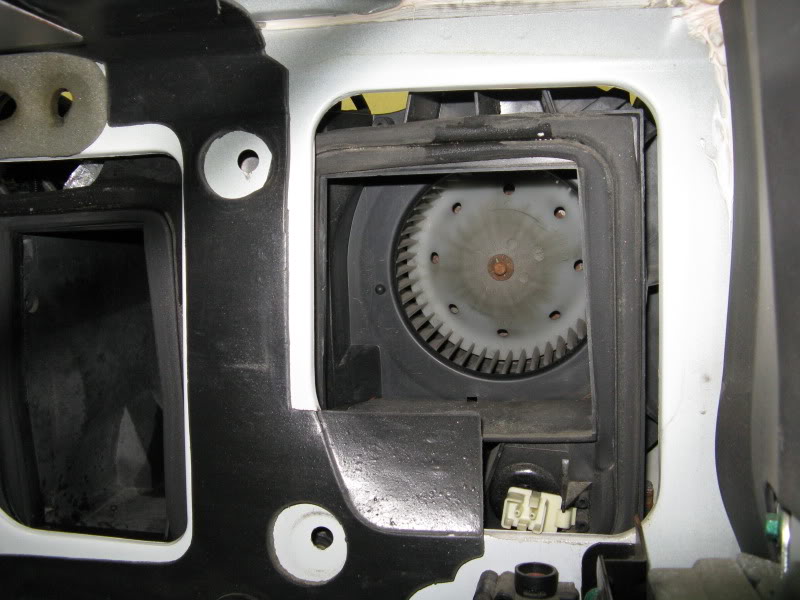

Name:  IMG_0390.jpg
Views: 69
Size:  73.0 KB

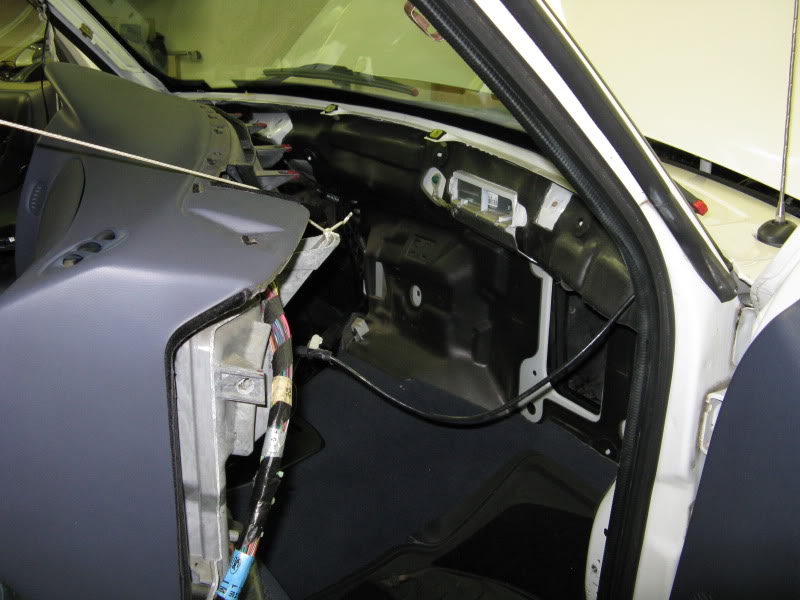

Name:  IMG_0389.jpg
Views: 69
Size:  70.6 KB
Name:  IMG_0388.jpg
Views: 68
Size:  52.2 KB

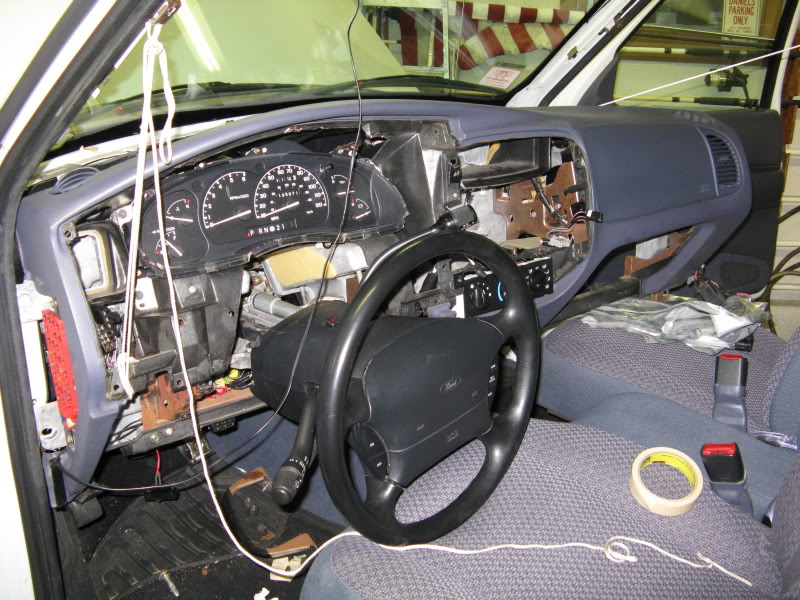

Name:  IMG_0387.jpg
Views: 64
Size:  135.1 KB

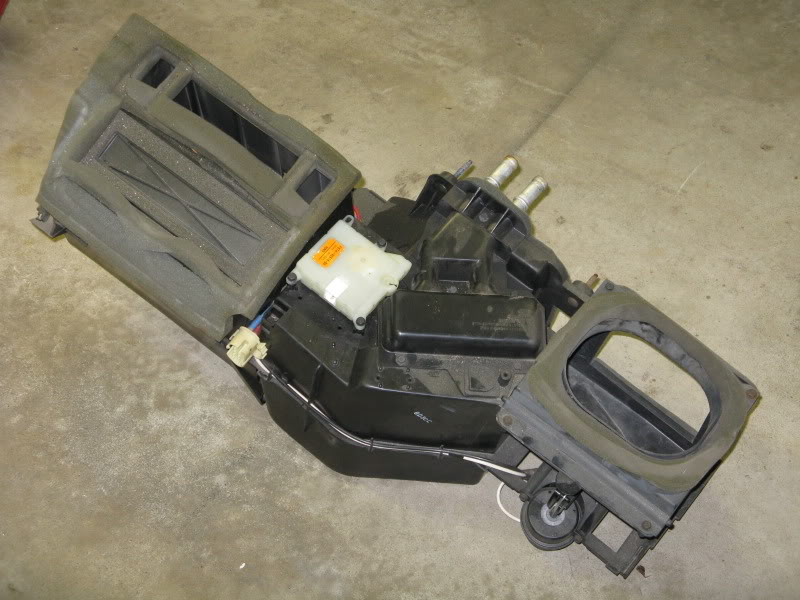

Name:  IMG_0385.jpg
Views: 66
Size:  84.2 KB
Reply With Quote
  #3
Old 12-01-2010
Mikev69's Avatar
Member
Thread Starter

Join Date: May 2010
Location: O'Fallon, mo
Posts: 32
Should and im sure will fix mine the right way but its getting cold and my Mustang is put away for the winter. looks like its about as much fun as messing with the heater core!!
Reply With Quote
  #4
Old 12-01-2010
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
That whole box is glued together so you have to get a kit to fix it. You need to cut a hole to remove the blend door, put the new one in then block it off with a supplied metal plate. One thing you should do which I forgot to do is trim the foam seal on the blend door a little bit, you don't need to over do it, without doing that the resistance to turn is very high which is why they break.
Reply With Quote
  #5
Old 12-01-2010
Mikev69's Avatar
Member
Thread Starter

Join Date: May 2010
Location: O'Fallon, mo
Posts: 32
TY for the tip
Reply With Quote
  #6
Old 12-02-2010
Marchy's Avatar
Member

Join Date: Dec 2009
Location: Redmond, WA
Posts: 287
wow that looks like a pita.
