3.0 Cam shaft position sensor

any idea where it is? Looked on google image and find it~
Reply With Quote
  #2
Old 09-27-2010
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
It's mounted in the top of the cam syncronizer.
Passenger side , toward the firewall , on top.
Similar to the old distributors.

If you have a higher mileage truck , go to the dealer and get a new syncro assembly. Cost ~ $200
These are a known failure part and can do major engine damage when they go bad , as they also drive the oil pump.
Use the search button at the top of the pane and enter 'cam syncro'.
Many posts about this problem.
Reply With Quote
  #3
Old 09-28-2010
Member

Join Date: Jun 2010
Location: OK
Posts: 43
Also known as crank angle sensor at autozone mine was just under $70
Reply With Quote
  #4
Old 09-28-2010
Member
Thread Starter

Join Date: Sep 2010
Location: willingboro
Posts: 18
hummm still dont see it. Mine is an 03 would that matter?? Maybe they forgot to install one!!
Reply With Quote
  #5
Old 09-28-2010
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Na it's there. There's a sensor on top of it with 2 screws. Look closer.
Reply With Quote
  #6
Old 09-28-2010
Member

Join Date: Jun 2010
Location: Kenosha, Wi
Posts: 51

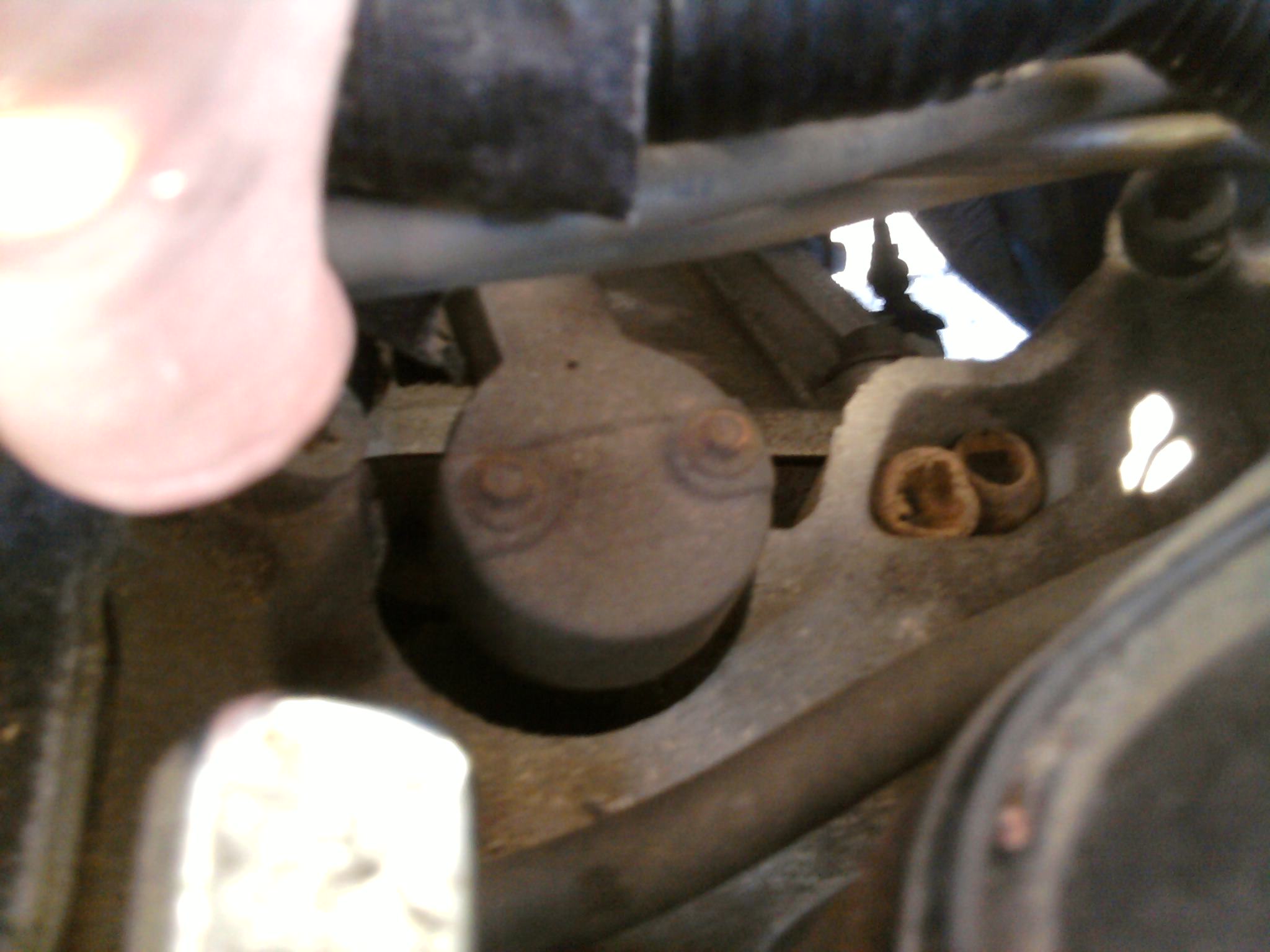

I thought it was covered by the intake but I was wrong, here is a pic:
Attached Thumbnails
3.0 Cam shaft position sensor-photo0141%5B1%5D.jpg
Reply With Quote
