  #151
Old 04-13-2011
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Here are a couple pictures of the new shallow mount Kicker 10'' in a custom box. Its covered in gray vinyl. My old L7 box was too big and left my passanger's feeling cramped. This box fits under the small ledge behind the passanger seat. I will get another one built for the drive side sometime since it does not effect leg room. I am 6'1'' and enjoy my seat reclined as far back as possible.

Size comparison. The new box is on the right hand side. Both are 10'' subs.
Name:  KickerSVT.jpg
Views: 194
Size:  54.4 KB

Built to fit under the ledge for an extra inch, yes I cut out the back carpet piece.
Name:  KickerSVTinstalled.jpg
Views: 184
Size:  32.5 KB

I am happy with it and hopefully my passengers will be too. Now its time to get some low back seats built.
Reply With Quote
  #152
Old 08-10-2011
Member

Join Date: Oct 2010
Location: charlotte, nc
Posts: 4


Uploaded with ImageShack.us

2 10" JK W3's and alpine Mrs-850 in a customized super crew sound ranger box
Attached Thumbnails
show off your regular cab subs-imag0724p.jpg
Reply With Quote
  #153
Old 10-01-2011
Member

Join Date: Sep 2011
Location: Sharpsburg
Posts: 11
Here is what's in mine right now. I was shooting for the cheapest set up I could manage. The wood was all scrap but it was 3/4" so.....

I think total airspace is around 1cu ft. The amp is bridged for the sub. The other 2 ch run the front 4x6's. There is a built in x-over so it helps keep the bass from blowing the front stage out.

Could someone tell me how to add the pic's instead of attachments that need to be clicked?
Attached Images
File Type: jpg DSCF0044.JPG (1.45 MB, 26 views)
File Type: jpg DSCF0046.JPG (1.51 MB, 17 views)
File Type: jpg DSCF0047.JPG (1.49 MB, 17 views)
File Type: jpg DSCF0041.JPG (1.42 MB, 14 views)
Reply With Quote
  #154
Old 10-29-2011
Member

Join Date: Oct 2011
Location: los gatos ca
Posts: 4
what dimension boxes have you guys who have put single 10's behind the seat used? and how far back will your seat go back? I am hoping to add a 10 with a amp under the set to save space, i want the bass but also the space... I like the MTX molded boxes but not their price, i am handy with building things but i am nervous about the dimensions and the seats, my trucks a regular cab 2006. Or are there any boxes/ powered set ups (other than basslink) that you guys know fit fell? i do not want to go witha dinky litttle swlim thing or a bazooka, just a nice 10 while still preserving my seat and storage space. is that even possible?
Reply With Quote
  #155
Old 10-30-2011
Member

Join Date: Sep 2011
Location: Sharpsburg
Posts: 11
My son has the truck at work right now so I can't measure exactly, but...

The box is sealed and is wedge shaped. I removed the carpet from the back of the cab and put some dynamat on it. Left and right, the box goes from the edges of the plastic panels that hold the rear speakers. On my Ranger, these speakers are against the back wall, not on the sides. It's around 32" I think. The bottom is about 9", which is the deapth of that little "shelf" behind the seats. The top of the box stops about 1" or so from the rear window. I cut the pieces using cardboard templates then used liquid nails to fix them to the cab wall. I used expanding foam in all hollow spots of the cab wall to help seal as well as try to help deaden it. The top and side pieces are 1/2" thick I think with the face beind 3/4". I nailed a few supports that run from L to R that brace the sides. For the outside of the box, Krylon camo tan was used on the sides since it matches the carpet color pretty good and isn't really seen anyway. The factory back wall carpet was used for the front. I also painted the grill. Since my sub is really deep, it sits at the bottom of the box. With the arm rest down, you see less than half the sub. I think I am only missing the very last "click" to make the seat go all the way back, but it leans back very well. The amp is mounted behind the passenger side with the jack behind the driver. Both are mounted verticle. I am playing with the idea of cutting the factory panels to remake the box and remount the amp and jack. Not sure yet.
Reply With Quote
  #156
Old 10-31-2011
Member

Join Date: Oct 2011
Location: Tulsa, OK
Posts: 2
Clarion shallow mount 10" sub, cheap tiny box from a local place, alpine mrp-m450 I had sitting in the garage. No loss of seat travel and it's nice and punchey. The box end up being off-level, so the carpet cut isn't snug, but it looks good enough. I still have to hide the power and ground wires since they are visible with the arm rest down. I'll probably just wrap them in split loom and run liquid electrical tape over all the terminals (to black them out).

Attached Thumbnails
show off your regular cab subs-evpem.jpg
Reply With Quote
  #157
Old 11-11-2011
Member

Join Date: Oct 2009
Location: NJ
Posts: 8
Quote:
Originally Posted by SteelDirigible View Post
Well I have to say, I'm quite happy with my audioque amp. single fi 12. not a reg cab, but...




Fi FTW! is that a Q or the BL?

rockin the 12" Fi Q with an mrx m100.
Attached Thumbnails
show off your regular cab subs-dsc_0003-1.jpg   show off your regular cab subs-dsc_0004-1.jpg   show off your regular cab subs-pa020156.jpg
Reply With Quote
  #158
Old 11-11-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
it's a Q
Reply With Quote
  #159
Old 12-16-2011
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Ok I am making a request for pictures of 12" subs in regular cab rangers. No 10"s or 8"s. Has anybody made/bought a box small enough for it to be able to fit behind the drivers seat without taking up much room? I have my 12 in now but its centered between the two seats and space is somewhat of an issue. SOOO Pics of 12" setups... GO!!

Last edited by Mcleary316; 12-16-2011 at 05:16 AM.
Reply With Quote
  #160
Old 12-16-2011
Member

Join Date: Oct 2009
Location: NJ
Posts: 8
Quote:
Originally Posted by Mcleary316 View Post
Ok I am making a request for pictures of 12" subs in regular cab rangers. No 10"s or 8"s. Has anybody made/bought a box small enough for it to be able to fit behind the drivers seat without taking up much room? I have my 12 in now but its centered between the two seats and space is somewhat of an issue. SOOO Pics of 12" setups... GO!!
my pic right above this is a 12" Fi Q in my regular cab box is about 1.1 ft^3.
Reply With Quote
  #161
Old 12-16-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Quote:
Originally Posted by pbylsma27 View Post
my pic right above this is a 12" Fi Q in my regular cab box is about 1.1 ft^3.
I have the same sub!
Reply With Quote
  #162
Old 12-16-2011
Generallee701's Avatar
Member

Join Date: Dec 2010
Location: Columbus, Ne
Posts: 269
i was looking for my pic of my 2 12in set up. but i don't have it i don't think...but the sonic electronics box is fairly good. for size wise for single cabs. my only issue is having 2 amps along with mine. :P
Reply With Quote
  #163
Old 12-16-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Quote:
Originally Posted by SteelDirigible View Post
I have the same sub!
just realized we already had that discussion haha.
Reply With Quote
  #164
Old 12-18-2011
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Quote:
Originally Posted by pbylsma27 View Post
my pic right above this is a 12" Fi Q in my regular cab box is about 1.1 ft^3.
Im also trying to keep it hidden lol
Reply With Quote
  #165
Old 12-21-2011
Member

Join Date: Jul 2011
Location: Chilton Alabama
Posts: 27
I have a 12" sub right in the middle of the little space I have. I love it! its loud but idk if its loud enuff for you?
Reply With Quote
  #166
Old 12-22-2011
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Quote:
Originally Posted by 2k2EDGE View Post
I have a 12" sub right in the middle of the little space I have. I love it! its loud but idk if its loud enuff for you?
Thats where mine is also but I want to move it to a more inconspicuous place.. out of the way so I can through sh*t in the space where the sub is. Basically I want to put the sub behind the seat. Just wanna see other guys setups.
Reply With Quote
  #167
Old 01-06-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Southwest Customs View Post
8" Fosgate Sub; Fosgate T400.4 Amp; Fosgate OEQ1 Equalizer. 100% custom fiberglass enclosure.

Quote:
Originally Posted by Southwest Customs View Post
Lol! Thanks. I don't think marketing something like that would be very economical considering it can only fit that particular amp and was a little on the expensive side to build because of all the fiberglass. It's actually sort of a show/demo truck for me. I'm gutting it in a few few months and redoing everything. It will look even better this next go around
Nice setup, can’t imagine looking any better for a DD.

Quote:
Originally Posted by N20-3.0 View Post
Nothing fancy but here is my system.I replaced all the factory speakers with Pioneer 4-way's.
Installed a Sony head unit.

Built a couple custom sealed boxes and threw in some cheap 8's that sound great by the way.I still need to carpet the boxes.


You won't here me booming 2 blocks away but the sound inside the cab is very clear with good bass.I lost no drivers space with this install.
The side boxes, R they just for more air space inside the box ?

Interesting setup for a std cab.
Attached Thumbnails
show off your regular cab subs-imag0132.jpg   show off your regular cab subs-truckstereo005.jpg   show off your regular cab subs-truckstereo004.jpg   show off your regular cab subs-truckstereo002.jpg   show off your regular cab subs-truckstereo010.jpg

Reply With Quote
  #168
Old 01-06-2012
Ranger SVO's Avatar
Member

Join Date: May 2010
Location: abilene
Posts: 36

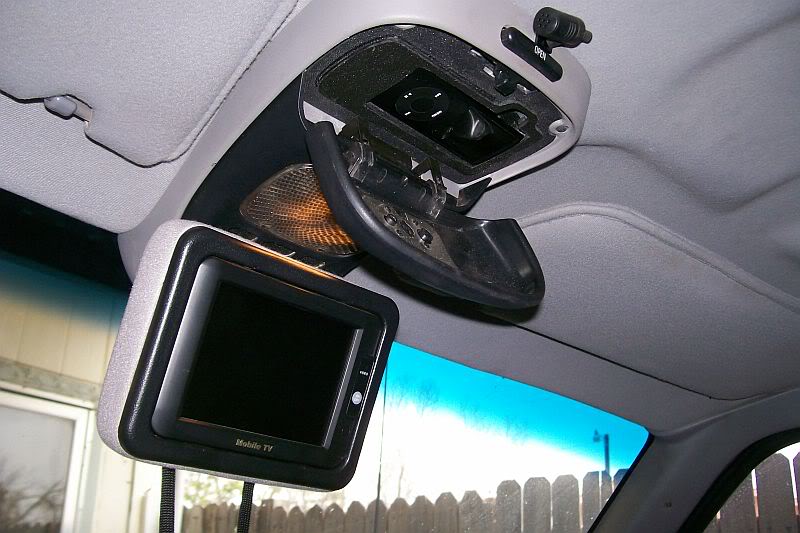

Lets start at the top. My music is exclusively of the iPod. So it had to be given its own place in the overhead console. The mic is for the Bluetooth

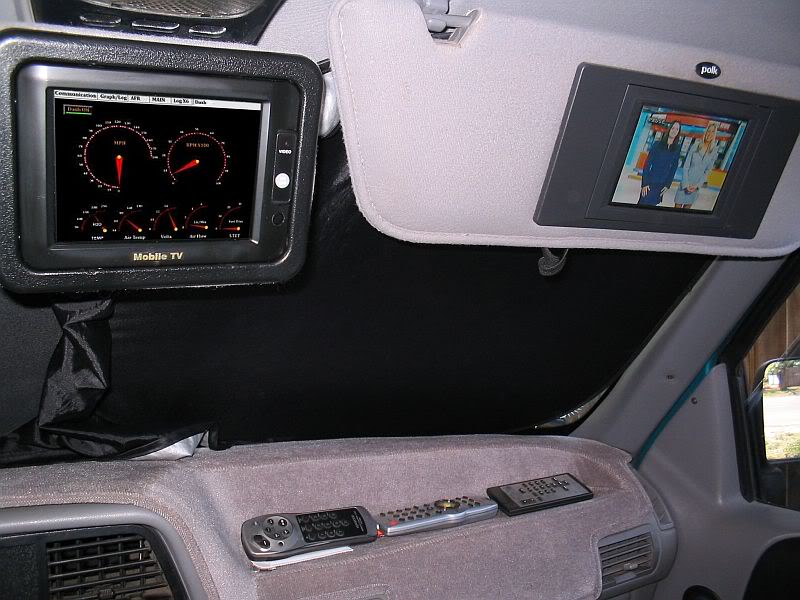

This is also one of two 5-inch monitors. The other is in the passenger side visor



The HU is an Alpine iDA X303. It is strickly an iPod player. It also has Bluetooth Audio, I can wirelessly play music from my iPod Touch. Also notice the center channel speaker under the ashtray.





Behind the seat is a Polk Audio DX10 and a Kenwood 4-channel amp. It powers the sub and the door speakers. The amp in the kick panel powers the center channel.





Almost forgot DVD Player in ashtray



I think one of the biggest mistakes we make is we amp the sub and nothing else. Deck power may work with a tweeter, but not for me. Everything is powered by an amp in my truck

This amp powers the Polk Audio DX3000 tweeters.

Ya, I know, that amp is a small Sony. I glued the kenwood name on it



The add on tweeter worked but it did not have enough presence. I fixed it by building my own croosover. The Polk Crossover (on the bottom) was a 12dB per octave at 6000Hz. Mine (the top one) is an 18dB per octave at 5000Hz. Wow, What A Difference.

Attached Thumbnails
show off your regular cab subs-overheadconsole.jpg   show off your regular cab subs-screensanddiagnostic.jpg   show off your regular cab subs-ida-x303.jpg   show off your regular cab subs-centerii.jpg   show off your regular cab subs-ranger1-1.jpg

show off your regular cab subs-newkick.jpg   show off your regular cab subs-ranger1-1-1.jpg

Last edited by Ranger SVO; 01-07-2012 at 09:56 AM.
Reply With Quote
  #169
Old 01-06-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Jeeeezzz dude... Your serious about ur stuff lol. I'm jealous good work!

Here's my setup.. One polk 1000 watt 12" sub with a 2000 watt amp haha
Attached Thumbnails
show off your regular cab subs-img_1465.jpg
Reply With Quote
  #170
Old 01-07-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Ranger SVO View Post
Lets start at the top. My music is exclusively of the iPod. So it had to be given its own place in the overhead console. The mic is for the Bluetooth



Nice look, where did you get the enclosures for the components ?
Attached Thumbnails
show off your regular cab subs-ranger1-1-1.jpg   show off your regular cab subs-newkick.jpg
Reply With Quote
  #171
Old 01-07-2012
Ranger SVO's Avatar
Member

Join Date: May 2010
Location: abilene
Posts: 36

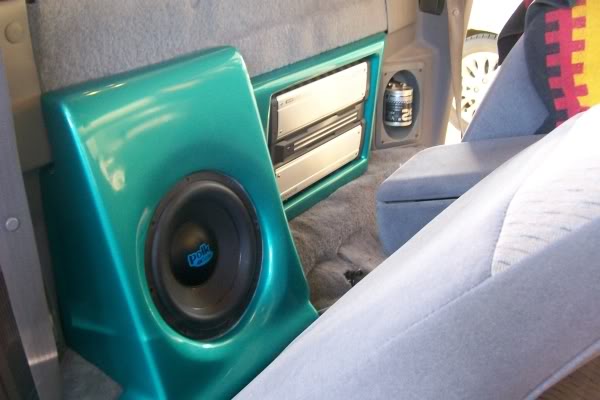

Scrambler82, I made that Kick Panel and that fiberglass box. The fiberglass box in my Ranger is the first fiberglass box I made. It was also made before I had a digital camera. I have a couple regular pictures, if I find them, I'll scan them into the computer and post them

The Kick Panel build can be found Here
Reply With Quote
  #172
Old 01-07-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Quote:
Originally Posted by Ranger SVO View Post
Lets start at the top. My music is exclusively of the iPod. So it had to be given its own place in the overhead console. The mic is for the Bluetooth
The HU is an Alpine iDA X303. It is strickly an iPod player. It also has Bluetooth Audio, I can wirelessly play music from my iPod Touch. Also notice the center channel speaker under the ashtray.

Behind the seat is a Polk Audio DX10 and a Kenwood 4-channel amp. It powers the sub and the door speakers. The amp in the kick panel powers the center channel.

Almost forgot DVD Player in ashtray


I think one of the biggest mistakes we make is we amp the sub and nothing else. Deck power may work with a tweeter, but not for me. Everything is powered by an amp in my truck

This amp powers the Polk Audio DX3000 tweeters.

Ya, I know, that amp is a small Sony. I glued the kenwood name on it


The add on tweeter worked but it did not have enough presence. I fixed it by building my own croosover. The Polk Crossover (on the bottom) was a 12dB per octave at 6000Hz. Mine (the top one) is an 18dB per octave at 5000Hz. Wow, What A Difference.
how is the sound quality streaming through bluetooth?
Reply With Quote
  #173
Old 01-07-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
First setup



Second setup

Attached Thumbnails
show off your regular cab subs-100_0781.jpg   show off your regular cab subs-101_0938.jpg
Reply With Quote
  #174
Old 01-07-2012
Ranger SVO's Avatar
Member

Join Date: May 2010
Location: abilene
Posts: 36
Quote:
Originally Posted by SteelDirigible View Post
how is the sound quality streaming through bluetooth?
Its actually really good. It really suprised me how good, but the digital connection is still better. The bluetooth connection is still MUCH better than using the headphone jack and an aux in.
Reply With Quote
  #175
Old 01-07-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Ranger SVO View Post
Scrambler82, I made that Kick Panel and that fiberglass box. The fiberglass box in my Ranger is the first fiberglass box I made. It was also made before I had a digital camera. I have a couple regular pictures, if I find them, I'll scan them into the computer and post them

The Kick Panel build can be found Here
Nice work and thks, I will be trying some myself.
Reply With Quote
Reply
