  #26
Old 08-27-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^^ you cant drill and tap it. idk about the speedo
Reply With Quote
  #27
Old 08-27-2009
icthusrulz's Avatar
Member
iTrader: (1)

Join Date: Jun 2009
Location: San Antonio, TX
Posts: 296
Could you use the output housing from an electric transfer case and fab up a mounting bracket?
Reply With Quote
  #28
Old 08-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by ranger View Post
I found the tailhousing in 1 day from my uncle at ford. Idk how you guys could not find it.... all the talk about i heard about it being hard to find, and ford has none, then i go down there and there it is.
I didn't want to spend the $300 on just that piece. lol. I did my entire tcase swap with complete 02-03 Fx4 L2 inside crap around the shifters for a whopping $0.00 out of my pocket. lol. I love junkyards and finding junkyard gems. lol.

Quote:
Originally Posted by icthusrulz View Post
Do the '01+ manual tailhousings or transmissions have locations that can be drilled and tapped for the linkage so you don't need the '02-'03 FX4 tailhousing?
No.

Quote:
Can you use an older tailhousing and retrofit the speed sensor to the transmission?
Maybe.


there's a guy building a 4.0L SOHC/M5odR1hd in a BroncoII over at TRS that made a really nice looking bolt-on bracket for the linkage to bolt to. I never thought of it. I posted it over in one of MossyOak's threads. See if I can't find it.
Reply With Quote
  #29
Old 08-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Here we go....

Quote:
Originally Posted by Fx4wannabe01 View Post
Quote:
Originally Posted by Fx4wannabe01 View Post
Marcus....to bypass the damn extention housing....There's a guy over at TRS who used a '06 4.0 and '06 5spd on his BII build....made his own bracket that bolts onto the trans which gives him the threaded bungs for the linkage for the tcase. TRS is down right now, but when it's up, I'll post his pics here for ya. It's a neat idea that I honestly never thought of.
Here's the truck's build thread....
Project El Taco...1990 BII - The Ranger Station Forums

And here's the post...
Quote:
Originally Posted by RacinNdrummin View Post
I built my bracket for the X-case shifter today, also added a little "bling" to the shifters.






Threw the X-case on the tranny as a mock up to make sure everything would work correctly, and all looked good. Tomorrow Im going to throw the X-case in the solvent tank and clean it up a bit more. Also hopefully I can get my hands on some ABS and fill the large hole in my heater box.

Maybe Ill be able to get this engine in permanently this week, I guess Ill cross my fingers.
Reply With Quote
  #30
Old 08-27-2009
icthusrulz's Avatar
Member
iTrader: (1)

Join Date: Jun 2009
Location: San Antonio, TX
Posts: 296
Ok, so here's another question: Could I swap in a pre-98 manual transmission, transfer case, and tailhousing on a '98+ truck without comparability problems?
Reply With Quote
  #31
Old 08-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Only if the truck is not a 4.0, and only if the truck is 98-00, or 01+ if you don't want a working speedometer on your dash. I said only if not 4.0 because SOHC transmissions DO fit OHV 4.0's, but OHV trans do not bolt to the SOHC. There's one bolt hole difference...but the SOHC trans have both hole in their bellhousings.

Hope I anwered that correctly.


Oh...and that 02-03 tailhousing, is not being produced anymore. Only option is the wrecking yards.
Reply With Quote
  #32
Old 08-27-2009
icthusrulz's Avatar
Member
iTrader: (1)

Join Date: Jun 2009
Location: San Antonio, TX
Posts: 296
Quote:
Originally Posted by Fx4wannabe01 View Post
Only if the truck is not a 4.0, and only if the truck is 98-00, or 01+ if you don't want a working speedometer on your dash. I said only if not 4.0 because SOHC transmissions DO fit OHV 4.0's, but OHV trans do not bolt to the SOHC. There's one bolt hole difference...but the SOHC trans have both hole in their bellhousings.

Hope I anwered that correctly.


Oh...and that 02-03 tailhousing, is not being produced anymore. Only option is the wrecking yards.
So when they changed the speedometer location they also changed it's output so that a speedo in the old location will not properly communicate with the '01+ ECU?

For my next question I'll just start another thread.
Reply With Quote
  #33
Old 08-27-2009
05prerunner's Avatar
Member

Join Date: Apr 2007
Location: Apison, TN
Posts: 483
So many differences, AHHH!!! Why did Ford change so much crap? Its not like they were having problems and needed to change it.
Reply With Quote
  #34
Old 08-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by icthusrulz View Post
So when they changed the speedometer location they also changed it's output so that a speedo in the old location will not properly communicate with the '01+ ECU?

For my next question I'll just start another thread.
I honestly don't know. I think I've seen somewhere where someone was going to convert to 4x4, lengthen the speedo wires, and have the speedo in a different location? idk though.
Reply With Quote
  #35
Old 08-27-2009
Chance's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Oregon
Posts: 170

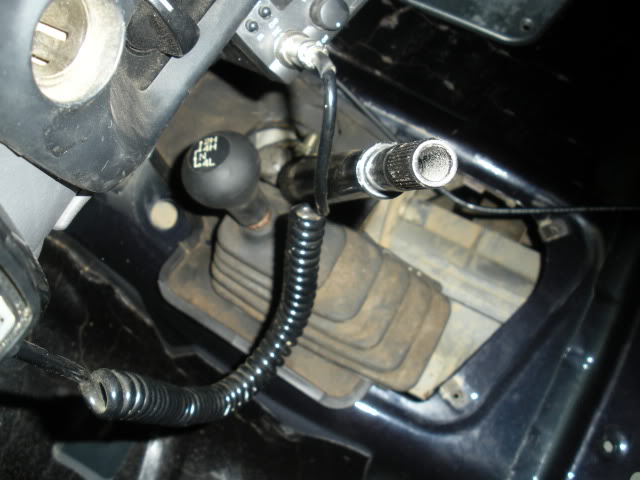

Well I got the t-case in...

Name:  DSCN0300.jpg
Views: 1
Size:  84.3 KB

But we got one serious, horrible issue.

NO FREAKIN CUPHOLDERS!!!!

to do:
Get rid of hole in the floor
Get new radio bezel
Get a stock shift **** for the transmission
Shift boots (not the offset kind... they seem to be next to each other)
2nd lil bolt on the tailhousing. Need it!
FRONT DRIVESHAFT
oh and...

Get the 4hi/lo lights to stop blinking at me!!!!

"I know you don't think your t-case is there, shut-up brittney!"

*punches truck*
Reply With Quote
  #36
Old 08-27-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Mother of god! It's SWEET!!!!
