Rear Diff... Not sure what to do.

Hey guys. It's been FOREVER since I've posted, however, I'm running into the recurring problem of the pinion seal leaking on my 02 FX4... 4x4 5-speed

So I tore the driveshaft off, took the yoke off, zipped off the pinion nut, and now I'm left with this:

Rear Diff pinion play

Is that way too much play or is that normal?

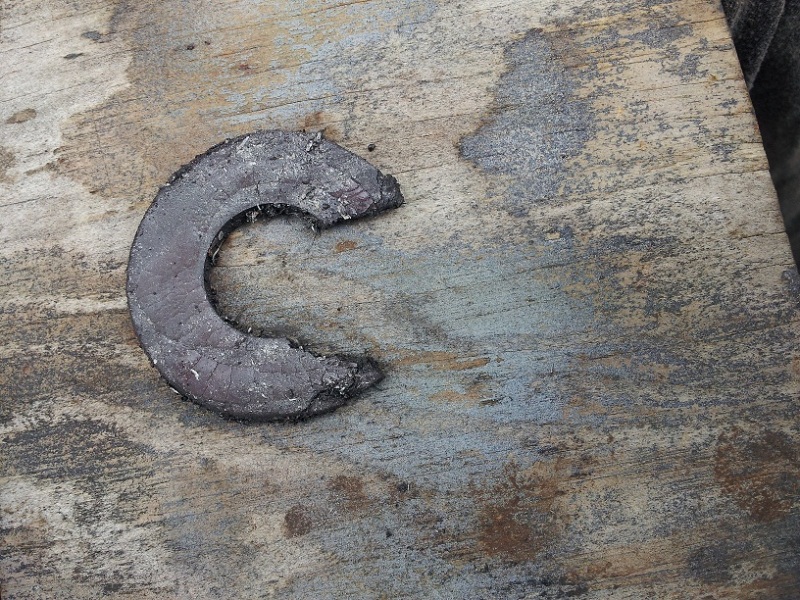

Also, I took off the rear diff cover and this fell out:



What does it go to?
Attached Thumbnails
Rear Diff...  Not sure what to do.-20120818_142801.jpg
Reply With Quote
  #2
Old 08-19-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Thats wayy to much play. replace bearings and it will be good to go.

Also that's your C clip to one of the axles.
Reply With Quote
  #3
Old 08-19-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Is it a magnet? It looks like the one that normally is stuck to the cover to collect any metal shavings/filings.
Reply With Quote
  #4
Old 08-19-2012
Member
Thread Starter

Join Date: May 2009
Location: Hazleton, PA
Posts: 216
Alright excellent thanks for the replies.

Two things though: That play is WITHOUT the pinion nut installed. Even WITH the pinion nut in there, the whole yoke had play. Do I need to worry about the crush sleeve at all? I've never touched rear diffs before other than replacing gaskets.

Other thing: That is not a magnet nor a clamp. It's a soft piece of material, almost like a gasket. No idea where it came from.
Reply With Quote
  #5
Old 08-19-2012
Member
Thread Starter

Join Date: May 2009
Location: Hazleton, PA
Posts: 216
Alrighty soooo after A LOT of research, I've come up with most of the answers I need...

And since I can see that this forum is mostly defunct now, I'm grateful for the two replies I did receive. (does no one work on their junk anymore?)

Now, I understand that there has to be a preload on the pinion bearings (accomplished through the crush sleeve) and that has it's own torque setting. (16-29 in/lbs rotational torque, with new bearings) This is SEPARATE from the torque setting of the pinion nut itself, which is 160 ft. lbs.

What I DON'T understand, is how get that initial 16-29 ft. lbs. of torque on there. Wouldn't it just completely annihilate the crush sleeve with the 160 ft. lbs of torque?

Dunno but that's my only other question.

I'll check back in a few days and hopefully have a reply.

Thanks.
Reply With Quote
  #6
Old 08-19-2012
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844

kinda a dumb video but he does explain in

You are from hazelton? Im like 3 hours west of you. I go to harrys all the time
Reply With Quote
  #7
Old 08-19-2012
Member
Thread Starter

Join Date: May 2009
Location: Hazleton, PA
Posts: 216
Quote:
Originally Posted by kanuck15 View Post
Setting pinion bearing preload on the Ford 8.8" axle - YouTube

kinda a dumb video but he does explain in

You are from hazelton? Im like 3 hours west of you. I go to harrys all the time
Thanks for the vid and yes omfg I'm unfortunately "from" hazleton (it doesn't even deserve caps). Yes I frequent Harry's quite often, myself. Starting to hate how "dark" it is there...
Reply With Quote
  #8
Old 08-19-2012
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
Lol I hear ya man. I was scared driving around town there. I find it amusing that a random town in central pa is bi-lingual
Reply With Quote
  #9
Old 08-19-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Ever figure out what the seal, rubber thing was?
Reply With Quote
  #10
Old 08-20-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
a clutch for a l/s maybe?
Reply With Quote
  #11
Old 08-20-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Quote:
Originally Posted by blue03ranger View Post
a clutch for a l/s maybe?
That was my guess.. idk what else looks like that.
Reply With Quote
