Day 3

OK, i have all the parts made that i need. I just have to line it up and drill 4 more holes.

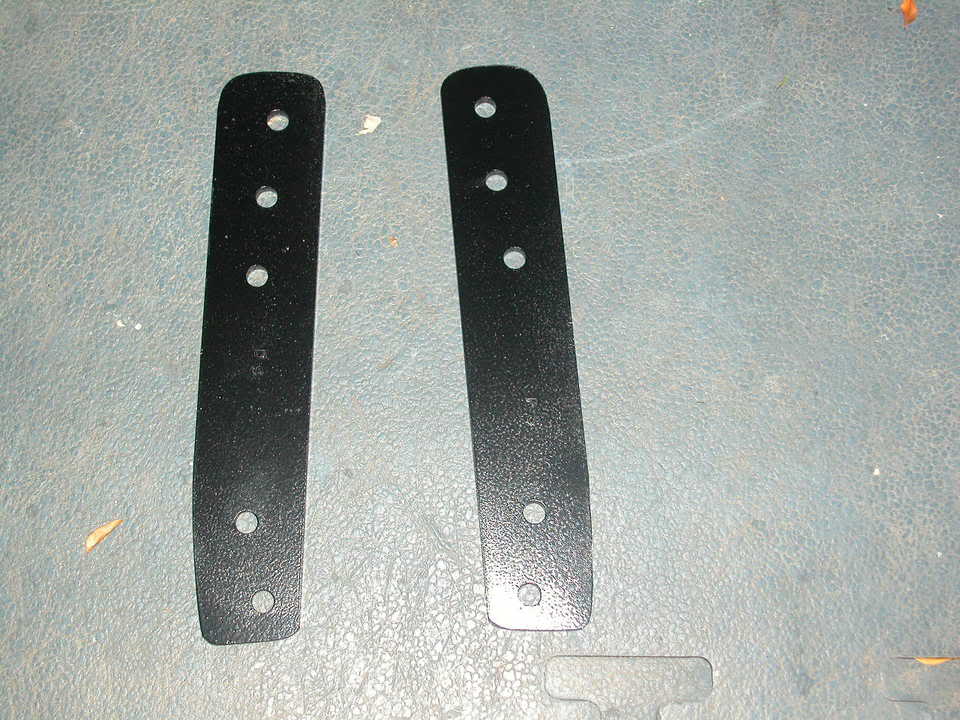

here are the pix of the brackets so far.

Name:  7de0bcbd.jpg
Views: 5
Size:  97.7 KB

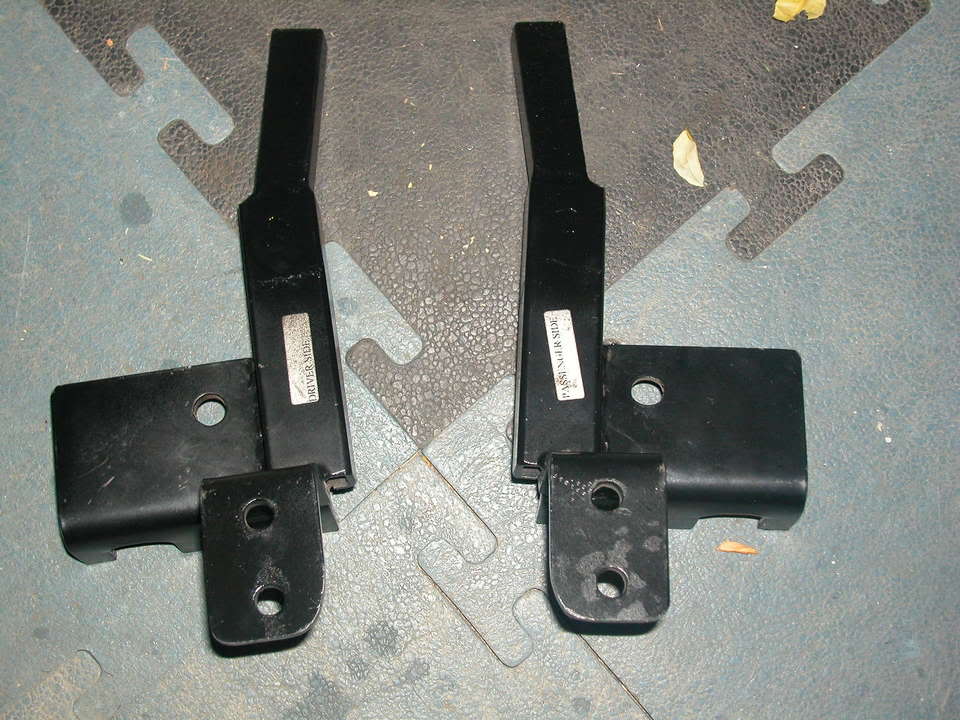

Main frame brackets with 3 inches added on the top (its solid square tube...going to SUCK to drill through that)
Name:  f9fb0b77.jpg
Views: 3
Size:  101.2 KB

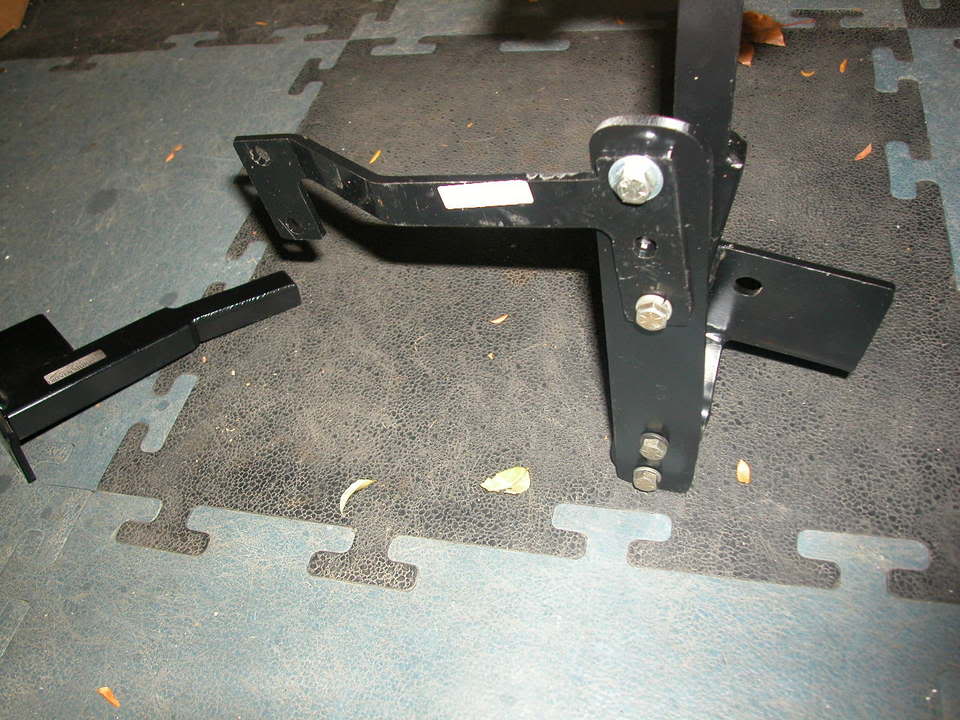

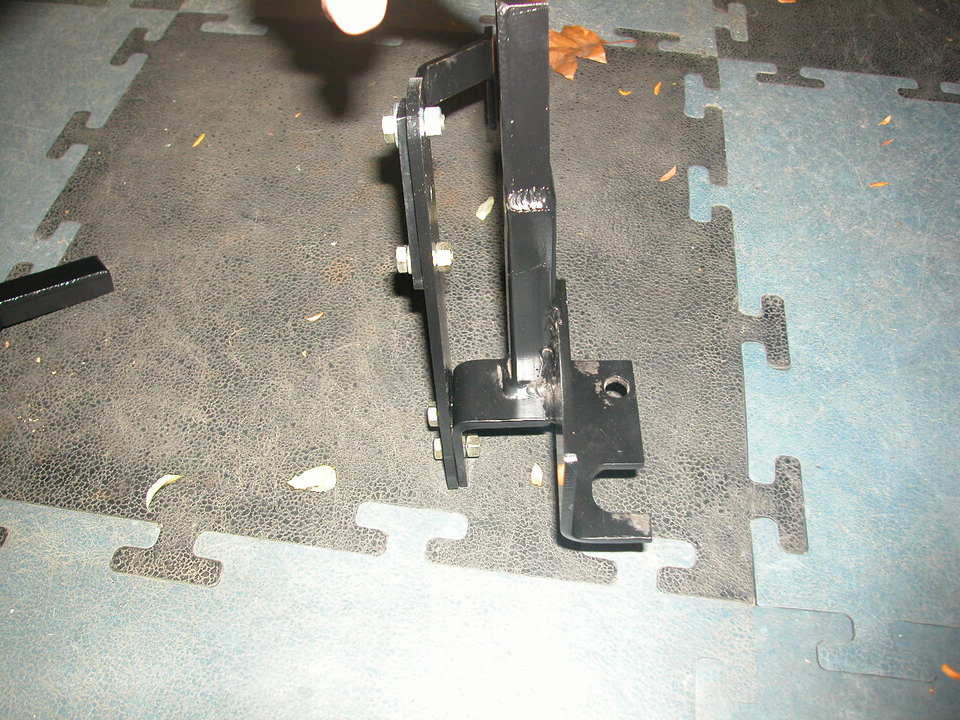

All except the top brackets put together...different angles

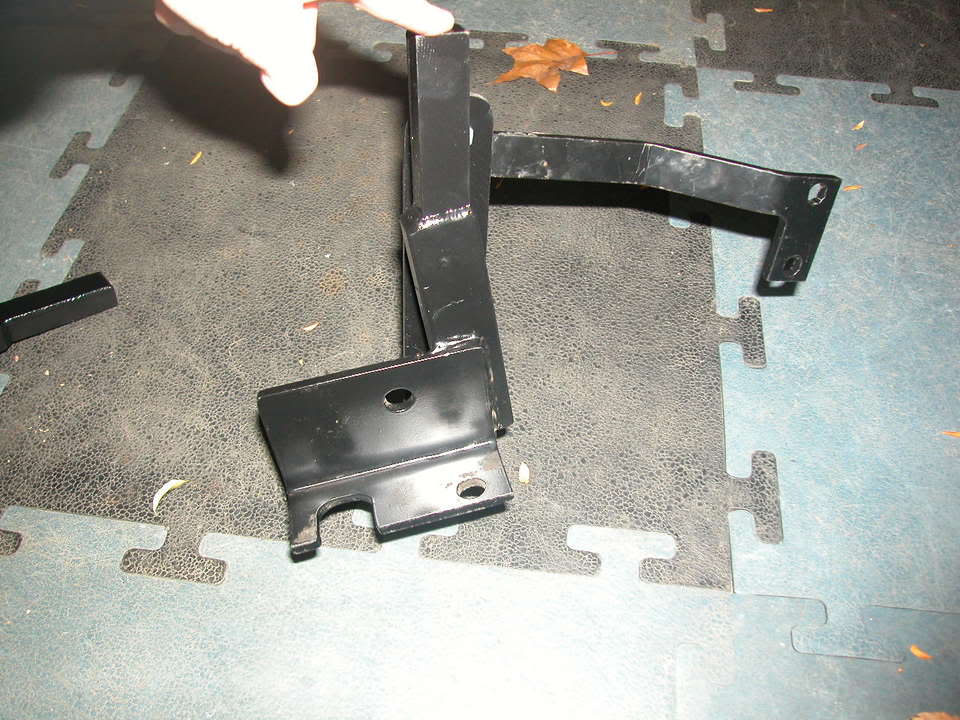

this is the passanger side bracket
Name:  987979ea.jpg
Views: 3
Size:  103.4 KB
Name:  bd8d5a13.jpg
Views: 4
Size:  103.8 KB
Name:  ed30c5ef.jpg
Views: 3
Size:  103.4 KB

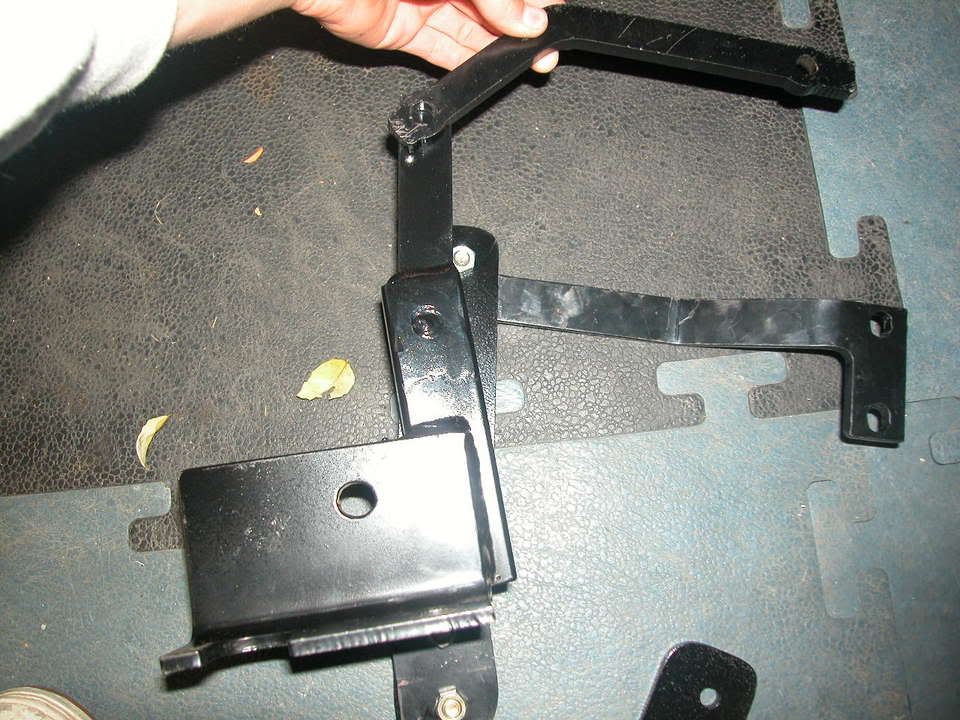

top bracket that i need to align and drill
Name:  21b25e89.jpg
Views: 4
Size:  103.7 KB

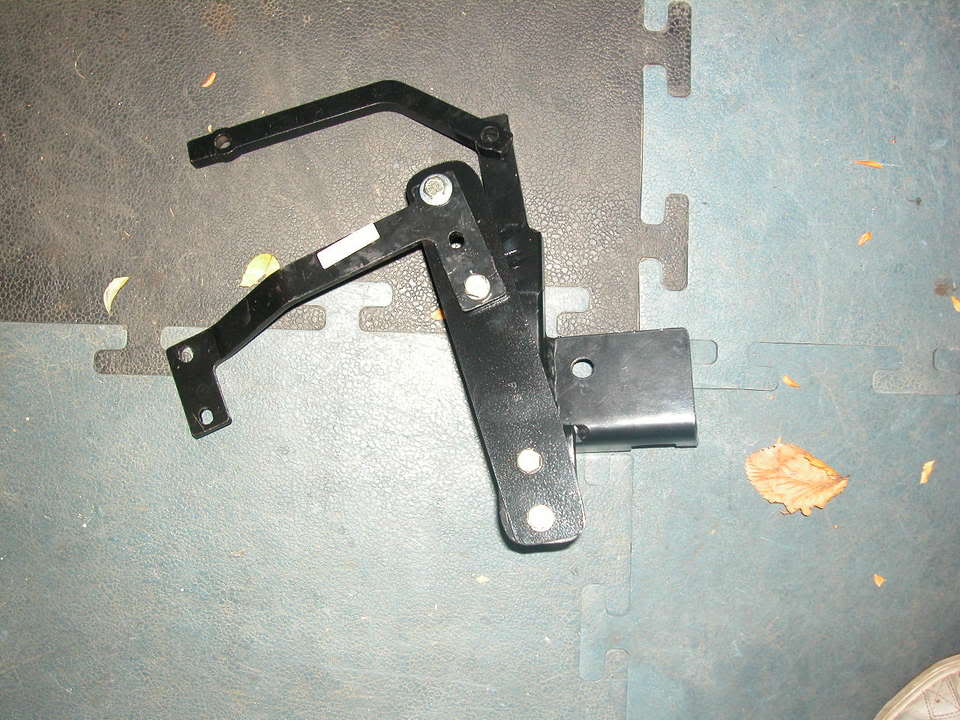

What it should look like all complete
Name:  50b26c8d.jpg
Views: 4
Size:  97.5 KB

i might finish up tonight, but i donno
i had to work a 9.5 hour day today and have to move 3 cars to get mine in the garage. grrrr.
