expo mirrors

well i just got done wiring up my ohc and powering my lighted expo mirrors....but the lights dont work. so i pulled one of the light covers and there is one of those fuse looking light bulbs in there. i usr a test light and look for power. other side when i have the light grounded when i touch it the test light lights up. the other side when i touch it the visor lights light up...so its not grounded right...how did u guys ground ur visors? thanks
Reply With Quote
  #2
Old 10-03-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
I had to take a wire to each visor and put a ring terminal on it. Put one of the 3 screws for the visor through it. The screws are the ground for the visor. In the explorer they don't have the plastic things the rangers have for the screws. I took the other side and ran it to where I grounded the OHC.

The hardest part was holding up the visor, getting the screw to go through the ring terminal that was between the headliner and roof of the Ranger and screwing all at the same time.
Reply With Quote
  #3
Old 10-03-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
ya they are a pain in the *** any way...thanks tho ill have to try that.
Reply With Quote
  #4
Old 10-03-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^^ thats how i have mine wired i used about a 4 inch long piece of wire. screwed one end into the sheet metal with a small screw and used the screw from the mount and it works perfect
Reply With Quote
  #5
Old 10-03-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521

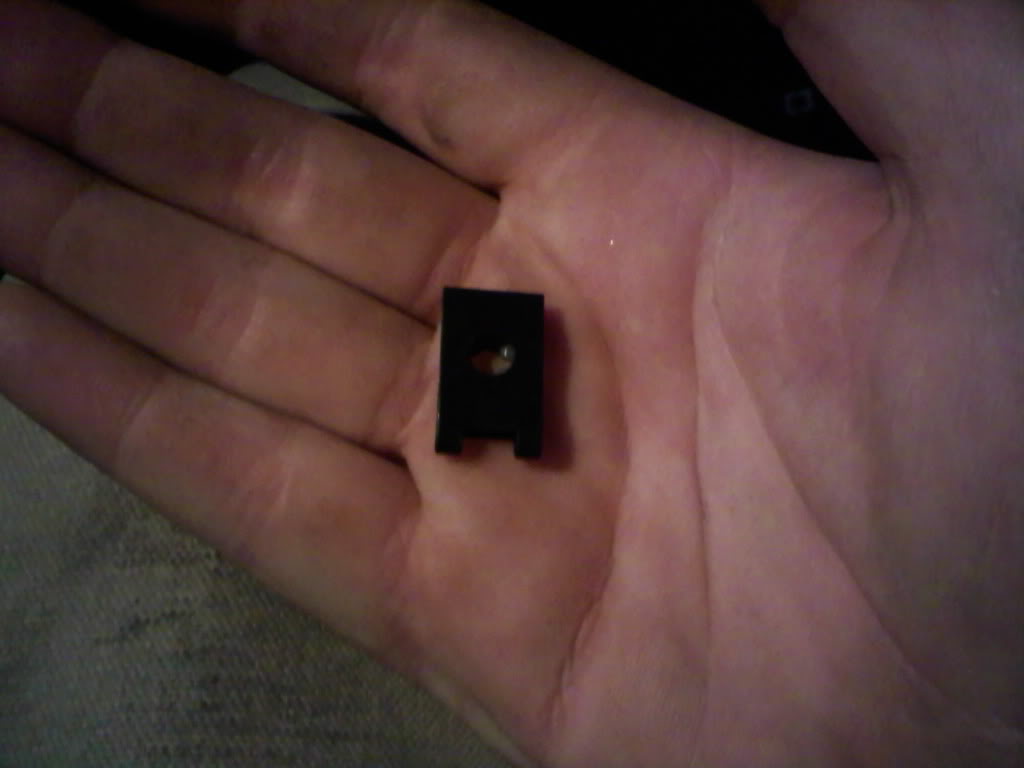

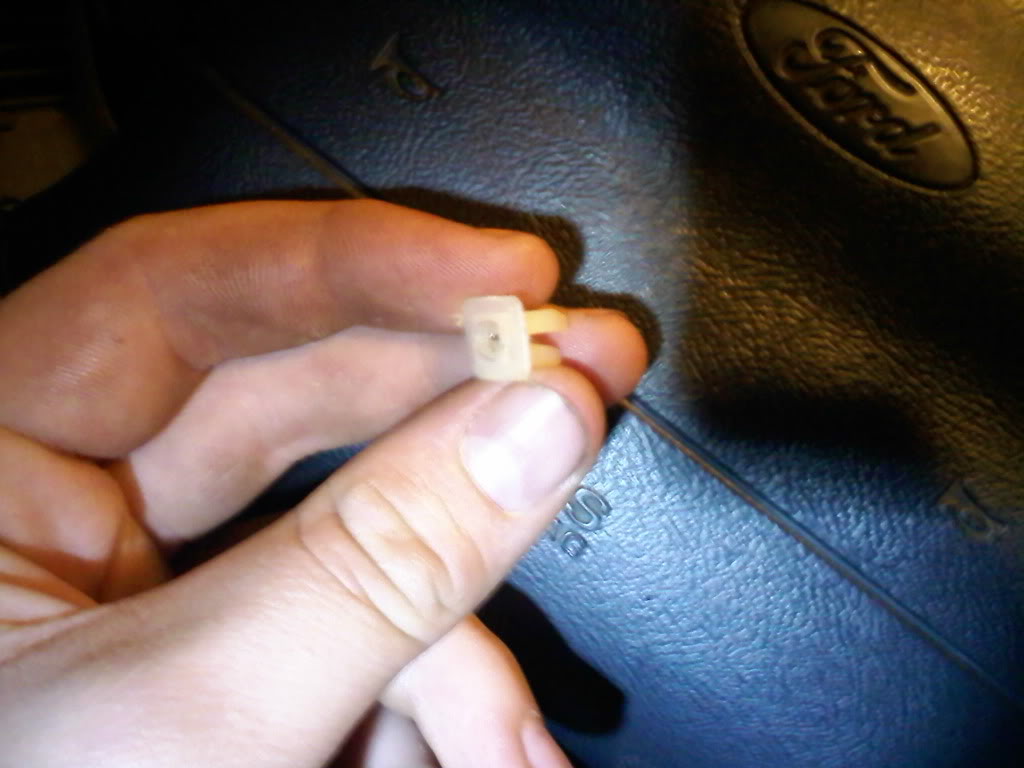

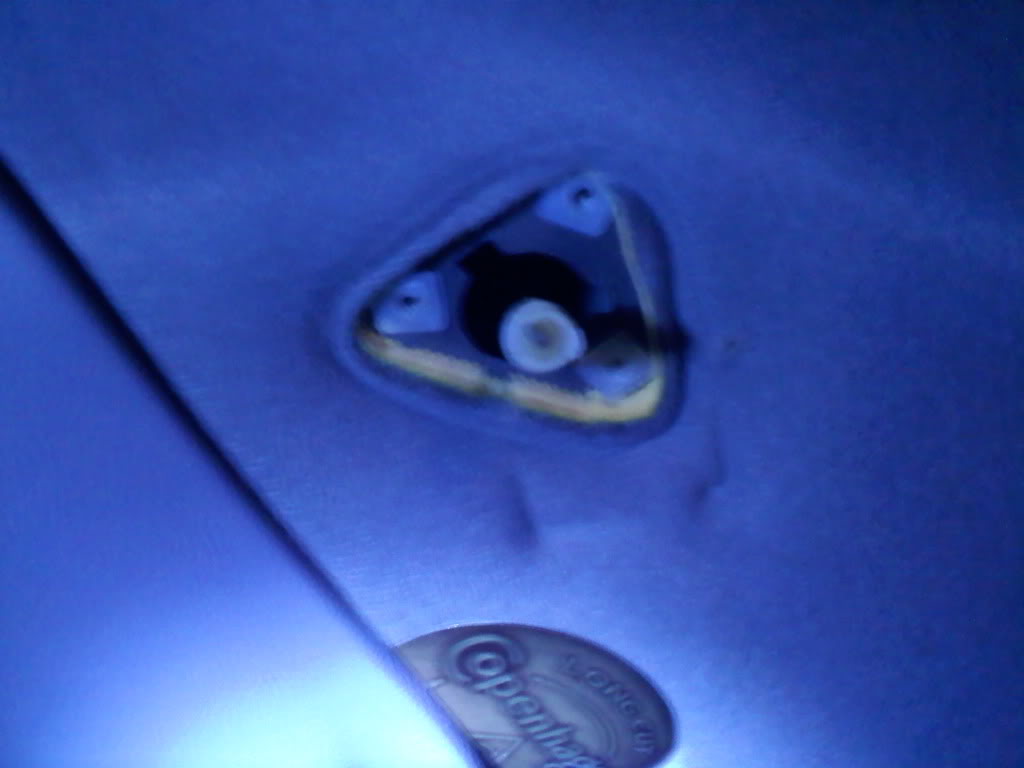

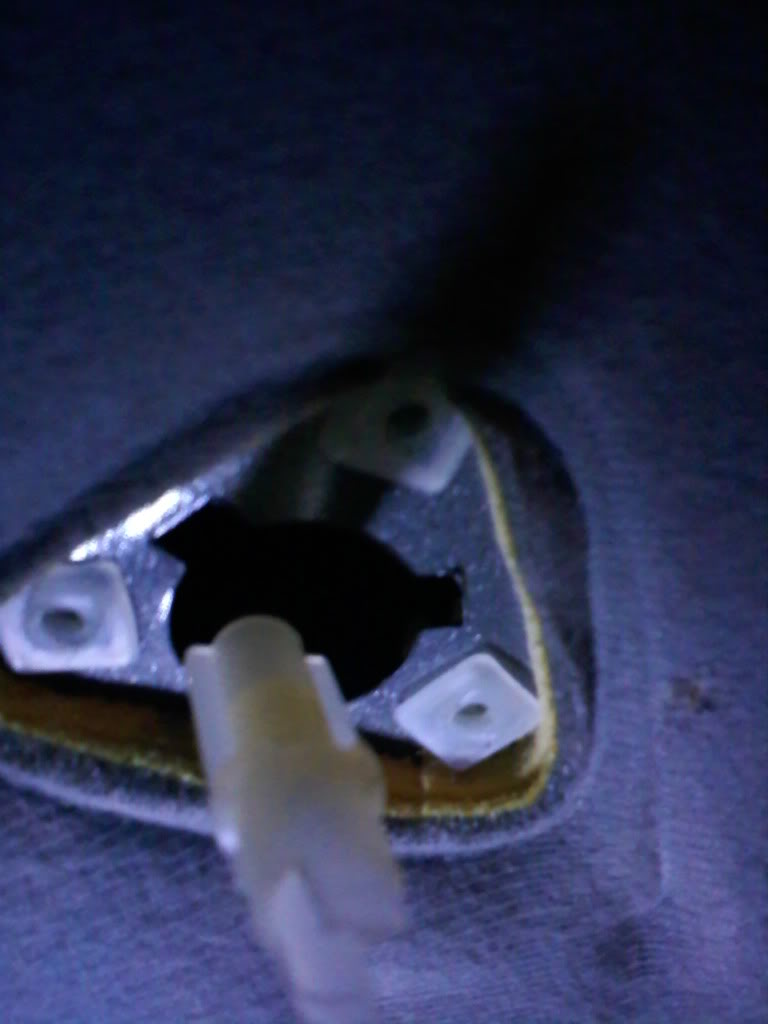

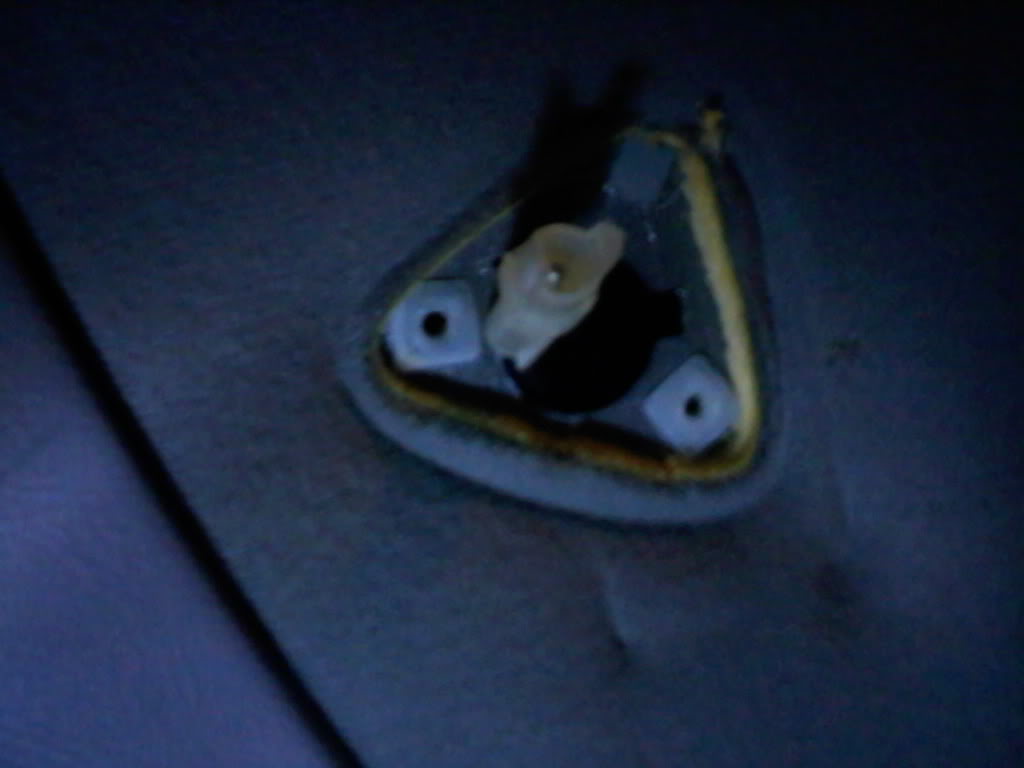

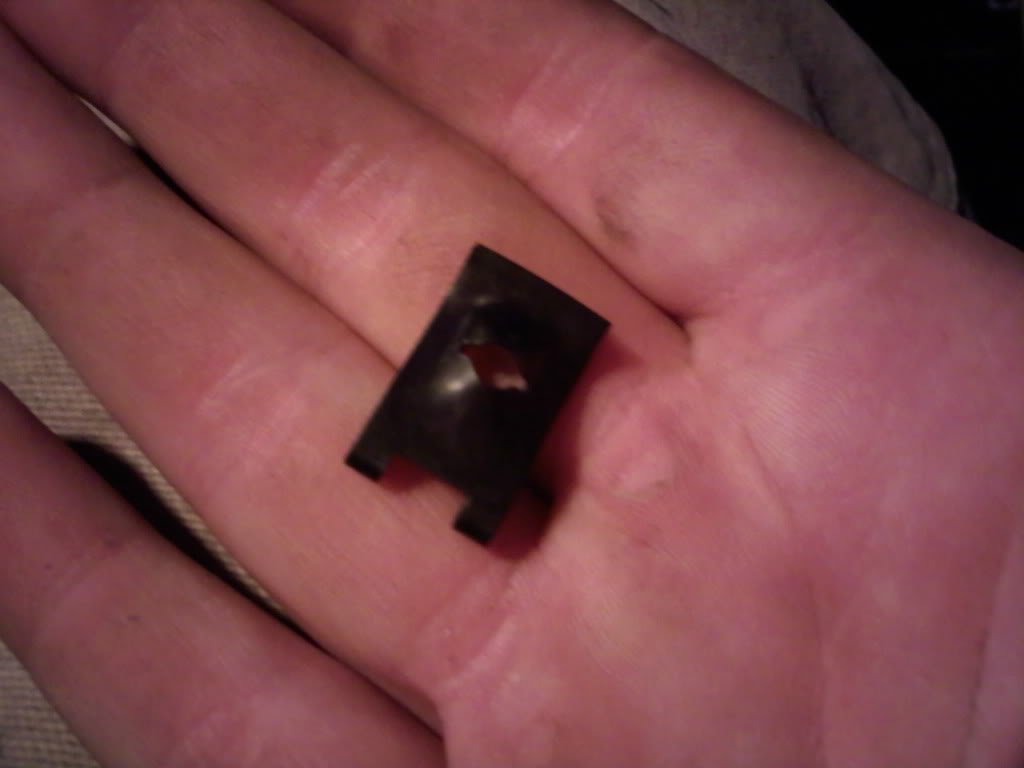

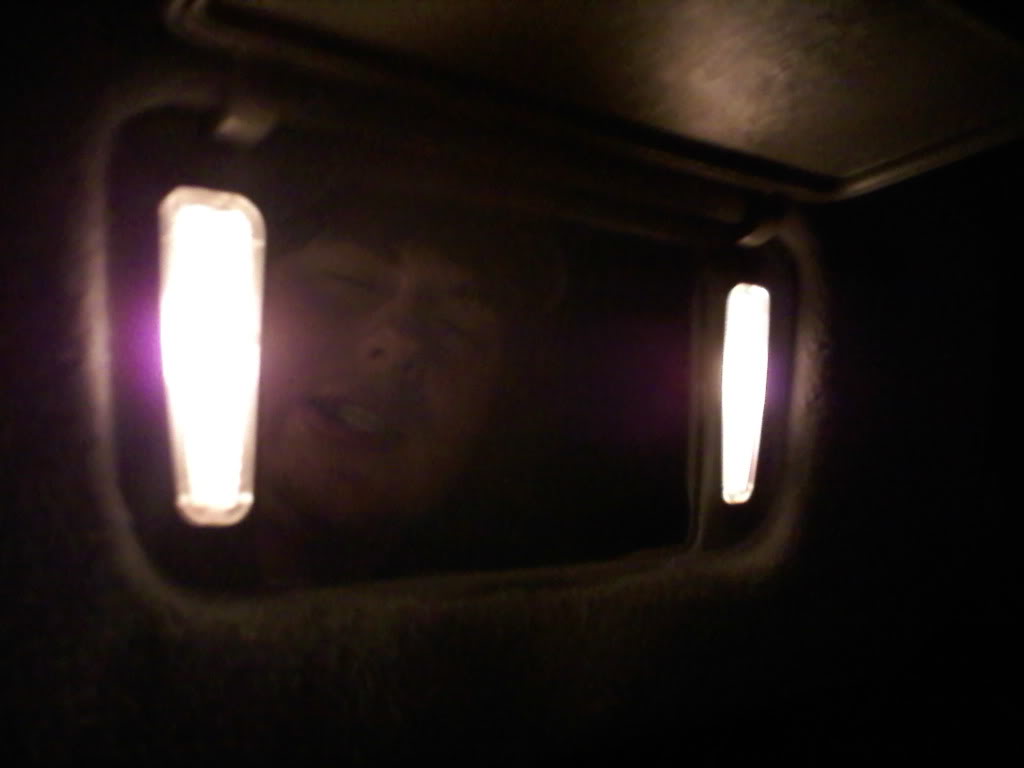

well i did something different..i pulled out one of the plastic inserts and replaced it with this metal clip that i had a box of lying around....it works perfectly.

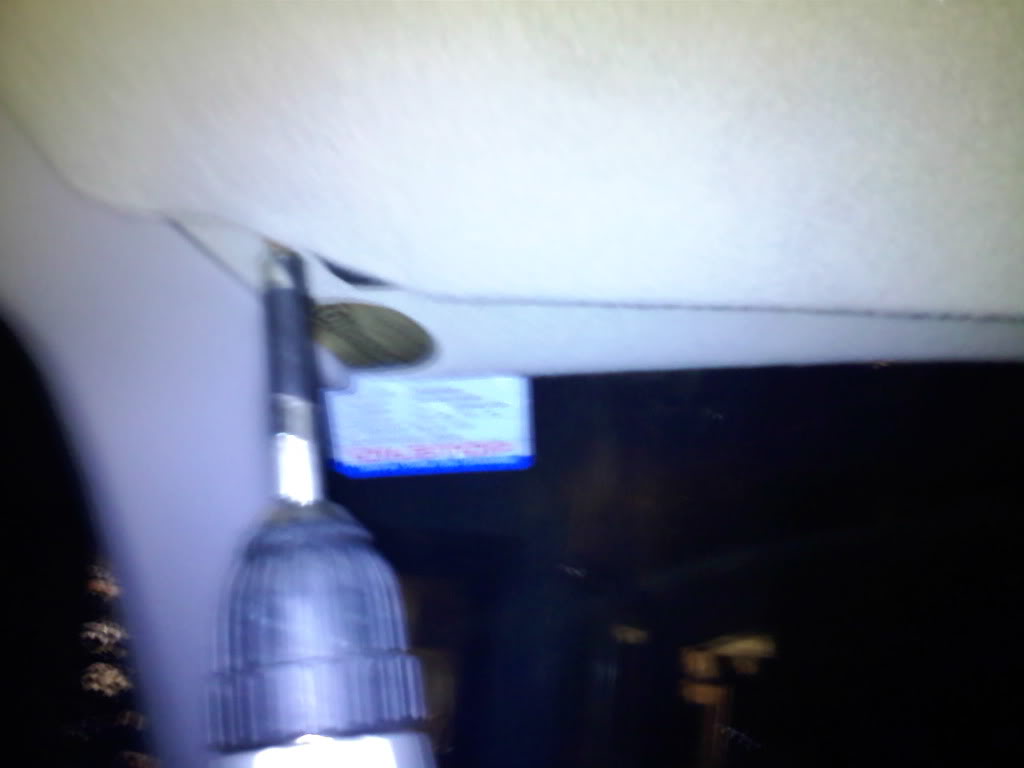

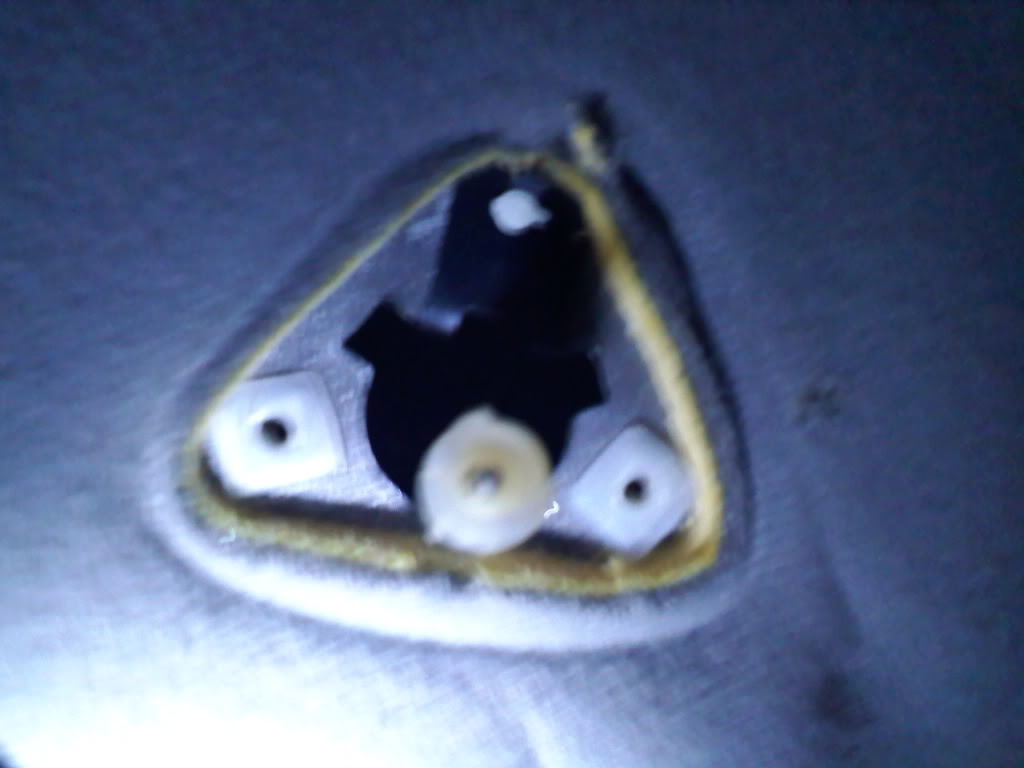

mini write-up
(pix are crappy cause i used a cell phone and it was dark out with a flash light shined where i was taking the pix)

Name:  1003091913.jpg
Views: 10
Size:  46.8 KB

Name:  1003091914.jpg
Views: 10
Size:  47.0 KB

Name:  1003091914a.jpg
Views: 7
Size:  38.6 KB

Name:  1003091918.jpg
Views: 5
Size:  41.2 KB

Name:  1003091920.jpg
Views: 10
Size:  49.3 KB

Name:  1003091921.jpg
Views: 5
Size:  66.4 KB

Name:  1003091923.jpg
Views: 6
Size:  84.6 KB

Name:  1003091923b.jpg
Views: 7
Size:  46.2 KB

Name:  1003091924.jpg
Views: 6
Size:  55.8 KB

Name:  1003091928.jpg
Views: 6
Size:  37.9 KB
Reply With Quote
  #6
Old 10-03-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Looks good. That had to be so much easier than the way I did it.
Reply With Quote
  #7
Old 10-03-2009
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
I want the visor out of the newer expeditions. They have buttons built in for garage door openers and such.
Reply With Quote
  #8
Old 10-03-2009
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Looks good though
Reply With Quote
  #9
Old 10-08-2009
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
Quote:
Originally Posted by btm757 View Post
I want the visor out of the newer expeditions. They have buttons built in for garage door openers and such.
Some Explorer visors have the Homelink built in. OR, you can add the Homelink module to your existing visors by unstitching it, installing the module and then sewing it back up.

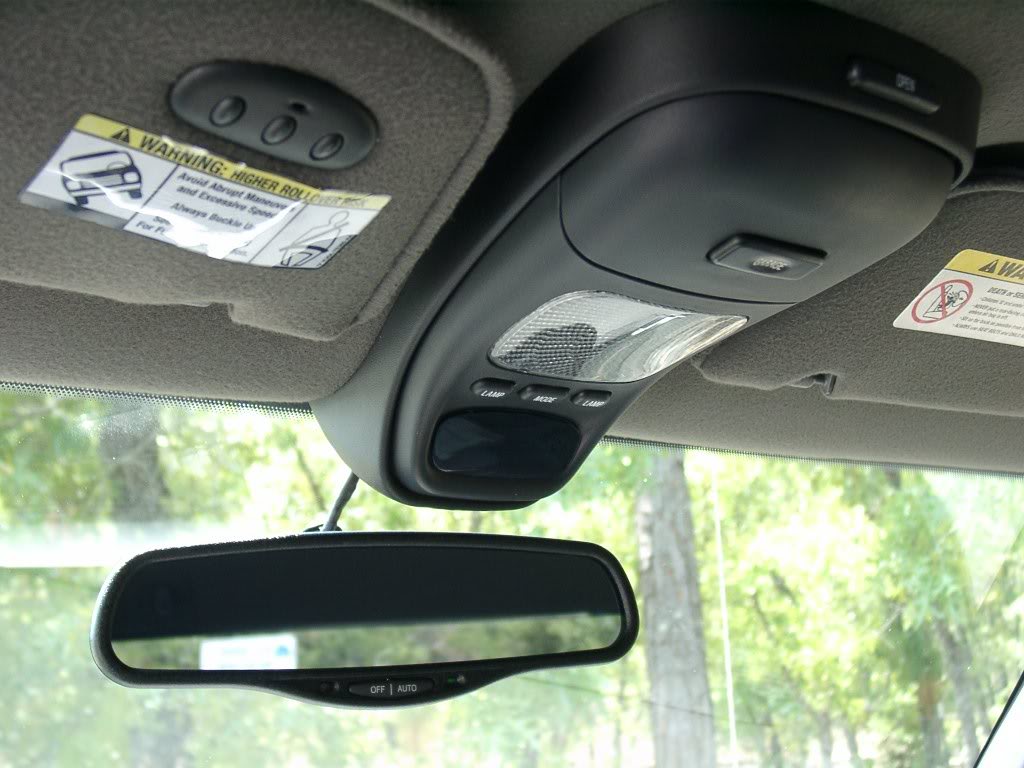

My OEM Ranger visor w/ Homelink
Name:  OHCRviewMirrorHL.jpg
Views: 8
Size:  96.9 KB
