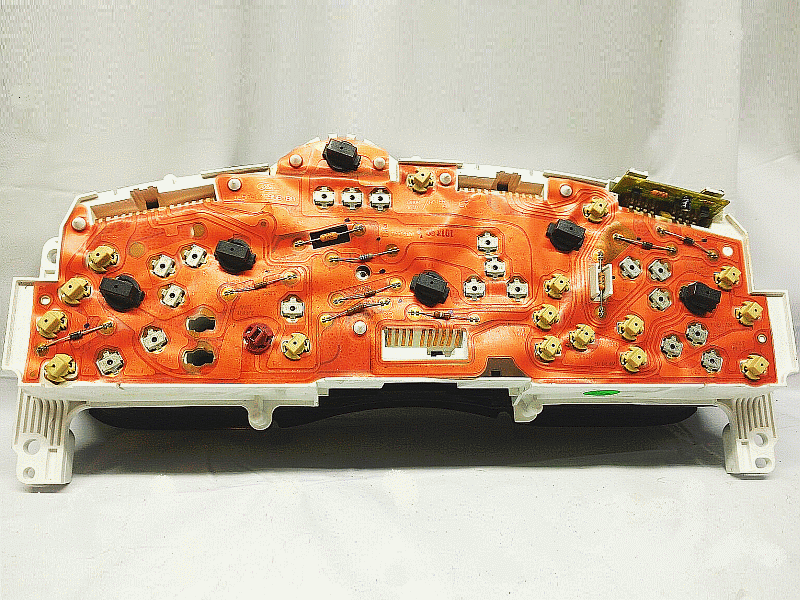

While I was at the Pick A Part today getting a new DPFE sensor, I came across the 2003 silver instrument cluster I've wanted for quite some time. However, there were no bulbs in the cluster at all, so I need to know what the plastic piece is called to install some purple LEDs into the cluster. As a long time lurker of the forum this impossible question has brought me into membership in need of assistance. I thank everyone who responds in advance, godspeed.
Also should note, I have a 98 XLT with no tach, so my current cluster doesn't have enough pieces to fill up the new cluster.
Back light bulbs are 194s
Others are 74's, if memory serves
If you use LEDs they will only work one way, they have a + and a - unlike regular bulbs
So test to see if that all light up BEFORE securing the cluster, if some don't work just pull them out and reverse them
Beware
~ LEDs in several lamp circuits may glow dimly when they should be completely OFF.
~ LEDs may flicker when dimmed.
BackLamps 6each T10\161\194. DutyLamps 16each T5\906\912.
More info at https://2001fordexplorersporttrac.fa...ical_DashLamps
