please tell me where my PCV is, Please (did search)

2000 v6 4L OHV

CEL in on and codes say both banks lean, ran injector cleaner and changed fuel filter, reset, CEL came back on, thinking i may have a vac leak possible PCV elbow or hose is cracked but i cant find the thing. did a search no real conclusive answers and the chilton guide says its in the valve cover next to the break booster.

still cant find the damn thing, anyone please tell where it is

thanks
uplander
Reply With Quote
  #2
Old 02-04-2011
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
its on the rear of the passenger valve cover

check the vacuum line that goes into the throttle body and routes by the upper radiator hose and the hose rubs through it
Reply With Quote
  #3
Old 02-04-2011
squrll's Avatar
Member

Join Date: Nov 2009
Location: fairfax va
Posts: 191
Did you find it I looked for a LAT and never could find it so I gave up
Reply With Quote
  #4
Old 02-04-2011
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
LAT ?
Reply With Quote
  #5
Old 02-04-2011
j99ranger4x4's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: Delaware, OH
Posts: 1,381
its in the driver side valve cover, it has a little hose three or four inchess long that goes into the upper intake (the big black thing that says 4.0 on it.
Reply With Quote
  #6
Old 02-04-2011
98rangerxlt's Avatar
Member

Join Date: Mar 2009
Location: Bakersfield, CA
Posts: 725

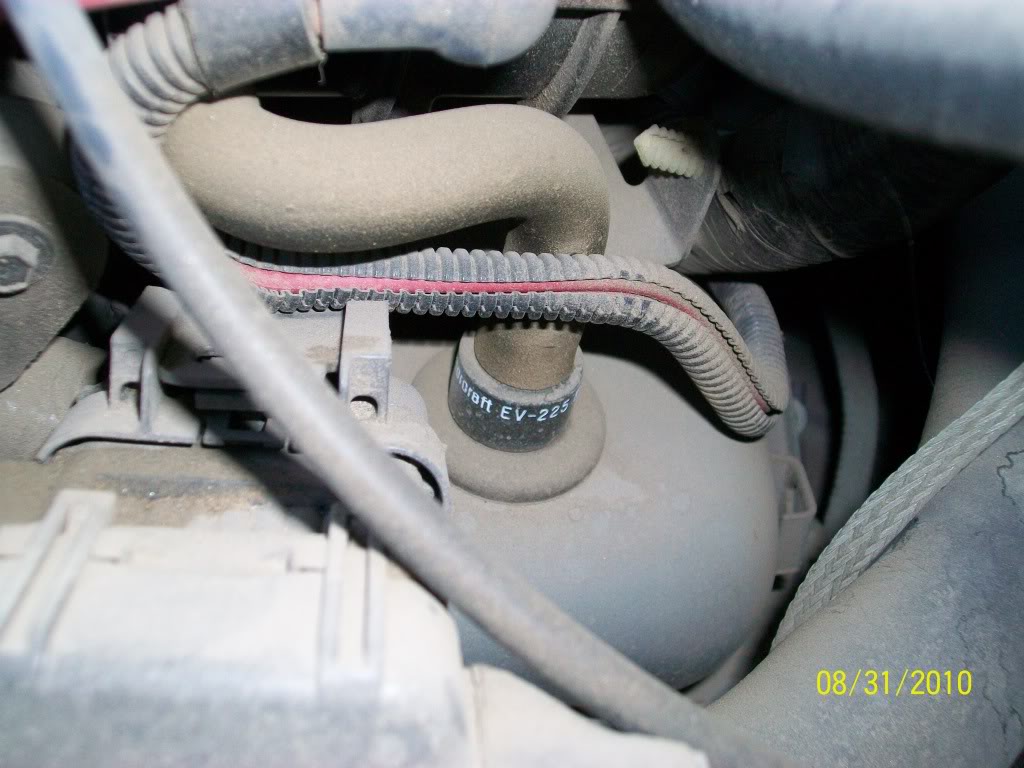

Here
Name:  Random001.jpg
Views: 17
Size:  119.0 KB
Reply With Quote
  #7
Old 02-04-2011
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
sorry about the vacuum line post...just realized you have an OHV not a SOHC
Reply With Quote
  #8
Old 02-05-2011
Member
Thread Starter

Join Date: Apr 2010
Location: wenatche, wa
Posts: 14
found it thanks everyone, as my luck has it, it is not the culprit. anyone have any suggestions as to where to look next?

thanks uplander
Reply With Quote
  #9
Old 02-06-2011
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
use a can of carb clean to spray anything with vacuum, especially the lower intake gaskets and around the IAC

also, check your fuel pressure, make sure the oil cap is on tight, check the intake tube for any leaks, check where the breather hose goes into the intake tube.
Reply With Quote
  #10
Old 02-06-2011
squrll's Avatar
Member

Join Date: Nov 2009
Location: fairfax va
Posts: 191
LAT Long a** time
Reply With Quote
  #11
Old 02-06-2011
squrll's Avatar
Member

Join Date: Nov 2009
Location: fairfax va
Posts: 191
And I just came back in my 03 4.0 has no PVC in the Valve Cover that I can find anywhere
Reply With Quote
  #12
Old 02-06-2011
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by squrll View Post
And I just came back in my 03 4.0 has no PVC in the Valve Cover that I can find anywhere
I don't think any 03's have one. I'm sure someone will clarify if I'm wrong....

EDIT: Well I'm wrong..lol I was thinking EGR valve.

Last edited by logan03CO; 02-06-2011 at 04:31 PM.
Reply With Quote
  #13
Old 02-06-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by squrll View Post
And I just came back in my 03 4.0 has no PVC in the Valve Cover that I can find anywhere
4.0L SOHC is different from 4.0L OHV.

For your 2003 4.0L SOHC, look on the back of the driver side valve/cam cover near the firewall. The PCV valve has a coolant heater pipe wrapped around it. In addition to the coolant hoses, it also has a locking, screw in mount required by the EPA. Way more fun to change than a traditional PCV.


Last edited by V8 Level II; 02-06-2011 at 04:59 PM.
Reply With Quote
  #14
Old 02-06-2011
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Quote:
Originally Posted by squrll View Post
LAT Long a** time
Thank you
Reply With Quote
  #15
Old 02-06-2011
squrll's Avatar
Member

Join Date: Nov 2009
Location: fairfax va
Posts: 191
Cool I thought that what that was but when I bought one from the Atou parts store it looked like a normal PVC

Thanks I can see where it is going to be a pain to change
Reply With Quote
  #16
Old 02-06-2011
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by rwenzing View Post
4.0L SOHC is different from 4.0L OHV.

For your 2003 4.0L SOHC, look on the back of the driver side valve/cam cover near the firewall. The PCV valve has a coolant heater pipe wrapped around it. In addition to the coolant hoses, it also has a locking, screw in mount required by the EPA. Way more fun to change than a traditional PCV.

Does this hold true for an 04 SOHC?
Reply With Quote
  #17
Old 02-07-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by Taylor View Post
Does this hold true for an 04 SOHC?
2001~2011 Ranger 4.0 SOHC use a similar style PCV valve but some years are not shown with the coolant heater loop.
