Icon5 Question about A/C Compressor Switch Mod

I was reading the how to and had a question about the wiring. In the how to it referenced the purple wire on top of the connector,

Quote:
The violet (purple) colored wire on top is the one we will cut for adding the switch
Then later to show it possibly in the second position according to the pin out in spot 2 for the connector. In my truck I have the purple wire where the location is shown in the diagram, it is not on top of the harness.

Anyone have input on this?
Reply With Quote
  #2
Old 03-26-2010
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Absolutel useless! The PCM cuts the AC compressor off at WOT.
Reply With Quote
  #3
Old 03-26-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
Originally Posted by TheBob View Post
I was reading the how to and had a question about the wiring. In the how to it referenced the purple wire on top of the connector,

Then later to show it possibly in the second position according to the pin out in spot 2 for the connector. In my truck I have the purple wire where the location is shown in the diagram, it is not on top of the harness.

Anyone have input on this?

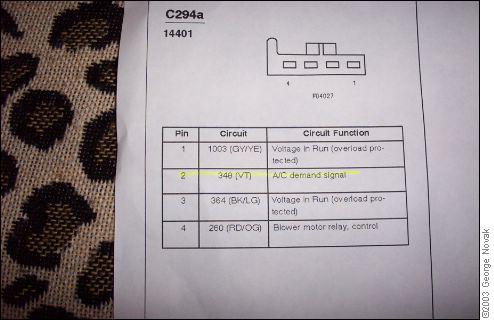

This diagram shows the correct wire to cut for the switch. It is the only violet wire that goes to the HVAC control panel. You'll find it in pin position 2.

Reply With Quote
  #4
Old 03-26-2010
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
Quote:
Originally Posted by Takeda View Post
Absolutel useless! The PCM cuts the AC compressor off at WOT.
yes but i use this mod in the winter when runing the heater on floor and defrost sense it runs the ac compressor and gives you crappy gas milage when cruseing town.
Reply With Quote
  #5
Old 03-27-2010
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by Redrocket View Post
yes but i use this mod in the winter when runing the heater on floor and defrost sense it runs the ac compressor and gives you crappy gas milage when cruseing town.
The AC compressor runs for a reason, it removes moisture which removes condensation from your windshield much faster. Your driving habits are doing more to give you crappy gas mileage than the AC compressor running.....In the winter, the head pressure is low on the compressor, so the load on the engine is negligible.

Last edited by Takeda; 03-27-2010 at 07:18 AM.
Reply With Quote
  #6
Old 03-27-2010
StrangerRanger's Avatar
Member

Join Date: Jan 2009
Location: The 253
Posts: 756
Takeda... The A/C compressor runs in EVERY position except right on your face. And after doing the switch mod I can enjoy heat on my feet, and mileage of 20 mpg city. Where before it only did 18. I have the 3.slow. This was probably the best mod I have done on the truck.

And yes, like you said, in the morning if my windows are foggy, I pop it on for a bit to de-fog and then turn it right back off.

I can feel it every time it comes on. More or less its like lifting off the gas. A big jerk. Its VERY annoying when its happening every 35 seconds or so in non-a/c mode.
Reply With Quote
  #7
Old 03-27-2010
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Sorry Bob , but you are incorrect.
The compressor runs in defrost mode to circulate the lubricant in the system to prevent the compressor from seizing over the Winter months.
It will NOT remove moisture from incoming cabin air at below freezing temperatures.The humidity content of outside air is too low.
Reply With Quote
  #8
Old 03-27-2010
StrangerRanger's Avatar
Member

Join Date: Jan 2009
Location: The 253
Posts: 756
Quote:
Originally Posted by OTRtech View Post
Sorry Bob , but you are incorrect.
The compressor runs in defrost mode to circulate the lubricant in the system to prevent the compressor from seizing over the Winter months.
It will NOT remove moisture from incoming cabin air at below freezing temperatures.The humidity content of outside air is too low.
Your half right. It DOES remove moisture from the air. That's why people get headache's when they have the a/c on for long periods. The air dries out in the cab. Try defrosting your windows with the compressor off, and with them on. You will see a dramatic improvement.
Reply With Quote
  #9
Old 03-27-2010
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
I have tried that by disconnecting the plug on the compressor.
There was no difference in how well the windshield cleared.
How much moisture do you think is in the air at -20 F ?
Reply With Quote
  #10
Old 03-27-2010
StrangerRanger's Avatar
Member

Join Date: Jan 2009
Location: The 253
Posts: 756
Probably not much, but eh. It never gets that cold here. Just wet.. all the time.
Reply With Quote
  #11
Old 01-24-2015
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 599
Icon2

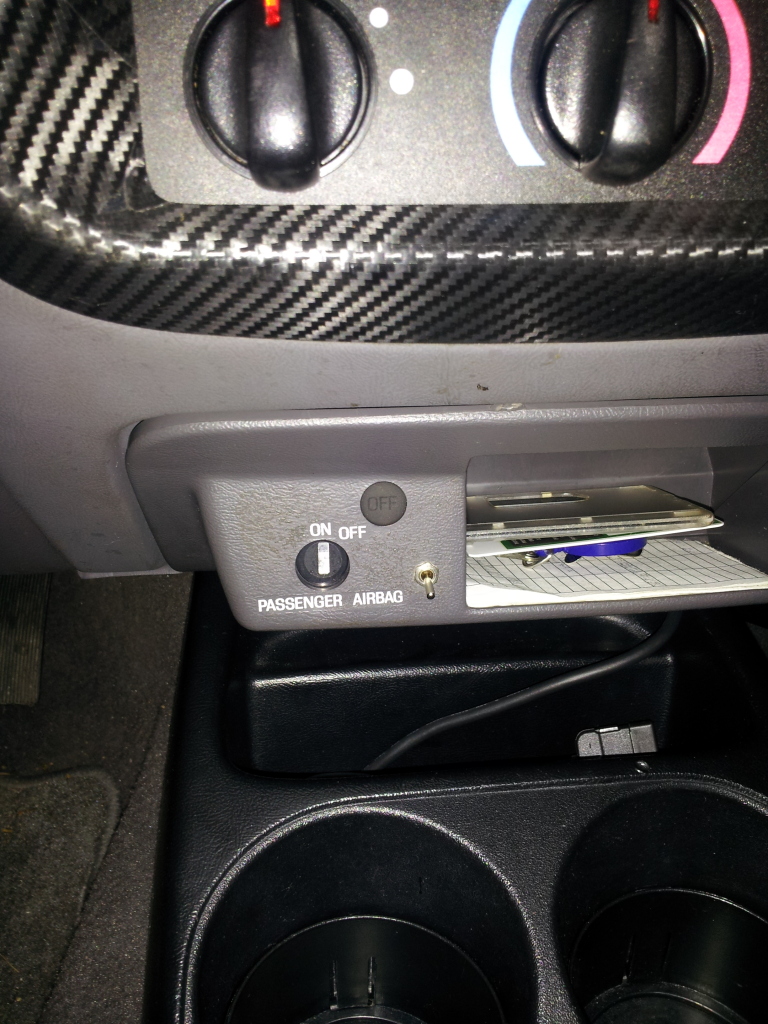

I did this mod and installed the switch near the airbag switch. Perfect location that won't get bumped. Works perfectly!! Wish I would have found this earlier, I would have done it sooner..haha

-Nigel
Attached Thumbnails
Question about A/C Compressor Switch Mod-ac-switch.jpg   Question about A/C Compressor Switch Mod-ac-switch-2.jpg
