How-To: 07+ hard wire radar detector

How To: Hardwire a radar detector into a 2007+ Ranger

Written By: 07SPORT

Discussion thread: https://www.ranger-forums.com/forum2...ad.php?t=81838

Tools needed:
  • Wire taps
  • Pliers


Notes: The wire colors only apply to 07+, they will be different for 98-03 and 04-06

Step 1: Mount detector

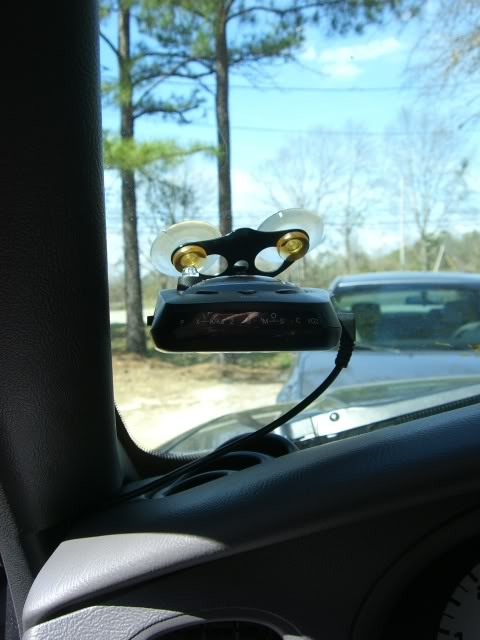

Name:  CIMG4633.jpg
Views: 9
Size:  69.8 KB

Step 2:

Run wires behind the radio

Step 3: Tap the power wire into the black wire with the blue tracer, tap the negative wire into the white wire with the blue tracer.

Name:  HowTo1.gif
Views: 9
Size:  9.7 KB

Step 4: Test it and your done!

More pics:

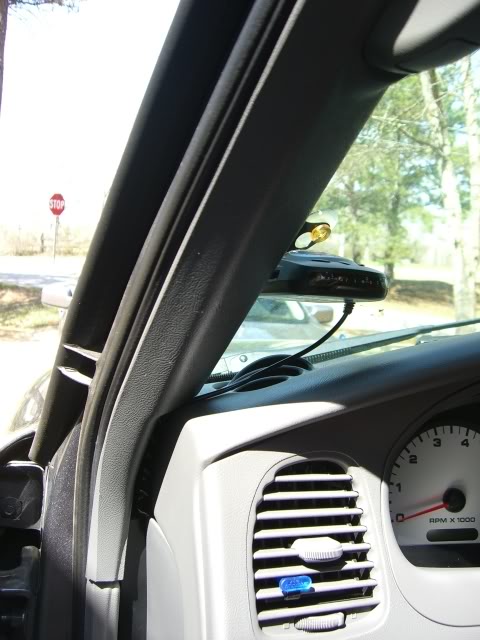

Name:  CIMG4634.jpg
Views: 11

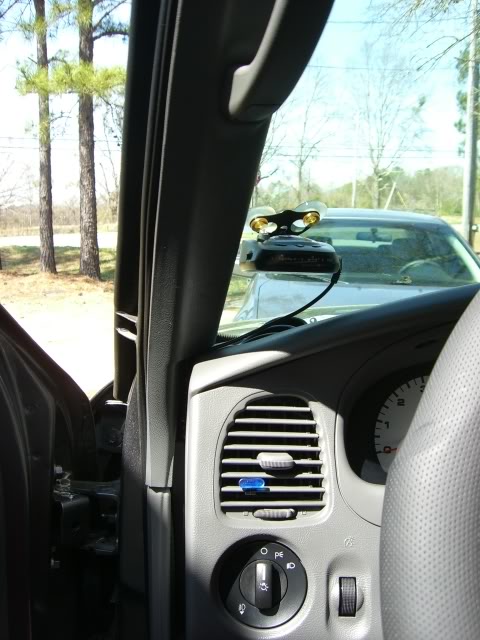

Size:  86.5 KB

Name:  CIMG4635.jpg

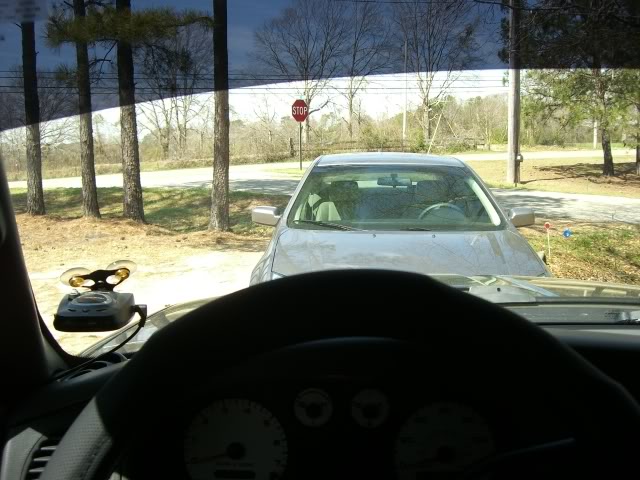

Views: 10
Size:  91.5 KB

Name:  CIMG4636.jpg
Views: 10

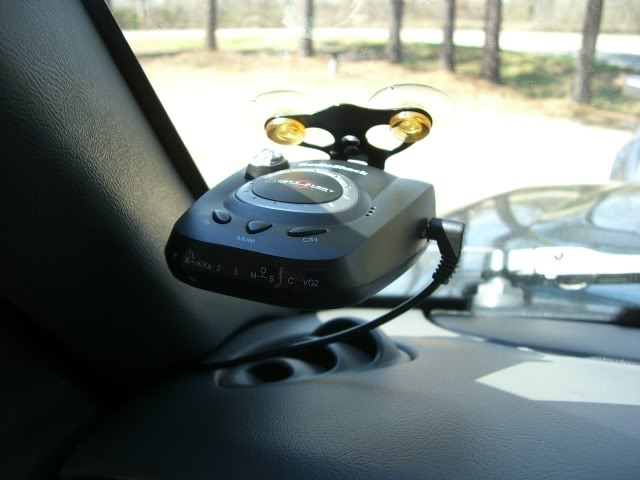

Size:  98.2 KB

Name:  CIMG4638.jpg
Views: 10
Size:  61.3 KB
