  #176
Old 10-31-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Haha ok cool. how do you know what a good driveline angle is? is it generally 25-35*? Does it depend on the axle, u-joints, and driveshaft?
Reply With Quote
  #177
Old 10-31-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by Gearhead61
Haha ok cool. how do you know what a good driveline angle is? is it generally 25-35*? Does it depend on the axle, u-joints, and driveshaft?
Depends on the operating angle of the u-joints.

I can't think of it off the top of my head, but alot of u-joints only operate at about 20-30 something degrees before interference.

For a CV driveshaft (double-cardan joint at the t-case) you want the pinion yoke to point directly at the t-case yoke.

For standard u-joint d-shaft, you want the u-joints to operate at the same angle. IE: measure t-case yoke angle (lets say, 5* , then measure driveshaft angle (17*) and subtract the difference, so your u-joint would be operating at 12*. So you would want to set your pinion angle to 5* so your axle side u-joint is running at 12* also

[Those numbers i made up in my head, for reference only, not actual measurements]
Reply With Quote
  #178
Old 10-31-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Thanks Jey! Sorry I'm askin so many questions but you seem to know alot about this stuff. is there any particular tool you use to measure those angles? and what do you measure them with respect to? a horizontal plane? Vertical plane?
Reply With Quote
  #179
Old 10-31-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099


gravity.
Reply With Quote
  #180
Old 11-01-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Going to a local shop here tomorrow. Hopefully get my steering shaft made. Weld my knuckles on. Assemble my axle, and sit it on the tires. Then get the same guys to make my steering. Then on to the rear end...
Reply With Quote
  #181
Old 11-01-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

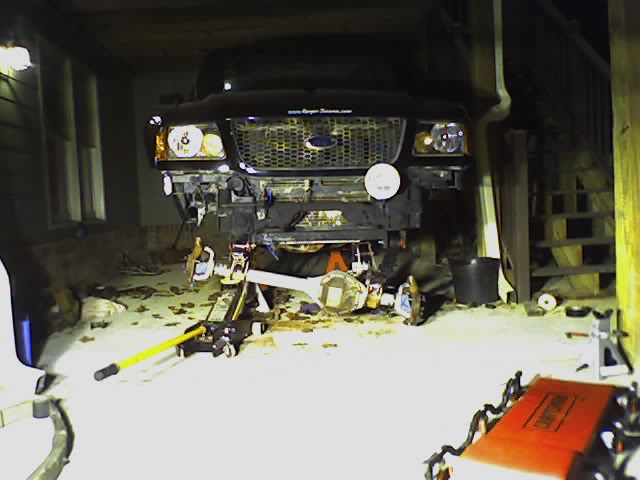

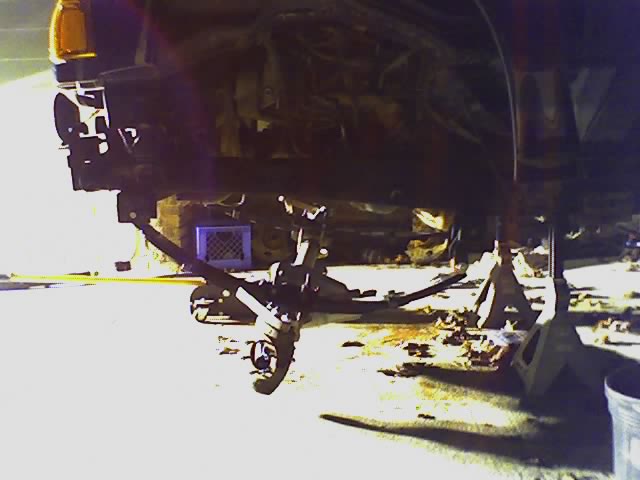

Here's some half-assed attempt at a flex shot. I get about 10" of travel at the inner c's with the brand new (read: not broken in) springs.

Name:  6124d562.jpg
Views: 12
Size:  37.2 KB

Name:  c13f542a.jpg
Views: 12
Size:  42.6 KB
Reply With Quote
  #182
Old 11-01-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Naw, i'll keep my 8.8 so i have a speedo, and discs.

HP? naw, then i'd have to go fullwidth, when i got fullwidth i'll get 60's f/r.

(i know i know, narrow the fullwidth, no thanks, i'll keep my LP 44 for now)
Reply With Quote
  #183
Old 11-01-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
yeah, disc are as easy as pulling some off a lincoln in a junkyard and the speedo can be done.

with the right positive offset, Ill barely stick out much more than you...

not to mention the stronger 9 inch and the peice of mind for my front DS...
Reply With Quote
  #184
Old 11-02-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by SUPERGILDO
the peice of mind for my front DS...
doubler....
Reply With Quote
  #185
Old 11-02-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
^^ yes i realize that, which is why i mentioned the doubler when gil brought up DS angles...

He's not, a member of rrocr or whatever that website is, is going to start making them.
Reply With Quote
  #186
Old 11-02-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
My 1.5" .25 wall heim-jointed steering is being made as i type this. I ordered my new pitman-arm also. Going to box the frame rail for the steering and modify my factory ranger shackles to make them shorter to use on the front.

If I finish all that tonight, i'm going to weld on my knuckles and start assembling the axle.

I'm getting closer and closer.
Reply With Quote
  #187
Old 11-02-2005
Member

Join Date: Nov 2004
Location:
Posts: 3,115
If you don't mid me asking, have you figured out how much money you have spent so far ?
Reply With Quote
  #188
Old 11-02-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
either right at or a little over 2 g's. And the only thing i've bought for the rear is the axle, gears and install kit.
Reply With Quote
  #189
Old 11-02-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

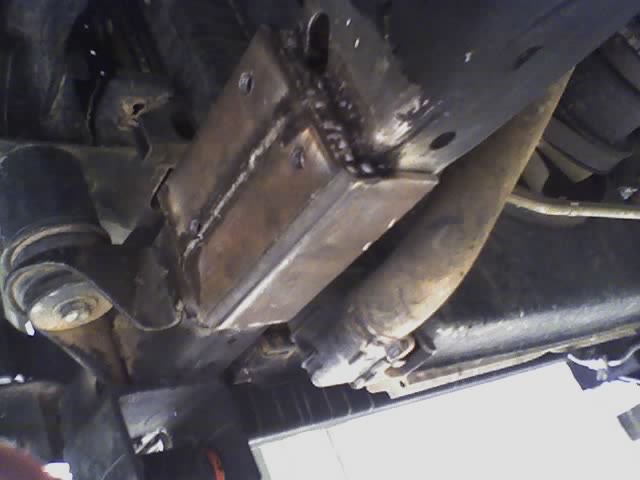

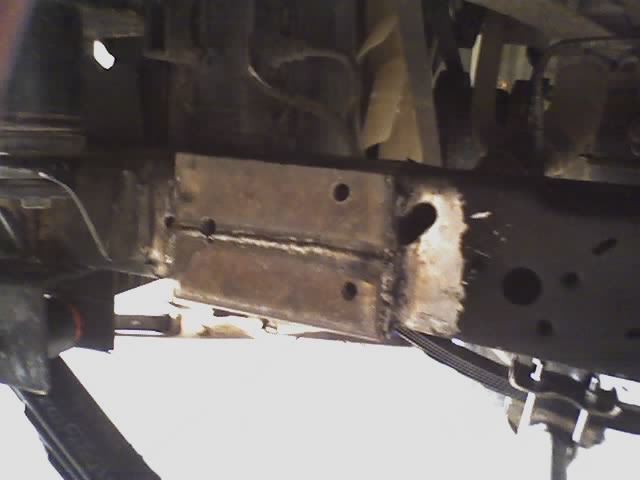

Got the steering box mounted today, got my steering made. 1.5" .250 wall with 5/8" (i think) heims. Picking that up tomorrow. Made a 6.5" x 4" x 3" L bracket to support the frame-rails where the steering box mounts. It's not fully welded yet, just the sides. After i eat i'm finishing puttin the CTM's in the axle shafts. My pitman arm is on the way from All-Pro off road.

Name:  a8abb8fb.jpg
Views: 12
Size:  25.7 KB

Name:  1146c774.jpg
Views: 12
Size:  30.4 KB
Reply With Quote
  #190
Old 11-02-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
If you want to critique those welds go ahead, and try and weld vertically with an arc welder and fill in a 1/4" gap at the same time...

I'm using 1/2" x 4" grade 8 bolts for the steering box.
Reply With Quote
  #191
Old 11-03-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

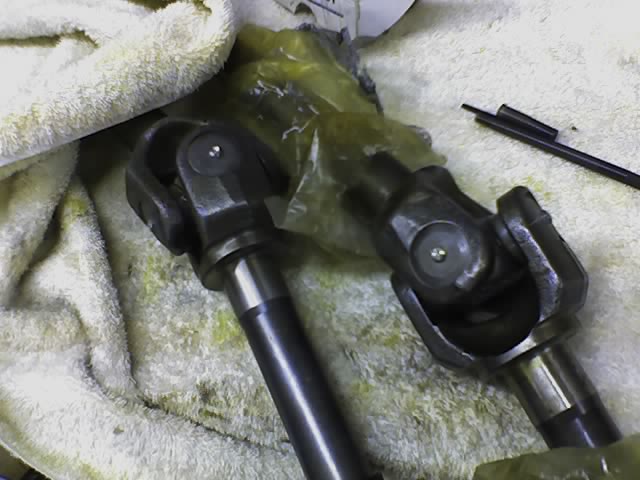

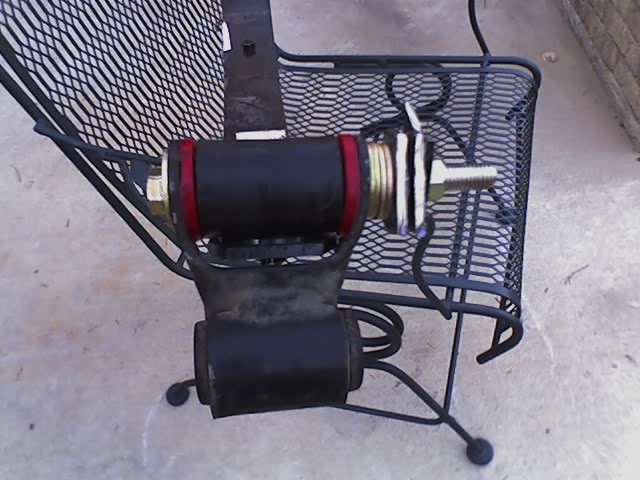

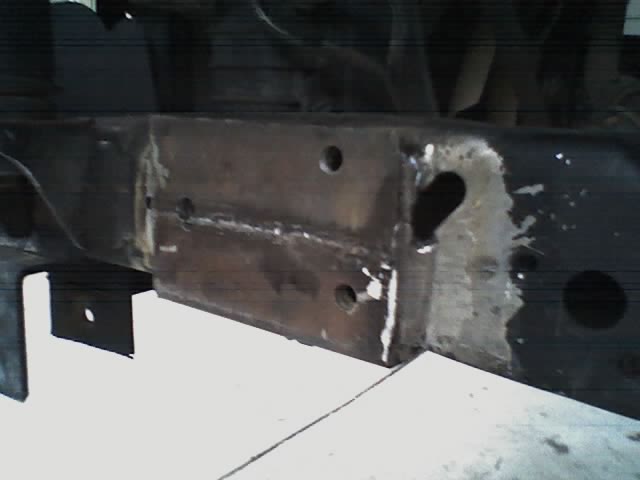

Picked up my steering, got my shackles waggy shackles to work, finished welding the support bracket on the frame for the box, set the caster and welded the knuckles back on. Have both axle shafts/ctm's installed. Gonna clean up the old spindles and hubs tomorrow, paint the axle, and start assembling everything. Picking up my PSC 8" hydro ram on monday and my box drilled and tapped. Still tryin to find a fawkin steering shaft!

Name:  770bc5eb.jpg
Views: 12
Size:  52.5 KB

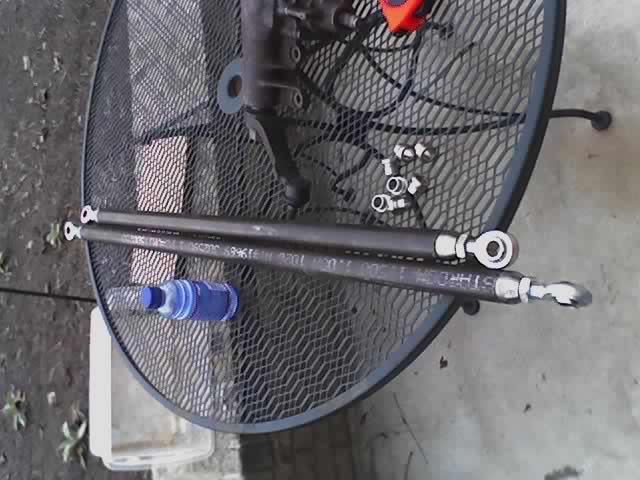

My steering is 1.5" .250 wall. Here it is with the heims and misalignment spacers.

Name:  6b19cec2.jpg
Views: 12
Size:  46.0 KB

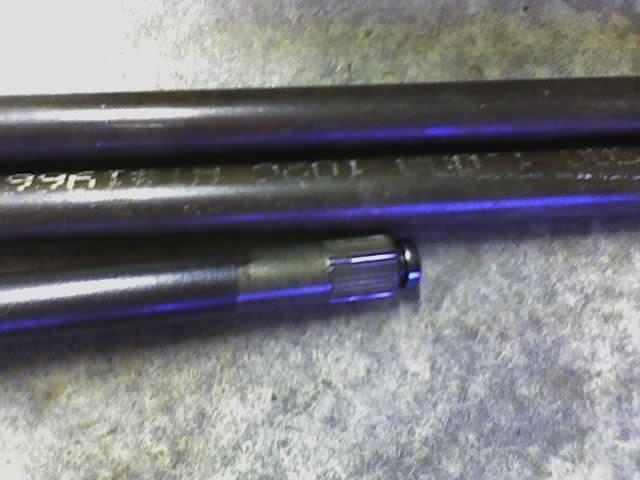

Here is the steering next to a 31 spline 8.8 shaft.

Name:  c90cdd8d.jpg
Views: 12
Size:  36.8 KB

Name:  d9f52184.jpg
Views: 12
Size:  47.8 KB

Name:  313c7ca4.jpg
Views: 12
Size:  23.7 KB

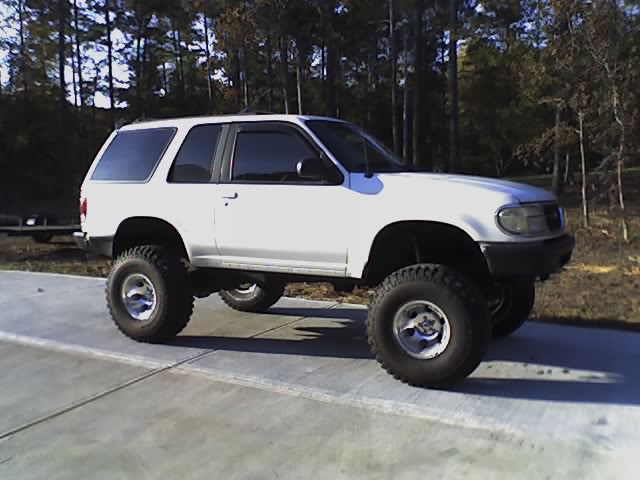

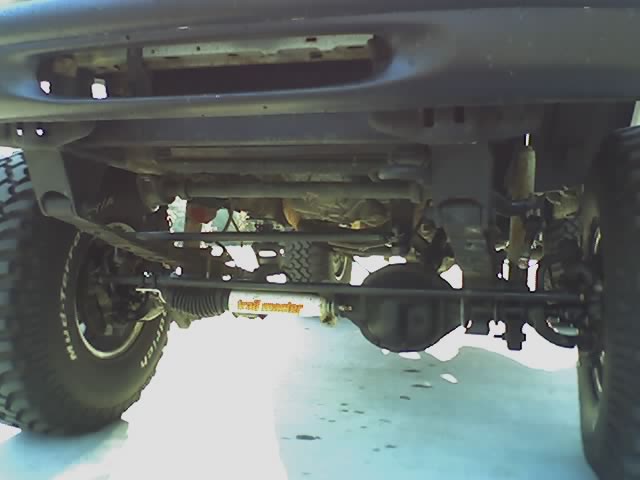

Here's Reggie's (Yomie on explorer4x4.com) '97 explorer.

Name:  982b655b.jpg
Views: 13
Size:  48.8 KB

Name:  a72cb017.jpg
Views: 13
Size:  30.1 KB
Reply With Quote
  #192
Old 11-03-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
whered you get your steering from jey?

I need to start looknig for mine...


and where did you get your yota ifs box and for how much?
Reply With Quote
  #193
Old 11-03-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Box foxfab.com, he's a dealer on pirate4x4.com. 120 shipped, rebuilt i believe.

Steering got at my local shop "mild 2 wild" for 230 with heims, fittings, and misalignment spacers.

Can't wait till i get my box drilled/tapped and my PSC cylinder .
Reply With Quote
  #194
Old 11-03-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
sweet. where also did you get your knuckles milled and tapped?
Reply With Quote
  #195
Old 11-03-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Parts Mike. He makes the knuckles. Got them full flat-top, high steer arm studs, spindle studs and locknuts, and ball joints installed for 500 shipped.
Reply With Quote
  #196
Old 11-03-2005
Member

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
what kind of axle is in the exploder
Reply With Quote
  #197
Old 11-03-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
D30 out of a YJ. 4.88's, lunchbox, crossover steering. 35 bfg's.
Reply With Quote
  #198
Old 11-03-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
He's currently looking for a 44, so he's redeeming himself lol.

He had yukon's and ctm's, but they got lost in the flooding in mississippi where he used to live.
Reply With Quote
  #199
Old 11-03-2005
Member

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
jey whats ur axle out of? i think i might have founf me a dana 44.its out of a older bronco the smaller one. i beilvie ill have to go check it out tomorrow.
Reply With Quote
  #200
Old 11-03-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Jey's axle is out of a Jeep Wagoneer
Reply With Quote
