  #201
Old 11-04-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
1981 waggy, it's alot easier to use the waggy 44 cuz the EB axle is set-up for radius arms and coils, thats alot more **** to cut off then just welding perches on.

BTW d44's have 3-4" wider spring perch mounts, so you'll have to re-do your xmember and shackle hangers...
Reply With Quote
  #202
Old 11-04-2005
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 034x4
1981 waggy, it's alot easier to use the waggy 44 cuz the EB axle is set-up for radius arms and coils, thats alot more **** to cut off then just welding perches on.

BTW d44's have 3-4" wider spring perch mounts, so you'll have to re-do your xmember and shackle hangers...
waggy is the way to go they are cheap, i got mine complete for 100 or so dollars. mines from a 86 though
Reply With Quote
  #203
Old 11-04-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
Quote:
Originally Posted by 034x4
Naw, i'll keep my 8.8 so i have a speedo, and discs.
oh jey, after a little research (thanks bob aka rwenzig), I wouldnt lose my speedo with the 9 inch because the VSS is in the tailshaft inside of the tranny instead of the differential.

I will lose abs cause of the tone ring not in the 9 inch, but id lose it anyway from the sas, as will you...

cheerio.
Reply With Quote
  #204
Old 11-04-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by SUPERGILDO
oh jey, after a little research (thanks bob aka rwenzig), I wouldnt lose my speedo with the 9 inch because the VSS is in the tailshaft inside of the tranny instead of the differential.

I will lose abs cause of the tone ring not in the 9 inch, but id lose it anyway from the sas, as will you...

cheerio.
I don't believe that. Because then in 4-lo, it would be way off.

Rerard on ORR took out his 8.8 and put in a 9", and he has no speedo...
Reply With Quote
  #205
Old 11-04-2005
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
It's true. Late model Rangers adjust the speedo electronically. The adjustment changes when you're in 4Lo vs xHi. The sensor on my t-case has broken twice now. When in 4Lo the truck doesn't know it half the time and the speedo is off. What's even funkier is when the truck thinks it's in 4Lo and it's actually in 2Hi!

In fact Bob and John discussed this when you raised this issue in this thread!

IIRC Rerard has an older (pre ~'01) truck.

Last edited by NHBubba_Revisited; 11-04-2005 at 10:04 AM.
Reply With Quote
  #206
Old 11-05-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

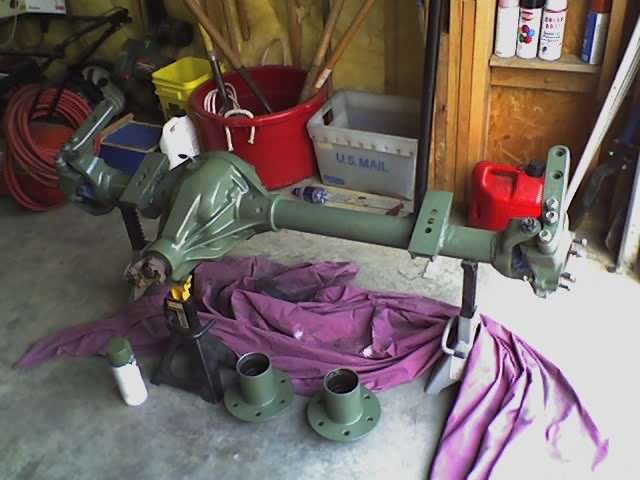

Paint!

Name:  d0eaf45a.jpg
Views: 12
Size:  46.0 KB

Getting my box drilled and tapped for hydro assist and (if it's in stock) picking up my cylinder.
Reply With Quote
  #207
Old 11-05-2005
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Beefy Jey...should of been HOT PINK..lol
Reply With Quote
  #208
Old 11-05-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
You gonna paint it black? Or leave it gray?
Reply With Quote
  #209
Old 11-05-2005
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
I think they gray is primer?

I hope he paints it black...lol
Reply With Quote
  #210
Old 11-05-2005
instigator453's Avatar
Member

Join Date: Nov 2005
Location: Polk City,FL
Posts: 261
that dana 44 out of a 81 wagoneer thats 6 lug right
Reply With Quote
  #211
Old 11-05-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Yup 6 lug.

Are ya'll on crack? Thats green not grey wtf? Its an olive green. Caliper brackets are black and the diff cover will be black after i weld the hydro steer tabs on it.

My local shop, Mild 2 Wild 4x4 Customs, is drilling/tapping the box. On monday i'm picking it up with tabs and the hydro ram.

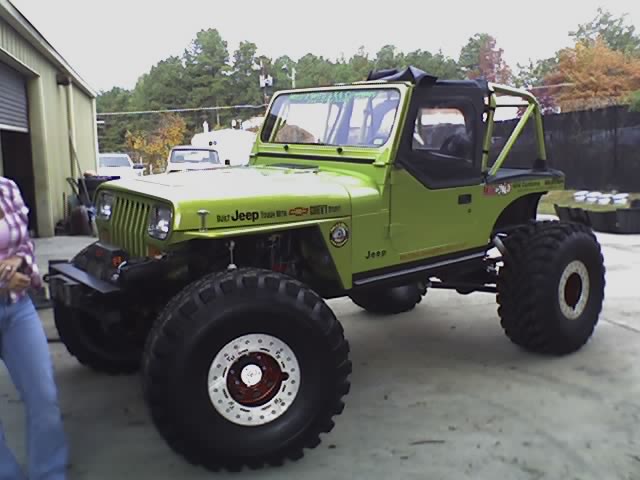

Here is his YJ. Dana 60 front, 14 bolt rear. Front leafs, rear quarter eliptical. chevy 350 propane injected. 44x18.50 Ground hawgs grooved/sipped on 15x12 trail-ready beadlocks.

Name:  41684a5e.jpg
Views: 39
Size:  44.4 KB

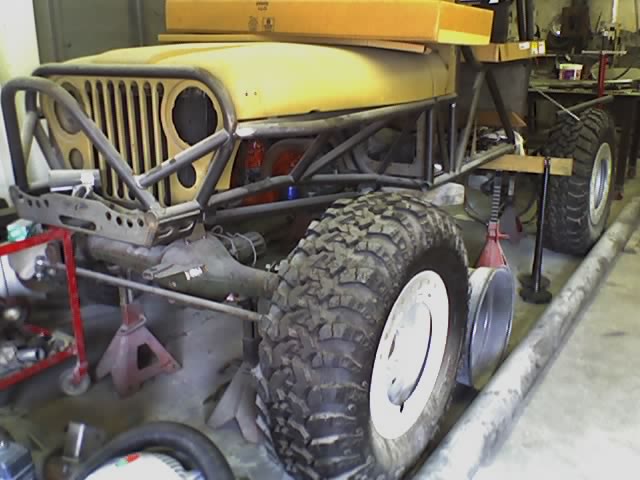

His buggy in progress. Blue torch fusion chassis stretched and widened. Volvo portal axles. Irok's on 20" trail-ready beadlocks. chevy 350.

Name:  2ca6c5c8.jpg
Views: 12
Size:  50.6 KB

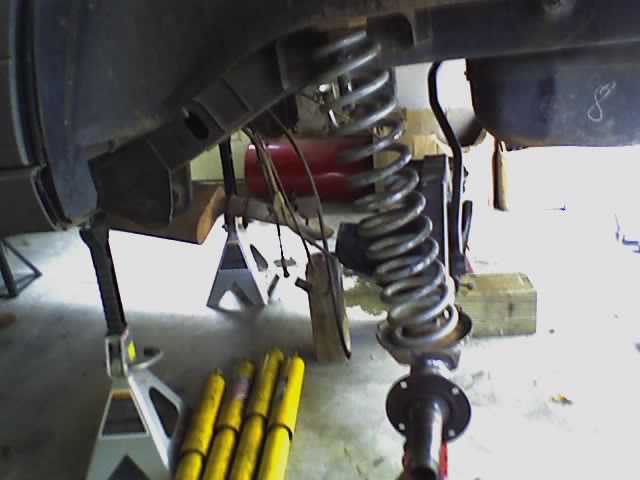

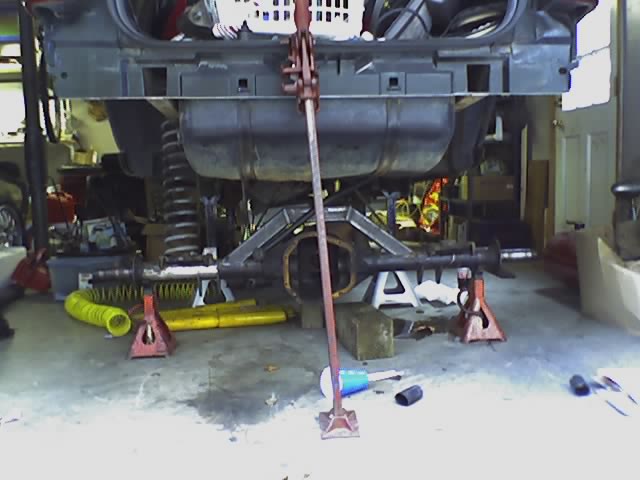

My friend jonathans ZJ. His 60 with the truss, coil buckets, and lower link tabs all tacked on. Sitting with the springs in place, sort of, we still need to move the upper buckets to the rear.

Name:  134a826d.jpg
Views: 13
Size:  41.9 KB

Name:  196c3987.jpg
Views: 12
Size:  34.1 KB

Now my shiat.

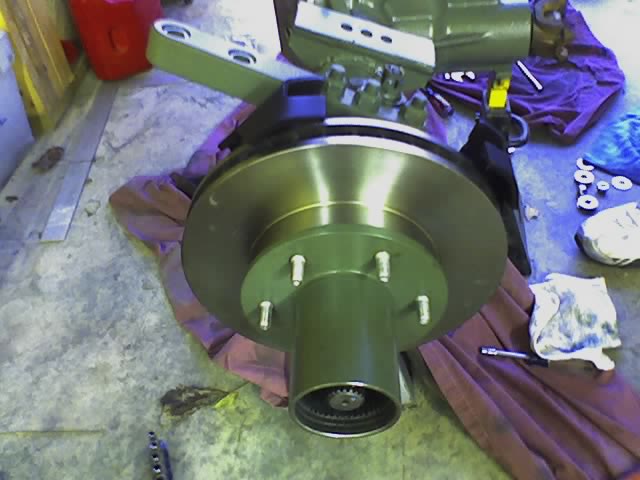

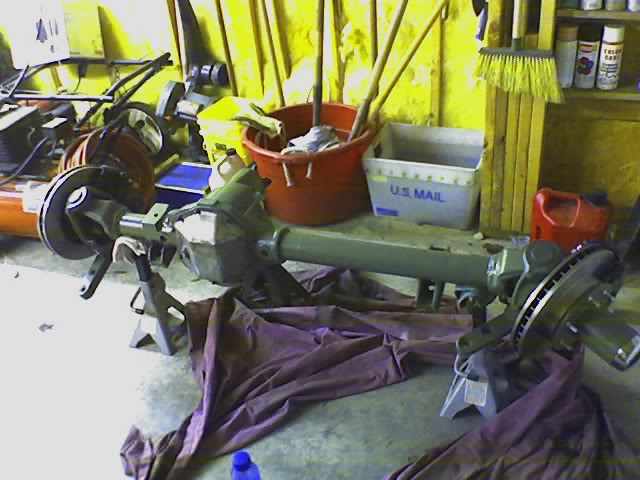

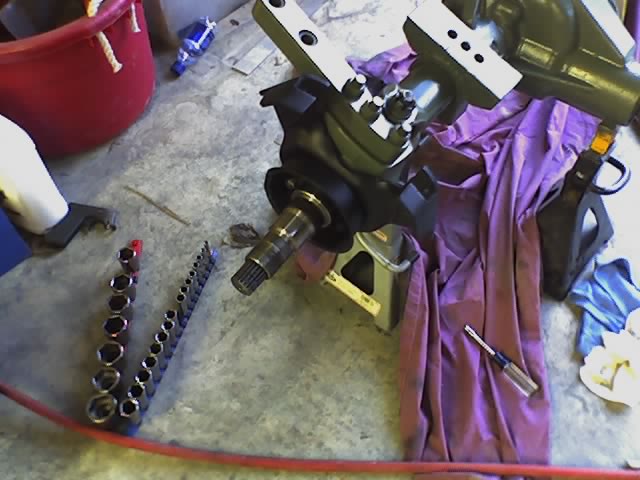

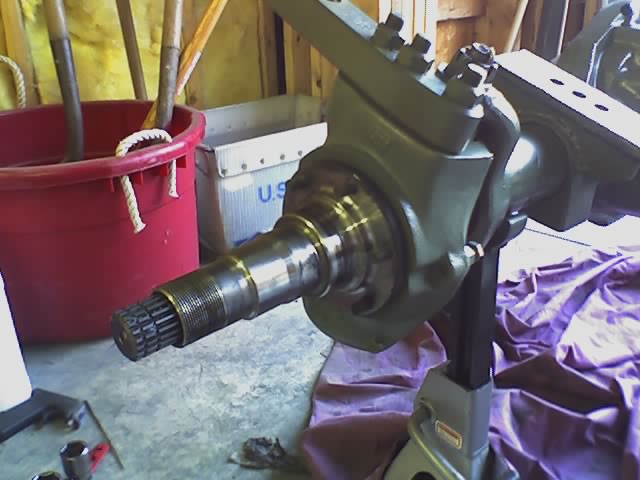

My axle is now fully assembled except for the steering and the hydro steer tabs on the diff cover.

Name:  7373c18c.jpg
Views: 12
Size:  46.4 KB

Name:  e8da28ee.jpg
Views: 12
Size:  50.2 KB

Name:  eb319704.jpg
Views: 13
Size:  43.5 KB



Name:  4caad07e.jpg
Views: 13
Size:  54.2 KB
Reply With Quote
  #212
Old 11-05-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
hw much were those rotors?
Reply With Quote
  #213
Old 11-06-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
I don't remember... www.autozone.com
Reply With Quote
  #214
Old 11-06-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Could someone give me a description or a link to what quarter-elliptical is?
Reply With Quote
  #215
Old 11-06-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Reply With Quote
  #216
Old 11-06-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

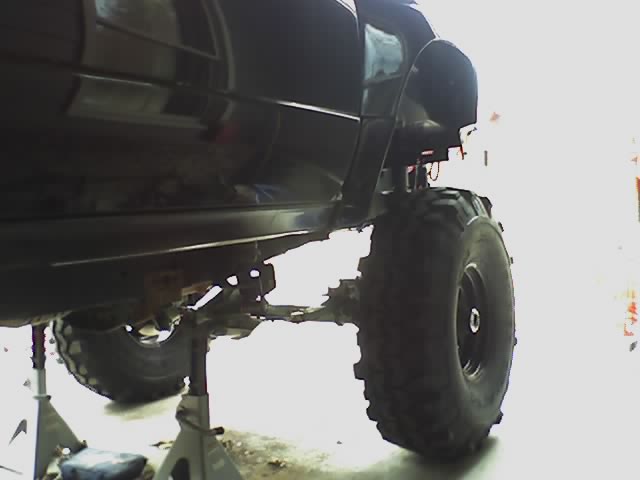

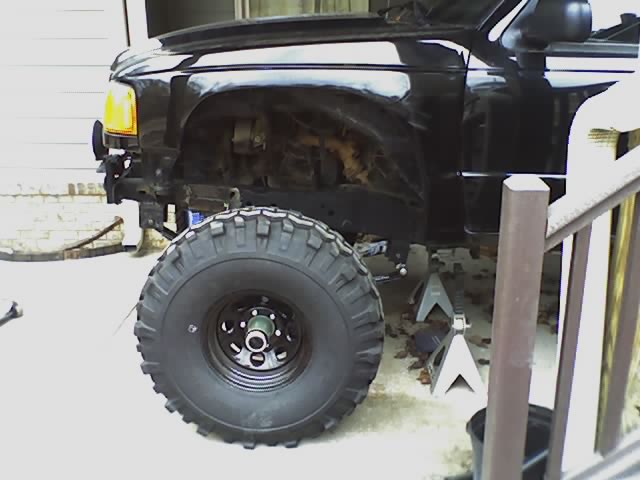

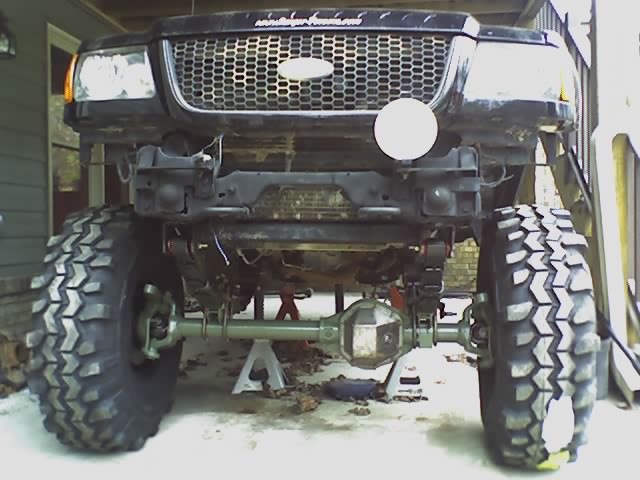

Got the axle mounted on the truck and the tires, and it's sitting on its own weight.

I had alcan design the spring for my hanger lengths and shackle length, the springs are still too long for a 2" shackle. I need 2 factory ranger shackles if anyone has them, that I can have for free.

Name:  ab231a39.jpg
Views: 12
Size:  41.5 KB

Name:  d08d30e9.jpg
Views: 14
Size:  54.3 KB

Name:  e3cc7a3c.jpg
Views: 12
Size:  25.3 KB
Reply With Quote
  #217
Old 11-06-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
lookin good jey. how about a 3/4 view shot from eye level???
Reply With Quote
  #218
Old 11-06-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
That quarter-elliptical mount is crazy! I'll have to try and do some more reading on it.
Reply With Quote
  #219
Old 11-06-2005
Member

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
lookin good jey.how wide are those rims? 8's?
Reply With Quote
  #220
Old 11-06-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Ya 15x8.
Reply With Quote
  #221
Old 11-06-2005
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
I would paint the axle the baby blue, like Bob did his. That seems a very Ford color.. That would be slick..

Edit: Never finished this thought! That should say '..like Bob did his traction bars'. I don't think he has a solid axle up front.. yet!

Last edited by NHBubba_Revisited; 11-07-2005 at 09:36 AM.
Reply With Quote
  #222
Old 11-06-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Naw i'm painting them black and green, for a more military look. All the red interior i'm painting the same color.
Reply With Quote
  #223
Old 11-06-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

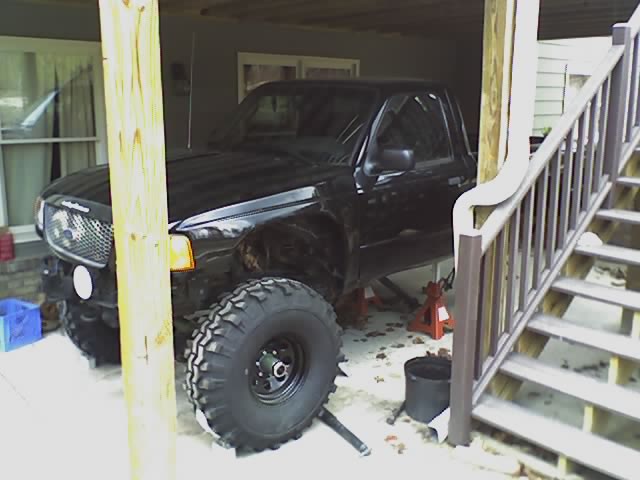

This better? the stairs are why i never have 3/4 shots...

Name:  68cac252.jpg
Views: 12
Size:  43.2 KB
Reply With Quote
  #224
Old 11-06-2005
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
looking good. but why do the wheels look so far forward in this pic?
Name:  ab231a39.jpg
Views: 12
Size:  41.5 KB
Reply With Quote
  #225
Old 11-06-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
Quote:
Originally Posted by 5speedin2.3
looking good. but why do the wheels look so far forward in this pic?
Im not sure if jey had this purpose, but I know im going to move my front axle forward just a bit for a better aproach angle...
Reply With Quote
