  #151
Old 10-13-2005
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by NHBubba
The -1350 in our trucks
BorgWarner 1354

I wanna say the 1350 is in Explorers with the 5.0, but I could be wrong..
Reply With Quote
  #152
Old 10-13-2005
Member

Join Date: Jun 2004
Location: Somewhere, XYZ
Posts: 4,351
Doh! -1354.. I think you're right. Although I think the -1350 was on earlier (80's) Rangers.
Reply With Quote
  #153
Old 10-13-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Getting a set of these also...

http://www.staunproducts.com/beadlock.php



Reply With Quote
  #154
Old 10-13-2005
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by 034x4
Getting a set of these also...
Dude I saw those at the last couple Off Road shows here this month, they are bad ***! Let us know how it works for ya!

Quote:
Although I think the -1350 was on earlier (80's) Rangers.
Your right.. I just looked, 80's Rangers did have the 1350.

The 1354 came about in 90'. From 90-93 you had an option 1350 or 1354 and in 94 they went all to 1354, though the option for manual or electric shift was available...

Last edited by rngprerunner; 10-13-2005 at 03:22 PM.
Reply With Quote
  #155
Old 10-13-2005
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
id skip the staun beadlocks seeing as they are about the same price as that of beadlocked rims. might as well have stazworks make you a set of custom double bead locks. they run about 225 a rim i think
Reply With Quote
  #156
Old 10-13-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
staun are 4 for 200
Reply With Quote
  #157
Old 10-13-2005
3LiterBeater's Avatar
Member

Join Date: Jun 2004
Location: OC, CA
Posts: 879
900 vs 200... hmmmm...
Reply With Quote
  #158
Old 10-13-2005
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by SUPERGILDO
staun are 4 for 200
wow i must have read the thread on pirate wrong then i could of sworn they were going for like 175 each. well nevermind then carry on.
Reply With Quote
  #159
Old 10-13-2005
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
I may be wrong as well but last time i priced them on the internet I thought I remembered 4 for 200 ish.

thats the only reason I wanted them as well. cheap double beadlocks...
Reply With Quote
  #160
Old 10-13-2005
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
staun beadlocks

roughly 195 a peice, for that price youd be better off getting the 2 peice rims made and you can mount your own tires
Reply With Quote
  #161
Old 10-13-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Staun beadlocks will not affect the streetability or balancing of the tires. And they are double beadlocks.

But then again i can get a set of weld-on outside beadlocks for 300~ shipped.
Reply With Quote
  #162
Old 10-13-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
I thought beadlocks weren't street-legal?
Reply With Quote
  #163
Old 10-13-2005
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
some are such as stock h1 rims, 12 bolt humvee rims, hutchinson and a select few others
Reply With Quote
  #164
Old 10-13-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
If you research it, they arn't actually "illegal". It's a grey area in DOT laws. The wheel itself has to be DOT stamped, which mine are. Go on pirate4x4.com and search for it.

Correction, weld on outer beadlocks 280 shipped minus hardware, going this route seeing as the staun beadlocks are 180 a peice.
Reply With Quote
  #165
Old 10-14-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
The DOT stamping on the wheels is where it's weird. Most companies that manufacture and sell beadlocks do not have the wheels DOT stamped, to avoid any liability that could possibly point back to them and the beadlocks. But then some beadlocks are stamped, and some rims, with no centers and no beads, are DOT stamped, even though you cannot bolt it on a truck or mount a tire on it. It's confusing, i think a vendor on pirate has a 50$ reward if you can actually find a law that says beadlocks are illegal.
Reply With Quote
  #166
Old 10-24-2005
Member

Join Date: Oct 2005
Location: redding, ca
Posts: 15
looks good bro.. power on.. just noticed a damn crack in my front crossmember where the ttb bracket bolts on.... i guess i'll be doing mine soon.. still up in the air on ttb or solid... i was given a ttb50 out of a 97' f-250.... i know it's weird but it will **** off my jeep buddies who say it won't work.. 39.5's are hard on parts i guess... snapped the 1350 t-case in reverse pulling a superduty back onto the road..dammitt...just threw another one in for now but i'm thinking all superduty trans/t-case... it's wide but i need strong stuff...the dana 50 front solid out of a 99'up superduty (once narrowed) is looking good too.. big brakes, big shafts, big u-joints,etc....lol and keep the pics up..
Reply With Quote
  #167
Old 10-24-2005
Member

Join Date: Oct 2005
Location: redding, ca
Posts: 15
also on the beadlocks, go with the internal stuff.. my jeep guys are always complaining about bolts breaking, not able to remove do to damage, expensive,balance probs.... the internal works better anyhow and can go from your $50 bent wheel into the new $50 wheel, try that with conventional beadlocks...lol
Reply With Quote
  #168
Old 10-24-2005
Member

Join Date: Jun 2004
Location: Lexington, SC
Posts: 526
This is just a suggestion... or maybe a request to the Moderators.

There is a lot of good information in this thread from the Original poster and from other members, but there is also a lot of clutter. This should definitely be a sticky, or perhaps a how-to, considering it is pretty step-by-step, and 034x4 has been pretty consistent in posting parts, numbers, and where he got things from.

034x4, I know you already said this before, but considering this thread is 13 pages long, I can't find it. Where are you getting your front driveshaft from? Oh yeah, and hurry up and finish that ****
Reply With Quote
  #169
Old 10-24-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
When i get the front finished, the tranny crossmember finished, i'll make some measurements, then give High angle driveline a call.

And don't worry, i don't think i had mentioned that either.
Reply With Quote
  #170
Old 10-27-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
I'm glad it's helpin ya'll out so much, I'm trying to get everystep either in text and hopefully with pictures too. Because no one else has hardly any SAS info or threads on here.

I'll have to get a mod to cut it down for me when I finish.
Reply With Quote
  #171
Old 10-31-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099

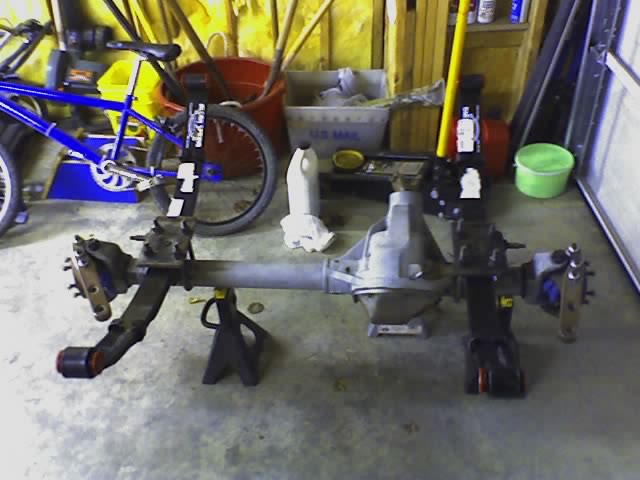

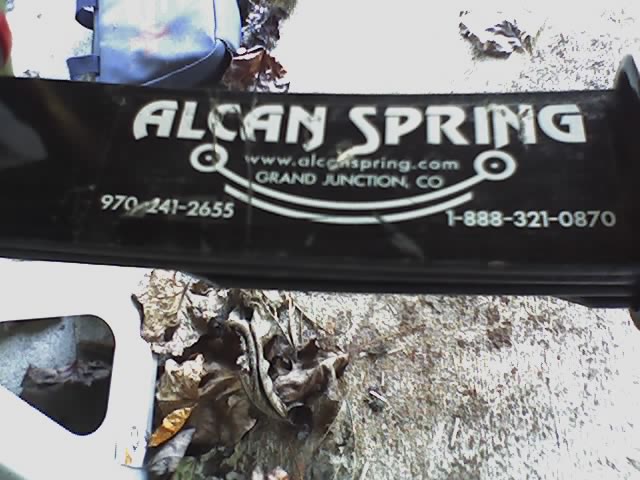

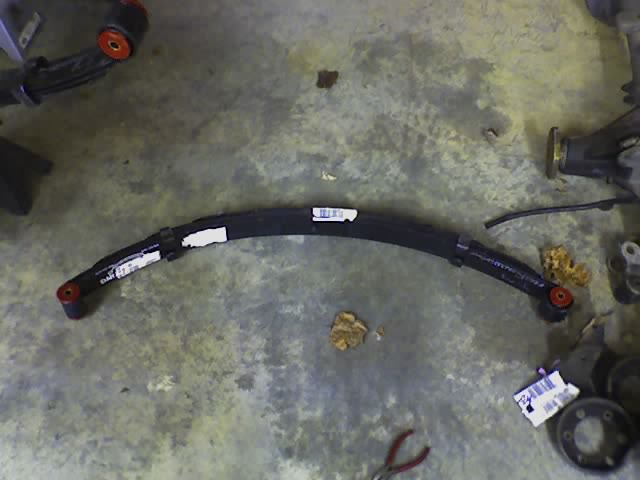

Here's some pics, got them, and the new shackles (factory waggy bushing are 2.5", alcan's are 3") on the axle, and on the truck.

I actually have too much pinion angle now, moving them back 10*, welding them on for good, then set my caster, weld the knuckles, and assemble the axle...

Gil where the FAWK is my QUOTE!!!???

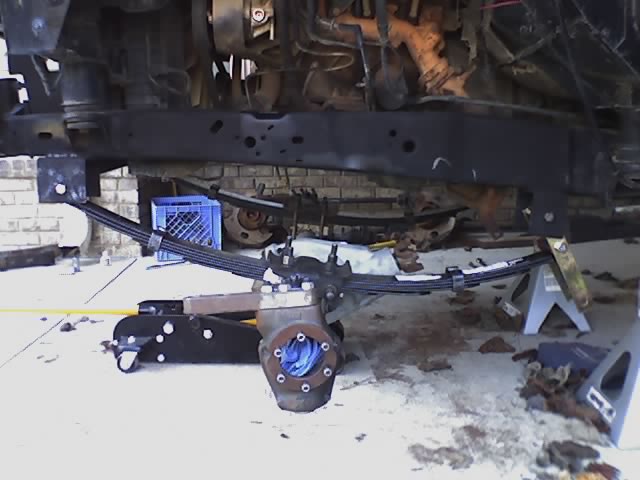

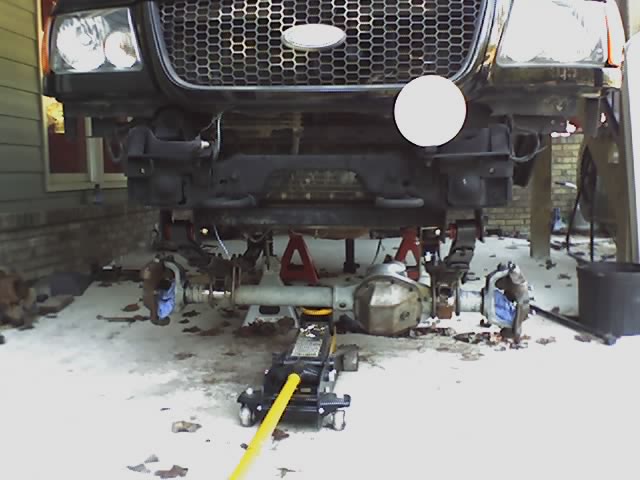

EDIT: the last pics have the weight of the truck on the axle, it is not sitting on the jackstands, so my shackle angle is perfect at ride height. Just gotta cut the extra **** off of the end of the shackles.

Name:  7c34e763.jpg
Views: 9
Size:  34.6 KB

Name:  2ef38c6b.jpg
Views: 9
Size:  58.6 KB

Name:  68275d44.jpg
Views: 9
Size:  45.7 KB

Name:  7b53bf9f.jpg
Views: 9
Size:  42.2 KB

Name:  e7ee3b60.jpg
Views: 9
Size:  46.5 KB
Reply With Quote
  #172
Old 10-31-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
When you say you're moving them back 10*, what are you moving back?
Reply With Quote
  #173
Old 10-31-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Rotating the spring perches forward 10 degrees...therefor dropping the pinion angle 10 degrees, and giving me 10 degrees more caster without turning the knuckles.
Reply With Quote
  #174
Old 10-31-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
oh ok I see what you're saying. You move where the axle bolts to the leaves so it drops the pinion down and you get a better driveshaft angle. Still learning techincal terms for it, but spring perch makes alot of sense now that I think about it.

What is your driveshaft angle going to be once you get it the way you want it?
Reply With Quote
  #175
Old 10-31-2005
Member
Thread Starter
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by Gearhead61
What is your driveshaft angle going to be once you get it the way you want it?
good...lol.

I already took the axle back off so i can't go measure it, but i'm about done weldin the perches back on so when i re-mount the axle on tonight, i'll measure it.

Maybe 25-35*?
Reply With Quote
